Multi functional webbing nylon polyester ribbon roller rotary sublimation transfer coloring printing lanyard heat press machine
- Category: >>>
- Supplier: Yangjiang Hengrong Electronic Technology Co. Ltd.
Share on (1601093308669):
Product Overview
Description
Product Description
The product can be applied to one side ordouble-sided printing fabric, such as: ribbon,lace,mobile phone lanyard .With stabled heatingtemperature ,the effects of finished products havegood and clear printings by its accuratepositioning according the different requirement!whats more, it can transfer several fabric at thesame time in order to improve the productionefficiency.
Specification
Roll Diamater (mm) | 200mm | 420mm |
Roll Width (mm) | 600mm | 900mm |
Voltage (v) | 110V 220V single phase | 110V 220V single phase |
Power (kw) | 5.2 KW | 5.2 KW |
Temperature Range (℃) | 0-280℃ | 0-280℃ |
Noise (Db) | 30Db | 30Db |
Printing Speed/Hour | 30-40m/h | 30-40m/h |
Packing Size (m) | 1.30*1.20*1.45 | 1.60*1.20*1.45 |

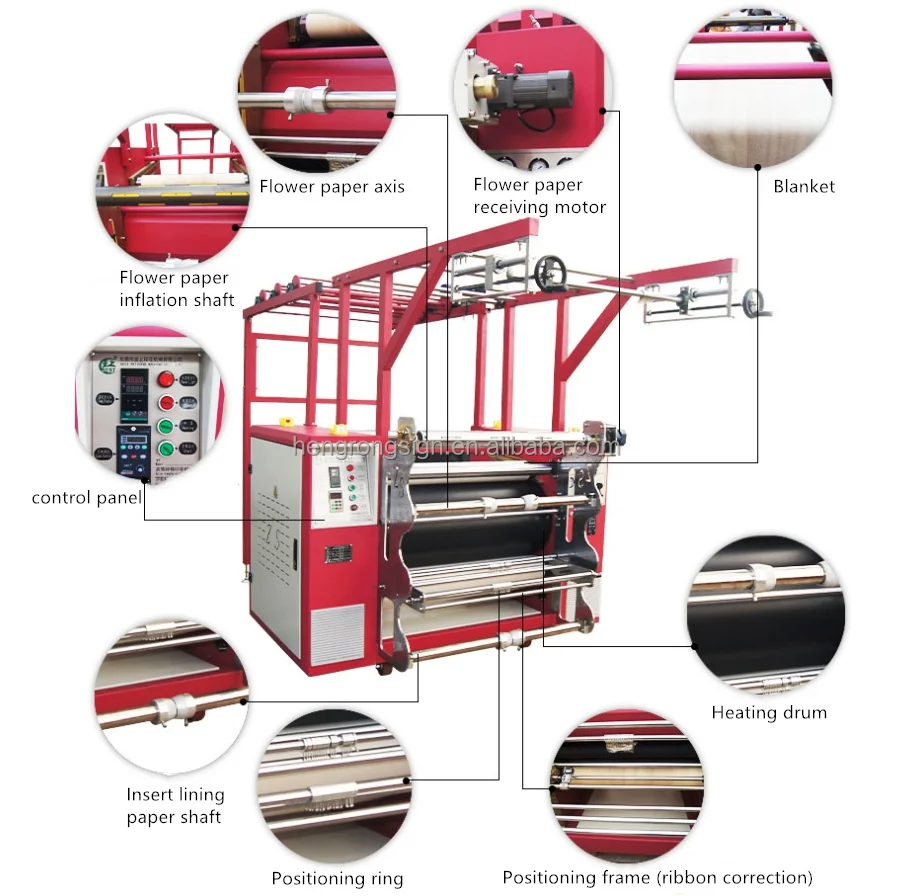

1. Positioning workbench: Easily achieve single/double-sided printing of belt products, with more precise alignment.
2. Seamless steel pipe drum: precision machining of inner/outer circles of the drum, precision grinding machine for outer circles, and then coated with PTFE, the drum generates heat evenly without color difference.
3. Imported heating tube: Imported Taiwan stainless steel heating tube and heat transfer oil, directly heating the oil layer, can heat up to 200 degrees Celsius in about 45 minutes
4. Pneumatic pressurization: Pneumatic pressurization (adjustable pressure), with a front silicone shaft for better transfer efficiency.
5. Strap tying device: After the ribbon is transferred and printed, the strap is not easily knotted and is easy to roll.
2. Seamless steel pipe drum: precision machining of inner/outer circles of the drum, precision grinding machine for outer circles, and then coated with PTFE, the drum generates heat evenly without color difference.
3. Imported heating tube: Imported Taiwan stainless steel heating tube and heat transfer oil, directly heating the oil layer, can heat up to 200 degrees Celsius in about 45 minutes
4. Pneumatic pressurization: Pneumatic pressurization (adjustable pressure), with a front silicone shaft for better transfer efficiency.
5. Strap tying device: After the ribbon is transferred and printed, the strap is not easily knotted and is easy to roll.
