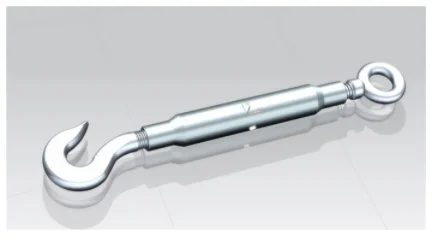

2024 Factory Customized Hardware Accessories Industrial Machinery Hook & Eye Swivel Buckle Din 1478 Galvanized Swivel Buckle
- Category: >>>
- Supplier: Yuyao Swintool Co. Ltd.
Share on (1601093317658):
Product Overview
Description
item | value |
Measurement system | Imperial (Inch) |
Application | Heavy Industry, Retail Industry |
Turnbuckles body type | Open body |
Type | European Type |
Place of Origin | China |
Zhejiang | |
Brand Name | swintool |
Surface Treatment | Hot Galvanized |
Product | Standard plate Ratchet WrenchTurnbuckle assembly with Din1478 |
Steel Material | Carbon steel |
Type | European Type |
Surface | galvanized or hot dipped galvanized,Zinc Plated |
Color | self-color,black ,electroplating,painted |
Construction | Drop forged,ball joint |
certificate | SGS AND ISO |
BREAKING LOAD ABILITY | 45TON |
Size | customized size |
Quality | High precision |
Material of closed body turnbuckle:
Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China
Q235A,Q345B steel.
Stainless steel is Grade A4 I as in DIN EN ISO 3506-2, in China 304,316 or 316L
stainless steel..
Screw threads of turnbuckle:
The threads of turnbuckles shall be metric coarse pitch threads as in DIN IS0 965-2,
produced to tolerance 6H.
Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
Surface finish of turnbuckle:
DIN EN ISO 4042 shall apply with regard to electroplating.
DIN EN ISO 10684 shall apply with regard to hot dip galvanizing.
For turnbuckles made of stainless steel, passivation in accordance with DIN EN ISO
16048 is required.
Turnbuckle Connection components:
Welding stud as per DIN 34828.
Customized forged clevis fork links, eye blot, hooks, rod end etc.
Turnbuckle Assembly

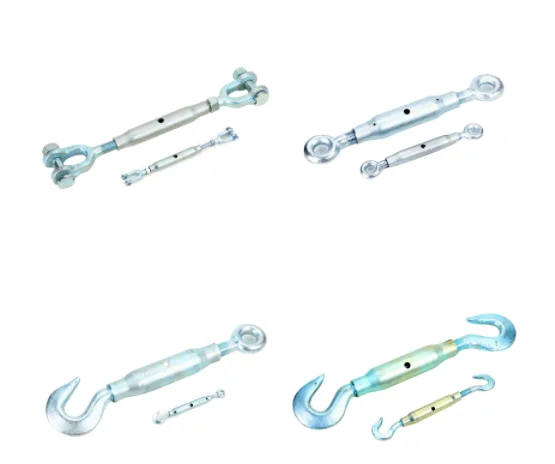

Turnbuckle shall be assembled with welding studs, jaw/jaw, eye/eye, hook/hook.
Jaw/eye, jaw/hook, eye/hook etc..
Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China
Q235A,Q345B steel.
Stainless steel is Grade A4 I as in DIN EN ISO 3506-2, in China 304,316 or 316L
stainless steel..
Screw threads of turnbuckle:
The threads of turnbuckles shall be metric coarse pitch threads as in DIN IS0 965-2,
produced to tolerance 6H.
Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
Surface finish of turnbuckle:
DIN EN ISO 4042 shall apply with regard to electroplating.
DIN EN ISO 10684 shall apply with regard to hot dip galvanizing.
For turnbuckles made of stainless steel, passivation in accordance with DIN EN ISO
16048 is required.
Turnbuckle Connection components:
Welding stud as per DIN 34828.
Customized forged clevis fork links, eye blot, hooks, rod end etc.
Turnbuckle Assembly
Turnbuckle shall be assembled with welding studs, jaw/jaw, eye/eye, hook/hook.
Jaw/eye, jaw/hook, eye/hook etc..
