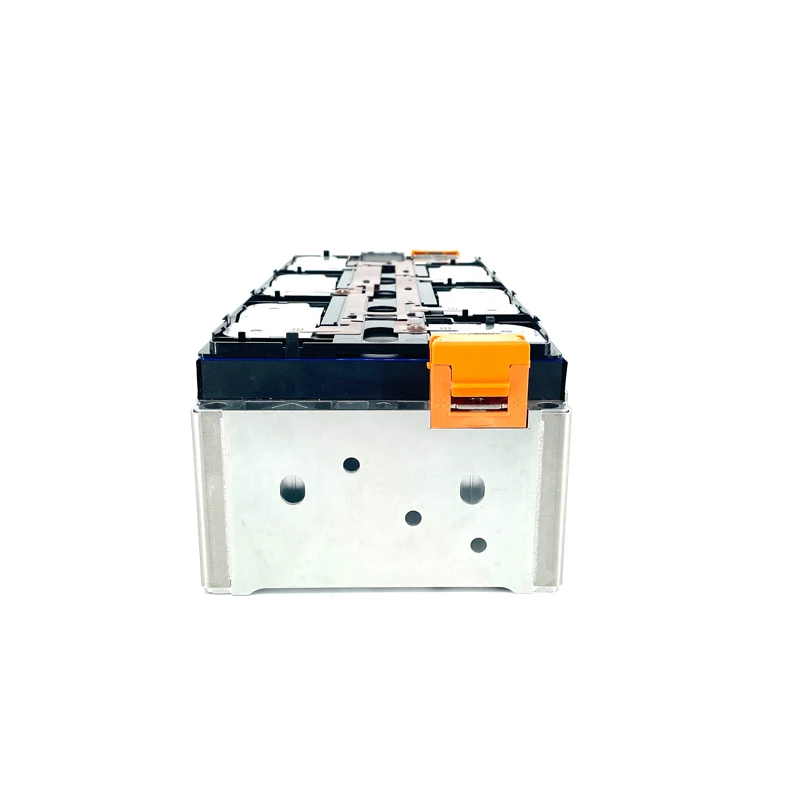

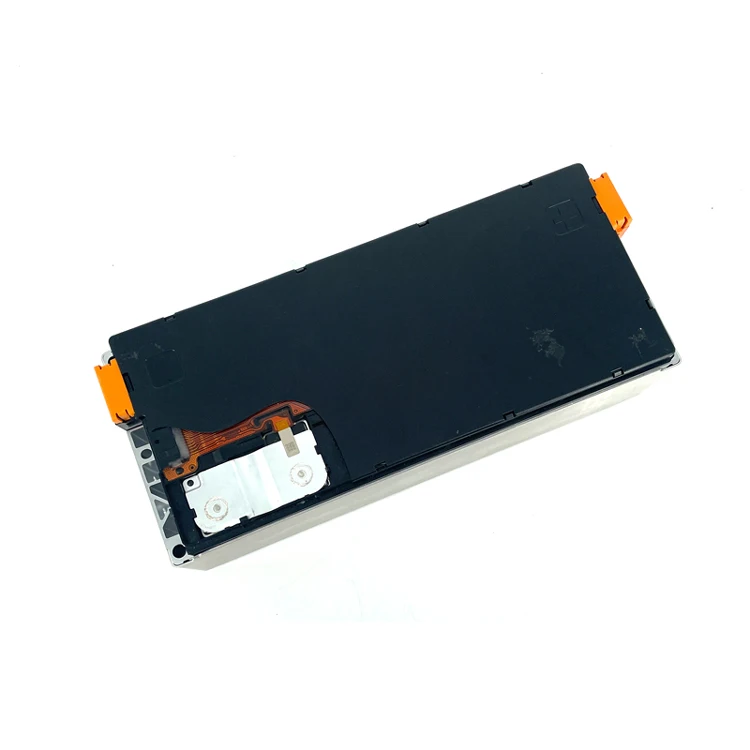

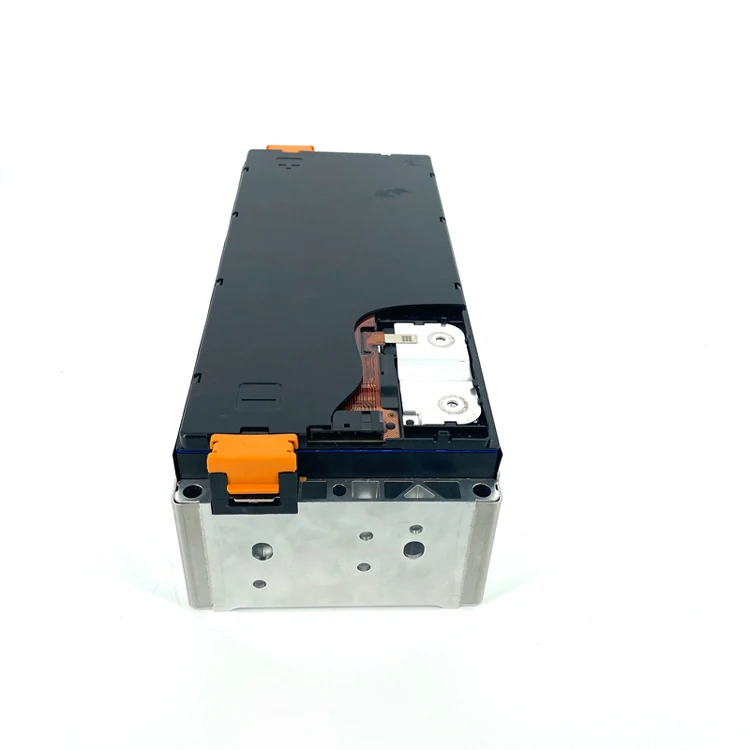

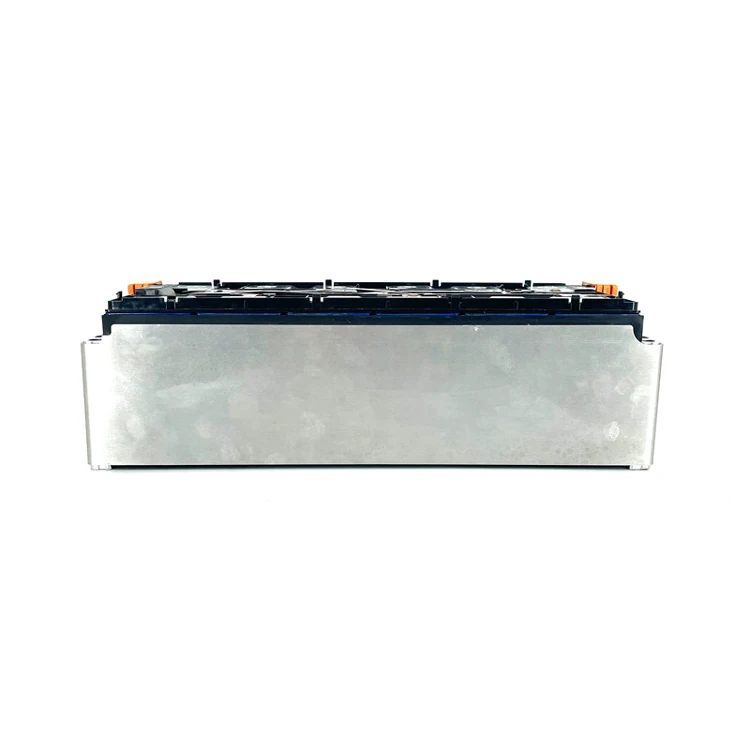

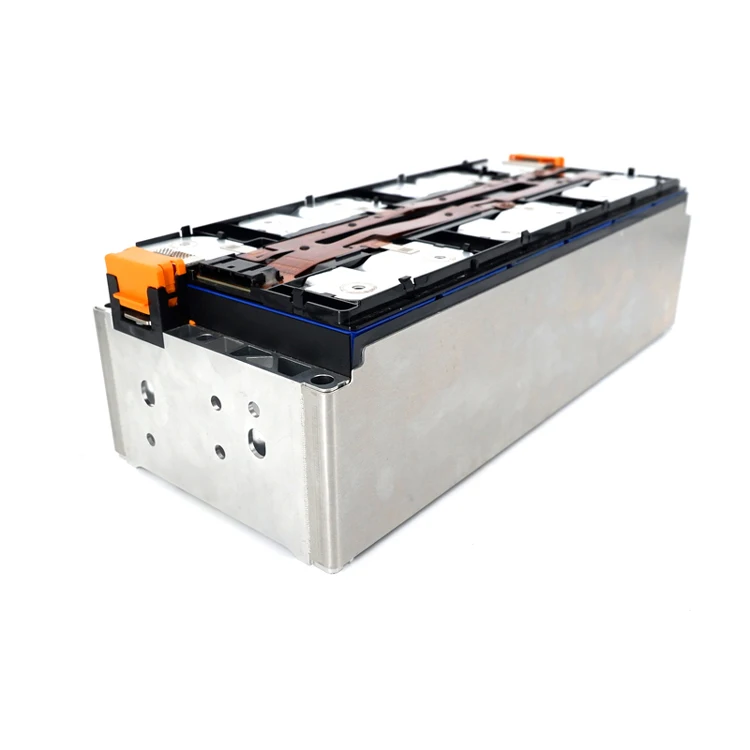

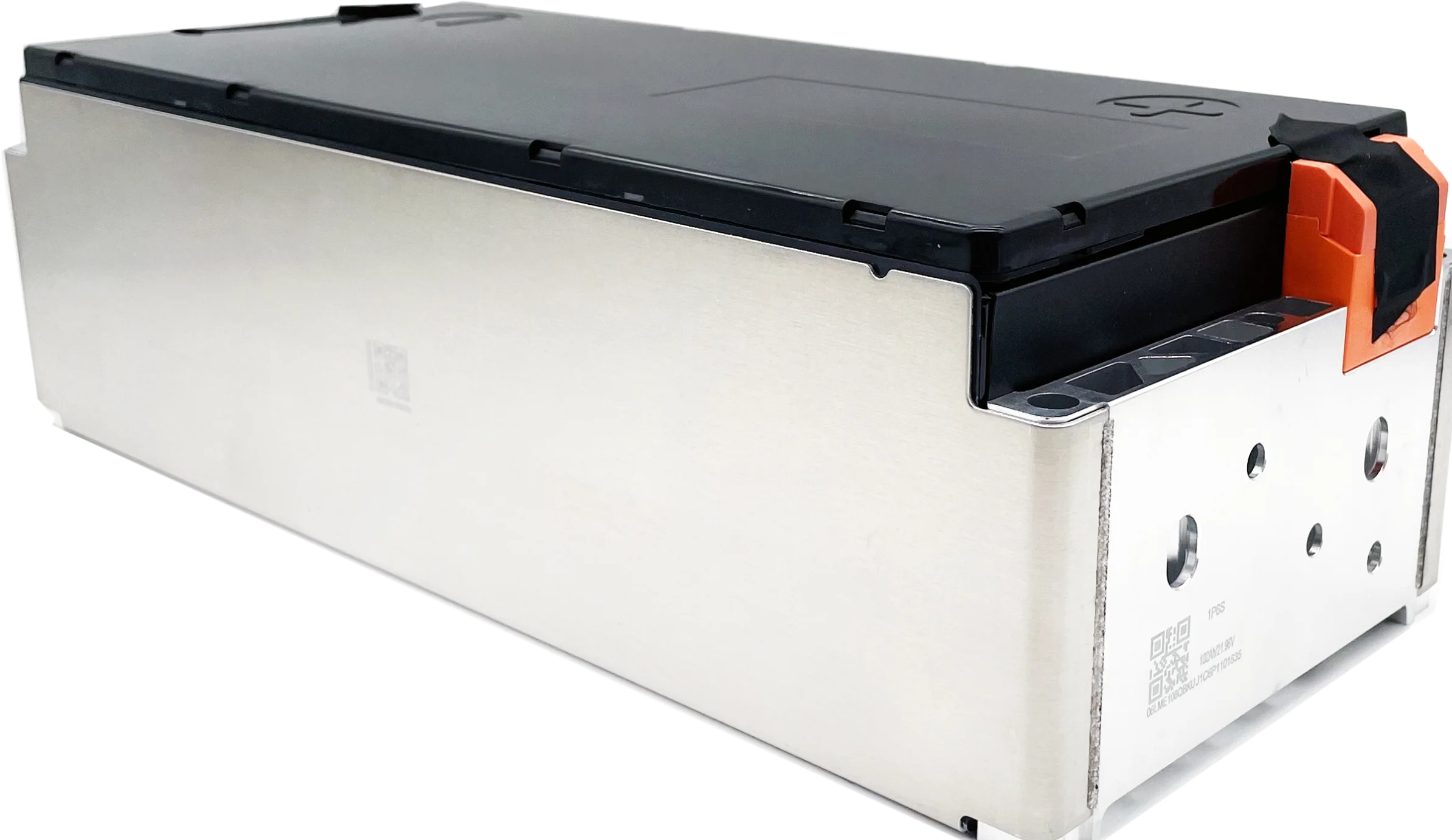

EV Power Module Leaf Lithium Li ion Batteries 14.6V VDA Module LFP 177Ah 1P4S Lifepo4 EV Batteries Module For EV Electric Car
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1601093364505):
Product Overview
Description
Products Description
NCM 177Ah 1P4S VDA MODULE | ||||
Item | Specification | Note | ||
Nominal voltage(V) | 14.64 | |||
min | 11.2 | T: 25±3℃ | ||
max | 17.4 | T: 25±3℃ | ||
Nominal capacity(Ah) | 177 | 1/3C，100%DOD | ||
Nominal energy（KWh ） | 2.591 | 1/3C，100%DOD | ||
Available energy（KWh ） | 1P4S | |||
Group mode | 11.9 | |||
End of life residual capacity (Ah) | 211.3 | |||
Module weight（kg） | 348 | |||
Maximum continuous charge current（A） | 310 | @10S，SOC≤70% | ||
Maximum short pulse charge current（≤10s） | 465 | @10S，SOC≥30% | ||
Maximum continuous discharge current（A） | 10~90 | |||
Maximum short pulse discharge current（≤10s）（A） | Natural cooling | |||
SOC operating range（%） | No | Or heating film | ||
Insulation requirements(MΩ) | 2 | |||
Module cooling method | 50%±5 | SOC is consistency in the same batch | ||
Module heating method | -20~55 | |||
Shipping capacity (SOC) | -30~55 | |||
Shipping consistency（mv） | -30~55 | |||
Coulomb efficiency | 355 | |||
Module self-discharge | 152 | |||

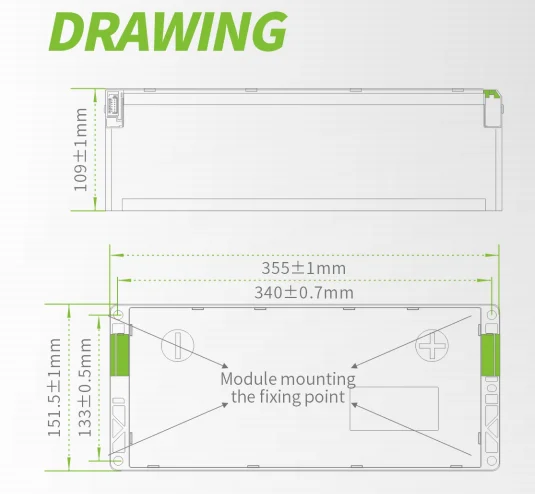

Dimension L （mm） | 108.5 | |||
Dimension W（mm） | 151.5 | |||
Dimension H（mm） | 108.5 | |||
Product Accessories

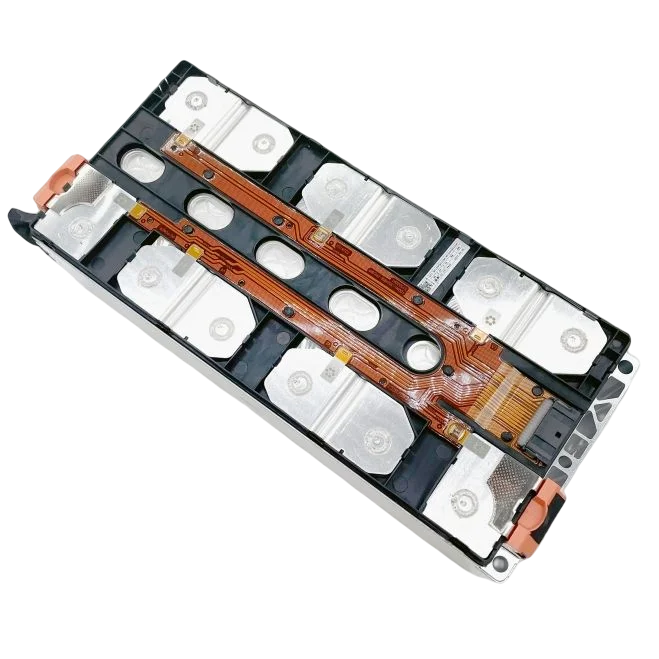

Wring&Connector
It is available to customize wiring&connector of connecting battery mdoules with BMS. The wring end of batteyr module will follow module connector and wiring end of BMS terminals can be nude or customized against your BMS.

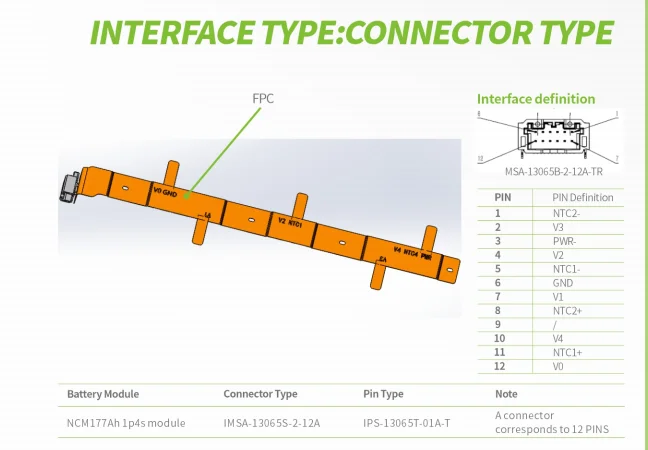

Connector&PIN Needle
Lithium Storage provides the corresponding connector&PIN Needle to suit our battery modules. Generally, one module will match 1pc connector+12pcs Pin Needles.
A VARIETY OF OPTIONS TO CHOOSE FROM | ||||||||
NCM177Ah 1P4S NCM58Ah 1P12S NCM58Ah 2P6S NCM58Ah3P4S
Product Application
Company Profile
Certifications
Exhibition
Product packaging
Shipping option | Delivery period | Transportation period |
Air shipment | 5-10 working days | 7-10 days |
Sea shipment | 5-10 working days | 30-35 days |
FAQ
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A: We usuallly ship by Fedex. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A: We usuallly ship by Fedex. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
