Product Overview
Description
Product Description

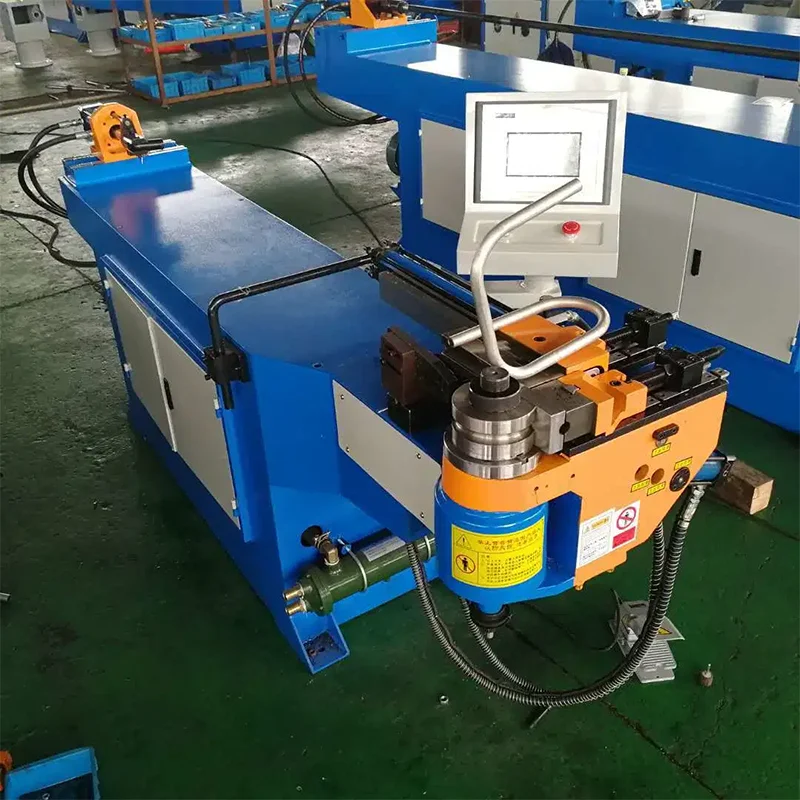

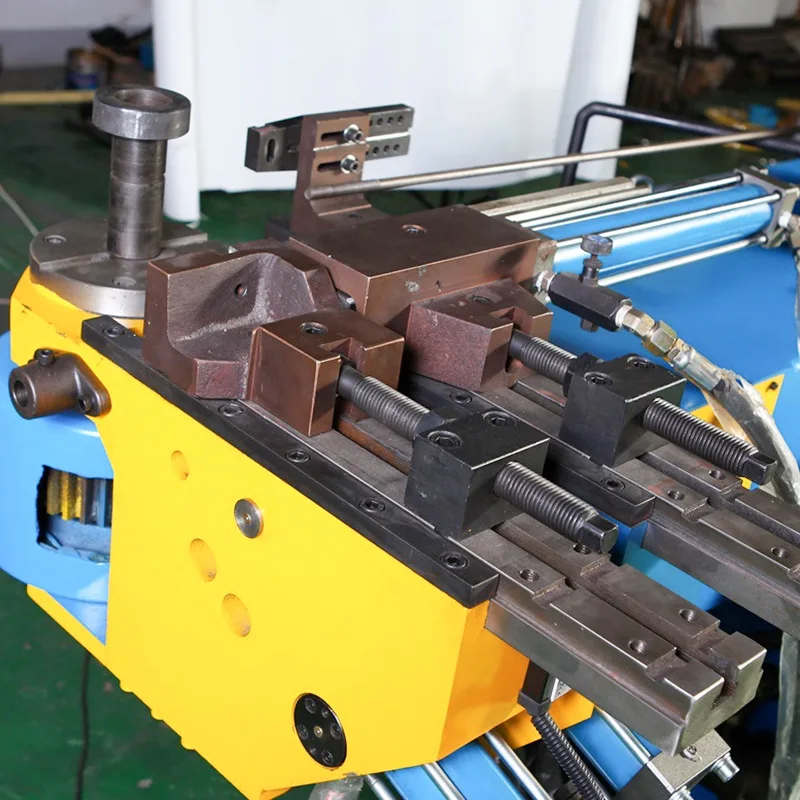

CNC Pipe Bending Machine
The WEIYA CNC pipe bending machine boasts automatic error detection, promptly displaying faults on-screen for easy
troubleshooting. Material inputs are streamlined via the touch screen interface. For varying materials, compensation data, speed,and release gap can be adjusted at each bending step. Additionally, the machine allows for programming five action sequences and ten running speeds for each bend, optimizing efficiency and minimizing pipe interference. Servo motors drive the bending control and corner feeding, ensuring high precision and efficiency, making it ideal for intricate pipe fittings with numerous angles and stringent precision requirements.
troubleshooting. Material inputs are streamlined via the touch screen interface. For varying materials, compensation data, speed,and release gap can be adjusted at each bending step. Additionally, the machine allows for programming five action sequences and ten running speeds for each bend, optimizing efficiency and minimizing pipe interference. Servo motors drive the bending control and corner feeding, ensuring high precision and efficiency, making it ideal for intricate pipe fittings with numerous angles and stringent precision requirements.
Specification
Model | WY-50CNC-2/3A-1S | WY-75CNC-2/3A-1S | WY-89CNC-2/3A-1S |
CNC/Full Automatic 2/3A | hydraulic/electric bending 1s:1stack | hydraulic/electric bending 1s:1stack | hydraulic/electric bending 1s:1stack |
Max Bending Capacity | 50.5(2.5'')*4mm | 75(2.5'')*4mm | 89(2.5'')*4mm |
Bending Degree | 0-190° | 0-190° | 0-190° |
Bending Radius | 30-300mm(for machine) | 30-300mm(for machine) | 30-300mm(for machine) |
Min Bending Radius | R≥1.4D（for pipe） | R≥1.4D（for pipe） | R≥1.4D（for pipe） |

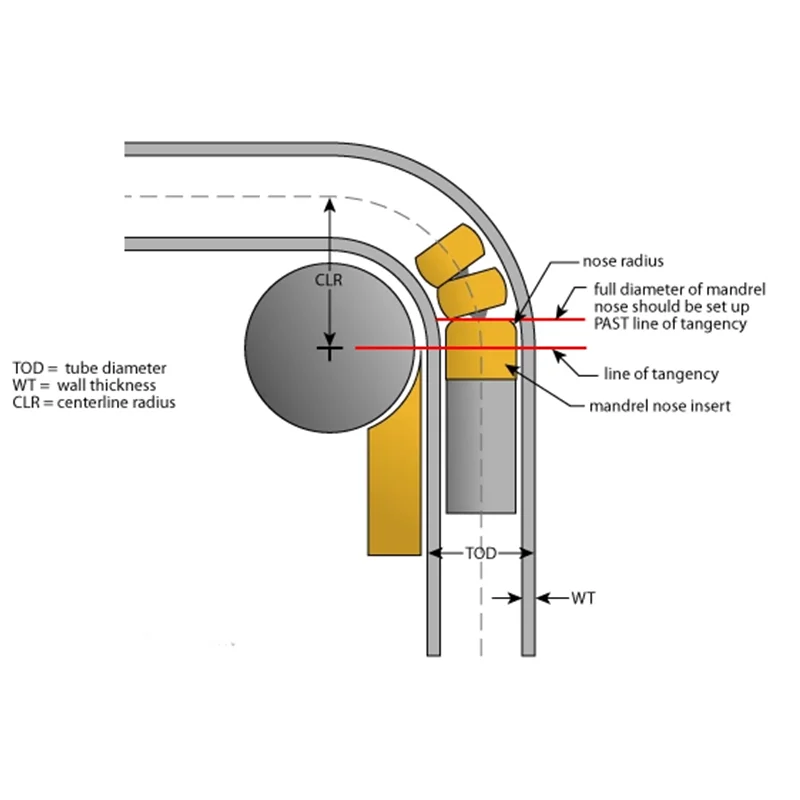

Mandrel Length | 3800mm(can be customized) | 3800mm(can be customized) | 3800mm(can be customized) |
Max.Bending Speed | 80°/s | 80°/s | 80°/s |
Max.Rotating Speed | 180°/s | 180°/s | 180°/s |
Max.Feeding Speed | 800mm/s | 800mm/s | 800mm/s |
Bending Accuracy | ±0.1°/±0.05° | ±0.1°/±0.05° | ±0.1°/±0.05° |
Rotating Accuracy | ±0.05° | ±0.05° | ±0.05° |
Feeding Accuracy | ±0.05mm | ±0.05mm | ±0.05 |

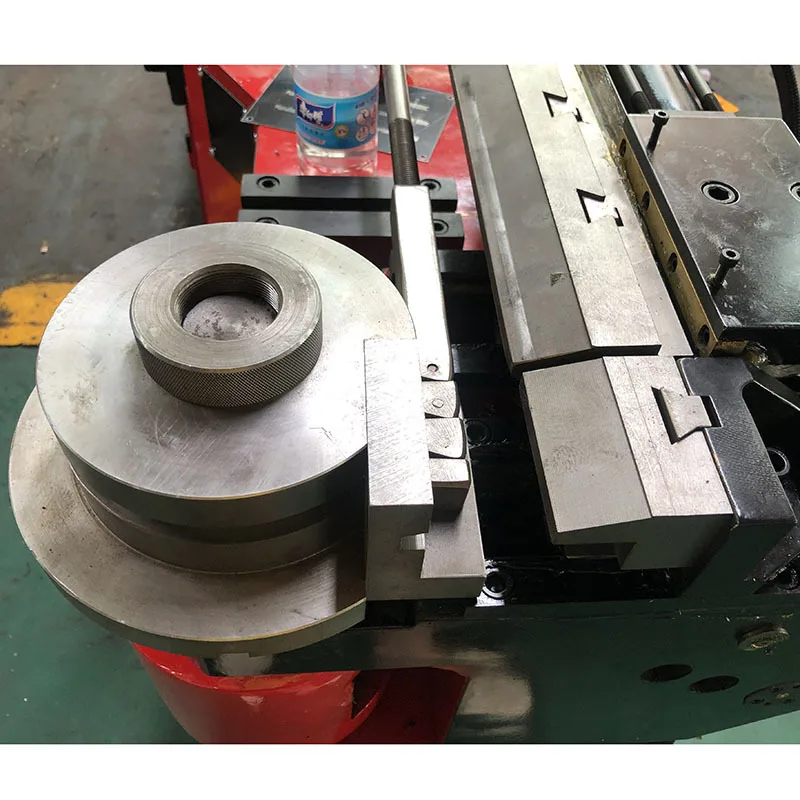

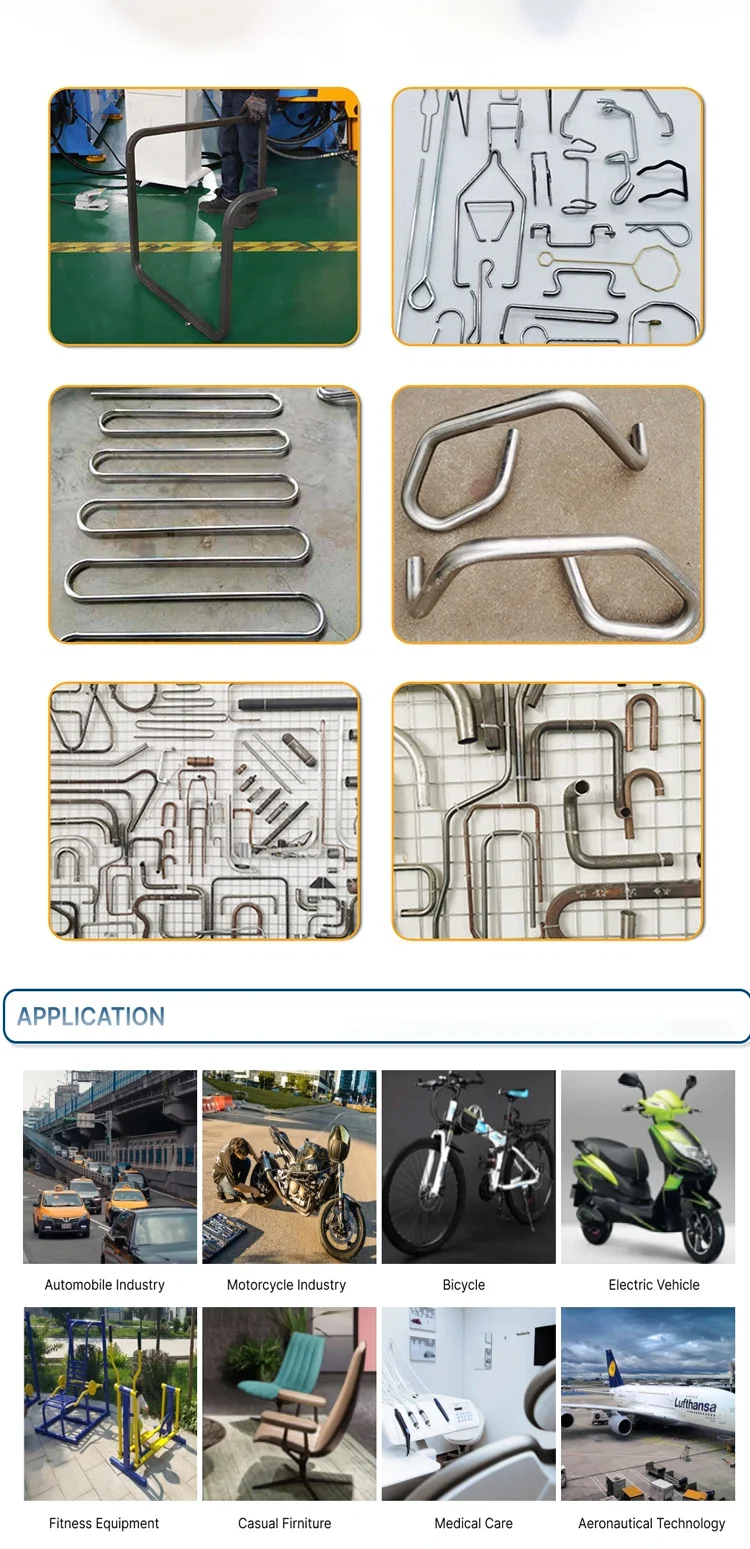

Bending Sample
