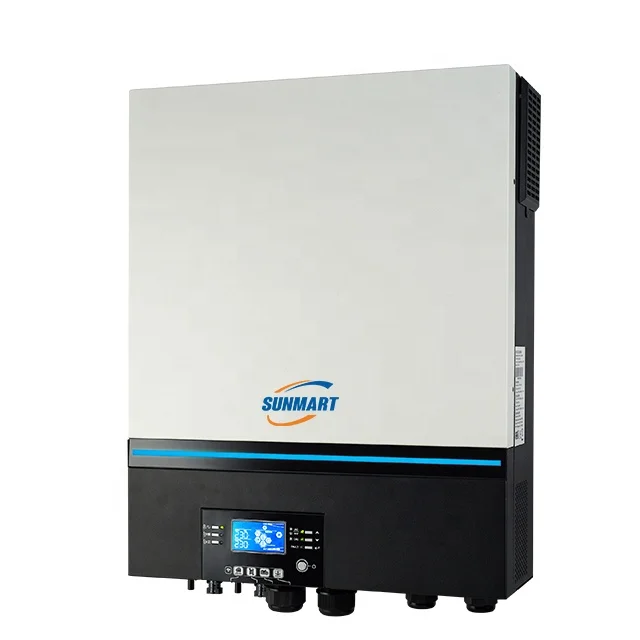

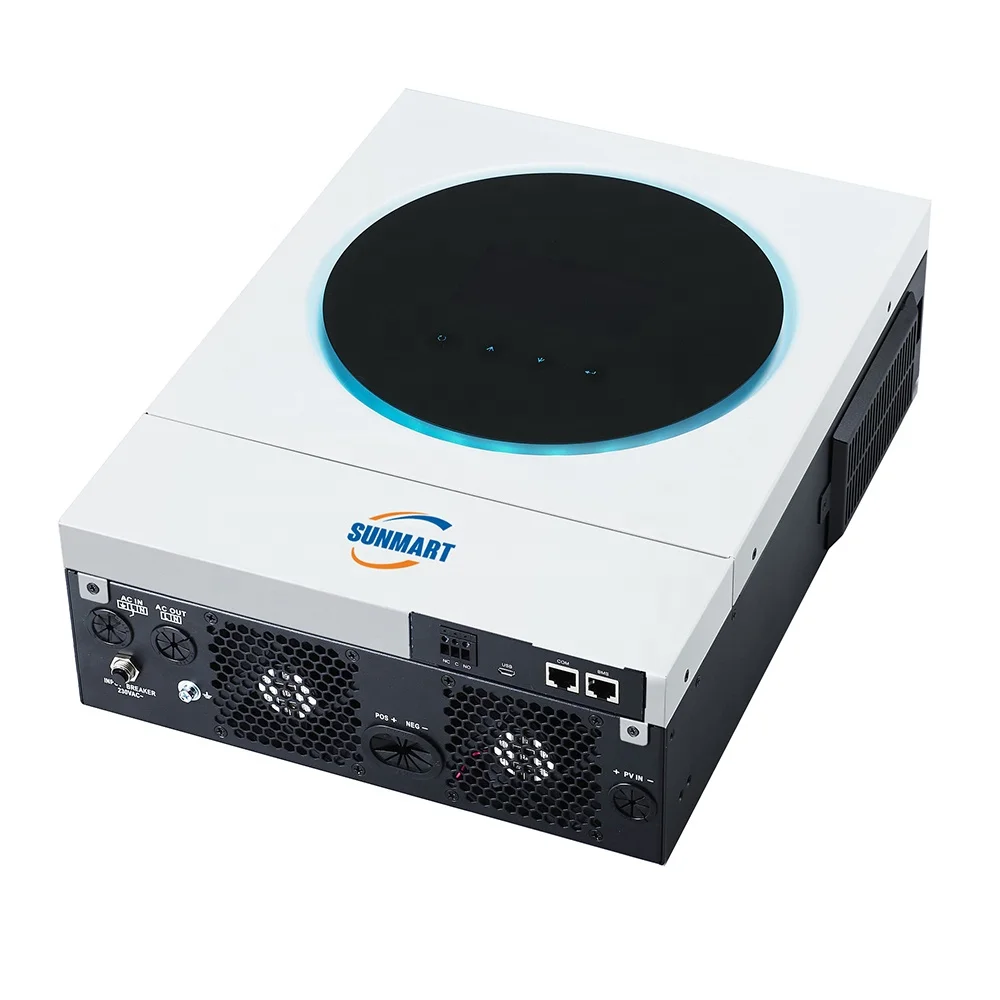

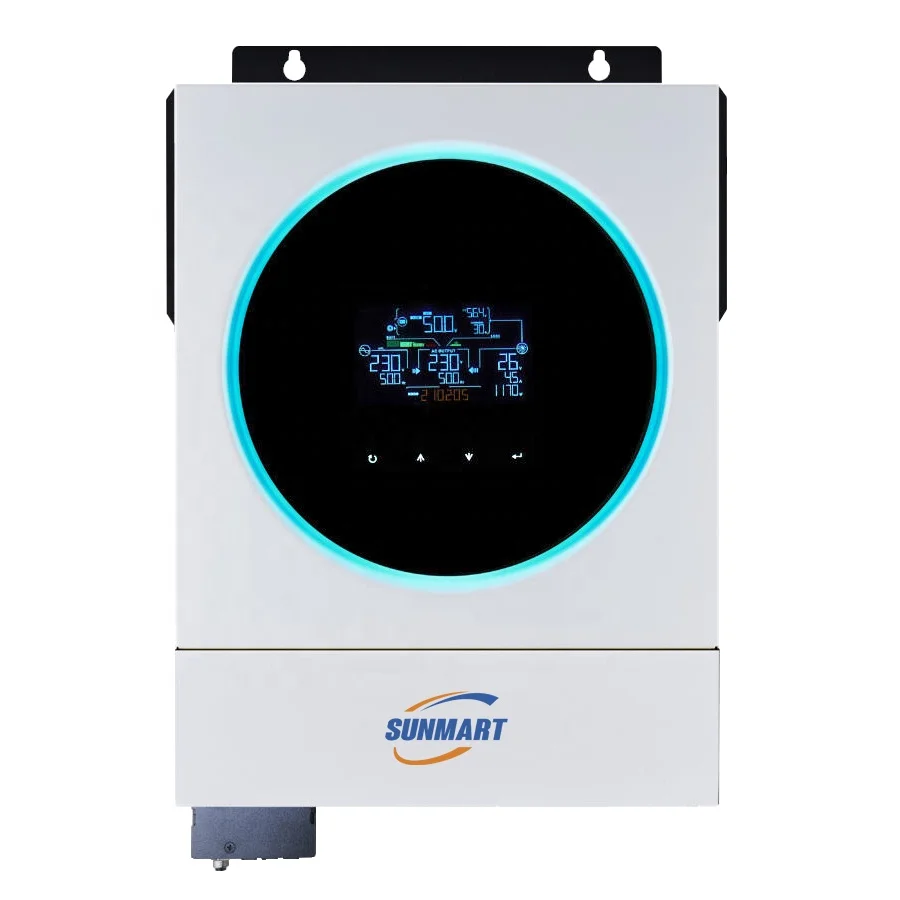

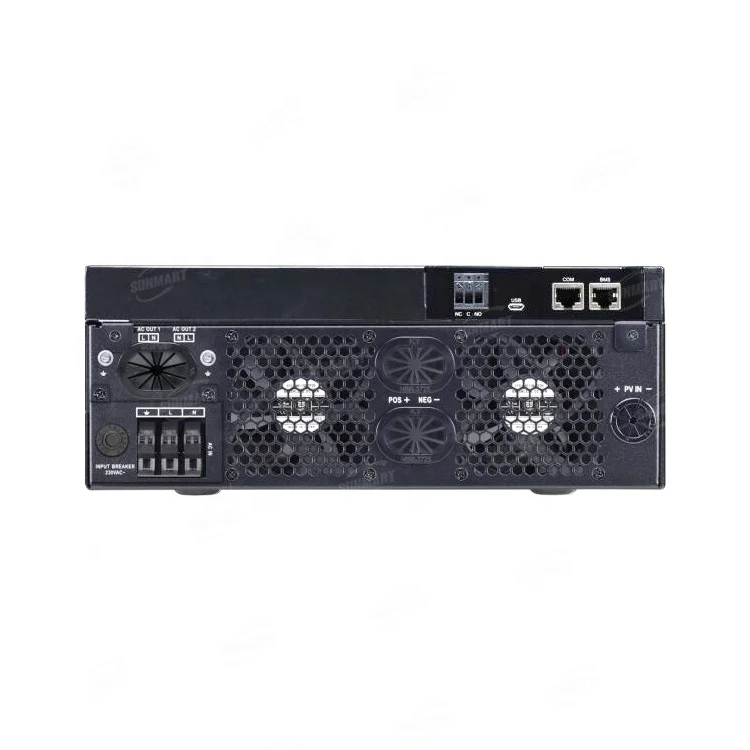

SUNMART VMIV TWIN 4KW 24V120A MPPT hybrid solar power inverter with 60V 450V PV
- Category: >>>
- Supplier: Foshan Sunmart Electronic Co. Ltd.
Share on (1601093467644):
Product Overview
Description
SUNMART VMIV TWIN 4KW 24V120A MPPT hybrid solar power inverter price with 60V-450V PV
Specifications:
VMIV TWIN 4000-24 | |
RATED POWER | 4000VA/4000W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
Surge Power | 8000VA |
Efficiency (Peak) PV to INT | 97% |
Efficiency(Peak)Battery to INT | 93% |
Transfer Time | 15 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 24 VDC |
Floating Charge Voltage | 27 VDC |
Overcharge Protection | 33VDC |
SOLAR CHARGER & AC CHARGER | |
Max. PV Array Open Circuit Voltage | 500VDC |
Max. PV Array Power | 5000W |
MPP Range @operating Voltage | 60~450VDC |
Max. Solar Charge Current | 120A |
Max. AC Charge Current | 100A |
Max. Charge Current | 120 A |
PHYSICAL | |
Dimension, D x W x H (mm) | 119 x 313.6 x 422.8 |
Net Weight (kgs) | 10 |

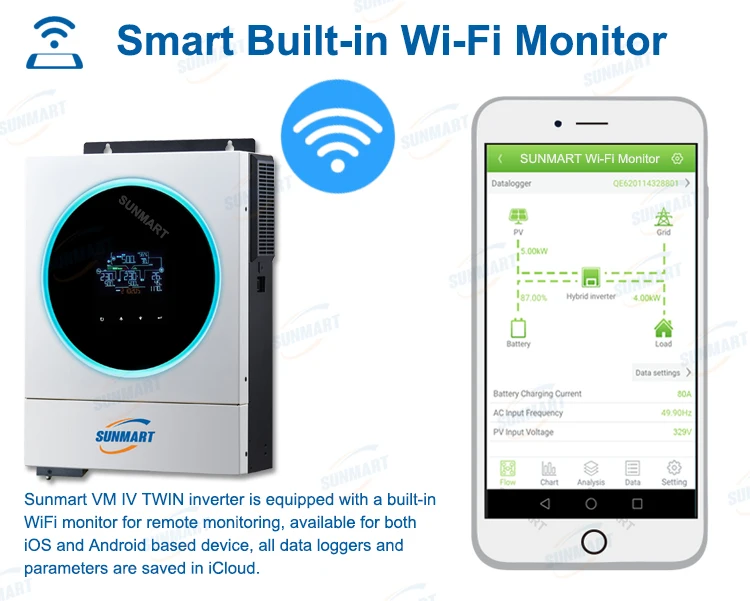

Communication Interface | USB/RS232/GPRS/WIFI |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |

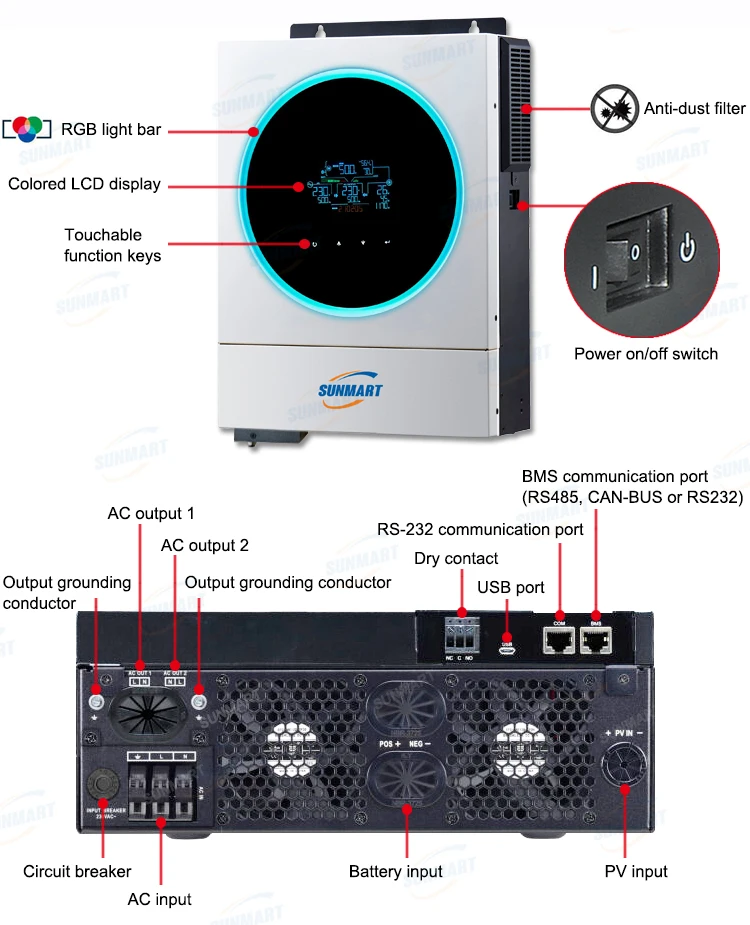

Detail Review :
Send inquiry to us to know more about this function!

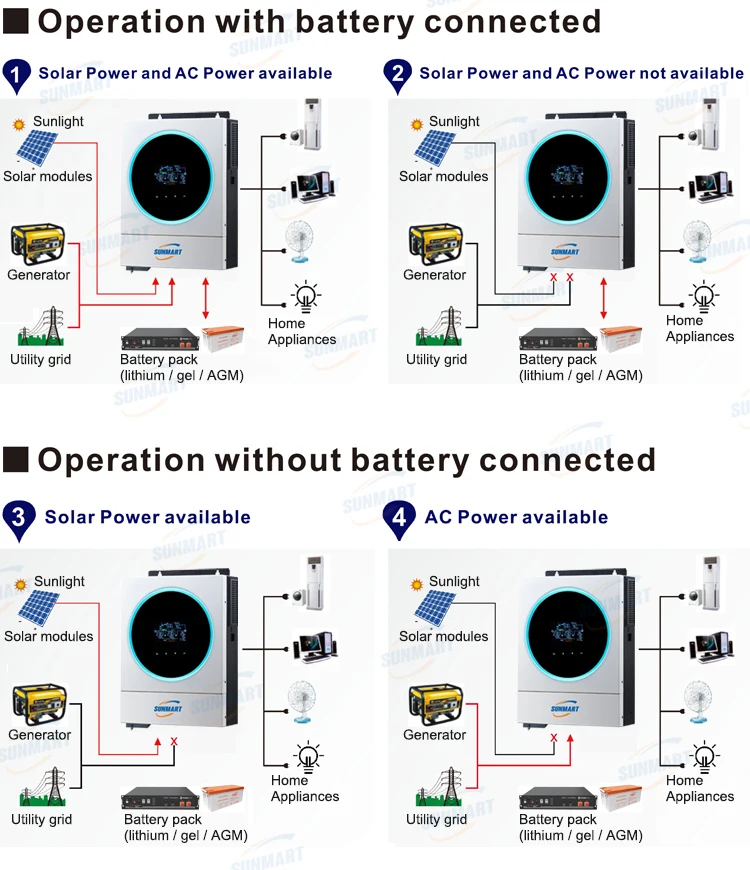

Working Diagram:
View more
| 3.6kW solar inverter | 8kW solar inverter | 11kW solar inverter |
 |  |  |
FAQ
1. Q: Are you a factory?
A: Yes, welcome to visit our factory.
2. Q: Which size of solar inverter do you produce?
A: We can produce different sizes from 1kw to 100kw solar inverters.
3. Q: Can you print our logo?
A: Yes, we can print customized logo.
4. Q: Where can we use the solar inverter?
A: You can use our solar inverter for home, village, power station, office, communication station, lighting
system, farm and so on, where there is no enough power or the grid power is expensive.
5. Q: Can you proide technical support on installation?
A: Yes, we do.
