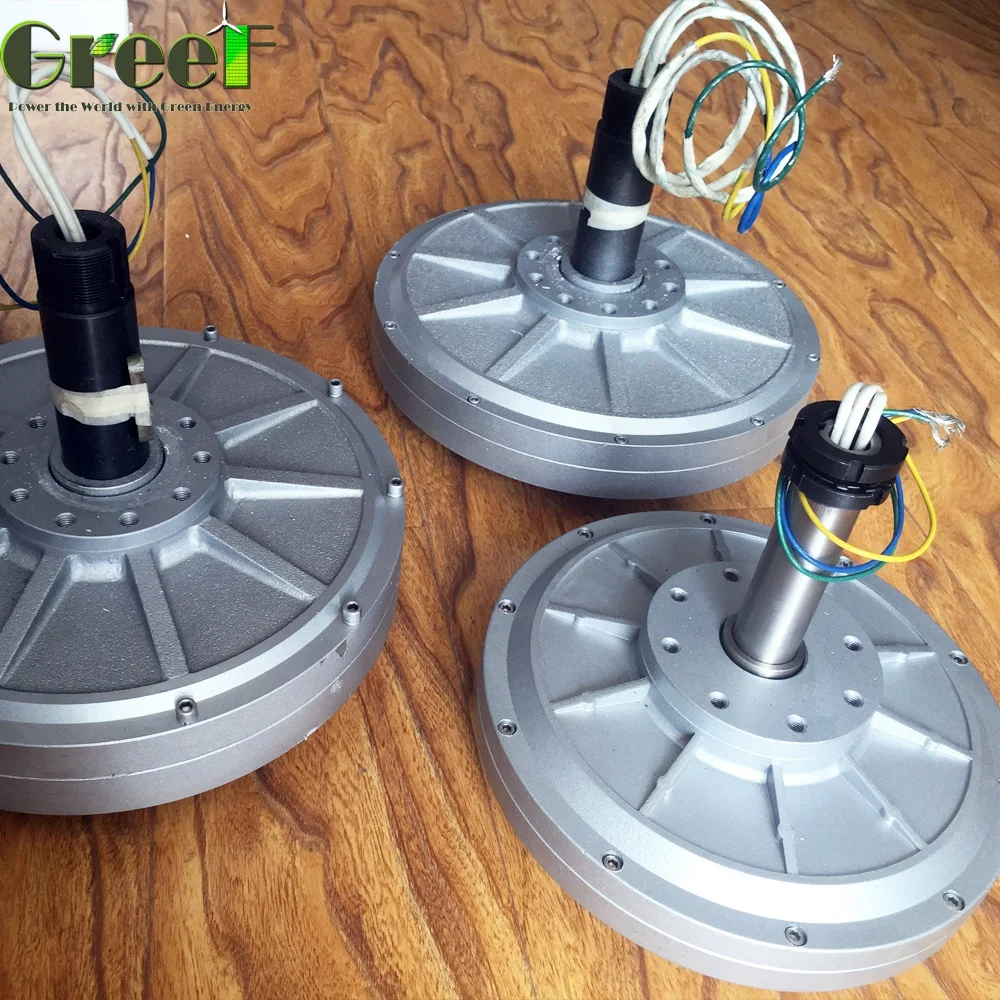

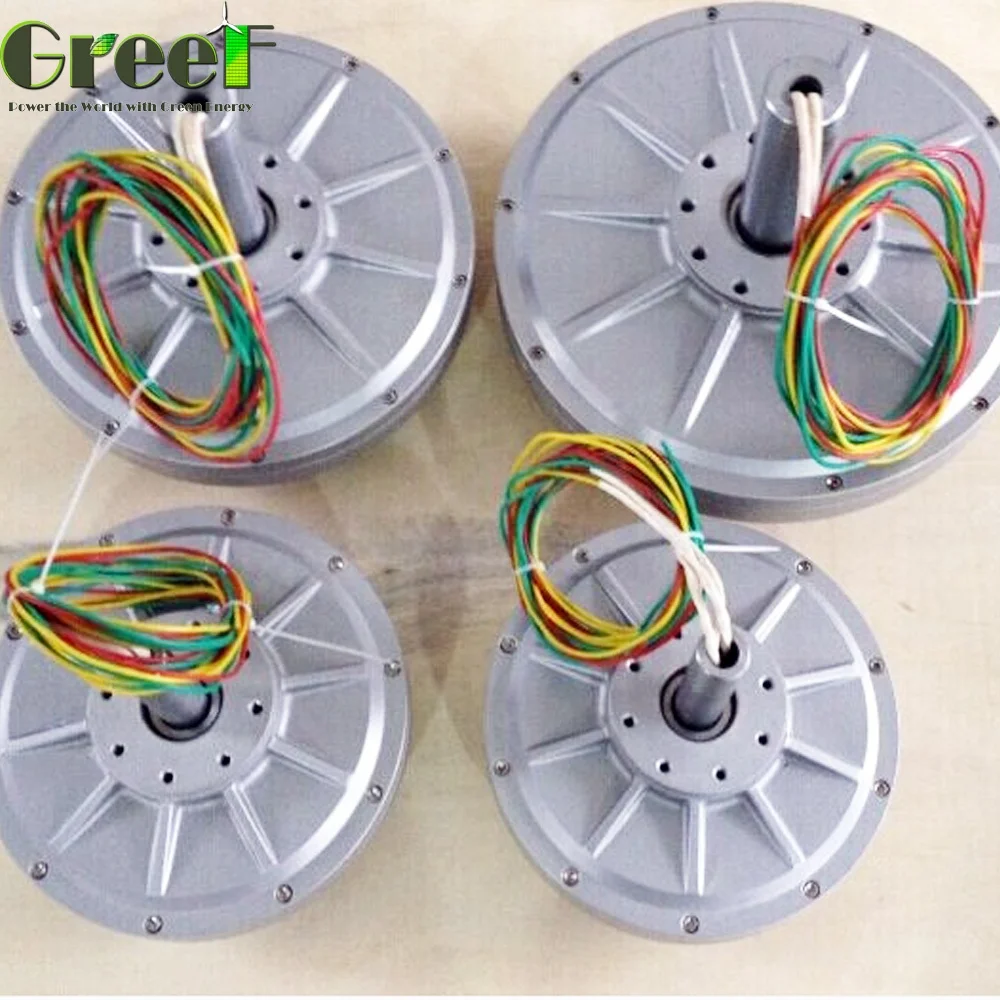

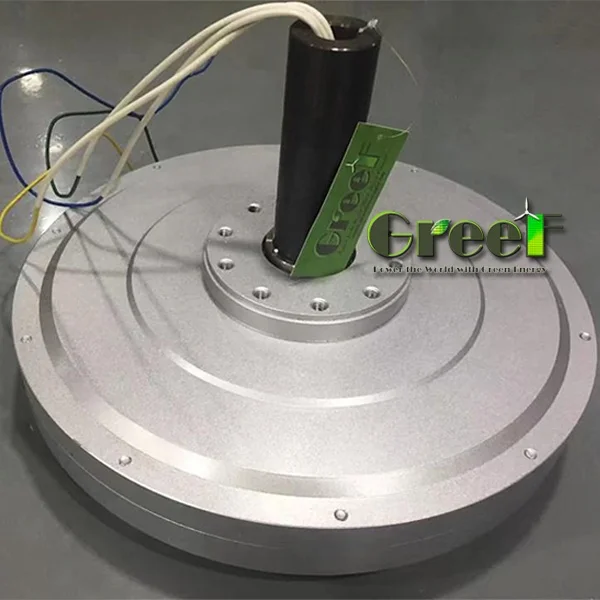

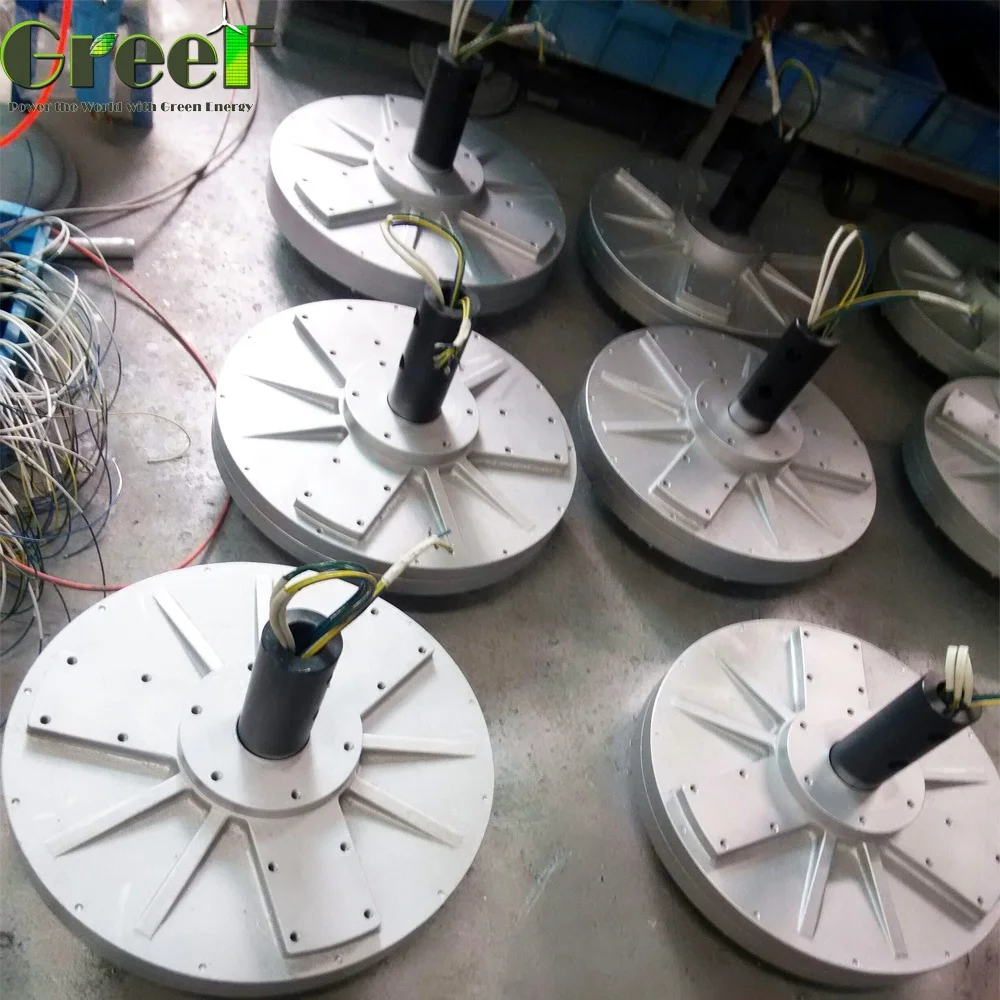

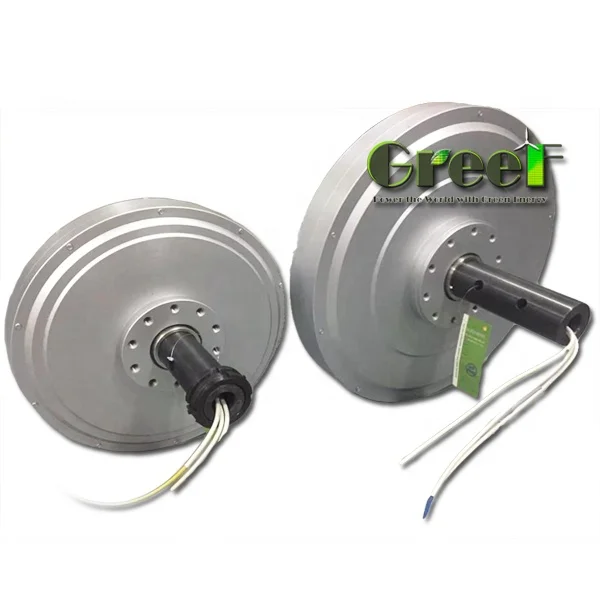

10KW 150rpm Low Rpm Axial Flux Disc Coreless Alternative Energy Generator, Pmg

Product Overview

Description



100W 500rpm  Disc Coreless Permanent Magnet Generator







The magnetic generators are always being used in vertical axis wind turbine generator, hydroelectric generator (water-power generator) and other generator system which requests very low start torque and low RPM.





 GDG-100W-500RPM PMG Parameters:



Model	GDG-160
Rated Power	100W
Rated Rotate Speed	500RPM
Option Rated Voltage	12-24Vac
Efficiency	>85%
Wending Method	Y
Leakage Level	<5 ma
Start Torque	<0.1 N/M
Phase Type	3 Phase
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	NSK Deep groove ball bearing



















Should you have any request, just contact me with no hesitate:

Ron Zhao (International Sales)

Mobile(Whatsapp): 0086-13026521870;

Email: pma @ greefenergy.cn;

Skype: pma @ greefenergy.cn.

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss
8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



















1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales,

we will do according to your request.





Generators are free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.









Qingdao Greef New Energy Equipment Co., Ltd is global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine  blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.









GDG-100W-300RPM     GDG-100W-200RPM



GDG-200W-350RPM     GDG-200W-200RPM



GDG-500W-400RPM      GDG-500W-200RPM



GDG-50W-200RPM       GDG-1KW-300RPM



GDG-1KW-180RPM      GDG-1KW-150RPM



GDG-2KW-180RPM       GDG-2KW-120RPM



GDG-3KW-180RPM        GDG-3KW-100RPM



GDG-5KW-150RPM       GDG-5KW-100RPM



GDG-10KW-150RPM      GDG-10KW-100RPM
