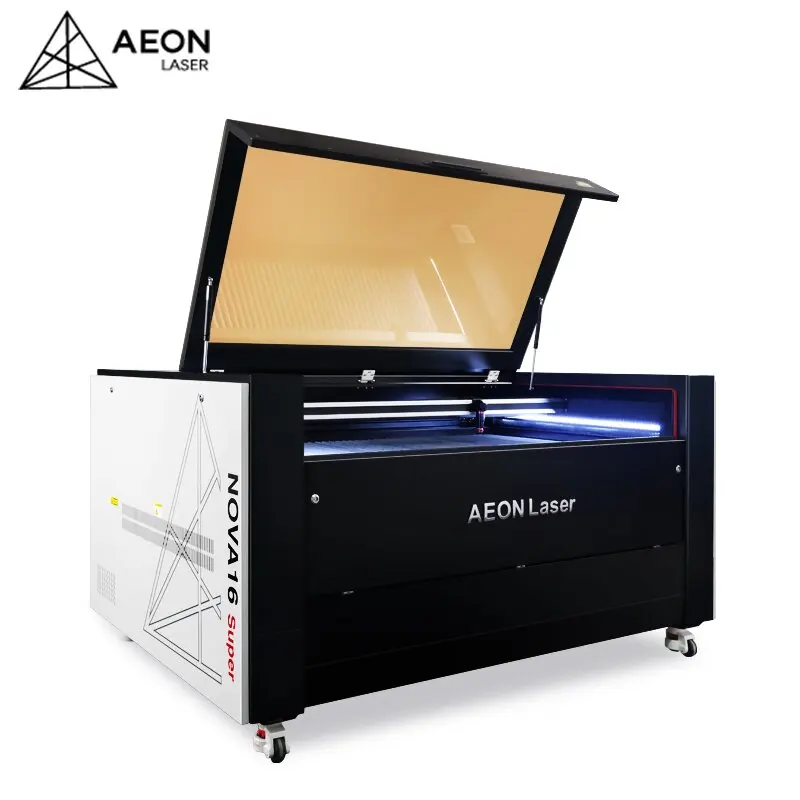

Aeon NOVA Super16 1600 x 1000mm Laser Cutter Engraver with Autofocus Wifi CCD Camera
- Category: >>>
- Supplier: Suzhou Aeon Laser Technology Co. Ltd.
Share on (1601093853412):
Product Overview
Description
Products Description
Factory price laser fabric cutter cutting machine 100W 130W 150W 1070 1490 1610
* Super Clean Pack Design
* Metal RF & Glass DC in one machine!
* Seamless Source Switching (SSS)
* Scan speeds of up to 2000 mm/second
* Integrated Auto Focus
* Built-in 5200 Chiller and Blower
* Streamlined Ruida Keypad
* Metal RF & Glass DC in one machine!
* Seamless Source Switching (SSS)
* Scan speeds of up to 2000 mm/second
* Integrated Auto Focus
* Built-in 5200 Chiller and Blower
* Streamlined Ruida Keypad
Product Paramenters
Model | Nova Super10 | Elite10 | Nova Super14 | Elite14 | Nova Super16 | Elite16 | ||
Working Area | 100mm*700mm | 1400mm*900mm | 1600mm*1000mm | ||
Machine Size | 1500*1210*1025mm | 1900*1410*1025mm | 2100*1510*1025mm | ||
Laser Tube | 90W 100W RF30/60W | 90W 100W | 100W 130W RF30/60W | 100W 130W | 130W 150W RF30/60W | 130W 150W | ||
Eletric Up & Down | 200mm (7 7/8") Adjustable | ||||
Machine Net Weight | 450KG | 520KG | 620KG | ||
Machine Pack Weight | 530KG | 610KG | 730KG | ||
Packing Size | 1660*1320*1225mm | 2000*1510*1225mm | 2200*1650*1225mm | ||
Input Voltage | 220V AC Single Phase 50Hz/60Hz, 110V AC 60Hz; Optional for 110V AC Single Phase 60Hz | ||||
Rated Power | 2600W | ||||
Engraving Speed | 2000mm/s | 1200mm/s | ||||
Cutting Speed | 500mm/s | ||||
Acceleration Speed | 5G | ||||
Laser Optical Control | 0-100% Set by software | ||||
Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Charactor) | ||||
Locating Precision | <=0.01 | ||||
Cutting Thickness | 0-30mm(depends on different materials ) | ||||
Engraving Software | RDWorks/LightBurn | ||||
Graphic Format Supported | AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA | ||||
Compatible Software | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software | ||||
Worktable | Honeycomb + Aluminum Bar Table | ||||
Autofocus | Integrated Autofocus | ||||
Red Dot Positioning | Yes | ||||
Rotary Device | Optional | ||||
Built In Wifi | Optional | ||||
Main Features

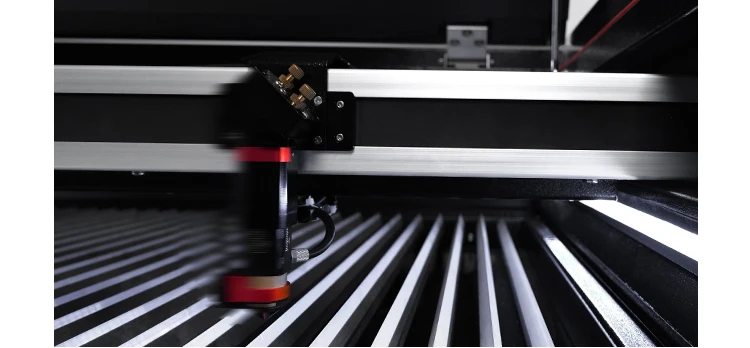

2000mm/sec Scan speed, 5G Acceleration Speed.
Aeon laser's newly designed lightweight laser head, paired with digital high-speed stepper motors in Super Nova10. 5G acceleration, up to 2000 mm/sec.
All in One Design
Super Nova14 is different from Nova14, with built-in 5200 chillers, blower, and air assist.

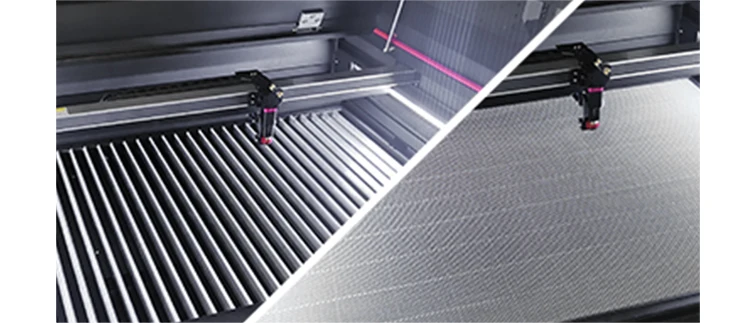

High-efficiency Dual Worktables
Aluminum Knife Slatted and honeycomb worktable, specialized for laser cutting and engraving.

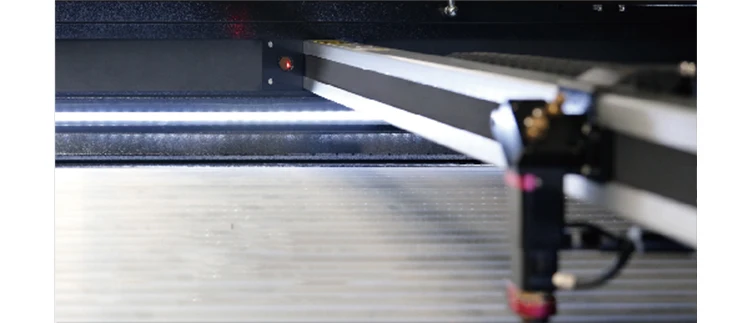

Whole optic path and guide rail clean pack design.
Aeon Laser’s signature clean pack technology has taken the next step in the evolutionary process. Not only are the linear rails and bearing blocks enclosed (as in previous models), but protective curtains on the left and right side of the working area now prevent unwanted particles from the motion system as well as optic path. These will greatly reduce the maintenance of the machine and enhanced the engraving outcome.

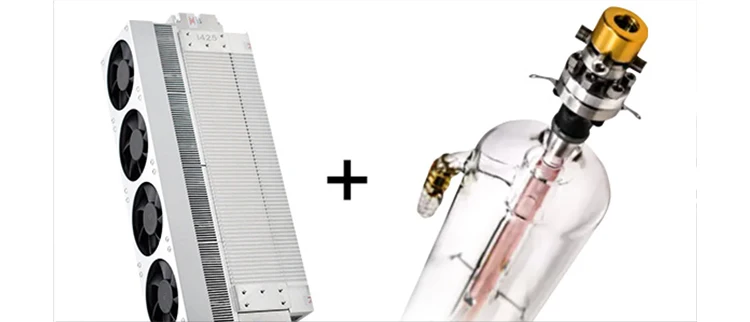

Metal RF & High Power DC glass tube together
Suits for Reci W2/W4/W6/W8 Premium CO2 Glass Tube, 30W/60W RF Metal Tube

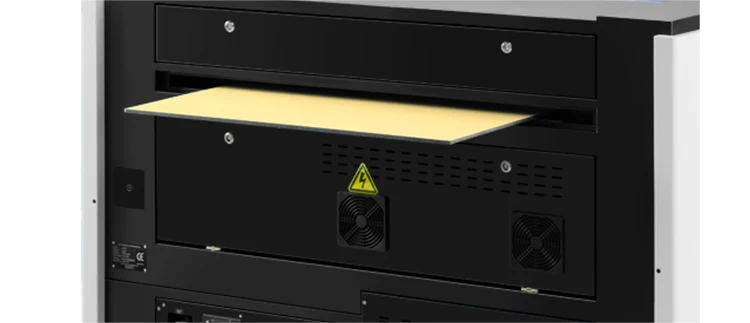

Effective Table and Back Pass Through Door
The Supper Nova comes with a slate table together with the honeycomb, which is suitable for cutting and engraving. There is a pass-through door that could pass through extra-length materials.

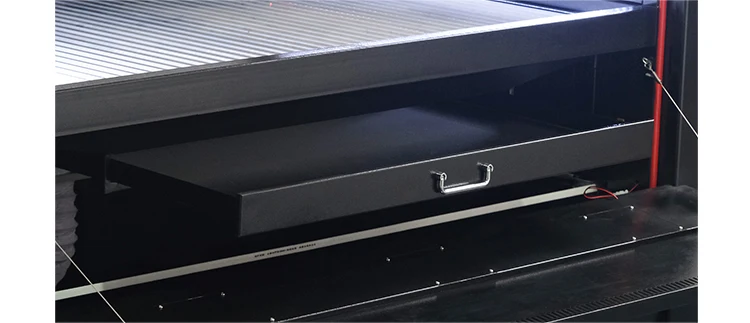

Convenient Scrap and Product Collecting System
All of your cut pieces now fall into a conveniently located compartment below, which can be easily emptied to prevent scrap pieces from piling up and becoming a fire hazard.

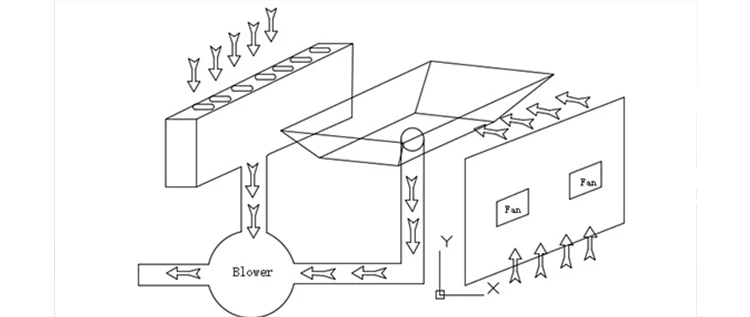

Active Airflow
Say goodbye to excessive soot buildup on your material and in your laser cabinet.
FAQ
Q: What is a CO2 laser cutting engraving machine?
A: A CO2 laser cutting engraving machine is a type of laser cutting engraving machine that uses a gas laser to cut and engrave a variety of materials.
Q: What are the applications of a CO2 laser cutting and engraving machine?
A CO2 laser cutting and engraving machine can be used for a variety of applications such as creating signs, customizing
promotional products, cutting intricate designs for arts and crafts projects, fabricating architectural models, and more.
promotional products, cutting intricate designs for arts and crafts projects, fabricating architectural models, and more.
Q: What materials can a CO2 laser cutting engraving machine cut and engrave?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Q: What are the advantages of using a CO2 laser cutting engraving machine?
A: The advantages of using a CO2 laser cutting engraving machine include high precision, speed, and versatility. These machines can create intricate and detailed designs with a high degree of accuracy and repeatability. They can also cut and engrave a wide range of materials with a high level of control, producing clean and precise cuts with minimal waste.
Q: What factors should be considered when choosing a CO2 laser cutting engraving machine?
A: The advantages of using a CO2 laser cutting engraving machine include high precision, speed, and versatility. These machines can create intricate and detailed designs with a high degree of accuracy and repeatability. They can also cut and engrave a wide range of materials with a high level of control, producing clean and precise cuts with minimal waste.
