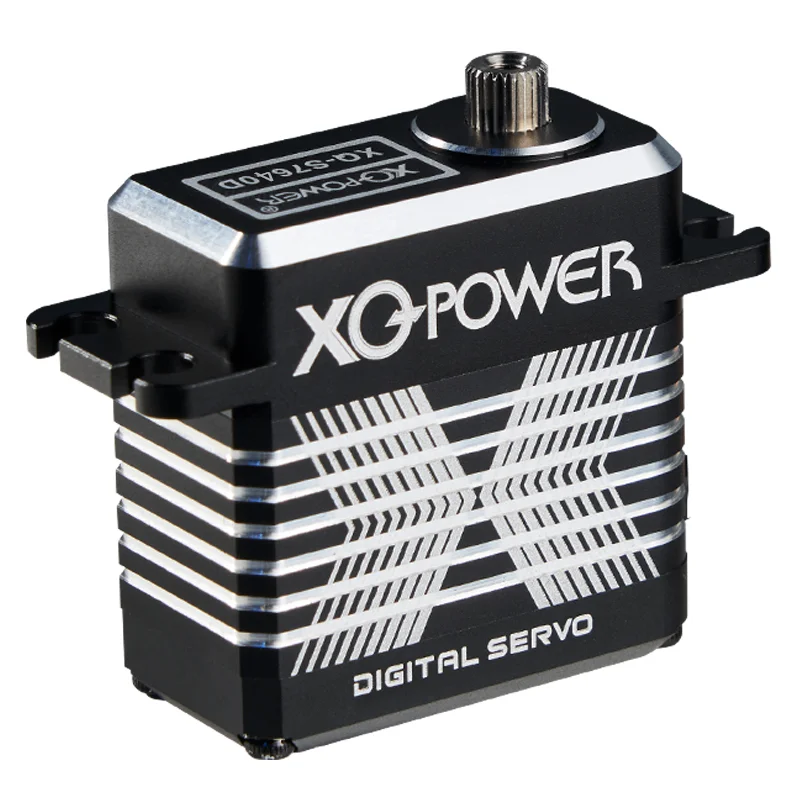

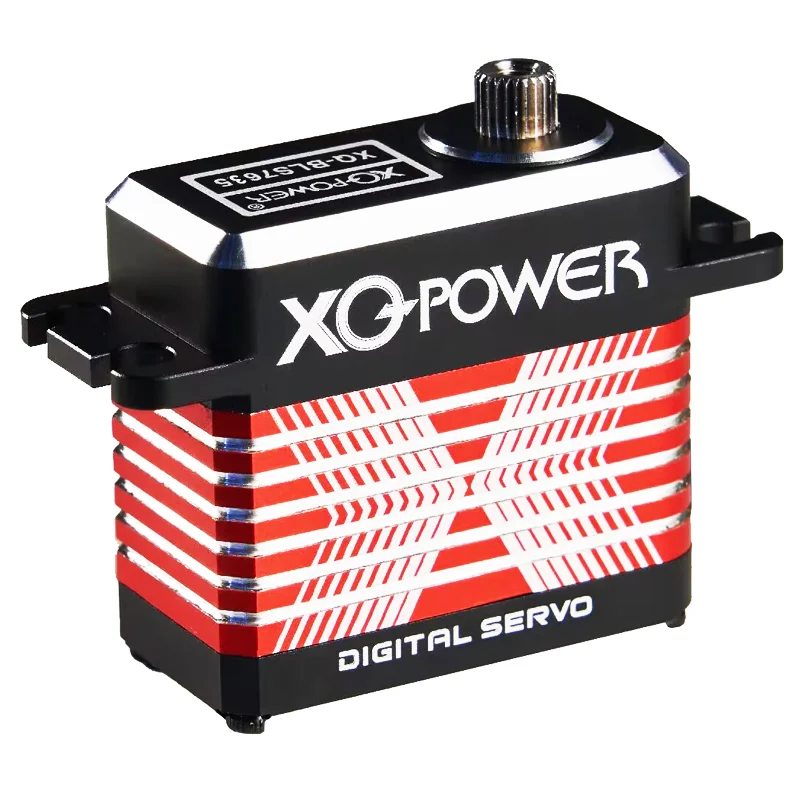

XQ POWER CNC Metal Housing High Speed Metal Gear Digital Servo 20KG 35KG Large Torque Waterproof for RC Car Crawler Truck
- Category: >>>
- Supplier: Shenzhen Xq-Power Technology Co. Ltd.
Share on (1601093873148):
Product Overview
Description
Products Description
Product Name：8.4V35kg-cm Hight Voltage BLS Digital Servo | |||||||

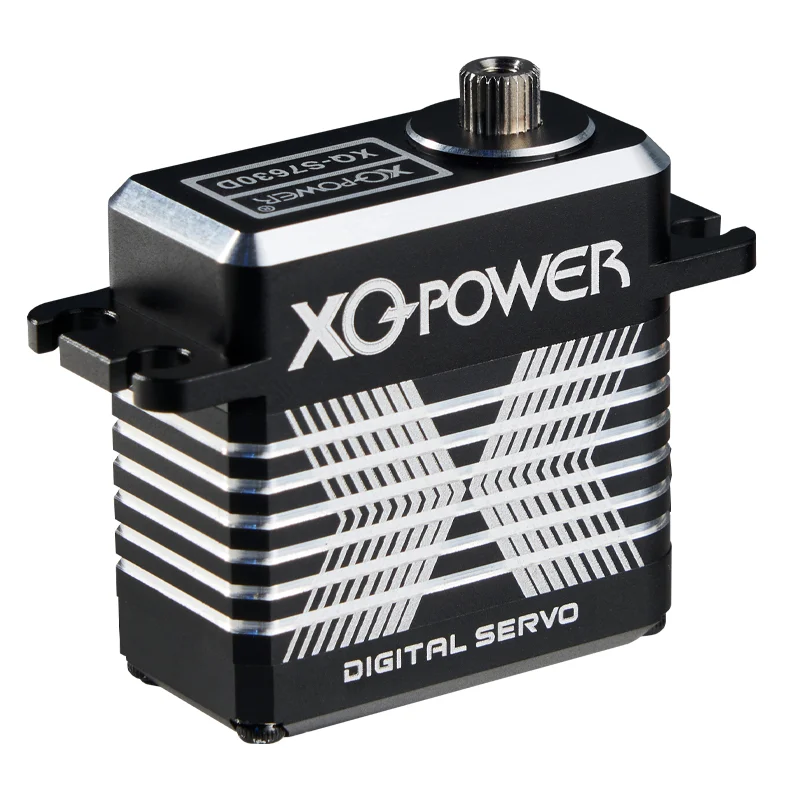

Item No:XQ-S7630D | |||||||
1.Apply Environmental Condition | |||||||
No. | Item | Specification | |||||
1-1 | Storage Temperature Range | -20℃～70℃ | |||||
1-2 | Operating Temperature Range | -15℃～65℃ | |||||
2.Standard Test Environment | |||||||
No. | Item | Specification | |||||
2-1 | Temperature range | 25℃ ±5℃ | |||||
2-2 | Humidity range | 65%±10% | |||||
3.Mechanical Specification | |||||||
No. | Item | Specification | |||||
3-1 | Size | 20*40*38 mm | |||||
3-2 | Weight | 77g no including accessory | |||||

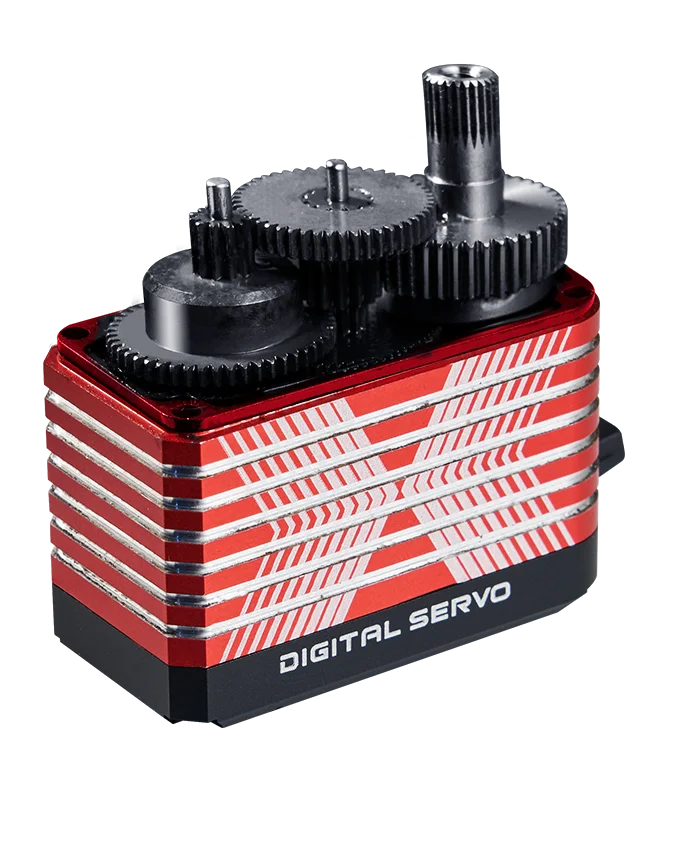

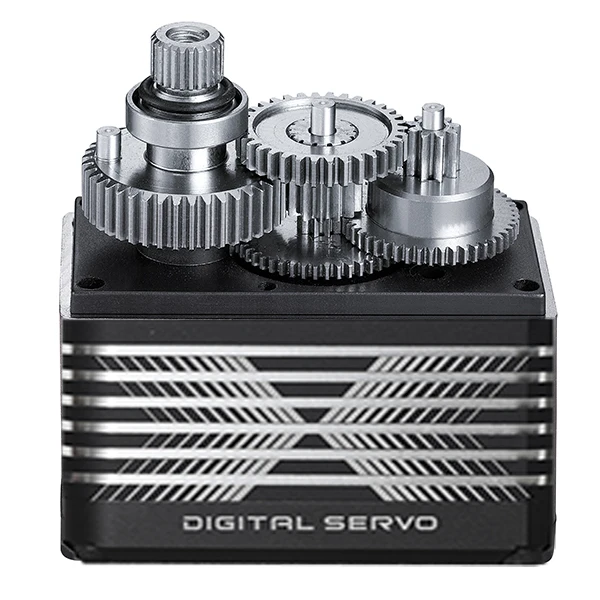

3-3 | Gear type | Stainless Steel | |||||
3-6 | Limit angle | 210° | |||||
3-7 | Bearing | 2 Ball bearings | |||||
3-8 | Horn gear spline | 25T-φ5.94mm | |||||
3-9 | Horn type | Plastic,POM | |||||
3-10 | Case | Aluminium CNC | |||||
3-11 | Connector wire | 300mm | |||||
3-12 | Motor | Brushless motor | |||||
3-13 | waterproof | Yes | |||||
4.Electrical Specification (Function of the Performance) | |||||||
No. | Operating Voltage Range | 6.0 V | |||||
4-1 | No load speed | 0.14 sec/60° | |||||
4-2 | Runnig current(at no load) | 320 mA | |||||
4-3 | Peak stall torque | 25 kg.cm | |||||
4-4 | Stall current | 2.8 A | |||||
No. | Operating Voltage Range | 7.4 V | 8.4 V | ||||
4-1 | No load speed | 0.12 sec/60° | 0.10 sec/60° | ||||
4-2 | Runnig current(at no load) | 370 mA | 440 mA | ||||
4-3 | Peak stall torque | 31 kg.cm | 36 kg.cm | ||||
4-4 | Stall current | 3.5 A | 4.0 A | ||||
