Product Overview

Description



Products Description

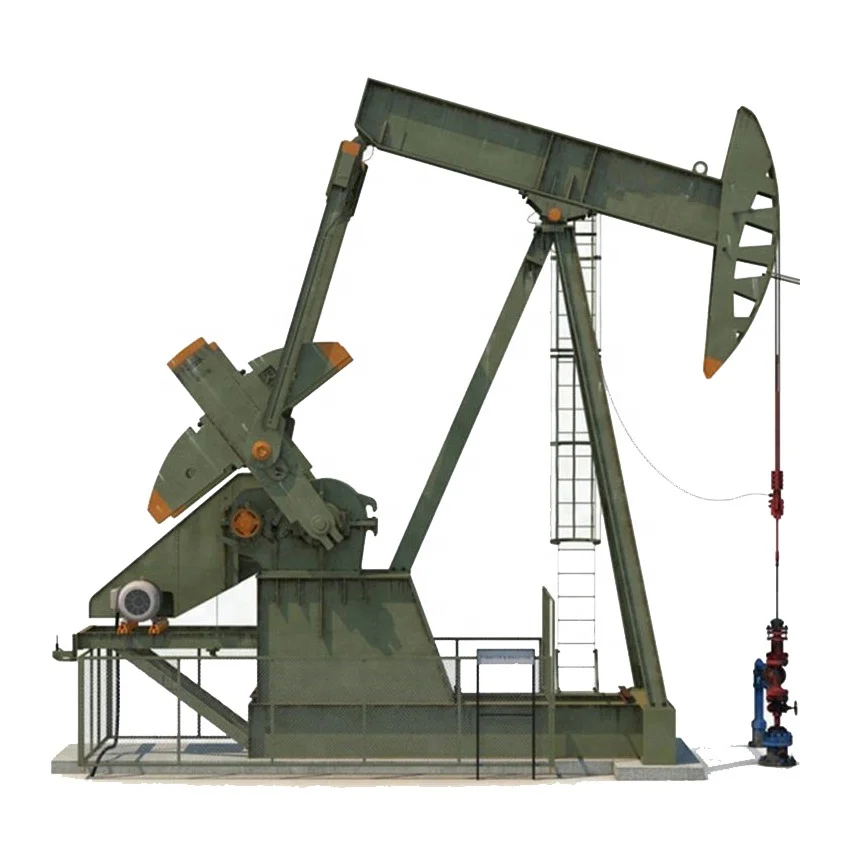

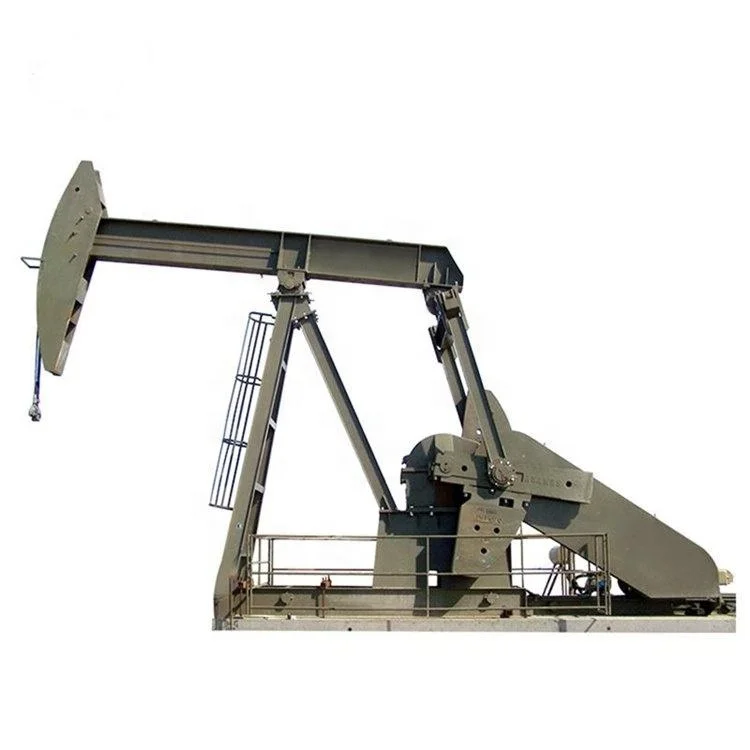

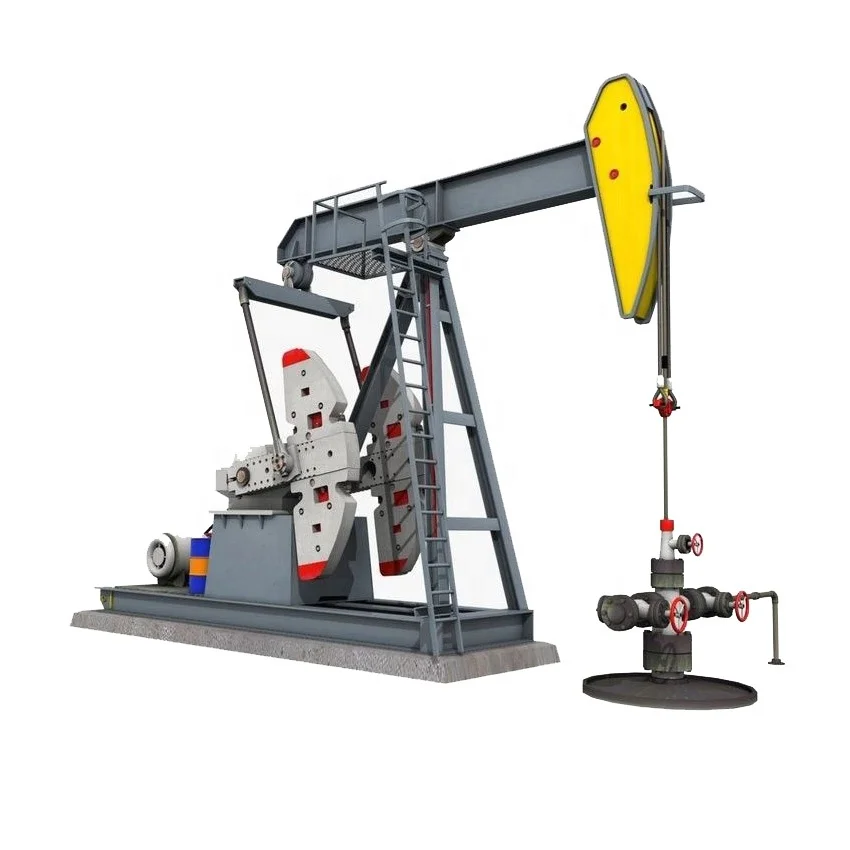

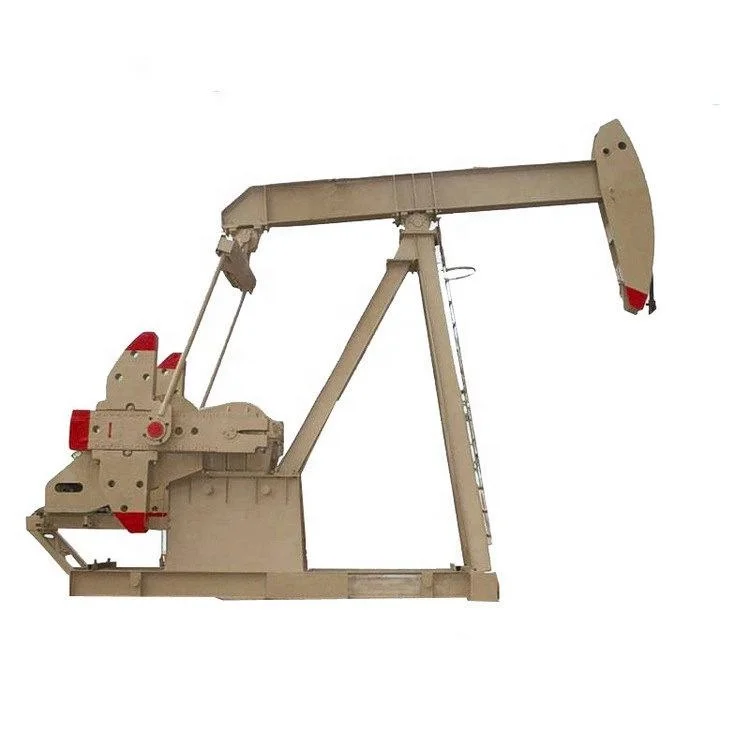

Pumping Unit
Beam-type pumping units now cover more than a hundred specifications and models.they have the characteristics of reliable performance,simple structure,easy operation and maintenance etc.The technical parameters comply with the industry standard SY/T5044 .Beam-type pumping units of the People’s Republic of China and the United States Petroleum Institute API standards.




◆The whole machine has a reasonable structure,stable operation,low noise,and easy operation and maintenance；
◆The beam adopts box type or I-beam structure,which has high strength,good rigidity and large load-bearing capacity;
◆The reducer adopts herringbone in-volute or double arc tooth gears,which have high processing precision,strong load-bearing capacity and long service life;
◆The donkey’s head can be turned up,hung up or turned sideways;
◆The bracket adopts a tower structure,which has good stability and is easy to install and is easy to install on site;
◆The crank balance weight adopts rack and pinion transmission,making the adjustment easy and accurate;
◆The brake adopts an external holding structure and is equipped with a safety device,which is flexible in operation,fast in braking,safe and reliable;


Srl No.
Size
Maximum Rating
Hanging Loading(lb)
Length of Strike(in)
Reducer Rating Torque
(in.lbs)
1
912D-305-192
30,500
192,165,138
912,000
2
912D-365-168
36,500
168,144,121
912,000
3
912D-305-168
30,500
168,144,121
912,000
4
640D-305-192
30,500
192,165,138
640,000
5
640D-305-168
30,500
168,144,121
640,000
6
640D-365-144
36,500
144,123,102
640,000
7
640D-305-144
30,500
144,123,102
640,000
8
640D-256-144
25,600
144,123,102
640,000
9
640D-305-120
30,500
120,102,84
640,000
10
456D-305-144
30,500
144,123,102
456,000
11
456D-256-144
25,600
144,123,102
456,000
12
456D-365-120
36,500
120,102,84
456,000
13
456D-305-120
30,500
120,102,84
456,000
14
456D-256-120
25,600
120,102,84
456,000
15
320D-256-144
25,600
144,123,102
320,000
16
320D-256-120
25,600
120,102,84
320,000
17
320D-213-120
21,300
120,102,84
320,000
18
320D-305-100
30,500
100,85,70
320,000
19
320D-256-100
25,600
100,85,70
320,000
20
228D-213-120
21,300
120,102,84
228,000
21
228D-173-100
17,300
100,86,72
228,000
22
228D-246-86
24,600
86,71,56
228,000
23
228D-213-86
21,300
86,71,56
228,000
24
160D-173-86
17,300
86,74,62
160,000
25
160D-200-74
20,000
74,64,54
160,000
26
160D-173-74
17,300
74,64,54
160,000
27
160D-143-74
14,300
74,64,54
160,000
28
160D-173-64
17,300
64,54,44
160,000
29
114D-119-86
11,900
86,72,59
114,000
30
114D-143-74
14,300
74,62,51
114,000
31
114D-173-64
17,300
64,54,44
114,000
32
114D-143-64
14,300
64,52,40
114,000
33
114D-133-54
13,300
54,45,36
114,000
34
80D-119-64
11,900
64,53,42
80,000
35
80D-133-54
13,300
54,45,36
80,000
36
80D-119-54
11,900
54,45,36
80,000
37
80D-133-48
13,300
48,40,32
80,000
38
80D-109-48
10,900
48,37,25
80,000
