7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System
7.5KW 380V High quality electric motor control panel for Drainage System

7.5KW 380V High quality electric motor control panel for Drainage System

Share on (1601094014602):


Price:

Quantity:


Product Overview

Description













Product Description

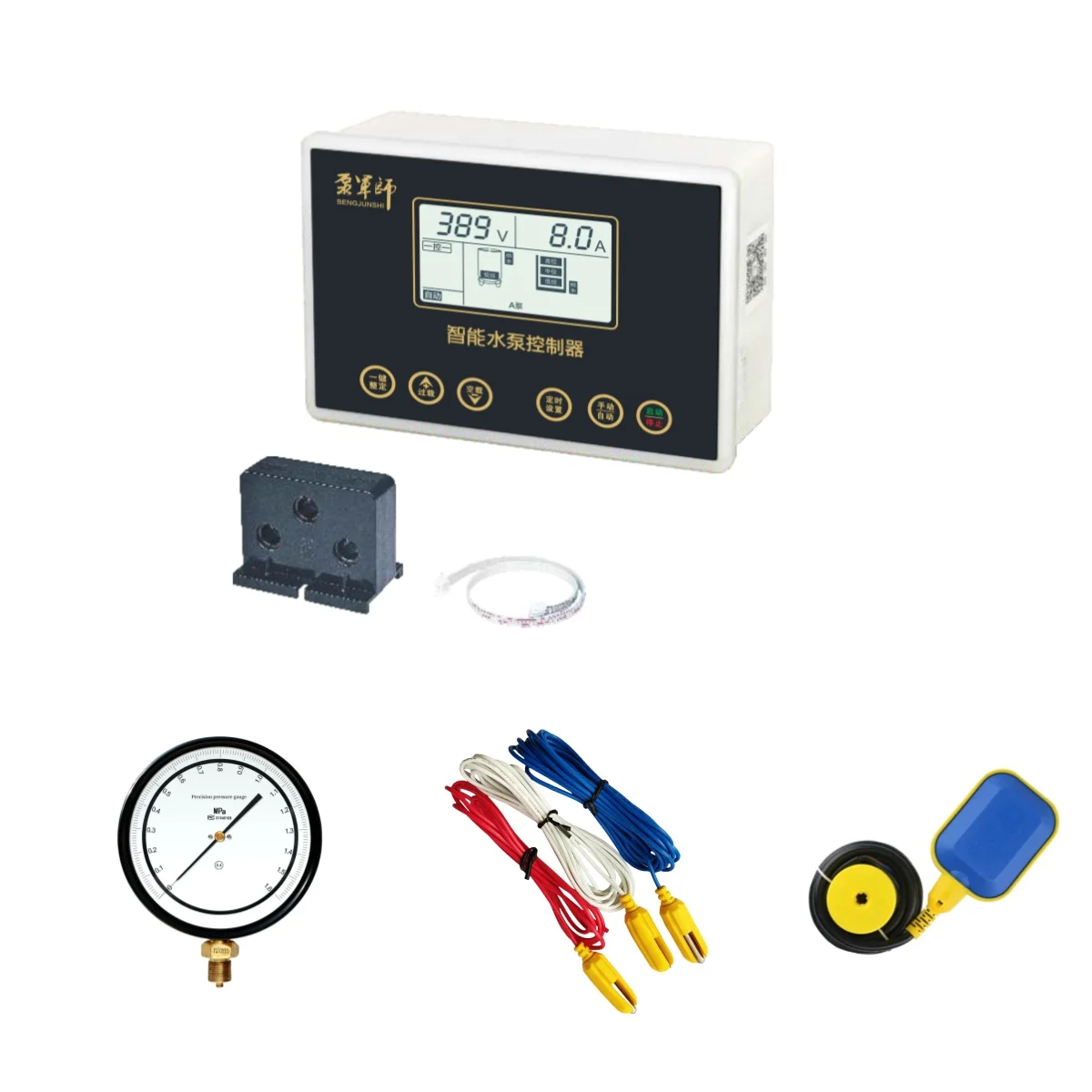

D2F LCD display pump control panel for duplex pump control cabinet assembly adopts the original imported microcomputer single chip technology which guarantees powerful functions,and has the advantage as easy and convenient installation and operation.Unique non-contact induction technology enables no need of probes to achieve shutdown protection when the pump is running dry due to lack of water,thus realizing fully intelligent and unmanned operation.
It is a device designed to control and protect the operation of various water pumps up to 22KW,such as subermersible pump, centrifugal pump,multistage pump,deep-well pump,sewage pump,booster pump,pipeline pump,ground pump and etc.






Specification


Type
D2F
Model
D2F-4KW/380V
D2F-7.5KW/380V
D2F-11KW/380V
D2F-22KW/380V
D2F-4KW/220V
D2F-7.5KW/220V
D2F-11KW/220V
Rated Power
0.75-4KW
1.1-7.5KW
1.1-11KW
11-22KW
0.75-4KW
1.1-7.5KW
1.1-11KW
Rated Input Voltage
AC380V+10% or 220V+10% @50Hz or 60Hz
Qty.of Controlled Pump
Double  pump
Display
LCD display
Main Parameters
1,Rated voltage:AC380V+10% or AC220V+10% (50Hz-60Hz)
2,Rated power:0.75KW-22KW
3,Static consumption power:<3W
4,Water level: High/Middle/Low
5,Water tank: upper tank for water supply,lower tank for drainage
6,Max. control distance:≤2000m without strong electric and electromagnetic fields
7,Time setting ON:0-991 minutes
8,Time setting OFF:0-999 minutes
9,Dual pump alternation time setting: 0-720 minutes
10,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable)
11,Over-voltage/under-voltage trip time: ≤3 seconds
12,Overload/no load trip time: 0-600 seconds(ajustable)
13,Phase loss trip time: <2 seconds
Main Functions

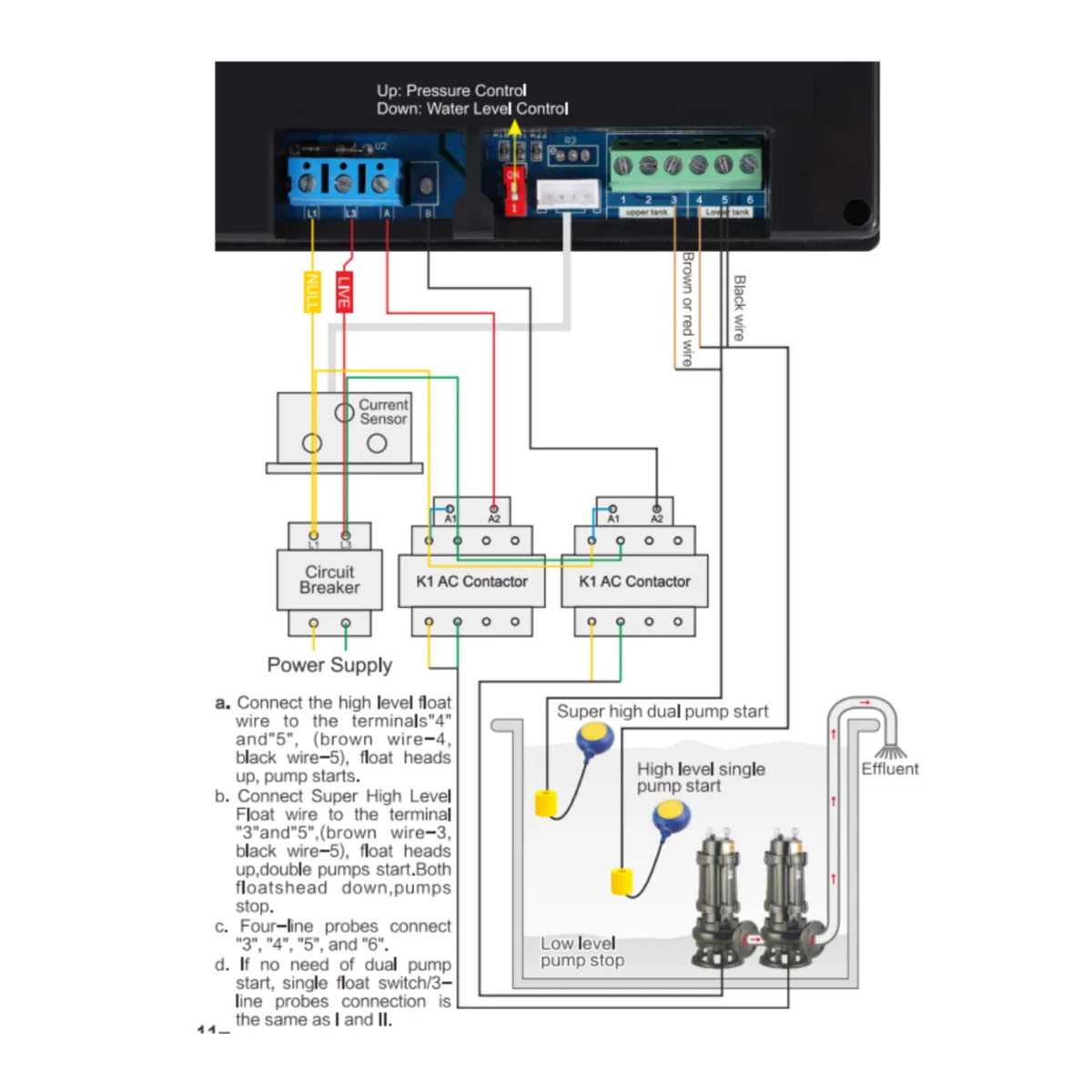

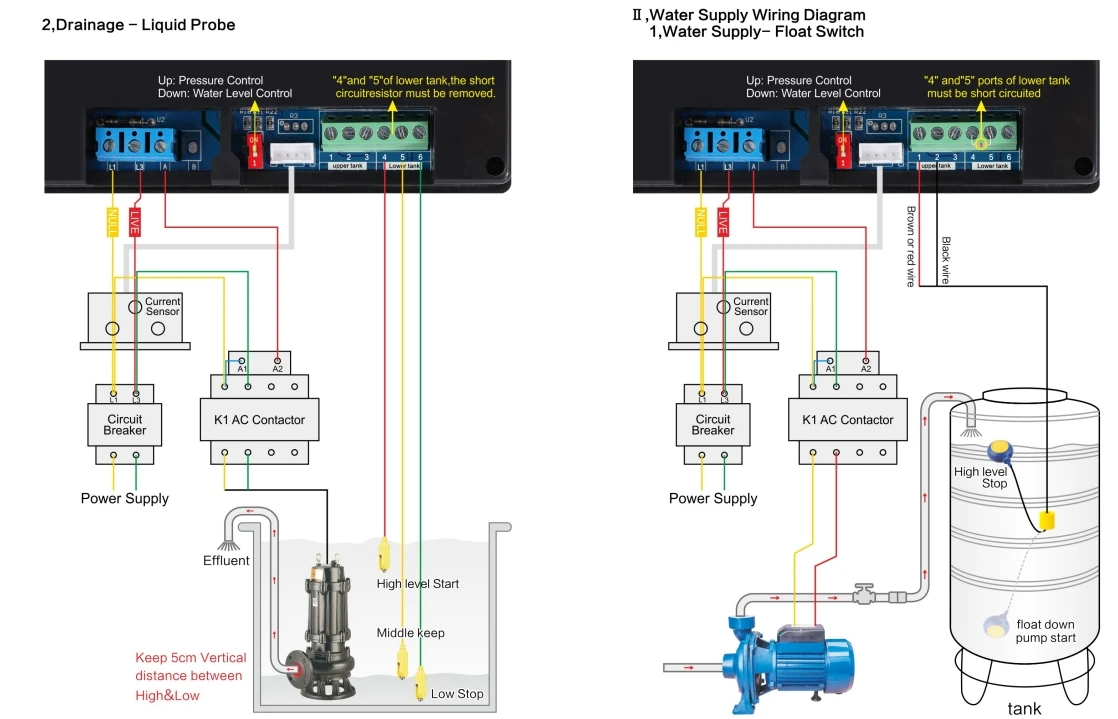

1,Water level control: level probes or float switch

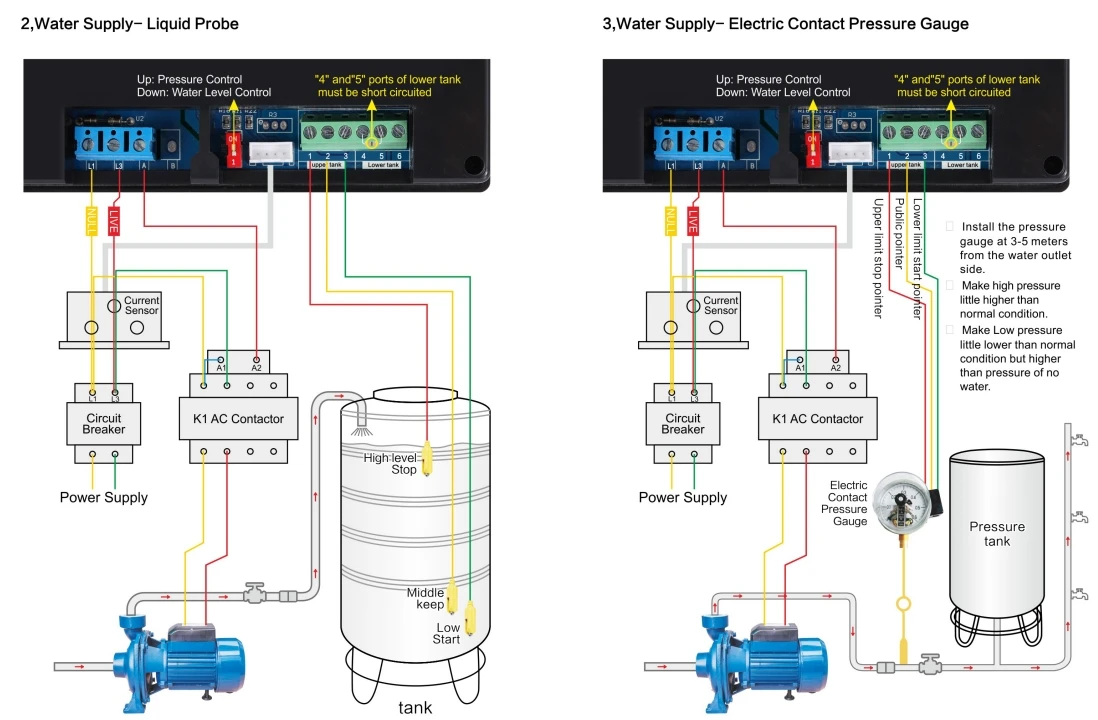

2,Pressure control: electric contact pressure gauge or pressure switch
3,Dual pump operation mode:one duty one standby,dual pump alternation,dual pump automatic switch in faults,dual pump simultaneous
start.
4,User interface: a user-friendly interface for configuring settings, monitoring operation, and accessing diagnostic information.
5,Operation mode: auttomatic/manual starts and stops
6,Fault indication: failure record,latest 10 pump failure reasons display,audio/light alarms.
7,Anti-rust protection,long-term non-use of the pump,15 days to start once for 3 seconds.
8,Setting protection current for motor overload/no-load,no-load delay restart time adjustable.
9,Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection.
10,Automatic restart after power failure recovery.
11,Automatic re-starting pump from dry running,restart time range 0-720 minutes adjustable.

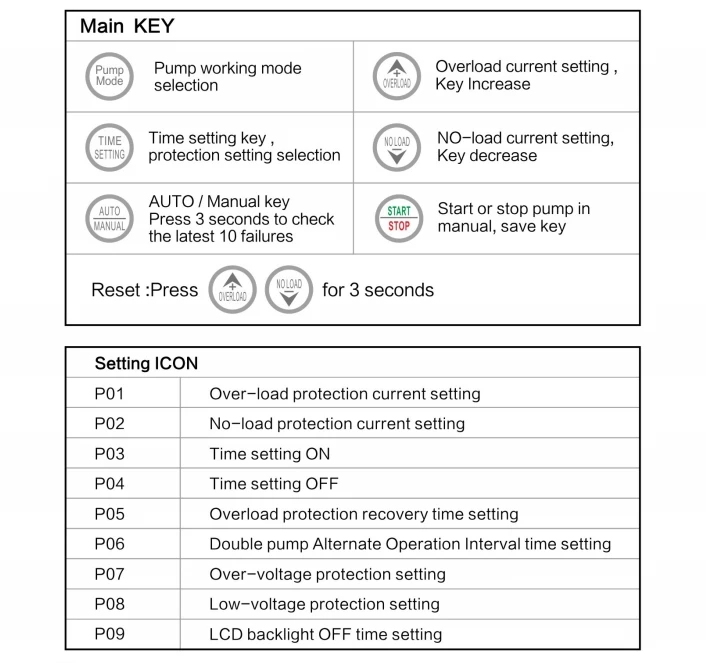

12,Restore factory setting: press both "Overload" and "NO-Load"for 3 seconds.
Working temperature
Working humidity
Install position
-20ºC-- +80ºC
20%--90%RH, no drips concreted
Wall mounting
Dimensions
170x120x50mm
Package
Carton size:
37x28x14cm(2PCS/CTN)
40x28x21.5cm(4PCS/CTN)
















1,What is your delivery time?
For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is
15000pcs,and daily 500pcs.Custom panels depend.

2,How to match the power between the controller and the pump?
The power of controller should be bigger than that of the pump.

3,What is your warranty?
We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full 1-year warranty.

4,How about your quality control?
Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load
conditions to exceed our customer's quality and fuctionality requirements.

5,What are your payment methods acceptable?
Western Union,T/T and L/C
