Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00

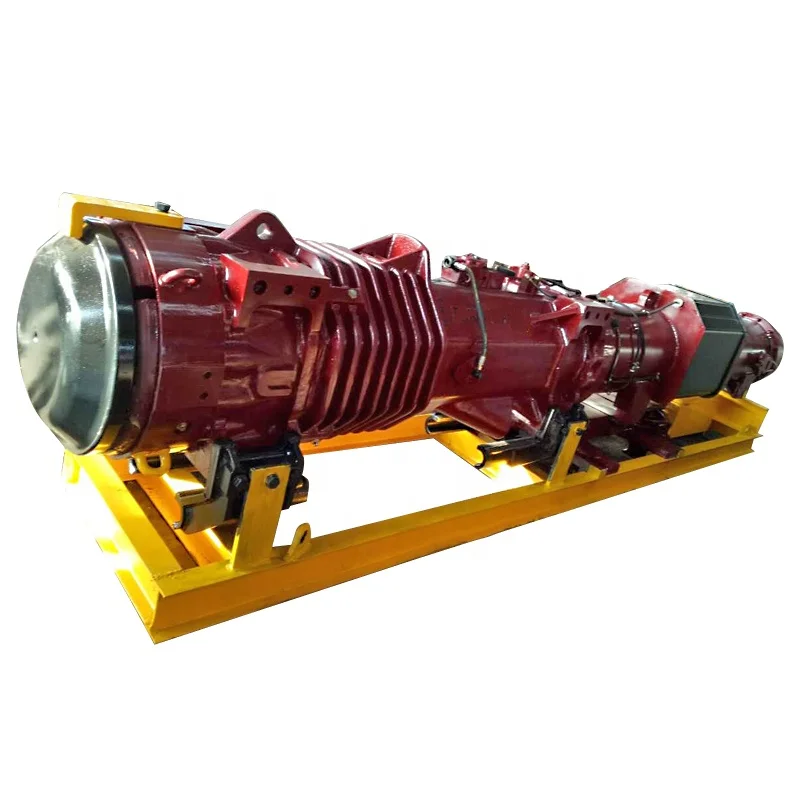

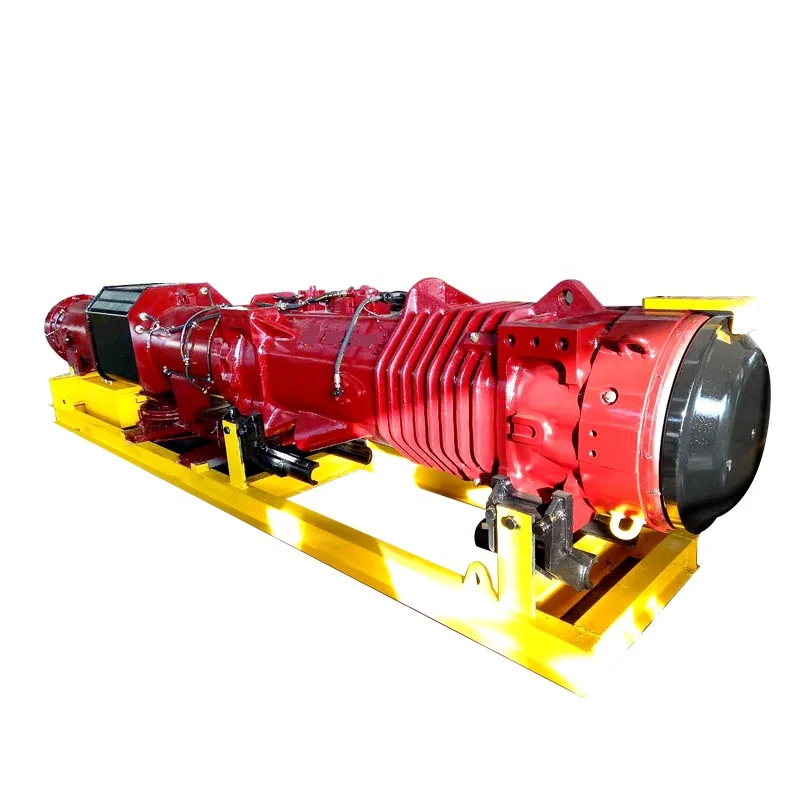

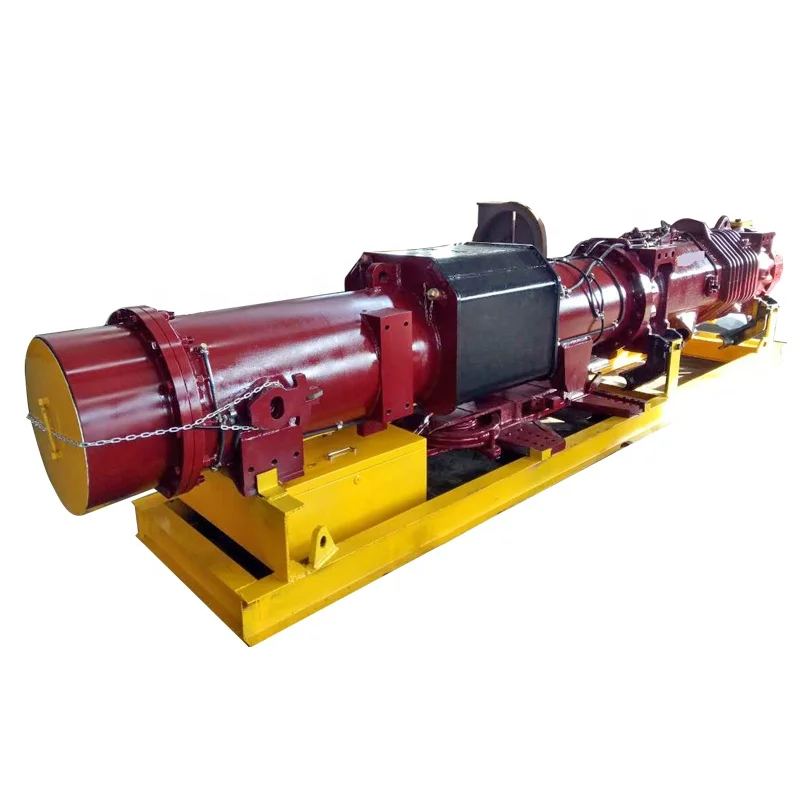

D30 diesel hammer supplier in the philippines
- Category: >>>
- Supplier: Xuzhou Fanya Import& Export Co. Ltd.
Share on (1601094084040):
Product Overview
Description
Advantage OF FANYATOP Brand D series D30 diesel hammer supplier in the philippines
1. Over 20 Years’ Experience in Design, Manufacturing and Applying
2. High Impact Energy
3. Low Oil Consumption
4. Wide application
5. High economic benefit
6. Fast Heat Dissipation
7. High Temperature Resistance
Scope Of FANYATOP Brand D Series Pile Hammer
Application

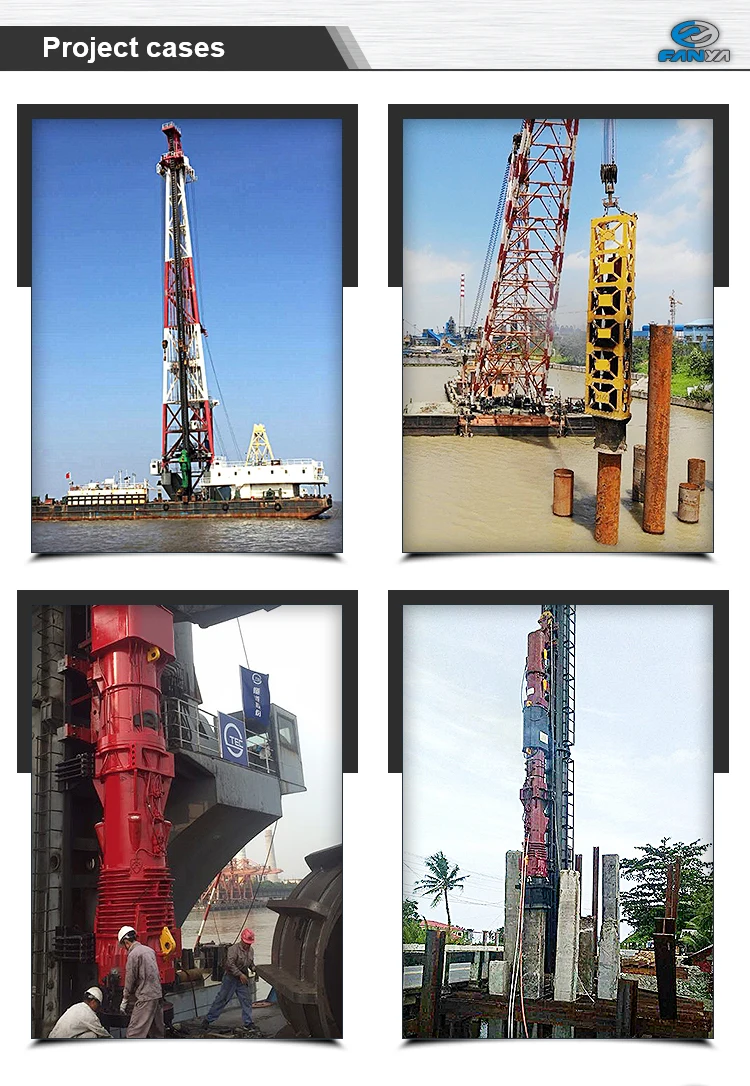

1. Reinforced concrete and steel piles and sheet piles and marine piling.
2. Suitable for construction buildings, bridges, port projects and marina driling platform
FANYATOP Brand D series diesel hammers are over 20 Years’ Experience in Design, Manufacturing and Applying,developed full series cylinder type diesel pile hammers.popular models :D19, D25,D30,D36,D46,D62,D80,D100,D128,D138..D180

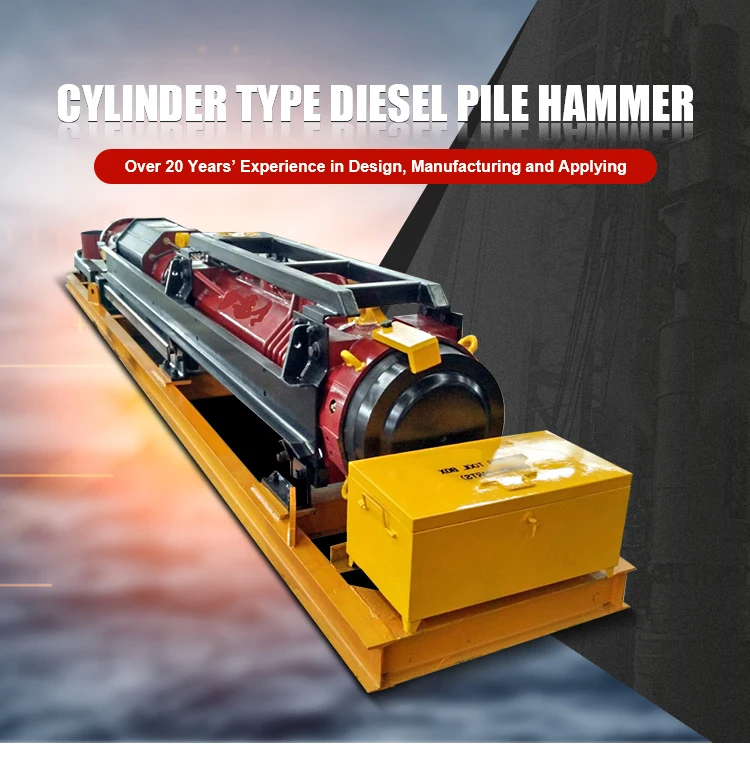

”FANYATOP”Brand tubular diesel pile driving hammer are single acting free fall hammers using the principle of impact atomization.The diesel hammer pile driver consists of upper and lower cylinder in which the piston is led. The piston stroke and therefore the impact energy is regulated by the settings of the fuel pump. This is a special advantage when soil formations change. Optionally a hydraulically actuated fuel pump with endless settings is available.
The diesel piling hammers are very reliable and have only a little wear. They are less maintenance and can be used on different pile types like concrete piles, H-beams, sheet piles, etc.
Other advantages are the unmatched ratio of total weight to impact energy and the very low oil consumption.
The strong design, the reliability and the low maintenance and operating costs have convinced thousands of customers around the world that a"FANYATOP” pile hammer is always the right choice.
Model Technical data | Unit | D30 | |
Batter piling forward and backward up to | |||
1:3/1:1 | |||
Impact Weight (piston) | kg | 3000 | |
Energy per blow | Nm | 102300 ~47970 | |
Number of blows | min-l | 36~52 | |
Force of explosion pressure on pile max. | KN | 1304 | |
Suitable for driving piles up to | Kg | 9000 | |
Permissible rope dimmeter for deflector sheave of tripping device max. | mm | 22 | |
Consumption | Diesel oil | L/h | 10 |
Lubricant | L/h | 1 | |
Volume | Diesel oil tank | L | 67 |
Lube tank | L | 19 | |
Weight | Diesel pile hammer approx. | kg | 6310 |
Tripping device approx | kg | 180 | |
Transport bracket/cradle approx. | kg | 20 | |
Transport guard approx. | kg | 23 | |
Tool box approx | kg | 100 | |
Dimension | Lenght of Diesel pile hammer (a/al) | mm | 5562 |
Outer diameter of impact block (b) | mm | 560 | |
Overall dimensions measured over fastening screws of the guide jaws (c) | mm | 780 | |
Width of Diesel pile hammer (d) | mm | 640 | |
Width for connection of guide jaws (e) | mm | 540 | |
Center of Diesel pile hammer up to pump guard (f) | mm | 405 | |
Center of Diesel pile hammer up to center of threaded hole for fastening screw of the guide jaws (g) | mm | 235 | |
Depth of Diesel pile hammer (h) | mm | 715 | |
Standard distance from center of Diesel pile hammer up to the center of lead (H) | mm | 440 | |
Leads width (L) | mm | 330x(Φ70) | |

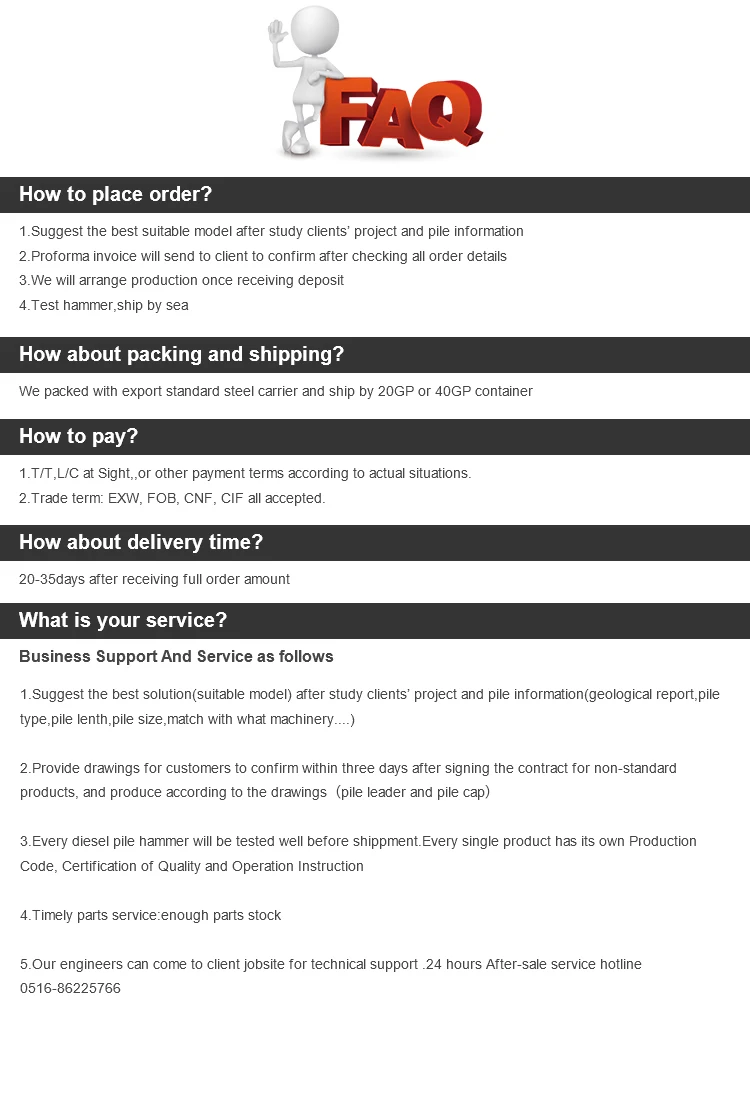

Payment Term:
1. T/T,L/C at Sight,,or other payment terms according to actual situations.
2. Trade term: EXW, FOB, CNF, CIF all accepted.

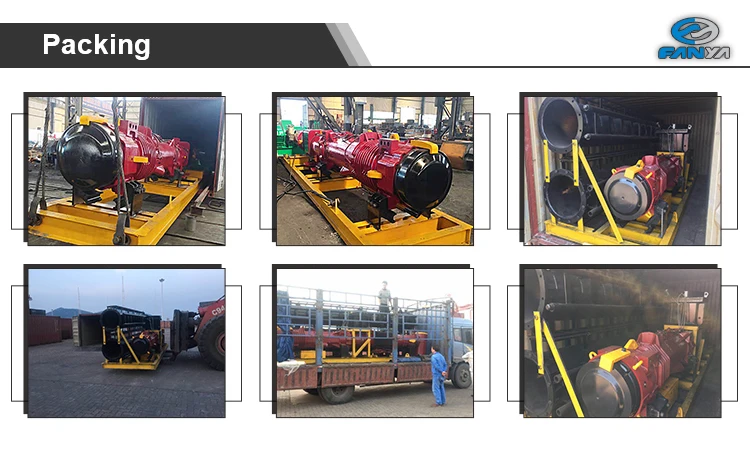

Packaging & Shipping
The standard set of pile hammer include:
- diesel pile hammer
- drive cap
- Accessories.
We packed with export standard steel carrier and ship by 20GP or 40GP container
