YOULI DN25 DN32 aluminium alloy 304 316 pn10 16 soft seal Water gas oil Manual Center mini Wafer Butterfly Valve
- Category: >>>
- Supplier: Wenzhou Youli Machinery Co. Ltd.Wenzhou Ltd.
Share on (1601094102520):
Product Overview
Description
Product Description
Body material | WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),Cast Iron,Aluminium Alloy etc. |
Full port | 2"-12"(DN50-DN300) |
Working pressure | JIS10-20K,API607,ANSI150-300LB,10-40Bar,PN10-40,1-4Mpa |
Medium temperature | - 20 ℃ ~ + 120°C,Optional(- 20℃ ~ + 425°C) |
Connection type | Wafer,Flange,Lug |
Sealing | EPDM(NBR,PTFE,Silicone,PFA,Metal,ETC) |
Structure | Center sealed ,Single eccentric sealed ,Double eccentric,Triple eccentric sealed |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc

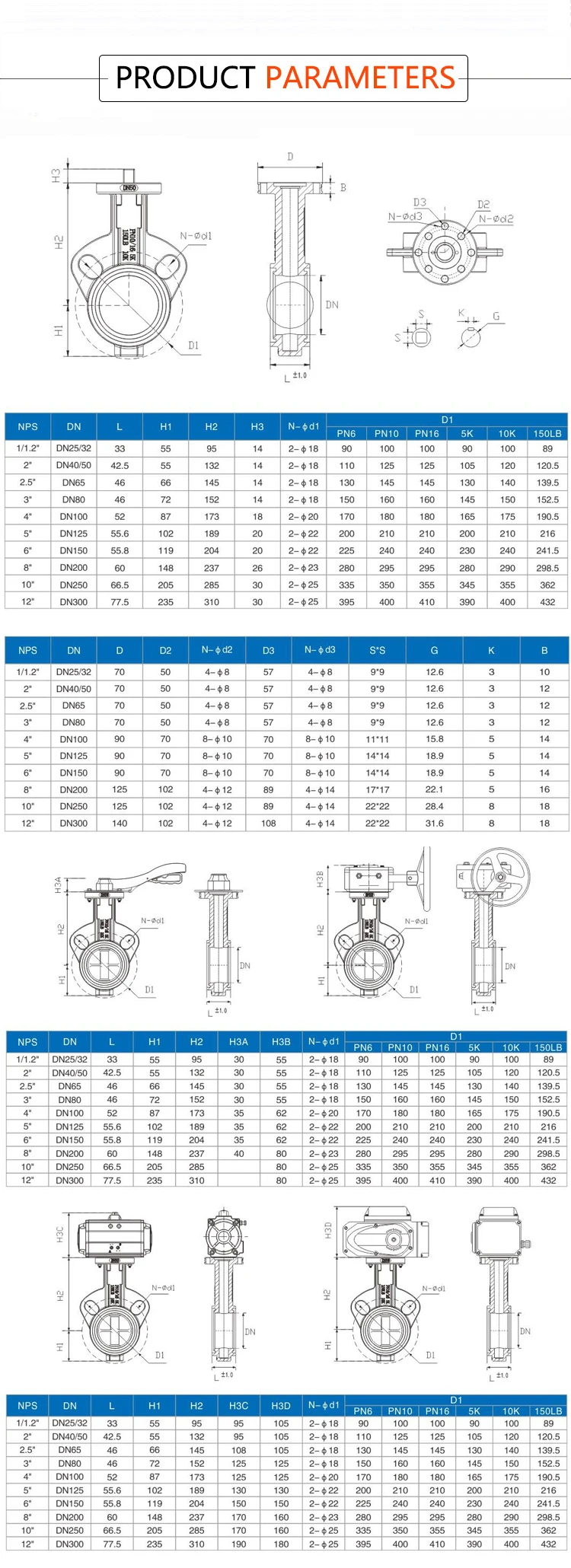

Product Paramenters
Related Products

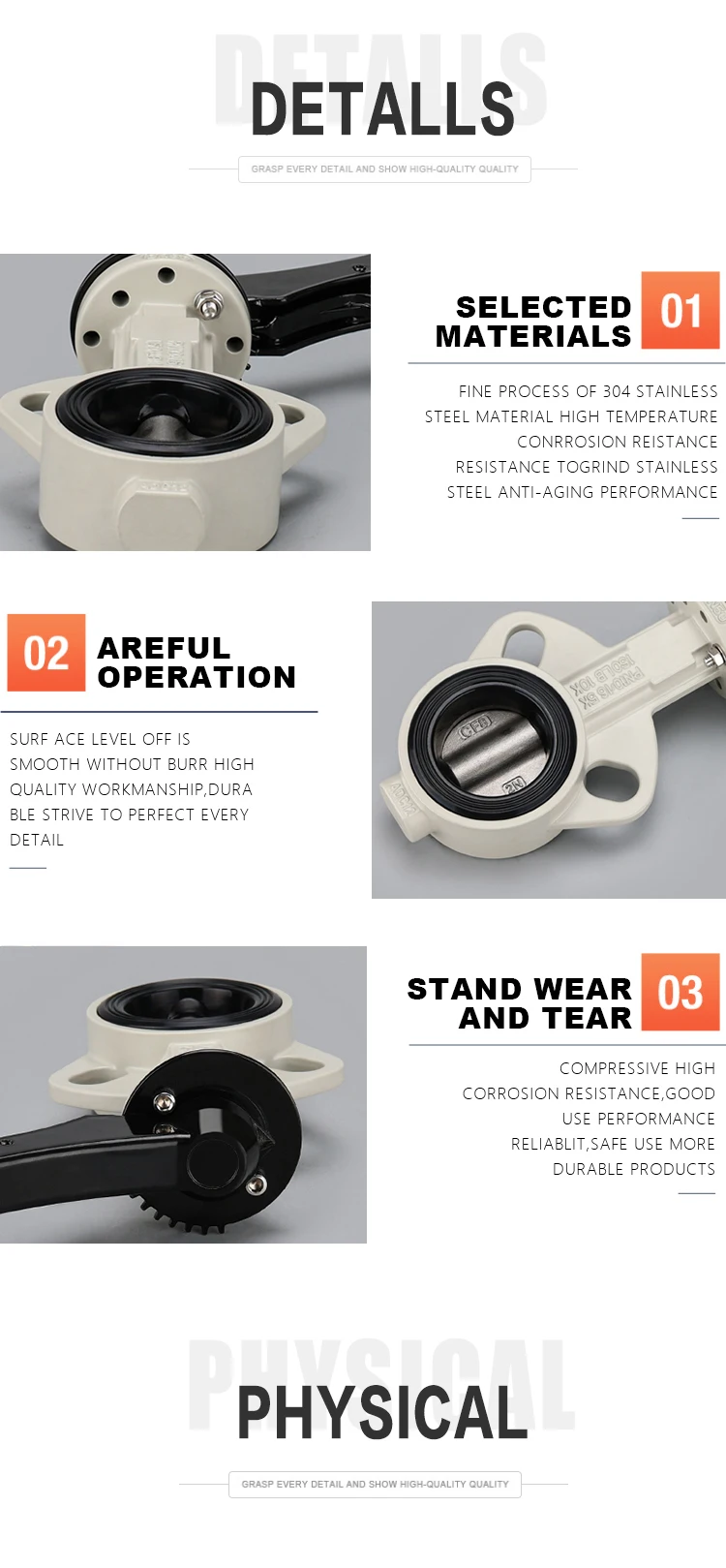

Details Images
