machine de presse huile extract machine oil machine huil de palm
- Category: >>>
- Supplier: Ruian Anxiang Machinery Co. Ltd.
Share on (1601094104367):
Product Overview
Description
Hydraulic press oil
The oil pressed by hydraulic is of good quality, fragrant flavor, and the output is satisfying.Customers can choose cold pressing or hot pressing,according to their needs.
Nowadays, many regions have invested in the purchases of hydraulic oil extractor, which are profitable and helped a lot in the expansion of business.

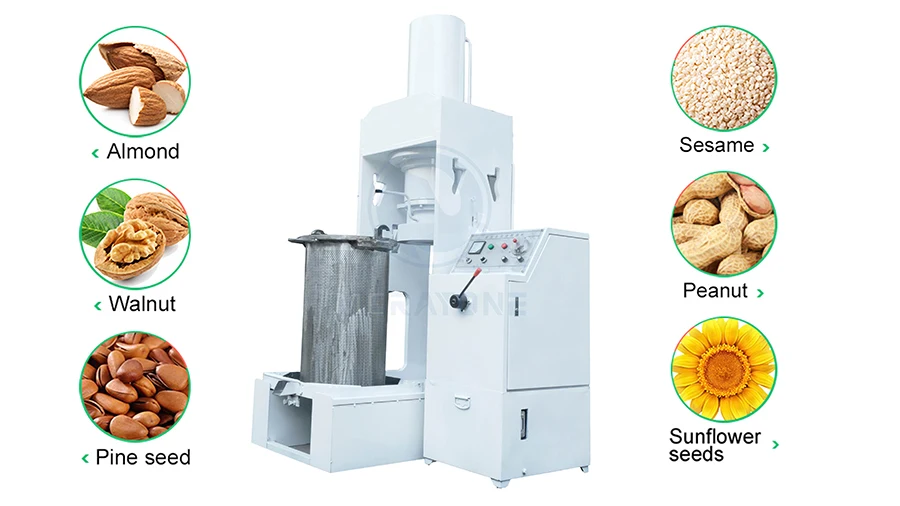

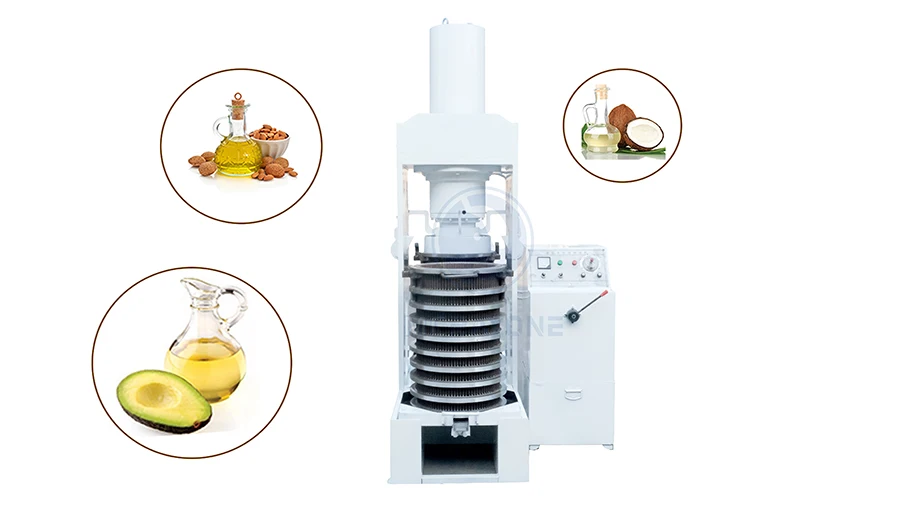

Hydraulic oil press is basically a multi-purpose machine, for good , expensive raw materials, and the production capacity is relatively small, hydraulic oil presses is your good choice. For example, walnuts, sesame, almonds, pine nuts, especially for extra virgin olive oil, avocado, shea butter oil.The operation is simple and convenient,using this equipment in production, the oil output is higher compared to the old style.
FRONT
SIDE
BACK

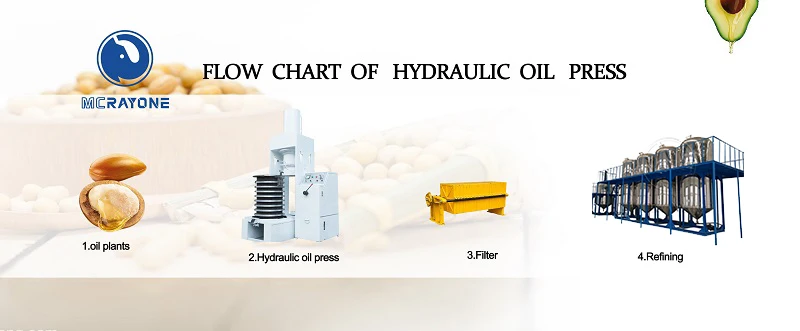

Production Line
Product Paramenters
Model | 6YY-250D-SS | 6YY-250D-DS | 6YY-250D-SP | 6YY-250D-DP | ||
Bucket type | Single barrel / strip | Double barrel / strip | Single barrel / punch | Double barrel / punch | ||
Barrel capacity | 75KG/H | 75KG/H | ||||
Equipped with power | 3KW | 3KW | ||||
Barrel height | 700mm | 700mm | ||||
Press stroke | 700mm | 700mm | ||||
Voltage | 380V | 380V | ||||
Piston diameter | 250mm | 250mm | ||||
Barrel diameter | 400mm | 400mm | ||||
working pressure | 40MPa | 40MPa | ||||
Working thrust | 200Ton | 200Ton | ||||
weight | 1400KG | 1600KG | 1350KG | 1550KG | ||
Dimensions | 1400*1300*2300mm | 2050*1300*2300mm | 1400*1300*2300mm | 2050*1300*2300mm | ||
Model | 6YY-280D-SS | 6YY-280D-DS | 6YY-280D-SP | 6YY-280D-DP | ||
Bucket type | Single barrel / strip | Double barrel / strip | Single barrel / punch | Double barrel / punch | ||
Barrel capacity | 100KG/H | 100KG/H | ||||
Equipped with power | 3KW | 3KW | ||||
Barrel height | 800mm | 800mm | ||||
Press stroke | 800mm | 800mm | ||||
Voltage | 380V | 380V | ||||
Piston diameter | 250mm | 250mm | ||||
Barrel diameter | 420mm | 420mm | ||||
working pressure | 50MPa | 50MPa | ||||
Working thrust | 250Ton | 250Ton | ||||
weight | 1700KG | 1900KG | 1600KG | 1800KG | ||
Dimensions | 1400*1300*2550mm | 2050*1300*2550mm | 1400*1300*2550mm | 2050*1300*2550mm | ||
Double barrel type
There are two pressing barrels to save labor and time cost. It is suitable for customers with high demand for production.
Single barrel type
Economical type, only one press barrel.
Used for small volume customers.

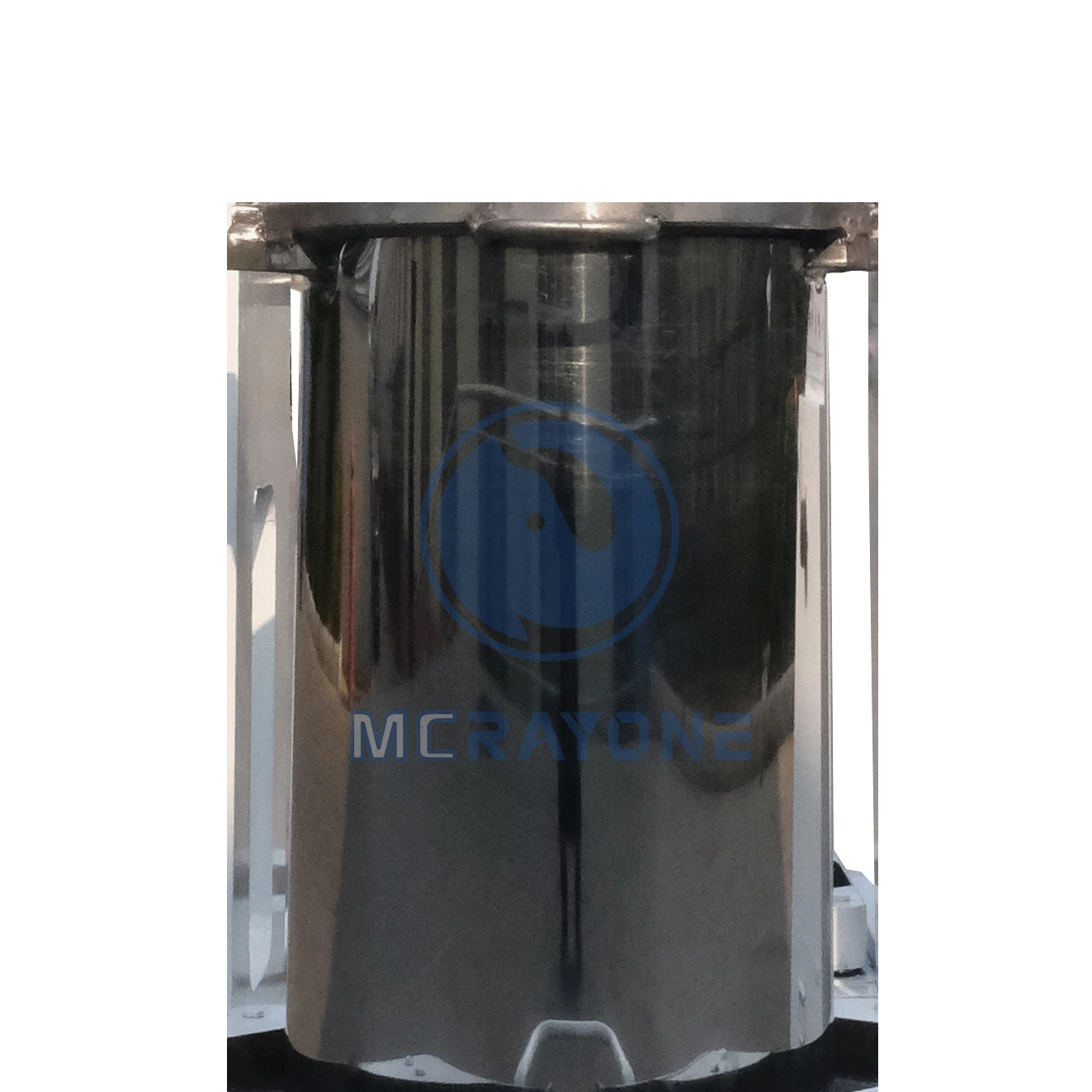

Characteristic 1
Based on the splash of oil in the
process of using hydraulic press,
our company is equipped with
stainless steel cover outside each
press barrel. Solve the problem of oil splash, save oil for customers, reduce unnecessary waste.
Characteristic 2
According to customer and
operation requirements, custom
press barrel.

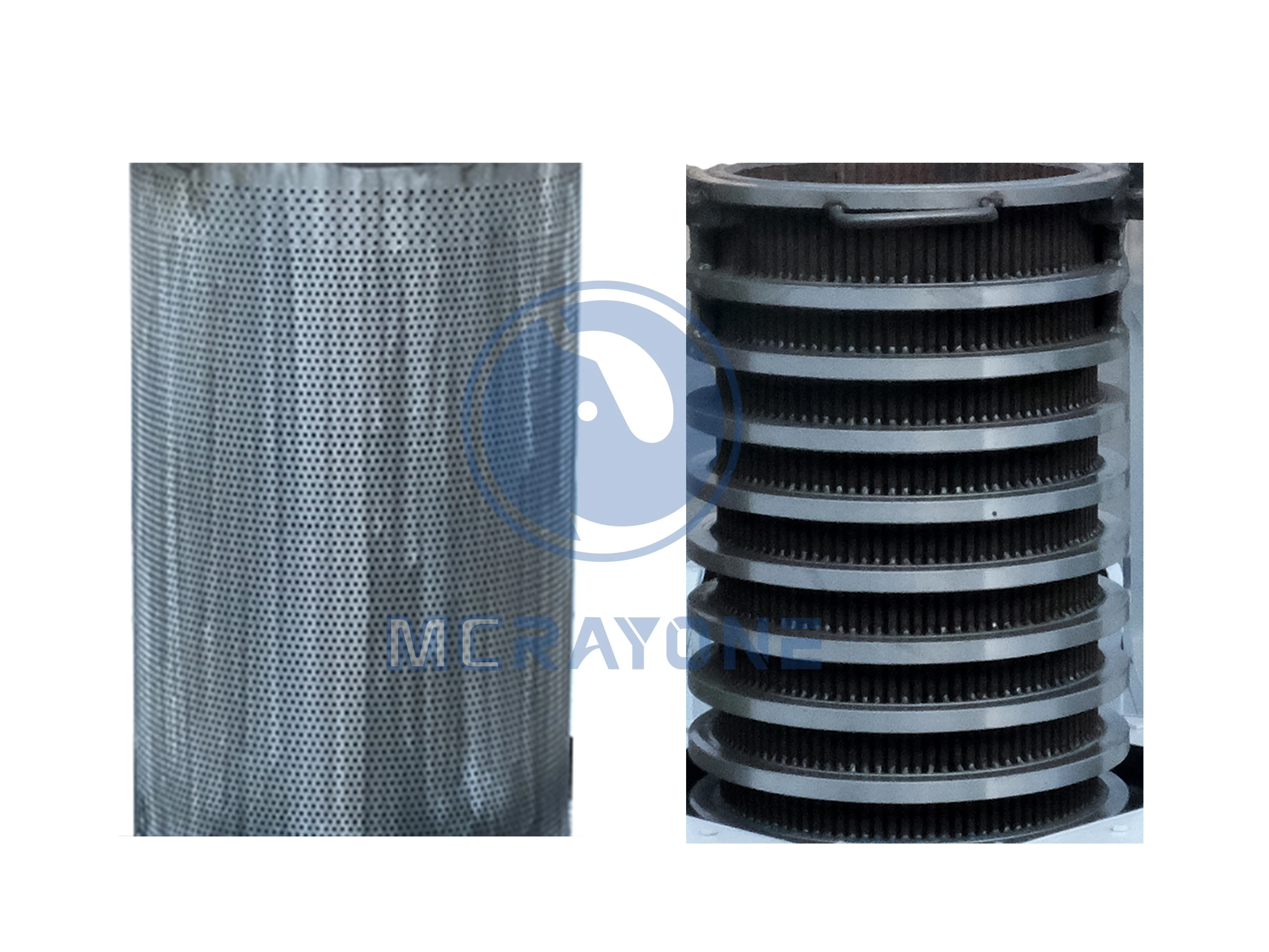

Generally, high oil material can use
strip press barrel, and low oil
material can use perforated press
barrel.
Product packaging
