Sensor: | |
Type | Uncool-ed |
Resolution | 384x288/640*512 |
Frame Rate | 50Hz |
Pixel Size | 12um |
NETD | ≤30mK |
Optical Characteristics: | |
Objective Lens | 35mm/50mm |
Magnification | 2.8X/4X |

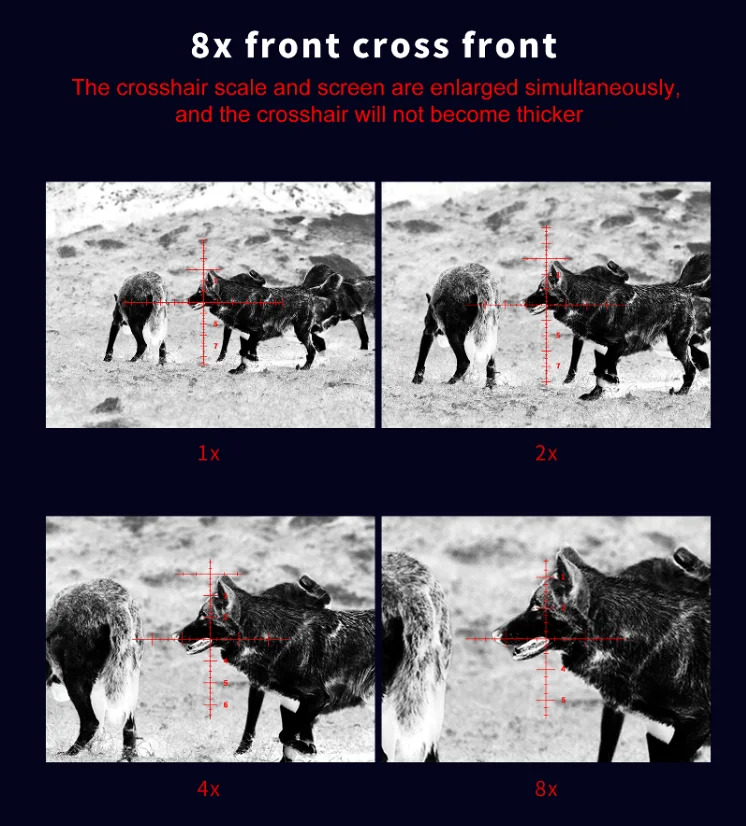

Digital Zoom | Ix/2x/4x/8x |
Eye Relie | 50 mm |
Dioptre Adjustment | +5/-5D |
Focus Scope Range | 5m - oo |
FOV | 7.5°X5.7°/5.3*X4.0 |
Detection Distance | 1750m/2500m |

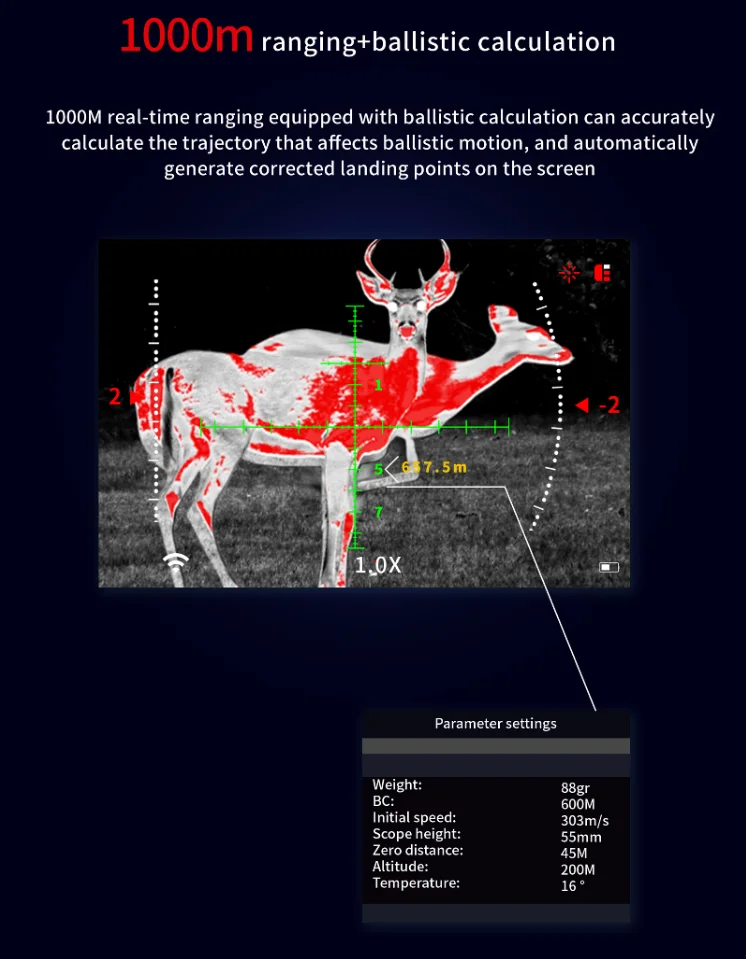

Laser measurement distance | 1000m,compensation calculation |
Accuracy | -/+0.3m |
Display: | |
Operating mode | White Hot , Sky Mode,Black Hot , Red Hot ,Fusion |
Type/ Resolution | 0.39 inch/OLED/1024X768 |
Operational Characteristics: | 3D Gyroscope |
Power Supply | 3-4.2V |
Battery | 18650/3400mAh |
External Power Supply | 5V(USB) |
Waterproof | IP66 |
Max. Recoil Power | Joules 10000 |
Dimensions | 160*78*48mm |
Operating Time(At Temperature =22°C) | 5 hours |
Weight (Without Battery/Mount) | 388g |
Video Recorder: | |
Video / Photo Resolution | 1024x768 |
Video / Photo Format | mp4/jpg |
Supported Memory Type | Tf Card |
Wifi channel: | |
Frequency | 2.4GHz |
Standard | 802.11 b/g |
Line-of-Sight Reception Rang | 10M |
