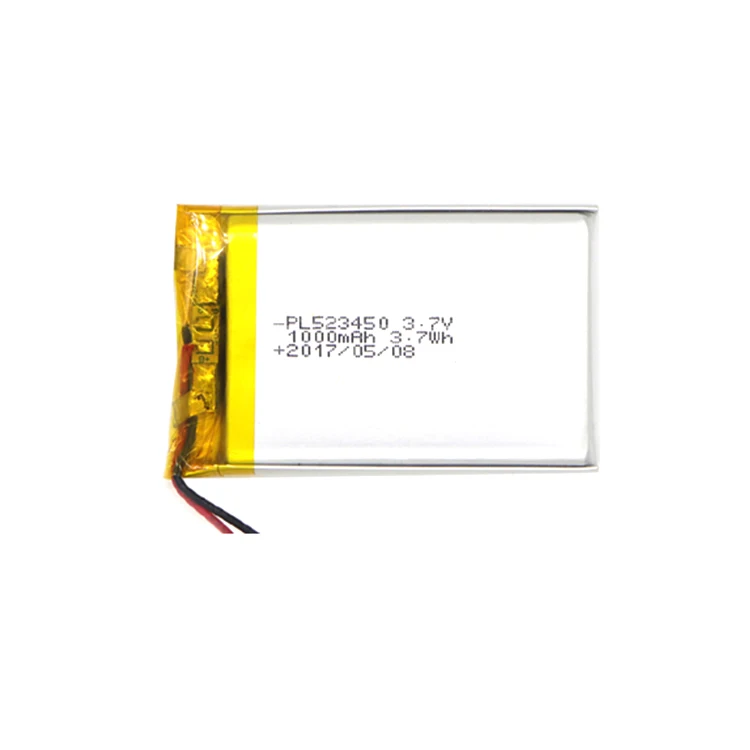

Customized lipo lithium battery li po 3.7v 7.4v 2s 500mah 600mah 700mah 1000mah 383450 303450 523450 2p pin polymer for gps
- Category: >>>
- Supplier: Shenzhen Kai Xinda Energy Technology Limited Company
Share on (1601094253367):
Product Overview
Description
Product Description
Customized lipo lithium battery li po 3.7v 7.4v 2s 500mah 600mah 700mah 1000mah 383450 303450 523450-2p pin polymer for gps
Main Features:
2. Use a grade cells. More than 800 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 800 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
6. Optional: Lithium Battery built with BMS
Normal parameters | ||||
NO. | Item | General Parameter | ||
1 | Type | Lithium ion Battery | ||
2 | Model | KXD-3.7V-600mah | ||
3 | Color | Silver /Blue | ||
4 | Standard capacity(0.2C5A) | 600mAh/ customized | ||
5 | Rated voltage | 3.7V | ||
6 | Max.charge voltage | 4.2V | ||
7 | Cut-off voltage | 2.75V | ||
8 | Standard charge current | < 1.5A / customized | ||
9 | Max continuous discharge current | < 1.5A / customized | ||
10 | Peak discharge current | <4. 5A / customized | ||

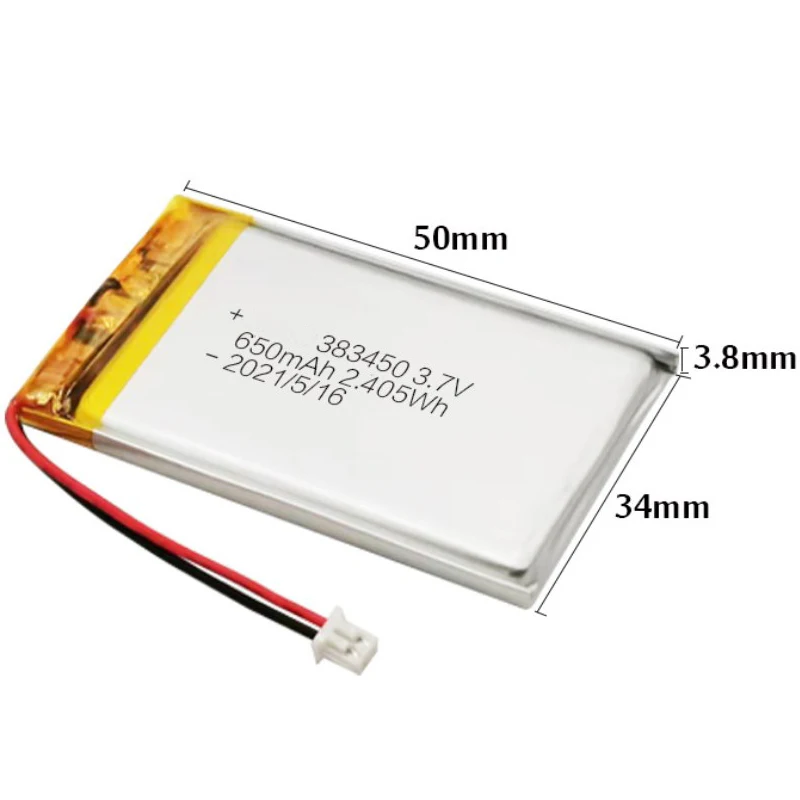

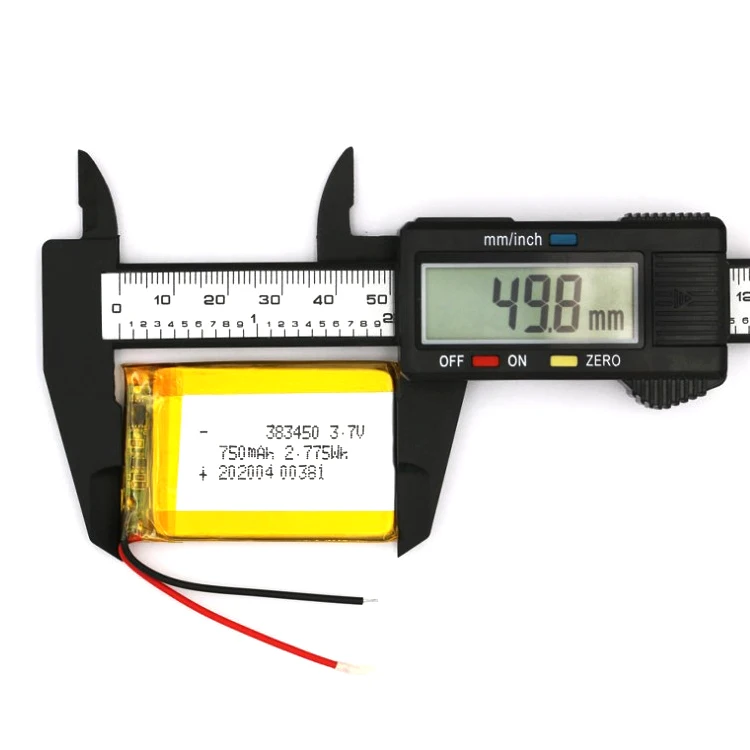

11 | Battery dimension | L3.8*T34*W50mm/Customized | ||
12 | (Approx.)Total weight(Approx.) | about 12g | ||
13 | Standard charging temperature | 0℃~45℃ | ||
14 | Discharge temperature | -20℃~60℃ | ||
15 | Storage temperature | -20℃~45℃ | ||
16 | Cycle life | >500 times | ||
17 | Warranty | 12 month | ||
18 | Option | Connectors/other Capacity | ||
More information:

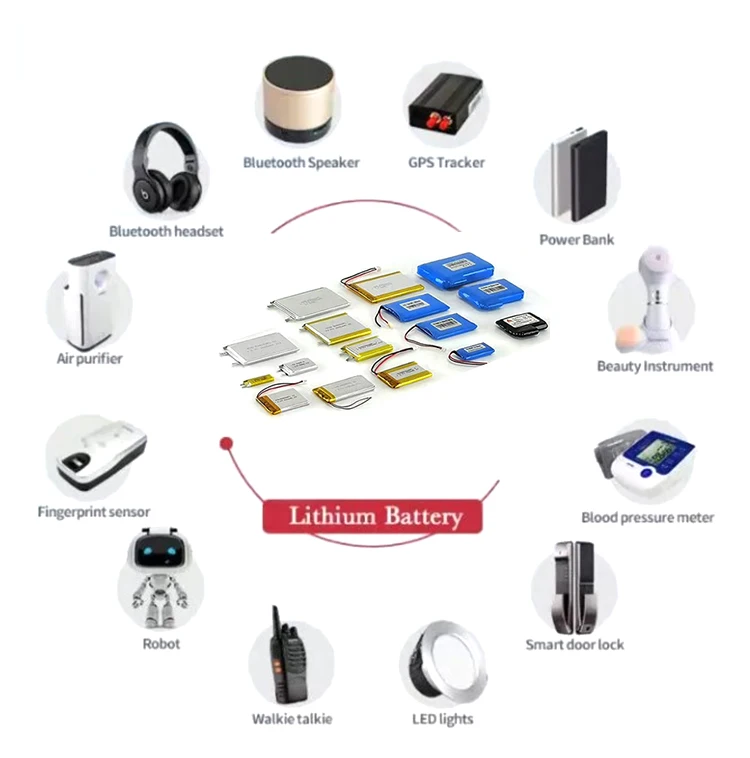

Applications:
3.7V 4.2V lithium polymer battery
The lithium polymer battery is widely used in digital products, GPS, headlights, miner's lamp, flashlight, searchlight, loudspeaker (loudspeaker), wireless monitoring equipment, medical equipment, instrumentation, traffic signs, portable small appliances such as 3.7V (4.2V) power supply Any utensils.
Why Choose Us
360℃ customized service:

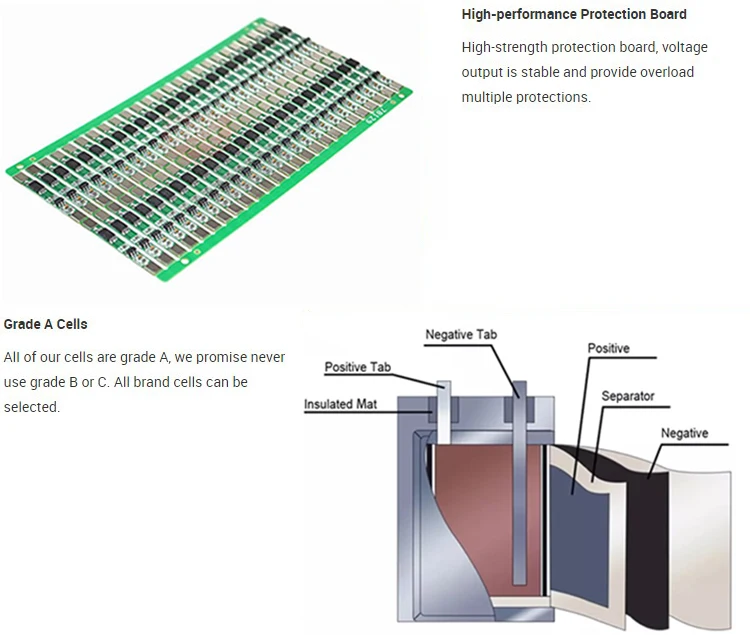

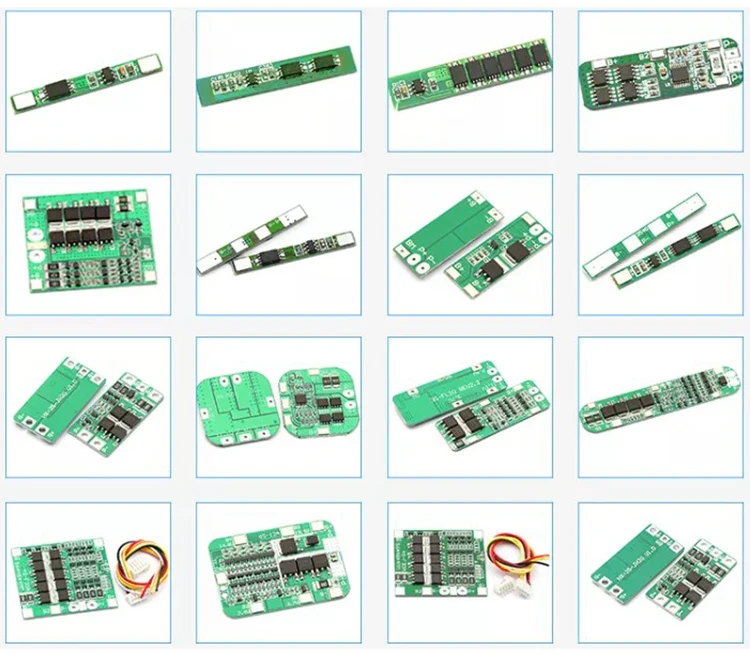

Customized Boards:(PCB/BMS)
1.Over charged voltage protection 2.Over discharged voltage protection 3.Thermal protection
4.Over load protection 5.Over charge and discharge current protection 6. Balance functions. Etc
4.Over load protection 5.Over charge and discharge current protection 6. Balance functions. Etc

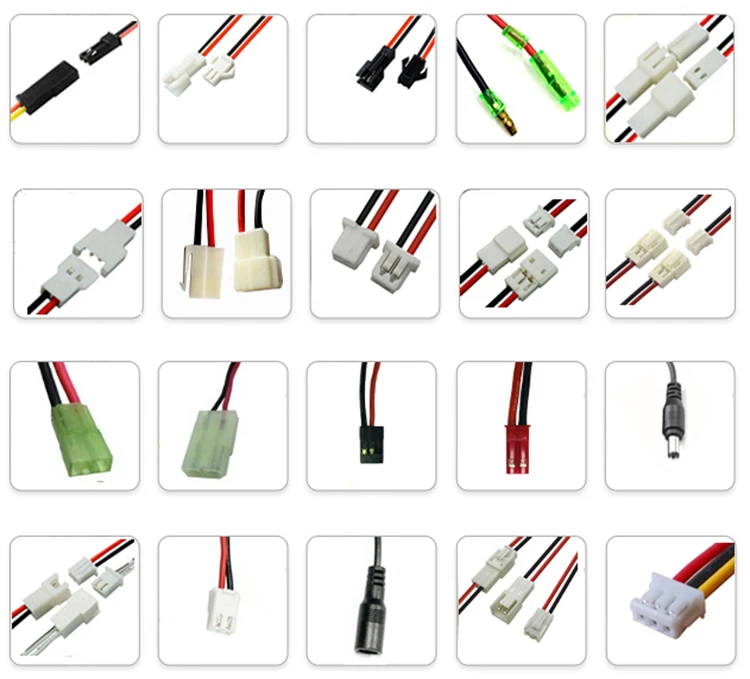

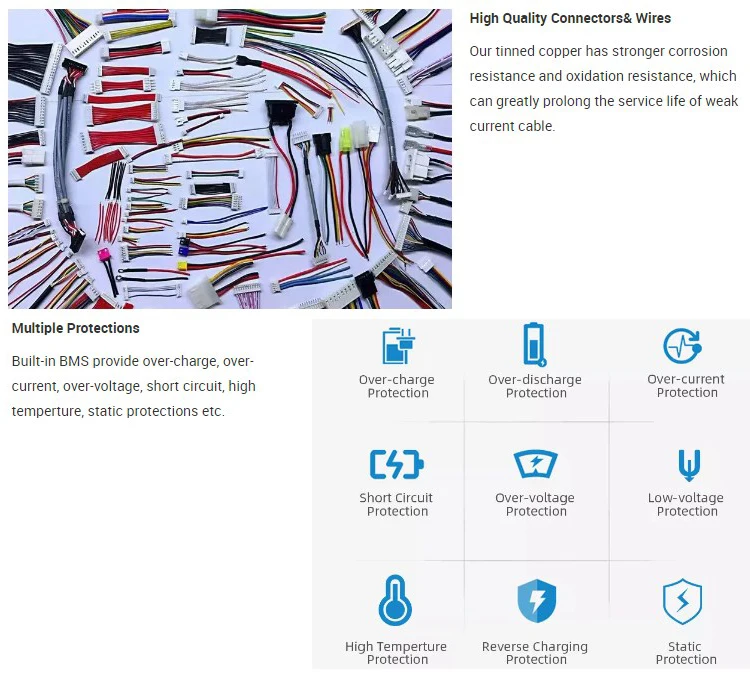

Customized connectors:
JST / Molex connector , DC 1.35*3.5 2.1*5.5 plug /XT plug Etc.

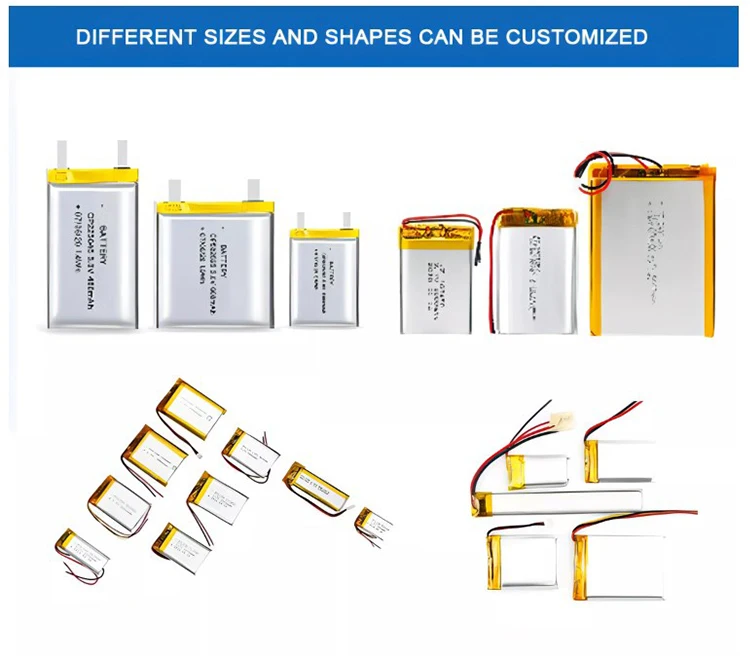

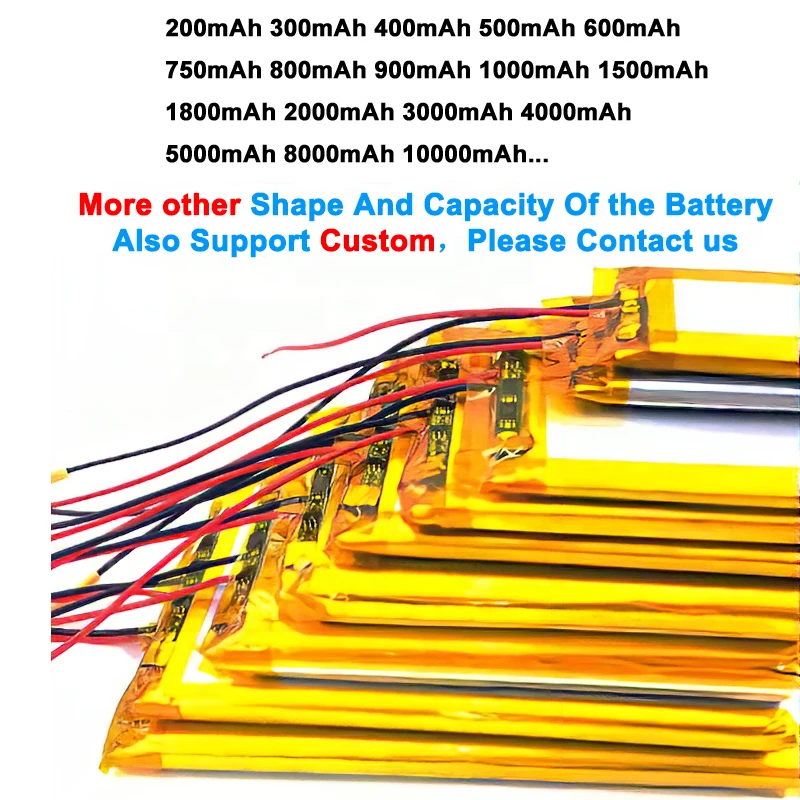

Customized size / capacity/ voltage:
Voltage: 100mAh~2000mAh, >2000mAh/ li polymer battery.

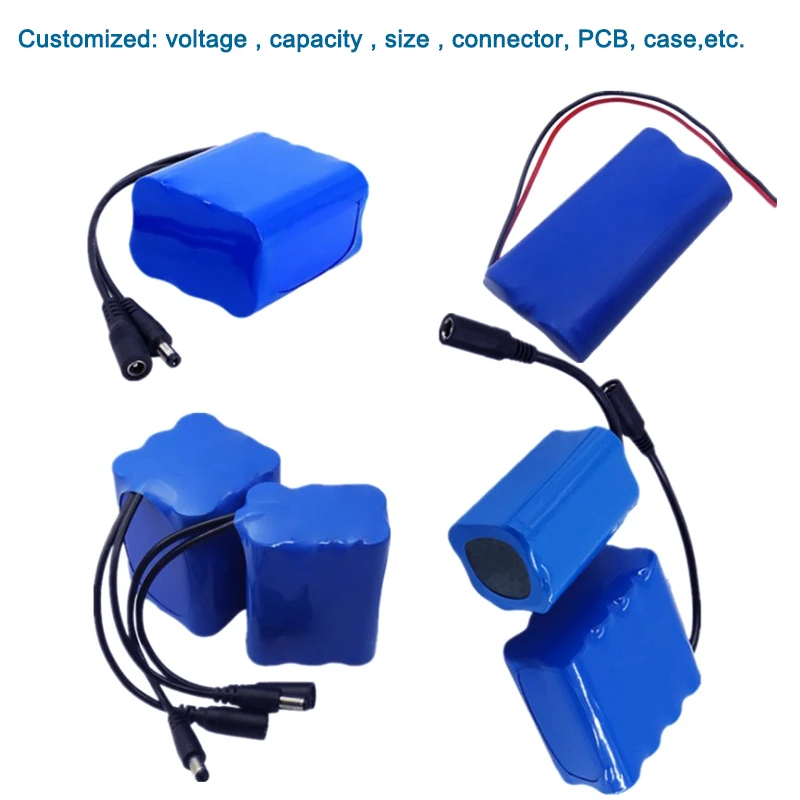

2200mah ~500Ah /18650 lithium ion battery pack.
Capacity: 3.2V 3.7V 7.4V 12V 14.8V 24V 36V 48V 60V 72V 96V etc.

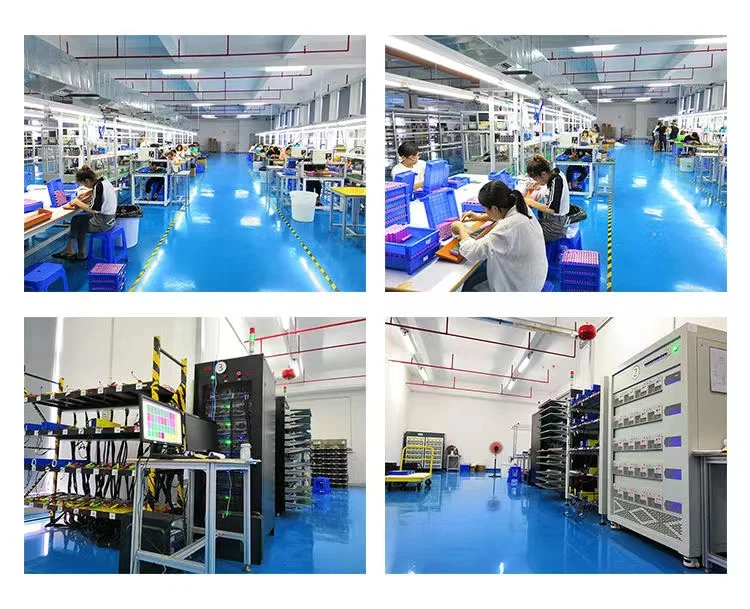

Company Introduction
Shenzhen Kaixinda Energy Technology Co., Ltd.
KXD is a professional leading lithium battery producer with more than 15 years history in China.
KXD is a professional leading lithium battery producer with more than 15 years history in China.
The main productus are lithium battery , lithium polymer batteries, LiFePO4 battery, AGV car batteries, or any customized battery projects.
We’ve grown to a company with complete R&D team and quality inspection system. We focus on battery solutions for Solar Energy Storage System, Home Appliances, AGV robots, Solar Street Lighting, Electric Vehicle, Telecom, Medical Devices, and UPS etc.
Certification:
ISO9001:2015, ISO14001:2015
CE, RoHs, IEC62133, CB, UL, KC,PSE, UN38.3 , MSDS
Exhibition
FAQ
Q: 1. Can I have a sample for customized specification?
A: Of course. please send us your specific requirement.
Q: 2. What is the lead time?
A: 3~7 days for sample, 10~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive.
For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
