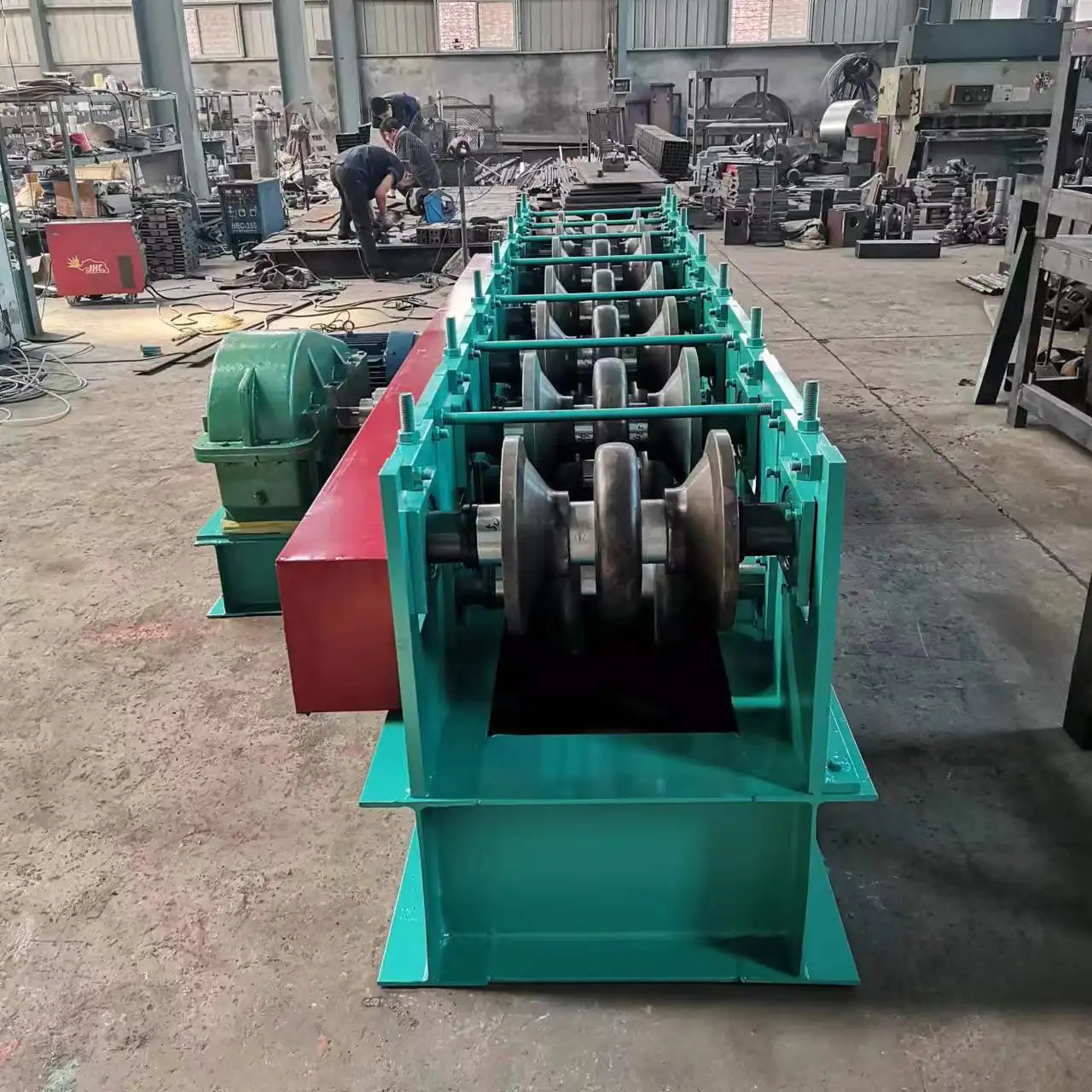

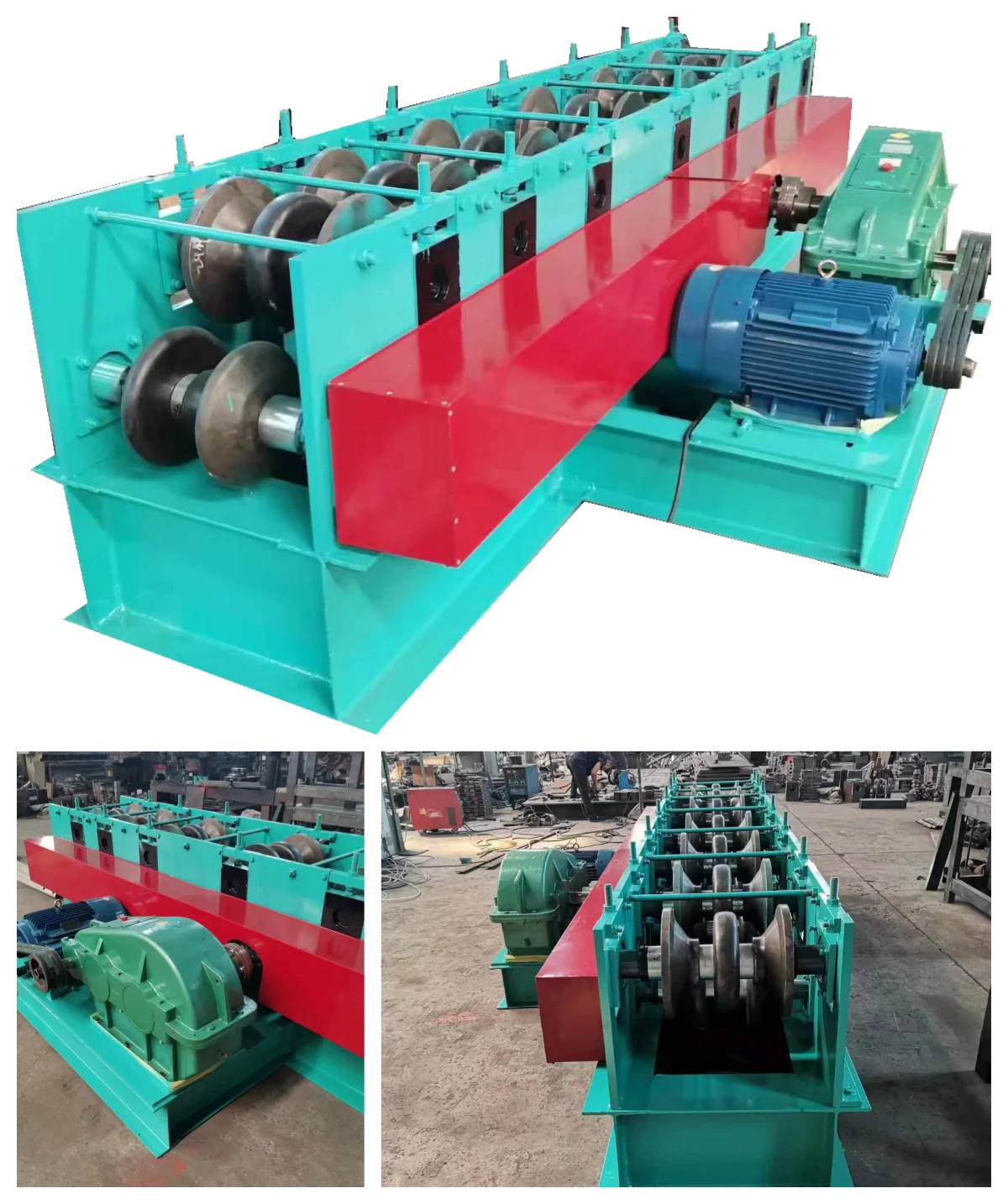

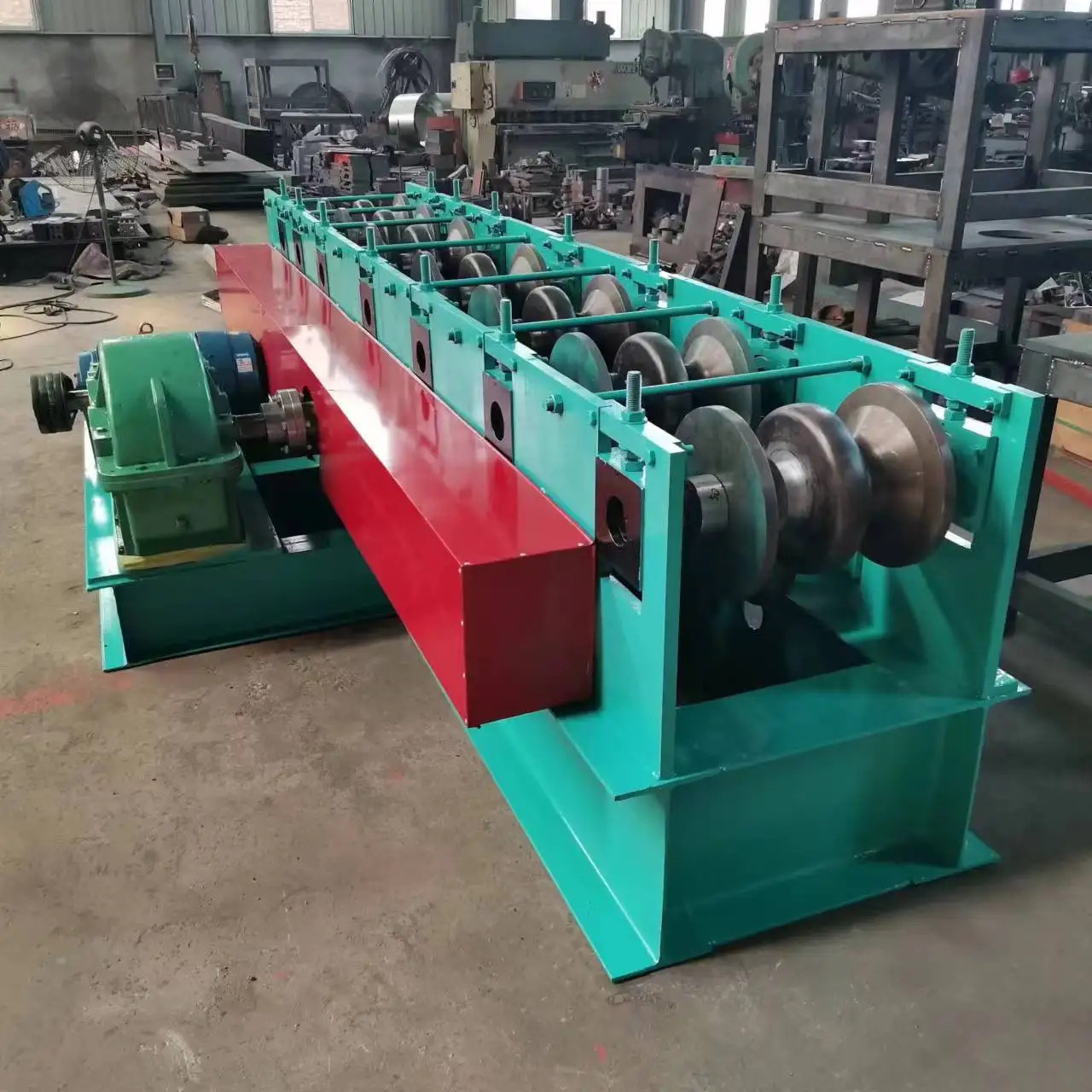

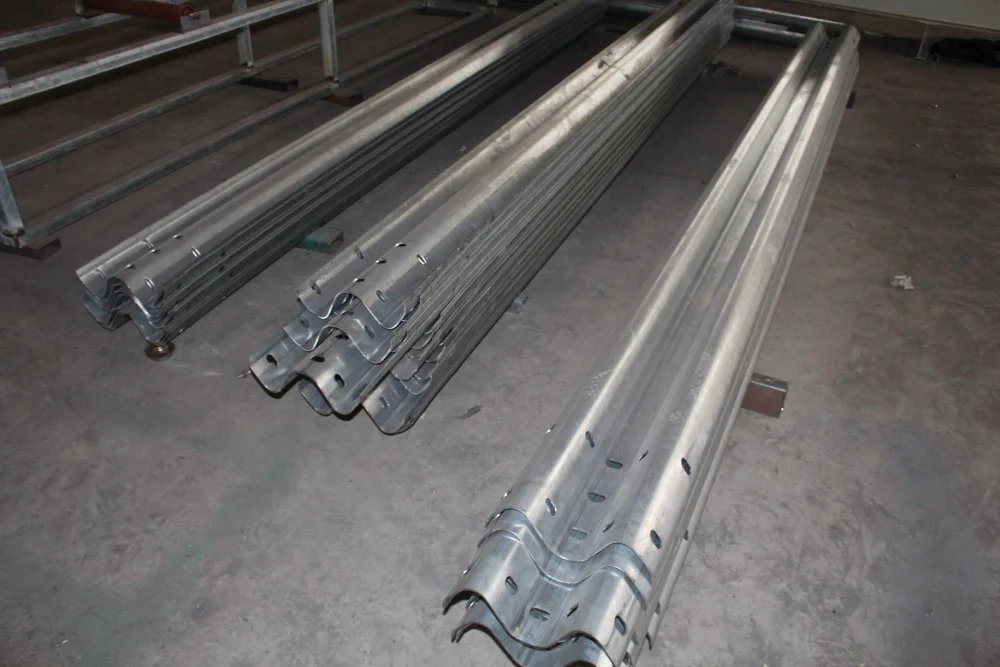

W Beam Highway Guardrail
Repairing Machine

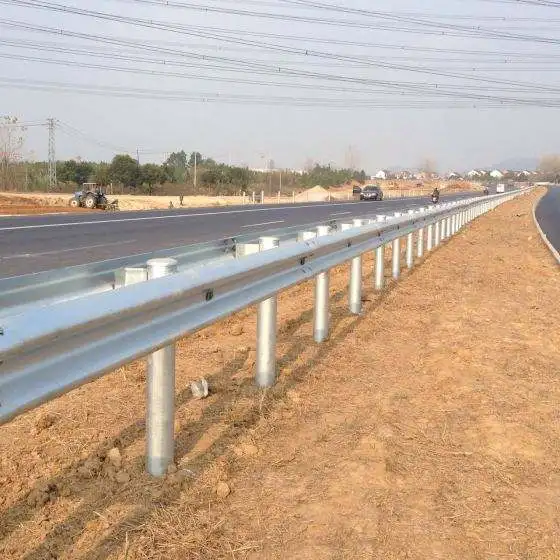

Guardrails ensuring safety on highways. The economics,versatility,and performance of guardrail surpass all other roadside barrier system. Guardrail provides highly-visible protection in all weather conditions helping to increase driver confidence.
But, to some guardrails that are not damaged seriously, how to deal with them? It is not the best way to replace. In this case, guardrail repairing machine seems necessary, you just feed the deformed guardrail and re-shape it, and it can be used again. Not only save time, money, but also improve reuse rate. A good way for saving resource.
Related attributes
Decoiler
Capacity: 10T
Power: 7.5KW
Tightening range: 470-620mm
Max width: 1000mm
Punching device
Power: 15KW
Moulds for free: 2 sets
According to customer's need, punching position can be designed.Forming Device
Feeding Type: manual
Main Power: 45KW
Two emergency stop switch on it.
Main Motor
Providing electronic power to the machine.
Hydraulic cutting system
Power: 22KW 35Mpa
Gearbox
Size: 230
Number of gearbox: 17
Work Flow
Specification
No. | Item | Data |
1 | Forming Row | 6 |
2 | Main Power | 22KW |
3 | Forming Speed | 9m/min |
4 | Shaft Diameter | 90 mm |
5 | Transmission Way | 1.5-inch double chain |
6 | Wall Panel Thichness | 25mm |
7 | Roll Material | Gcr15 quenching |
8 | Control System | Reversible electric control cabinet |
9 | Shaft Material | 45# steel |
10 | Forming Material Thickness | <=4.2mm |
11 | Main Color | according to customer request |

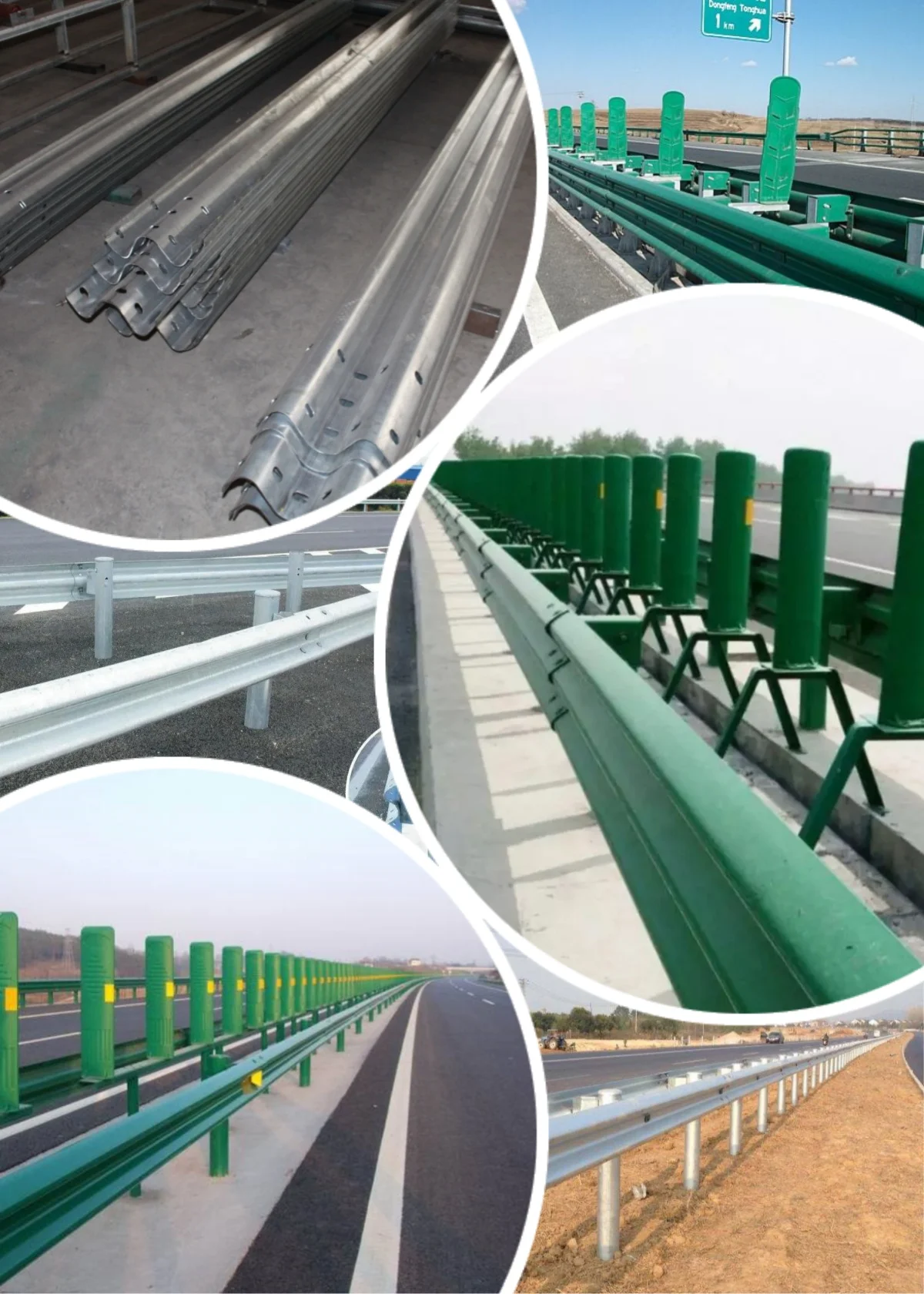

Usage
