Waterproof Addressable advertising sign light outdoor 50mm 7led RGB pixel 24V led point Light

Specification of 50mm point light :

(1) Break-point continuous transmission led pixel string for outdoor application.

(2) Each pixel individually control with 10086IC / 8206IC , 1 led broken , not influence other led light .

(3) 30pcs per chain with 12 cm space (standard length), the cable also could customization.

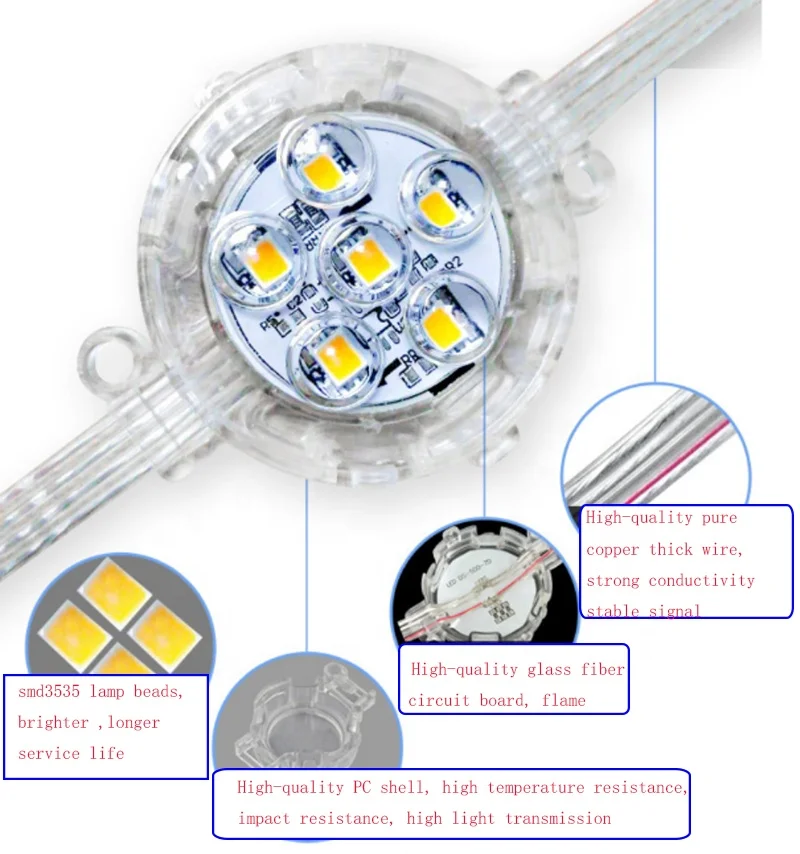

(4) There is 7 pcs super bright smd3535 RGB LED inside of each lamp.

(5) The connectors are waterproof, the Male with Pin is Input , input plug is male plug

(6) The whole string light is waterproof IP67

(7) Controller System:SD controller , DMX controller , Artnet and so on.

	Model Name	CP-IC507T-8206
	IC Chip	1008ic / 8206IC
	Led Chip	Epister smd3535 led chip
	Led Qty	7PCS
	Voltage	DC24V
	Watt	1.5W
	Warranty	2 Years
	Certification	CE ROHS

50mm point light description :

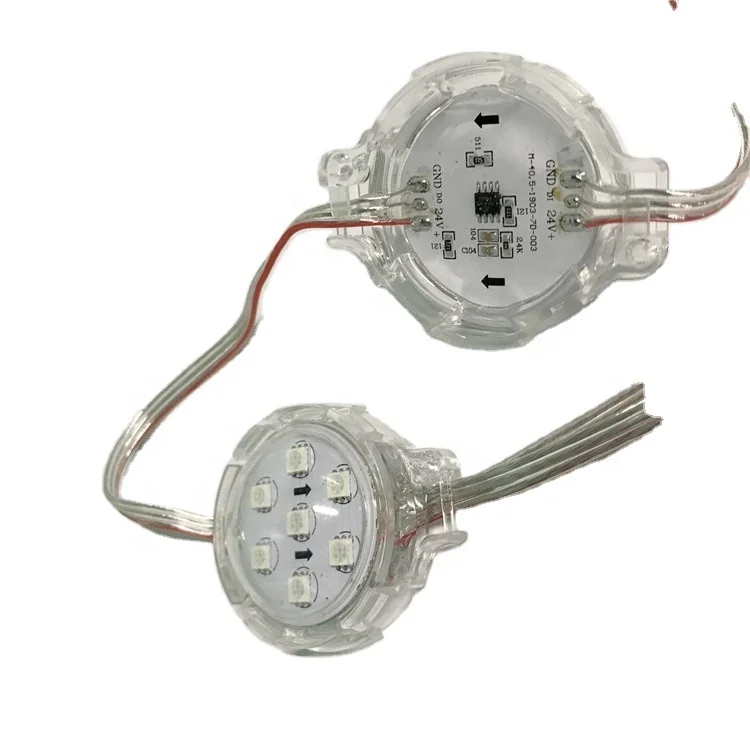

	50mm point light detail
	Break-point continuous transmission, with 4 cable , 2 singal cable , 1 as Spare signal line , 1 led broken , not influence other led light

50mm point light detail

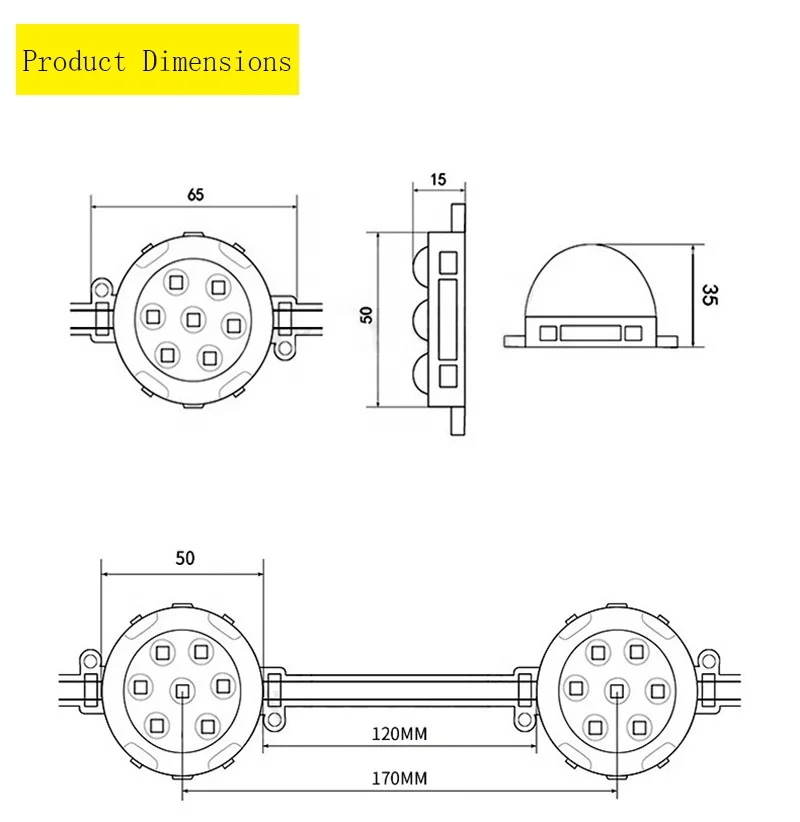

the size is 50mm , with 7 leds , cable length is 12cm , also can customized ,30 leds / string

	50mm point light detail
	can do this led light with lens , also can do with bulb cover .

50mm point light detail

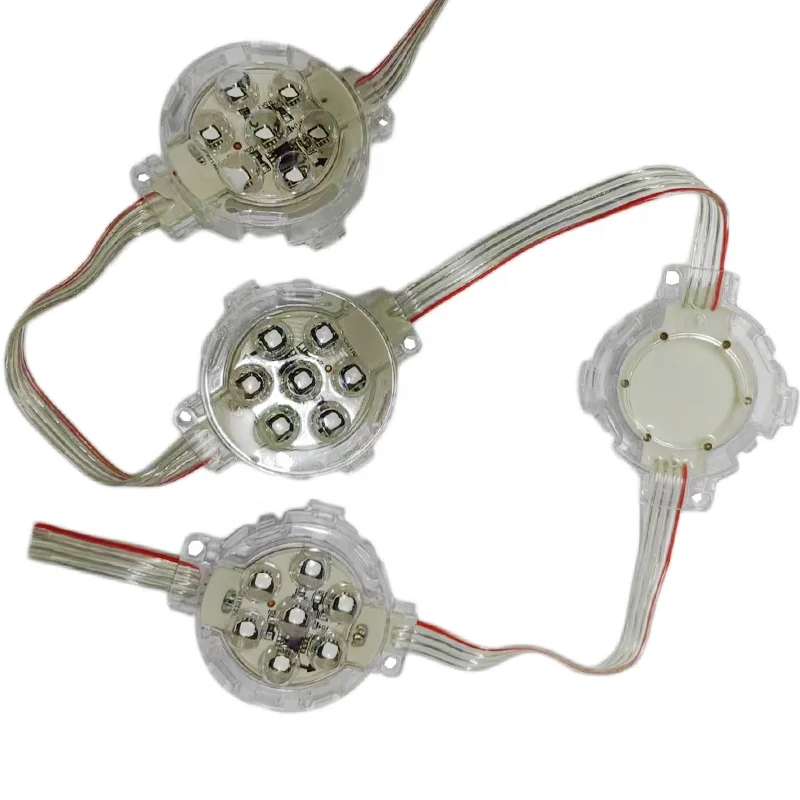

30 leds / string , full color with 8206ic , need work with controller and power supply

	50mm point light detail
	the color have full color / single color for choose . the cover have bulb cover , with lens for choose .

Similar products :

this type also can do 30mm

(1) LED Point Light, glue inject fully into, so strong waterproof; PU glue sealing,not easy to crack,High protection grade

(2) Using Taiwan Epistar chip, with high brightness, lighting color consistency, good color saturation, strong stability

(3) Cables and case are using antu-cold, anti UV, flameresistant, can be used in outdoor for long time

(4) Made by SMD5050 / SMD3535 RGB high brightness LED, with big view angle

(5 )With special snap joint construction, suitable for all kind of board. Directly to install after dig the holes,installation is easy and quickly, very convenient

50mm point light usually application for  :

1.Channel letter lighting

2.Advertising signage lighting

3.Lighting source for light box, lighting box

4.Advertisement bill board inside led lighting

5.Small lighting unit with waterproof IP68

6.Holiday, event, show, exhibition, DIY lighting and home decoration use

Q1. Can I have a sample order for 50mm point light ?

A: Yes, we welcome 50mm point light order to test and check quality. Mixed samples are acceptable.

Q2. What about the 50mm point light lead time?

A: 50mm point light Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100000 pieces

Q3. Do you have any MOQ limit for 50mm point light ?

A: Low MOQ, 100 pcs 50mm point light for sample checking is available

Q4. How do you ship the 50mm point light and how long does it take to arrive?

A: We usually ship the 50mm point light by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for 50mm point light?

A: Firstly let us know your requirements or application of the 50mm point light
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on 50mm point light ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our 50mm point light waterproof strings sample.

Q7: Do you offer guarantee for 50mm point light?

A: Yes, we offer 2 years warranty to our 50mm point light

Q8: How to deal with the 50mm point light  faulty?

A: Firstly, Our 50mm point light are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution  including re-call according to real situation.
