Glass Laser Sandblasting And Drilling Machine
- Category: >>>
- Supplier: Hubei Juren Machinery Co. Ltd.
Share on (1601094333020):
Product Overview
Description
Product Description

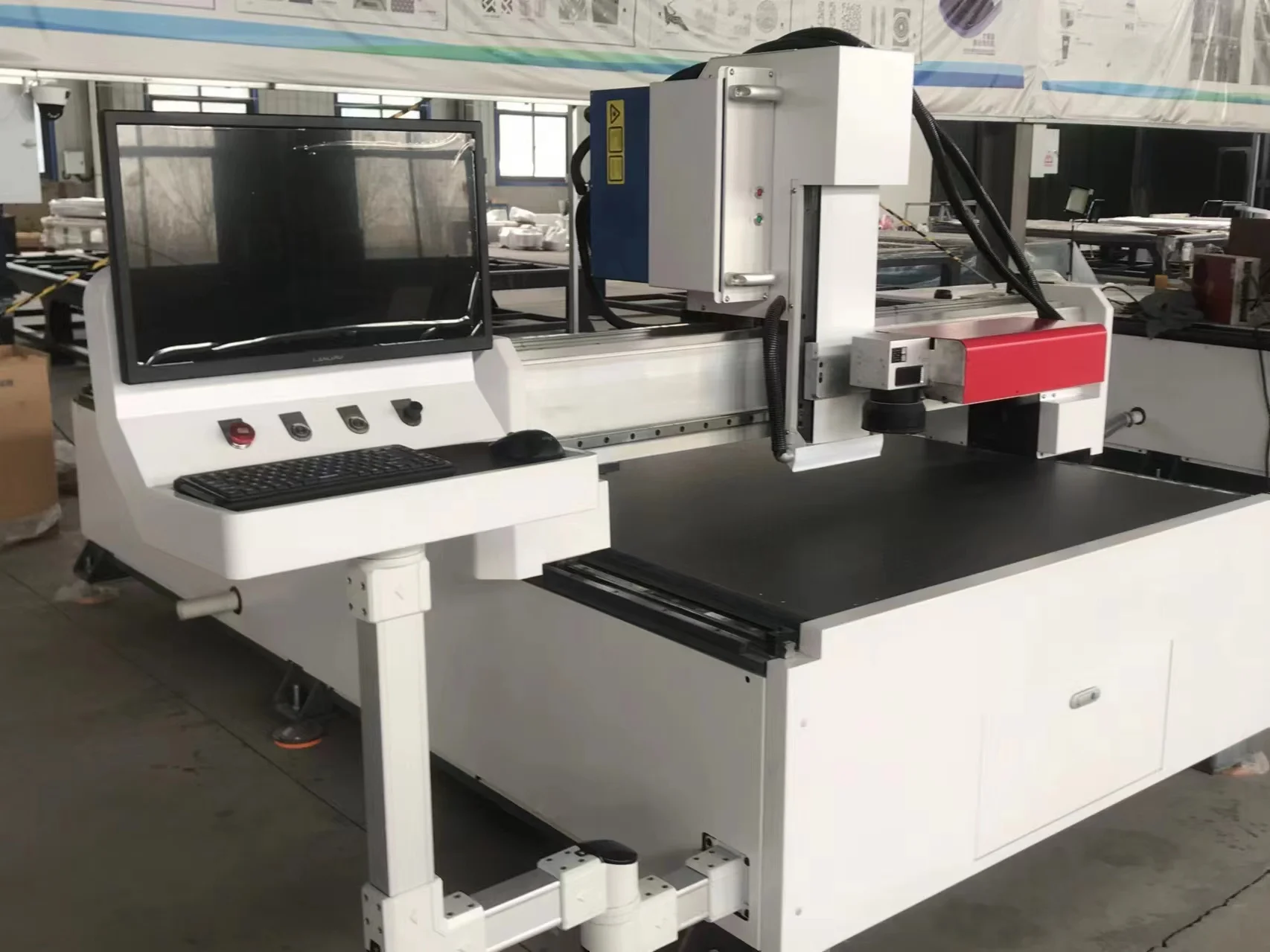

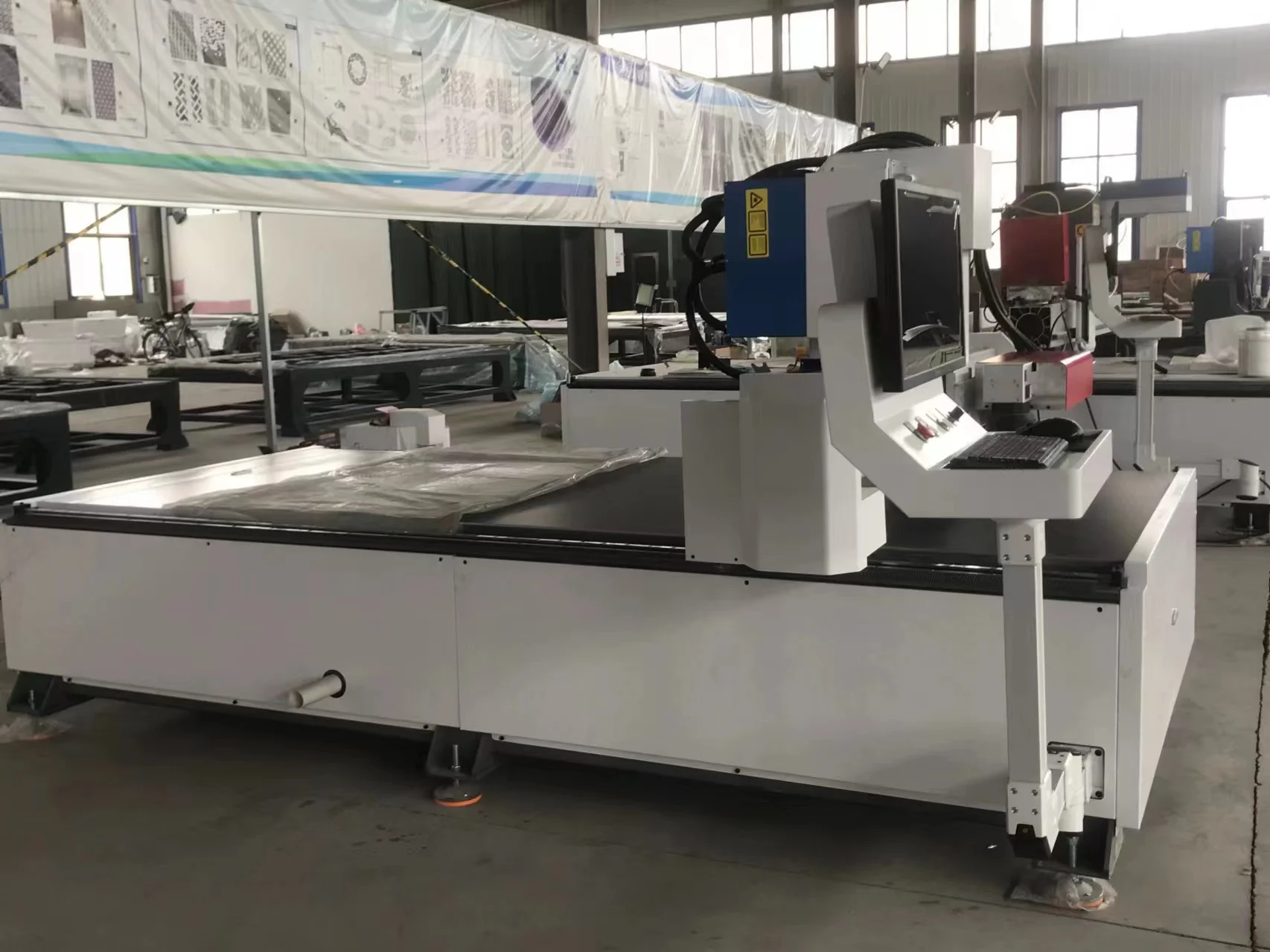

Laser Glass Sandblasting And Drilling Machine
Three-in-one equipment can directly etch transparent patterns on mirrors and glass to achieve the effect of sanding and drilling, which can be completed by one piece of equipment. Smart mirror, glass sanding one-step molding, eliminating the need to remove paint, sand, laminating and other processes.
Equipment configuration (Standard) | ||
Control System | Taiwan SENTEC Follower | |
Laser | 120W high peak value fiber pulse laser | |
Vibrator | High-temperature-resistant quartz vibrator | |
Field | Wavelength OE Wavelength/Lattice Sub | |
X/Y Rack | Custom Grinding DIN6 Grade | |
Z Screw | Ball Screw | |
Transmission motors and drives | SENTEC, Taiwan | |
Transmission guide rail | PEK, Italy | |
Transmission reducer | Japan Shimpo reducer | |
Electrical Components | DELHI | |
Cable | Highly Flexible Drag Chain Cable | |
Power | Mingwei Power Supply | |
Blowing system | High-Speed Silent Brushless Fan | |
Worktable | Aluminum Alloy Worktable | |
Machine Parameters
Process Method | Laser |
Weight | 800KG |
Power | 220V(machine),380V(vacuum pumps) |
Working Environment | Clean Environment |
Working Temperature | 0-40℃ |
Cooling Methods | Air Cooling |
Microscope Speed | 6000-14000 |
Processing Thickness | 0.5-100mm |
Processing Accuracy | ≤0.02mm |
Medium Fixed | Vacuum Adsorption |
Software | Corel,DRAW,AutoCAD,Ai,Wentai |
Format | DXF,PLT,DWG etc. |
Maintenance Methods | Daily Cleaning,Oiling Lubrication |
