Sungold Sunpower glass solar panel for led lighting solar tracker solar monitor solar camera solar panel 40W 50W 100W 200W
- Category: >>>
- Supplier: Shenzhen Sungold Solar Co. Ltd.
Share on (1601094411345):
Product Overview
Description
Product Feature
customized logo sunpower solar cell rigid solar panels 40~165W customizable wattage suitable for residential, commercial use, and large off-grid systems.
Product Advantage
High Efficiency

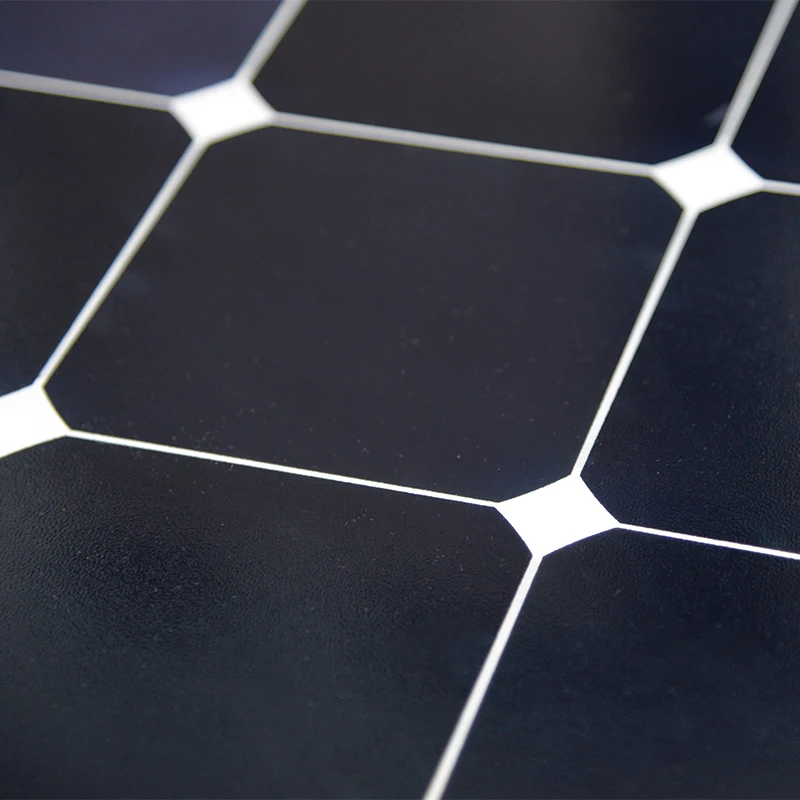

Adopt sunpower solar cells for higher conversion efficiency of 24.40% and more beautiful appearance.
Adopt sunpower solar cells for higher conversion efficiency of 24.40% and more beautiful appearance.

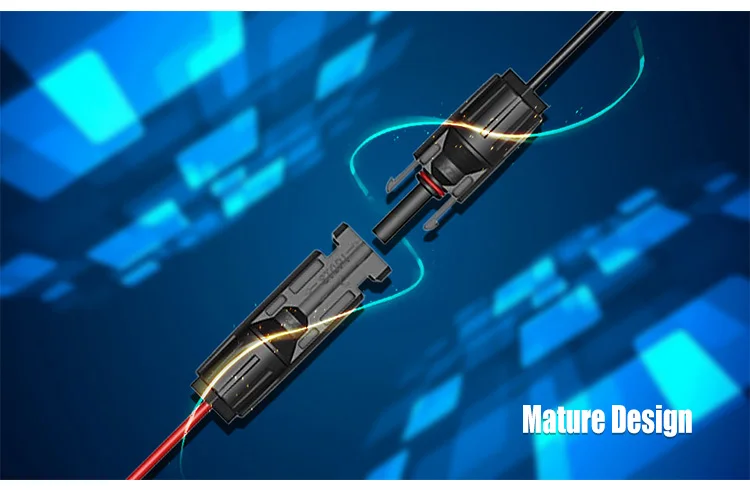

Mature Design
Most mature product design, the overall product has been available for many years, has been tested for a long
time environment
Most mature product design, the overall product has been available for many years, has been tested for a long
time environment

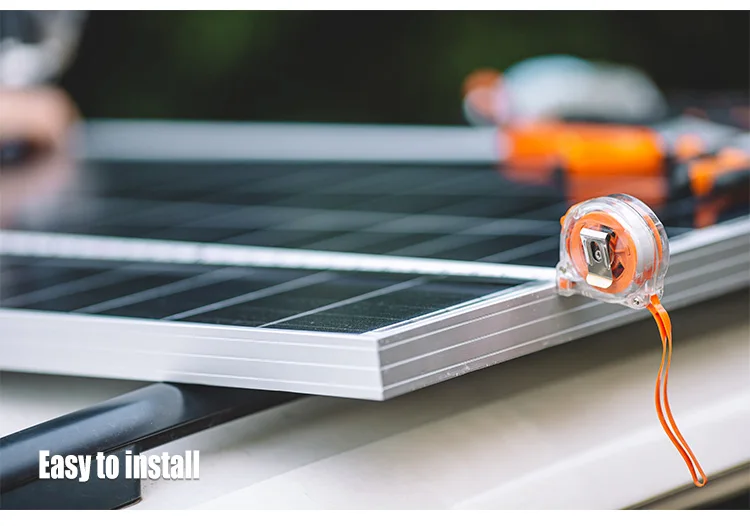

Easy to install
Compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel allow for quick
installation and fastening.
Compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel allow for quick
installation and fastening.
Extreme Weather Resistance
Stronger resistance to extreme wind and snow, and can adapt to -10 degrees Celsius weather, are able to
withstand a wind pressure of 5400 Pa.
Stronger resistance to extreme wind and snow, and can adapt to -10 degrees Celsius weather, are able to
withstand a wind pressure of 5400 Pa.

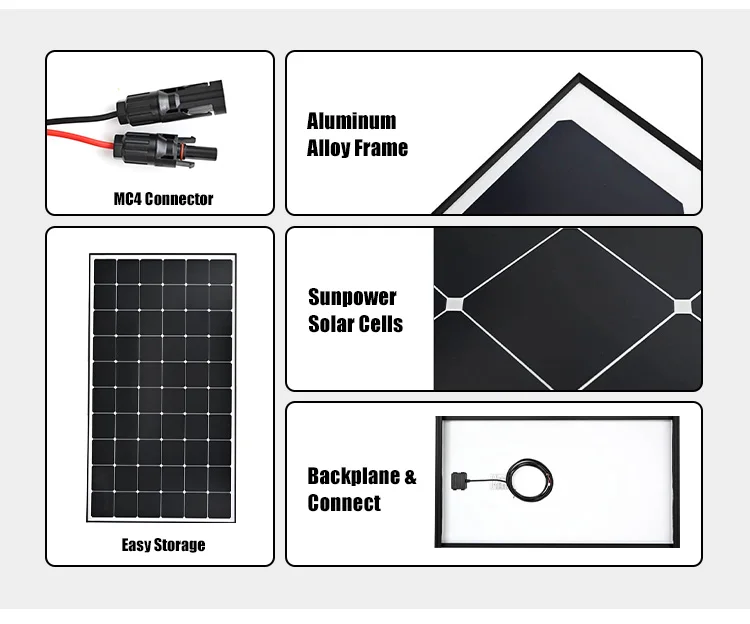

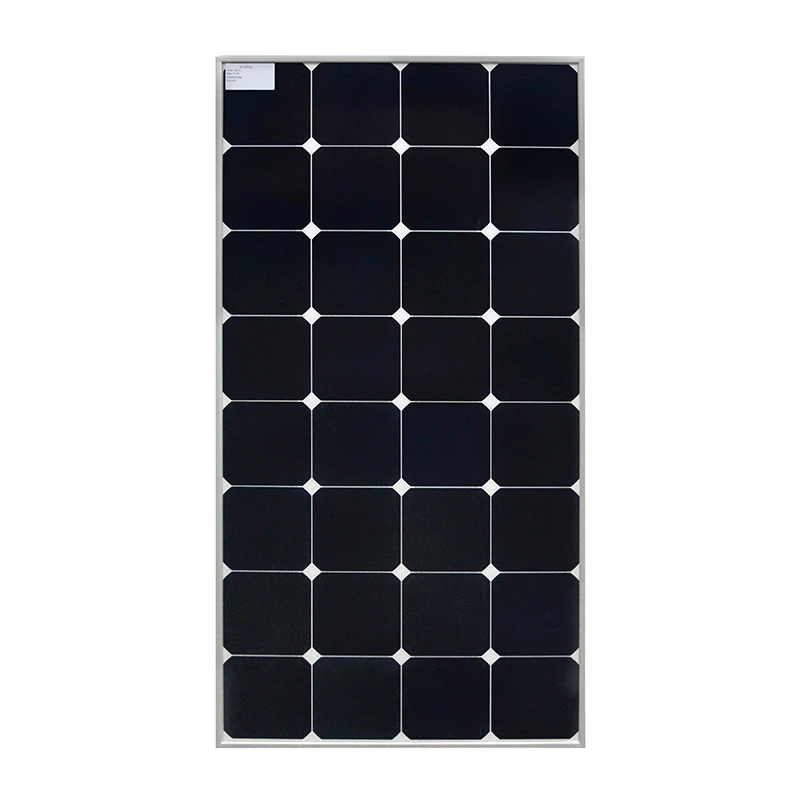

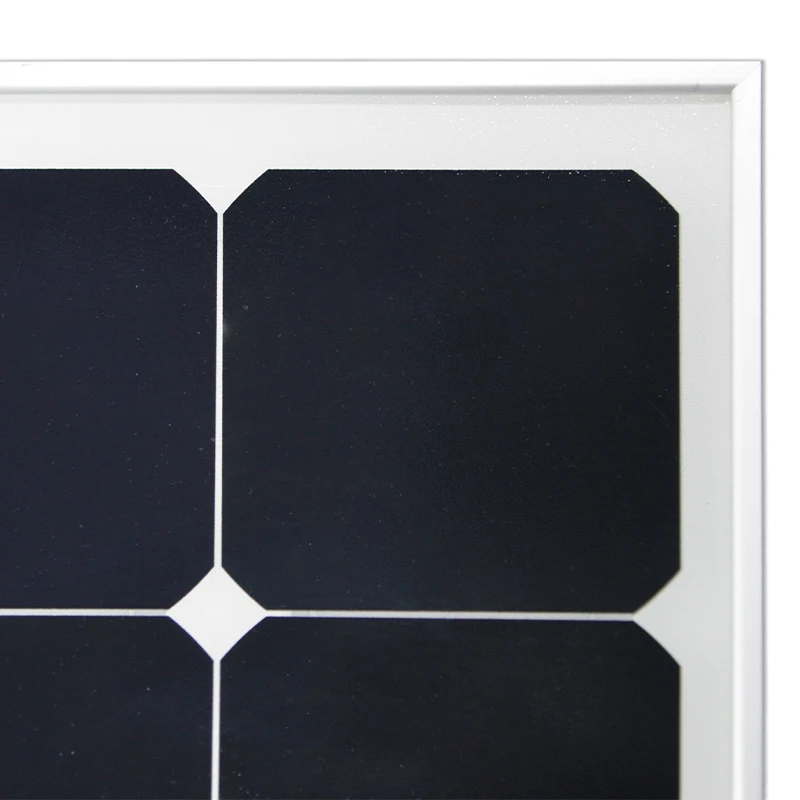

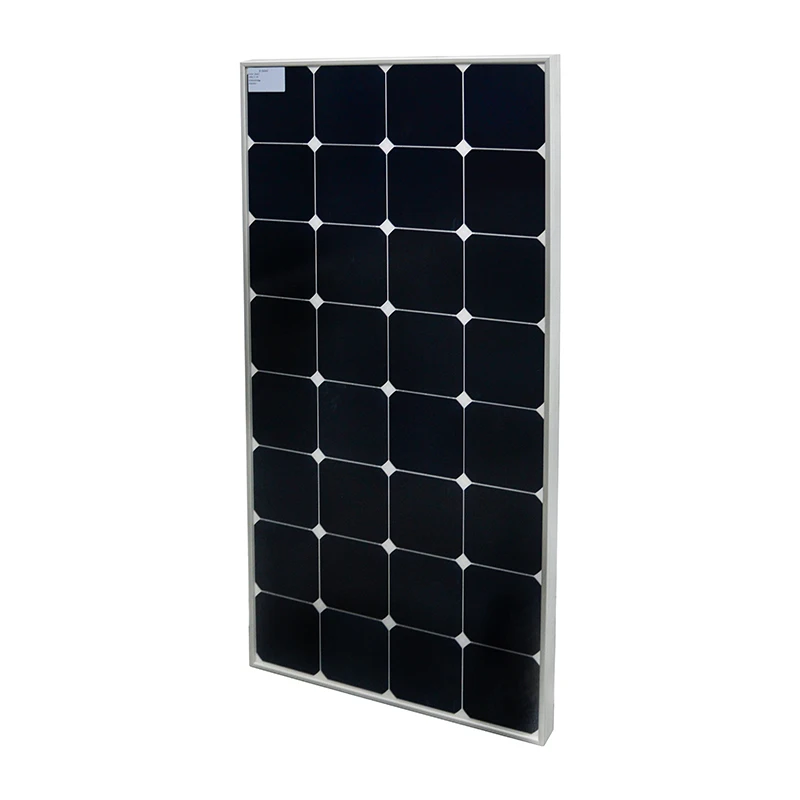

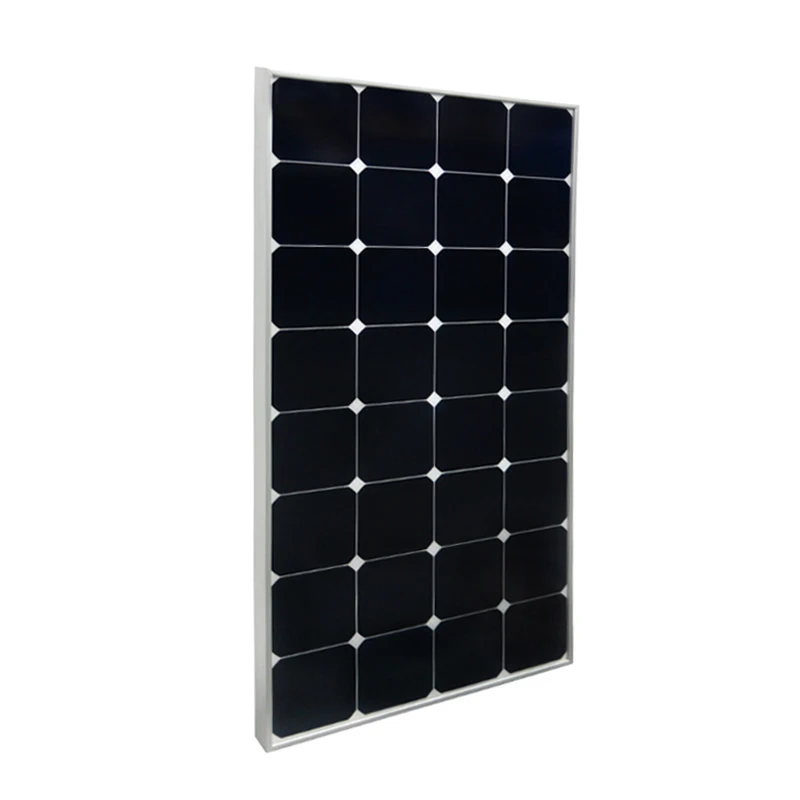

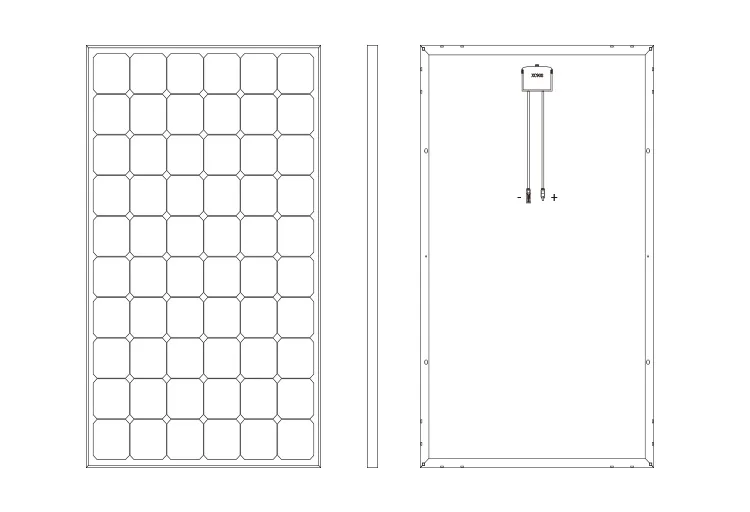

Product Details
SGM Series Customization wattage from 40w to 165w
Suitable for residential, commercial, and large off-grid systems
Product Specification
Model | SGSP-120W | SGSP-135W | SGSP-150W | SGSP-165W | |||
Maximum Power/Pmax(Wp) | 120W | 135W | 150W | 165W | |||
Cell Efficiency | >24.40% | >24.40% | >24.40% | >24.40% | |||
Number of cells | 4*8 | 4*9 | 4*10 | 4*11 | |||
Operating Voltage/Vmp(V) | 19.8V | 19.8V | 24.8V | 27.3V | |||
Operating Current/Imp(A) | 6.07A | 6.06A | 6.05A | 6.05A | |||
Open Circuit Voltage/Voc(V) | 23.3V | 26.2V | 29.2V | 32.1V | |||
Short Circuit Current/Isc(A) | 6.42A | 6.42A | 6.41A | 6.41A | |||
Dimension(mm) | 1060*540*35mm | 1190*540*35mm | 1315*540*35mm | 1445*540*35mm | |||
Solar cells | SUNPOWER 3.75W | SUNPOWER 3.75W | SUNPOWER 3.75W | SUNPOWER 3.75W | |||
Weight(kg) | 2.52KG | 2.76KG | 3.41KG | 3.76KG | |||
The maximum system voltage | 600V DC | 600V DC | 600V DC | 600V DC | |||
Connectors | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | PV-HX025B PV-XC0806 | |||
Output power tolerance | ±3% | ±3% | ±3% | ±3% | |||
Operating Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | |||
Color | Black | Black | Black | Black | |||
Warranty | 10 Years | 10 Years | 10 Years | 10 Years | |||
Remark | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. | ||||||

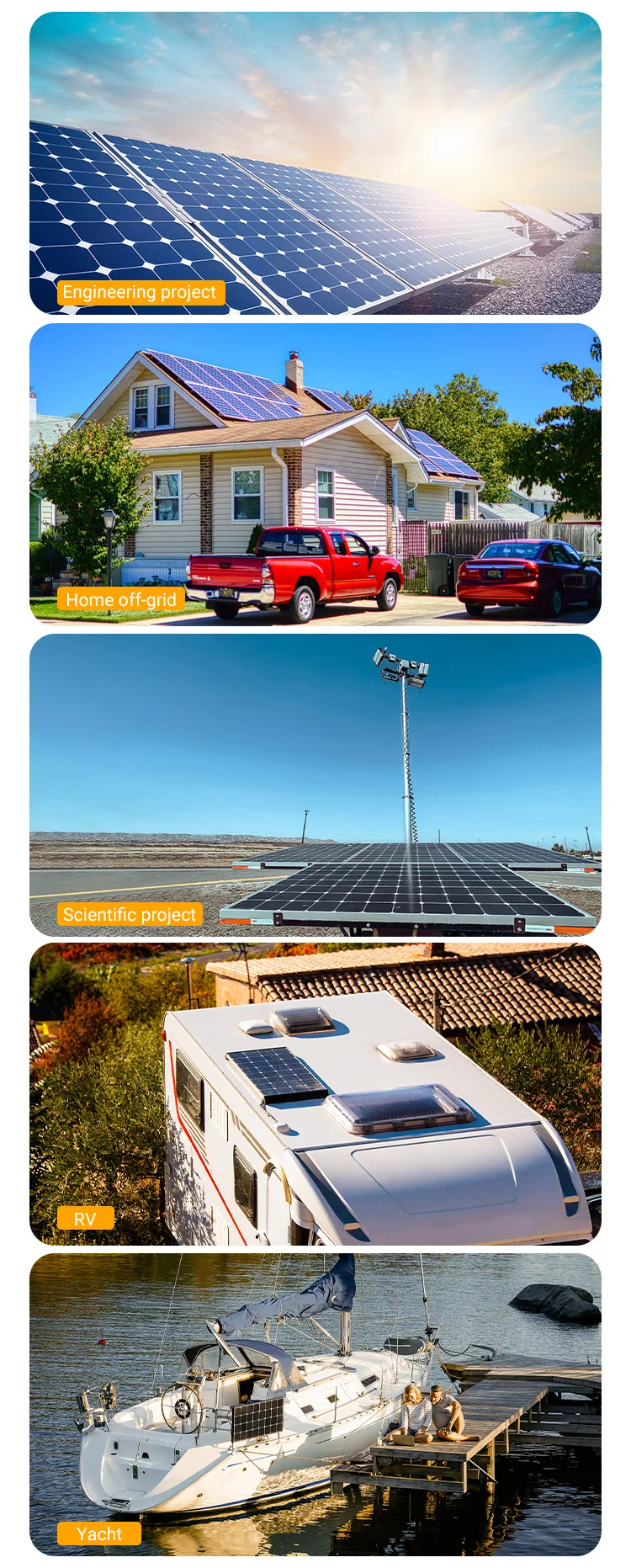

Product Application
For off-grid home. RV. commercial vehicle. ship. outdoor camping. outdoor emergency

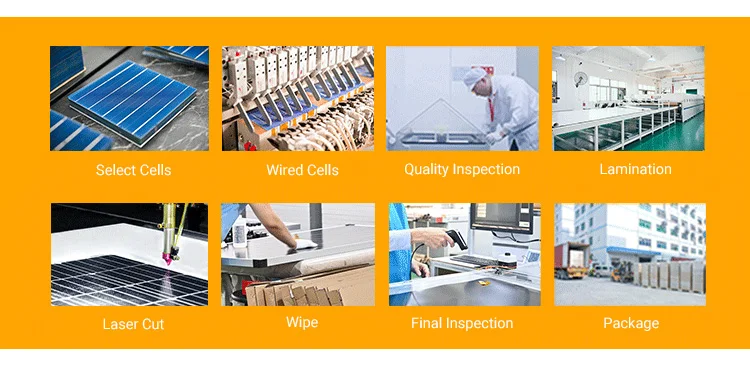

Production Process

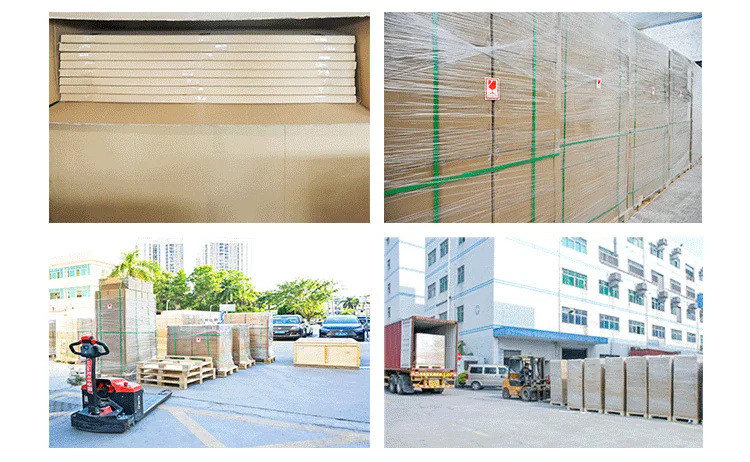

Product Packaging
Client Feedback
FAQs
1.Q:SGSP series is suitable for those scenarios?
It is suitable for residential, commercial and large off-grid systems, as well as large-scale projects both on- and off-grid.
2.Q:Is SGSP series easy to clean?
Yes, because the SGSP series uses glass panels, which can be cleaned by wetting a towel and wiping.
3.Q:Is the weight of SGSP light or heavy in the same type of products?
SGSP series products are lighter in weight compared with similar products, which can reduce the installation risk to a certain extent.
4.Q:What material is used for the back panel?
There are two kinds of material for SGSP series back panel, white PET and black PET.
5.Q:What is the material of the frame? Will it rust?
SGSP series uses aluminum frame, which is not easy to rust, but rusting may still occur in a more humid environment.
6.Q: What is the difference between SGSP solar glass panels and other large wattage solar panels?
SGSP solar glass panels are one of the most mature products available. Although the weight of the product is relatively heavy, its stability and more economical use greatly reduces customers' after-sales concerns.
7.Q:Is this panel waterproof
Yes.
8.Q:What are the advantages of using Sunpower battery cells?
SGSP series adopts Sunpower battery cells, which has higher efficiency and more beautiful appearance.
9.Q:The efficiency of SGSP series is 24.40%, but the actual is not so high, why?
Because the efficiency of 24.4% is obtained under the best operating environment, in actual use, it will be affected by weather, temperature, sun height, etc., which is normal.

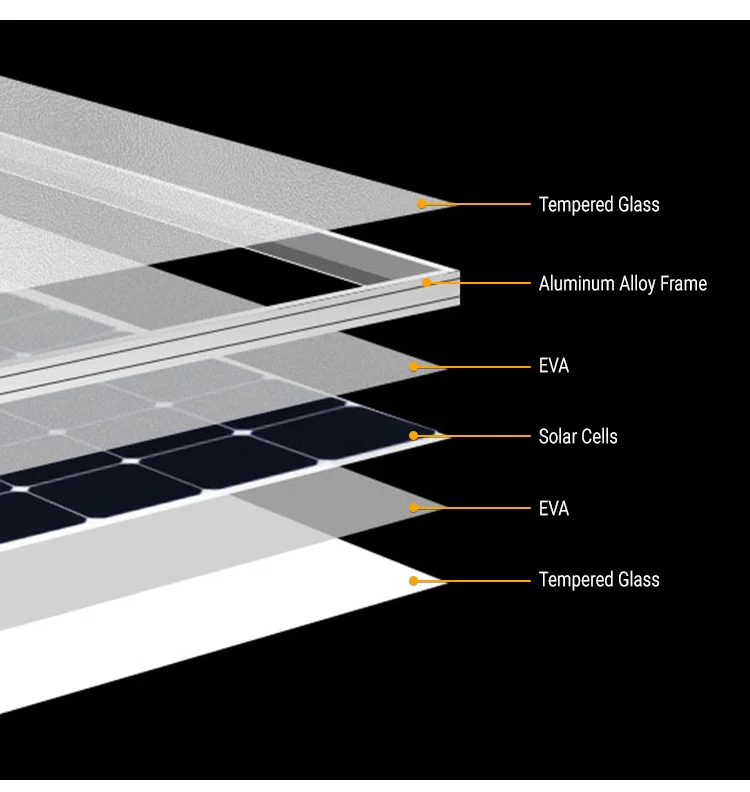

10.Q:Will this glass panel be fragile?
No, it is made of tempered glass, which can protect the solar cell very well.
It is suitable for residential, commercial and large off-grid systems, as well as large-scale projects both on- and off-grid.
2.Q:Is SGSP series easy to clean?
Yes, because the SGSP series uses glass panels, which can be cleaned by wetting a towel and wiping.
3.Q:Is the weight of SGSP light or heavy in the same type of products?
SGSP series products are lighter in weight compared with similar products, which can reduce the installation risk to a certain extent.
4.Q:What material is used for the back panel?
There are two kinds of material for SGSP series back panel, white PET and black PET.
5.Q:What is the material of the frame? Will it rust?
SGSP series uses aluminum frame, which is not easy to rust, but rusting may still occur in a more humid environment.
6.Q: What is the difference between SGSP solar glass panels and other large wattage solar panels?
SGSP solar glass panels are one of the most mature products available. Although the weight of the product is relatively heavy, its stability and more economical use greatly reduces customers' after-sales concerns.
7.Q:Is this panel waterproof
Yes.
8.Q:What are the advantages of using Sunpower battery cells?
SGSP series adopts Sunpower battery cells, which has higher efficiency and more beautiful appearance.
9.Q:The efficiency of SGSP series is 24.40%, but the actual is not so high, why?
Because the efficiency of 24.4% is obtained under the best operating environment, in actual use, it will be affected by weather, temperature, sun height, etc., which is normal.
10.Q:Will this glass panel be fragile?
No, it is made of tempered glass, which can protect the solar cell very well.

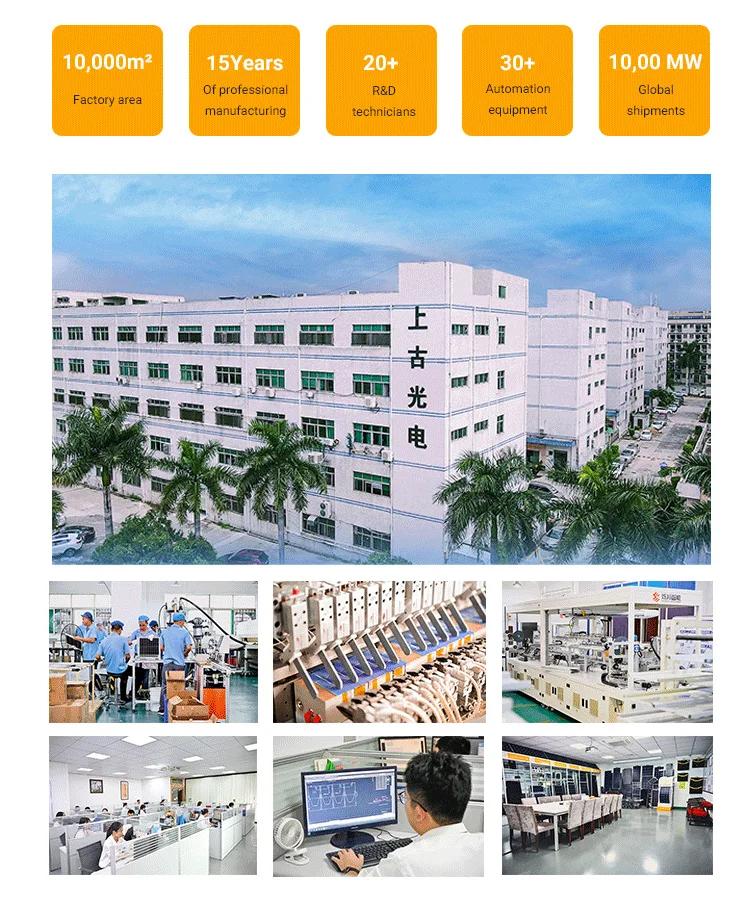

About Sungold
Sungold has advanced production equipment and a mature management system,
and can customize and design high-quality solar panels according to customer needs.
Product innovation is one of Sungold’s most important driving forces.
