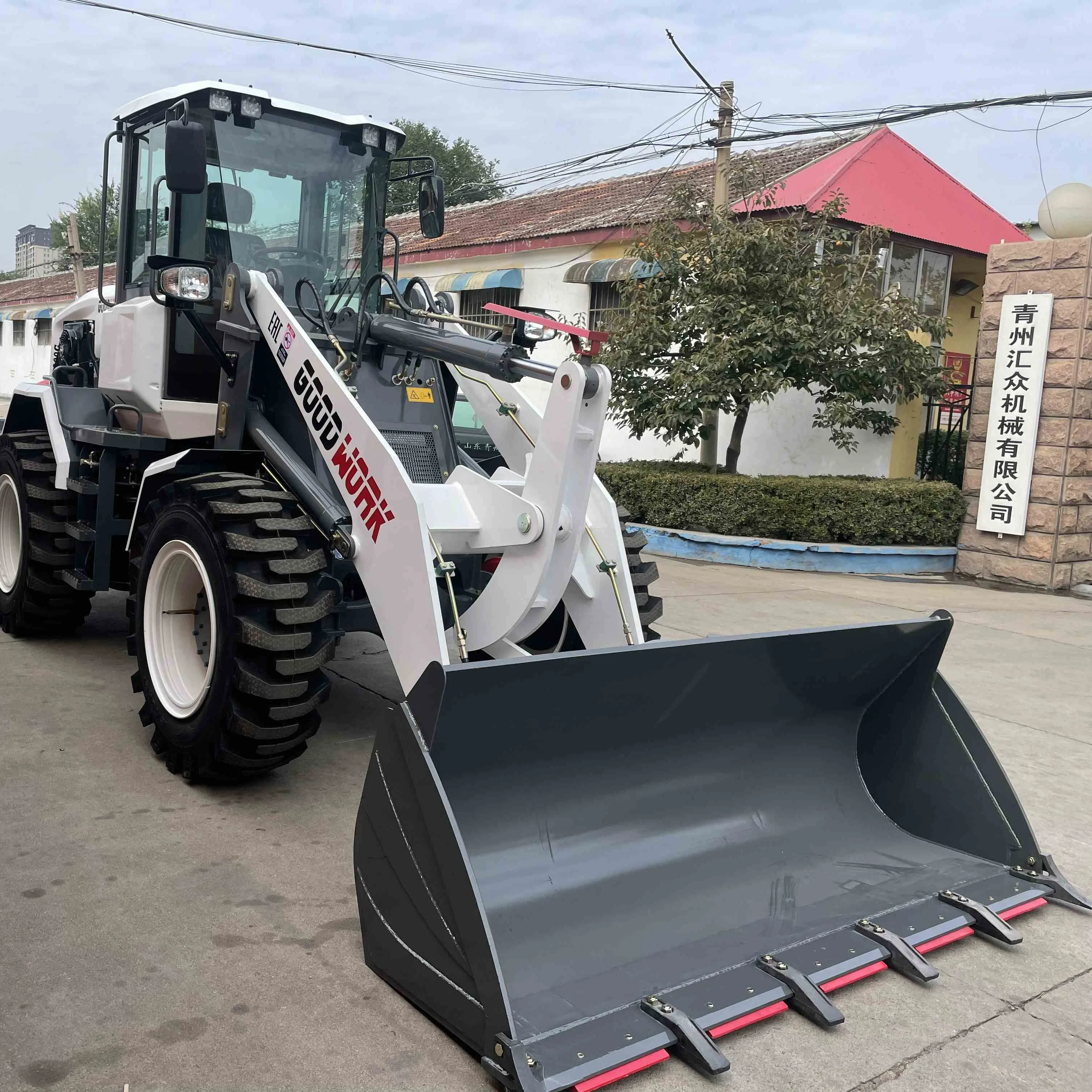

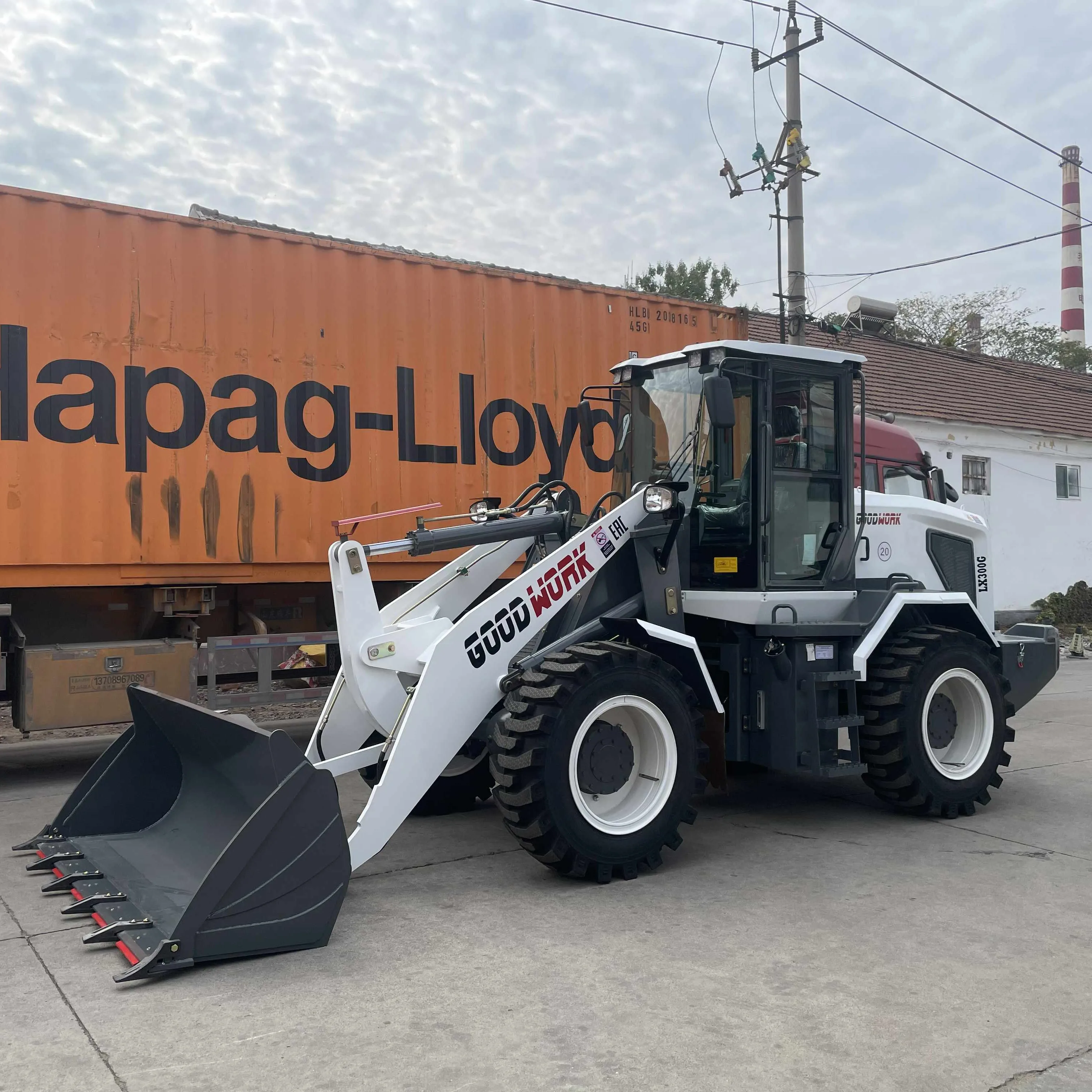

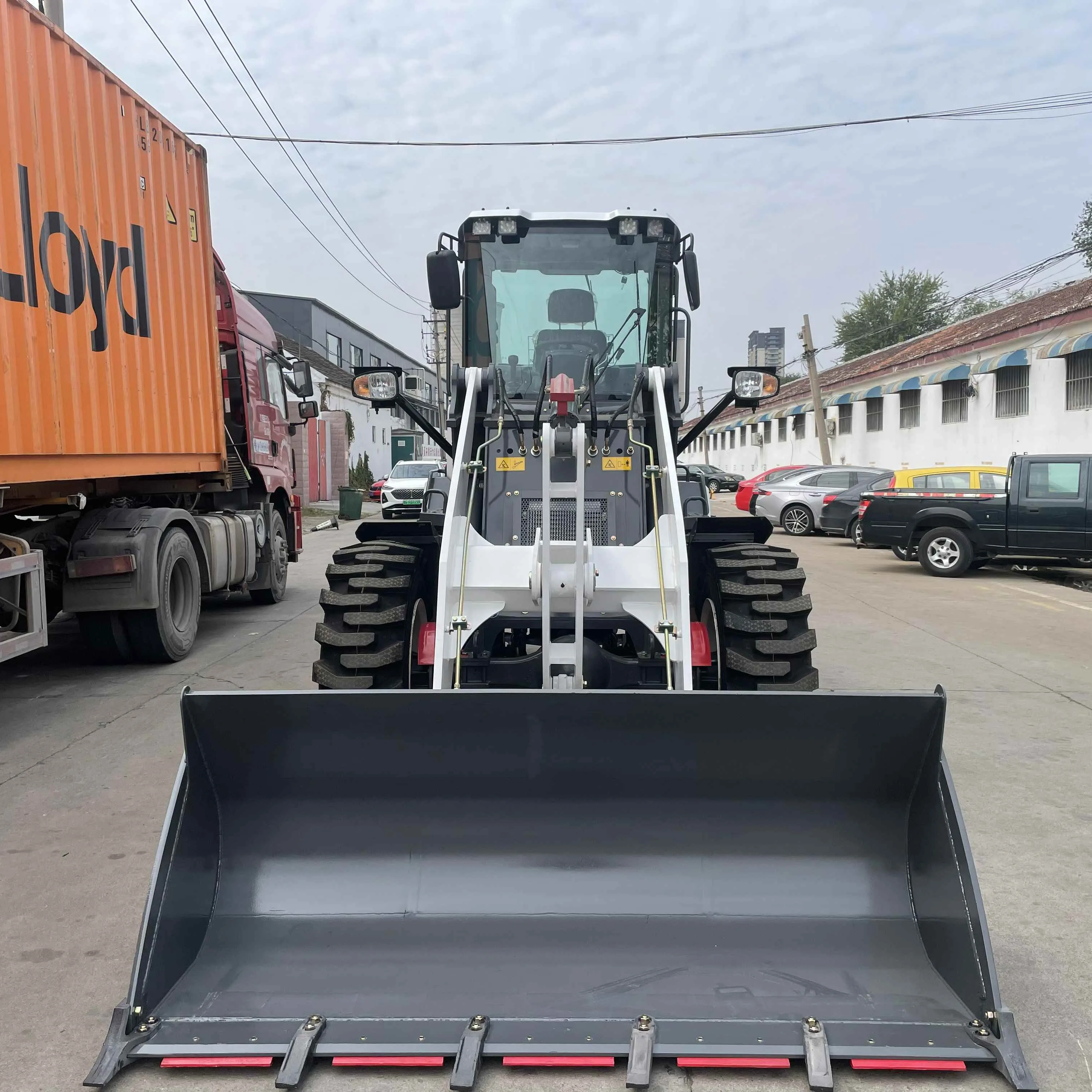

HZM927 2.8TON HOT SALES FRONT WHEEL LOADER WITH CUMMINS ENGINE FOR GARDEN
- Category: >>>
- Supplier: Qingzhou Huizhong Machinery Co. Ltd.
Share on (1601094418930):
Product Overview
Description
Product Description
Product Description
1. specification
1).Streamlined appearance design,elegant and generous.
2).YTO(85KW)strong power engine with a stable performance.
3).Fully hydraulic steering systm,easy to operation
4).ROPS FOPS Cab,Grammer seat with a comfortable operating environment.
5).Double cabin heater,double brake pump.
6).New style tires can adapt for different working environment
7). LED lamp,varta battery,adjustable seat,six air outlet cab heater,electrical joystick,rear view camera etc.
Specification | overall weight(kg) | 6200KG |
L×W×H(mm) | 6700x2102x2900 | |
rated bucket capacity(m3) | 1.2 | |
Rated load(kg) | 2800 | |
Maximum dump height (mm) | 3200/3500 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 48.8KN | |
Engine | Model | YT4A2Z-24 |
Type | In-line arrangement, direct injection, Water cooling, four-stroke | |
Rated power(kw) |
85kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ280 |
Type | single grade three componets | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF20.2C |
Working pump | CBF18 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc on four wheel |
Tyres | Standard tyres | 16/70-24 |
Optional wide tyres | 16/70-24 snow tyres |
3.Delivery
4,More than 50 Various Attachments
5 Warranty
our warranty period is 1 year.in the warranty period ,if you have loader part damage,sent the part pic to us, we will sent a new part to you!
6 Contact us
Qingzhou Huizhong Machinery Co.,ltd
sales:Jennifer
