4K HDMI and USB KVM Extender Ultra HD Plug and Play Secure Transmission
- Category: >>>
- Supplier: Shenzhen Bitvisus Technology Limited
Share on (1601094430280):
Product Overview
Description
Product Description

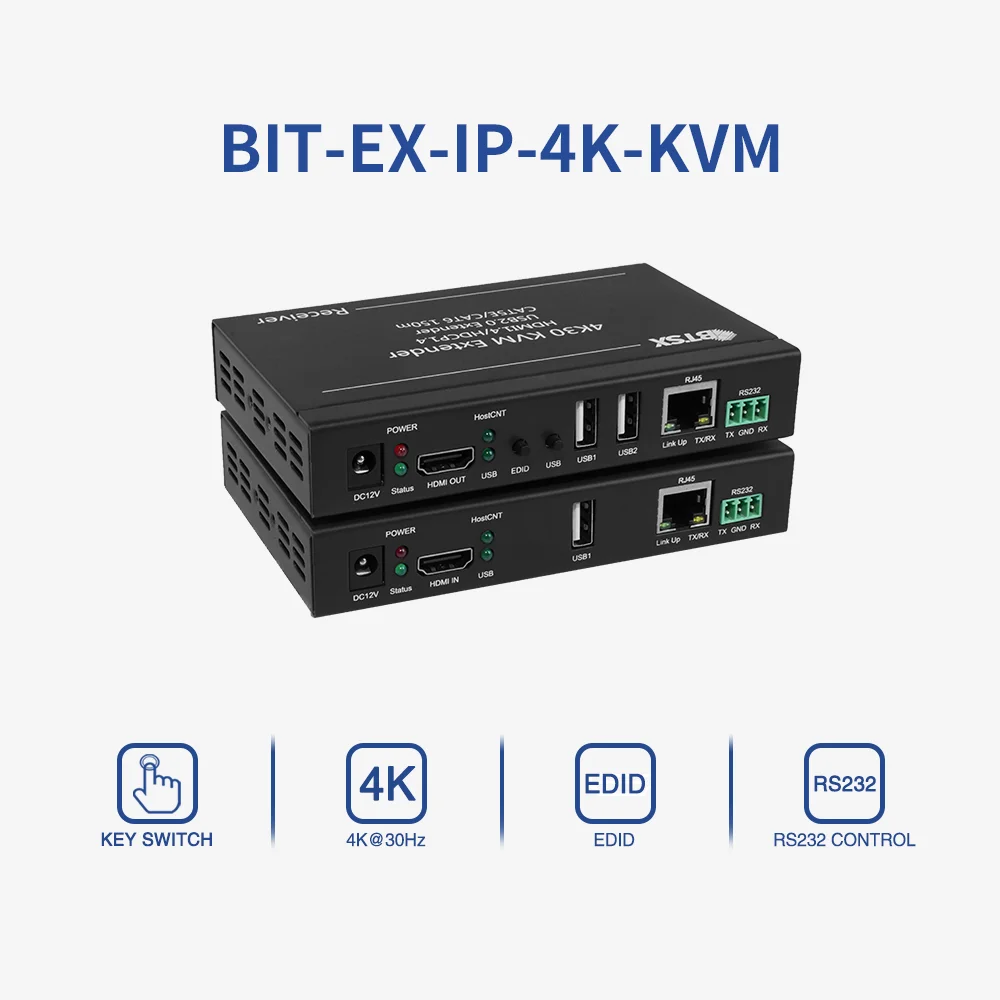

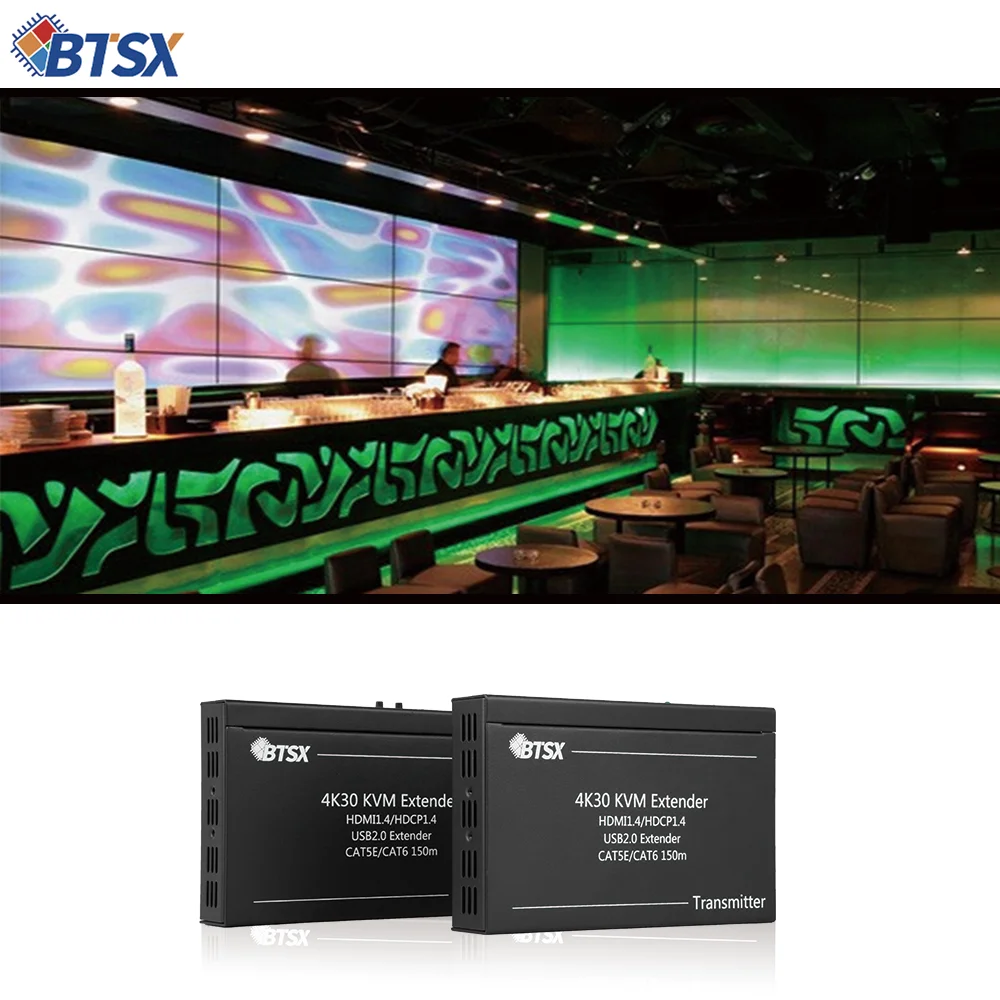

4K30 USB KVM HDMI Extender
☞Support screen ultra-high definition 4k, choose the most advanced video processing chip in the industry.☞The farthest transmission distance can support up to 100m, HDMI interface input and output, transmission without delay, ultra-low compression picture without artifacts.
☞The highest supported resolution reaches 3840x2160@30Hz, backward compatible with low resolution.
☞Support bi-directional RS232 communication function.

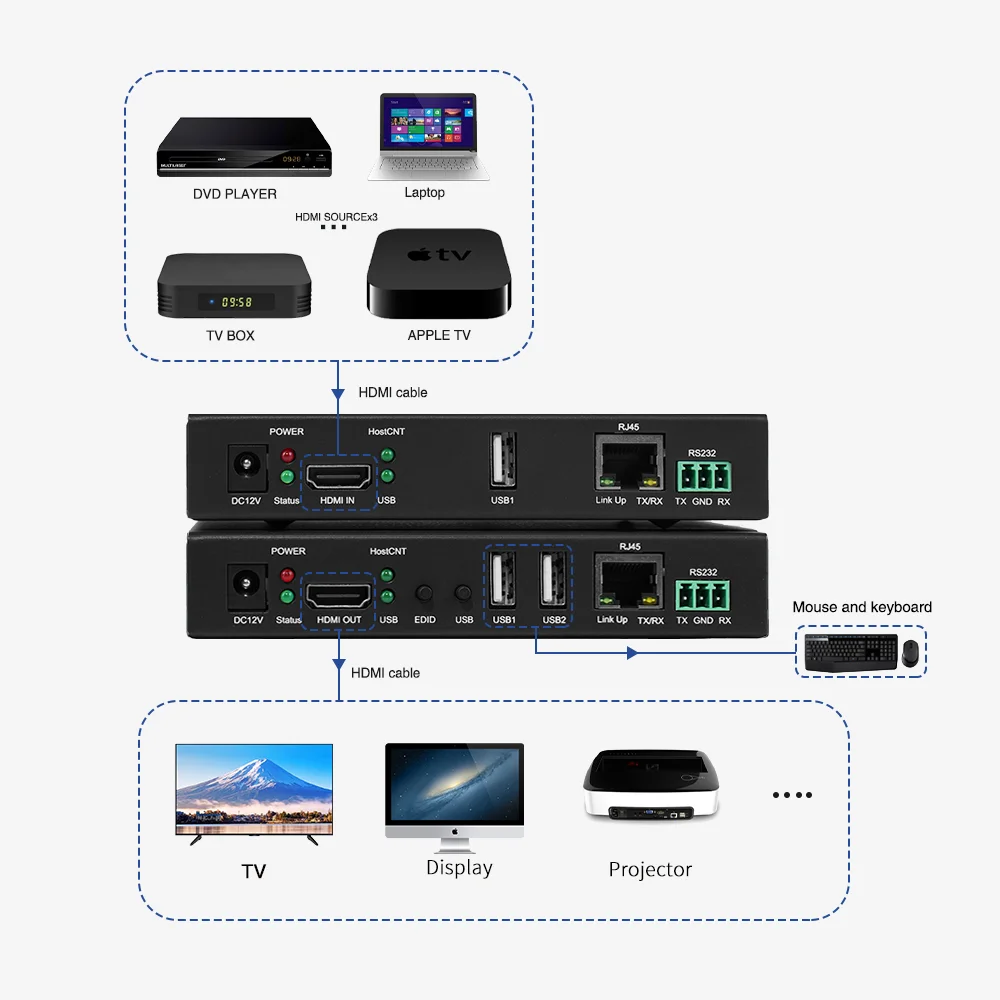

☞Support USB-KVM function, dual USB interface to connect the mouse and keyboard.
☞Support high-speed USB2.0 extension function, can support touchscreens, U disk reading and writing, radar, printer, etc.
☞Learning EDID Management, read the display EDID easy to use.
☞Support network IP transmission, support Gigabit switch, support one-to-one, one-to-many (32 receivers).

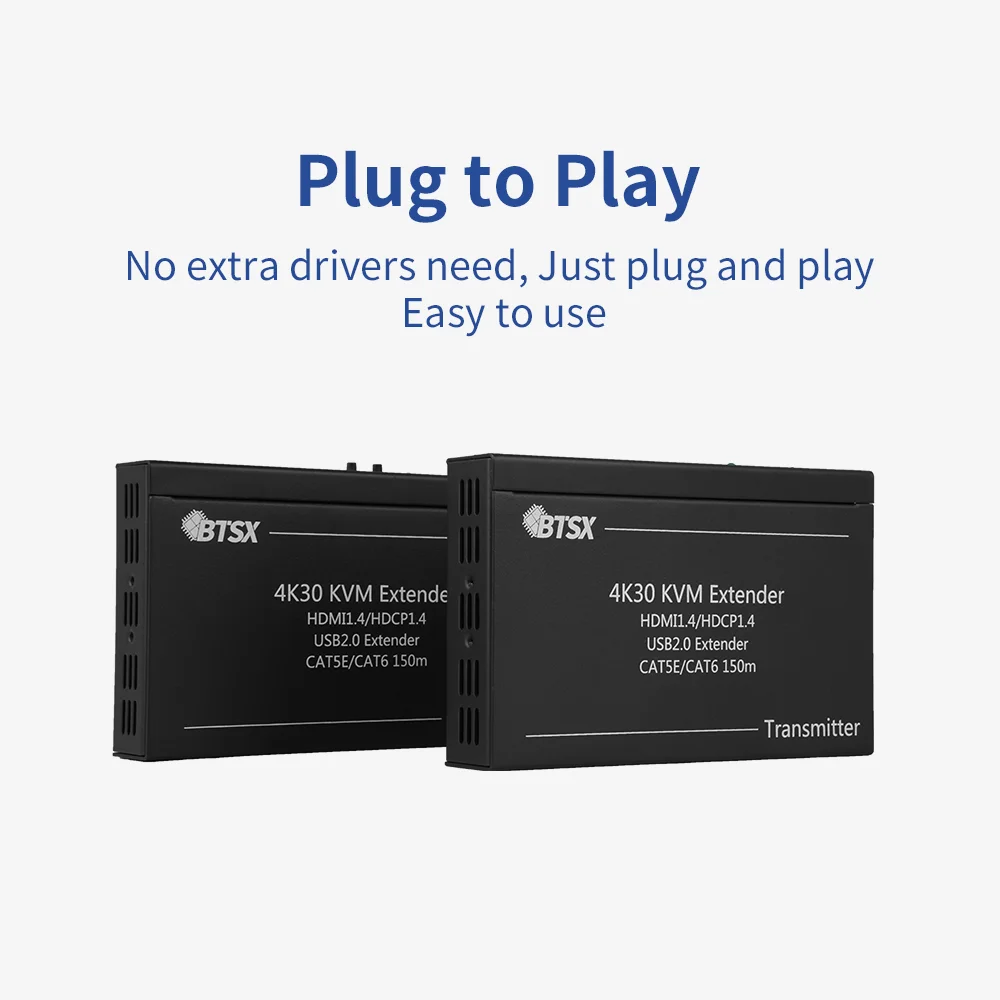

☞No delay, ultra-low compression, long-distance transmitter, easy to install, simple operation, plug and play.
☞Contact customers!
Welcome to consult the project function requiremen.
Welcome to consult the project function requiremen.
Specification
Enter | Transmitter (TX) | HDMI 1.4 (≤ 5 m) , IR, RS232 signal |
Receiver (RX) | CAT5E / CAT6,100m | |
Output | Transmitter (TX) | CAT5E / CAT6,100m |
Receiver (RX) | HDMI 1.4 (≤ 5 m) , IR, RS232 signal | |
Audio | HDMI audio output | |
other | Supported resolution | 4K30Hz is backward compatible with standard resolutions |
Color Space | Support RGB444 ; YUV color space | |
Pixel bandwidth | 297MHz | |
Transmission bandwidth | 1Gbps | |
Transmission distance | 100 m | |
Support | EDID learning,CEC,3D,Remote wake up,OEM | |
RS232 | Two-way RS232 transparent transmission | |
Interface Protocol | HDMI1.4, HDCP 1.4 compatible with DVI1.0, VGA | |
Power supply | DC 12V 2A | |
Power consumption | 6W | |
Storage/operating temperature | -10～50ºC/-25～55ºC | |
Size Weight | 105*76*27mm 0.5KG | |
Packing list | Equipment *2, power supply * 2 , double-ended USB cable *1, certificate *1, warranty card *1 | |
After-sales service | 1 year warranty |
Real Reviews

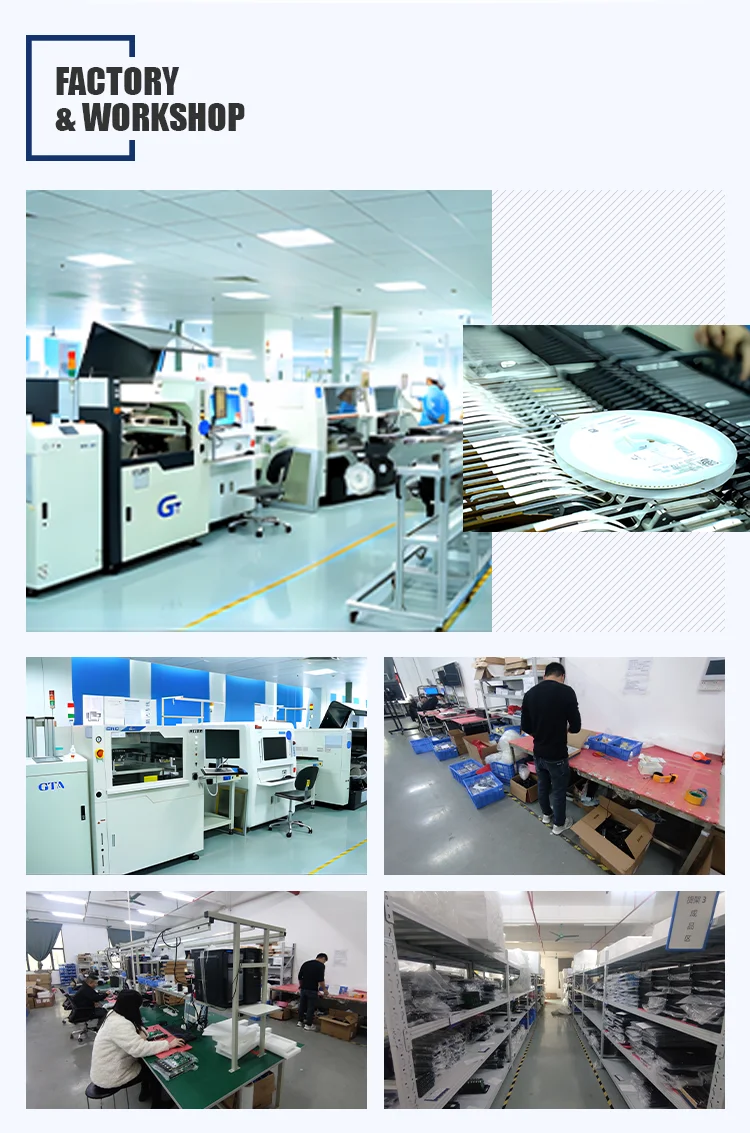

Company Profile
