Filling Sanitary Price Pneumatic Butterfly Valve With Lining PTFE Seal

Product Overview

Description

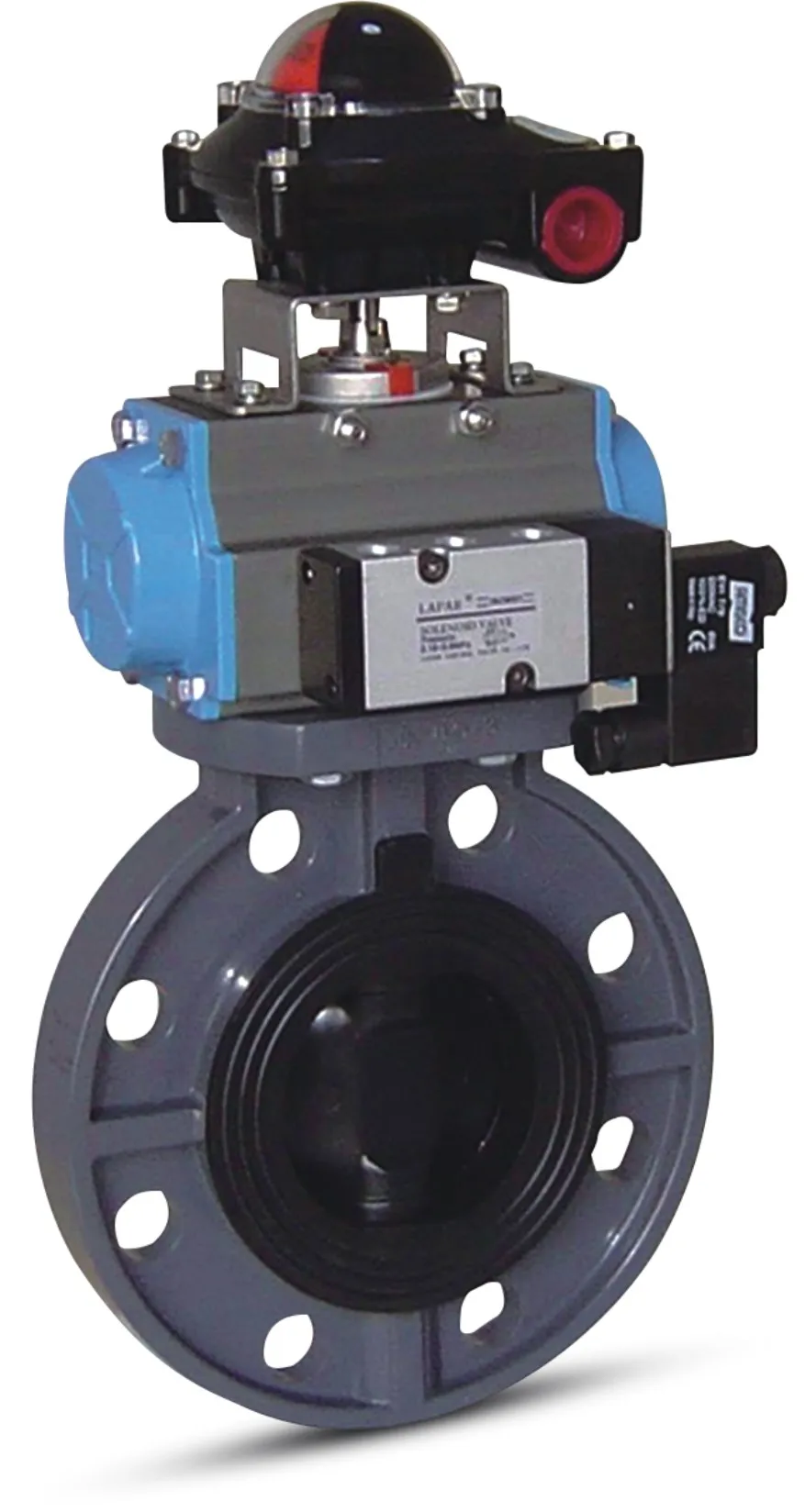

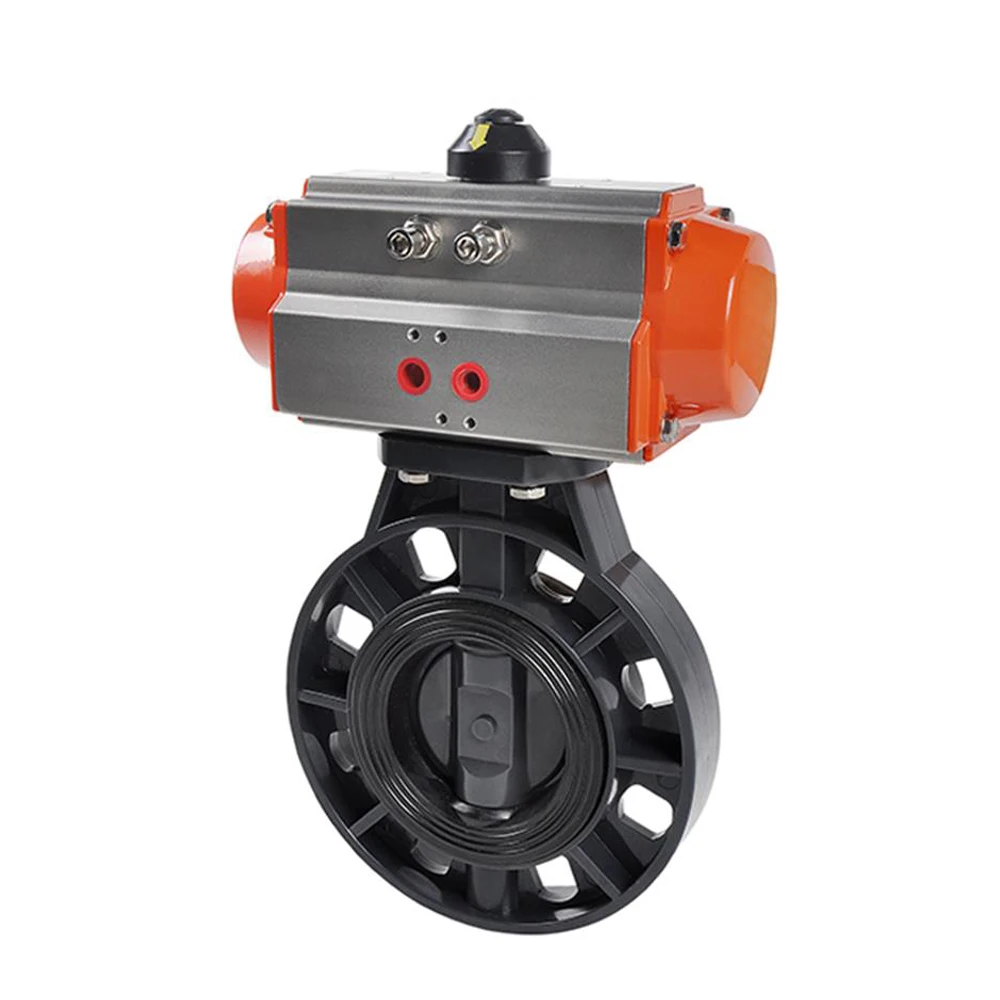

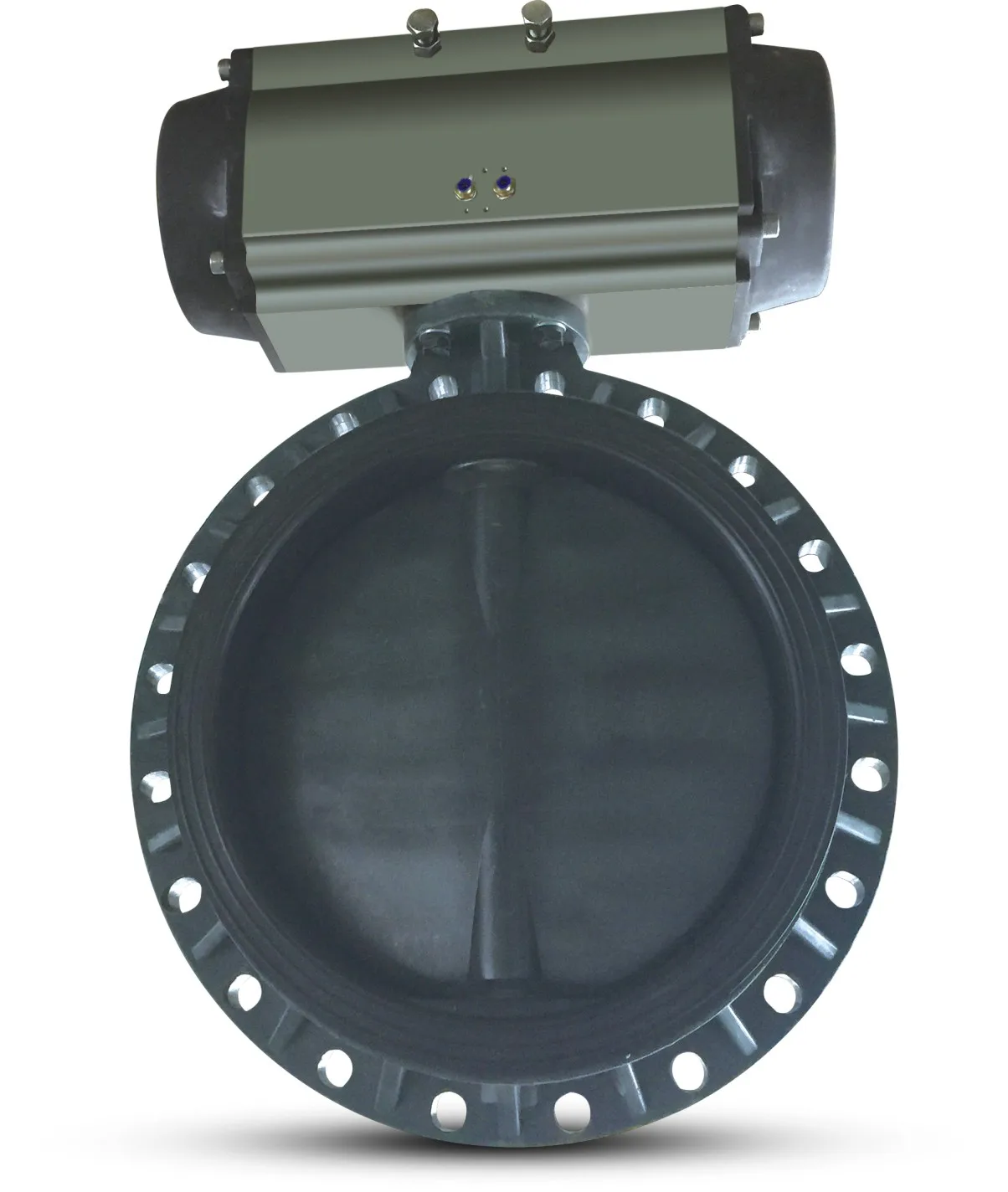

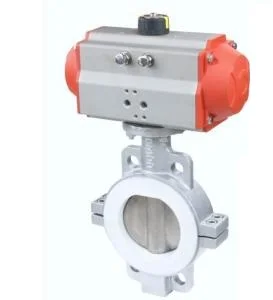

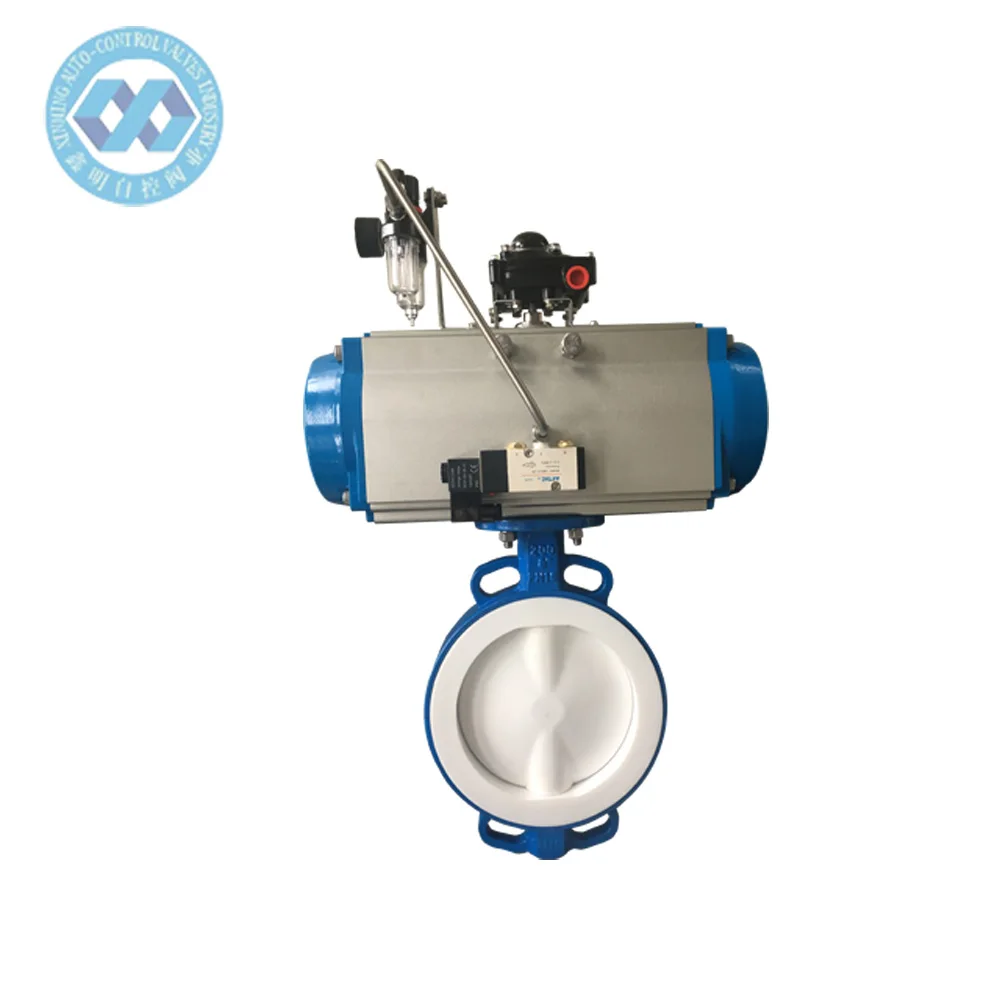

 Pneumatic Actuator Wafer Butterfly Valve

Product Introduction

The wafer butterfly valve has simple structure, small size and light weight, low cost, convenient control and operation, large effective circulation area, quick opening and closing, labor saving, good sealing performance, and has the advantages of metal hard seal and elastic seal.

To automatically start and stop flow faster than motor-driven valves, these operate on compressed air. You must control the air to the actuator using either the included electric pilot valve or a manual on/off valve Valves don’t require a minimum pressure drop between the inlet and outlet for operation.

The actuator is directly mounted to the valve body to minimize movement and reduce wear. A visual flow indicator on the top of the actuator shows whether the valve is open or closed. The manual override allows you to operate the valve during power outages.

Quick Details

Product Name: Wafer Butterfly Valve

Brand name: XM, and OEM is also accepted

Butterfly Valve size: 25mm-1000mm

Certification: CE, ATEX, SIL3, ISO9001:2016

Valve Type: Butterfly

For Use With: Water, Oil, Air,  Natural Gas, Steam, Drinking Water

Seal Material : EPDM Rubber, NBR, PTFE, metal-to-metal

Specifications Met: API 609



Technical Parameter



Supply Ability

Supply Ability: 1000 units per month Pneumatic Butterfly Valve



Packing & Delivery

Packing detail: 1). If big quantity, plywood case

                        2). If small quantity, Carton or Plywood pallet



Port of departure: Shanghai, China

Lead Time:

Quantity(Units)	1-50	51-1000	>1001
Est. Time(days)	Goods in stock	30	To be negotiated











Our Service

1)    7x24 hours hotline

2)    Strict quality control

3)    Good quality at a favorable price

4)    Excellent After-service

5)    On-line technical support

Fast delivery time
