Product Overview
Description
China Road Construction Machinery 60TPH Asphalt Plant
Product Description

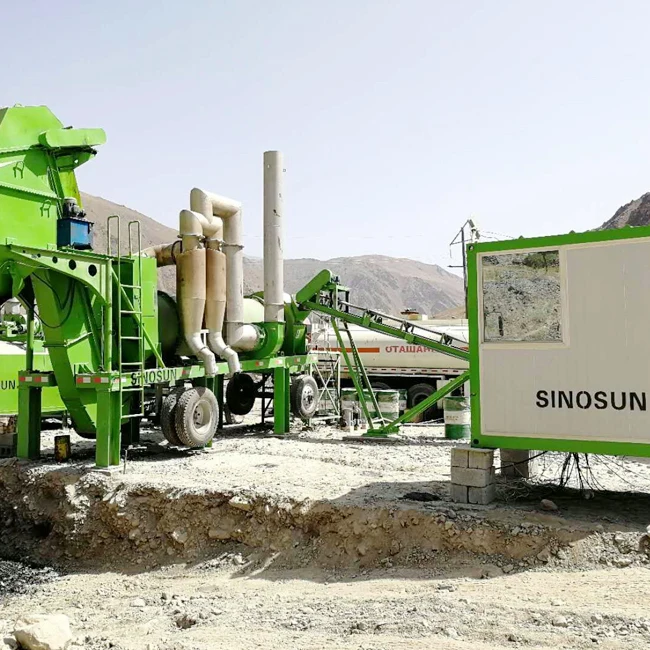

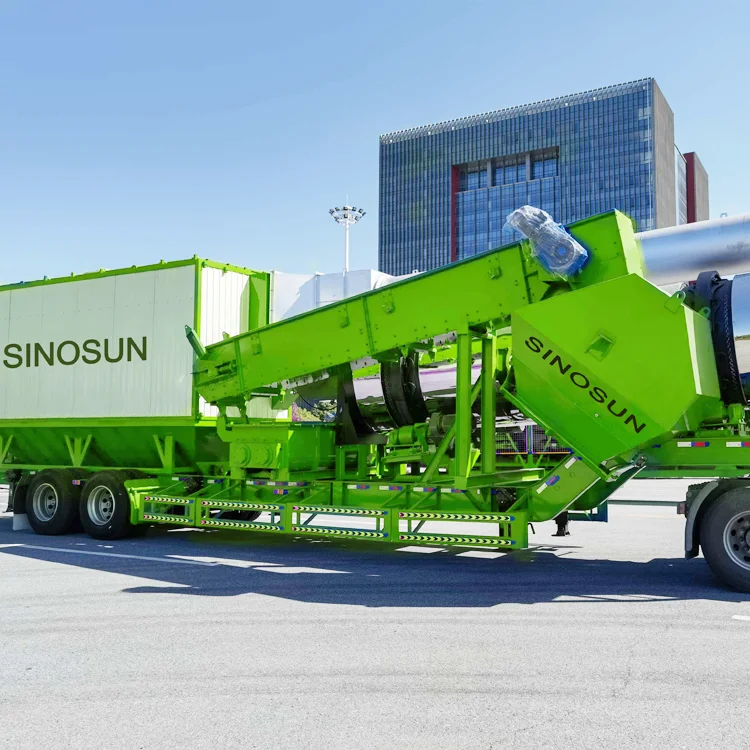

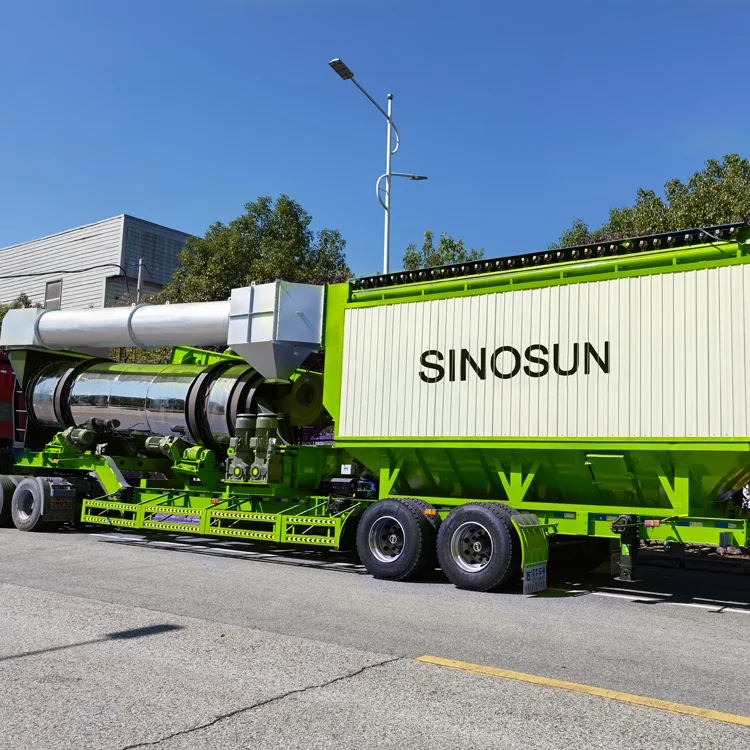

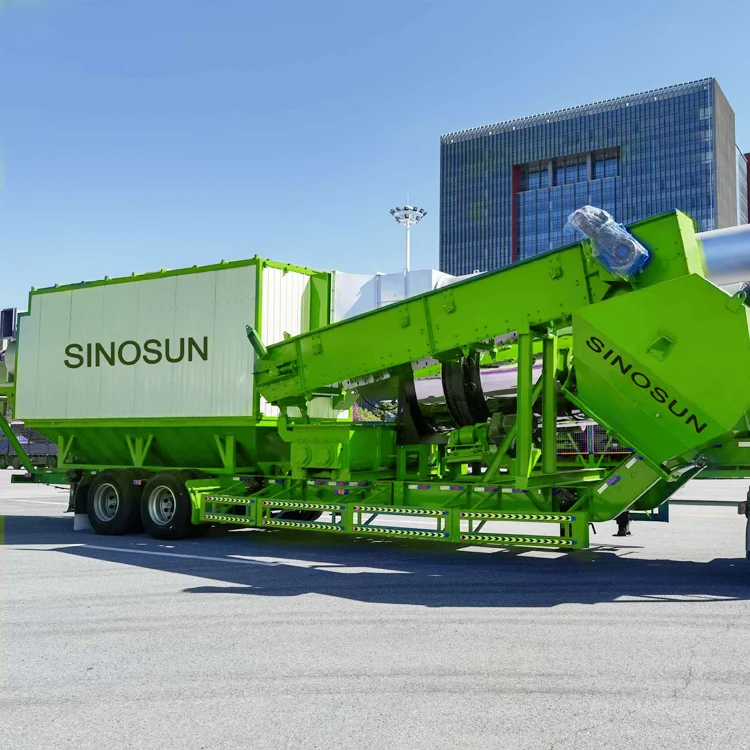

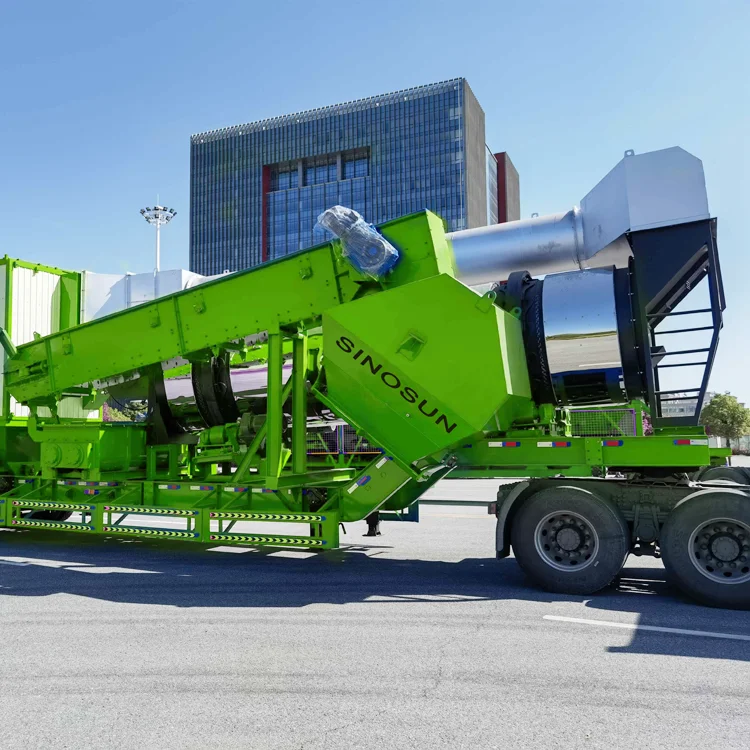

SINOSUN - Trailer type Continuous Mix Asphalt Drum Mix Plant (capacity with 60t/h)
SINOSUN trailer type continuous mix asphalt plant is new design on basic of the CAP series asphalt drum mix plant, realizes the high integration of the plant,the compact structure design, make the equipment occupy small area of ground.
It's easy to transport, transfer site, and recommissioning, also it is equipped with high level dust filter(High Voltage Pulse Bag House Dust Filter), more environmentally friendly.
The burner used for this new designed asphalt plant, can be oil(Light/Heavy oil) or gas, clients can choose the burner according to their local resource supply.
Parameter of SINOSUN 60TPH Mobile Drum Mix Asphalt Plant(equipped with asphalt cotinuous mixer)
SINOSUN CAP60T asphalt drum mix plant | |
Model | CAP60T |
Rated Output | 60t/h (Under standard working condition,5% moisture content ) |
Oil Consumption | 7kg/t |
Total Power | 85kw |
Dimension (L×W×H) | 21x3.1x4.5m |
Number of Axles | 5 |
Volume of Cold Aggregate Hopper | 3*7m³ |
Dimension of Drying Drum | ∅1.5m×5m(diameter×length) |
Driving power of drying drum | 18.5kw |
Burner Model | EFC800 |
Dust Collector Type | High Voltage Pulse Dust Collector (bag house dust filter) |
Filter Area of Dust Collector | 255m2 |
Power of Induced Draught Fan | 22kw |
Power of Air Compressor | FG150/11KW |
Power of Scraper Elevator | 5.5kw |
Volume of Finished Product Bin | 1.1m³ |
Operational Type | Manual/Automatic Control |
Mixing Type | Continuous Drum Mix Type |
Bitumen Heating Type | Directly heating type |
Bitumen Measuring Type | Flow Measurement |
Temperature of Finished Product | 130℃~160℃ |
Related Products
 |  |  |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |  |  |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
Packaging & Shipping
Project
For over years, we supplied the asphalt industry with high quality asphalt batching plant parts, mobile asphalt mixing plant,continous asphalt mixing plant and other reletaed products.
Our asphalt plant products are cost effective, user friendly, easy to maintain and strong after - sales services.
Now these asphalt plant products have been widely used in home and abroad road construction project, such as Russia, USA,Thailand, Romania , Poland , Brazil , Philippines , Indonesia, Peru, Canada, Bangladesh etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya etc.
Company Information
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt mixing plant (SAP series)
2.Recycle asphalt mixing plant (SR series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
7.Emulsion Bitumen Plant (RH series)
8.Bitumen Melting Machine (DT series)
Customer Visiting
Warmly welcome all of customers come to visit our asphalt mixing plant and seek for cooperation!
FAQ
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
Pls following us for more information of asphalt plant and related equipment.
