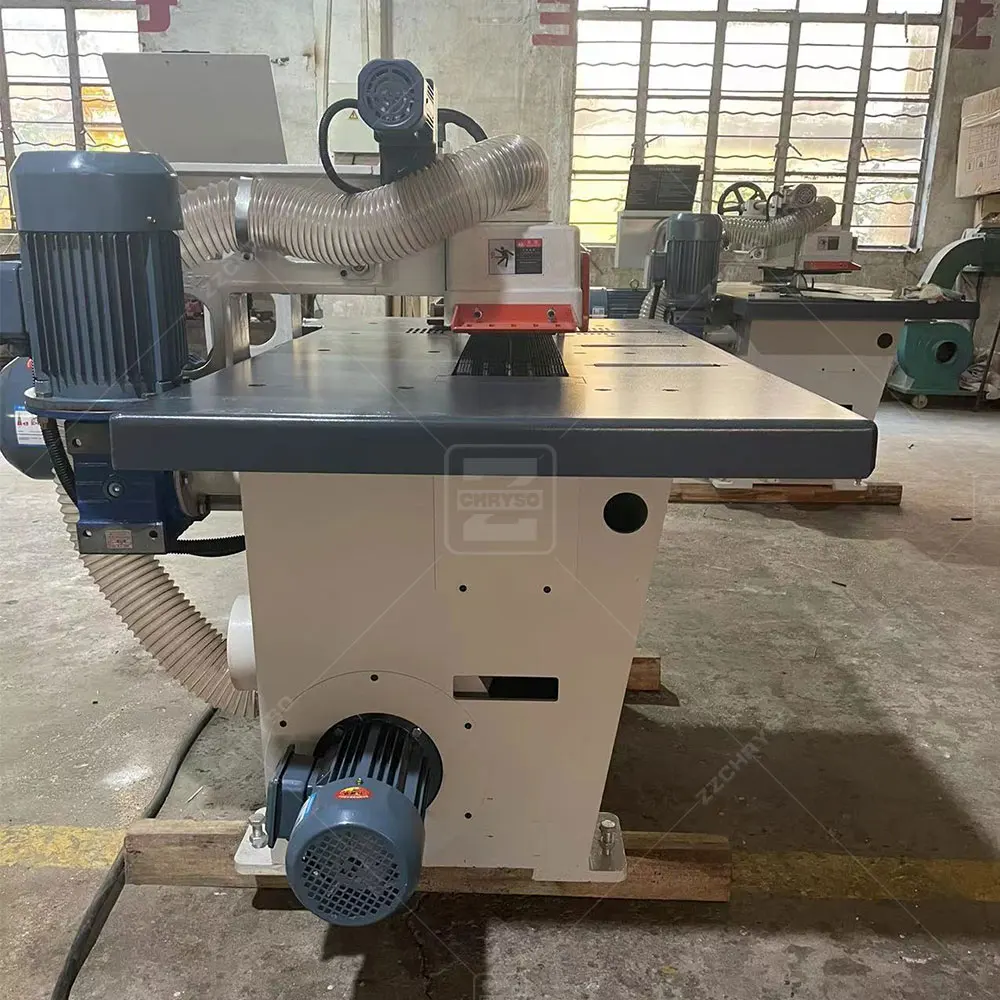

Rip saw woodworking wood ripping saw machine trimming gang rip saw
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1601094565819):
Product Overview
Description

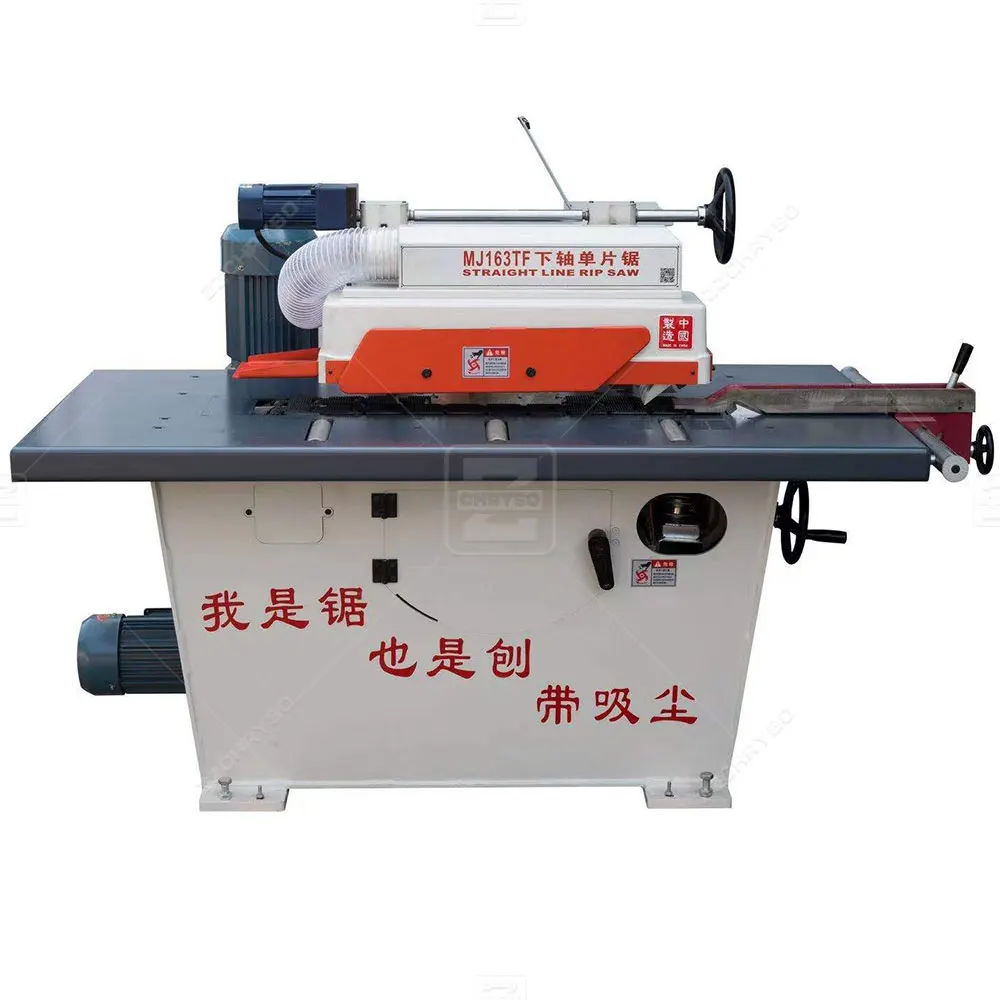

Laser Cutting Gang Rip Saw Line Rip Saw Single Straight Line Rip Saw
Product Description

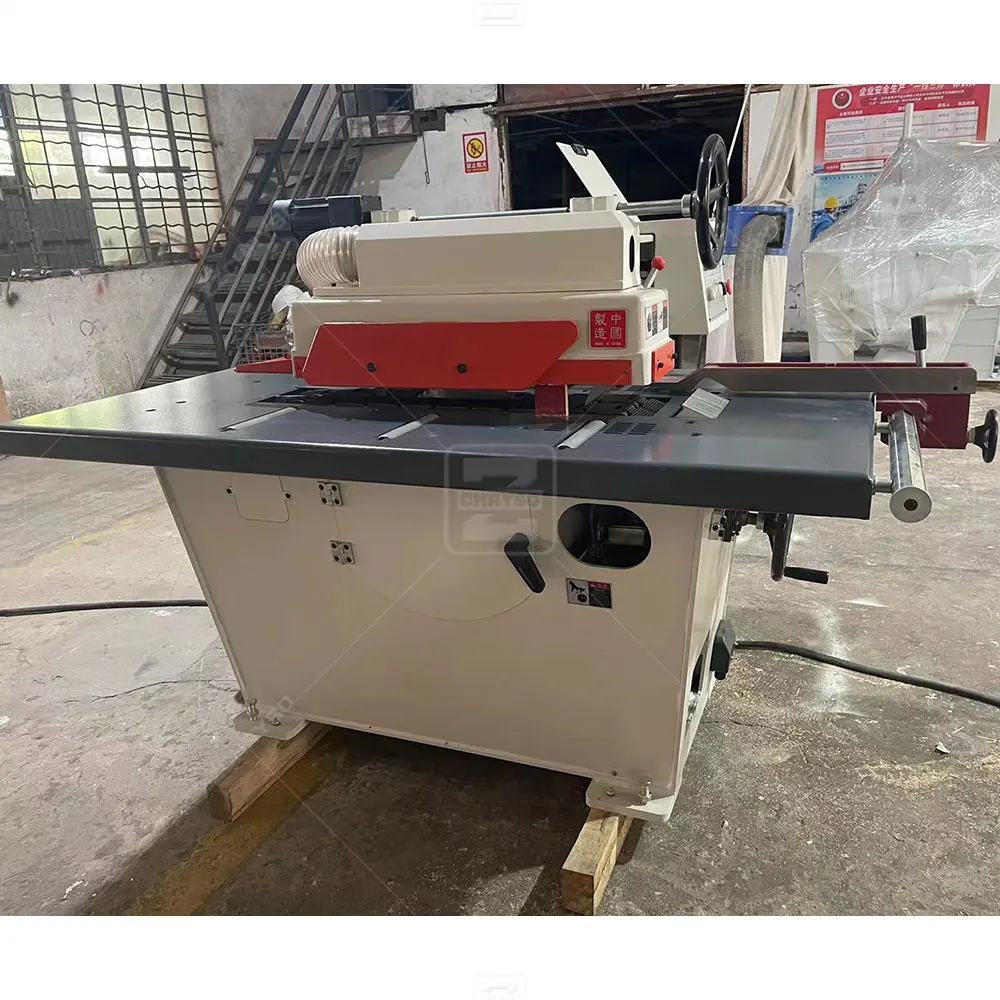

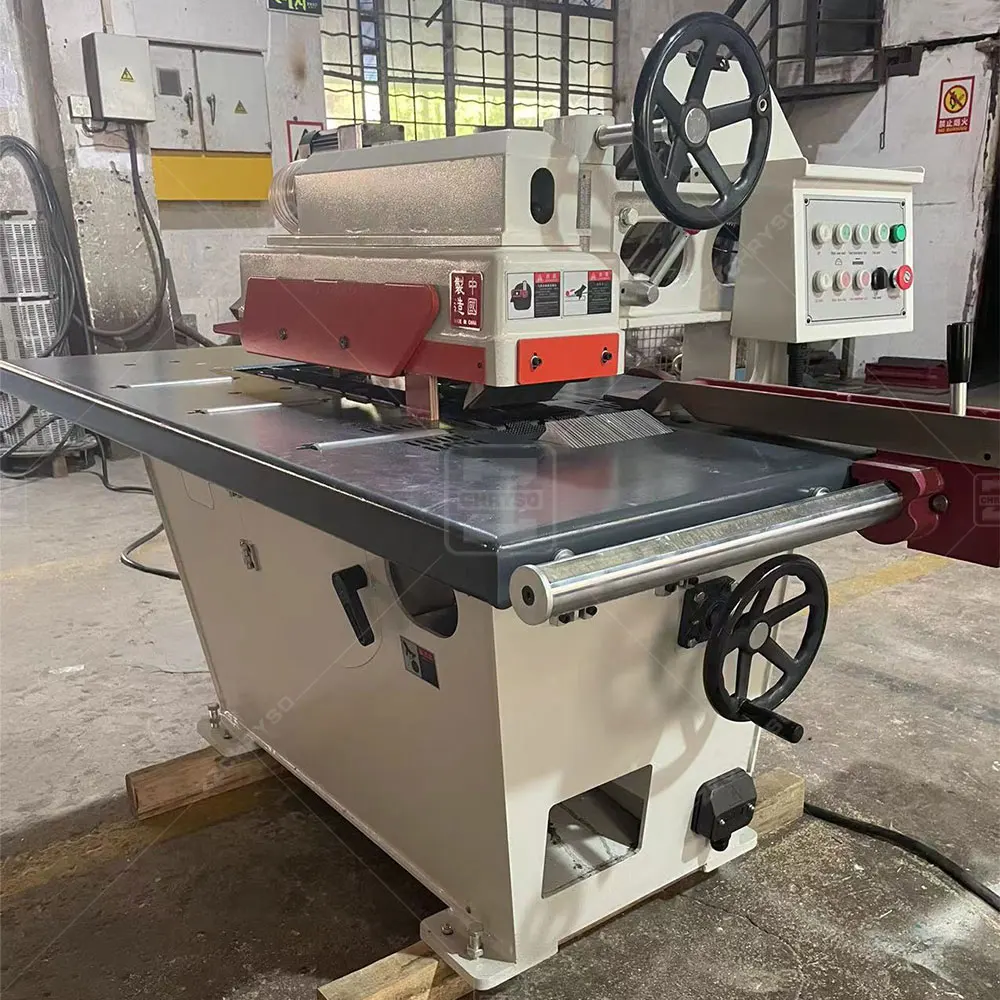

Single blade rip saw machine, also called linear saw, trimming saw, infrared saw, etc.
Automatic single blade rip saw machine,main purpose is for high-precision wood processing such as solid wood cutting, imposition, trimming, sawing and planing at one time .
It has the advantages of convenient flexible operation, stable work, safety and reliability.
Rip Saw Machine,Laser Cutting Machine Wood,Trim Saw,Gang Rip Saw,High Speed Straight Line Rip Saw,Wood Edge Trimming Saw Machine, Timber Rip Saw For Solid Wood, Wood Rip Saw Machine, Wood Cutting Machine, circular saw machine, single rip saw for solid wood, Wood Lumber Single Rip Saw Machine, Single Straight Line Rip Saw, MJ163TF rip Saw, Wood Lumber Single Rip Saw Machine
Specification
Machines as planers and table saws are safe to operate with high flexibility.
The operators only need short training.
High linear accuracy and vertical accuracy.

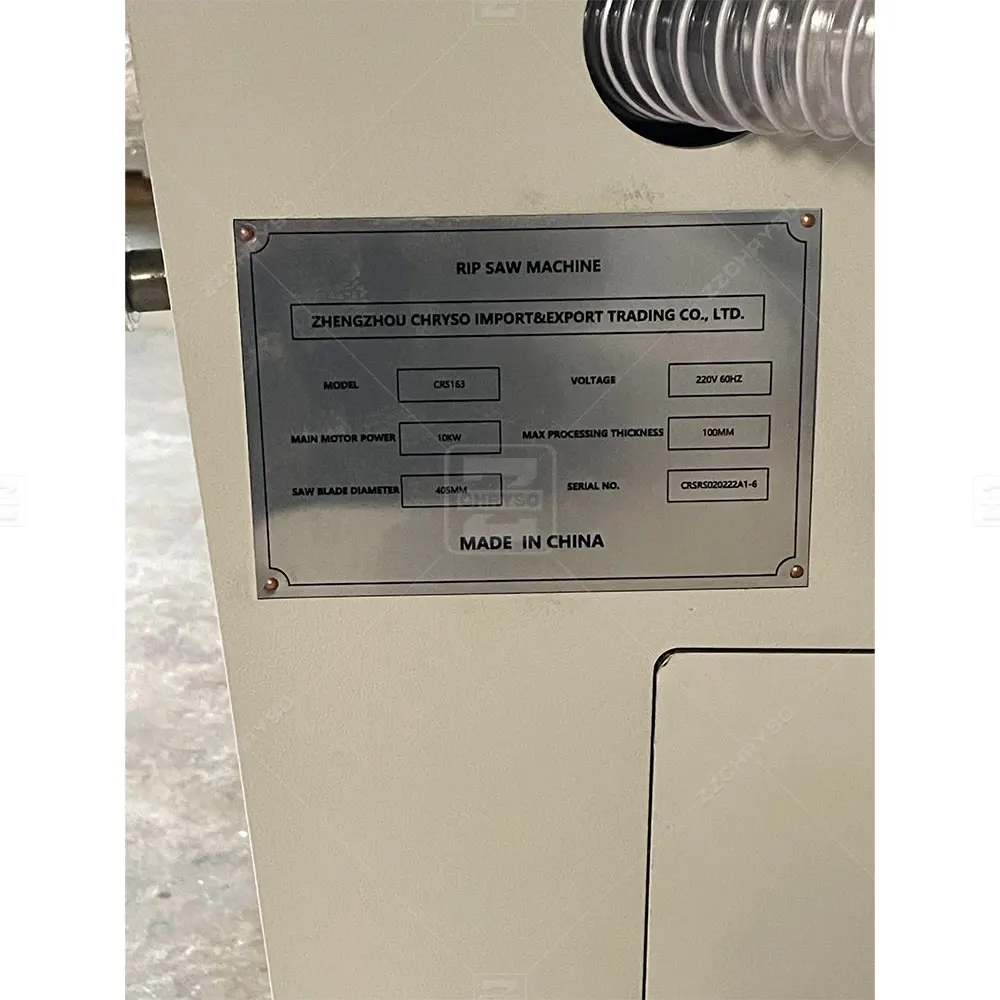

Name | Wood Straight Line Rip Saw Single Rip Saw Machine |
Power | 10kw |
Max cutting thickness | 100mm |
Saw spindle rotary | 2880 r/min,The spindle is directly connected to the motor |
Saw spindle diameter | 25.4mm |
Feeding speed | 9,18,24,32 m/mim,Automatic and manual speed regulation coexist |
Feeding motor power | 1,1.5,2.2kw |
Table size | 1700×950mm |
Saw Blade diameter | 405mm |
Voltage | 380V,220V,415V,110V,600V,Customized |
Dimension(L*W*H) | 1750×1420×1250mm |
Weight | 1000kgs |
Our Advantages

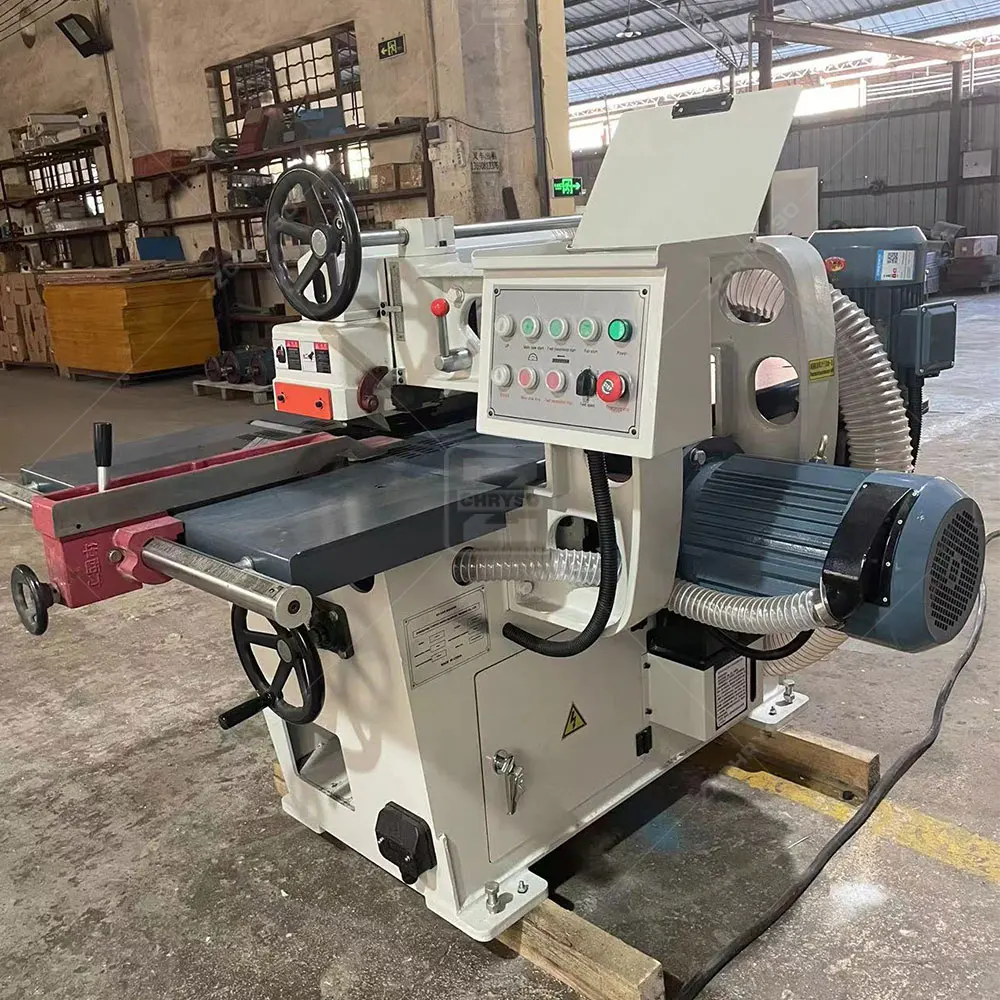

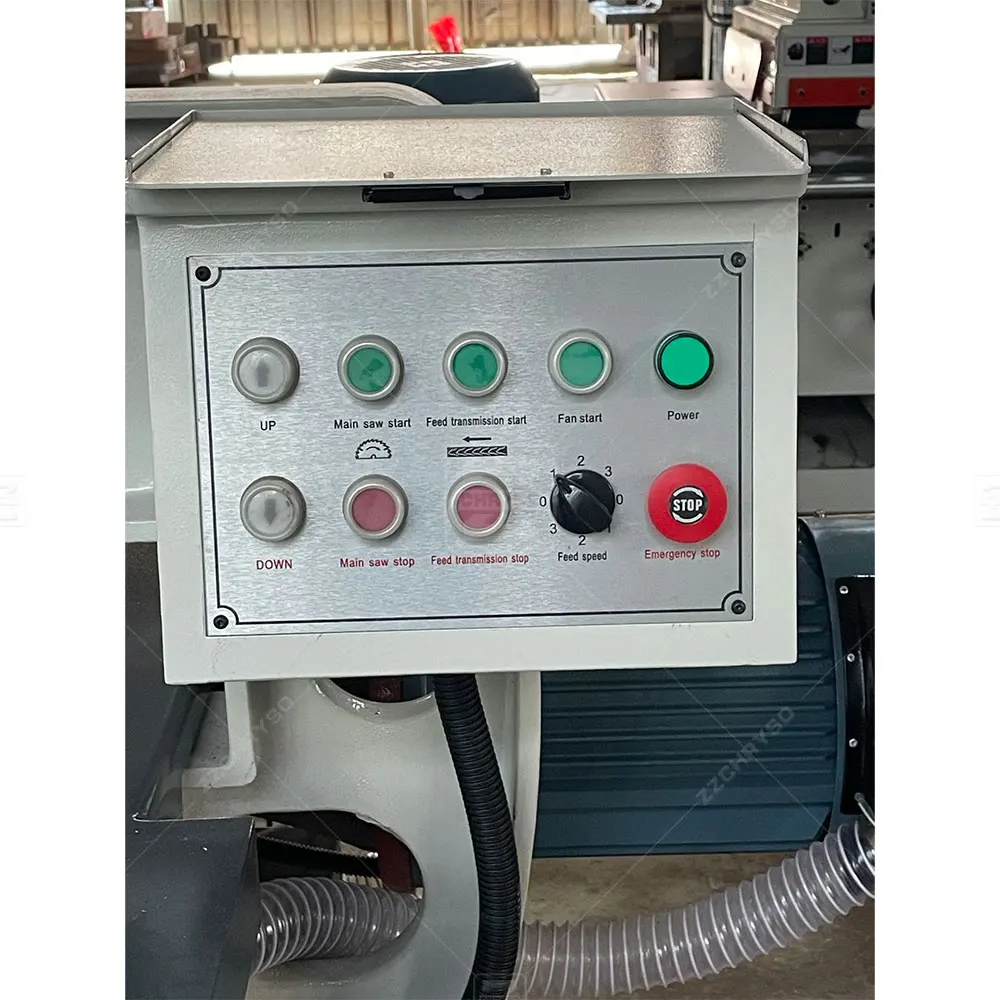

Button press control panel Shipping label and delivery case

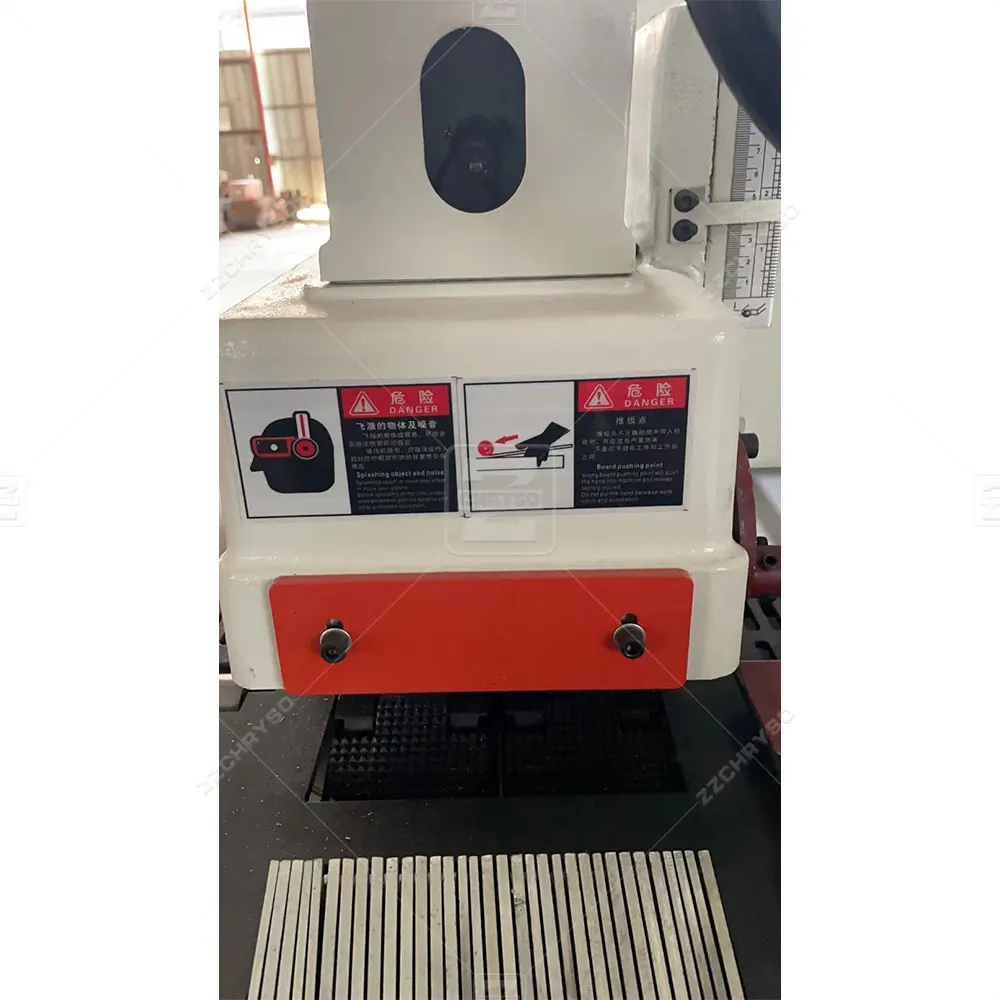

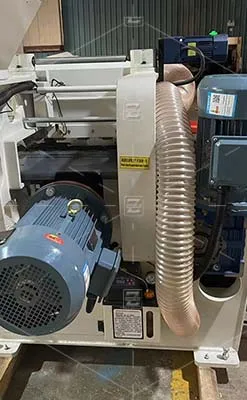

Dust collector tube Chain feeding conveyor Feeding thickness adjustable
Working table
Feeding inlet
1, The structure is new designed, the operation is flexible.
2, Process wood of 5-100mm height.
3, The cutting is fine, planning at the same time when processing.
4. Feeding system adopts frequency servo motor,feeding speed is adjustable.
5. When the pressure part is lifted, the feeding speed is automatically adjusted according to the height.
6, The chain guide feeding conveyor improves the service life of the rip saw machine.
7. The spindle cylinder is automatically filled with oil, the spindle is tempered by high frequency running.
8, Electrical parts with international standard.
9.Equipped with a low-power vacuum cleaner at the end of the machine, and use the centrifugal force of the saw blade to run at high speed to send the small wood chips to the vacuum cleaner impeller, so that they are crushed and raised.
10.Using multi-speed feeding motor, three-stage speed regulation, high-speed low-power, proper distribution of power, can effectively process 100 mm high solid wood.
11.Applied wind of the large motor cooling fan, the wind is led to the bottom of the crawler, and the wood chaff on the chain plate is blown away, so that the crawler can run smoothly for a long time and ensure high precision.

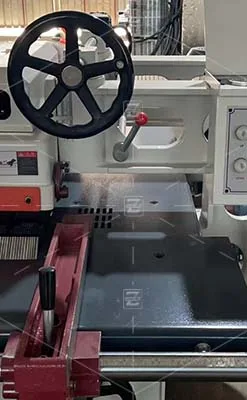

12.Electric lift and manual lift coexist, manual fine-tuning and electric quick-tuning complement each other. The spindle can be raised and lowered accurately, and it is convenient to replace saw blades of various specifications.
2, Process wood of 5-100mm height.
3, The cutting is fine, planning at the same time when processing.
4. Feeding system adopts frequency servo motor,feeding speed is adjustable.
5. When the pressure part is lifted, the feeding speed is automatically adjusted according to the height.
6, The chain guide feeding conveyor improves the service life of the rip saw machine.
7. The spindle cylinder is automatically filled with oil, the spindle is tempered by high frequency running.
8, Electrical parts with international standard.
9.Equipped with a low-power vacuum cleaner at the end of the machine, and use the centrifugal force of the saw blade to run at high speed to send the small wood chips to the vacuum cleaner impeller, so that they are crushed and raised.
10.Using multi-speed feeding motor, three-stage speed regulation, high-speed low-power, proper distribution of power, can effectively process 100 mm high solid wood.
11.Applied wind of the large motor cooling fan, the wind is led to the bottom of the crawler, and the wood chaff on the chain plate is blown away, so that the crawler can run smoothly for a long time and ensure high precision.
12.Electric lift and manual lift coexist, manual fine-tuning and electric quick-tuning complement each other. The spindle can be raised and lowered accurately, and it is convenient to replace saw blades of various specifications.
Rip Saw Machine,Laser Cutting Machine Wood,Trim Saw,Gang Rip Saw,High Speed Straight Line Rip Saw,Wood Edge Trimming Saw Machine,
Timber Rip Saw For Solid Wood, Wood Rip Saw Machine, Wood Cutting Machine, circular saw machine, single rip saw for solid wood,
Wood Lumber Single Rip Saw Machine, Single Straight Line Rip Saw, MJ163TF rip Saw, Wood Lumber Single Rip Saw Machine
Timber Rip Saw For Solid Wood, Wood Rip Saw Machine, Wood Cutting Machine, circular saw machine, single rip saw for solid wood,
Wood Lumber Single Rip Saw Machine, Single Straight Line Rip Saw, MJ163TF rip Saw, Wood Lumber Single Rip Saw Machine

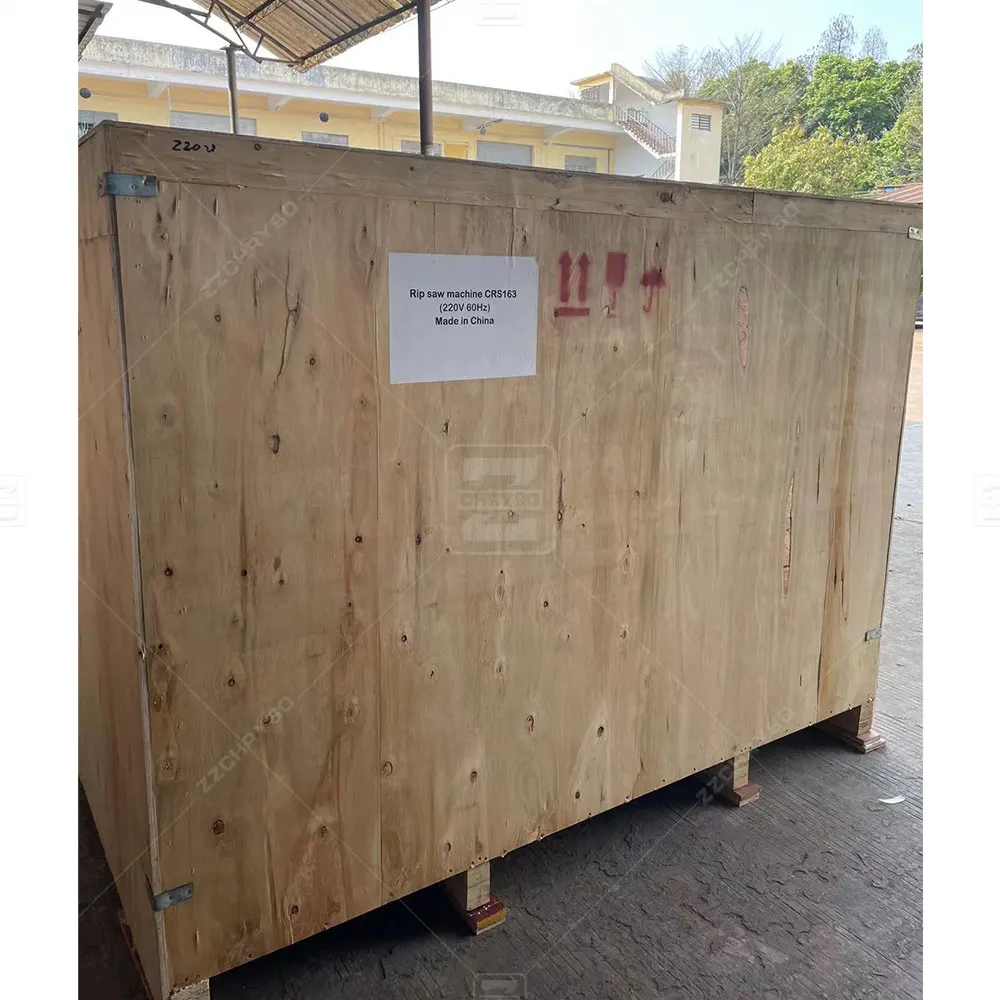

Packing & Delivery

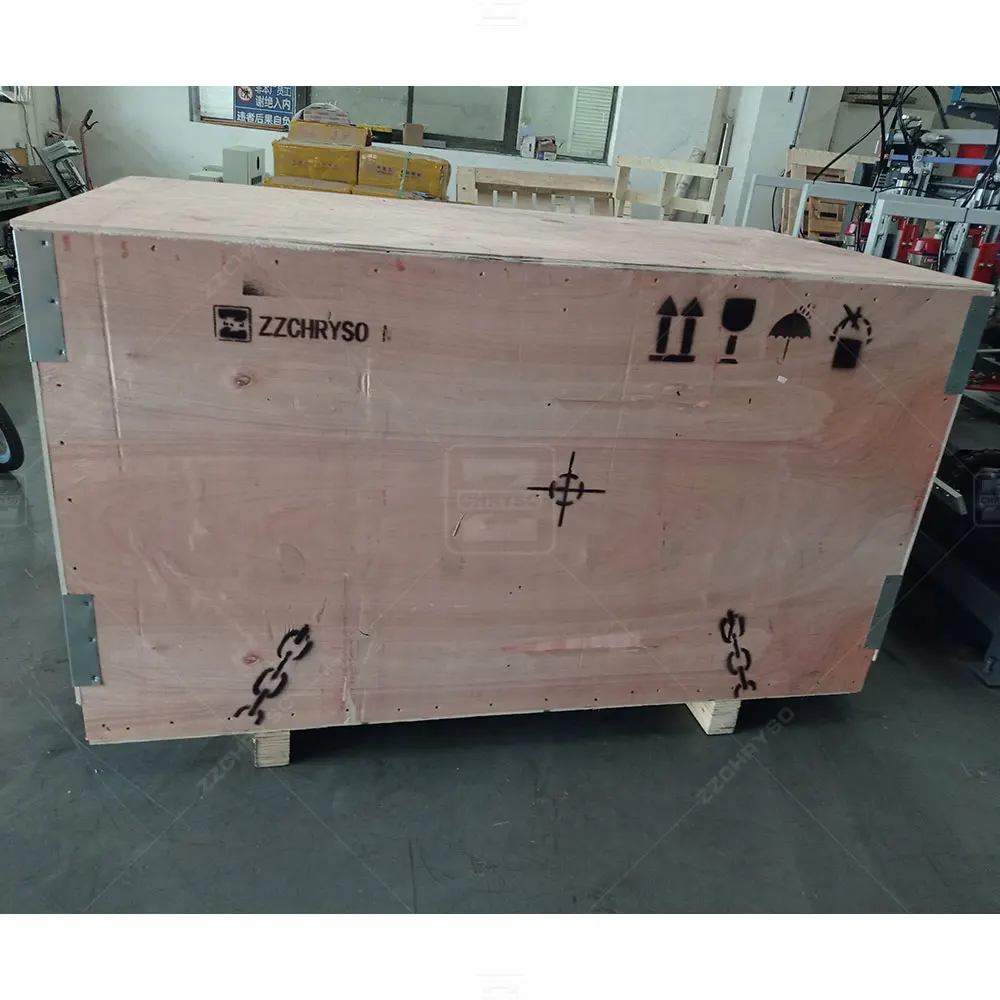

Wooden plywood case .
Load in container.
Related products

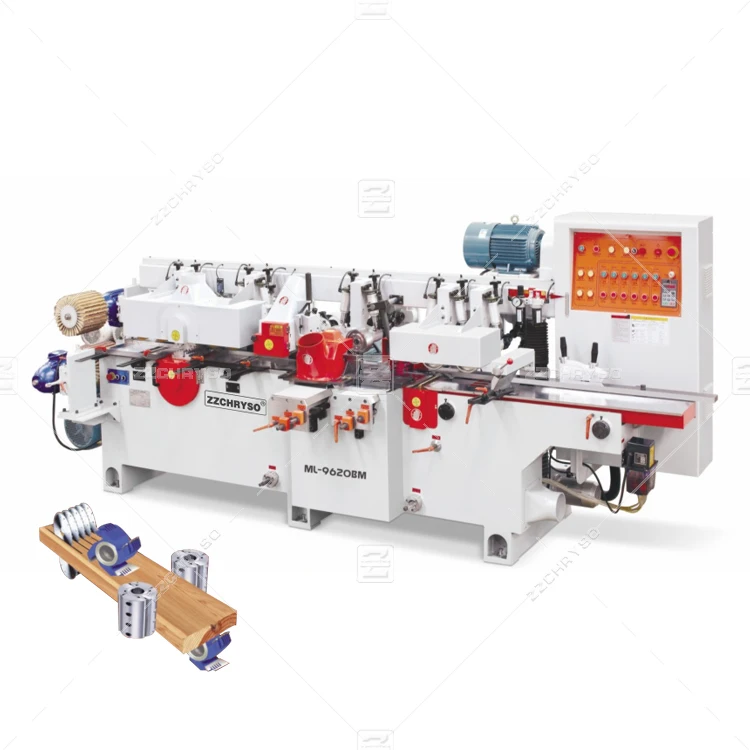

Planer machine

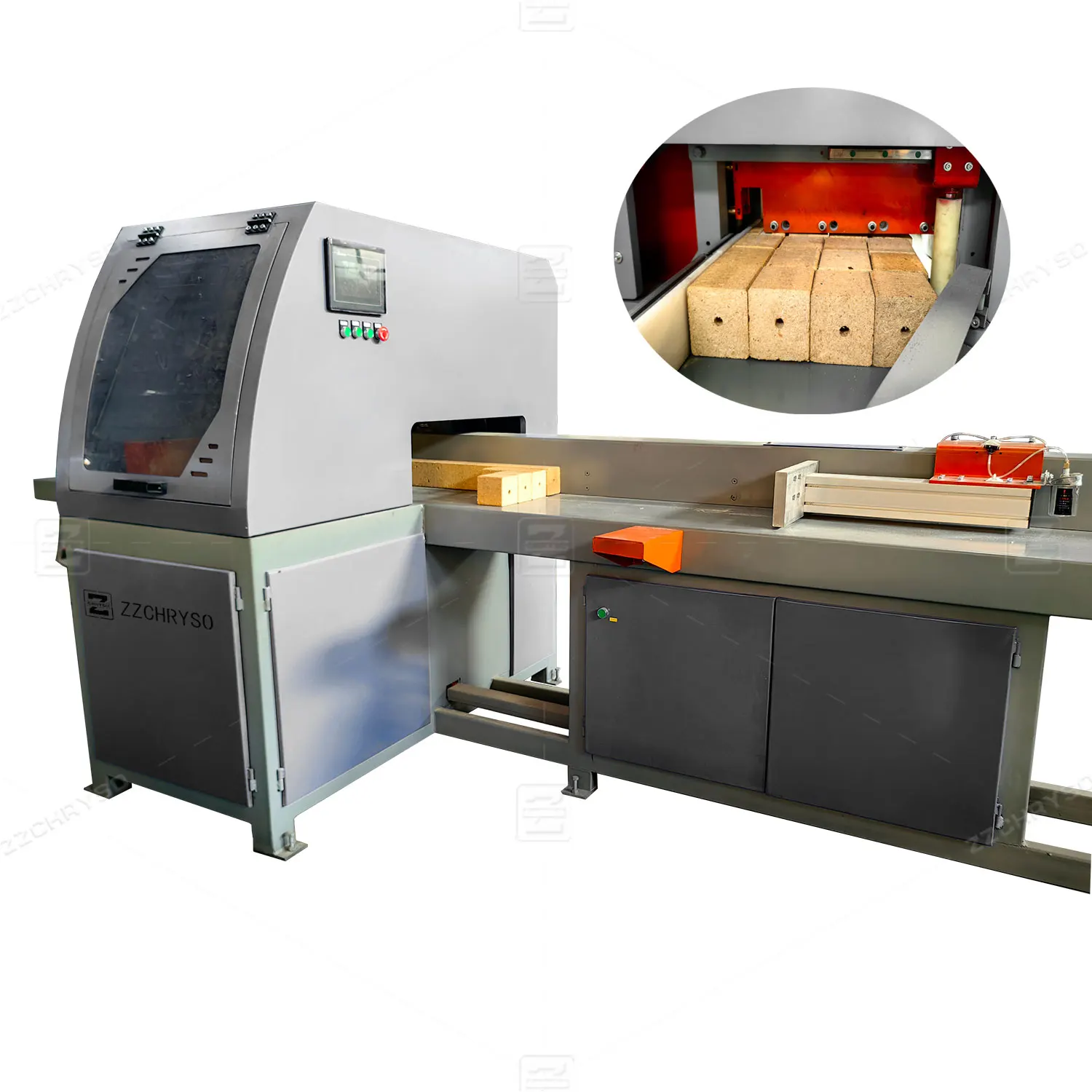

CNC Cut off saw machine
