Product Overview
Description
Product Description
Single Module CW Fiber Lasers
The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers have
higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity
and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect
in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device
processing, etc., with a narrow seam of the cut sheet and bright section.
higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity
and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect
in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device
processing, etc., with a narrow seam of the cut sheet and bright section.
Product Paramenters
Model | RFL-C1000H | RFL-C1500H | ||
Optica Properties | ||||
Average Output Power (W) | 1000 | 1500 | ||
Cetral Wavelength (nm) | 1080±5 | |||
Max Modulation Frequency (kHz) | 5 | |||
Output Power Stability | ±1.5% | |||
Red Laser | Yes | |||
Output Characteristics | ||||
Output Connector | QBH (customizable) | |||
Beam Quality | 1.3 (25μm) | 5-7 (50μm) | ||
Polarization State | random | |||
Output fiber length (m) | 20 (customizable) | |||
Electronic Control Characteristics | ||||
Input Power (V AC) | 220-240, single phase | 380±10%, three phase-four wire connet | ||
Control Mode | RS232, AD, super terminal | RS232, AD | ||
Power Adjustment Range (%) | 10-100 | |||
Other Characteristics | ||||
Cooling method | Water Cooling | |||
Working Temperature (℃) | 10-40 | |||
Application

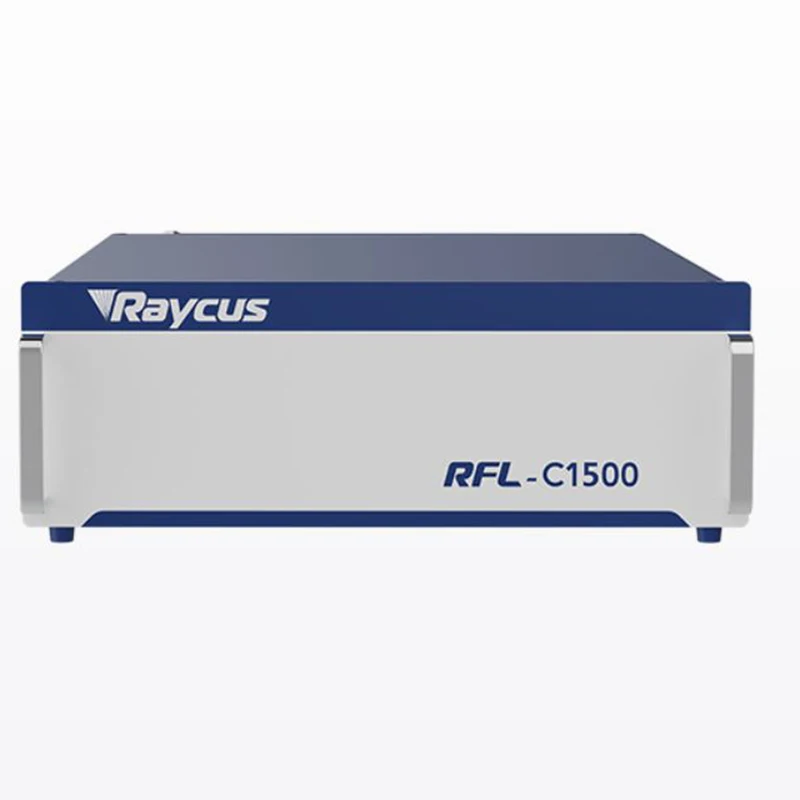

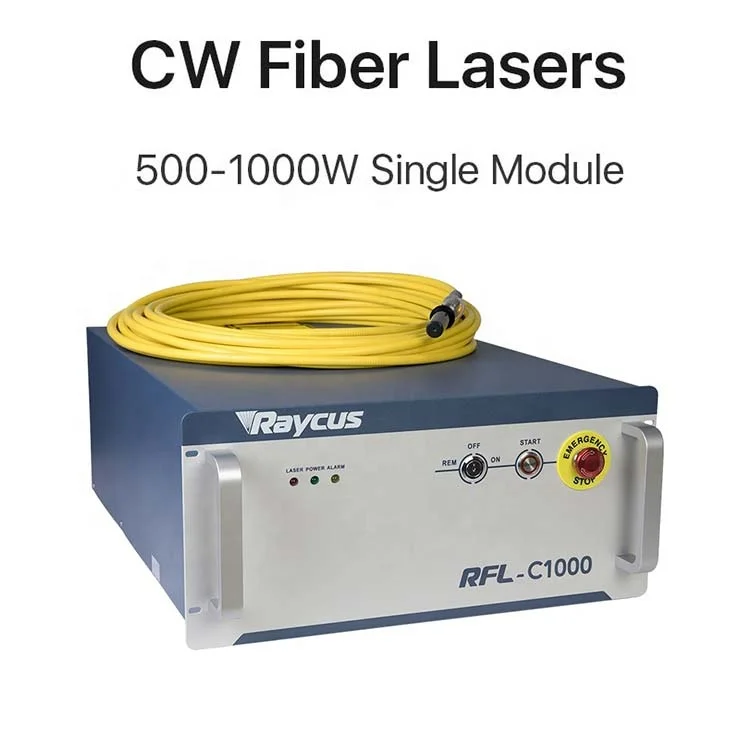

Raycus RFL-C1000H RFL-C1500H

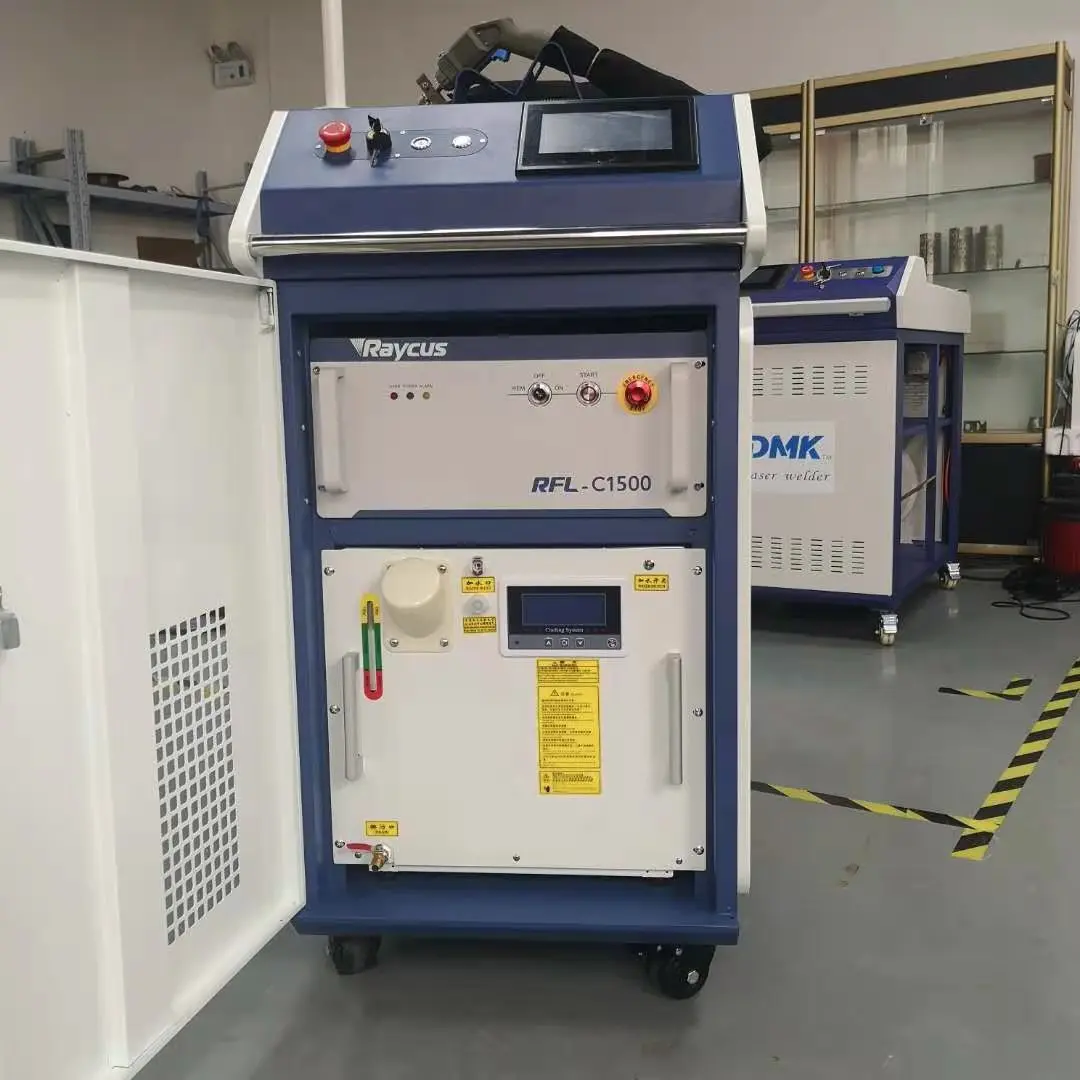

Raycus single module cntinuous lasers RFL-C 1000H, RFL-C1500H are mainly used for laser welding.
It can weld metal sheet, such as stainless steel, carbon steel, Aluminum alloy and so on.
Depending on the power of the laser, different thicknesses can be welded. The greater the power of the laser, the thicker the welding thickness.
Therefore, the laser source plays a central role in the entire fiber laser welding machine.

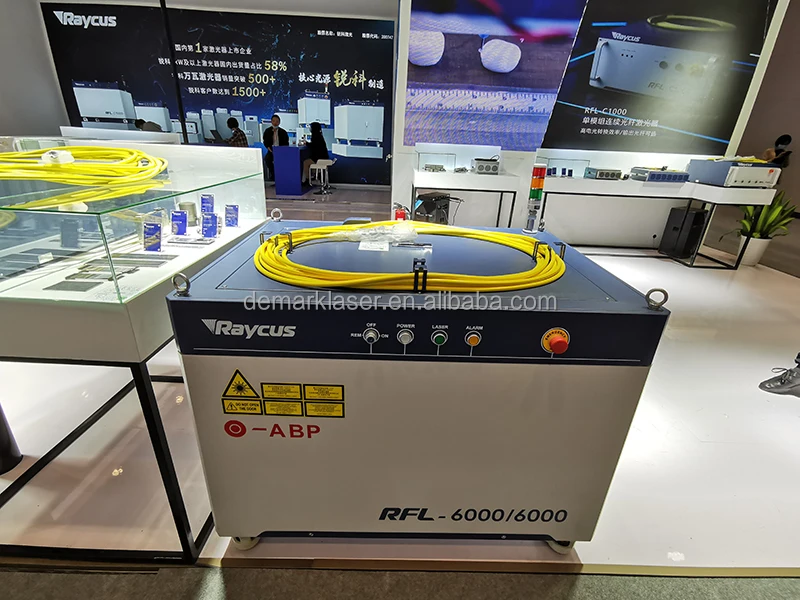

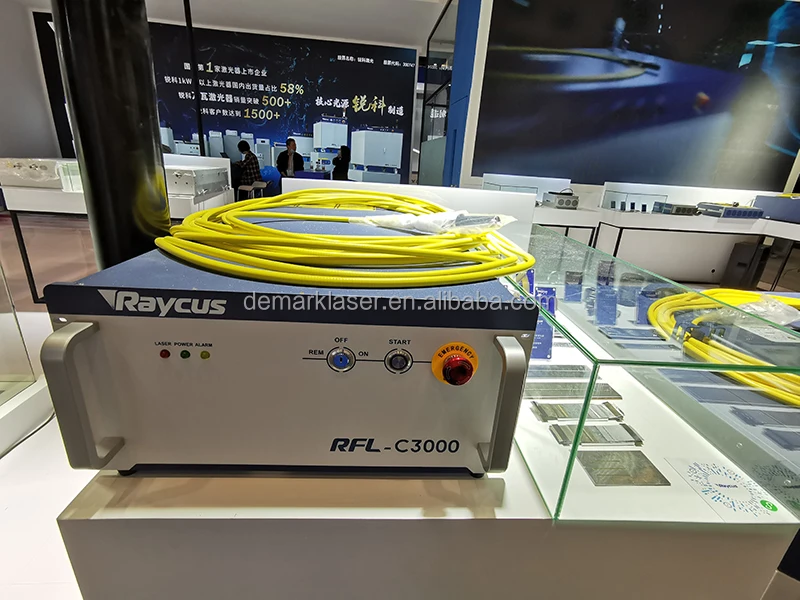

Exhibition
