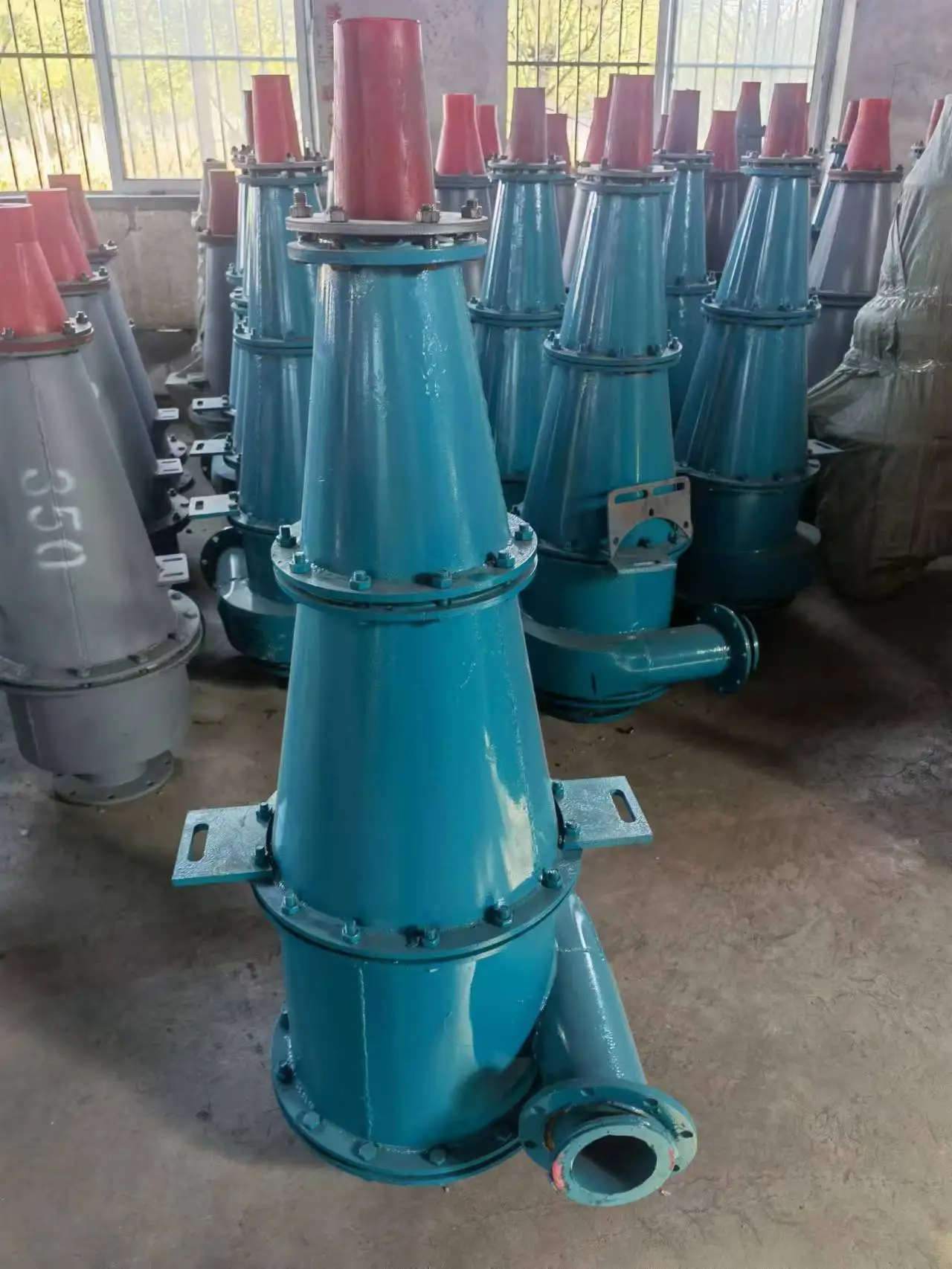

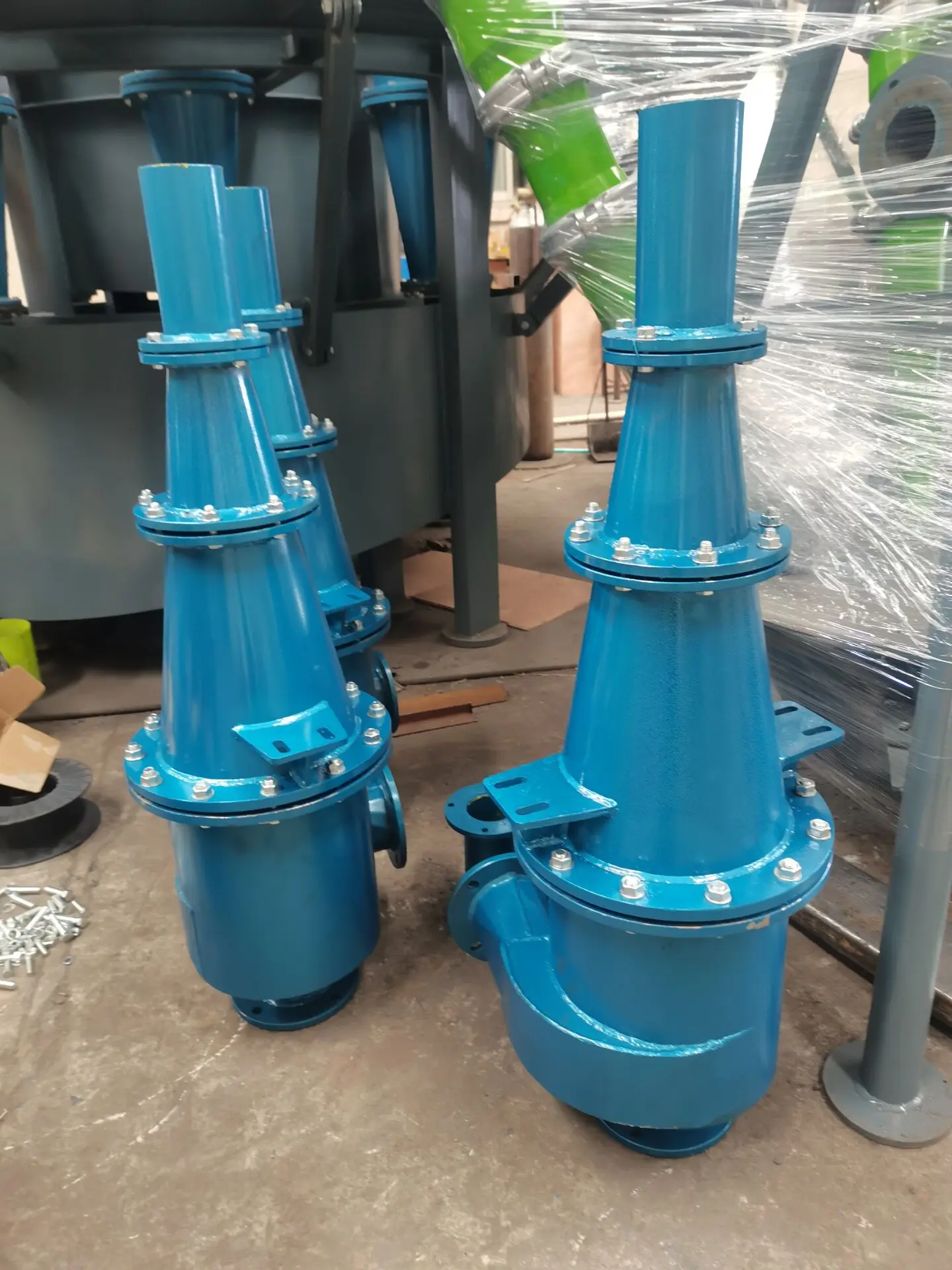

New Technology Factory Price Mining Hydrocyclone Separator Hydro Cyclone
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. Ltd
Share on (1601094597642):
Product Overview
Description
Product Introduction
Product Introduction:
Hydrocyclone is used for separating and removing heavy mud and sand of coarse particles and sometimes for dehydration of slurry. The Hydrocyclone separator has two types of pressure type and gravity type made up of either cylindrical structure or metal pipe. Slurry is fed through the top of the structure (or metal pipe) by means of pressure or gravity along the tangent line. Coarse and thick particulate matters are thrown to the wall, rotated down and discharged together with the concentrated liquid formed under the action of centrifugal force. Small particulate matters are discharged together with secondary upward vortex after rotated to some extent.
Hydrocyclone / cyclone filter is mainly used for classification, separation, concentration and desliming in the mineral mining industry. When the hydrocyclone is used as a classifier, it is mainly used to form a grinding and classification system with a mill; when it is used as a deslimer, it can be used for desliming in a gravity concentrator; when it is used as a concentrating and dewatering device, it can be used to concentrate ore dressing tailings and send them to fill underground mining tunnels. The hydrocyclone sand separator has no moving parts, simple structure, large capacity per unit volume, small area, high classification efficiency (up to 80% ~ 90%), fine classification granularity, low cost, and low material consumption.
Hydrocyclone / cyclone filter is mainly used for classification, separation, concentration and desliming in the mineral mining industry. When the hydrocyclone is used as a classifier, it is mainly used to form a grinding and classification system with a mill; when it is used as a deslimer, it can be used for desliming in a gravity concentrator; when it is used as a concentrating and dewatering device, it can be used to concentrate ore dressing tailings and send them to fill underground mining tunnels. The hydrocyclone sand separator has no moving parts, simple structure, large capacity per unit volume, small area, high classification efficiency (up to 80% ~ 90%), fine classification granularity, low cost, and low material consumption.

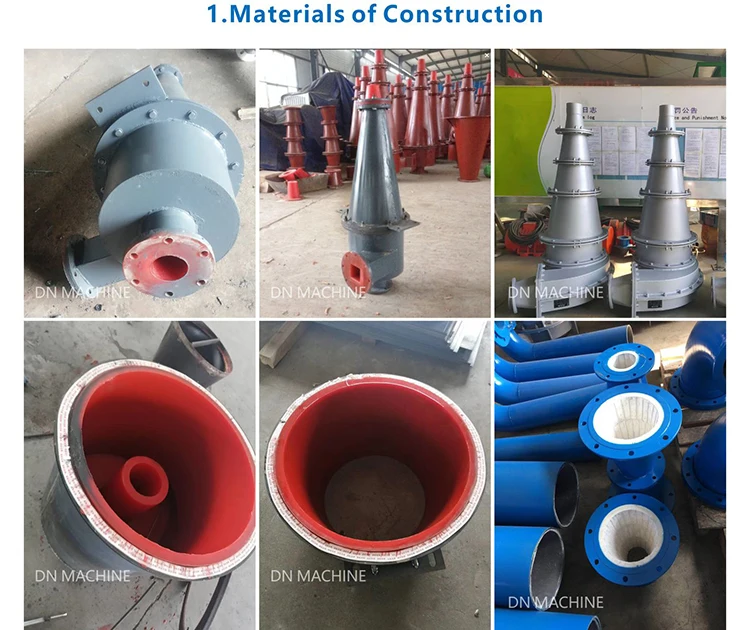

Three different material types for choices:
1). All casted polyurethane (PU)
2), All casted carbon steel lined with PU.
2), All casted carbon steel lined with PU.
3), All casted carbon steel lined with ceramic.
Eastman adopt the high quality polyurethane, the shore hardness is 75-85. Very high strength, high abrasion resistance and is extremely resistant to oil. good resilience and aging resistance.
1.Closed circuit grading, desliming
2.Mineral Classification
3.Concentrate or Tailing Thickening, Dewatering
4.Tailing damming and filling cyclone also can be used for pre-selection or rough selection of ore.
2.Mineral Classification
3.Concentrate or Tailing Thickening, Dewatering
4.Tailing damming and filling cyclone also can be used for pre-selection or rough selection of ore.
Specification | Capacity(m3 /h) | Separation Particle Size (μm) | Diameter of Overflow Outlet (mm) | Diameter of Spigot (mm) | Inlet Pressure (MPa) |
150 | 10.0-23.0 | 25-74 | 30-50 | 8.0-20.0 | 0.060-0.15 |
200 | 17-38 | 28-80 | 40-65 | 16-32 | 0.060-0.15 |
250 | 24-53 | 30-82 | 65-100 | 16-40 | 0.060-0.15 |
300 | 40-100 | 36-90 | 65-120 | 20-40 | 0.060-0.15 |
350 | 56-118 | 40-100 | 80-120 | 30-70 | 0.060-0.15 |
375 | 74-157 | 42-105 | 90-135 | 30-70 | 0.060-0.15 |
450 | 90-192 | 44-110 | 100-150 | 30-70 | 0.060-0.15 |
500 | 128-300 | 50-115 | 130-220 | 35-100 | 0.060-0.15 |
610 | 200-468 | 57-125 | 160-260 | 65-110 | 0.060-0.15 |
660 | 237-524 | 60-130 | 180-280 | 80-150 | 0.060-0.15 |

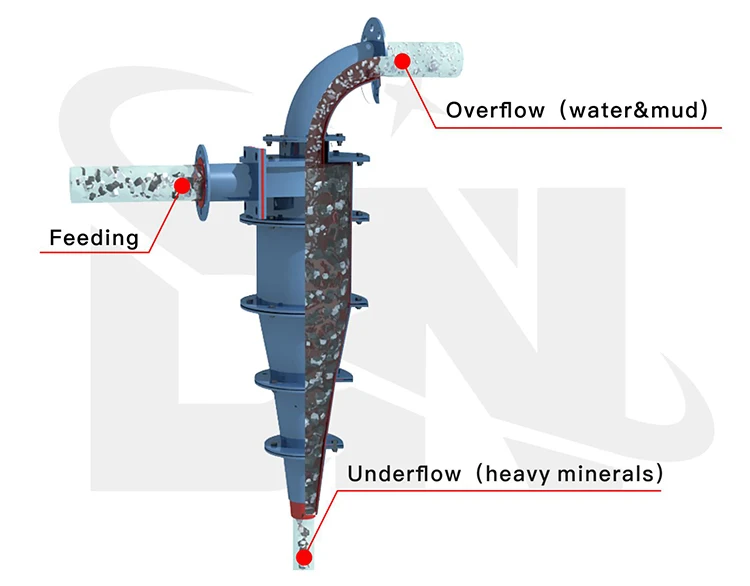

The working principle of the cyclone is mainly centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone at a certain pressure from the feeding port of the cyclone, a strong three-dimensional elliptical strong rotating shear is generated. Cut turbulent motion. Due to the different density of the particles, the centrifugal force, centripetal buoyancy, and fluid drag force are different. Due to centrifugal sedimentation, most of the coarse particles (or heavy phases) are discharged through the swirler bottom outlet, and most of the fine particles ( Or light phase) discharged from the overflow pipe to achieve separation and classification.
1 The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions. This design can tremendously improve classification efficiency in three ways------first of all, after entering the hydraulic cyclone, minerals avert from being disturbed by turbulent flows occurring near overflow pipes; secondly, the speed of coarse ore cyclone is accelerated towards underflow outlet; thirdly, minerals avoid swift rotating.
2 The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.
3 The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.
4 The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.
5 The premium abrasion performance of liner made from Xinhai abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.
6 Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.
7 The appropriative software helps to choose the right mode accurately and quickly.
2 The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.
3 The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.
4 The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.
5 The premium abrasion performance of liner made from Xinhai abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.
6 Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.
7 The appropriative software helps to choose the right mode accurately and quickly.
Packing & Delivery
●Ways Of Packing

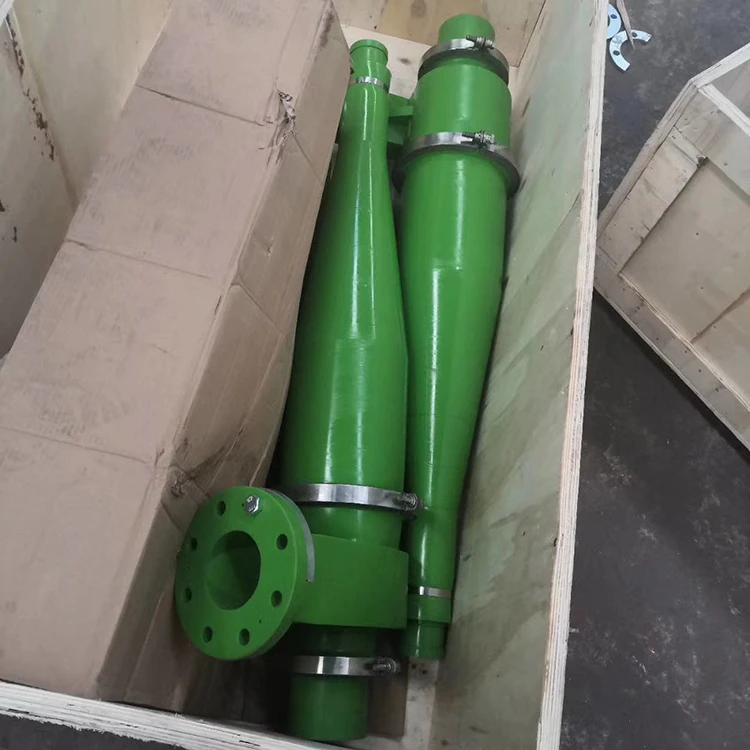

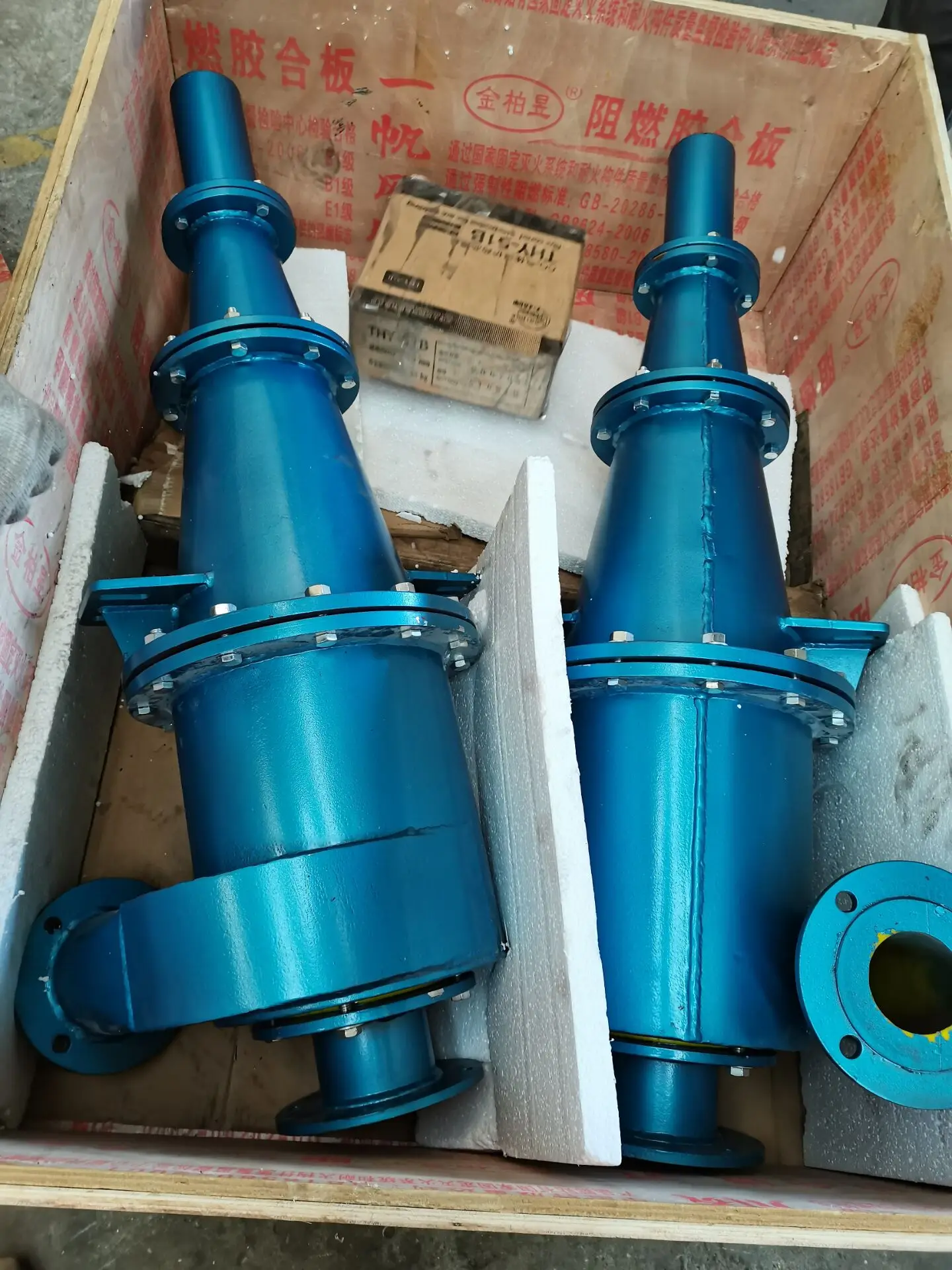

1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.

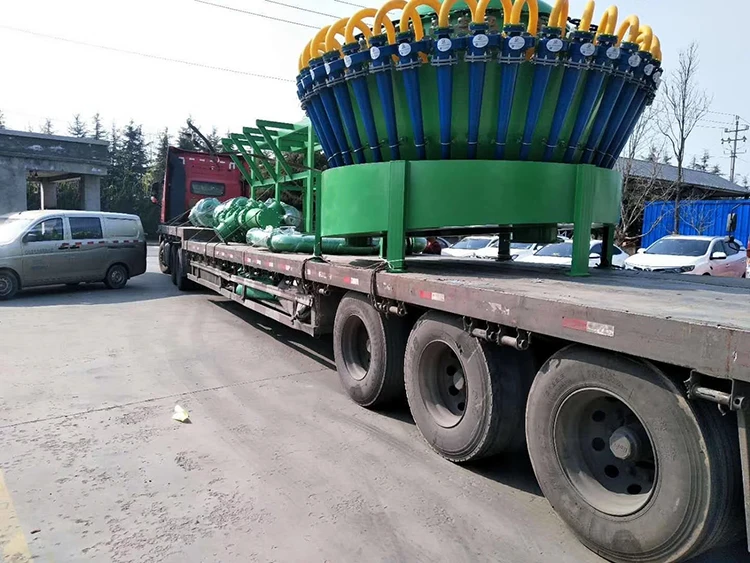

3.The whole big machine is loaded in the container.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
1.Inquiry and consulting support.
2.Ore sample testing support.

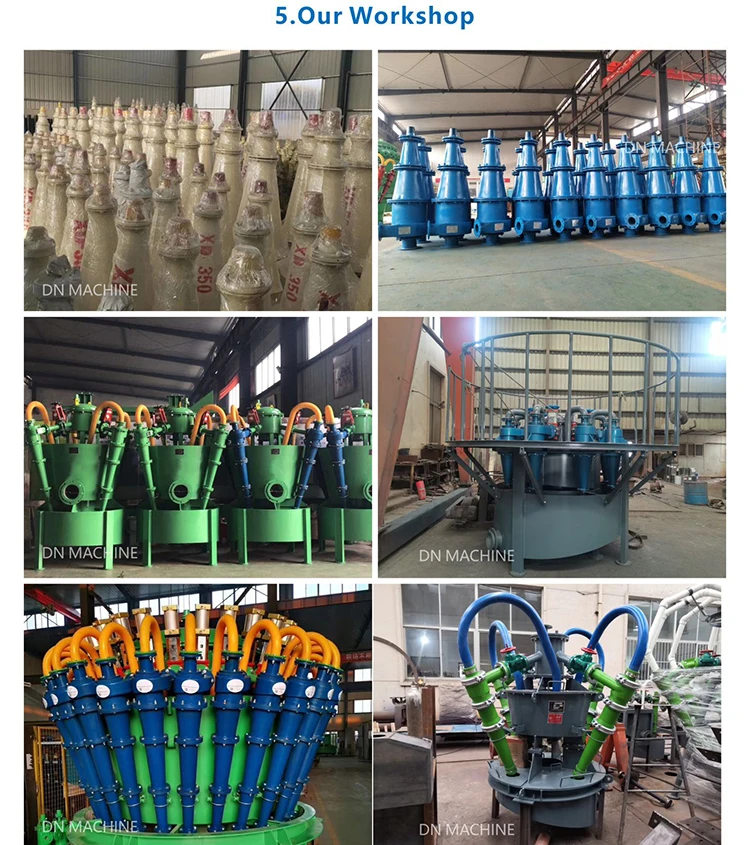

3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Contacts
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
Contacts
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
