Single Acting Manual Hydraulic Pump PMS-2A
$70.00-78.00

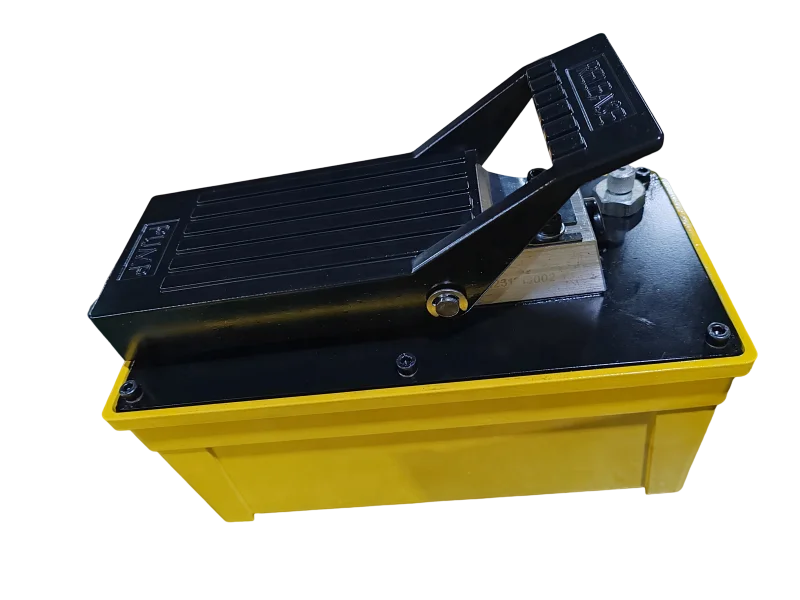

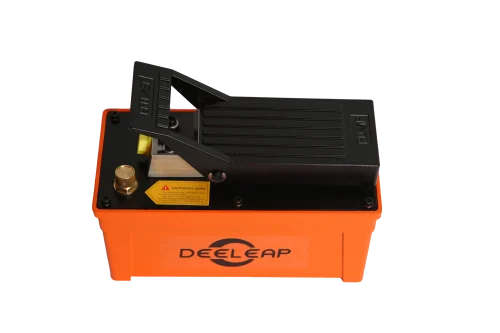

DEELEAP Air Foot Pedal Mini Hydraulic Pump Single Acting Single Speed
- Category: >>>
- Supplier: Yantai Dongyue Hydraulic Technology Co. Ltd.
Share on (1601094607618):
Product Overview
Description
Product Overview
PAS14 pneumatic-hydraulic foot air pump with aluminium alloy tank
Name:Foot-operated pneumatic hydraulic pump
Function type:single-speed single-acting
Drive mode:pneumatic
Operation mode:pedal or hand operated.
Medium:L-HM32#or L-HV32#anti-wear hydraulic oil
Applicable tools:suitable for single-acting cylinders and hydraulic tools

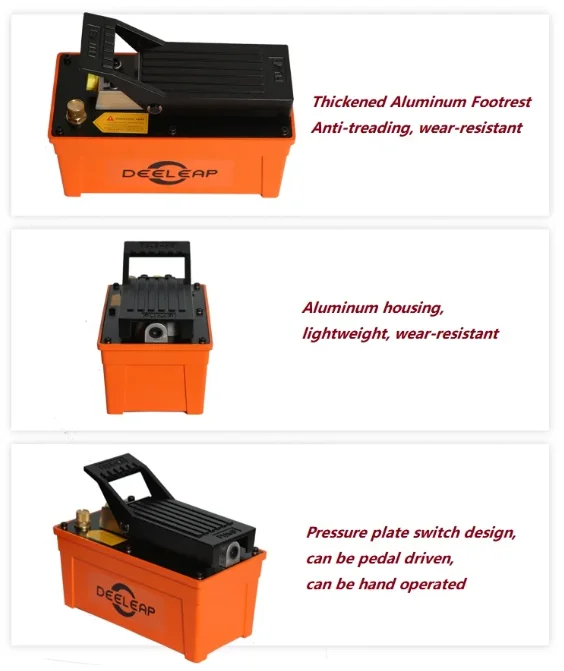

FEATURES AT A GLANCE
1. Driven by compressed air, there is no danger of electric sparks or flames, which can be used in flammable and explosive working
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
Right elevation
Left elevation

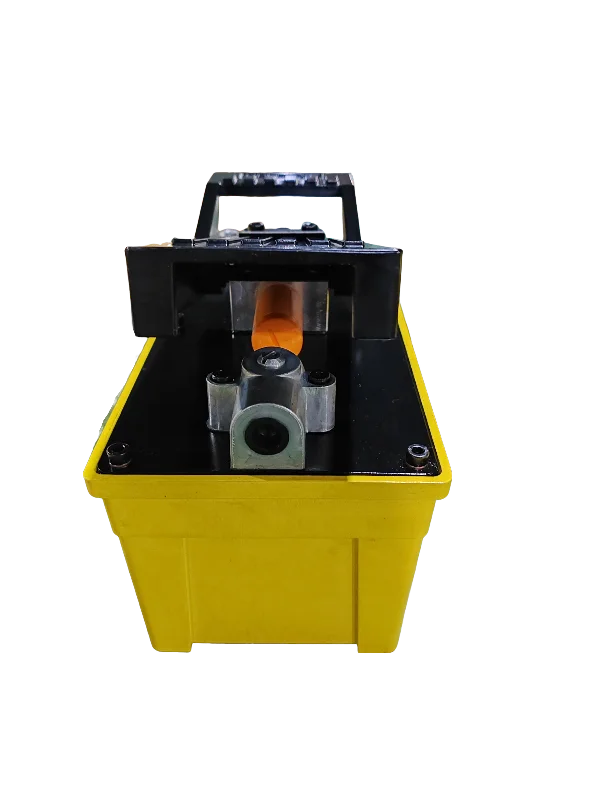

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Oil tank capacity (L) | 1.7 |
2 | Air pressure (Mpa) | 6-8 |
3 | Air consumption (L/min） | 255 |
4 | Rated pressure (Mpa) | 70 |
5 | No-load flow (L/min) | 1.16 |
6 | load flow (L/min) | 0.15 |
7 | Air inlet interface | 1/4''-18NPTF |
8 | Oil outlet interface | 3/8''-18NPTF |
Feature:
1.The rated pressure is 70MPa, and the built-in safety relief valve is used for overload protection.
2. The threaded hole of the oil outlet is 3/8"NPTF, and the elevation angle is 11°, which is convenient for oil pipe or joint
connection and sealing.
3. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
4. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
5. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.
2. The threaded hole of the oil outlet is 3/8"NPTF, and the elevation angle is 11°, which is convenient for oil pipe or joint
connection and sealing.
3. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
4. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
5. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.

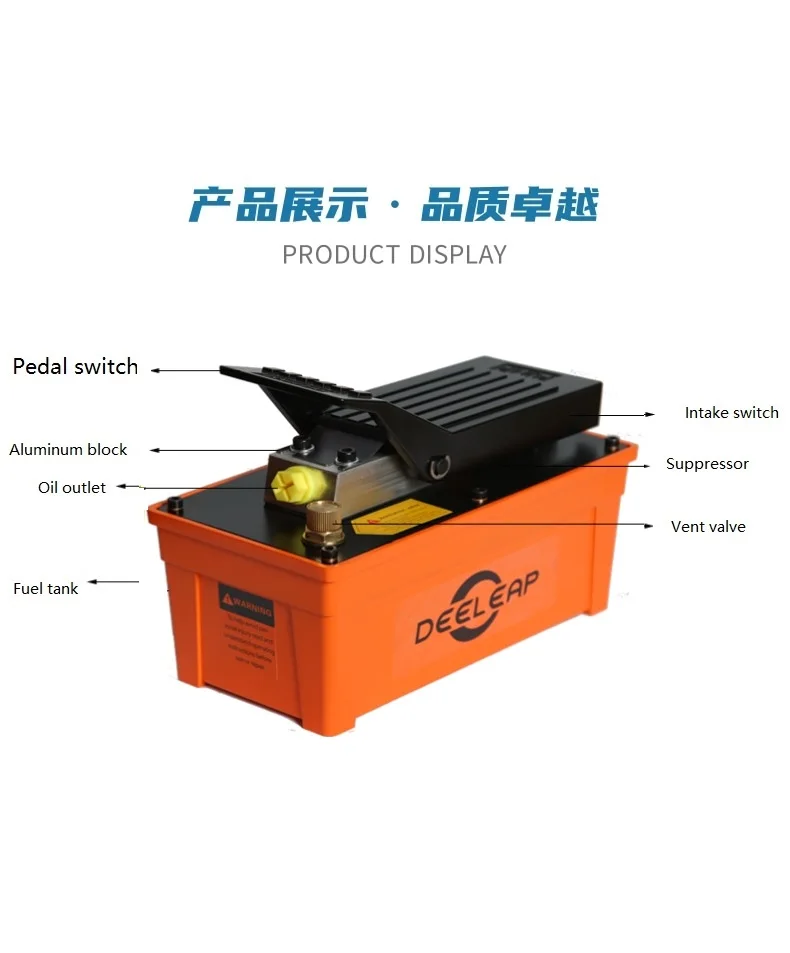

PRODUCT CONFIGURATION
VIEW 1
VIEW2
VIEW3
Company Profile

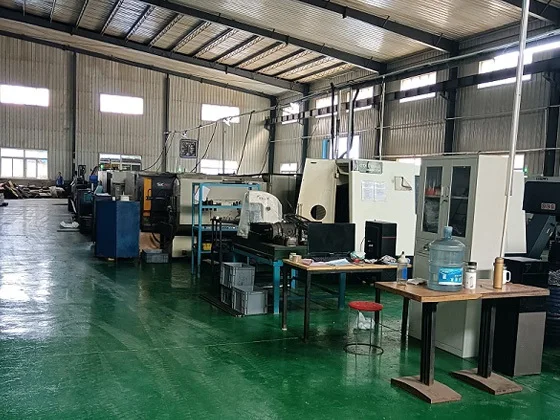

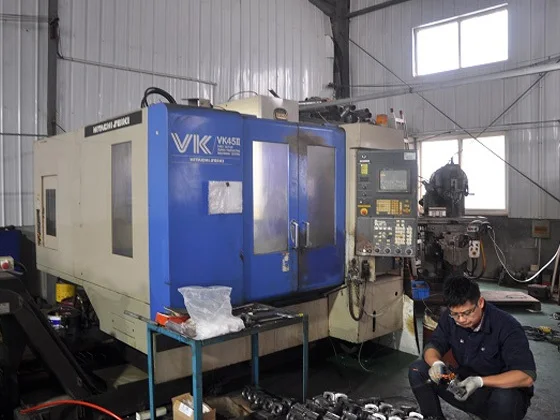

Yantai Dongyue Hydraulic Technology Co., Ltd. is a manufacturer engaged in design and manufacturing high pressure hydraulic tools and equipments, such as pneumatic hydraulic pump, electric hydraulic pump, manual hydraulic pump, high pressure jack cylinder and other hydraulic tools,etc.. Our factory was established in 2008, located in Yantai City, Shandong Province, with a registered capital of 5 million.
Our prodcut ranges are as follows:
1. Hydraulic pumps, including Pneumatic ,Electric, Manual type (max up to 70 Mpa);
2. Hydraulic jack cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
3. Electric Hydraulic /pneumatic hydraulic torque wrench (100-160000Nm);
4. Hydraulic bolt tensioner (100-11486Nm);
5. Integrated hydraulic lifting system solutions
Dongyue’s products have been widely used in many fields such as automobile maintenance, metallurgy, oil and gas, chemical industry, wind power, lifting, construction, mining, railroad, shipping, etc. After years of accumulation and exploration in the hydraulic industry, we have risen rapidly in the field of high pressure hydraulics. We are committed to providing high quality and cost-effective ultra-high pressure hydraulic products to customers at home and abroad. With our customer-oriented marketing concept and strong R&D capability, we have developed a series of standard products for customers in various industries and accumulated a large number of technical patents. We have obtained ISO9001 international quality management system certification qualification, and also have CE certificate, etc. Our factory has a professional R&D team, advanced production and testing equipment, and a strict quality management system, which provides a guarantee for the stability and continuous improvement of product quality.
Our prodcut ranges are as follows:
1. Hydraulic pumps, including Pneumatic ,Electric, Manual type (max up to 70 Mpa);
2. Hydraulic jack cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
3. Electric Hydraulic /pneumatic hydraulic torque wrench (100-160000Nm);
4. Hydraulic bolt tensioner (100-11486Nm);
5. Integrated hydraulic lifting system solutions
Dongyue’s products have been widely used in many fields such as automobile maintenance, metallurgy, oil and gas, chemical industry, wind power, lifting, construction, mining, railroad, shipping, etc. After years of accumulation and exploration in the hydraulic industry, we have risen rapidly in the field of high pressure hydraulics. We are committed to providing high quality and cost-effective ultra-high pressure hydraulic products to customers at home and abroad. With our customer-oriented marketing concept and strong R&D capability, we have developed a series of standard products for customers in various industries and accumulated a large number of technical patents. We have obtained ISO9001 international quality management system certification qualification, and also have CE certificate, etc. Our factory has a professional R&D team, advanced production and testing equipment, and a strict quality management system, which provides a guarantee for the stability and continuous improvement of product quality.
