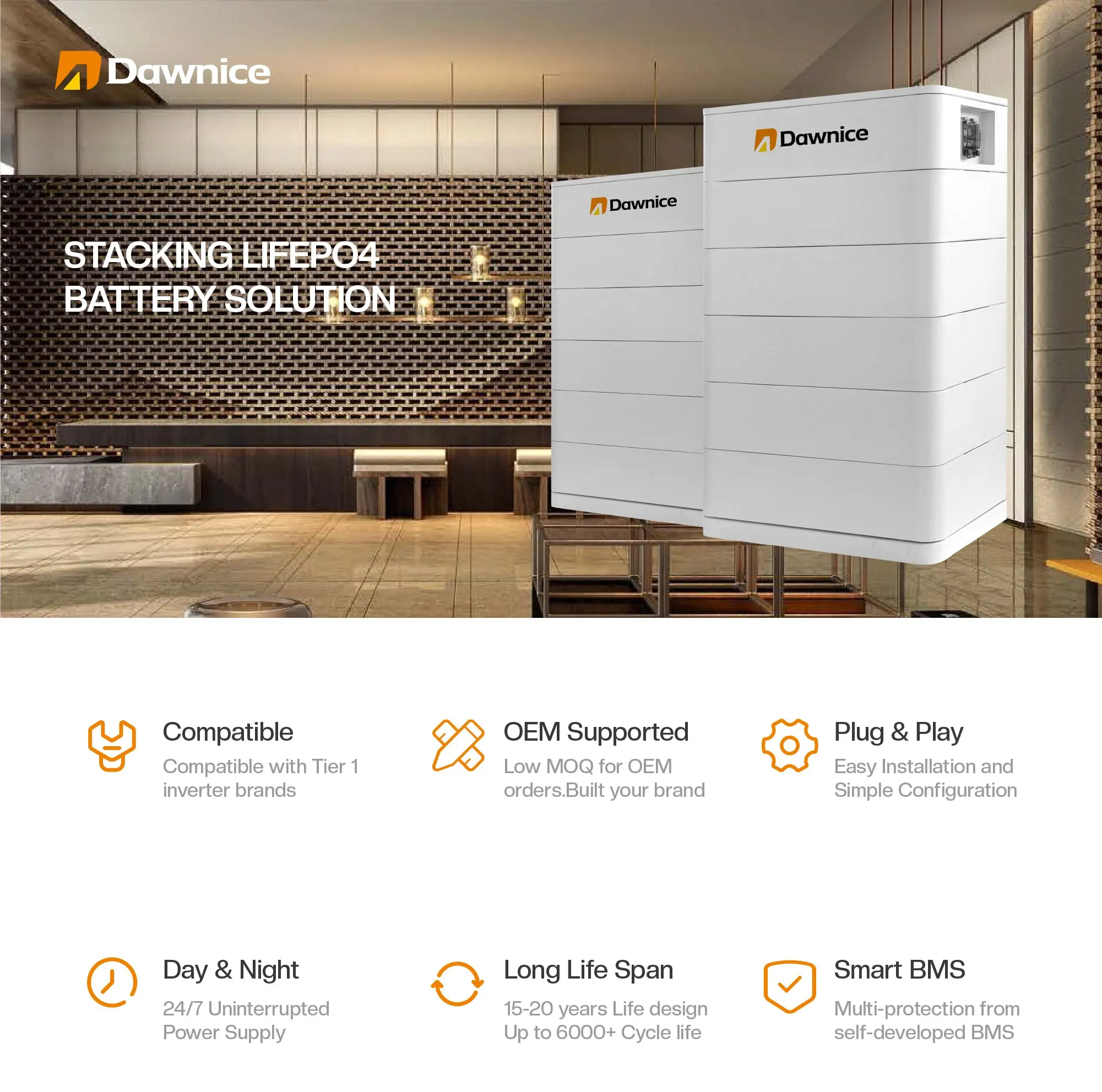

Dawnice 100Ah 200Ah 51.2V 48V LiFePO4 Lithium Battery Stackable Solar System LiFePO4 Energy Storage Battery
- Category: >>>
- Supplier: Yichun Hertz Energy Storage Co. Ltd.
Share on (1601094831430):
Product Overview
Description
Product Description
MODEL | DW-5.0LV | DW-10.0LV | DW-15.0LV | DW-20.0LV | DW-25.0LV | DW-30.0LV | ||||||
Battery Type | LiFeP04(LFP) | |||||||||||
Nominal Voltage(V) | 51.2V | |||||||||||
Nominal Capacity(KWH) | 5.42KWH | 10.85KWH | 16.28KWH | 21.7KWH | 27.13KWH | 32.56KWH | ||||||
Usable Capacity(KWH) | 4.87KWH | 9.76KWH | 14.65KWH | 19.53KWH | 24.41 KWH | 29.30KWH | ||||||
Design Life | 10+Years （25 ℃/77F) | |||||||||||
Physical | ||||||||||||
Dimension(mm) | 600*400*385 | 600*400*534 | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 | ||||||
Weight (kg) | 80 | 125 | 170 | 215 | 260 | 305 | ||||||
ELECTRICAL | ||||||||||||
Cycle Life | >6000. 25°C | |||||||||||
Discharge Voltage(V) | 40-48 | |||||||||||
Charge Voltage(V) | 56 -58.4 | |||||||||||
Charge/Discharge Current(A) | 83 (Recommended) 100A(Max) | |||||||||||
Internal Resistance | ≤30mΩ | |||||||||||
BMS | ||||||||||||
Power Consumption | <2W (Work) < 100mW(Sleep) | |||||||||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | |||||||||||
SOC | Intelligent algorithm | |||||||||||
Communication | CAN/RS-485/RS-232 | |||||||||||
OPERATION | ||||||||||||
Operating Temperature Range | -10℃-50℃ | |||||||||||
Transport or Storage Temperate Range | -20℃-45℃ | |||||||||||
Humidity | 15% - 85% (No Condensing) | |||||||||||
WARRANTY | ||||||||||||
Product Warranty | 5 Years | |||||||||||
Performance Warranty | 10 Years | |||||||||||
FAQ
★ Guaranteed Quality service：
100% tested guaranteed. The battery will be tested strictly before shipment. Matched voltage& IR guaranteed. Welcome QC checking &
on-line video checking before shipping.
★ Fully Warranty service guaranteed:
10 years warranty
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!
★ OEM / ODM welcome:
Customized Lifepo4 battery pack support.
100% guarantee the quality as you expected.
100% tested guaranteed. The battery will be tested strictly before shipment. Matched voltage& IR guaranteed. Welcome QC checking &
on-line video checking before shipping.
★ Fully Warranty service guaranteed:
10 years warranty
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!
★ OEM / ODM welcome:
Customized Lifepo4 battery pack support.
100% guarantee the quality as you expected.
