Bess Wholesale price 30kw 50kw 100kw Modular Design Multifunction Converter Power Conversion System For Bess
- Category: >>>
- Supplier: Guangzhou Renepoly Energy Technology Co. Ltd.
Share on (1601095223504):
Product Overview
Description
Product Description
Product introduction

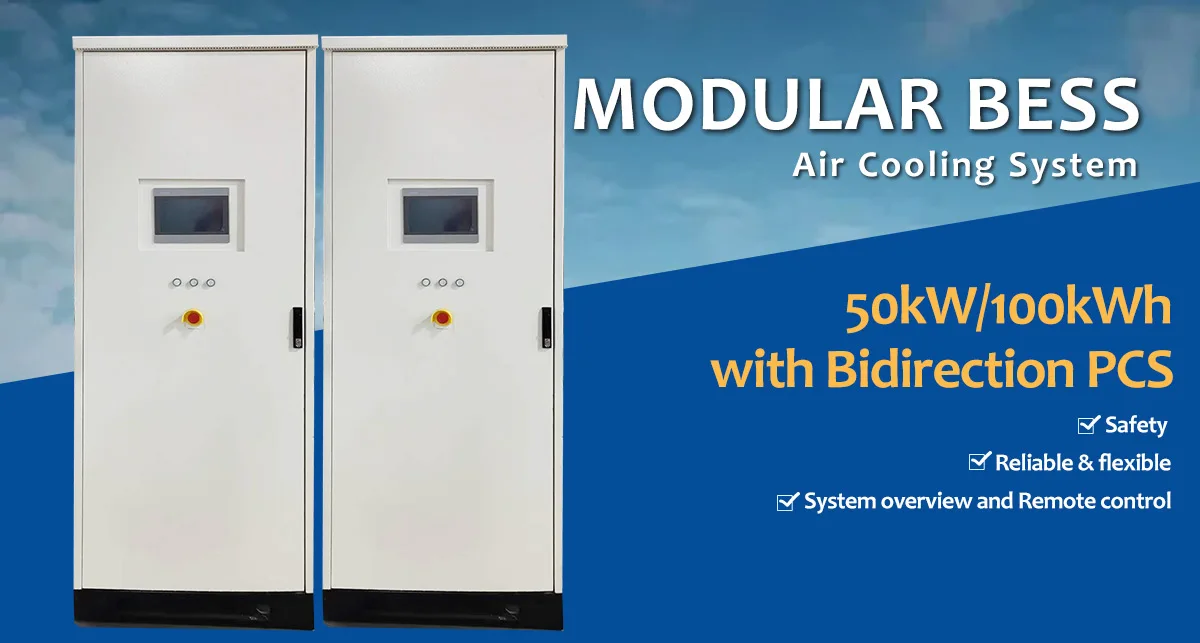

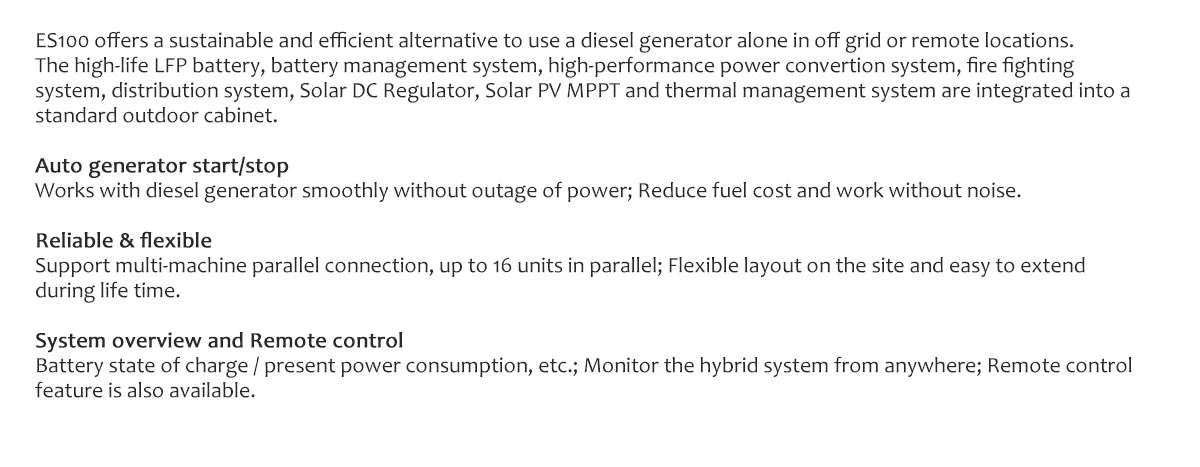

ES100 offers a sustainable and efficient alternative to use a diesel generator alone in off grid or remote locations.

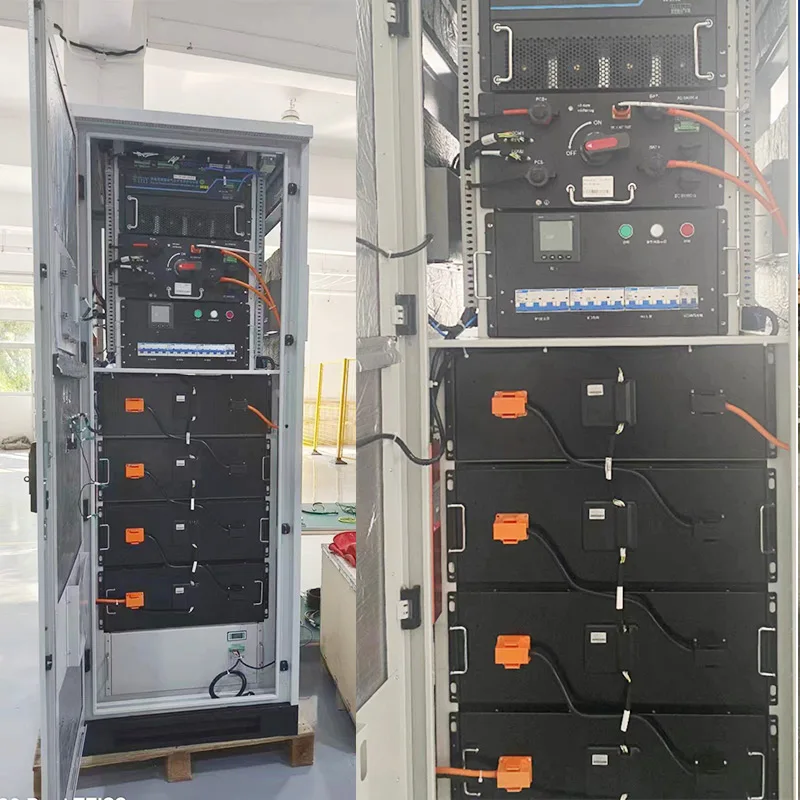

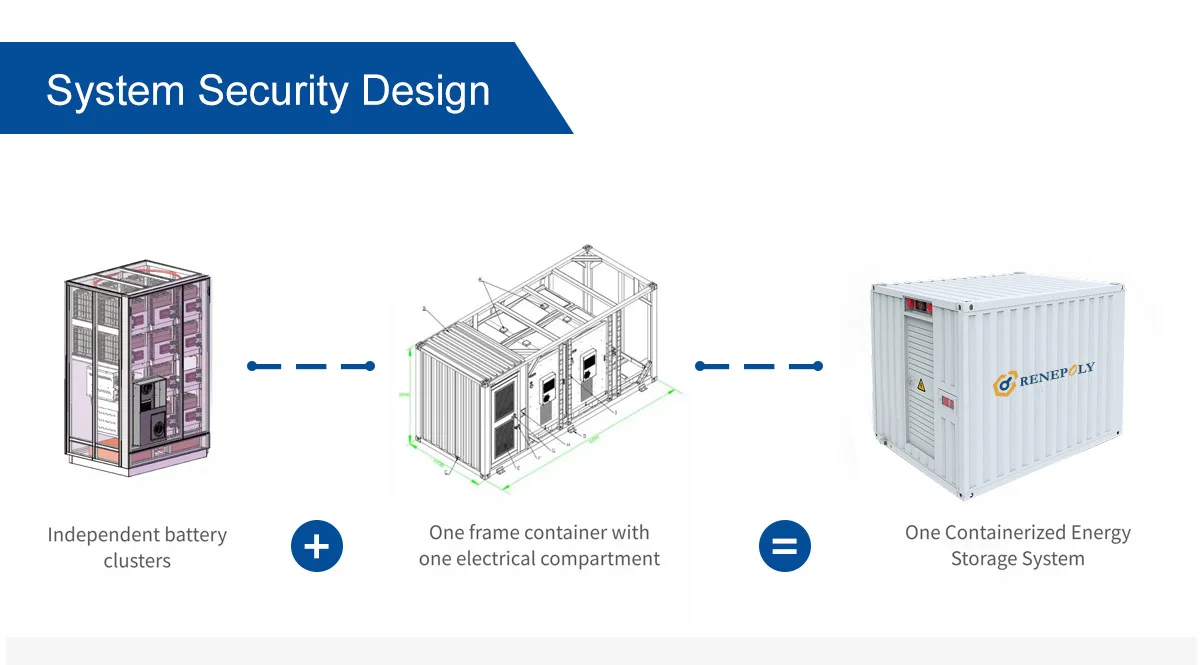

The high-life LFP battery, battery management system, high-performance power convertion system, fire fighting system, distribution system, Solar DC Regulator, Solar PV MPPT and thermal management system are integrated into a standard outdoor cabinet.
Auto generator start/stop
Works with diesel generator smoothly without outage of power; Reduce fuel cost and work without noise.
Reliable & flexible
Support multi-machine parallel connection, up to 16 units in parallel; Flexible layout on the site and easy to extend during life time.

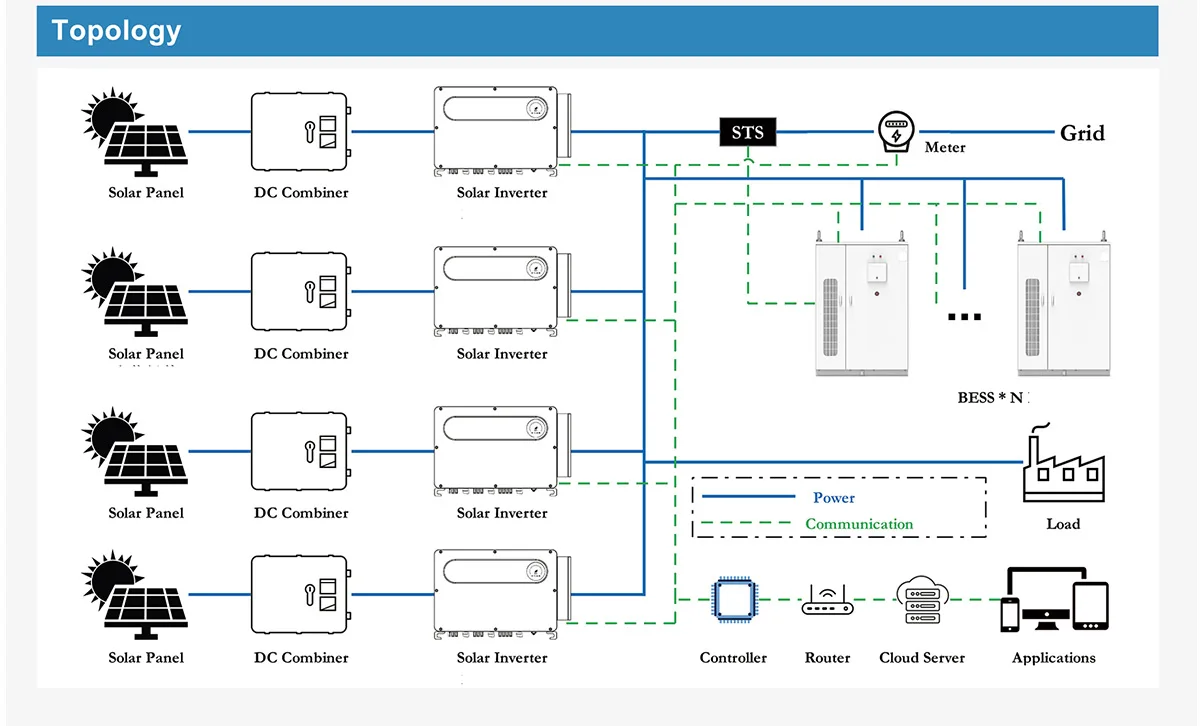

System overview and Remote control
Battery state of charge / present power consumption, etc.; Monitor the hybrid system from anywhere; Remote control feature is also available.
| Technical Parameters | ES100K | ||||
| AC Side (Grid Tied Scenario) | |||||
| AC Output Power | 50kW @ 45°C | ||||
| Max. AC Current | 87A | ||||
| Nominal AC Voltage / Range | 400V/230V(-20%-1596) | ||||
| Nominal Grid Frequency/Range | 50Hz/47Hz~ 52H2 60H2/57HZ~ 62HZ | ||||
| Harmonic(THD) | <3% (at Nominal Power) | ||||
| Power Factor at Nominal Power/Adjustable | -1~l | ||||
| Colling Concept of PCS Chambe | Air-Cooling | ||||
| Seamless Switching from Grid toBESS In Case | Optional | ||||
| AC Side (Microgrid Scenairo) | |||||
| Nominal AC Voltage | 400V/230V | ||||
| Harmonic (THD) | <1%(Resistance Load) | ||||
| Nominal Frequency/Range | 50Hz/45Hz~ 55H2 60H2 55HZ~ 65HZ | ||||
| Max. AC Power | 55kW | ||||
| Batteries | |||||
| Nominal Battery Voltage | 691.2VDC | ||||
| Battery Type | LiFePO4 3.2V/150Ah | ||||
| Battery Pack Configuration | 1P24S/11.52kWh | ||||
| Battery System Configuration | 1P216S | ||||
| Capacity | 103.68kWh | ||||
| Battery Voltage Range | 650-850VDC | ||||
| Max Charging/Discharging Current | 88A | ||||
| Battery Disconnect | Integrated | ||||
| Cooling concept of battery chamber | Air-Cooling | ||||
| Normal Parameters | |||||
| Dimension W*DH | 1200*800*2400 mm | ||||
| Charge/Discharge Rate | 0.5C | ||||
| Depth of Discharge | 0.95 | ||||
| Life Cycle | 6000 | ||||
| Degree of Protection | IP54 | ||||
| System Efficiency | >90% | ||||
| Fire Protection System | Perfluorhexone | ||||
| Allowed Ambient Temperature | -30~ 55 °C(>45 °C Derating) | ||||
| Allowed Relative Humidity | 0~95% | ||||
| Enclosure Corrosion Resistance Level | C3(C4/C5 Optional) | ||||
| Weight | ~1500kg | ||||
| SPD | DC TYPE II/AC TYPE I | ||||
| Lifting Options | Fork/Crane | ||||
| Scalability | Yes, Units Can Be Connected In Parallel | ||||
| Accessories (Optional) | Energy Management System,Microgrid Controller, Scada, 4/5G Router, MCCB (Breakers),Power Cables, Smart Meters, Static Transfer Switch(STS), ElectriCabinet | ||||
| Monitoring | |||||
| Display | 7 Inches Touchscreen | ||||
| Communication | RS485/Ethernet | ||||
| Communication Protocols | MODBUS-RTU/MODBUS-TCP | ||||
| Remote Control System | EG Cloud | ||||
| Solar PV Charge (Optional) | |||||
| Solar PV MPPT (Optional) | 50kw | ||||
| Solar PV DC Regulator (Optional) | 50kw | ||||
Renewable Energy Polygeneration for Modern Life
We penetrate intelligence into the renewable energy to meet the great challenges ofour time.
Renepoly Energy was founded in Guangzhou, China in 2016. Since its inception, the company has beencommitted to the research and development of energy stroage system & microgrid system and the expansion of Renepoly Energy has the mission of developing smart microgrid systems topracticalapplication scenarios,promote sustainable energy development in communities and regions in an efficient manner.
Business Lines
1.Engineering
Engineering of modular ESS cabinet & container,smart EMS and microgrid system
2.Manufacturing
Manufacturing the products of modular ESS cabinet &container and smart EMS
3.Construction
Construction and commissioning of ESS and microgrid projects
4.O&M
Operation and maintenance of ESS and microgrid projects
5.Consultancy
Technical and project management consultancy to ESS and microgrid projects
6.Analysis
Feasibility study and economic & investment analysis to ESS and microgrid projects
Factory Capacity
1.8000 Sqm factory with Two Full Automatic Battery Pack Production Lines
2.Max. 18.636 MWh/Day Battery Production
Product Chractistics
Packaging & Shipping
Packaging
The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Shipping
By sea,The overseas shipping time is around 14-35 days, which varies with the countries.
Our Services
- Product customerization design
- OEM and ODM
- Hybrid system architechture design
- Technical consultancy of battery system and microgrid system
Company Information
Renepoly Energy is a renewable energy innovation technology company focusing on providing smart distributed energy solutions. Guangzhou Ruinaituo Energy Technology Co., LTD. (Renepoly Energy) was founded in Guangzhou, China in 2016. Since its inception, the company has been committed to the research and development of distributed new energy systems and the expansion of practical application scenarios.
The company consists of a group of industry experts, doctors and senior engineers, and relies on the professional skills and management system of Tianjin University, KTH Royal Institute of Technology, Sweden, European Institute of Innovation and Technology and other internationally renowned institutions. The team has more than 10 years of experience in the development and design of smart microgrid systems (distributed photovoltaic systems, small wind power systems, modular electrochemical energy storage systems, small and medium-size diesel/gasoline generators and energy m -anagement systems).
After years of development, the company's main business includes investment, construction, design, research and development, sales, integration, technical consulting and management consulting services of distributed power generation systems. Relying on the professional service network, the company has rich experience in project technology and business operation in the renewable energy sector, especially in the field of smart microgrid. Renepoly Energy will rapidly and efficiently develop economically feasible renewable energy distribution systems to promote sustainable energy development in communities and regions in an efficient manner.
FAQ
Q: How long does it take to receive the goods?
A: The goods will be ready in 7-30 days, depending on the quantitty of the goods. The overseas shipping time is around 14-35 days, which varies with the countries. Consult with our online agent for the details.
Q: How is the package of the goods?
A: The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Q: The goods and brand can be customerized?
A: Yes. we are Original Equipment Manufacturer, Orignal Brand Manufacturer and Original Design Manufacturer.
Q: Where is your company?
A: The plant is located in Dongguan, Guangdong, China, and the international sales centers is in Guangzhou,China.
Q: Do you have customerization service for the big solar/battery system?
A: Yes. Please consult with our online agent for the details.
Q: What is included in the price for the integrated system?
A: Engineering design and materials cost are included in the price. The price of onsite installation supervision, testing and commissioning will be quoted upon request.
