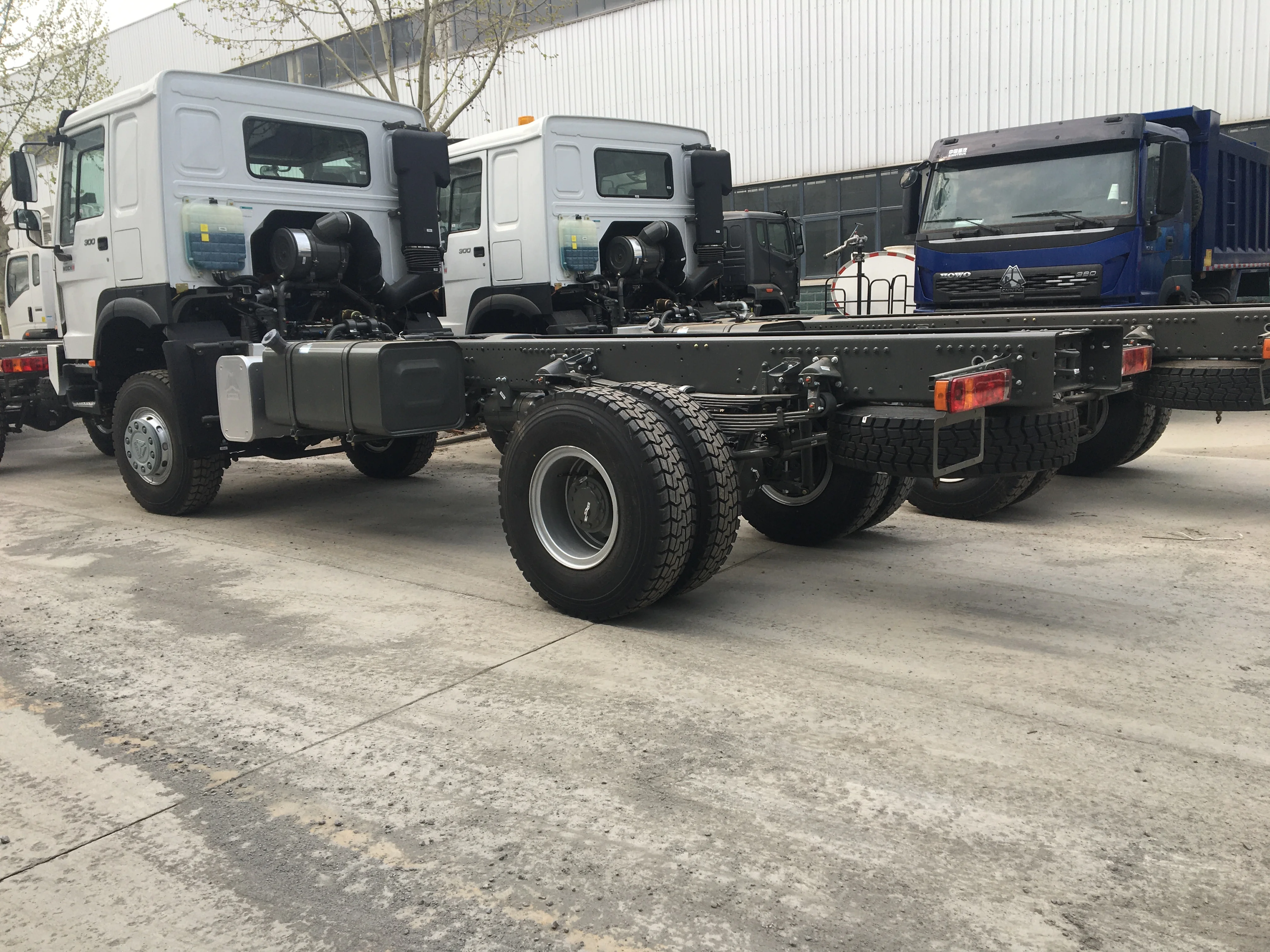

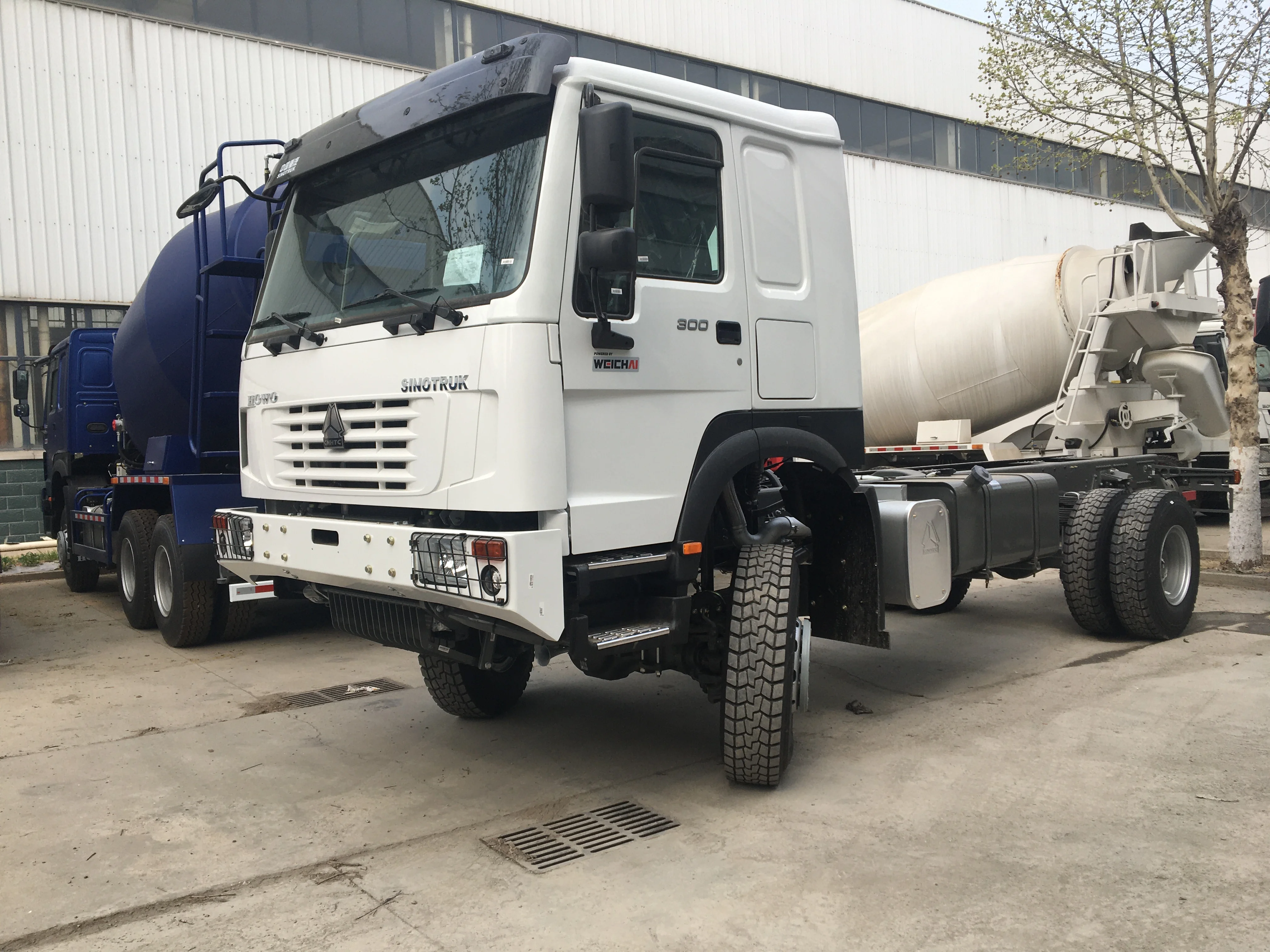

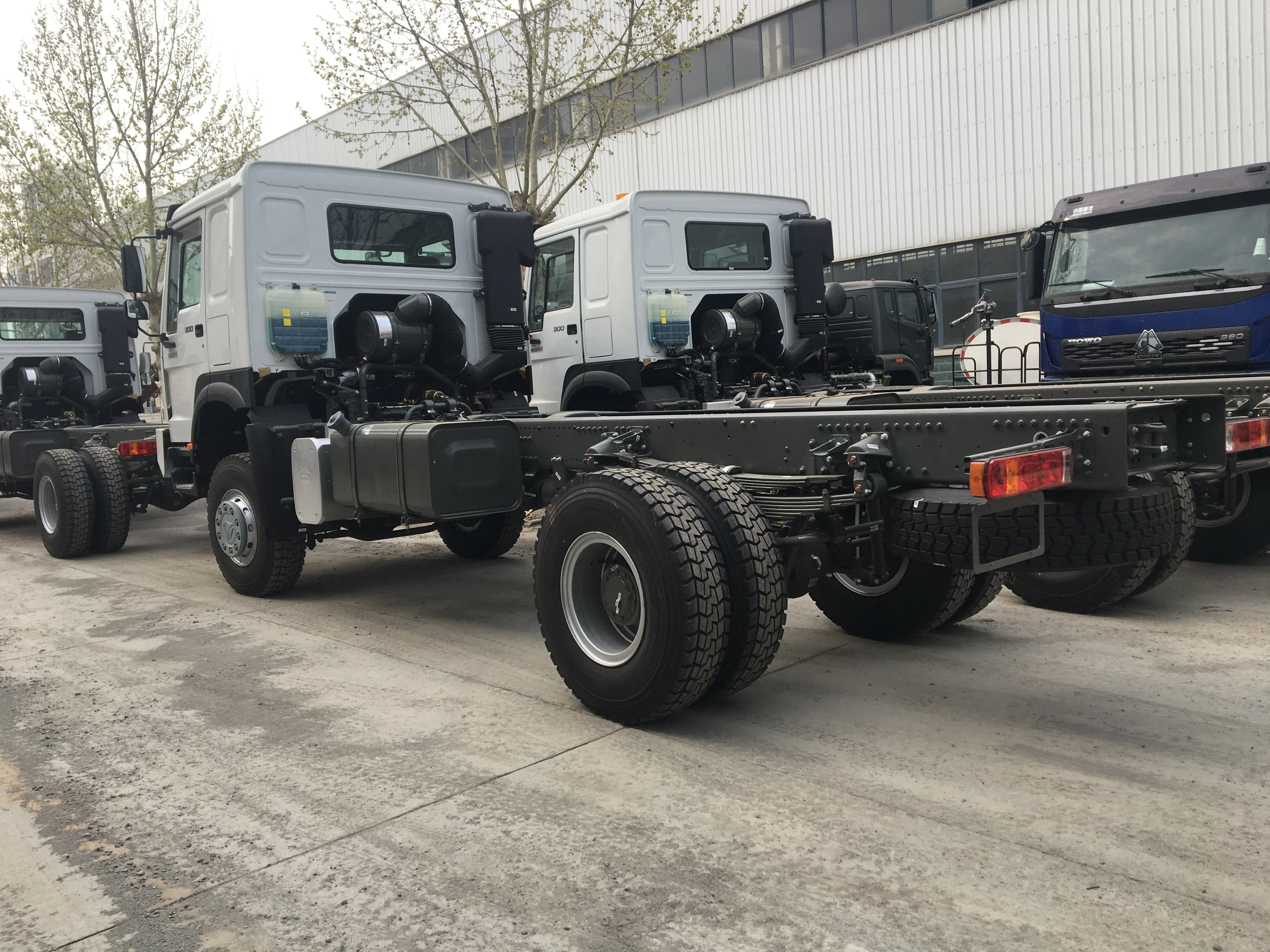

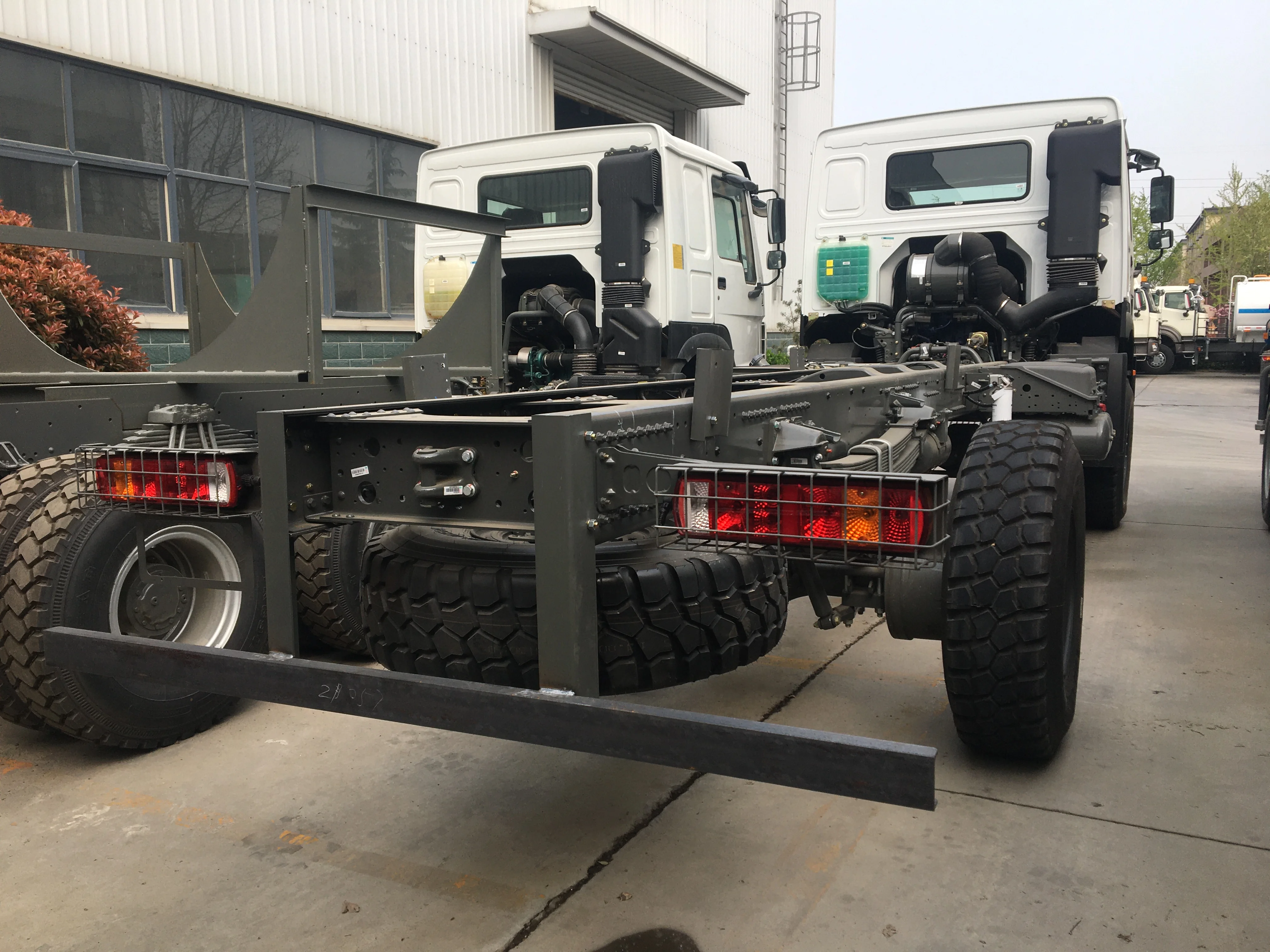

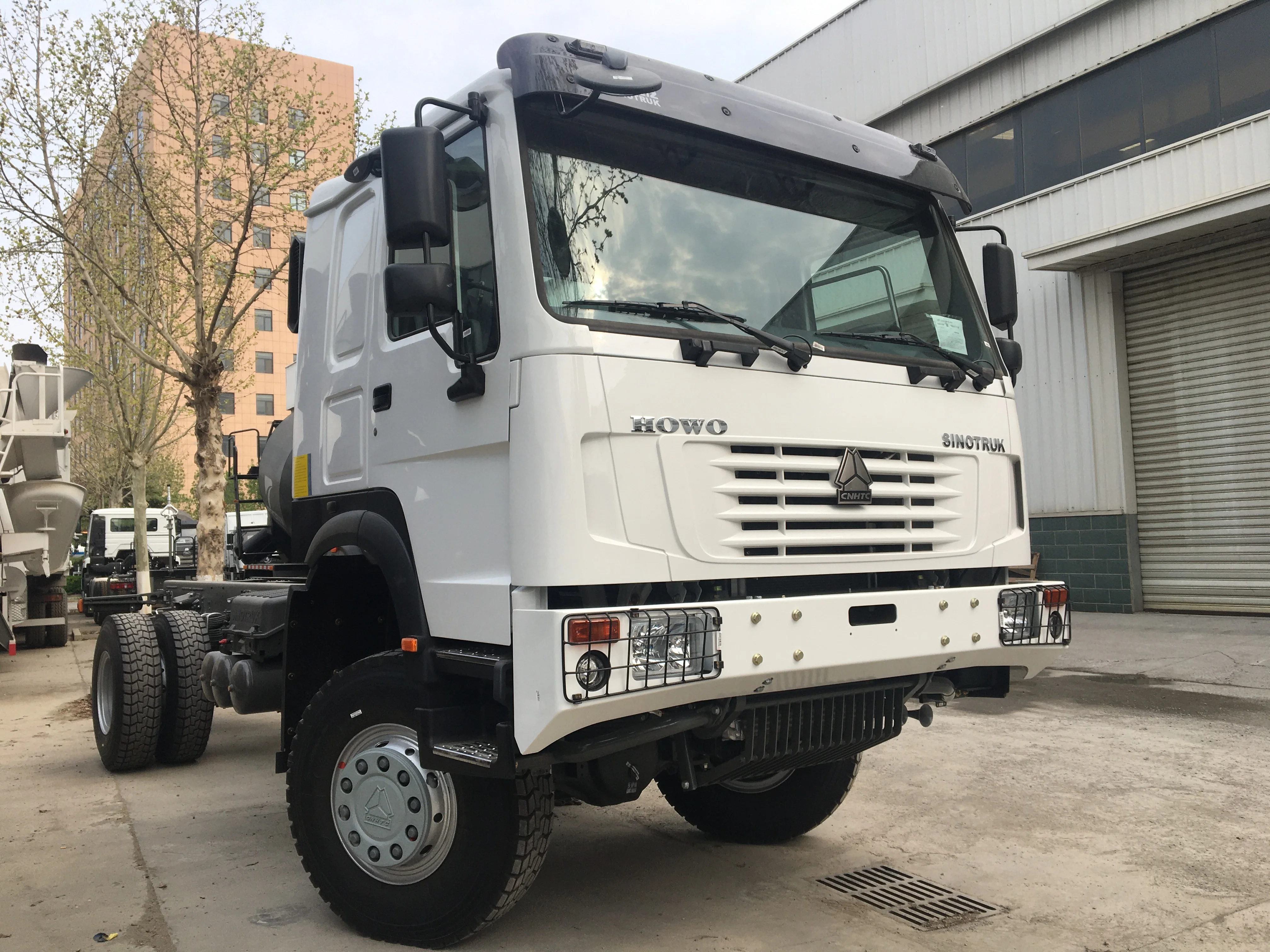

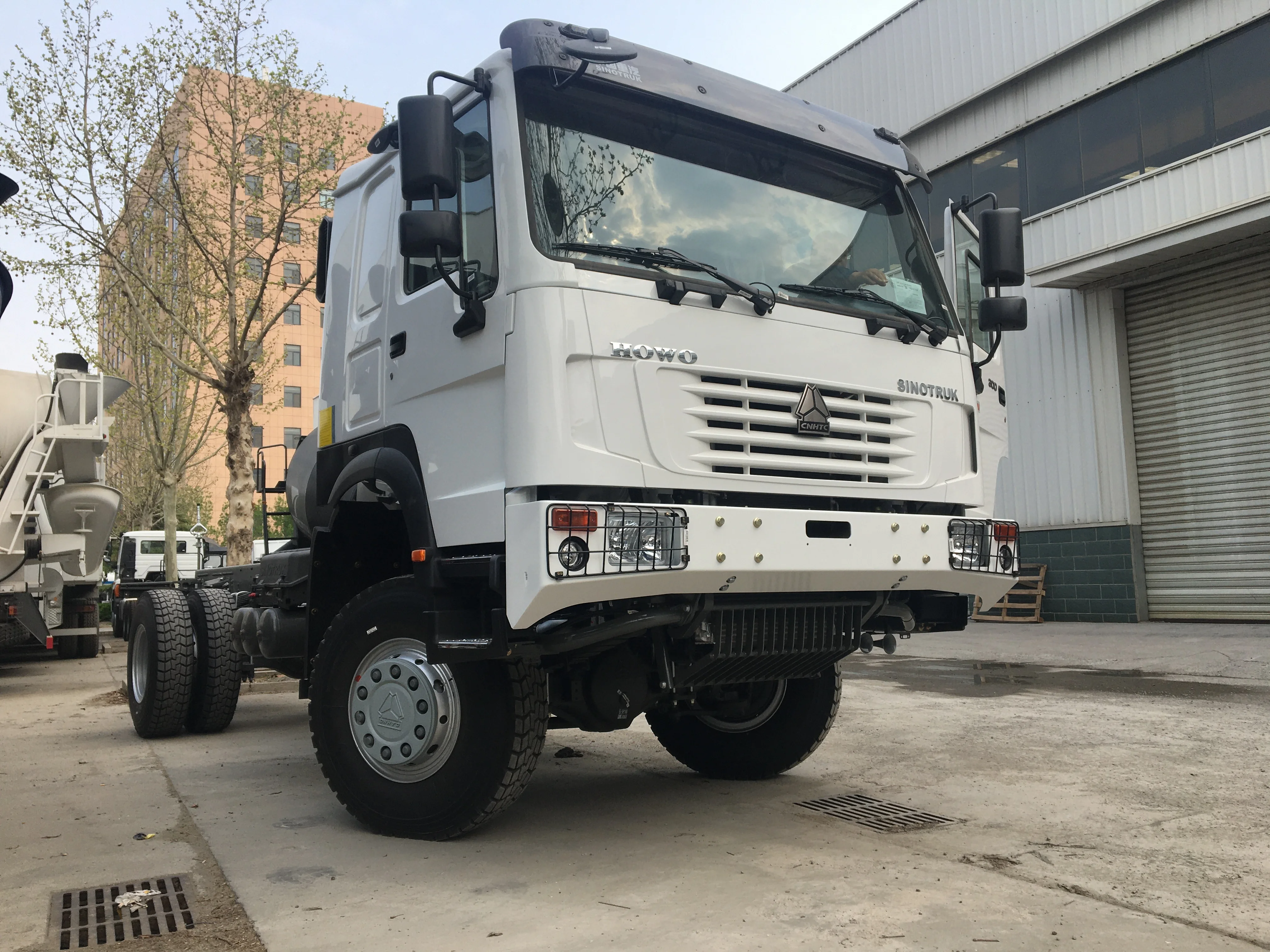

hot sale 300hp 20 ton SINOTRUK HOWO 4x4 all wheel drive howo 4x4 cargo truck

Model

ZZ2167M4627A-290HP

Drive Type

4x4 LHD (RHD is optional)

Cab

Type

HW7D, HOWO CABIN

Equipment

With Air Condition, One sleeper

HOWO TYPE INSTRUMENT DESK

Weight

Kerb mass(kg)

7780

GVW(kg)

7780+16000

Dimensions

Max.Length *Width*Height(mm)

8268×2496×3200

Front/Rear overhang(chassis)

1500/1400

Wheel base(mm)

4600

Track width(mm)

2045/1800

Body size

Length *Width*Height(mm)

5500x2300x600

Thickness of Steel

Floor 3mm, back&side 1.5mm

Performance

Max. speed (km/h)

80±10

Max. gradeability(%)

50

Approach/Departure angel(°)

20/40

Engine

Brand

SINO BRAND

Model

WD615.87

Power (kw/hp)

213kw/290hp

Max torque (N.M)/rpm

1160/1200--1600

Displacement (L)

9.726

Emission Standards

Euro II

Specific fuel consumption

192g/kwh

Transmission

Brand

SINOTR

Model

HW19710

Control type

Manual

Gear Shift

10-forward &2-reverse speeds

Clutch

Type

Single plate,diaphragm spring

Diameter (mm)

Φ430

Action

Hydraulically operating with air assistance

Brakes

Type

Drum

Service Brake

With dual-circuit compressed air brake

Park Brake

Power spring brake acting on rear wheel

Auxiliary Brake

WEVB

Brand

WABCO SYSTERM

Steering

Type

ZF8098(From Germany)

ZF TECHNOLOGY

ZF8098 hydraulic steering with power assistance

Chassis

Type

Ladder structure with parallel straight

Dimensions (mm)

300x80x8

Suspension

Front

Reinforced front vertical semi-ellipse leaf spring,

 drum shock absorber, front stabilizing bar

Rear

Reinforced rear integrated balanced suspension,

single side tilt 4 riding screws, rear stabilizing bar

Axles

Brand

SINOTRUK

Front

HF10 TYPE: 10 ton axle

Rear

AC16 TYPE: 16 ton strengthened axle,

double reduction driving axle with inter-wheel differential and differential lock

Ratio

6.5

Tyre

Type

12.00-20 bias tire

Number

10+1

Fuel tank

Tank capacity(L)

400

Material

Aluminum alloy

Electrics

Type

24V

Starter

7.5kw(24V)

Generator

2.0kw(28V 70A)

Battery

2x180Ah
