Product Overview
Description
Product Description
SP2121 High quality C6251 C6256 X1500 2000 3000mm horizontal manual metal lathe machine /torno mecanico
Quick Detail:
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000/3000mm
Swing over bed: 510/560mm
Swing over gap: 735/785mm
Spindle bore: 80/105mm
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000/3000mm
Swing over bed: 510/560mm
Swing over gap: 735/785mm
Spindle bore: 80/105mm

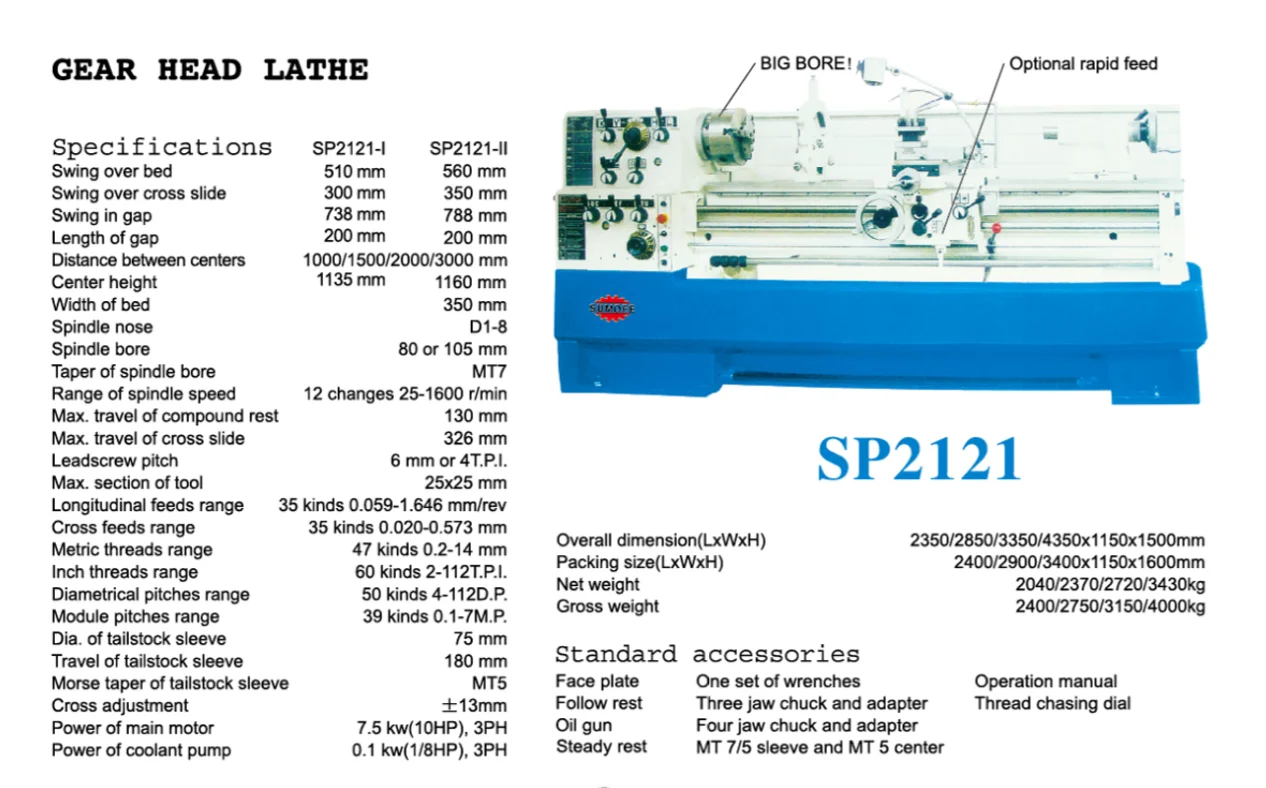

Specification
Model | SP2121-I | SP2121-II | |
Swing over bed | 510 | 560mm | |
Swing over cross slide | 305 mm | 355 mm | |
Swing in gap | 735 | 785mm | |
Length of gap | 200mm | ||
Distance between center | 1000/1500/2000/3000mm | ||
Width of bed | 350mm | ||
Spindle nose | D1-8 | ||
Spindle bore | 80/105mm | ||
Taper of spindle bore | No.7 Morse | ||
Range of spindle speed | 12 changes 25-1000rpm | ||
Max. travel of compund rest | 130mm | ||
Max travel of cross slide | 316mm | ||
Leadscrew pitch | 6mm or 4 TPI | ||
Max. section of tool | 25x25mm | ||
Longitudinal feeds range | 32kinds 0.059-1.646mm/rev | ||
Cross feeds range | 42kinds 0.020-0.573mm | ||
Metric threads range | 47 kinds 0.2-14mm | ||
Inch threads range | 60kinds 2-112TPI | ||
Diametrical pitches range | 50 kinds 4-112DP | ||
Module pitches range | 34kinds 0.1-7MP | ||
Cross adjustment | ± 13mm | ||
Quill diameter | 75mm | ||
Quill travel | 180mm | ||
Quill taper | MT5 | ||
Power of coolant pump | 0.1kw (1/8HP), 3PH | ||
Power of main motor: | 7.5KW (10HP), 3PH | ||
Overall dimension | 2350/2850/3350/4350x1150x1500mm | ||
Packing size | 2400/2900/3400/4425x1150x1600mm | ||
Net weight | 2040/2370/2720/3430kgs | ||
Gross weight | 2400/2750/3150/4000kgs | ||

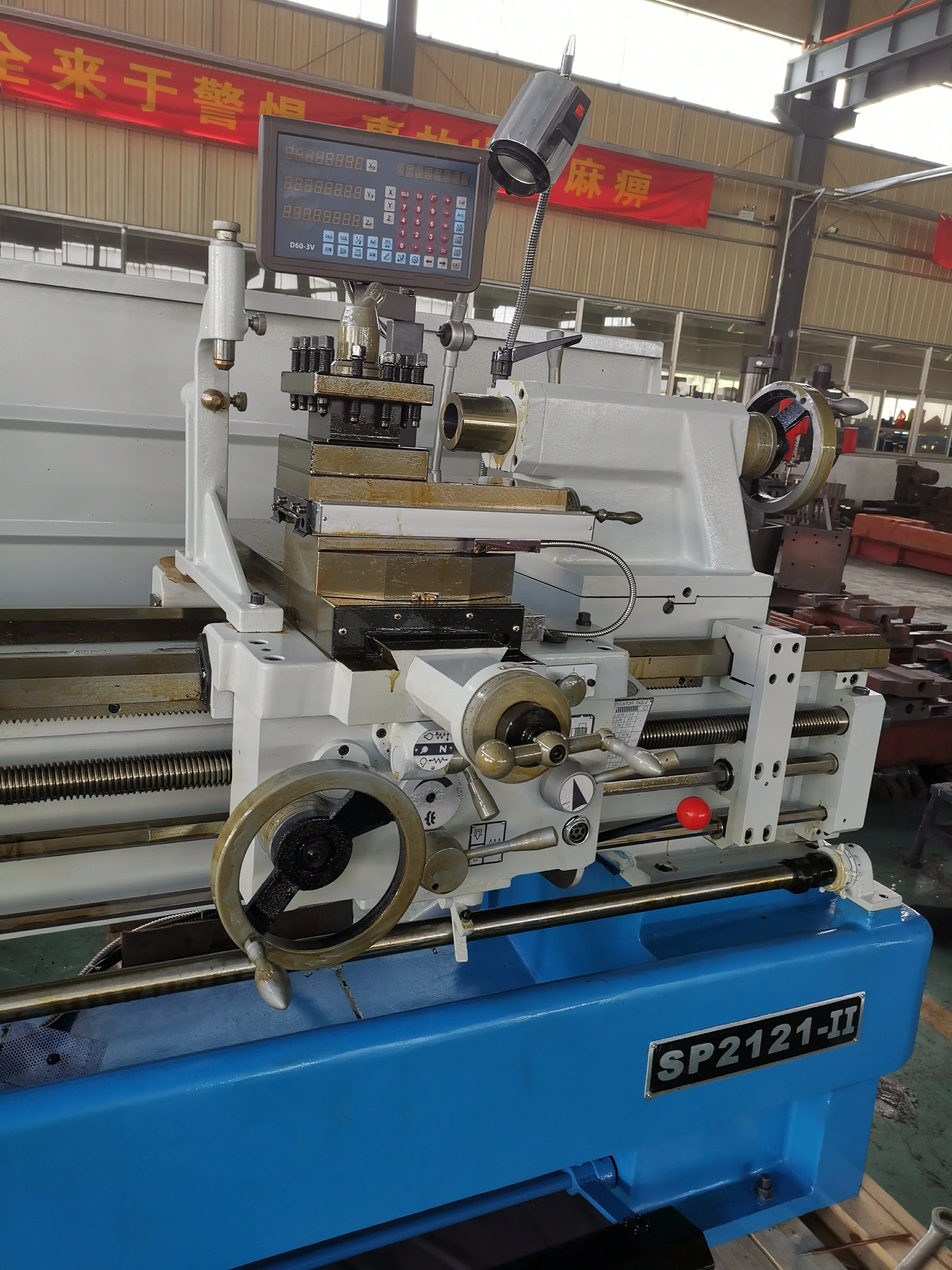

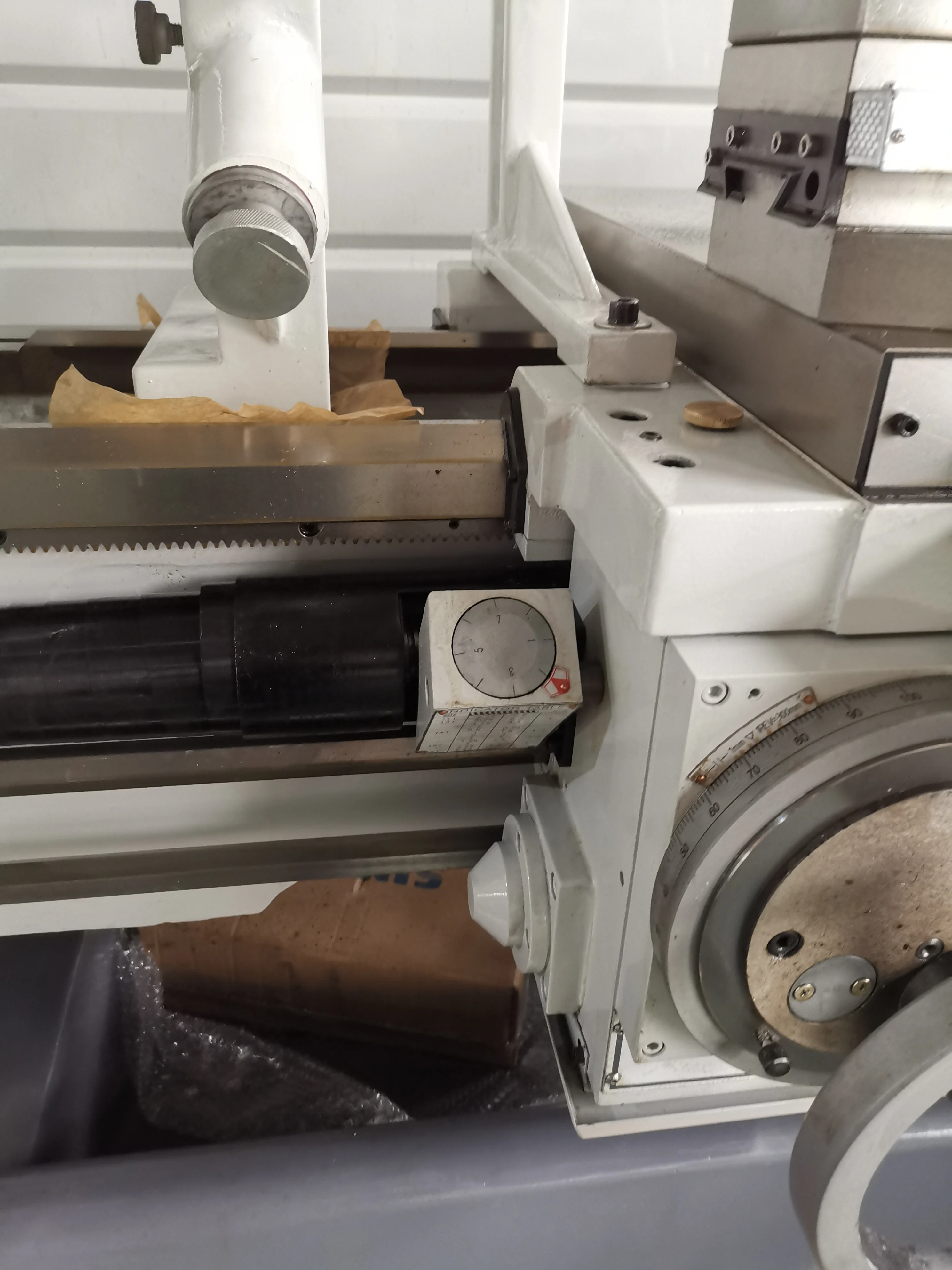

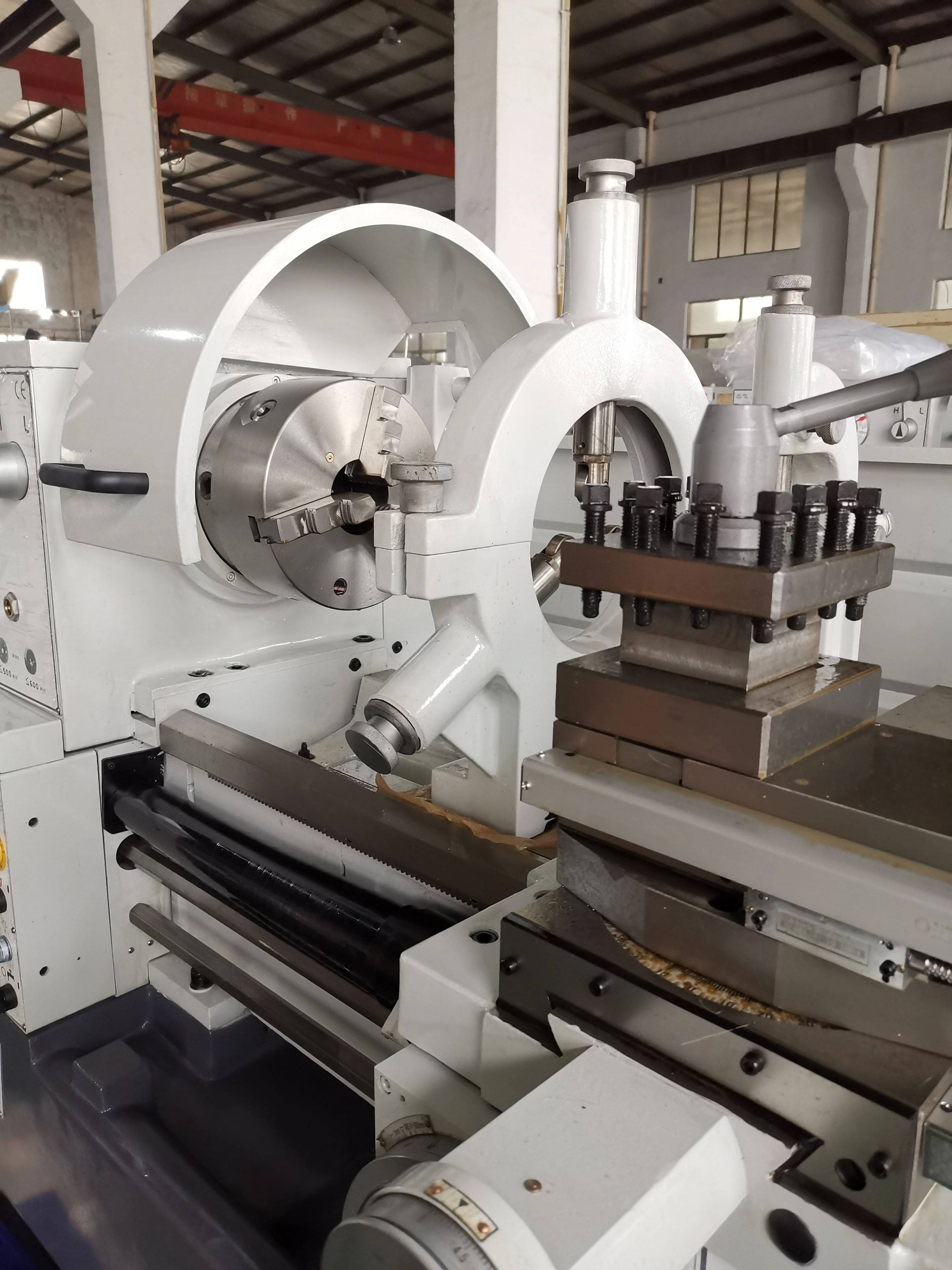

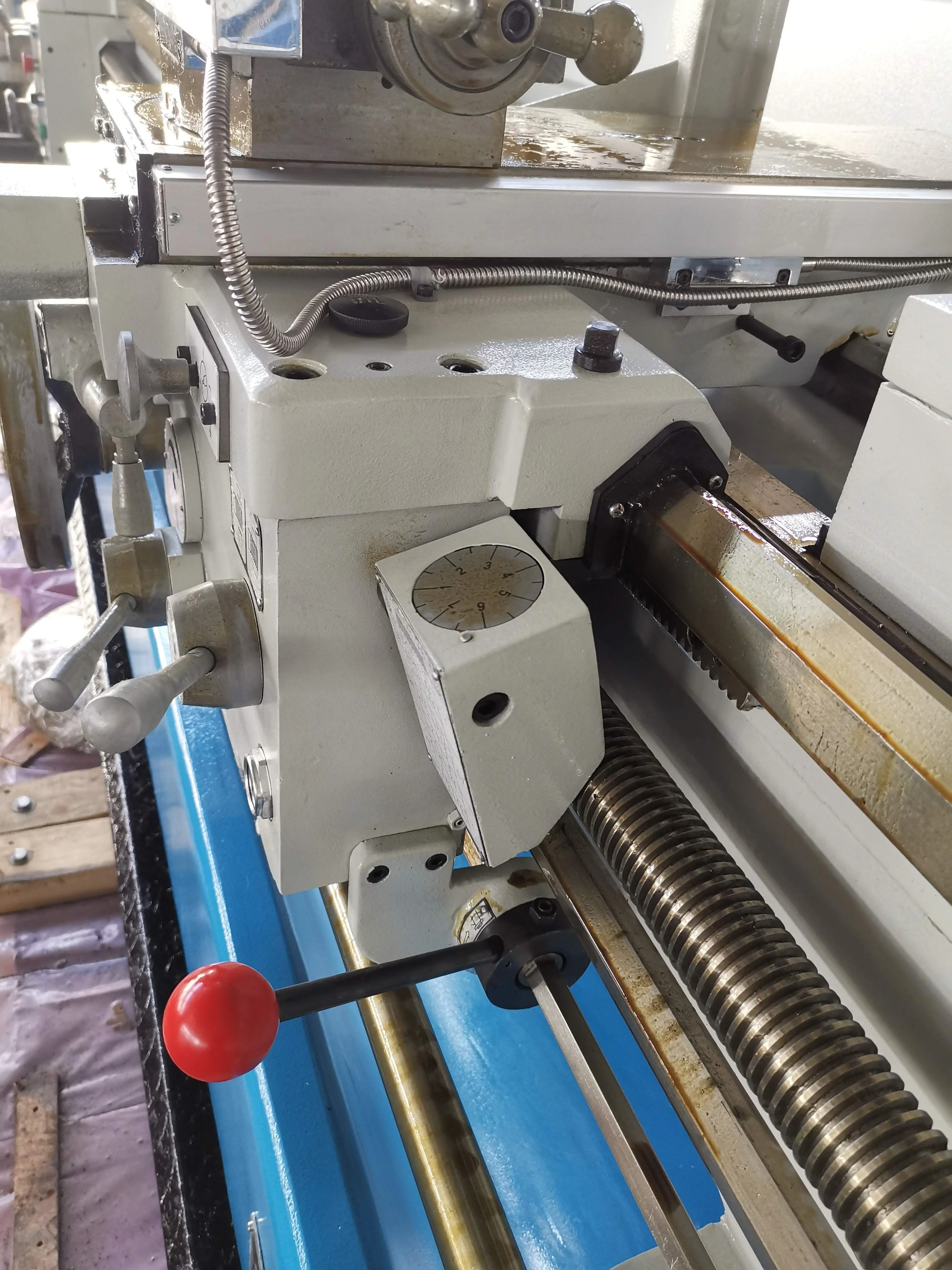

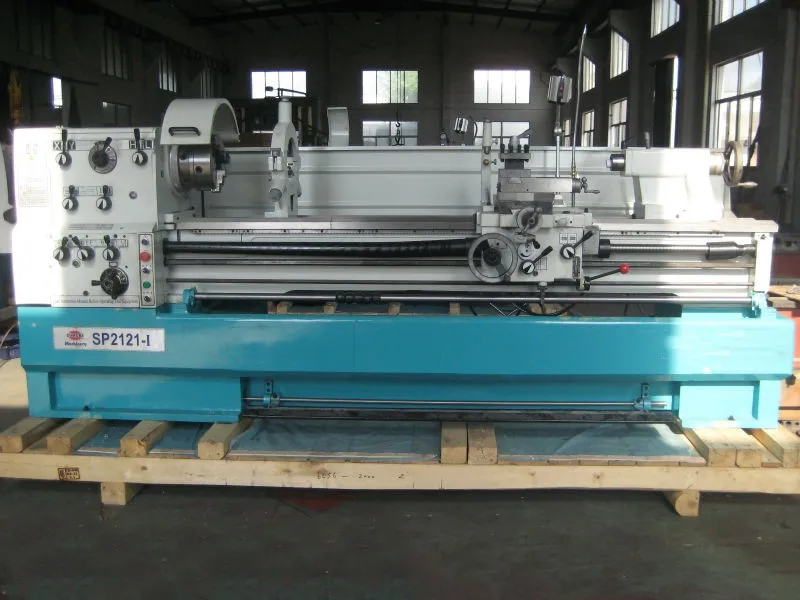

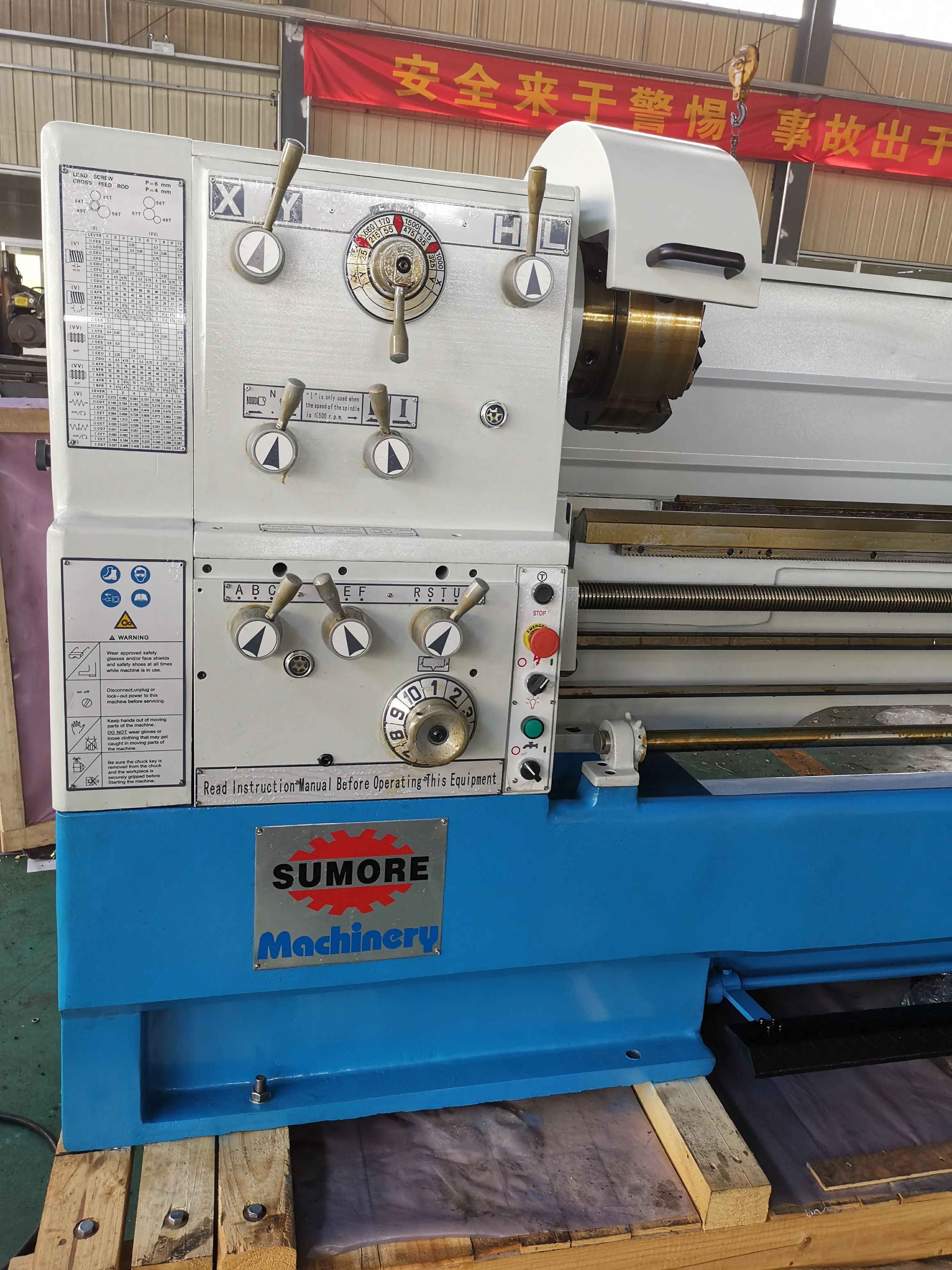

Product detail pictues

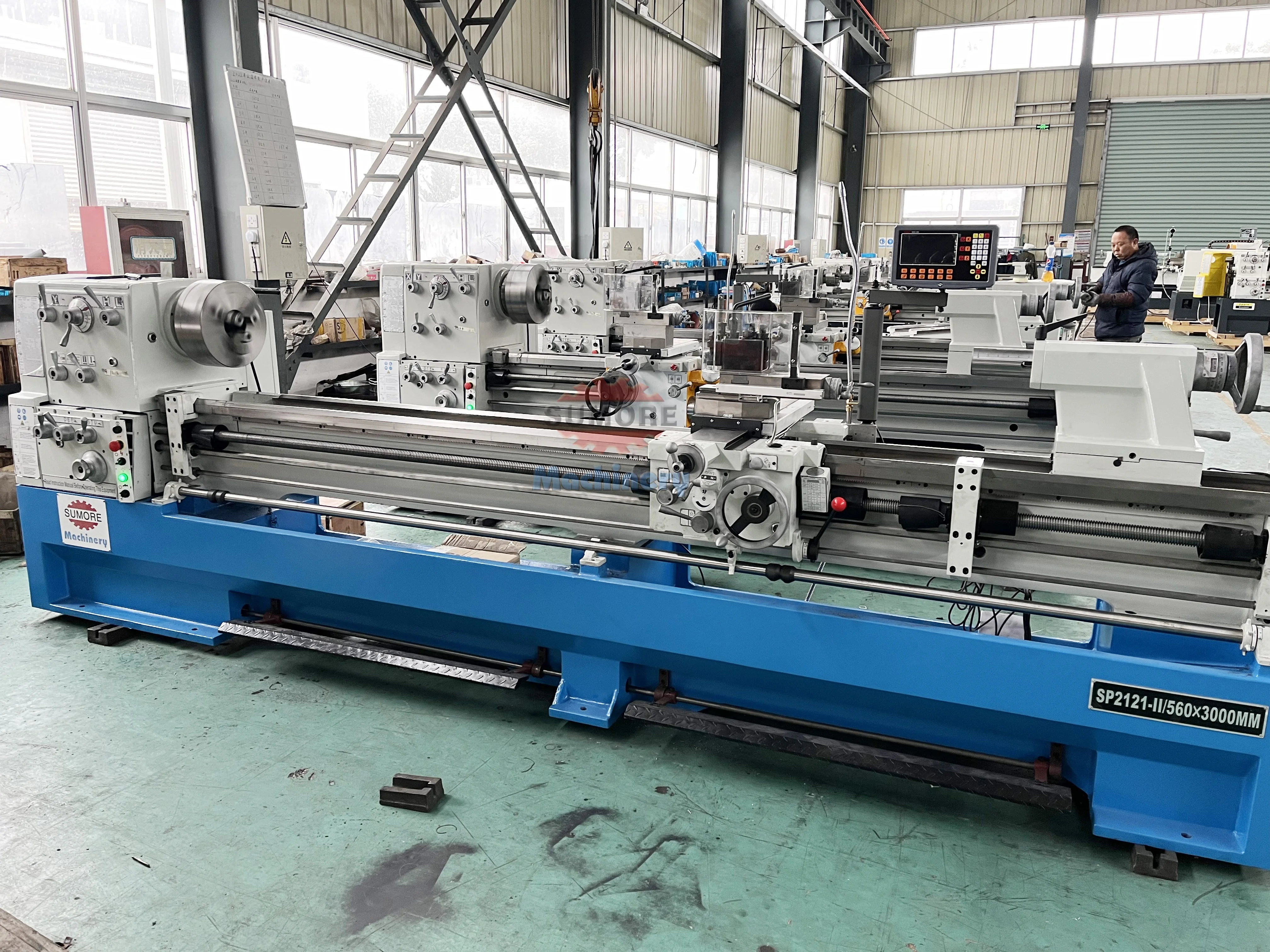

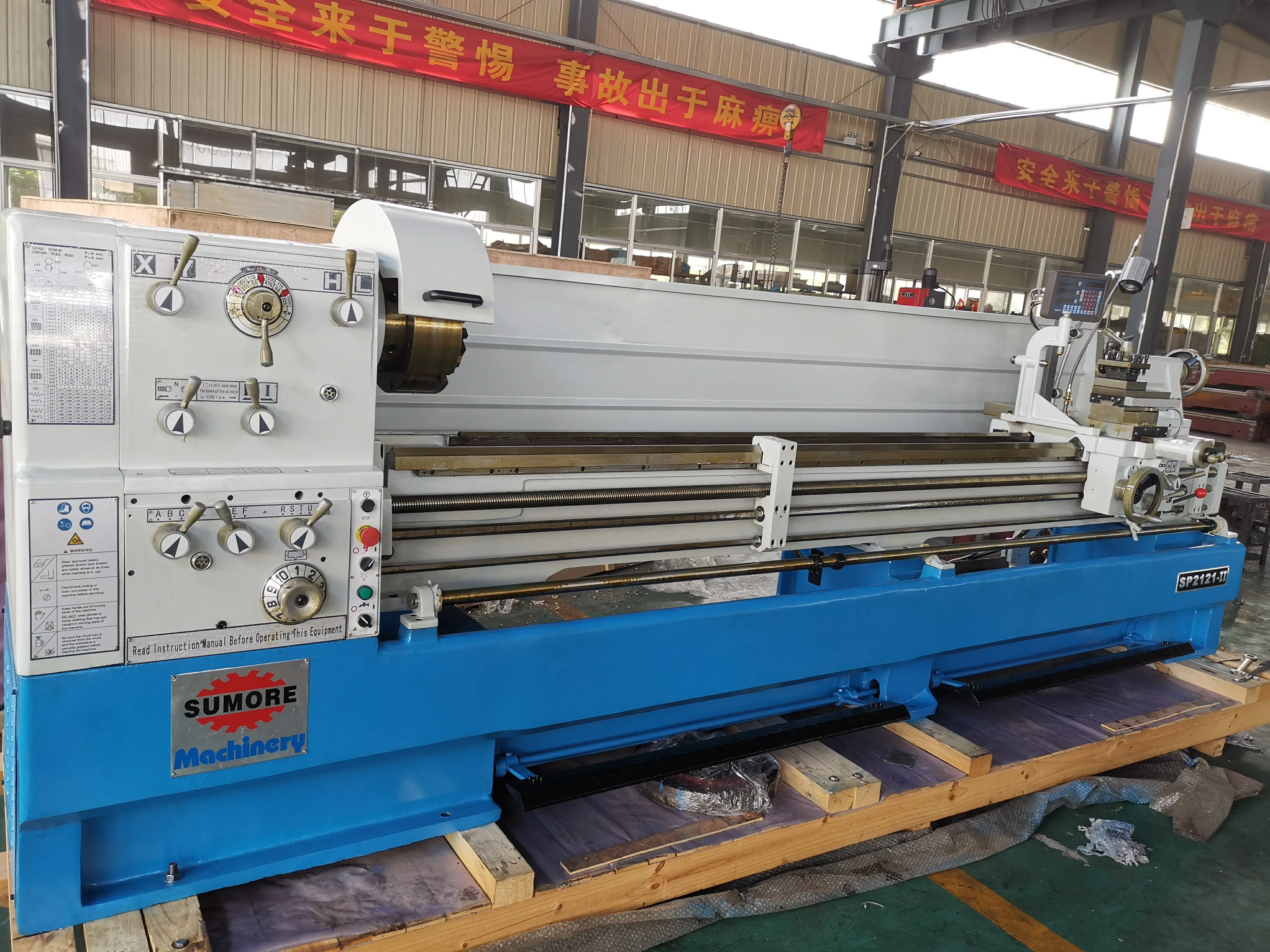

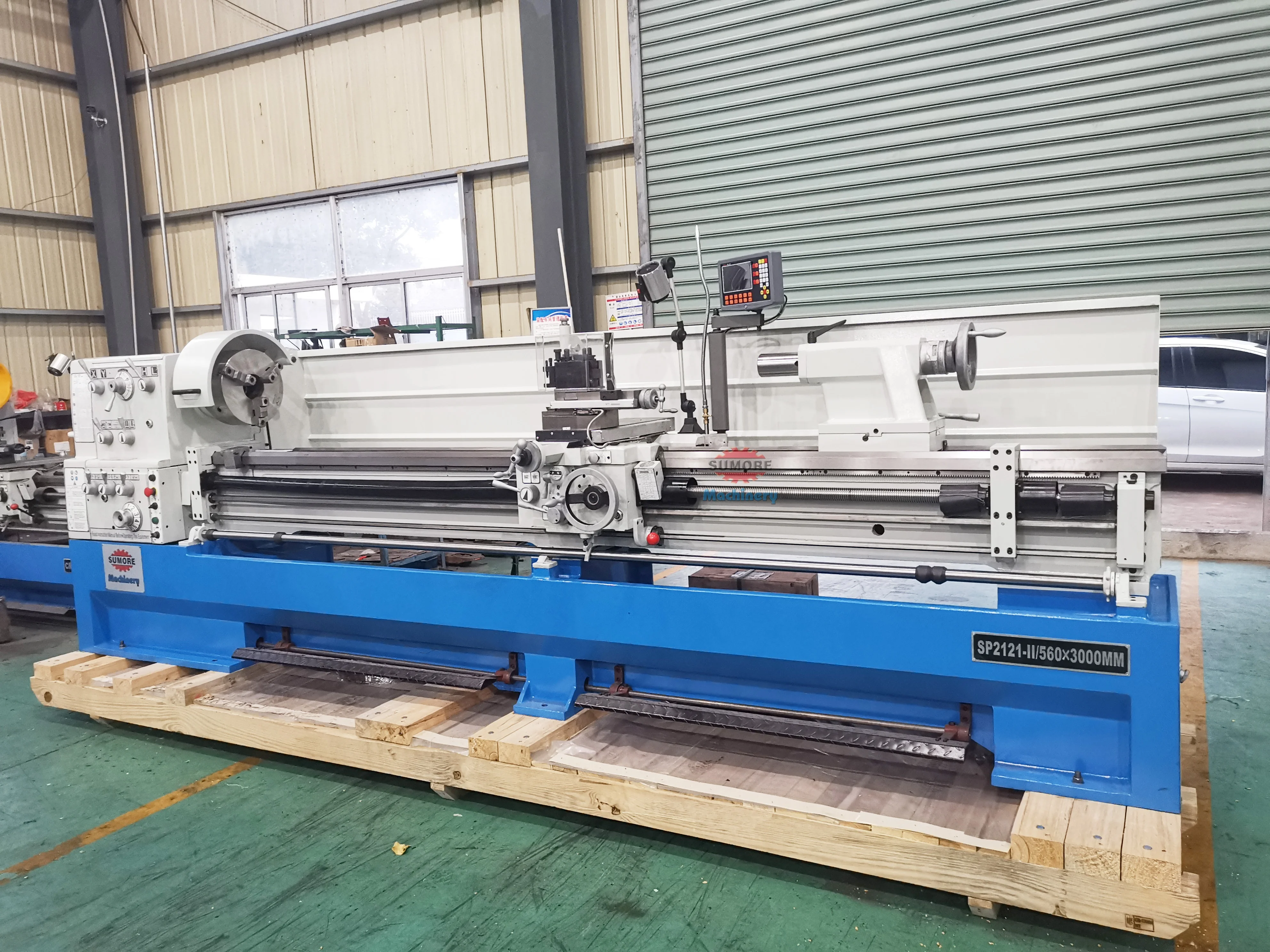

560X3000MM:

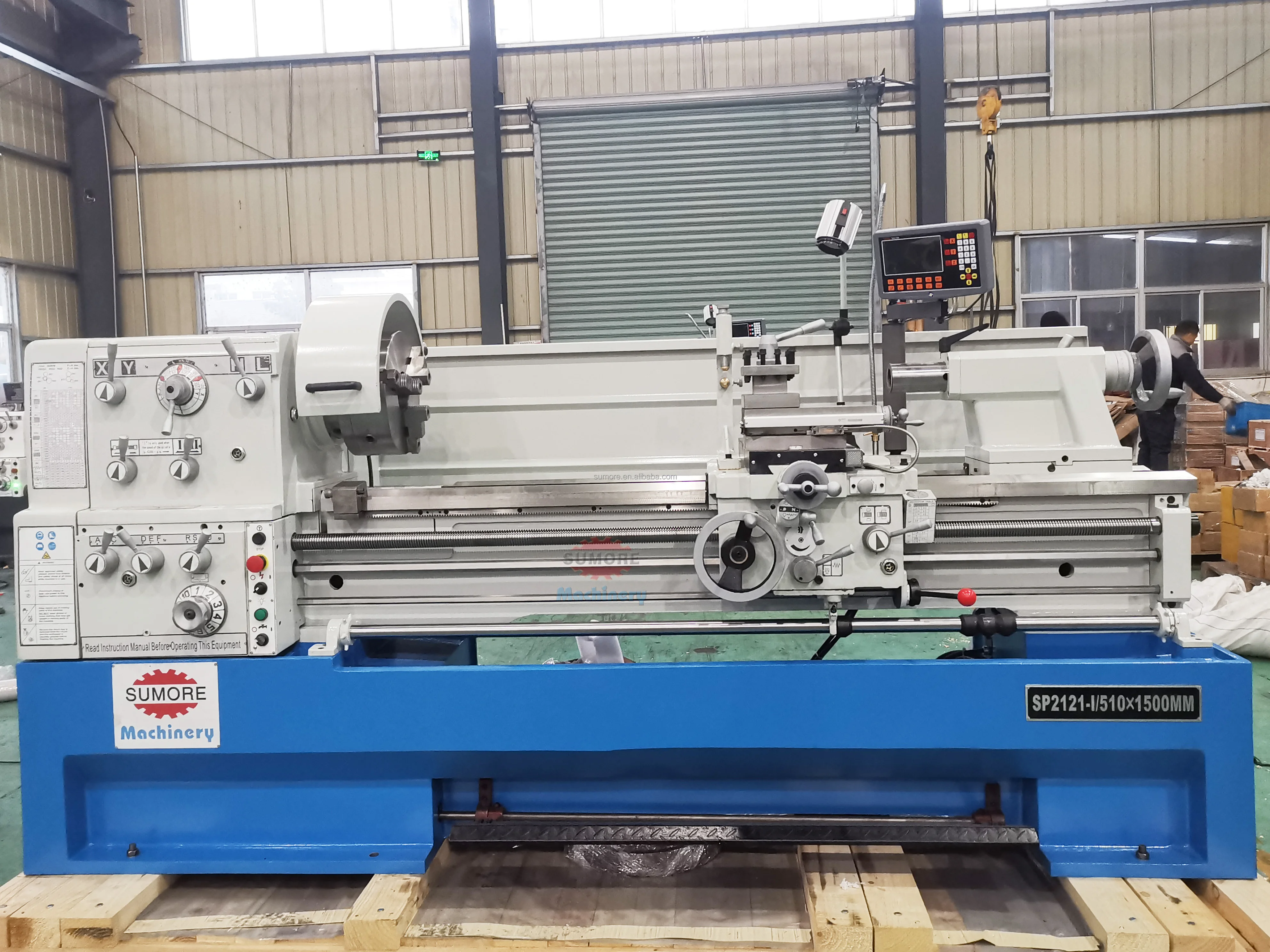

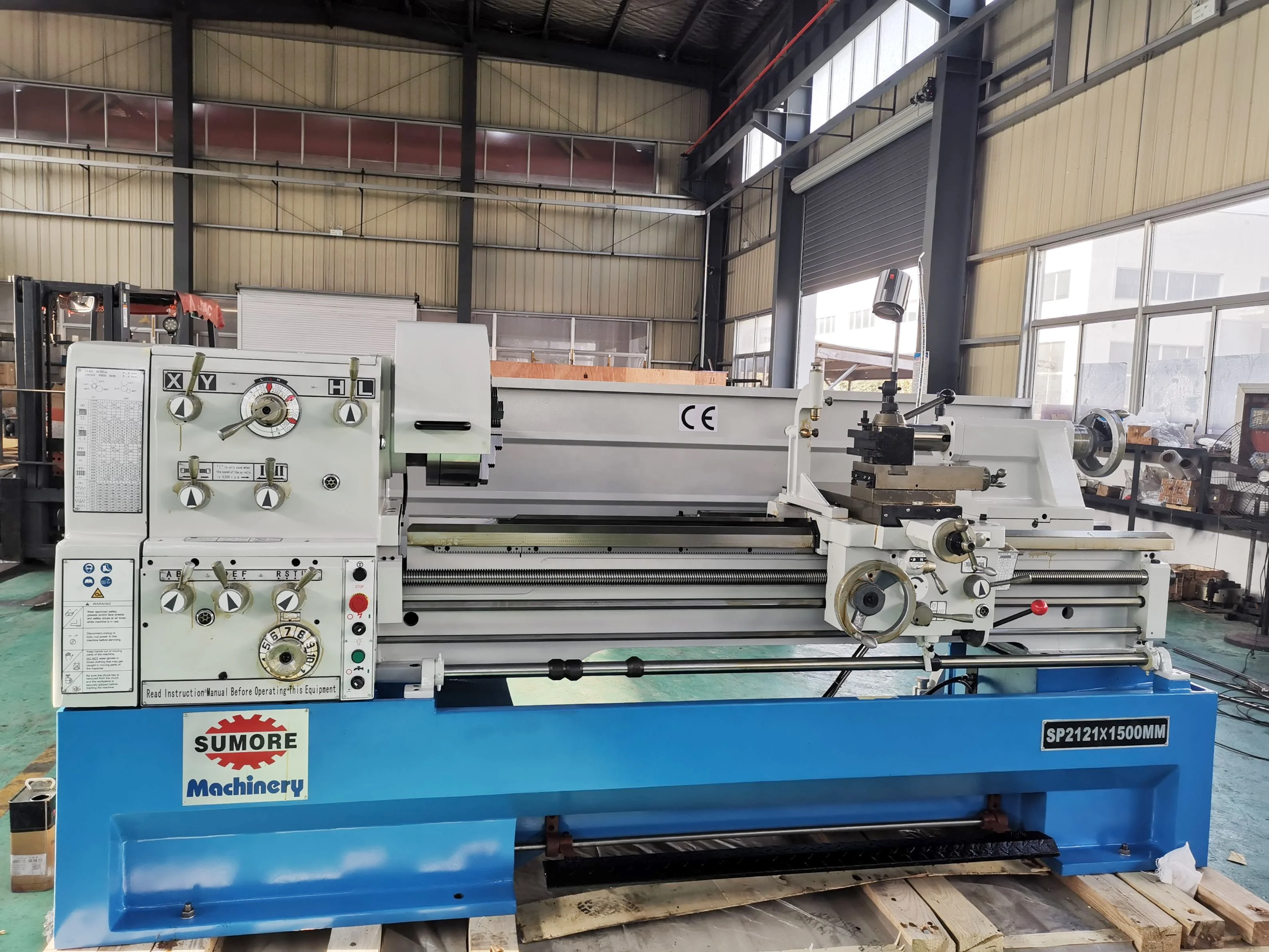

510X1500MM:

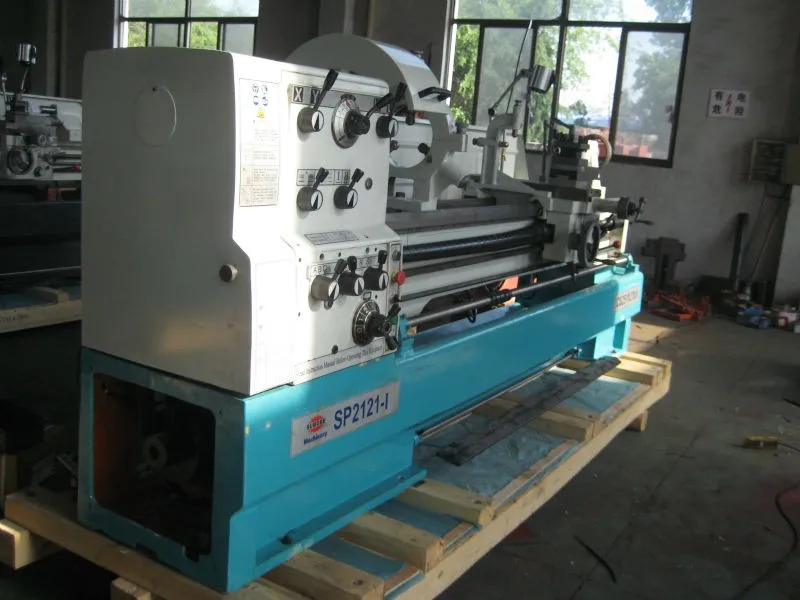

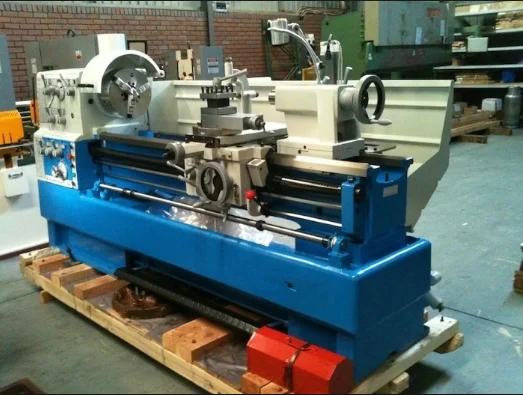

SP2121 engine lathe machine can be with spindle speed 12 steps or variable speed. It is an affordable universal lathe machine.This manual lathe machine could be 80mm or 105mm spindle bore. Now we have developed new specification of lathe machine with automatic lubrication system. The main features/Advantage is as below:
1. The spinlde bore is supported with precision roller bearings
2.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.

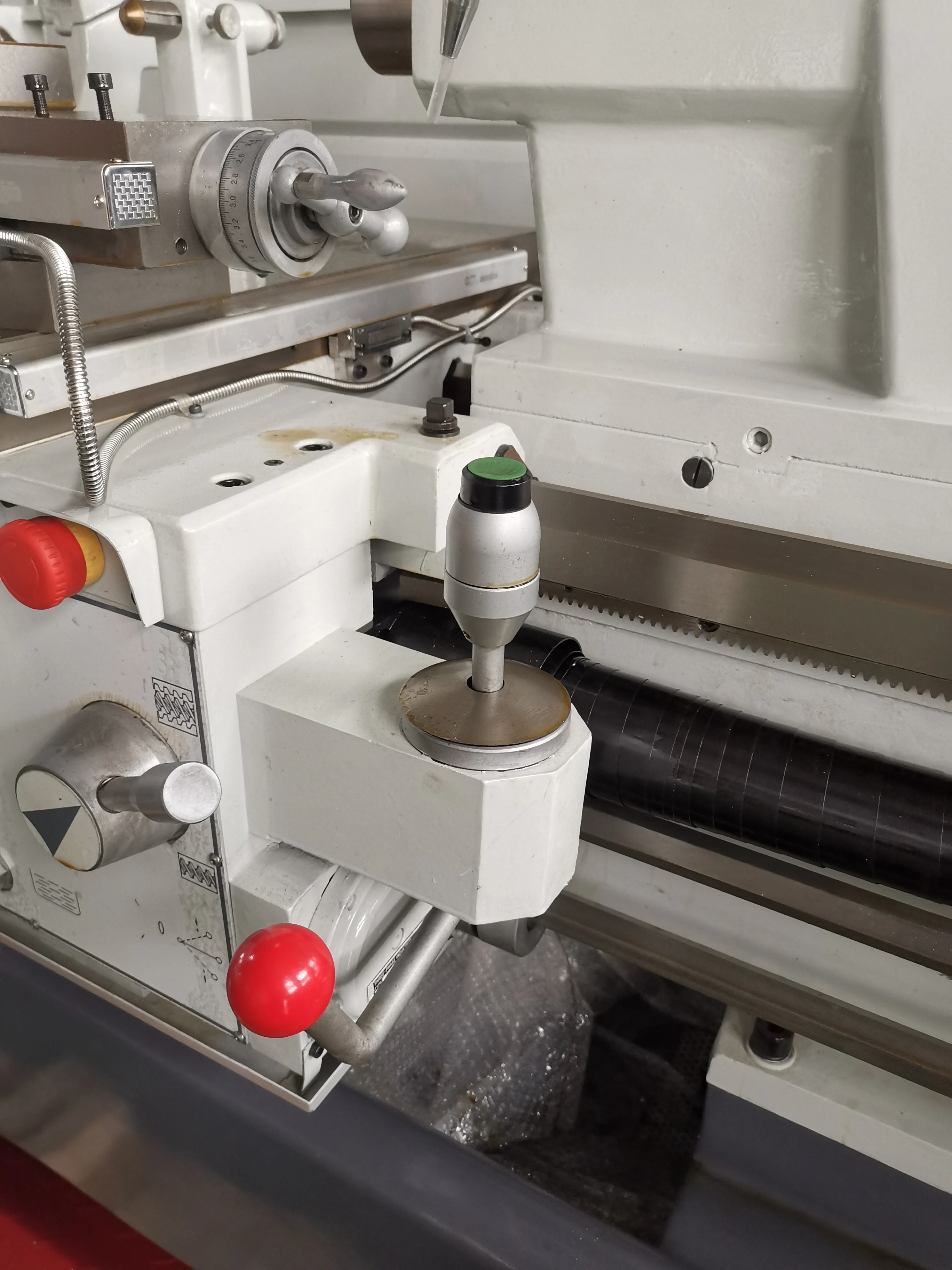

3.An overload safety device is designed on the apron.
4.Carriage rapid feed with clutch is available.
5.Easy operating speed change levers
1. The spinlde bore is supported with precision roller bearings
2.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
3.An overload safety device is designed on the apron.
4.Carriage rapid feed with clutch is available.
5.Easy operating speed change levers

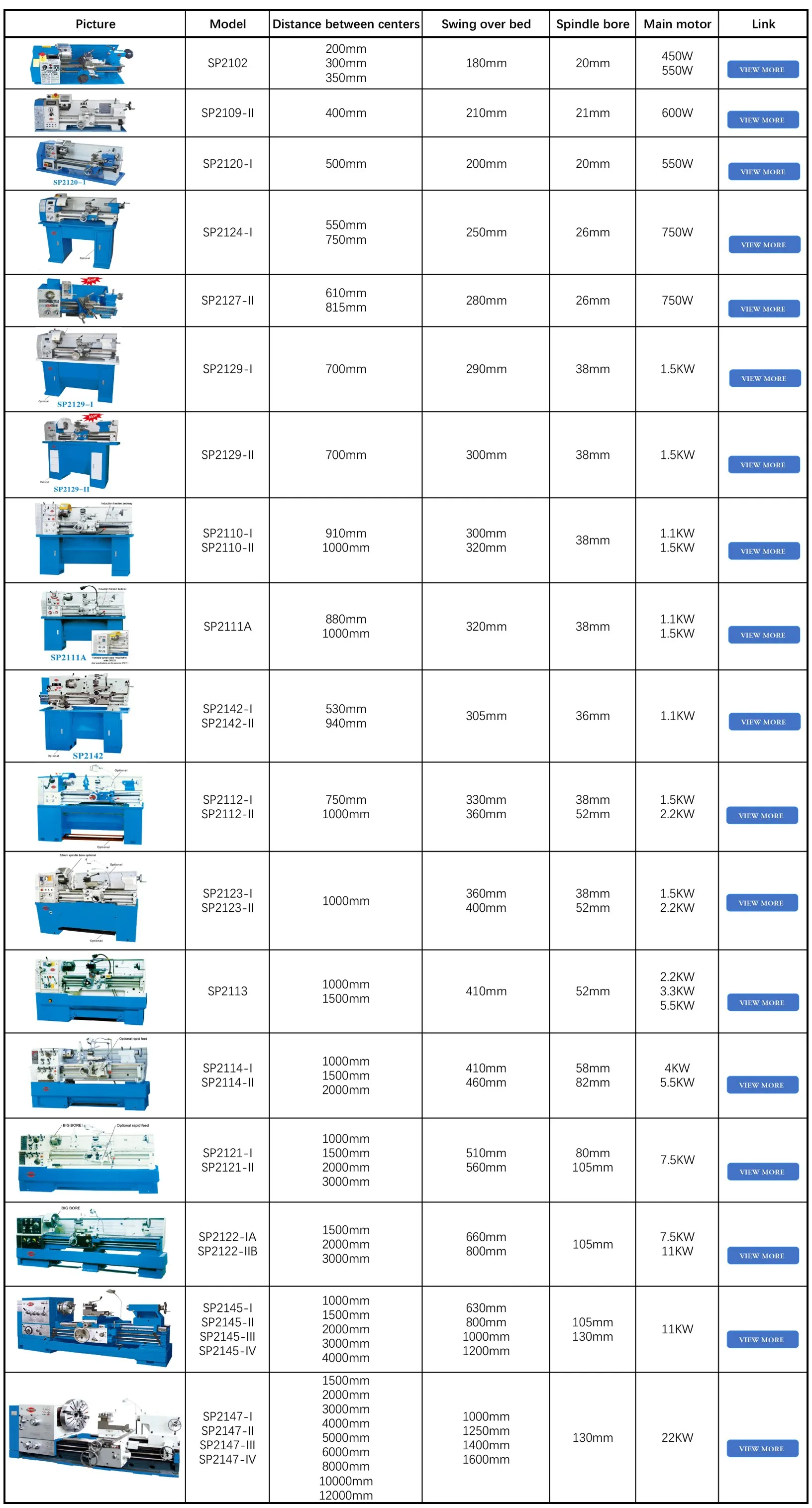

More Manual Lathe Machine, You Can Click To View It：
