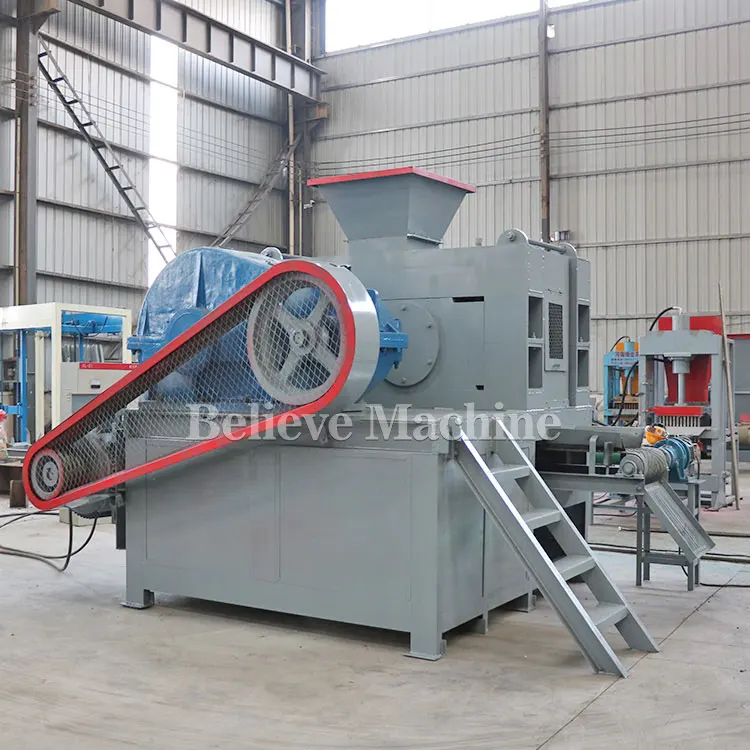

Mould Of Charcoal Briquette Charcoal Oval Shape Briquette Making Machine Press Factory Price
- Category: >>>
- Supplier: Henan Believe Machinery Manufacturing Co. Ltd.
Share on (1601095360442):
Product Overview
Description
Product description
The ball press is mainly used to press difficult to form powder materials, such as pulverized coal, iron powder and tailings, into balls. This kind of equipment is characterized by high forming pressure, adjustable host revolution, and equipped with screw feeding device.

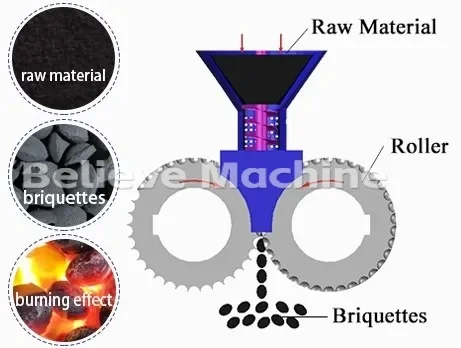

Working principle
The ball press is mainly based on the constant moment characteristics of the electromagnetic speed regulating motor. First, thepowder material to be pressed is placed in the upper hopper of the ball press. With the rotation of the screw feeding device,these materials will be gradually fed into the lower roller between. When the material passes through the counterroll, it will besubjected to a strong pressure action, which will be pressed into a ball. In this process, the number of revolutions of the host can be adjusted according to actual needs to control the size and shape of the ball.
Operation Process
1. Raw material preparation
The working principle of the high pressure ball press first needs to prepare suitable raw materials. Commonly used raw materials include powdery materials, such as coal powder, coke powder, iron powder, etc. These raw materials need to go through a pre-treatment process such as crushing and screening to ensure that the particle size and humidity meet the requirements of the ball press to ensure the molding effect and product quality.
2. Pressure transfer
In a high pressure ball press, high pressure is applied to the raw material through a series of mechanical devices and hydraulic systems. First, the raw material is fed into the hopper and then continuously between the rolls of the ball press through the feeding system. Under the action of the roller, the raw material is gradually squeezed and heated to form a certain plasticity, which lays the foundation for subsequent molding.
3. Molding process
Between the rollers of the high pressure ball press, the raw materials are squeezed and shear, and gradually form blocky materials of a certain thickness and shape. At the same time, through the design and adjustment of the mechanical structure, parameters such as pressure, temperature and speed can be controlled to ensure the stability and controllability of the molding process. During the molding process, deformation and bonding occur between the particles of the raw material to form a forming block.
The working principle of the high pressure ball press first needs to prepare suitable raw materials. Commonly used raw materials include powdery materials, such as coal powder, coke powder, iron powder, etc. These raw materials need to go through a pre-treatment process such as crushing and screening to ensure that the particle size and humidity meet the requirements of the ball press to ensure the molding effect and product quality.
2. Pressure transfer
In a high pressure ball press, high pressure is applied to the raw material through a series of mechanical devices and hydraulic systems. First, the raw material is fed into the hopper and then continuously between the rolls of the ball press through the feeding system. Under the action of the roller, the raw material is gradually squeezed and heated to form a certain plasticity, which lays the foundation for subsequent molding.
3. Molding process
Between the rollers of the high pressure ball press, the raw materials are squeezed and shear, and gradually form blocky materials of a certain thickness and shape. At the same time, through the design and adjustment of the mechanical structure, parameters such as pressure, temperature and speed can be controlled to ensure the stability and controllability of the molding process. During the molding process, deformation and bonding occur between the particles of the raw material to form a forming block.
4. Finished product formation
Through the role of the forming roller, the raw material is gradually formed and sent to the machine through the conveyor belt or other devices. The blocks are cooled and cured to form a finished product that can be used for fuel supply, smelting raw materials or other industrial purposes. The shape, density and strength of the finished product depend on the nature of the raw material and the parameter Settings of the molding process.
Through the role of the forming roller, the raw material is gradually formed and sent to the machine through the conveyor belt or other devices. The blocks are cooled and cured to form a finished product that can be used for fuel supply, smelting raw materials or other industrial purposes. The shape, density and strength of the finished product depend on the nature of the raw material and the parameter Settings of the molding process.
Technical Parameters
Here are some product parameters of our products,
if you don't know how to choose the model,you can contact us,we will give the best choice for you.
if you don't know how to choose the model,you can contact us,we will give the best choice for you.
Model | Gear reducer | Roll size(mm) | Motor(kw) | Capacity(t/h) | Dimension(m） | Machine weight |
290 | ZQ350 | φ290*200 | 5.5 | 1-2 | 1.5*1.2*1.6 | 600 |
360 | ZQ350 | φ360*240 | 7.5 | 2-3 | 1.7*1.2*1.6 | 900 |
450 | ZQ500 | φ450*280 | 22 | 4-5 | 1.8*1.9*2.2 | 3800 |
650 | ZQ750 | φ650*388 | 45 | 8-10 | 2.6*2.2*2.7 | 6000 |

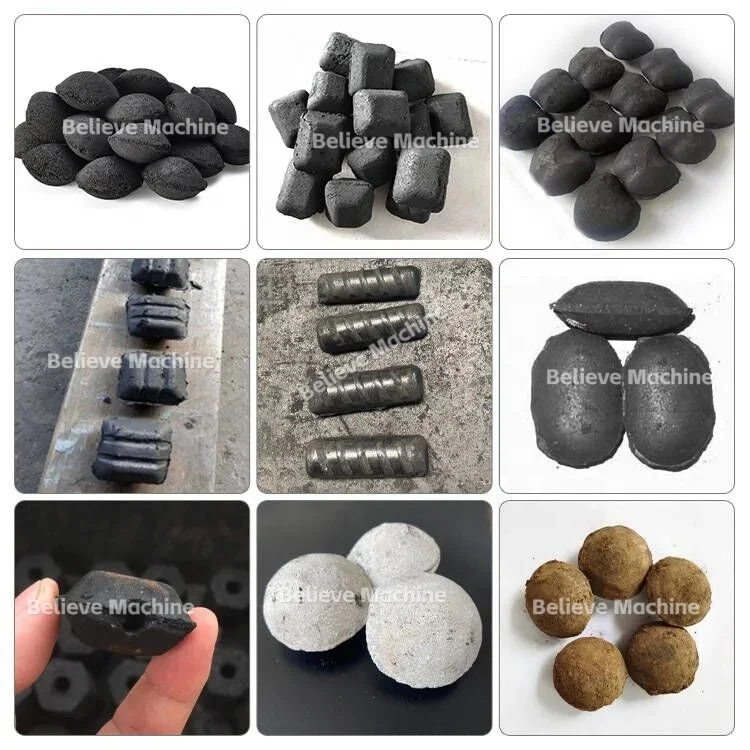

Raw Materials & Final Products
Materials
Briquette ball pressing machine can be used to press pulverized coal, iron powder, coking coal, aluminum powder, iron filings, iron oxide, carbon powder, carbon powder,slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder and other powder, powder, waste, waste slag, widely used in resistant materials, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries. After the pressure ball mechanism for forming materials, energy saving and environmental protection.It is easy to transport, improves the utilization rate of waste, and has good economic and social benefits.

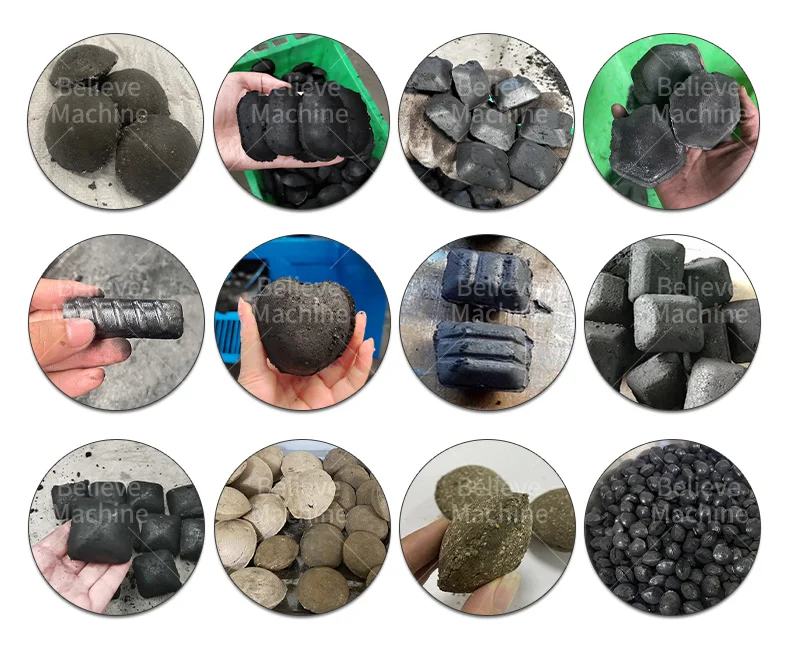

Different shapes can be made according to customer requirements.
Main Features
1. High stability, low failure rate, the finished coal briquettes are of uniform size.
2. Its pressure is higher than that of the old-version coal briquette machines.
and its pressure is adjustable. With this function, the machine can make high-quality coal briquettes.
3. The rollers of the coal briquettes are durable, and it is easy to maintain the equipment.
4. Low-noise machine, and it is high-efficient and professional briquetting machine.
2. Its pressure is higher than that of the old-version coal briquette machines.
and its pressure is adjustable. With this function, the machine can make high-quality coal briquettes.
3. The rollers of the coal briquettes are durable, and it is easy to maintain the equipment.
4. Low-noise machine, and it is high-efficient and professional briquetting machine.
Company Profile
Henan Believe Machinery Manufacturing Co., LTD., located in Gongyi City, Henan Province, Da Huang Ye Industrial Park, has built more than 10,000 square meters of plants, is a focus on R & D, production and sales of machinery and equipment manufacturers. The main production of ball press machine, charcoal machine, carbonization furnace and other mechanical equipment. So far, the company's products have passed more than 20 national patents, but also through the ISO, TUV, CE and other quality system certification. You will not be disappointed if you choose us.
Why choose us
Quality assurance
We have always focused on research and development because they are the key to our corporate innovation.
They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
Test
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest assured.Let customers satisfaction is our purpose.

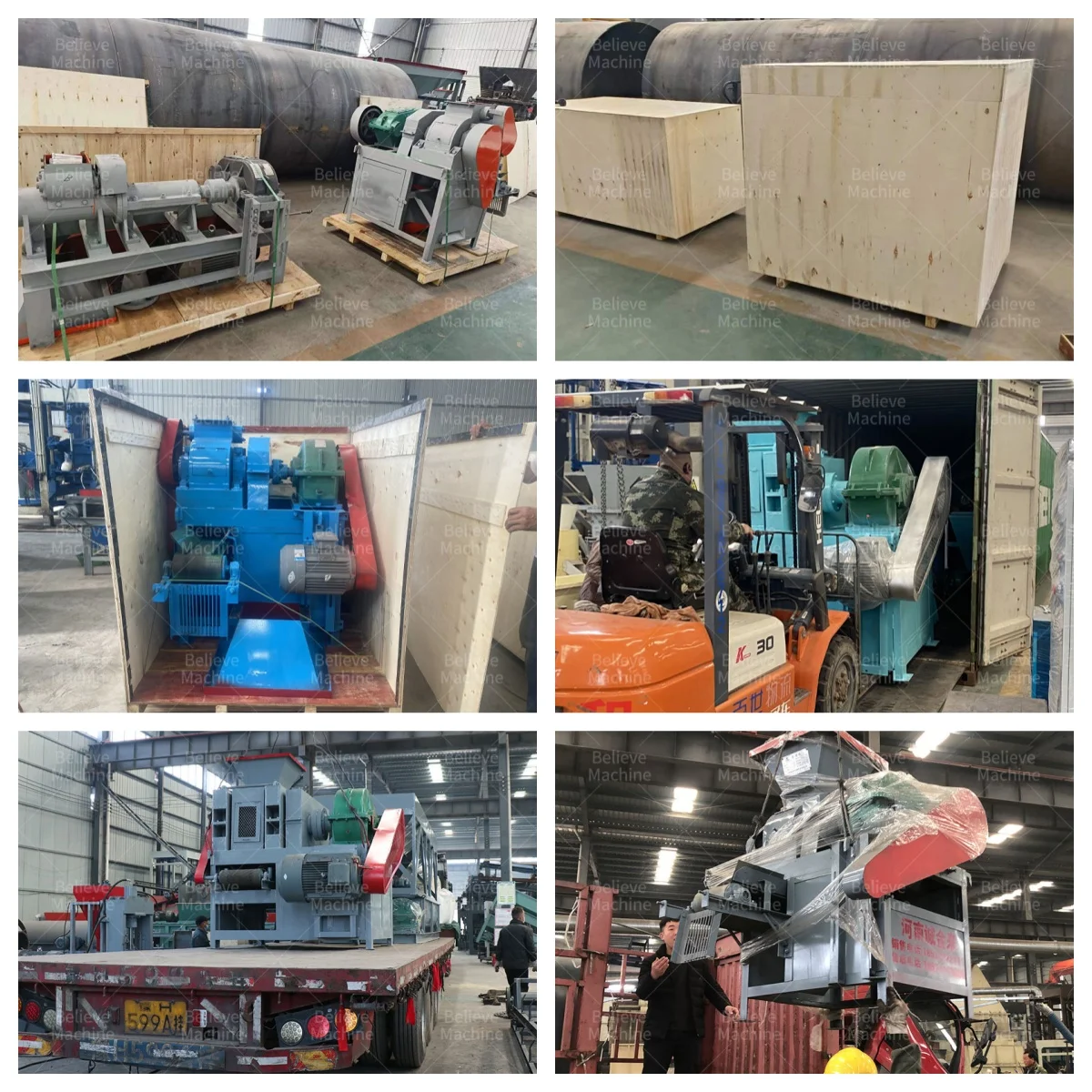

Package
We will wrap the machine with film to avoid damp and scattered during transportation,
and thicken the export wooden box to surround the machine to protect the machine from impact and friction.
The size depends on the machine.
Transportation
We can provide multiple channels of transportation.
We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.
We have always focused on research and development because they are the key to our corporate innovation.
They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
Test
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest assured.Let customers satisfaction is our purpose.
Package
We will wrap the machine with film to avoid damp and scattered during transportation,
and thicken the export wooden box to surround the machine to protect the machine from impact and friction.
The size depends on the machine.
Transportation
We can provide multiple channels of transportation.
We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.
Every year, many customers come to visit our factory, they can personally operate the machine and check the quality of the machine. We sincerely welcome every customer to visit the factory, we will personally pick you up and arrange your food and accommodation.

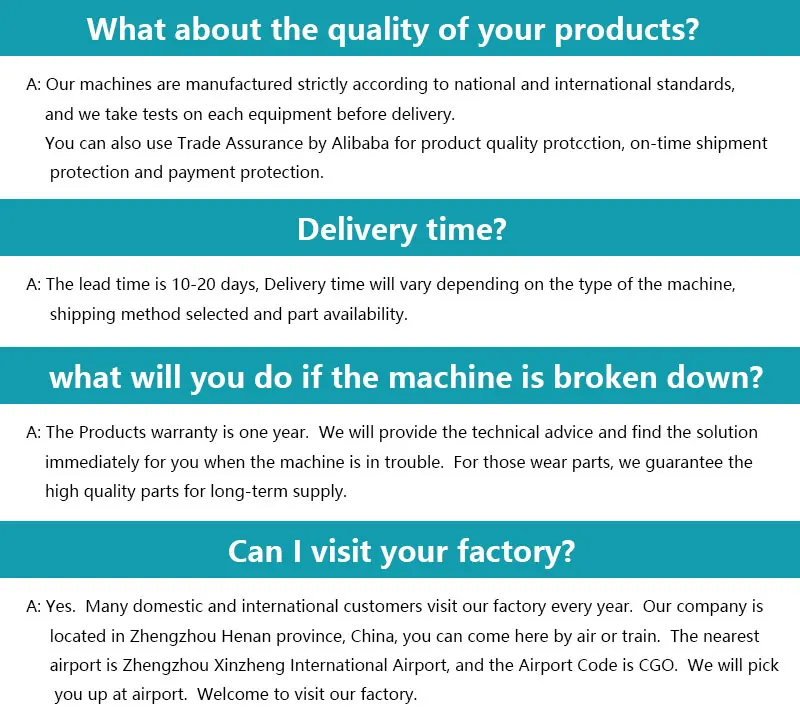

FAQ
