Steel Structure Warehouse Fireproof Acoustic Rock Wool With PUR Sealing Sandwich Panel
- Category: >>>
- Supplier: Baodu International Advanced Construction Material Co. Ltd.
Share on (1601095360657):
Product Overview
Description
Product Description
Rock wool Normally classed as A2-s1, d0. Panels with a hard core of high-density mineral wool fibre. A mineral wool panel generally achieves a very high fire performance and normally produces less smoke and heat than a panel with a polymer core. However, even a mineral wool panel is not classed as wholly non-combustible (class A1), as the fibre core contains binders and the core is glued to the sheets, usually with a polyurethane adhesive. For this reason, it is classed as A2. For structures serving as fire cell partitions, where a high fire resistance is required (greater than EI30), requirements are currently only satisfied by panels with a mineral wool core.
Fibreglass Normally classed as A2-s1, d0. Fibreglass is, like mineral wool, a mineral fibre, although its fire characteristics are not as good as those of mineral wool. Fibreglass shrinks at high temperatures. A fibreglass panel normally achieves a maximum rating of EI90.
Fibreglass Normally classed as A2-s1, d0. Fibreglass is, like mineral wool, a mineral fibre, although its fire characteristics are not as good as those of mineral wool. Fibreglass shrinks at high temperatures. A fibreglass panel normally achieves a maximum rating of EI90.

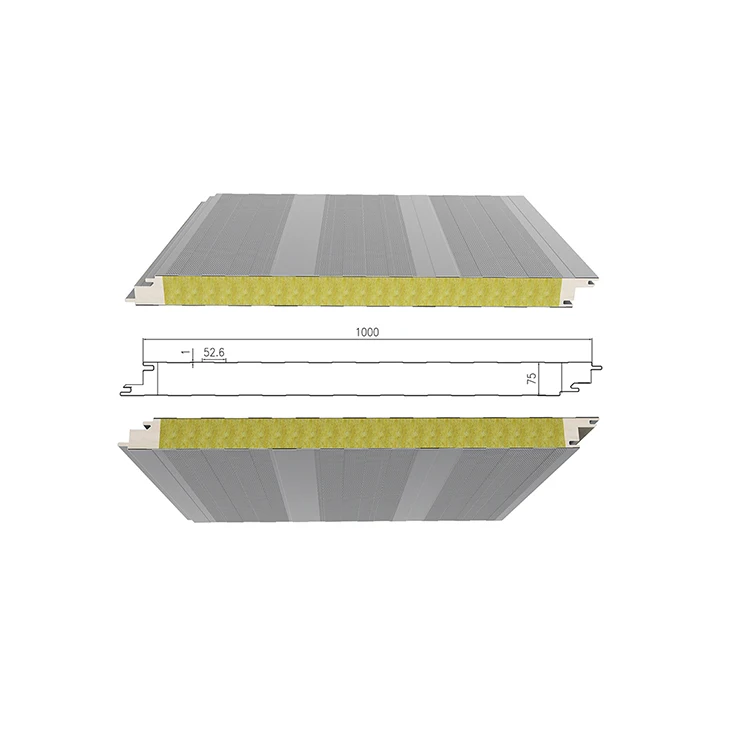

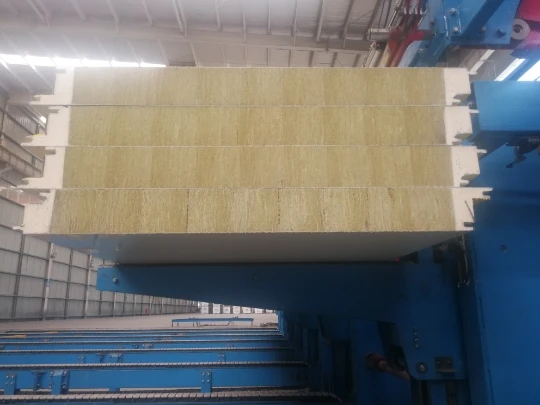

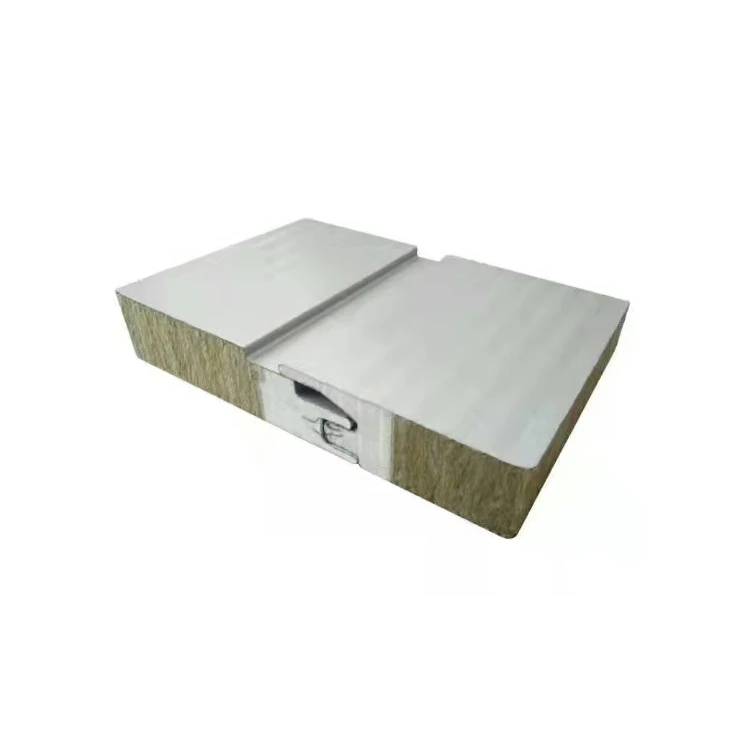

Details Images
Product | Rock Wool Sandwich Panel | Rock Wool Sandwich Panel with Pur or Pir Edge |
Width | 1000mm | 1000mm |
Top plate/Bottom plate | 0.4-1mm | 0.4-1mm |
Core thickness | 50mm,75mm,100mm,120mm,15 0mm,200mm | 50mm,75mm,100mm,120mm,15 0mm |
Length | Less than 11.8m (For transport ne ed) | Less than 11.8m (For transport n eed) |
Density | 100-180kg/m3 | 100-180kg/m3 |
Color | White, Red, Blue | White, Red, Blue |

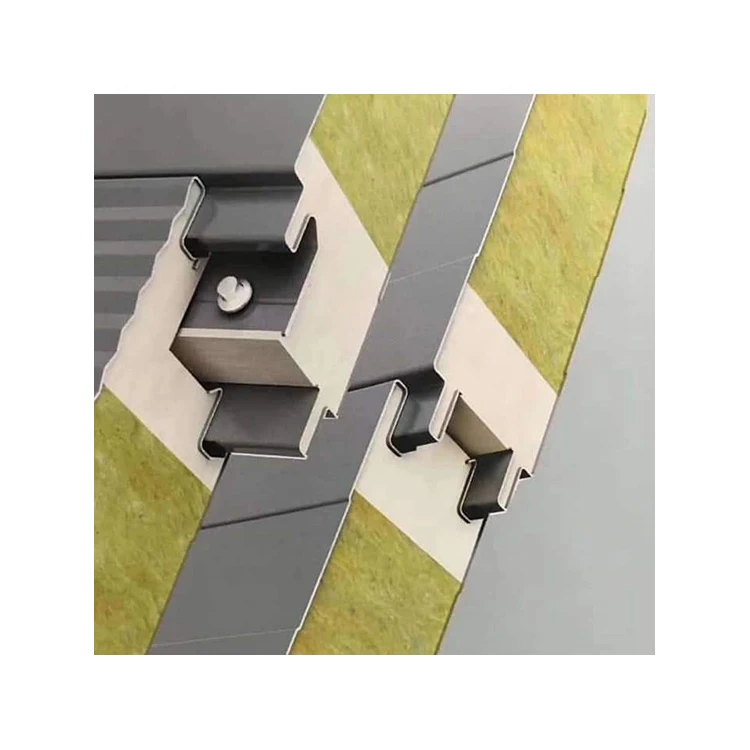

Connection Way | Hidden | Hidden |
Sound insulation | 20-25db | 20-25db |
Application | various walls of large size factory warehouse, exhibition halls,gymnasiums | various walls of large size factory warehouse, exhibition halls, gymnasiums |
Specification
Technical parameters of BAODU new model fireproof sandwich panel | ||||||||||||||||
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | ||||||||||||||||
S(mm) | W/㎡K | G(kg) | P=KN/㎡ | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | ||||||||
50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 | ||||||||
70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 | ||||||||
100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 | ||||||||
125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 | ||||||||
150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 | ||||||||
200 | 0.23 | 22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 | ||||||||
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | ||||||||||||||||
S(mm) | W/㎡K | G(kg) | P=KN/㎡ | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | ||||||||
50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 | ||||||||
70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 | ||||||||
100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 | ||||||||
125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 | ||||||||
150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 | ||||||||
200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 | ||||||||
Product packaging
We have undertaken many domestic and foreign projects. We have more than ten years of experience. We are professional. If you have any questions, please contact us. We will be responsible for your projects and look forward to your visit.
Advantages
1. Quality: imported equipment from Germany and Switzerland, professional workers who have been engaged in more than ten years,have their own research and development department, and fully meet the use standards of various countries.
2. Customized service:We arrange special person to connect according to customer needs, one-to-one service.
3. Technical support: Activity room: We provide online guidance and installation services by dedicated personnel, as well as after-sales team service 24/7. Workshop: We have nearly 50 professional engineers who can go abroad to provide technical support and guidance until all problems are solved for our customers.
4. International trade operation: We have been focusing on international trade in the construction industry for more than ten years, and have accumulated various experiences from different customers in different countries. So we can keep our operations up to date with our customers and new rules. Helps in customs clearance and saves cost and time for our customers.
24 hours to reply, 48 hours to give solutions.
