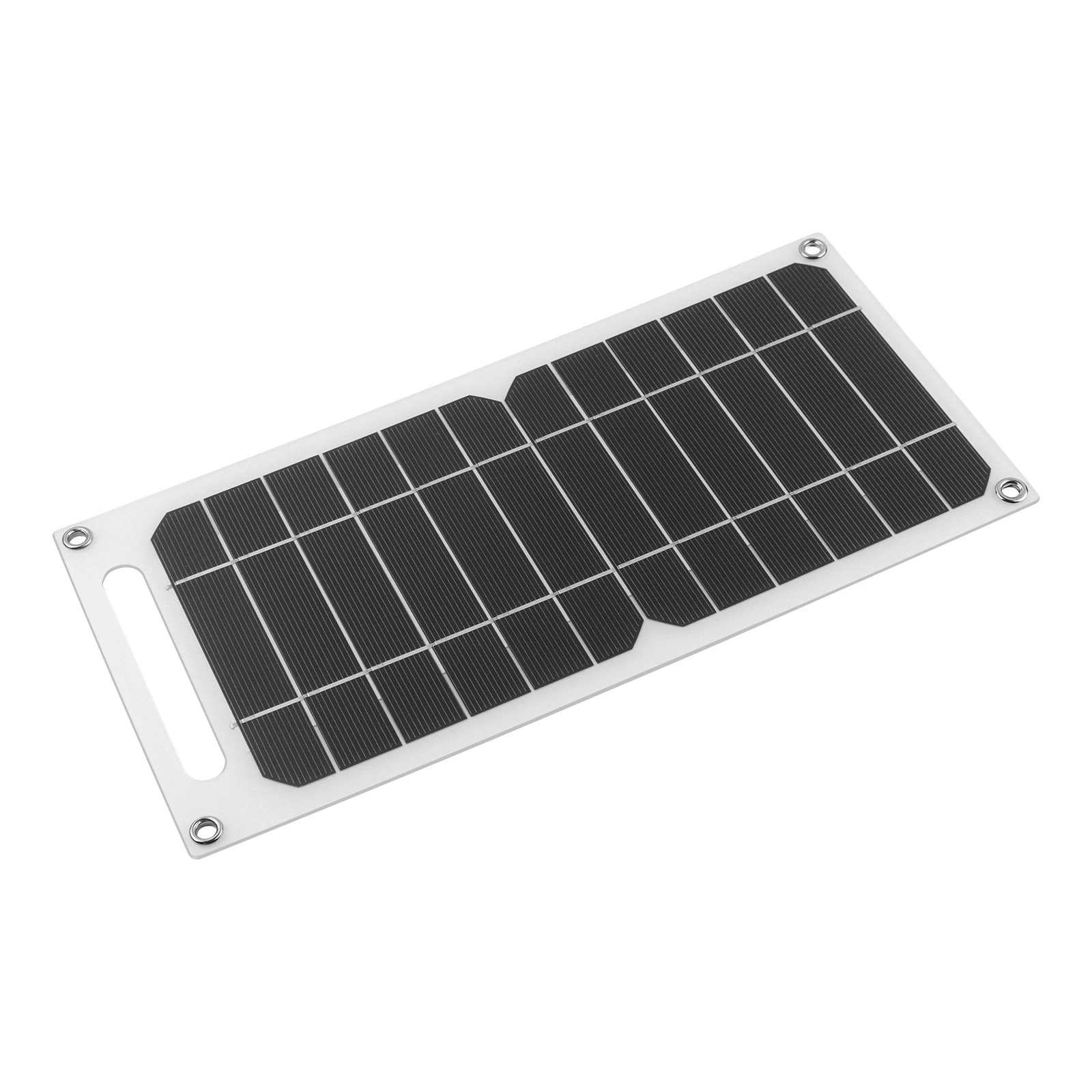

PowMr Wholesale 6W Light Weight Solar PV Panel Portable Flexible Monocrystalline Solar Panels for Solar System
- Category: >>>
- Supplier: Shenzhen Hehe Jin Industrial Co. Ltd.Shenzhen Ltd.
Share on (1601095390963):
Product Overview
Description
Product Description
INTRODUCTION

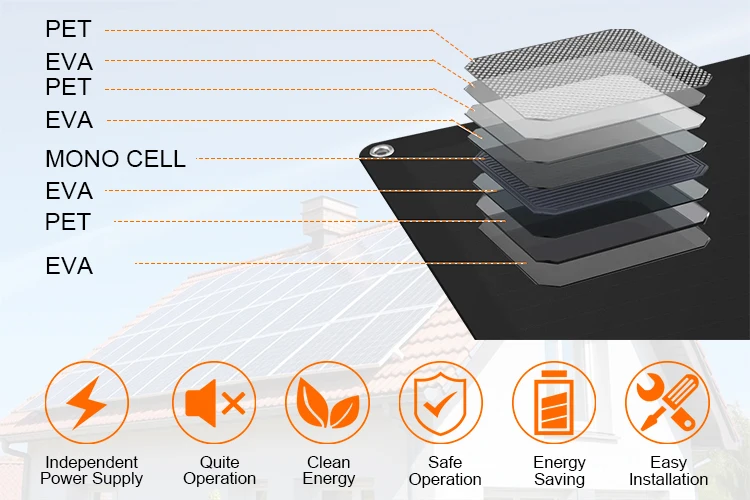

1. Internal: Monocrystalline silicon solar cells embedded in PET and EVA sheets.
2. Surface: Utilizes 0.2mm high molecular weight, water-resistant, and corrosion-resistant transparent or frosted PET materials.
3. Backsheet: Employs 0.2mm high molecular weight, water-resistant, and corrosion-resistant white or black PET materials.
4. After-sales Service: Within one year of purchase, in case of insufficient power output or material detachment (non-manual damage), our company provides free repair and replacement services for monocrystalline silicon solar panels.
Specification

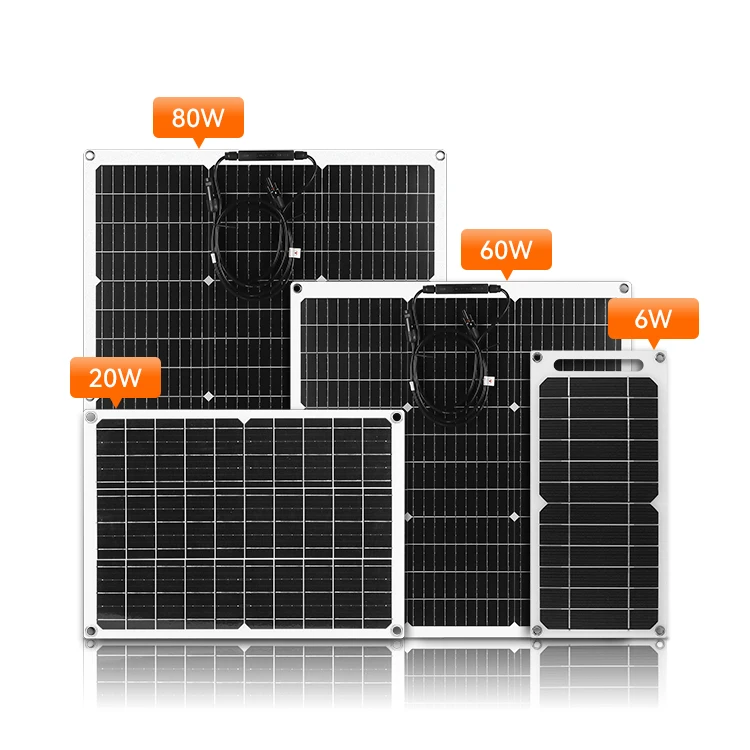

MODEL | POW-LTW 6W | POW-LTW 10W | POW-LTW 40W | POW-LTW 80W | |||
Crystalline Silicon | Monocrystalline Silicon | ||||||
Maximum Power (Pm) | 6Wp | 10Wp | 40Wp | 80Wp | |||
Maximum Operating Voltage (Vm) | 18.0V | 18.0V | 18.0V | 18.0V | |||
Maximum Operating Current (Im) | 1A | 0.56A | 2.22A | 4.4A | |||
Open-Circuit Voltage (Voc) | 7.2V | 21.6V | 21.6V | 21.6V | |||
Short-Circuit Current (Isc) | 1.1A | 0.61A | 2.44A | 4.8A | |||
Solar Panel Dimensions | 145*300*1.8mm | 210*310*1.8mm | 570*410*1.8mm | 590*790*1.8mm | |||
Solar Panel Weight | 0.3kg | 0.31kg | 1.11kg | 2.08kg | |||
Maximum System Voltage | 600V | 600V | 600V | 600V | |||
Temperature Coefficient of Short-Circuit Current | 0.065+/-0.015%/°C | 0.065+/-0.015%/°C | 0.065+/-0.015%/°C | 0.065+/-0.015%/°C | |||
Temperature Coefficient of Open-Circuit Voltage | -(2.23+/-0.1)mv/°C | -(2.23+/-0.1)mv/°C | -(2.23+/-0.1)mv/°C | -(2.23+/-0.1)mv/°C | |||
Temperature Coefficient of Maximum Power | -(0.5+-0.05)/°C | -(0.5+-0.05)/°C | -(0.5+-0.05)/°C | -(0.5+-0.05)/°C | |||
Temperature Coefficient of Maximum Current | +0.1/°C | +0.1/°C | +0.1/°C | +0.1/°C | |||
Temperature Coefficient of Maximum Voltage | -0.38/°C | -0.38/°C | -0.38/°C | -0.38/°C | |||
Operating Temperature Range | -25°C~+60°C | -25°C~+60°C | -25°C~+60°C | -25°C~+60°C | |||
Power Tolerance | +/-5% | +/-5% | +/-5% | +/-5% | |||
Maximum Pressure the Module Surface Can Withstand | 3m/s(20kg/sq.m) | 3m/s(20kg/sq.m) | 3m/s(20kg/sq.m) | 3m/s(20kg/sq.m) | |||
Hail Pressure Test | Fall from a height of one meter | Fall from a height of one meter | Fall from a height of one meter | Fall from a height of one meter | |||
Junction Box Type | ABS | ABS | ABS | ABS | |||
Output Power Tolerance | +/-5% | +/-5% | +/-5% | +/-5% | |||
Standard Test Conditions | AM1.5 100mW/C㎡25’C | AM1.5 100mW/C㎡25’C | AM1.5 100mW/C㎡25’C | AM1.5 100mW/C㎡25’C | |||
Warranty | 1-year | 1-year | 1-year | 1-year | |||
Fill Factor | 75.00% | 75.00% | 75.00% | 75.00% | |||
Packaging | Carton | Carton | Carton | Carton | |||
