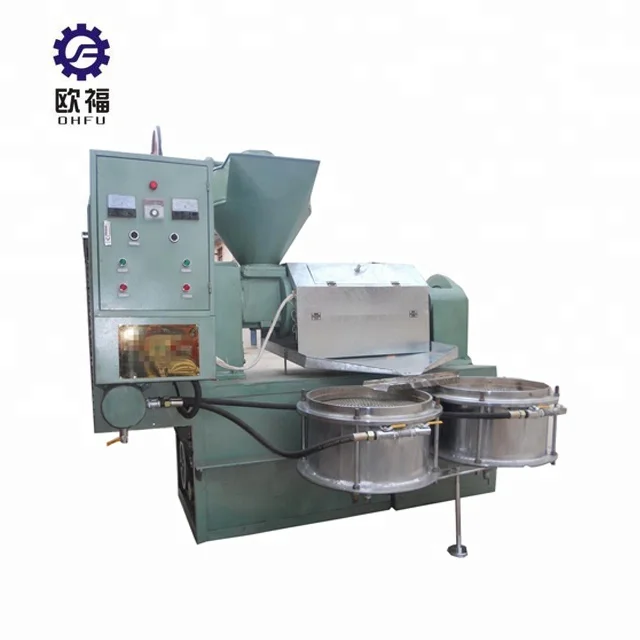

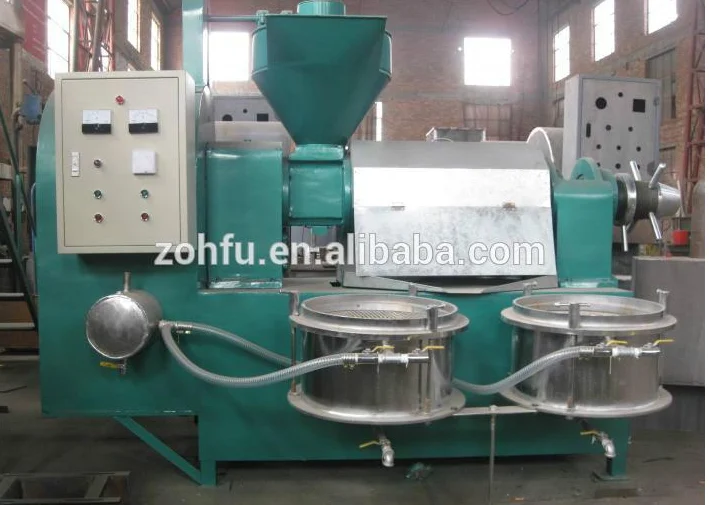

herbal oil extractor machine cold press oil pressing machine sun flower seeds cold press oil extraction machine

Product Overview

Description

herbal oil extractor machine cold press oil pressing machine sun flower seeds cold press oil extraction machine

















The multifunction of integrated oil expeller can save labor power and simplify the processing step.

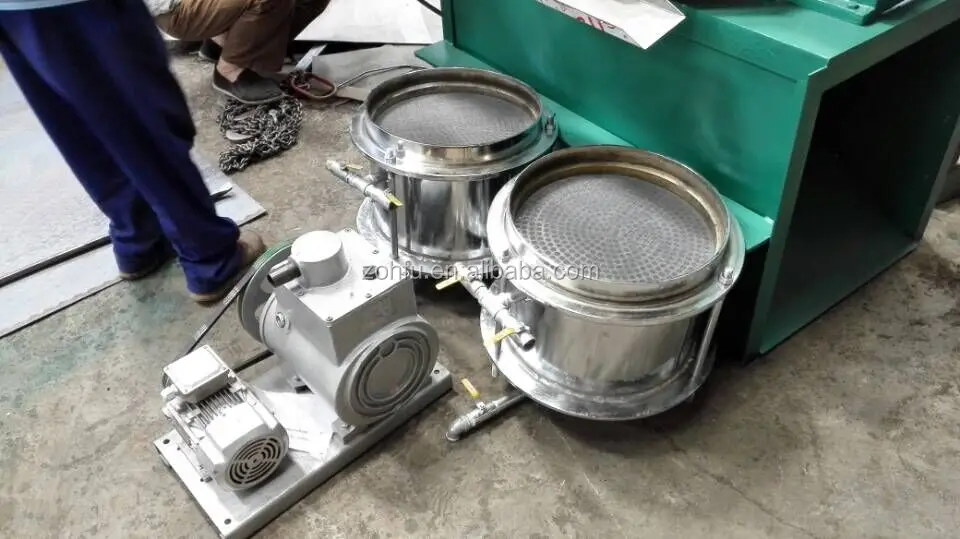

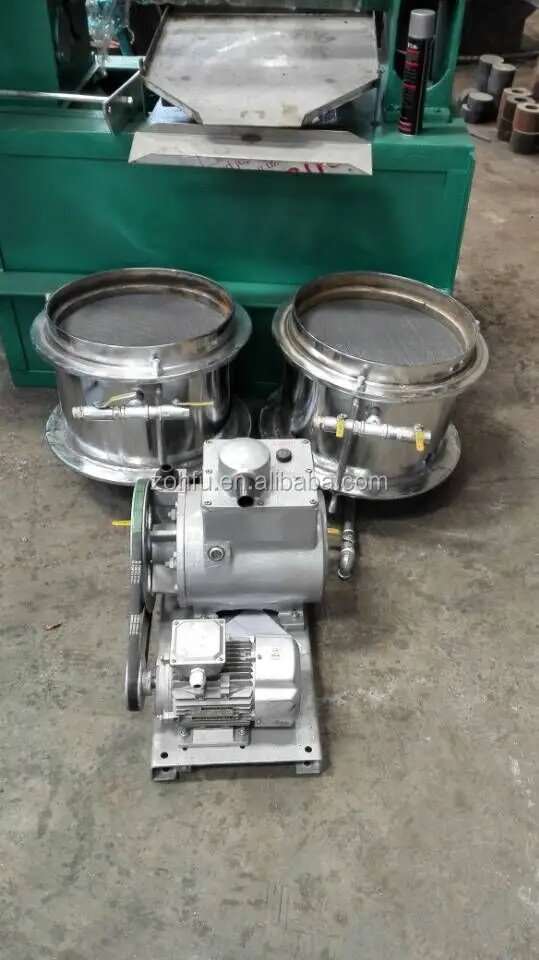

The automatic multifunction machine include press electrical rings for heating chamber, vacuum filter for oil filtration.

After pressing and filtering, we can get pure oil from materials. Lower temperature start work only 50 degrees. The multifunction of integrated oil expeller can save labor power and simplify the processing step.





Features of coconut oil making machine



1. Stainless steel material been used to meet the food hygiene standard.

2. Cold lower temperature keep in pressing technology.

3. Warranty for 1 year free after-sales service, include replace parts.

4. High quality parts, stable oil pressing effect, saving maintenance cost.

5. Military industrial manufacturing, quality chrome materials, quality trustworthy.



Technicial parameters of  coconut oil making machine



Model	HF-80	HF-100	HF-120	HF-130	HF-165
Spiral  diameter	φ 81mm	φ 101mm	φ 120mm	φ 130mm	φ 165mm
Spiral  speed	40-80r/min	60r/min	50r/min	30-40r/min	1440r/min
Power	5.5/7.5KW	7.5KW	11KW	15KW	22KW
Vacuum pump  power	0.55KW	0.75KW	0.75KW	0.75KW	1.1KW
Heater  power	3KW	3KW	4KW	3KW	3KW
	300-400Kg/h	350-450Kg/h	400-450Kg/h	600-650Kg/h
Hot press	150-200kg/h	350-400kg/h	400-500kg/h	600kg/h	800kg/h
Weight	800Kg	1000Kg	1200Kg	1300Kg	1800Kg
Dimensions  (mm)	1900x1300x1600	1950×1350×1700	2000×1350×1700	2200×1200× 2300	2600×780×2300





  With wooden case by LCL

,
