Custom 22Ah 51.8V Rechargeable Replacement Battery Pack Battery Charger For E Bike Scooter Drone
- Category: >>>
- Supplier: Shenzhen Redsun Electronics Co. Ltd.
Share on (1601095537459):
Product Overview
Description
Nominal Capacity | 14S22ah |
battery Type | LiCoO2 |
The charging ratio | 2C |
The discharge rate | 20C |
Assembly | 14S1P |
Lithium Ion Battery Cell | 3.7V |
Energy | 1139.6Wh |
Nominal Voltage | 51.8V |
Dimension (mm) | 380*330*240 |
Weight | 7.25kg |
Packing (mm) | 380*330*260 |
Continuous discharge current | 80A |
Burst discharge current | 120A |
Discharging cut-off Voltage | 42V |
Recommended charging current | 22A |
Support charging current | 44A |
Overcharging cut-off Voltage | 58.8V |
Charge plug | JST-XH-7P |

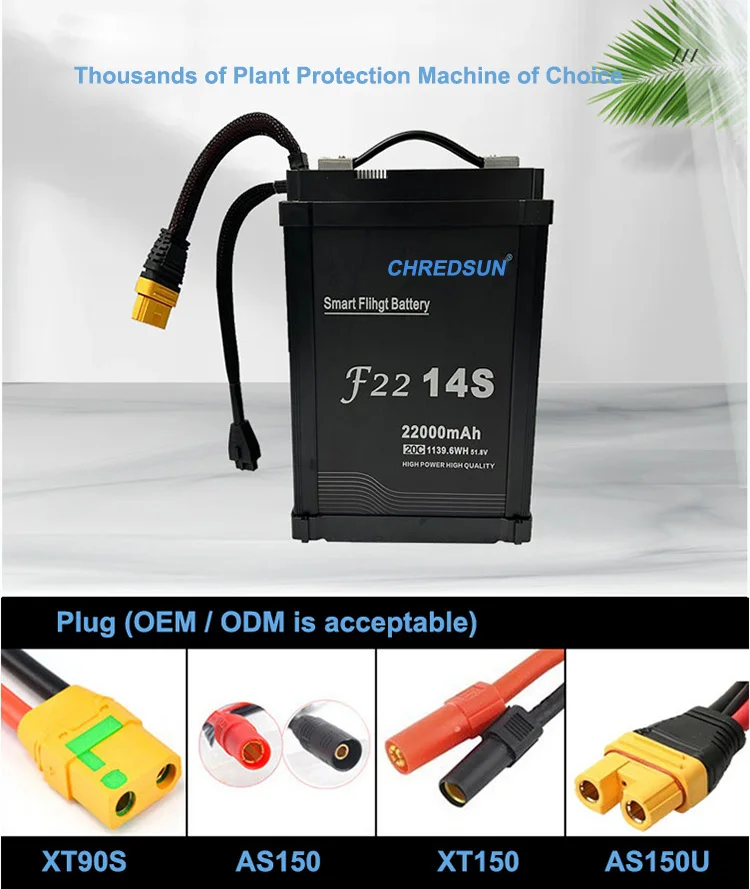

Discharge plug | XT90-S/AS150/AS150U |
Cycle Life | ≥300times |
Internal resistance | ≤15mΩ |
Appoval | un38.3， MSDS |
Notice
the battery should be charged (at least once every three months) periodically to maintain the SOC between 30-60% . The storage area should be clean, cool, dry and ventilated.
Use the charger with protection balanced function to charge if the finished battery without PCM.
Do not strike or throw or directly solder the battery，do not disassembling or puncture or hammer or pedal the battery.
Do not reverse the positive (+) and negative (-) terminals，or short-circuit
Do not immerse the battery in water or seawater， or near a heat source such as fire or heater.
