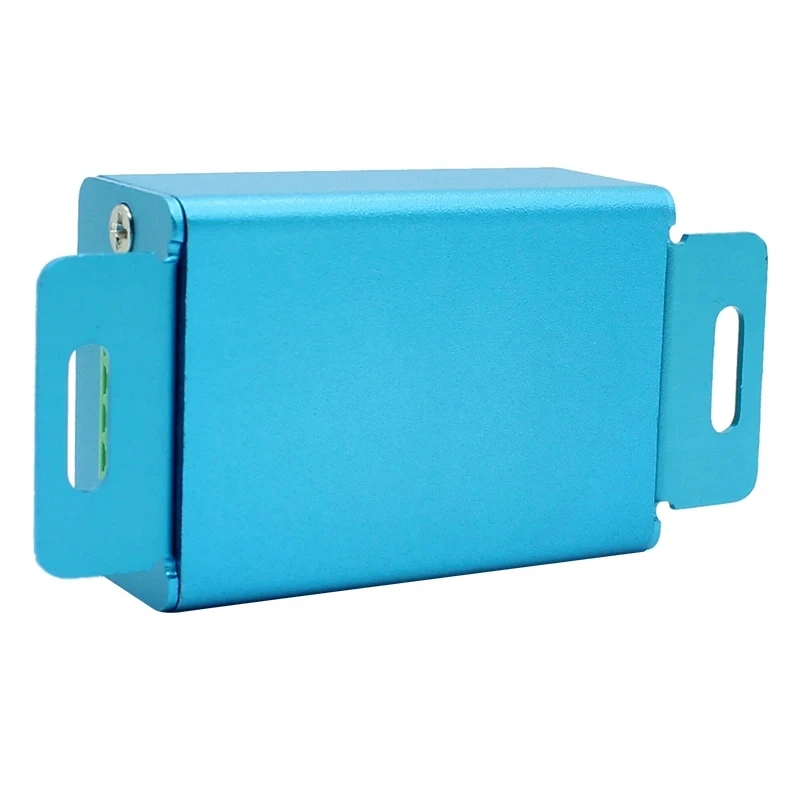

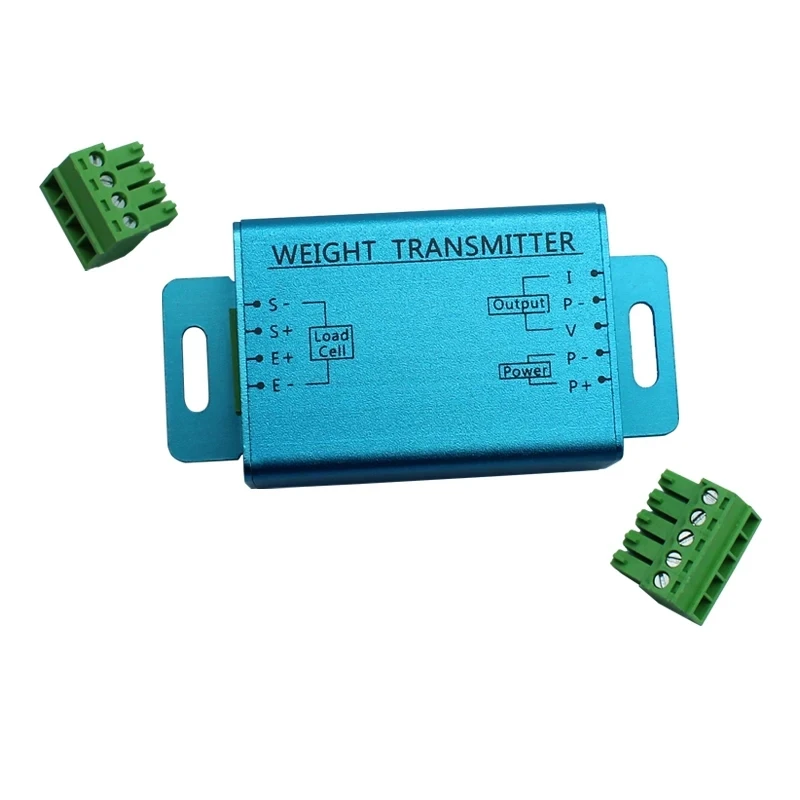

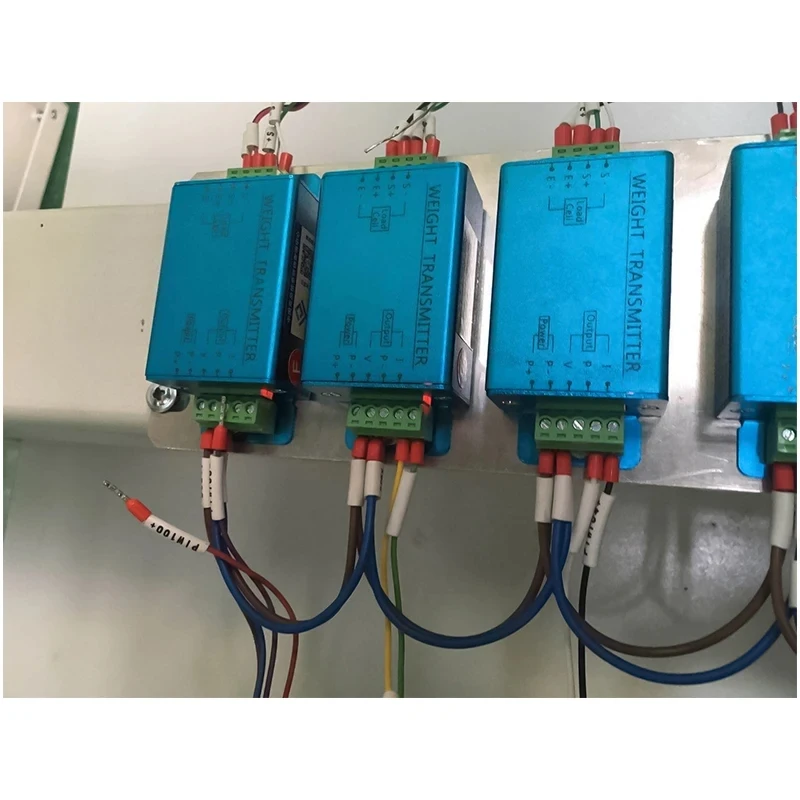

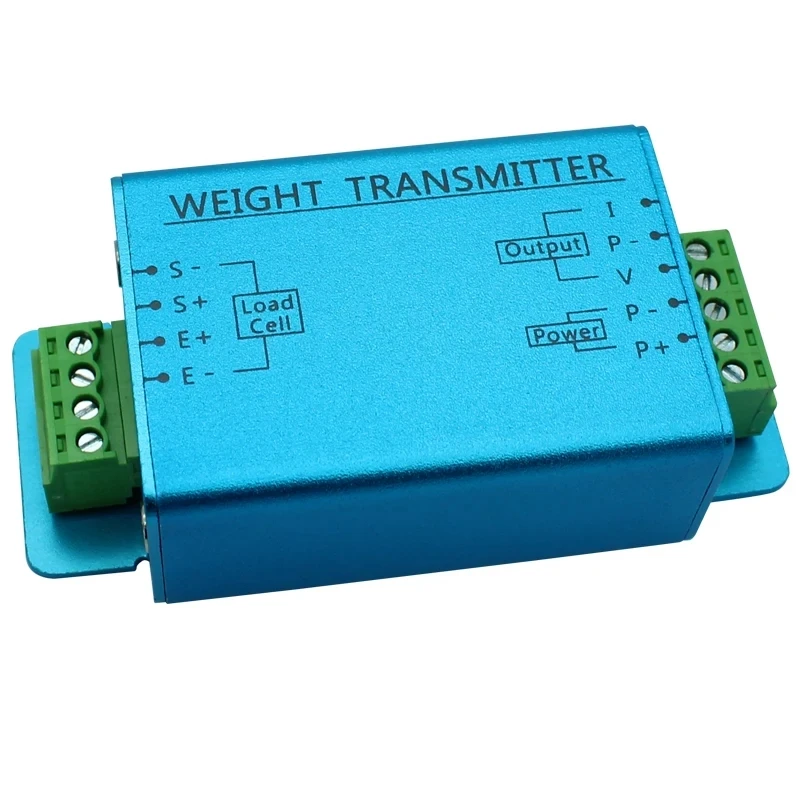

Advanced Load Cell Amplifier & Weighing Transmitter: Portable Sensor for Force Measurement
- Category: >>>
- Supplier: Shenzhen Jiexiang Technology Co. Ltd.
Share on (1601095537465):
Product Overview
Description
Product Selection | ||||||
Model | Output | Model | Output | |||
GT203-R2 | RS232 | GT203-R4 | RS485 | |||
GT203-R2-V1 | RS232+0~±10V | GT203-R4-V1 | RS485+0~±10V | |||
GT203-R2-A1 | RS232+0~±20mA | GT203-R4-A1 | RS485+0~±20mA | |||
GT203-R2-A2 | RS232+4~20mA | GT203-R4-A2 | RS485+4~20mA | |||
Specification
What is the specifications of D510 Weighing Transmitter | ||
Input Sensitivity | 0.4-6mV/V | |
Sensor Excitation Voltage | 5VDC±2%,100mA (up to 6 350Ω sensors can be connected) | |
Supply Voltage | 10V~30VDC | |
Comprehensive Precision | 1/10000 | |
Rated Output | 0-±10V,0-±20mA,4-20mA,Resolution 1/3000 (Analog output optional) | |
RS232 connector,MODUBS RTUMODUBS RTU agreement and free agreementavailable (standard) | ||
RS485 connector, up to 32 nodes can be connected, MODUBS RTU agreement and free agreement available (standard) | ||
Sample Frequency | 1280HZ | |
Operation Temperature | -30-+60℃ | |
Protection Grade | IP65 | |
Product Description

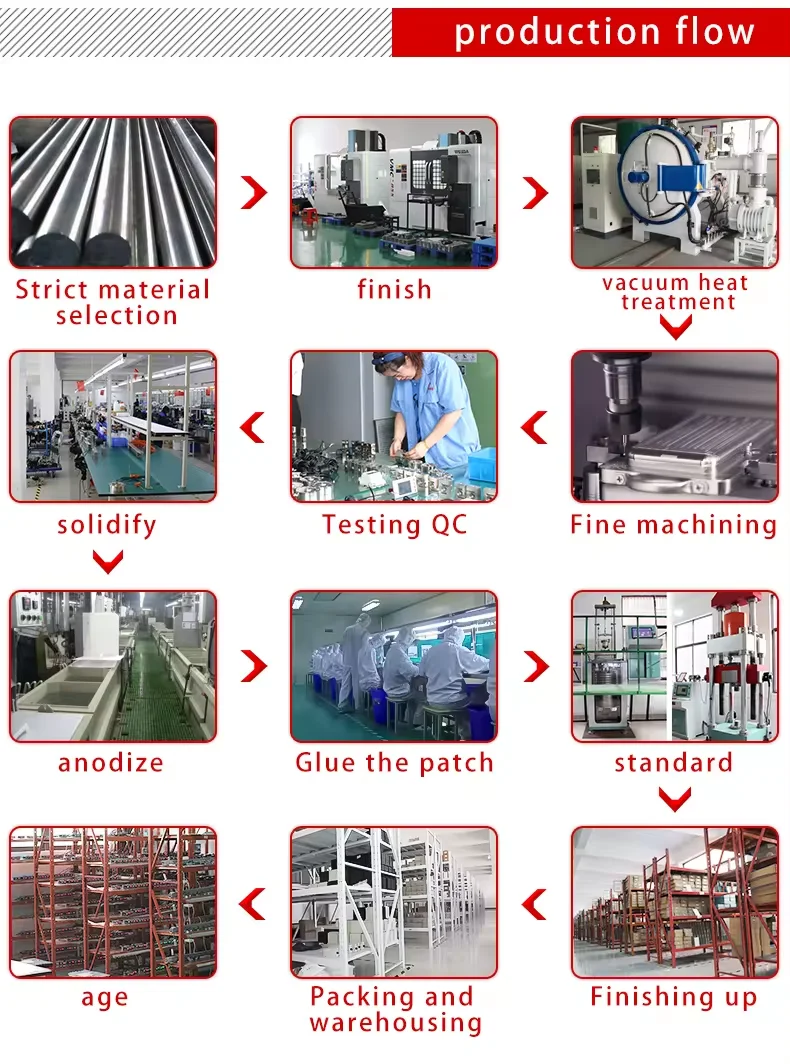

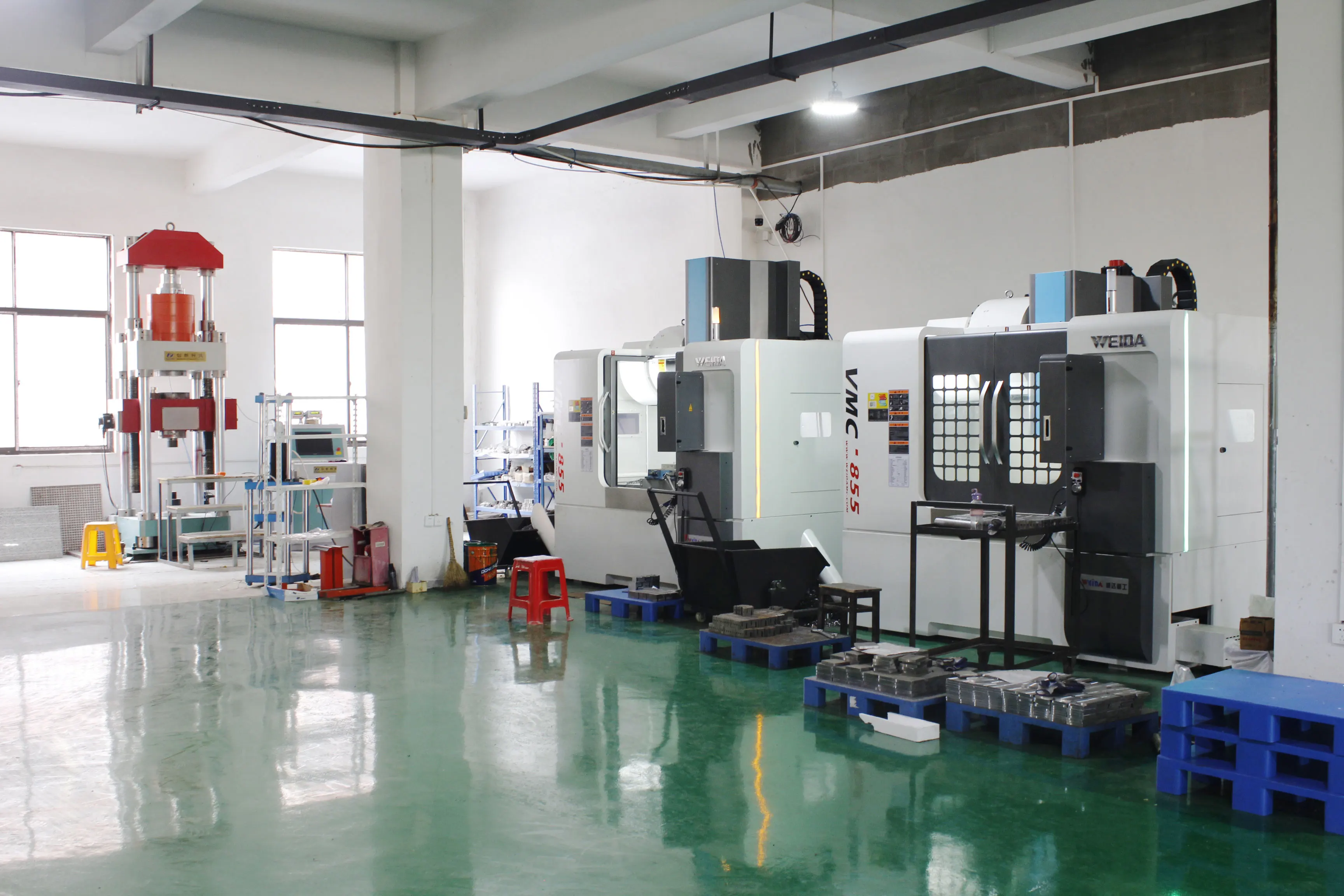

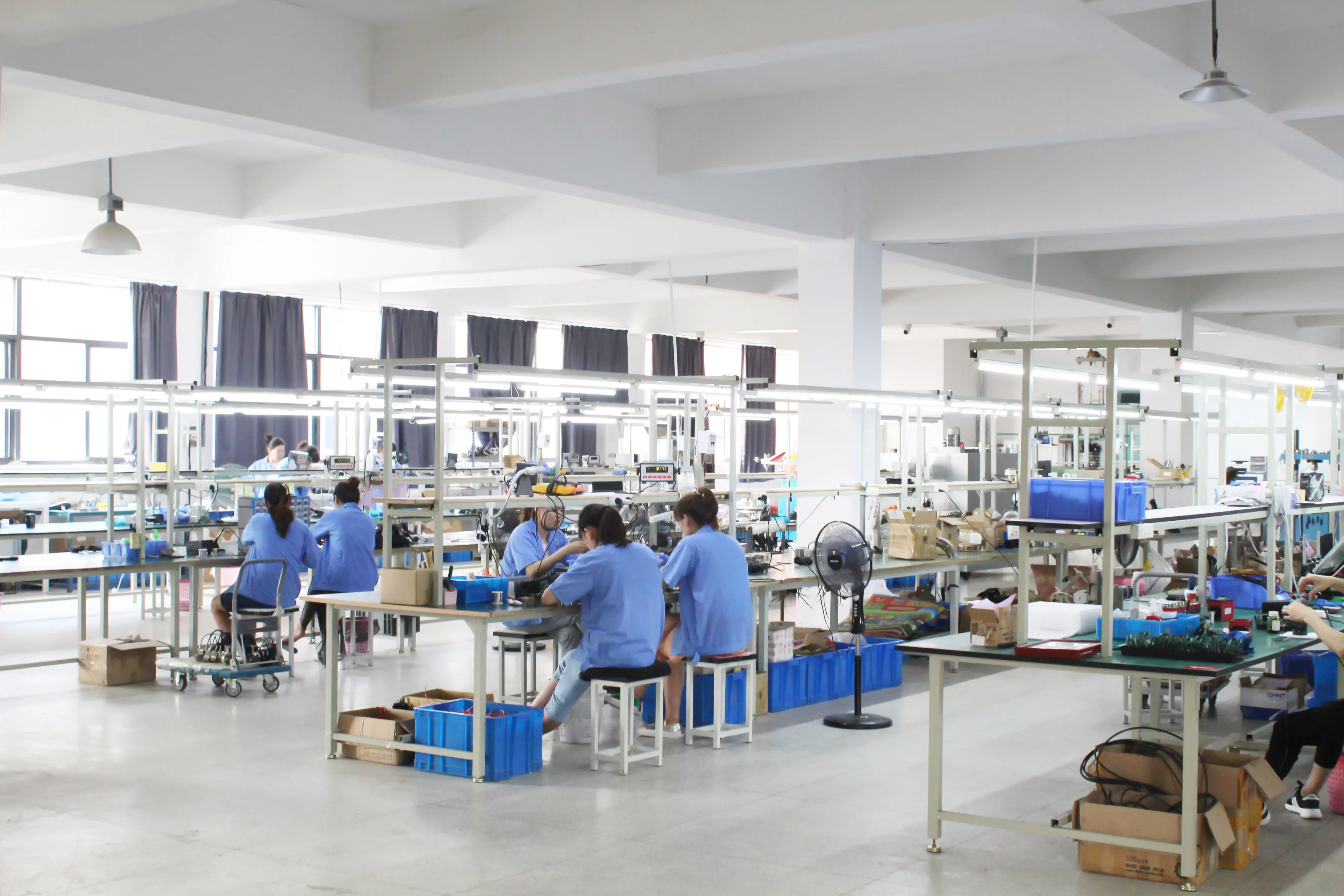

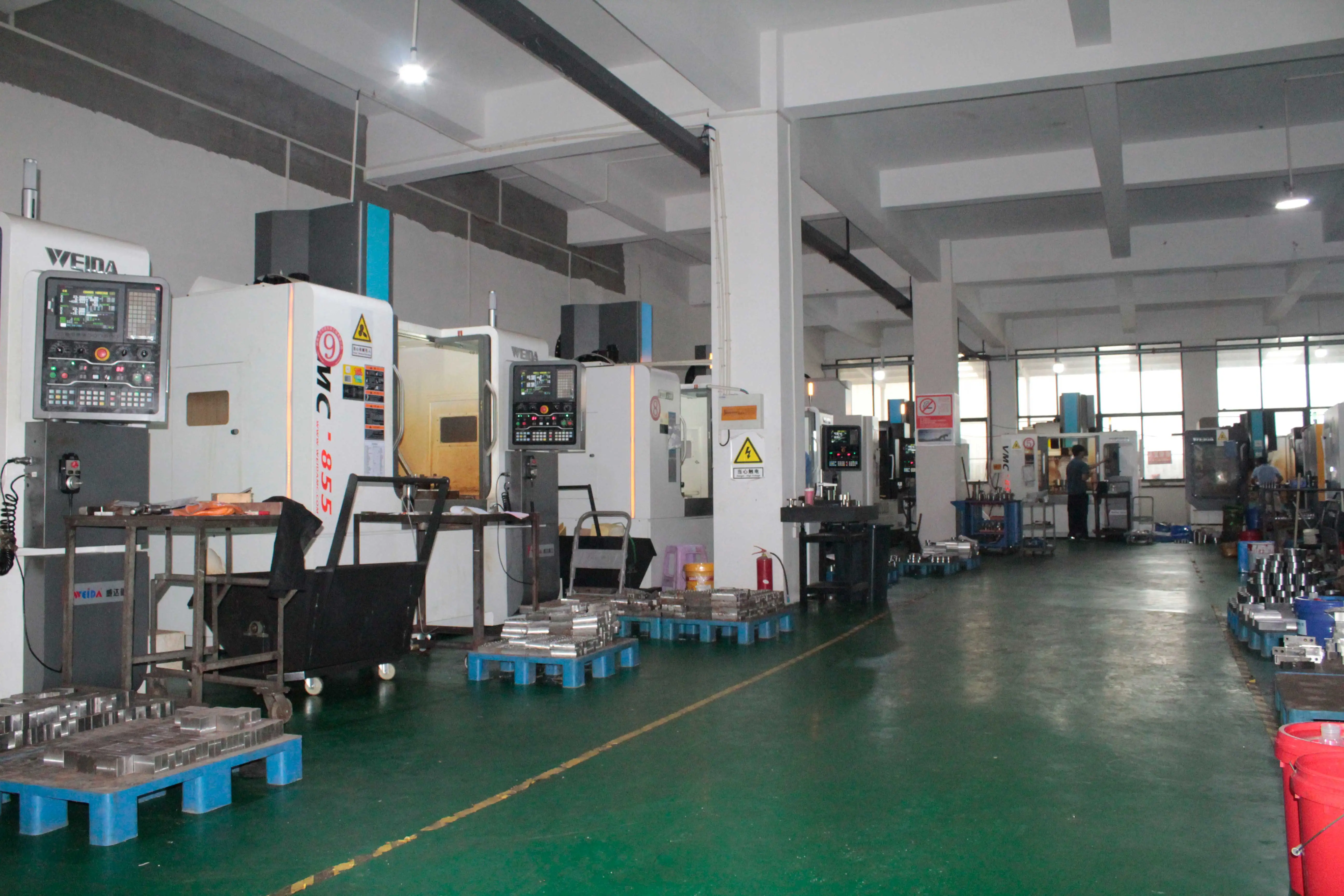

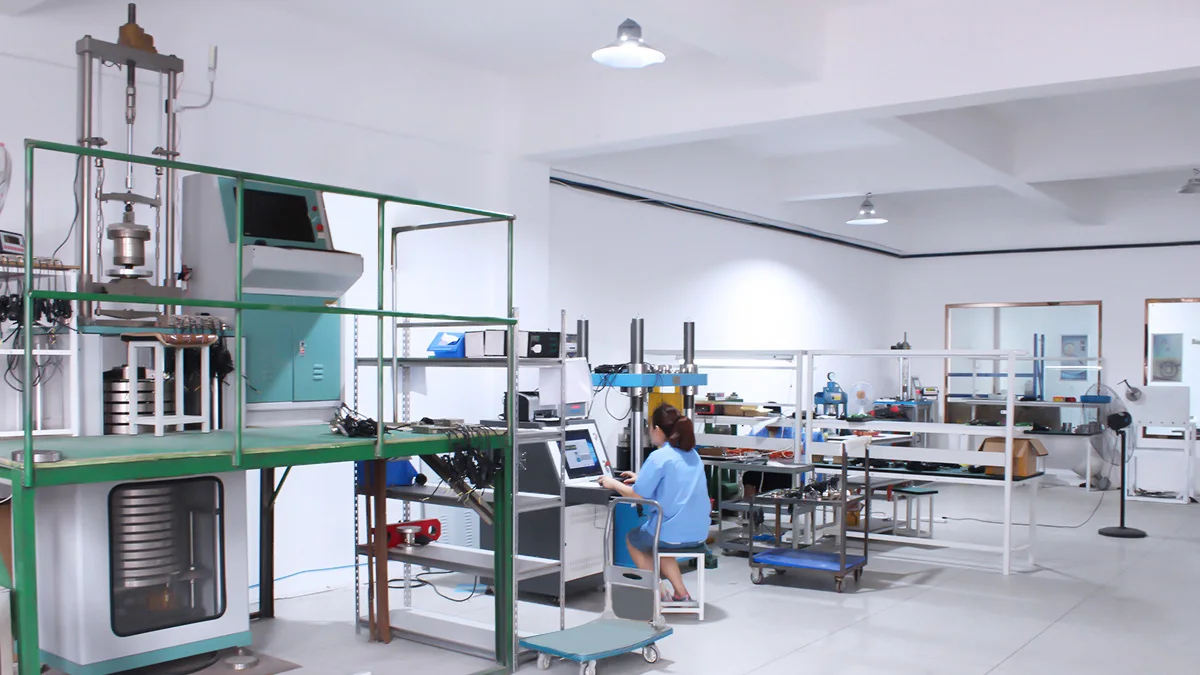

Company Profile
Certifications
Product packaging
FAQ
Q: How can I get the quotation?
Please send your inquiry to us. Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
