Product Overview

Description





PRODUCT DESCRIPTION

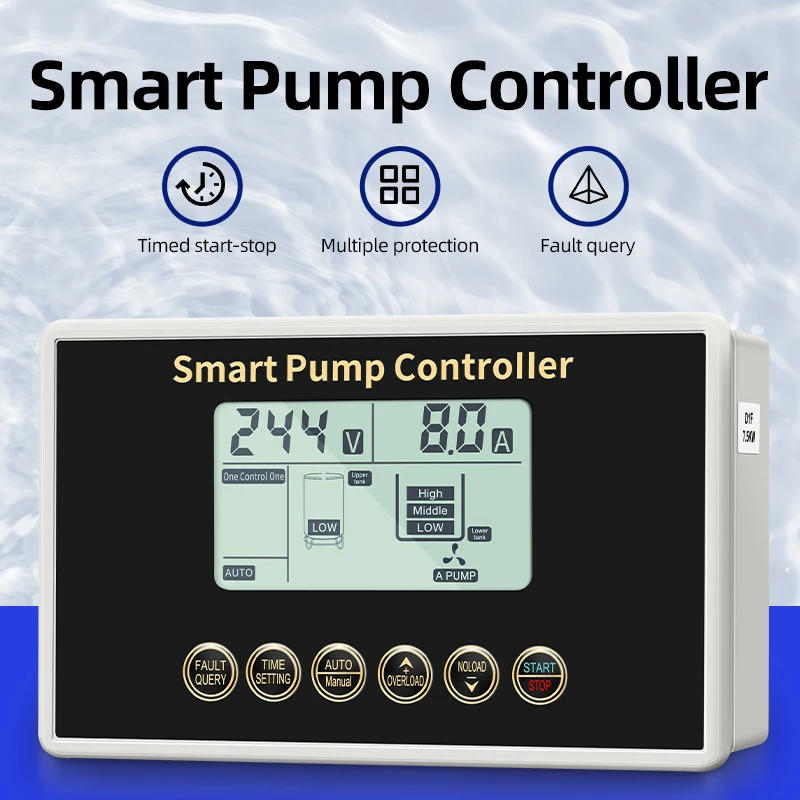

We understand your need for an efficient, intelligent and reliable pump control solution, so we have utilized our many years of experience to develop and produce this Smart Pump Controller.
This smart pump controller can help you monitor the running status of the pump in real time, and once it finds abnormalities such as dry running, overload or short circuit, it will immediately send out an alarm and take protective measures automatically. If you are traveling, you can set a timer to work automatically when you are not at home. Intelligent water pump controller can optimize the running efficiency of the pump, effectively reduce energy consumption, and save your cost.




Main Technical Parameters



Type
D1F
Model
D1F-4KW
D1F-7.5KW
D1F-11KW
Rated Power
0.75KW-11KW
1.1-7.5KW
1.1-11KW
Rated Input Voltage
AC380V+10% or AC220V+10% (50Hz-60Hz)
Over/under-voltage
AC304V-456V or AC176V-264V (adjustable)
Qty.of Controlled Pump
Single pump
Display
LCD display



Main Protections
1,dry run alarm and protection
2,overload alarm and protection
3, no load alarm and protection
4,water shortage alarm protection
5,over-voltage alarm and protection
6,under-voltage alarm protection
7,pump stalled alarm and protection
8,anti-seizing alarm and protection
9,short circuit alarm and protection
10,phase loss alarm and protection

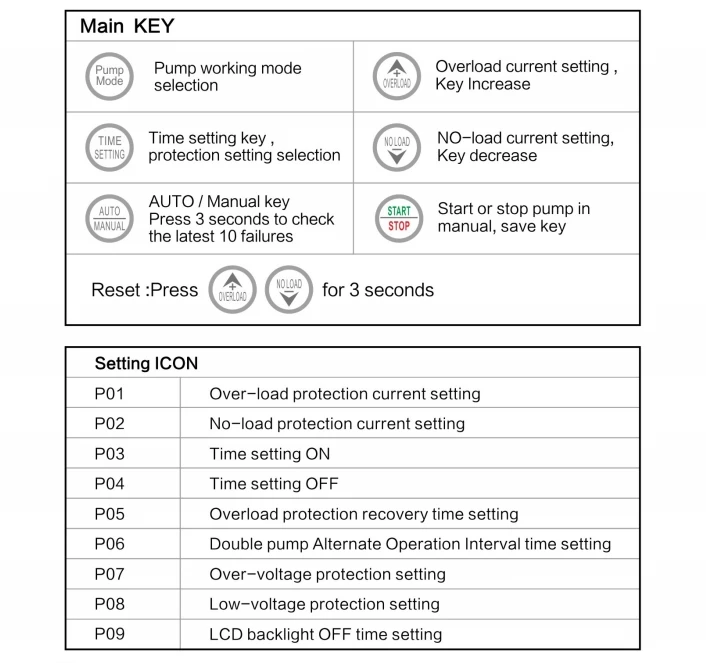

Main Functions
1,Operation mode: automatic/manual starts and stops
2,Timed start/stop
3,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds.
4,Setting protection current for motor overload/no-load,no-load delay restart time adjustable.
5,Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection.
6,Automatic restart after power failure recovery.
7,Automatic re-starting pump from dry running, restart time range 0-720 minutes adjustable.
8,Fault indication:failure record, latest 10 pump failure reasons display, audio/light alarms.
9,Automatic learning of overload and no-load currents
