Deye 51.2V All in one ESS inverter and lithium battery all in one home energy storage system for residential
- Category: >>>
- Supplier: Anhui Minvic Import & Export Co. Ltd.
Share on (1601095682643):
Product Overview
Description
Products Description

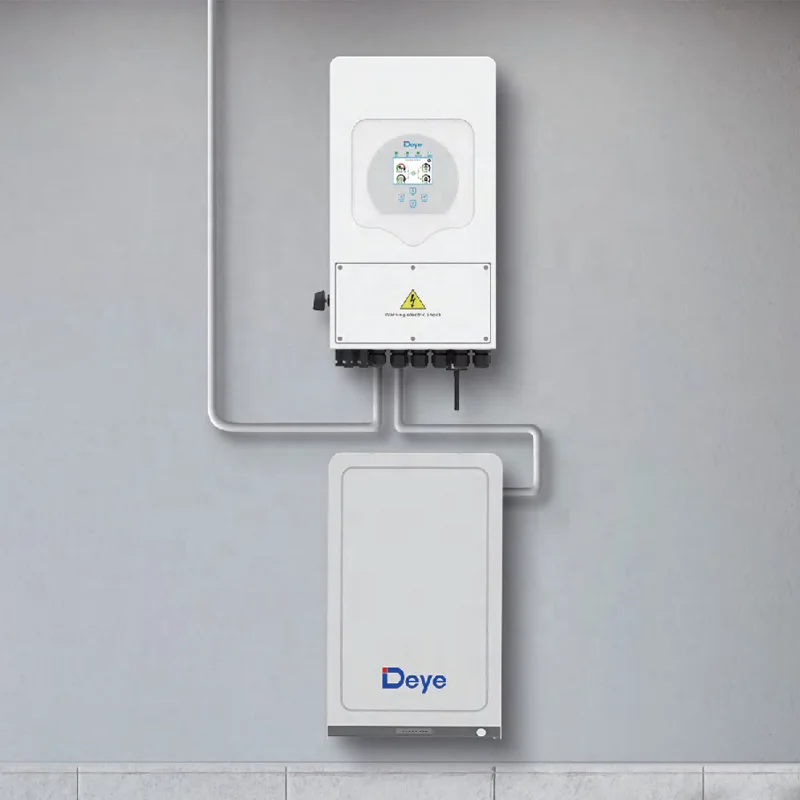

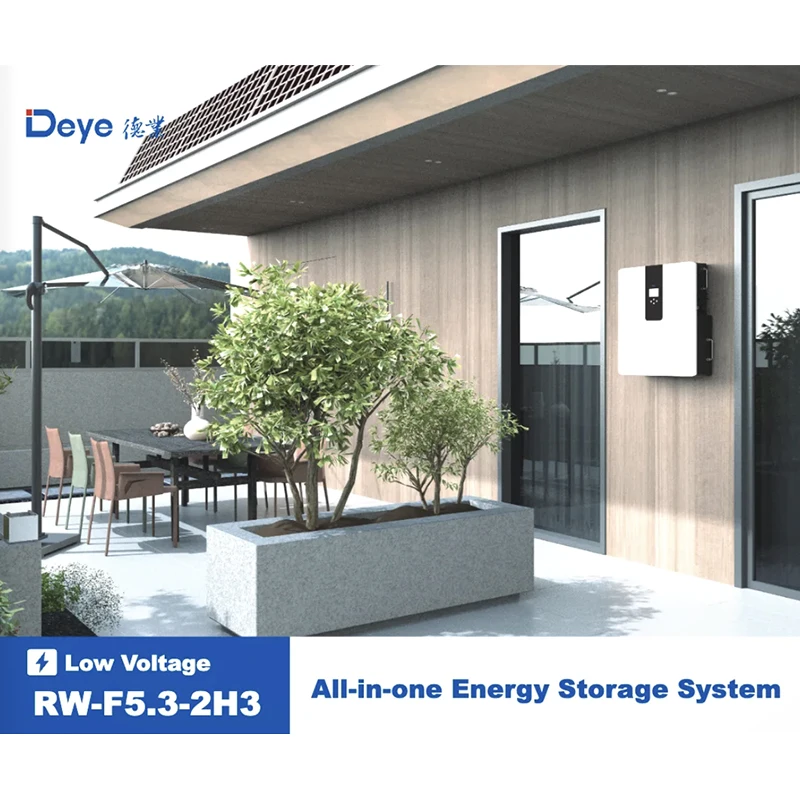

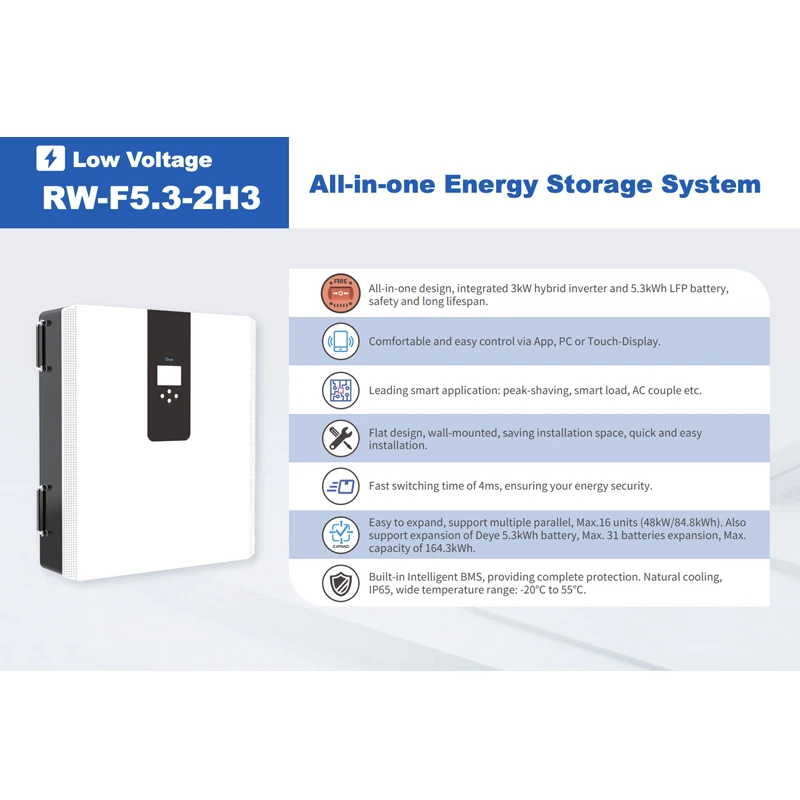

The RW-F5.3-2H3 is a powerful and compact all-in-one hybrid inverter and battery system with advanced smart features for reliable energy security and easy installation.
AC Technical Specification | ||
Nominal Input/Output Power/UPS Power | 3,000/3,000W | |
AC Input/Output Frequency and Voltage | 50Hz (45Hz ~ 55Hz), L/N (PE), 220/230 Vac | |
Grid Type | Single phase | |
Peak Power (off grid) | 2 time of rated power, 10s | |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
Power Factor | 1 | |
DC injection current | THD<3% (Linear load<1.5%) mA | |
DC Technical Specification | ||
Max. PV Input Power | 3,900W | |
Max. PV Input Current | 15A | |
Rated PV Input Voltage | 300 (125 ~ 450) Vdc | |
Start Up DC Voltage | 125Vdc | |
MPPT Voltage Raneg | 150 ~ 425Vdc | |
Max. PV Short-circuit Current | 18A | |
Number of MPPT | 1 | |
Battery Chemistry | LiFePO4 | |
Battery Nominal Voltage | 51.2V | |
Battery Energy Configuration | 5.32kWh | |
Max. Charging/Discharging Current | 75A | |
Battery Operating Voltage | 43.2V ~ 57.6V | |
Battery Cycle Life | ≥6,000 (@25°C±2°C, 0.5C/1C, 70%EOL) | |
Other Technical Specification | ||
Dimension (W × D × H) | 600 × 200 × 700mm | |
Weight Appr. | 76.5kg | |
Operating Temperature Range | Inverter: -40°C ~ 60°C (>45°C derating), Battery Charge: 0 ~55°C/ Discharge: -20°C ~ 55°C | |
Display | LCD | |
Relative Humidity | 15% ~ 85% (No Condensing) | |
Safety EMC/Standard | IEC62619, UN38.3, IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |
Max. Efficiency | 97.60% | |
Max. charging/discharging efficiency | 95.50% | |
IP Rating of Enclosure | IP65 | |
Installation Style | Wall-Mounted | |
Warranty | 10 years | |
* This is an all-in-one design that incorporates a 3kW hybrid inverter and a 5.3kWh LFP battery, ensuring both safety and a long lifespan.
* The system can be conveniently controlled via an app, PC, or touch-display, and features a leading smart application with peak-shaving, smart load, and AC couple functions.
* Its flat design makes it easy to mount on a wall, saving installation space and allowing for quick and easy installation.
* The system has a fast switching time of 4ms, ensuring energy security.
* Additionally, it is easy to expand and supports multiple parallel connections with up to 16 units (48kW/84.8kWh), and it supports the expansion of Deye 5.3kWh battery with up to 31 batteries and a maximum capacity of 164.3kWh.
* The built-in Intelligent BMS provides complete protection, and the system features natural cooling, IP65, and a wide temperature range of -20°C to 55°C.
* The system can be conveniently controlled via an app, PC, or touch-display, and features a leading smart application with peak-shaving, smart load, and AC couple functions.
* Its flat design makes it easy to mount on a wall, saving installation space and allowing for quick and easy installation.
* The system has a fast switching time of 4ms, ensuring energy security.
* Additionally, it is easy to expand and supports multiple parallel connections with up to 16 units (48kW/84.8kWh), and it supports the expansion of Deye 5.3kWh battery with up to 31 batteries and a maximum capacity of 164.3kWh.
* The built-in Intelligent BMS provides complete protection, and the system features natural cooling, IP65, and a wide temperature range of -20°C to 55°C.

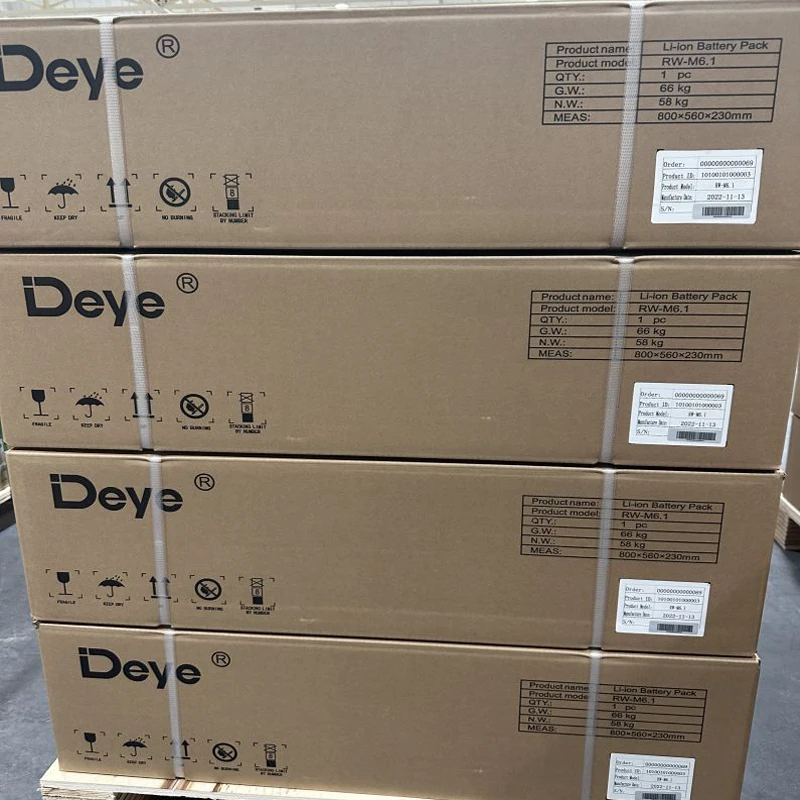

Product packaging

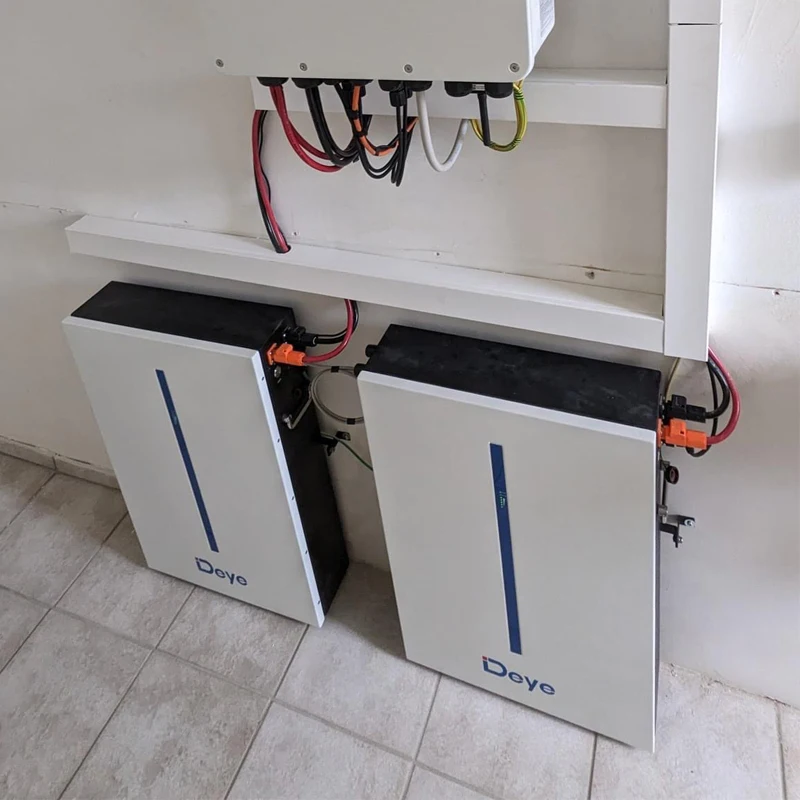

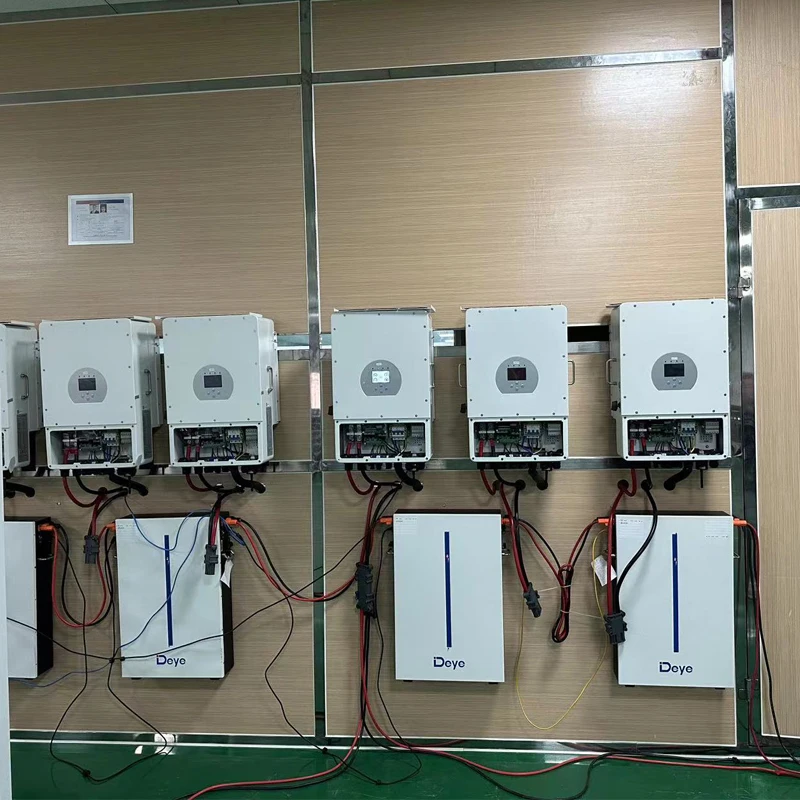

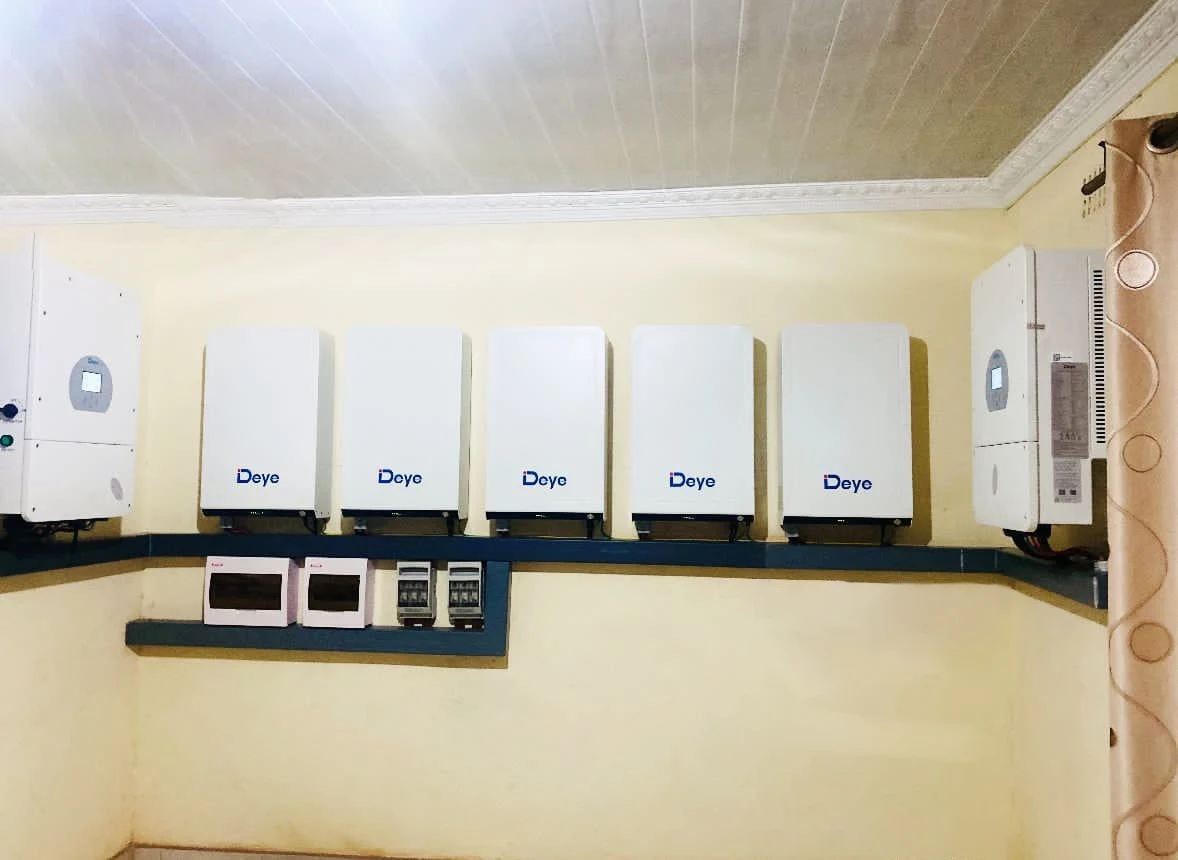

Project Case
Battery Pack Accessories
Model
RW-M5.3-Hboard
RW-M5.3-PCable
RW-M5.3-BCable
Accessories Parts Description

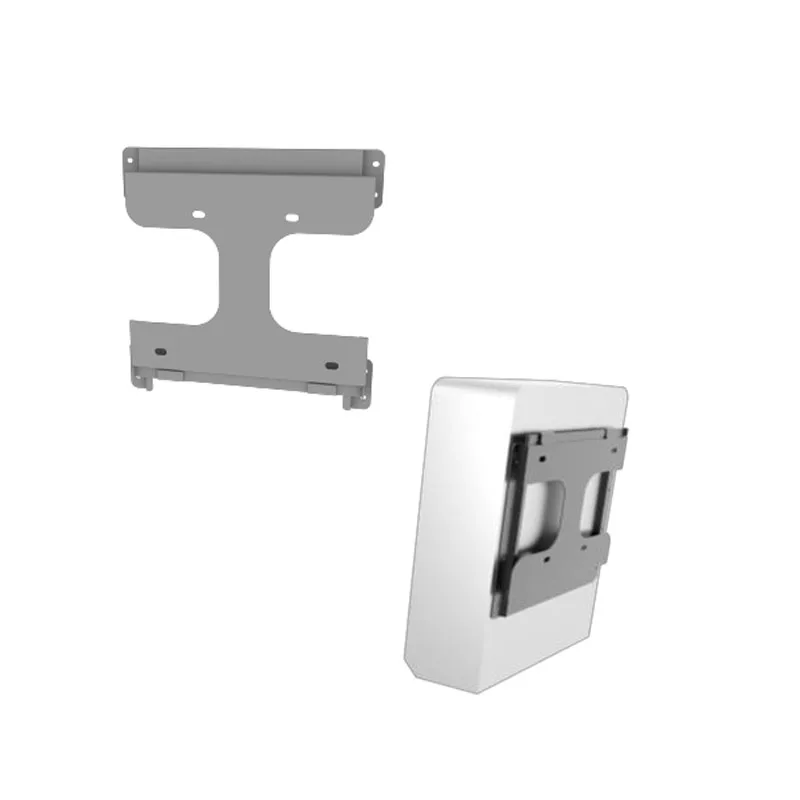

Battery Hanging Board
(Included)
Hybrid inverter Cable
(Optional)
Battery Parallel Cable
(Optional)
Remark
Used for battery fixing on the wall
Battery power and communication cable connect with hybrid inverter.
Battery power and communication parallel connection cable.
Model: RW-F10.2 Hboard
Details: 3kg(Approximate)

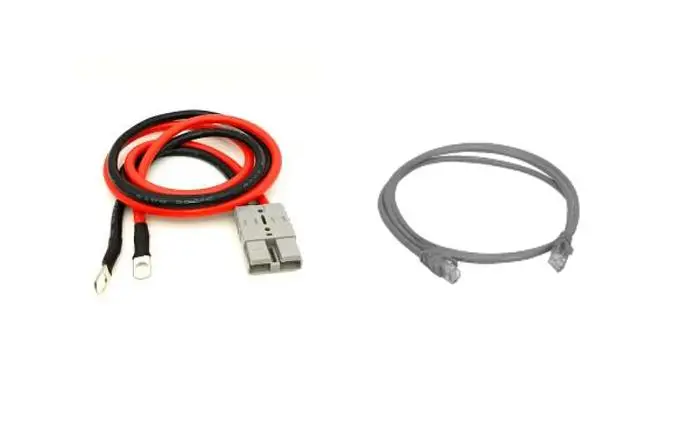

Model: RW-F10.2-PCable
Details: Pair of 4AWG DC power cable (with M8 copper terminals) and RJ45
communication cable connect with hybrid inverter. The cable length can be customized based on customer requirements, default length is 1500mm.

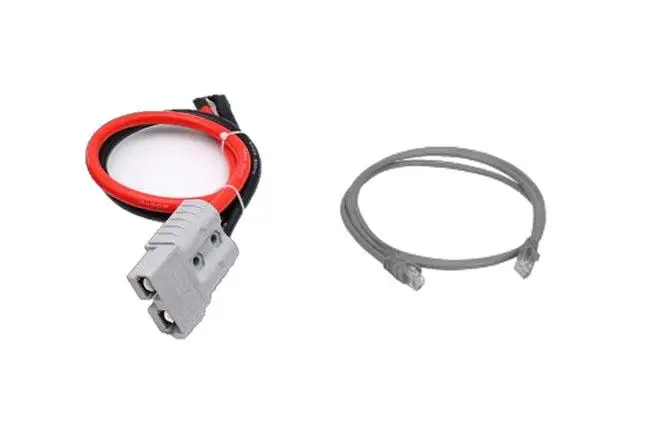

Model: RW-F10.2-BCable
Details: Pair of 4AWG battery power cable and RJ45 communication cable for battery parallel. The cable length can be customized based on customer
requirements, default length is 600mm.Recommend Products

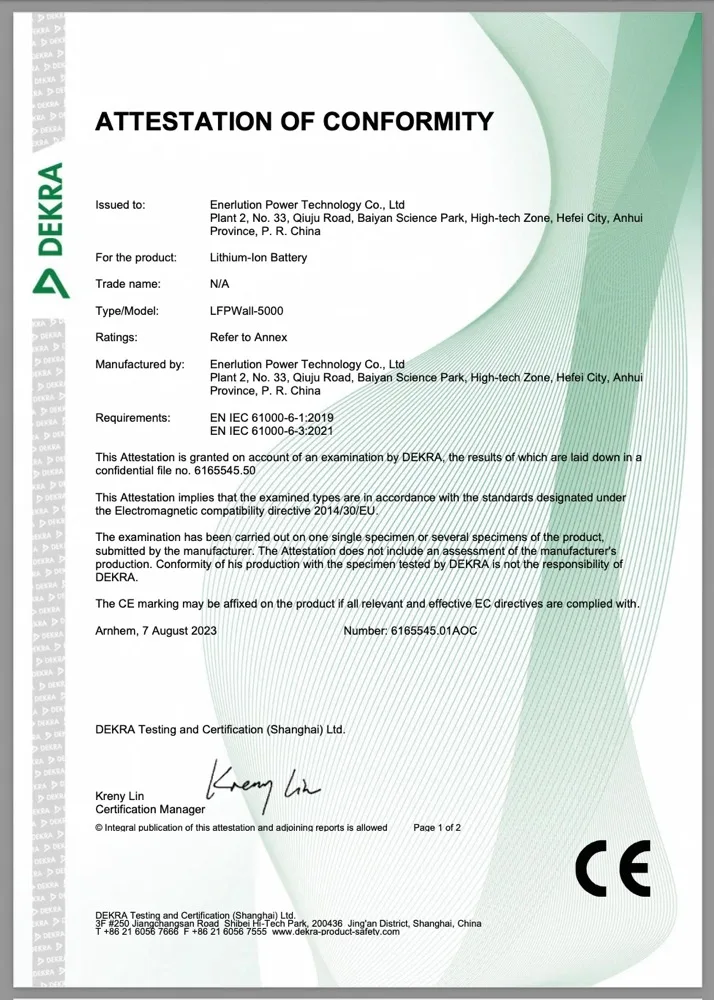

Certificate
