hydraulic mini ss304 316 stainless steel high temperature pressure needle globe valve
- Category: >>>
- Supplier: Anhui Qianxing Supply Chain Management Co. Ltd.
Share on (1601095691471):
Product Overview
Description
Products Description
The stem axis of the globe valve is perpendicular to the sealing surface of the valve seat. The valve stem has a relatively short opening or closing stroke and a very reliable cutting action, making it very suitable for cutting, adjusting, and throttling the medium.
(1) The structure is simpler than that of a gate valve, making it easier to manufacture and maintain.
(2) The sealing surface is not easy to wear and scratch, with good sealing performance. There is no relative sliding between the valve disc and the valve body sealing surface during opening and closing, so the wear and scratch are not severe. The sealing performance is good, and the service life is long.
(3) When opening and closing, the valve disc stroke is small, so the height of the globe valve is smaller than that of the gate valve, but the structural length is longer than that of the gate valve.
(1) The structure is simpler than that of a gate valve, making it easier to manufacture and maintain.
(2) The sealing surface is not easy to wear and scratch, with good sealing performance. There is no relative sliding between the valve disc and the valve body sealing surface during opening and closing, so the wear and scratch are not severe. The sealing performance is good, and the service life is long.
(3) When opening and closing, the valve disc stroke is small, so the height of the globe valve is smaller than that of the gate valve, but the structural length is longer than that of the gate valve.

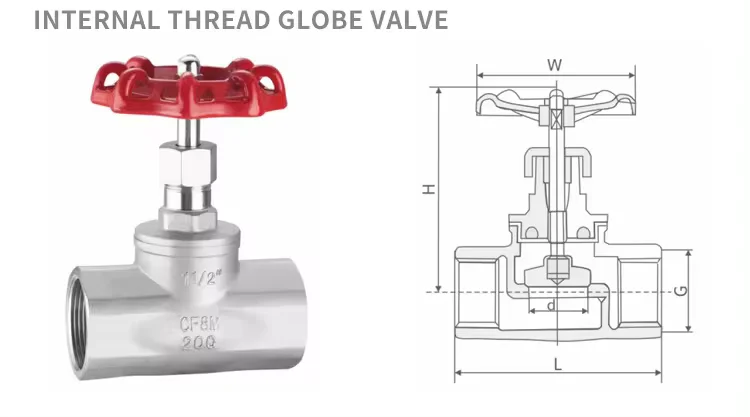

Technical parameter
NPS | DN | L | H | W | G | Weight | |||||
1/2 | 15 | 60 | 88 | 63 | 19 | 0.35kg | |||||
3/4 | 20 | 75 | 90 | 63 | 24 | 0.48kg | |||||
1 | 25 | 85 | 100 | 73 | 31 | 0.64kg | |||||
1-1/4 | 32 | 99 | 120 | 96 | 39 | 1.06kg | |||||
1-1/2 | 40 | 115 | 130 | 96 | 45 | 1.39kg | |||||
2 | 50 | 132 | 143 | 107 | 57 | 2.07kg | |||||
2-1/2 | 65 | 164 | 190 | 125 | 73 | ||||||
3 | 80 | 188 | 205 | 125 | 85 | ||||||
UNIT:MM | |||||||||||
Application Area

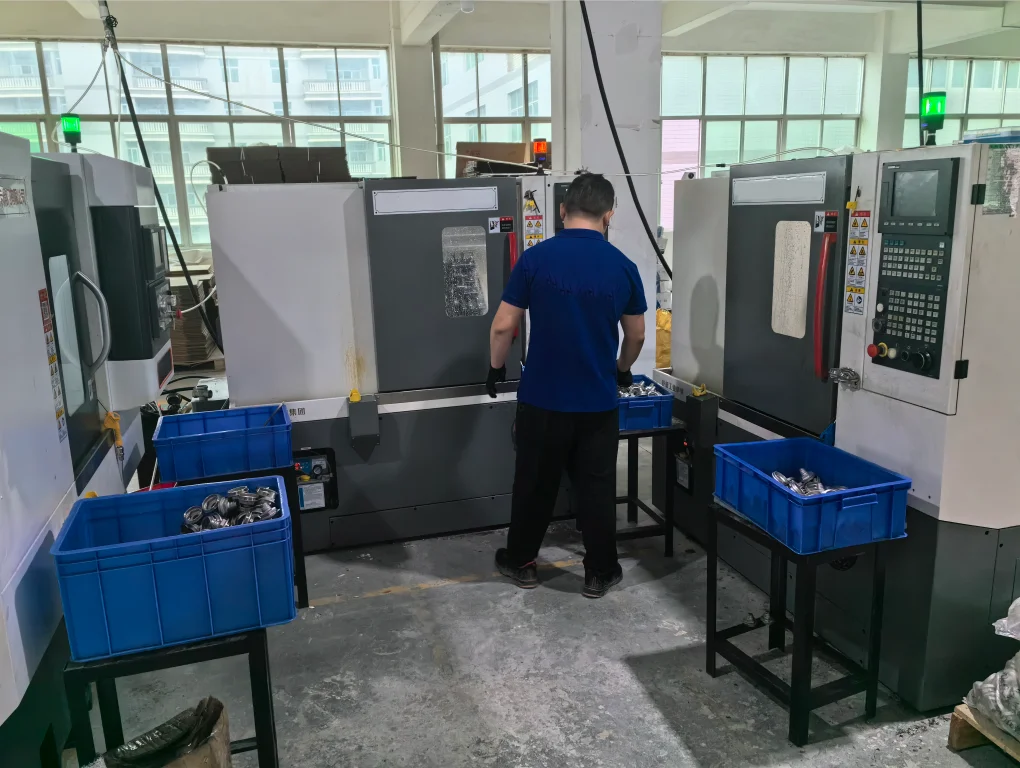

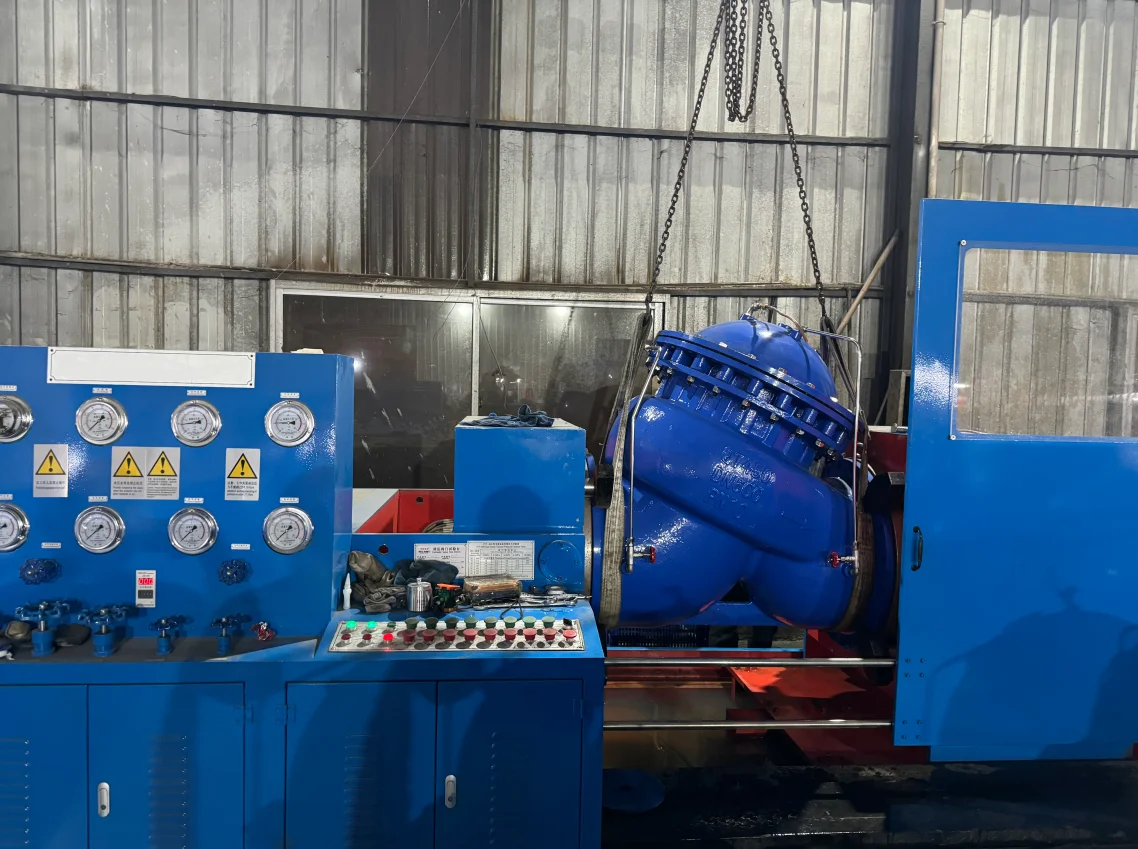

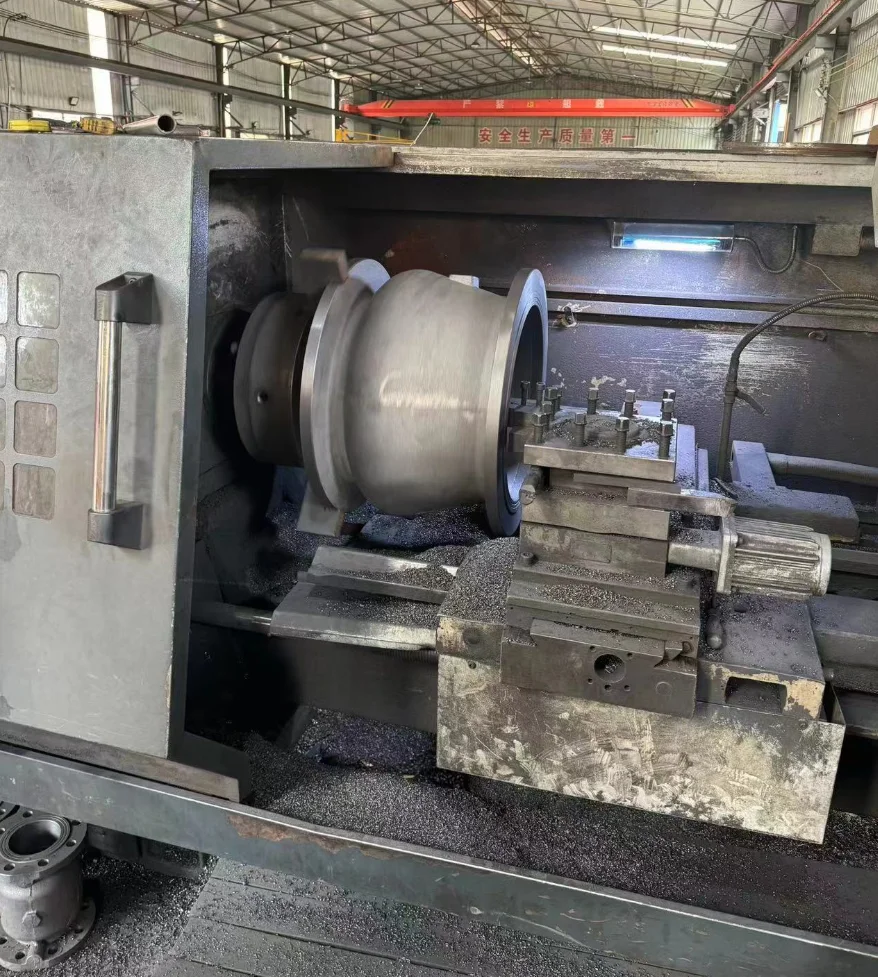

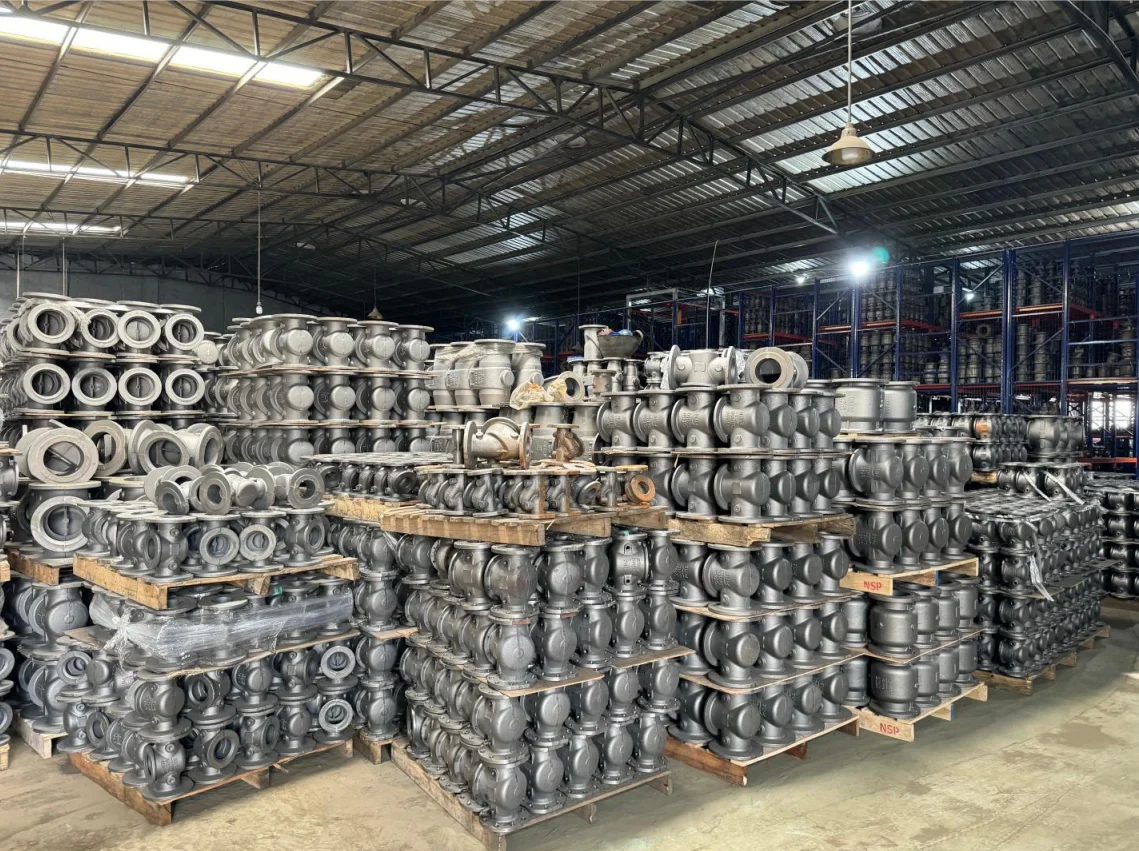

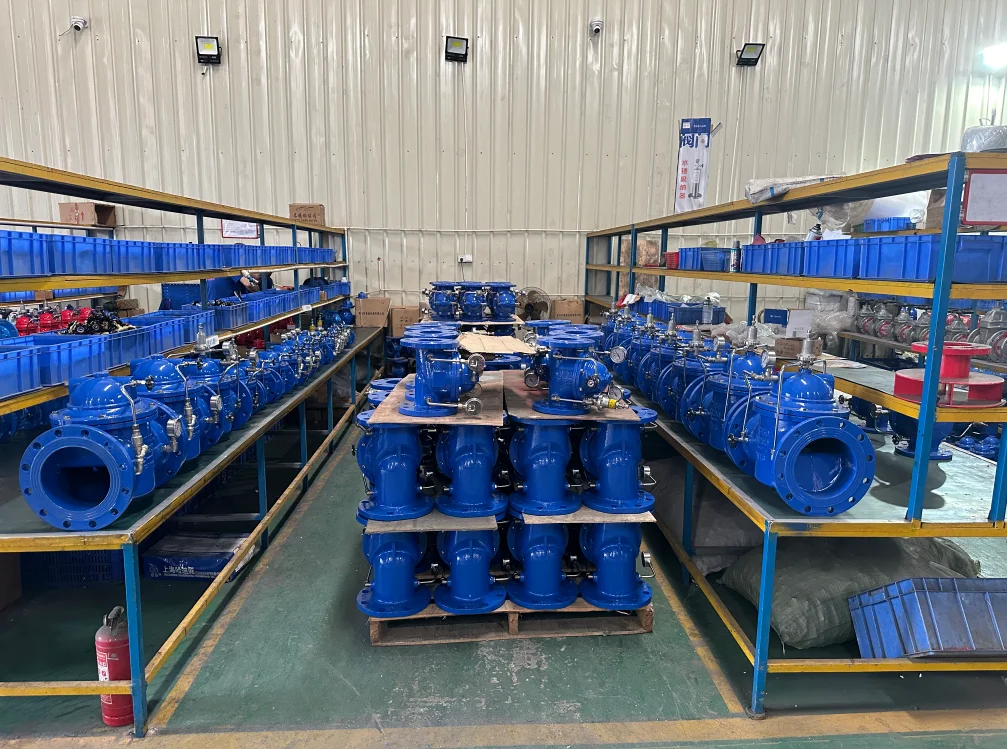

Factory Show

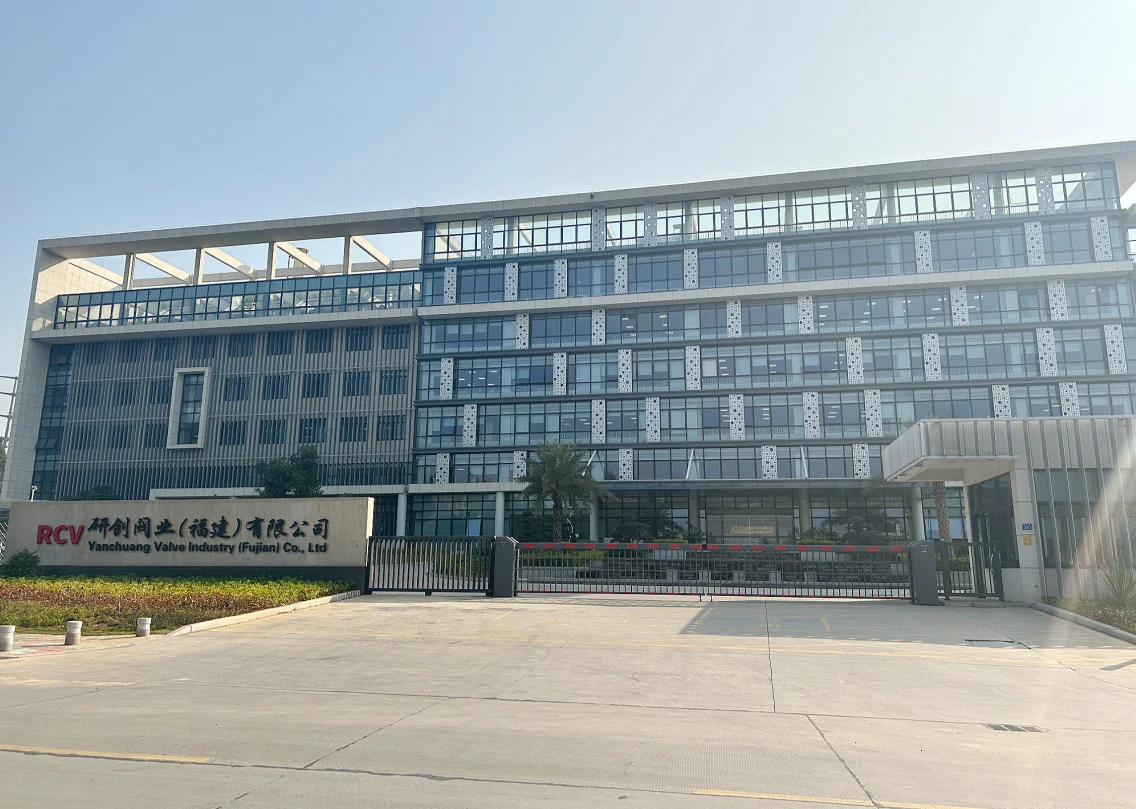

Company Profile
Research Valve Industry (Fujian) Co., Ltd. was established in 2003, which is specialized in designing and manufacturing gate valves, butterfly valves, check valves, filters, hydraulic control valves, electropneumatic valves and ect. Widely used in municipal water supply and drainage, building water supply and drainage, fire water supply, air conditioning pipe network, industrial water, seawater cooling Water conservancy irrigation and other fields. With almost 20 years of production experience, we have become one of the leading manufacturers in this field.
Our company strictly complies with ISO9001: 2008 system, and we have certificates CE, API, TS. We mainly produce valves according to ANSI, DIN, JIS and China GB standards.Our products are widely used in the fields of water, oil, gas, petroleum, chemical and city pipeline networks. With good quality and services, we have gained a good reputation from customers from home and abroad.
Our company strictly complies with ISO9001: 2008 system, and we have certificates CE, API, TS. We mainly produce valves according to ANSI, DIN, JIS and China GB standards.Our products are widely used in the fields of water, oil, gas, petroleum, chemical and city pipeline networks. With good quality and services, we have gained a good reputation from customers from home and abroad.
Facing the furious competition of the valve market, we will fully exert our advantages in technology and management to
continuously improve our product quality and manufacture high quality valves to satisfy customers. We welcome friends from home and abroad to join us, and share the markets around the world.
continuously improve our product quality and manufacture high quality valves to satisfy customers. We welcome friends from home and abroad to join us, and share the markets around the world.

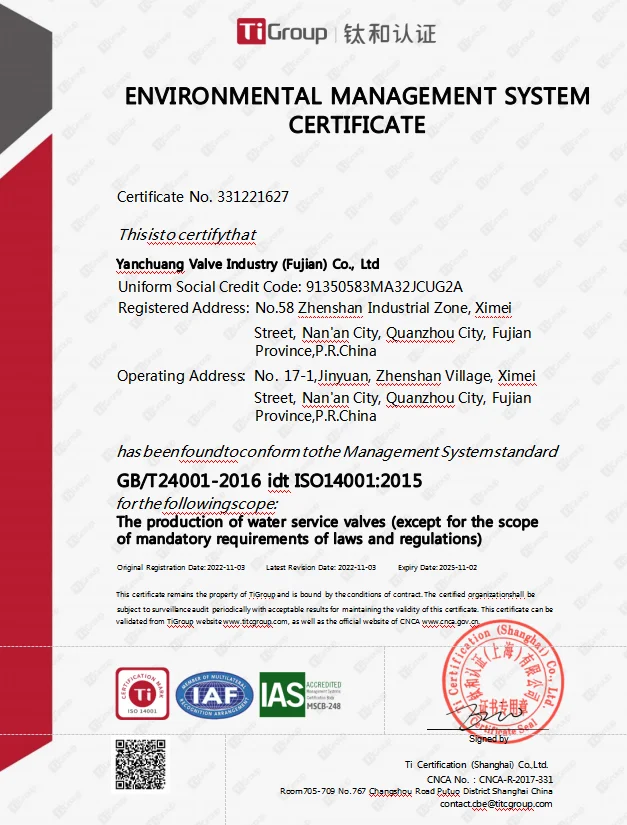

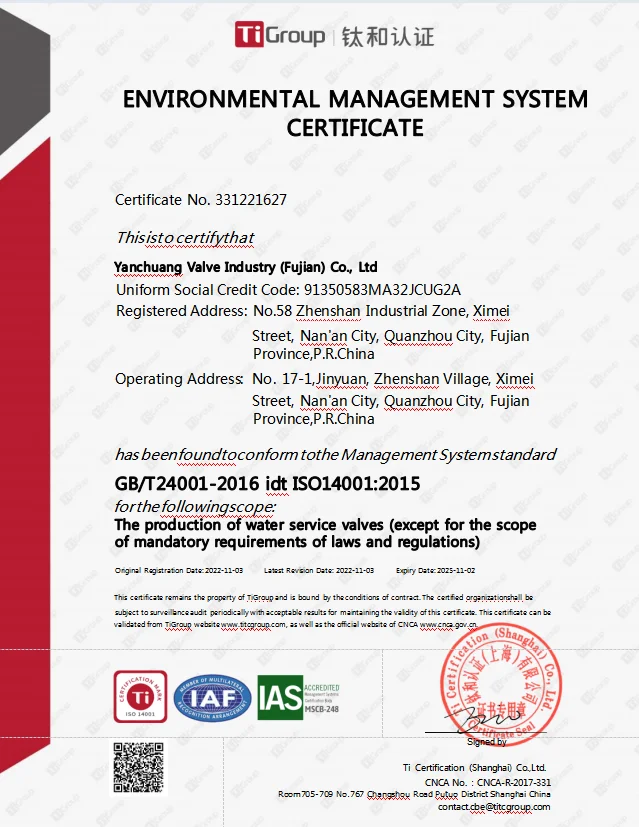

Certifications
Packing & Delivery
Packaging
Inside:Plastic film packaging.
Outside:Export wooden cases.
Outside:Export wooden cases.
Shipping
1.FedEx/DHL/UPS/TNT for sample.Door-to-Door.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
About packaging and shipping,do you have special needs.pls contact us, thanks!
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, we can make it with your exact requirement.
Q: What is your payment term?
A: T/T, 30% down payment, balance to be paid before shipment.
Q:Where is your nearest loading port?
A:Shanghai, Shenzhen, Ningbo or Fujian, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
A:Yes, we can make it with your exact requirement.
Q: What is your payment term?
A: T/T, 30% down payment, balance to be paid before shipment.
Q:Where is your nearest loading port?
A:Shanghai, Shenzhen, Ningbo or Fujian, China.
Q: Can you give me a discount?
A: As you know, we are manufactory, so please believe us and our price is competitive. If the quantity is big,we can consider give you a discount.
A: As you know, we are manufactory, so please believe us and our price is competitive. If the quantity is big,we can consider give you a discount.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
