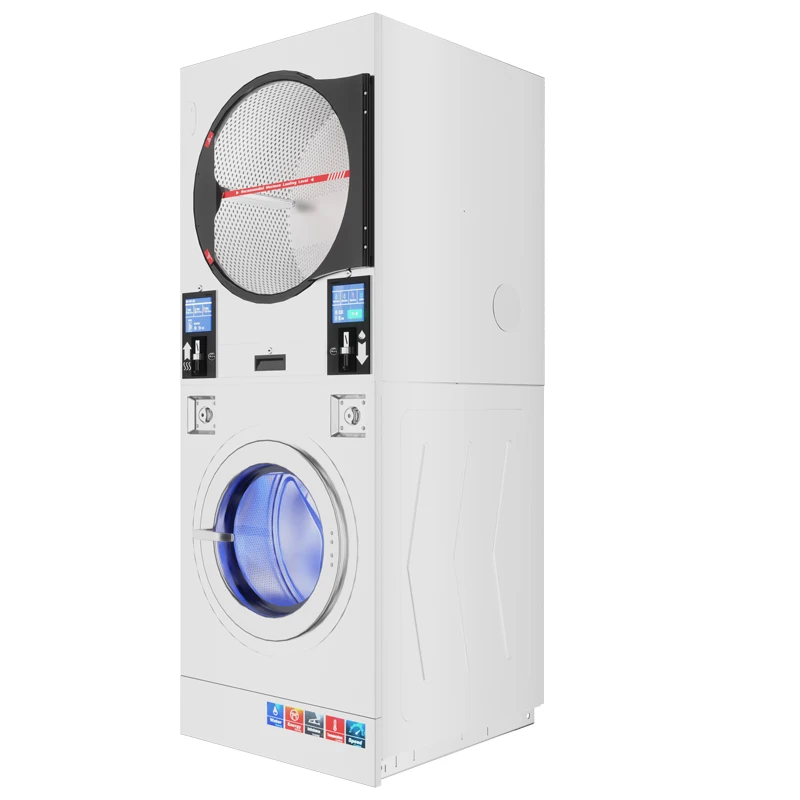

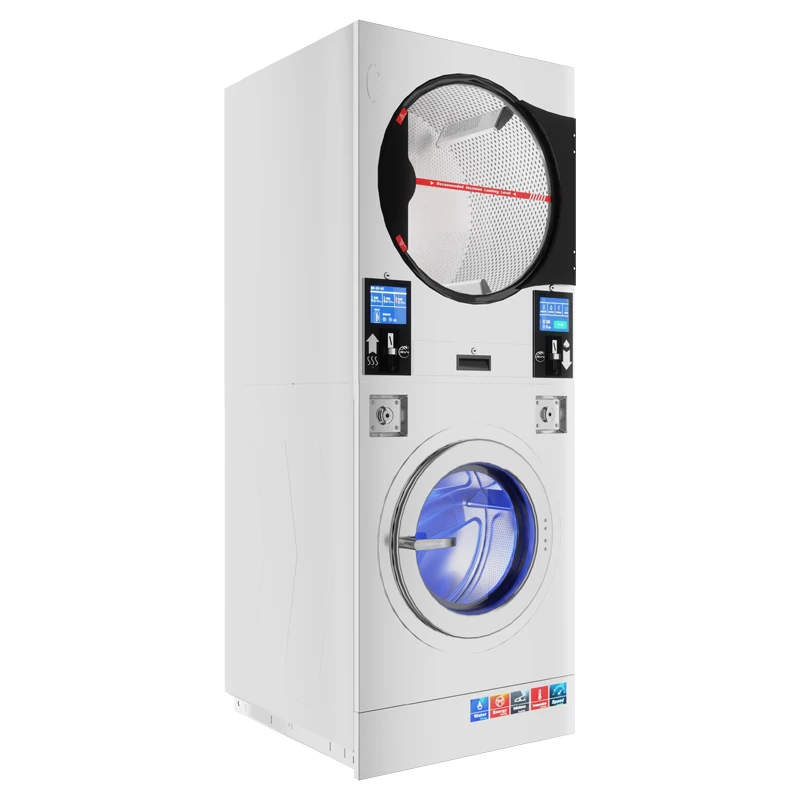

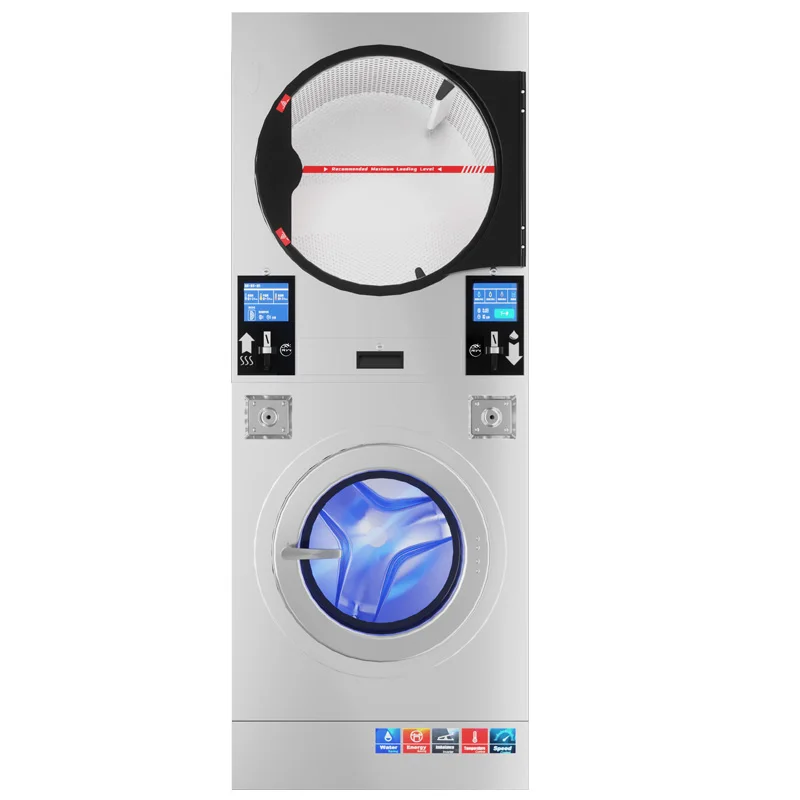

flexible and detachable stack double layer design 7.0 inch touch screen and on screen timer automatic stack washer dryer

Product Overview

Description

Product Description

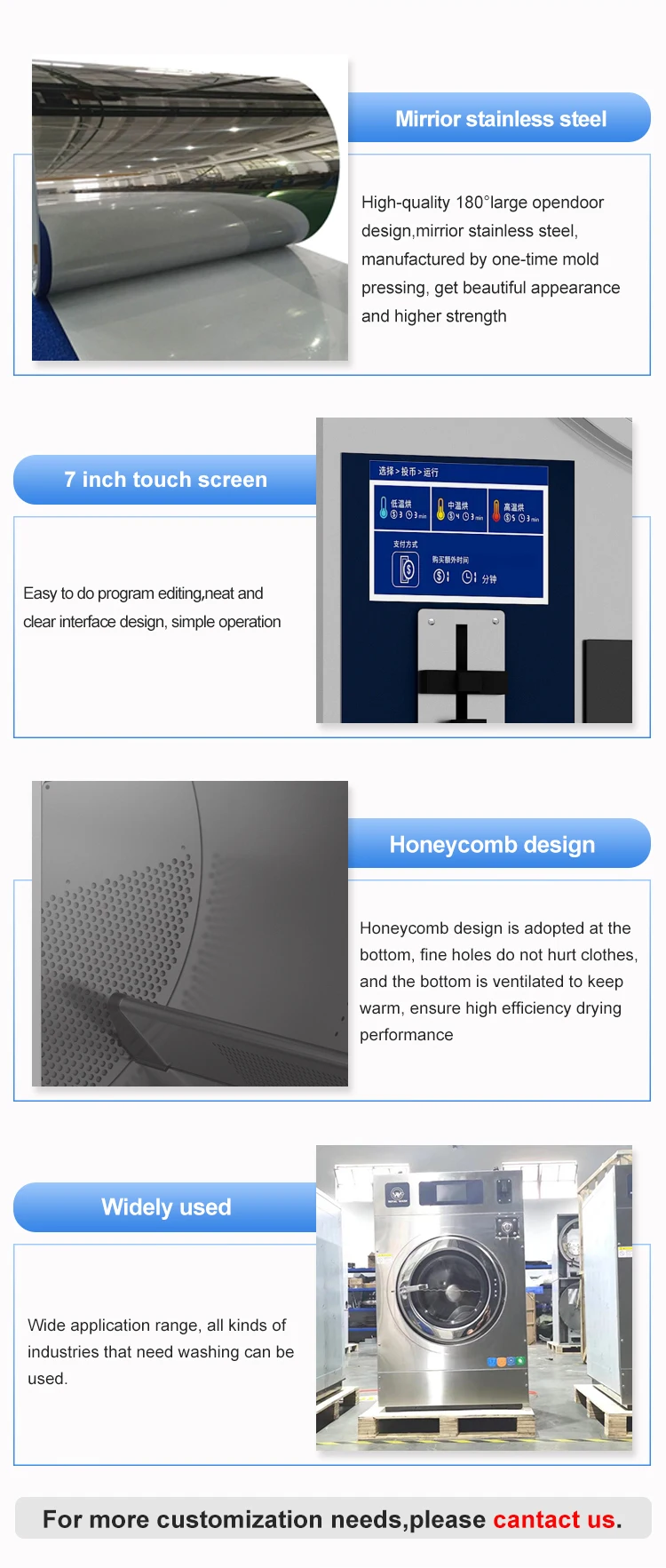

• The drum, and panels are all made by stainless steel material, which can effectively prevent the machine from being corroded and rusted, increasing aesthetics and using life.

• Flexible and detachable stack double layer design, greatly re-duceing floor space.
• Equiped with double User-friendly 7.0 inch intelligent touch screen, 8+ languages available,easy for programs editing.
• On-screen timer so your customers know exactly how much time their cycle will take speed cycle option for those who want to get in and out quickly.
• Front soap box design, clean flushing soap slots.
• Adopt inverter drive system and the world's standard and stable industrial motor, it has stronger stability and higher speed.

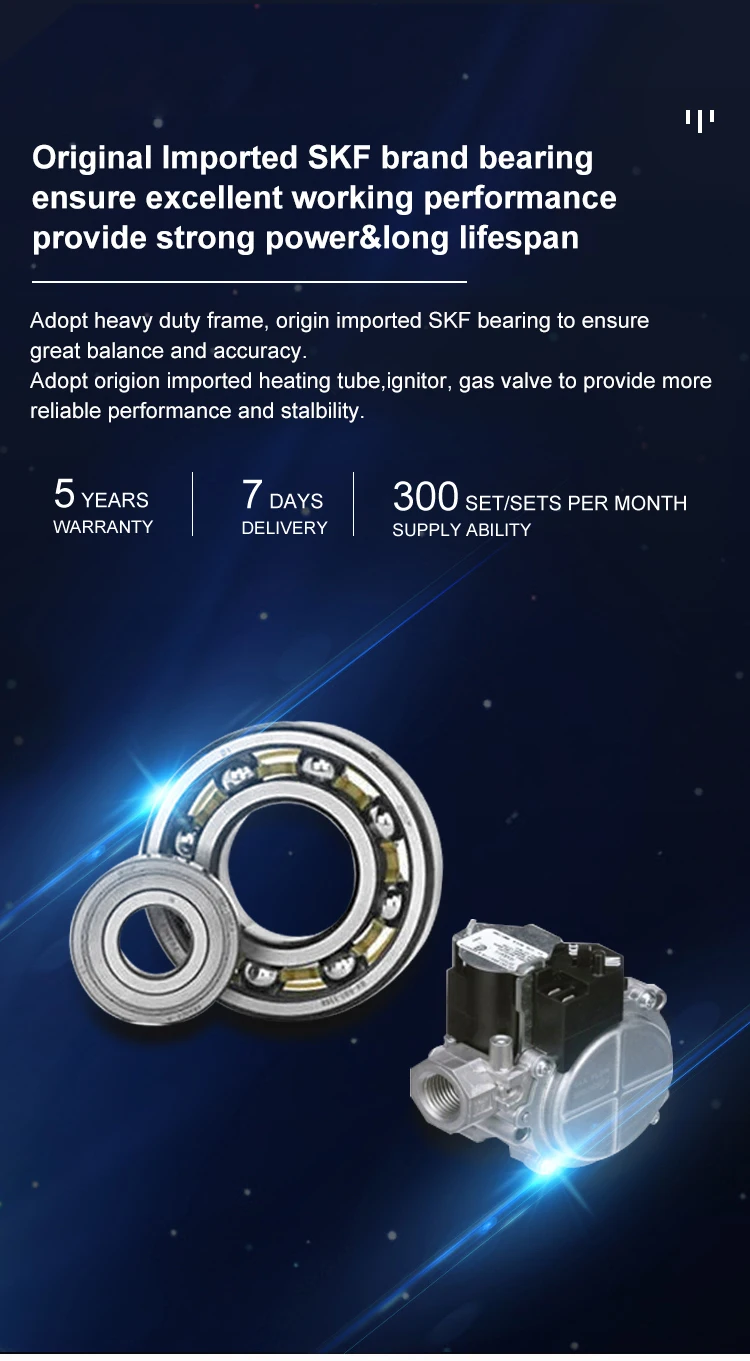

• Adopt stable heavy duty frame, reliable imported Japan brand bearings, durable bearing housing and shaft,greatly reduce any wear and tear.
• 180°Large doors opening with relaxed handles that make loading and unloading a cinch.
• Large lint collector door design, greatly help for daily cleaning Door opening automatic stop sensing function, better protection and safety.
• Multiple heating way optional, customized heating available.

 Product Paramenters

Item	Model Unit	WDH16	WDH22
Capacity	kg	16	22
	lbs	36	49
Washer drum Diameter	mm	670	670
Washer drum Depth	mm	426	520
Dryer drum Diameter	mm	760	860
Dryer drum Depth	mm	710	780
Washing speed	r/min	40	40
Drying speed	r/min	35	35
High-extraction speed	r/min	690	690
Washer Motor power	kw	1.5	2.2
Washer Heating power	kw	12	16
Dryer Motor power	kw	0.37	0.37
Dryer Fan Motor power	kw	0.37	0.37
Dryer Heating power	kw	6	8
Cold water pipe diameter	inch	3/4	3/4
Hot water pipe diameter	inch	3/4	3/4
Drain pipe diameter	inch	3	3
Air exhaust outlet	mm	180	180
Gas inlet	mm	10	10
Width	mm	803	803
Depth	mm	848	1270
Height	mm	2108	2108
Weight	kg	335	455
