dust collector saw dust collector vacuum cleaner Electric Dust Collector For Woodworking Machine

IP55 explosion-proof vacuum cleaner meets the following standards: GB3836.1-2010 explosive environment Part 1: General
requirements for equipment GB3836.2-2010 explosive environment Part II: equipment protected by explosion-proof enclosure "d"

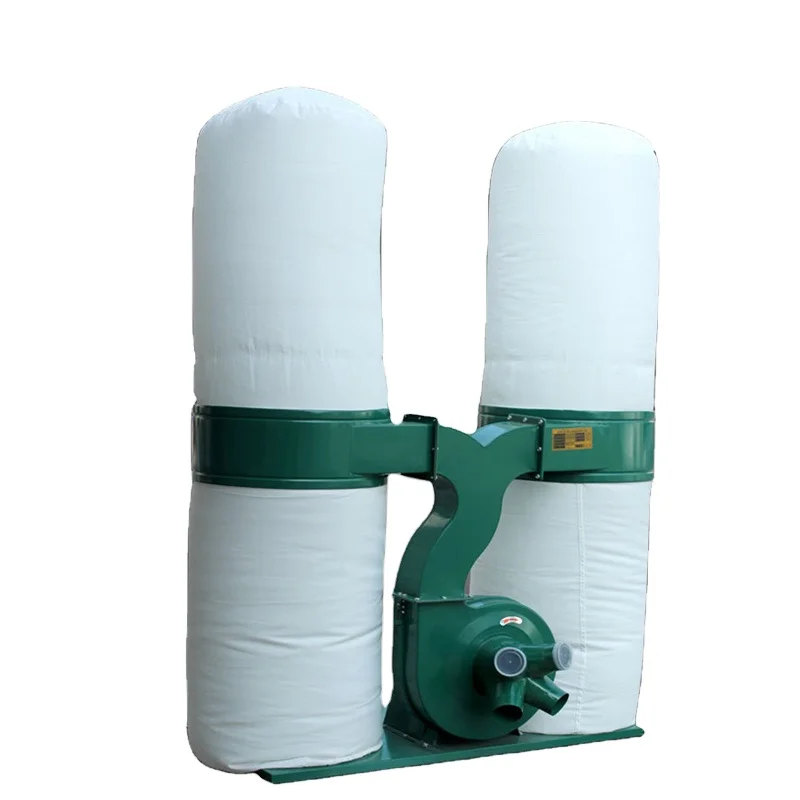

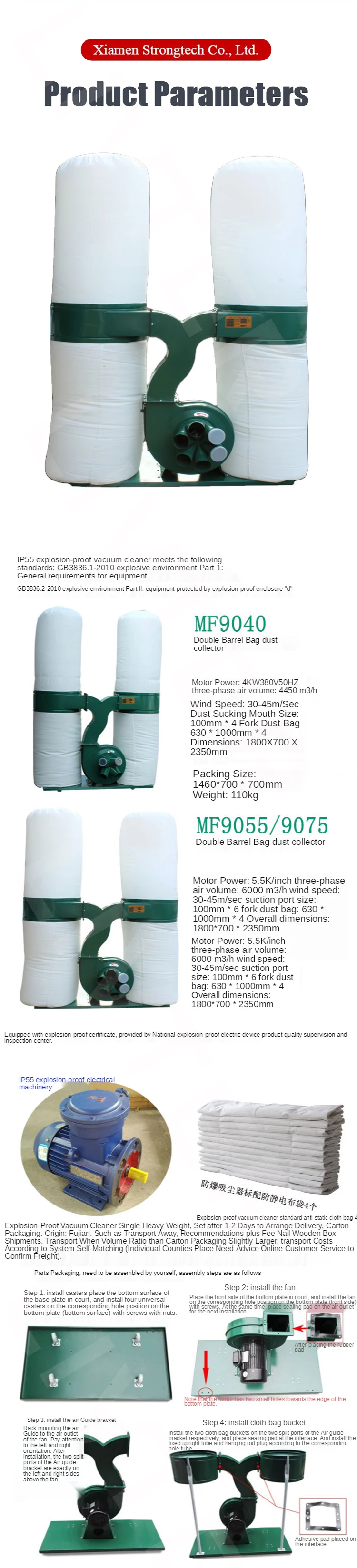

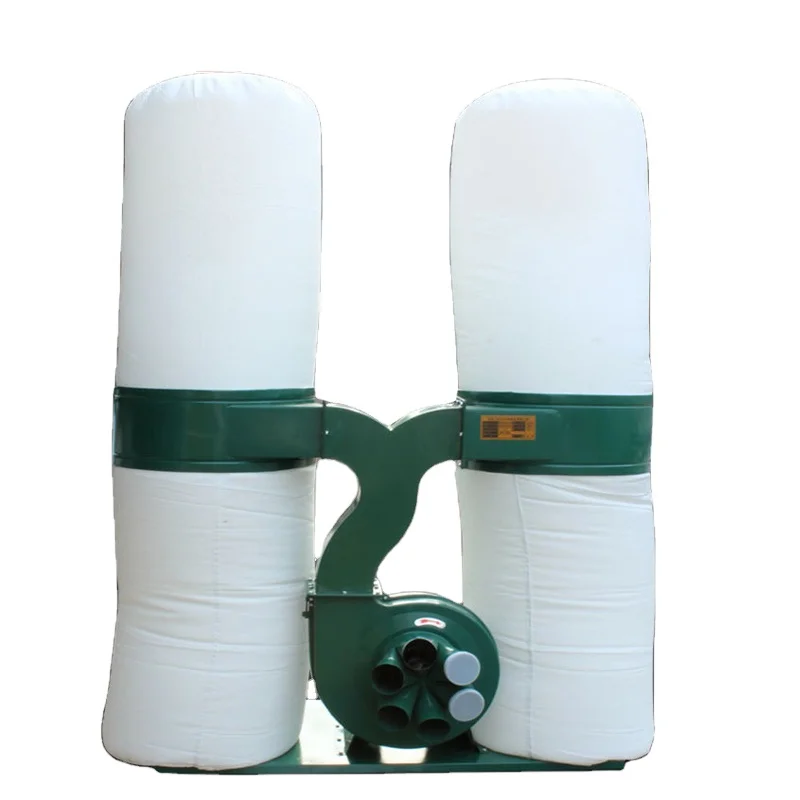

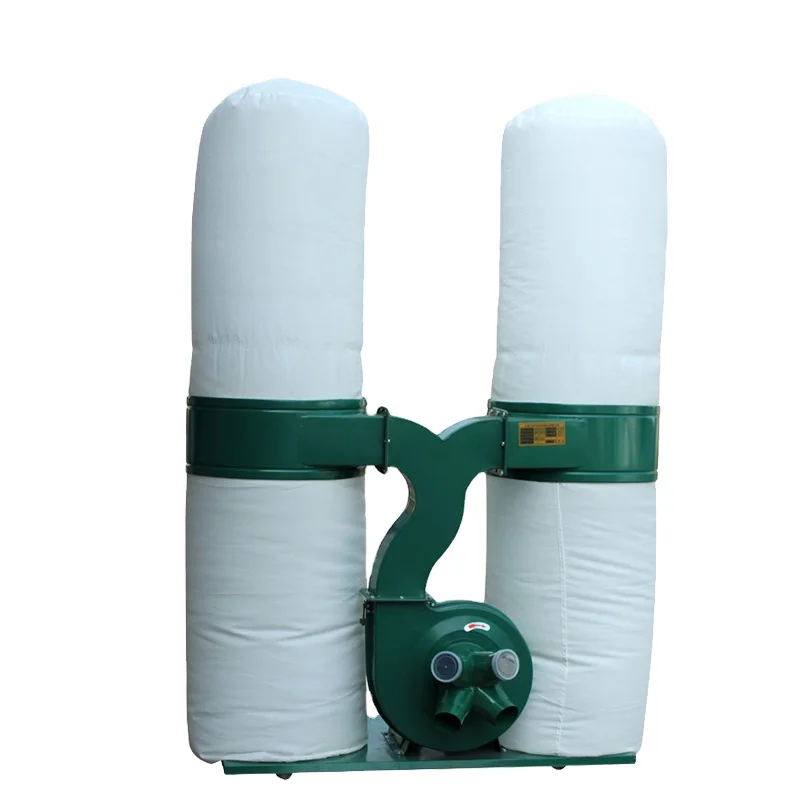

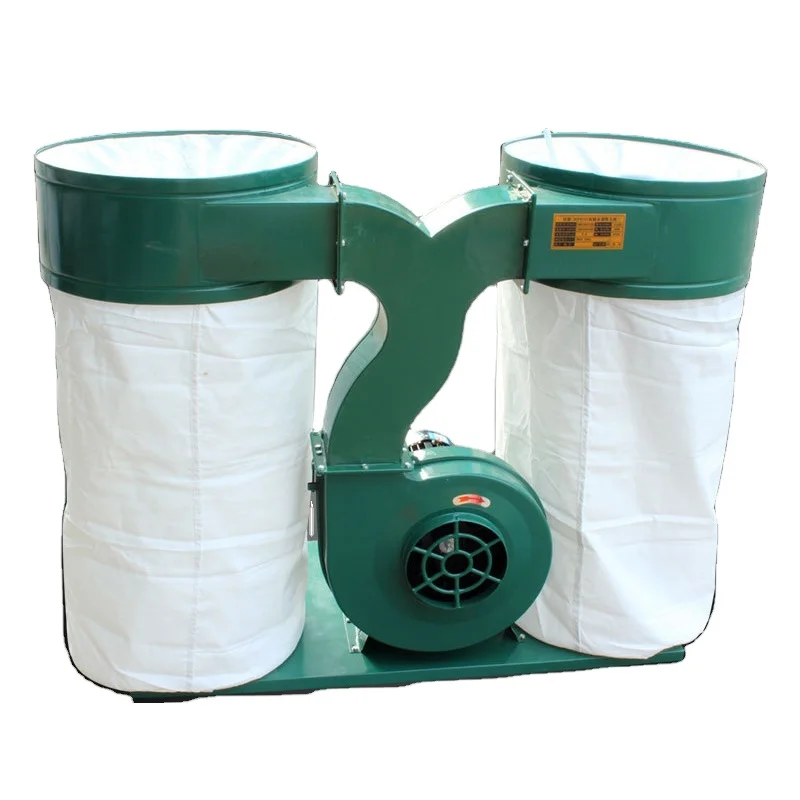

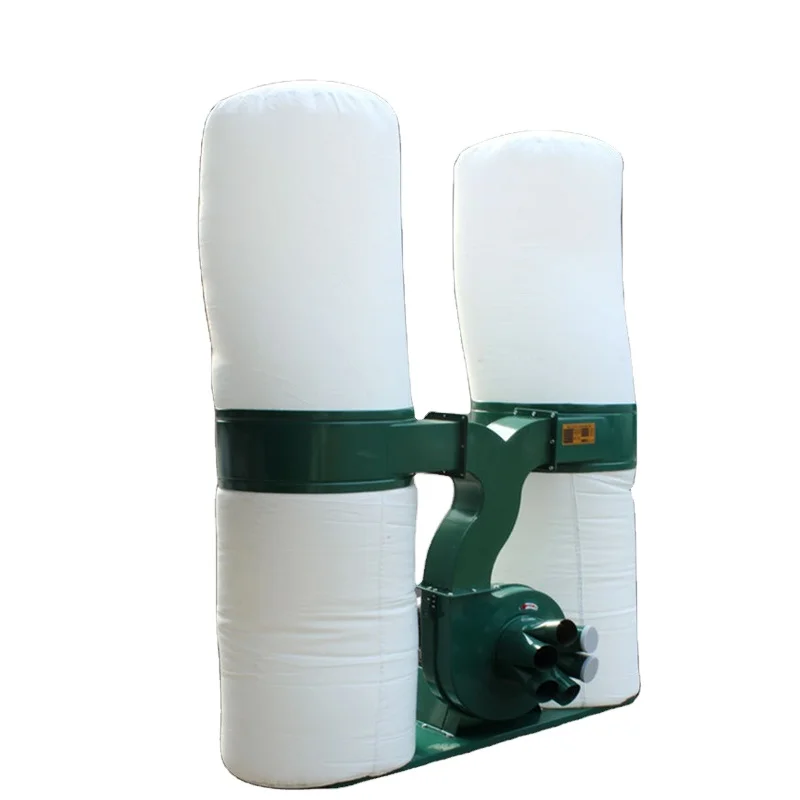

Double Barrel Bag dust collector MF9040 Motor Power: 4KW380V50HZ three-phase air volume: 4450 m3/h Wind Speed: 30-45m/Sec Dust
Sucking Mouth Size: 100mm * 4 Fork Dust Bag 630 * 1000mm * 4 Dimensions: 1800X700 X 2350mm Packing Size: 1460*700 * 700mm Weight:
110kg Double Barrel Bag dust collector F9055/MF9075 Motor Power: 5.5K/inch three-phase air volume: 6000 m3/h wind speed:
30-45m/sec suction port size: 100mm * 6 fork dust bag: 630 * 1000mm * 4 Overall dimensions: 1800*700 * 2350mm Motor Power:
5.5K/inch three-phase air volume: 6000 m3/h wind speed: 30-45m/sec suction port size: 100mm * 6 fork dust bag: 630 * 1000mm * 4
Overall dimensions: 1800*700 * 2350mm Equipped with explosion-proof certificate, provided by National explosion-proof electric
device product quality supervision and inspection center. IP55 explosion-proof electrical machinery Explosion-proof vacuum cleaner
standard anti-static cloth bag 4 Explosion-Proof Vacuum Cleaner Single Heavy Weight, Set after 1-2 Days to Arrange Delivery,
Carton Packaging. Origin: Fujian. Such as Transport Away, Recommendations plus Fee Nail Wooden Box Shipments. Transport When
Volume Ratio than Carton Packaging Slightly Larger, transport Costs According to System Self-Matching (Individual Counties Place
Need Advice Online Customer Service to Confirm Freight). Parts Packaging, need to be assembled by yourself, assembly steps are as
follows Step 1: install casters place the bottom surface of the base plate in court, and install four universal casters on the
corresponding hole position on the bottom plate (bottom surface) with screws with nuts. Step 2: install the fan Place the front
side of the bottom plate in court, and install the fan on the corresponding hole position on the bottom plate (front side) with
screws. At the same time, place sealing pad on the air outlet for the next installation. Step 3: install the air Guide bracket
Rack mounting the air Guide to the air outlet of the fan. Pay attention to the left and right orientation. After installation, the
two split ports of the Air guide bracket are exactly on the left and right sides above the fan. Step 4: install cloth bag bucket
Install the two cloth bag buckets on the two split ports of the Air guide bracket respectively, and place sealing pad at the
interface. And install the fixed upright tube and hanging rod plug according to the corresponding hole tube. Adhesive pad placed
on the interface

Company Profile

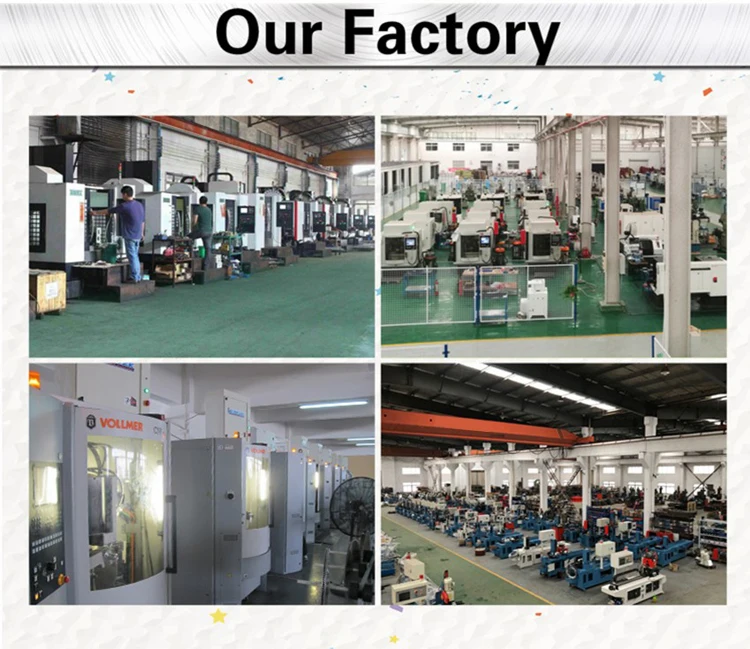

Strong (XiaMen) Mechanical & Electrical Co., Ltd is a professional enterprise specialized in R&D ,manufacturing and sales. she
located in XingLin Taiwanese investment zones,JiMei district,XiaMen City. We focus on:wood-working machinery, machines for cutting
pipes and bending pipes,wood-working tools,band saw blade,and circular saw blade for cutting all kind of materials(such as solid
wood,MDF,HDF,chipboard,steel,stainless steel,lead,aluminium,copper,marble,concrete,glass,etc.) Our enterprise insisted on the
principle of"Preach virtues.safeguard credit.Promote Harmony.Come up with innovation".Our international cooperation partners
include Dimar(Germany), Golden-eagle(Taiwan), KANEFUSA(Japan), With rich technological resoures,advanced equipments(from
Germany),high quality materals(from Germany and japan) ,skilled workers and excellent after-sale service,our enterprise has
enjoyed high reputation both in domestic and overseas matkets,such as Europe,North America,South America,South East Asia,Middle
East. Base on the custmers'requirements,we constantly make efforts to develop and research not only new technology but also new
products.we can customize any specification to fit your request.And all kind of win-win cooperation avenue will be appreciated
