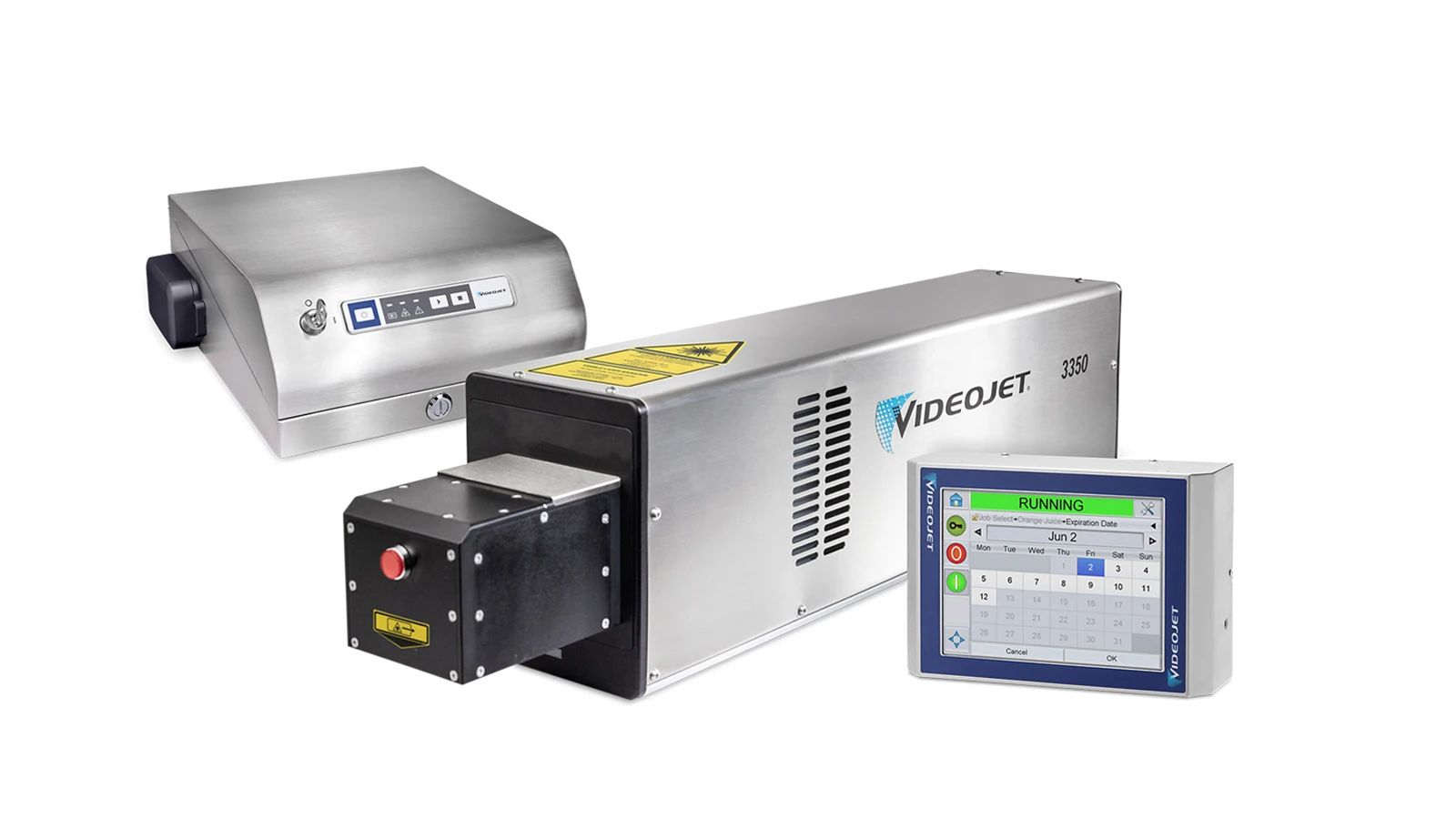

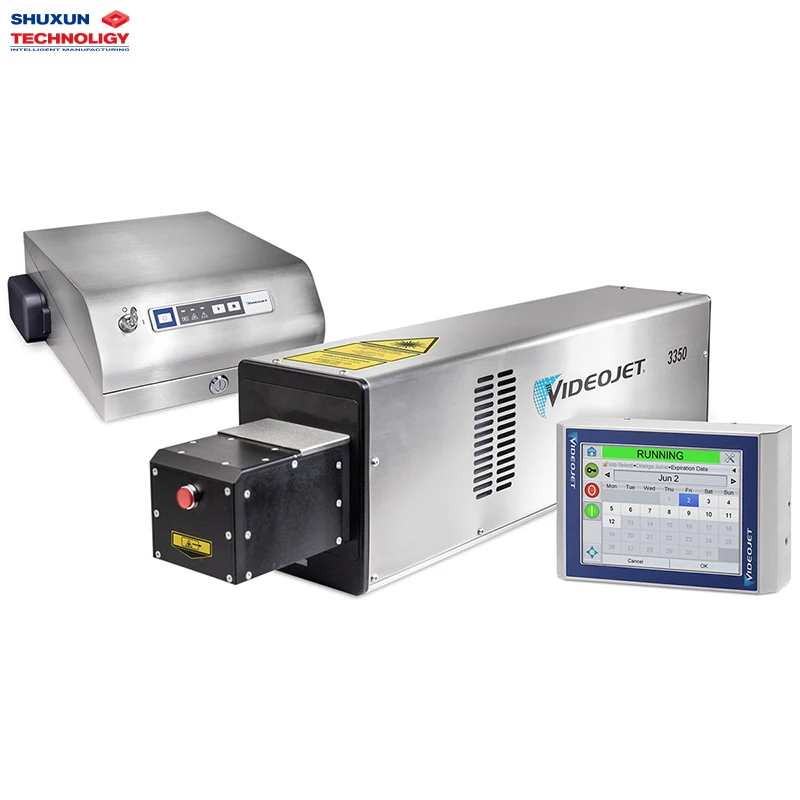

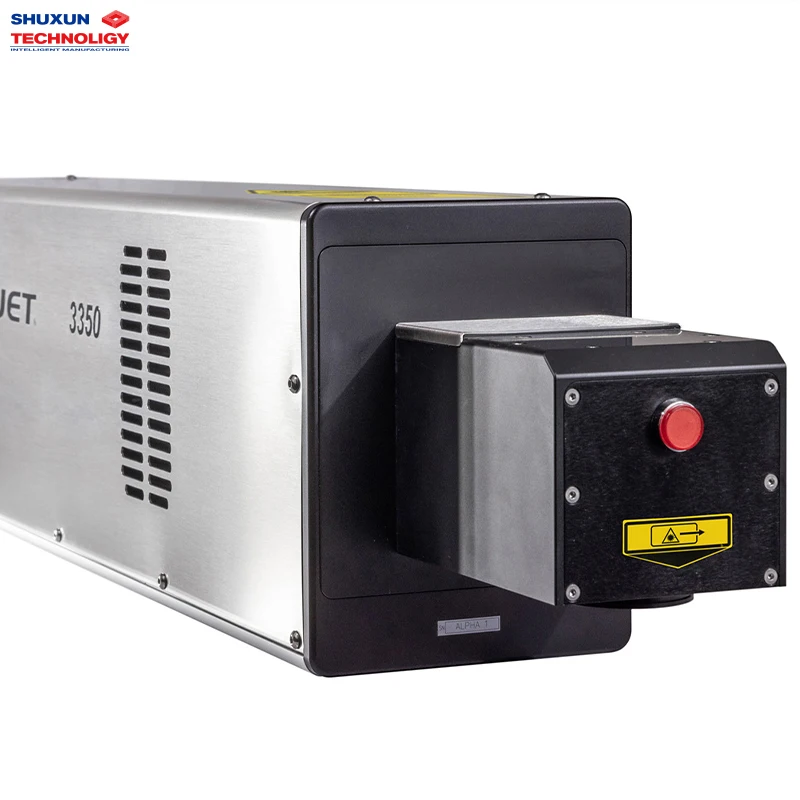

The new Heltny Rask laser marking system the Videojet 3350 CO2 series offers even more flexibility
- Category: >>>
- Supplier: Shanghai Shuxun Technology Co. Ltd.
Share on (1601095795059):
Product Overview
Description
Why Choose Us
Placed in Shanghai
·Complete equipment, consumables and spare parts
·Cheaper price
·Order directly from the factory
·Shortest delivery time
·Most items are in stock
·Cheaper price
·Order directly from the factory
·Shortest delivery time
·Most items are in stock
Product Description
Specification
item | value |
Type | Inkjet Printer |
Applicable Industries | Metalworking Factory, Food & Beverage Factory, Food Factory, Manufacturing Plant, Printing Shops, Beverage Factory |
After Warranty Service | Online support, Video technical support, Spare parts |
Local Service Location | Sri Lanka, Colombia, India, Mexico, Kyrgyzstan, Kazakhstan, Spain, Italy, Nigeria, Canada, Malaysia, Thailand, Kenya, Russia, UAE, Saudi Arabia, Peru, Brazil, Morocco, South Korea, Germany, South Africa, Ukraine, Australia |
Showroom Location | Spain, Argentina, United States, Germany, France, South Korea |
Condition | New |
Plate Type | dtg printer |
Brand Name | videojet |
Usage | Label Printer, Tube Printer |
Automatic Grade | Automatic |
Color & Page | single color |
Voltage | 110V/220V |
Gross Power | 30w |
Year | 2021 |
Dimensions(L*W*H) | 110V/220V |
Weight | 21KG |
After-sales Service Provided | Online support, Video technical support |
Warranty | 1 Year |
Print Dimension | 601 x 440 mm (23.66 x 17.32 in) |
Ink Type | Fast Dry Ink |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Core Components | Pump, PLC |
Working hours | 10001-20000 |
Laser Tube | CO2 |
Laser Cooling | Air Cooled |
Maximum Print Speed | 2000 characters/sec |
Maximum Line Speed | 900 m/min (2,940 ft/min) |
Environmental Protection | IP54, 65 |
Beam Output | Steered Beam |
Laser Source Expected Life | 45,000 hours |
Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
Standard I/O Connectivity | Internal Terminal Connections |
Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
The 3350 series benefits:
The 3350 series benefits:
* High-speed marking capability prints up to 2,000 characters per second of text, bar codes, graphics, and other information

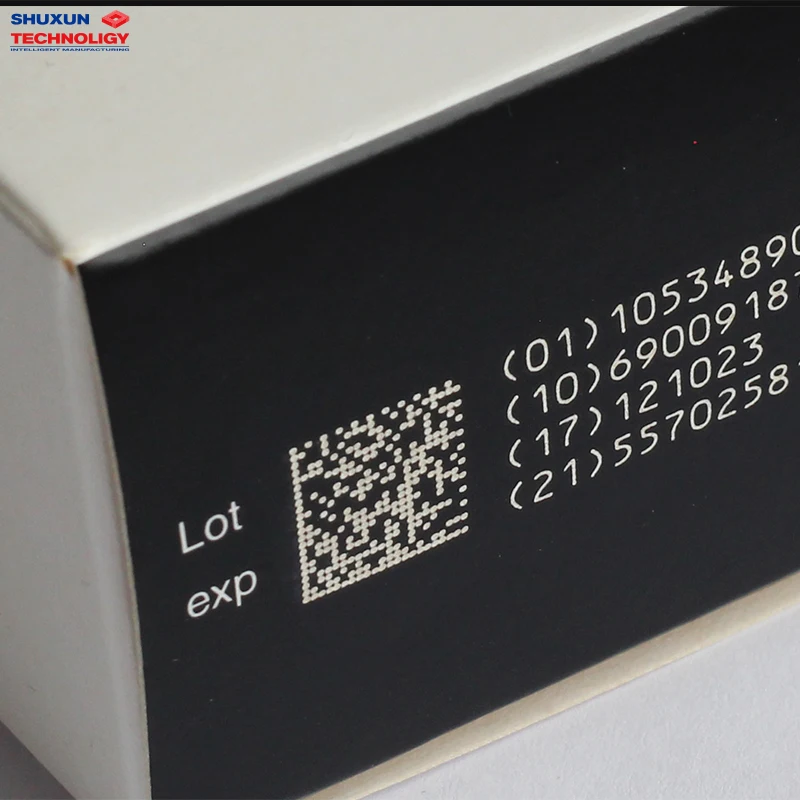

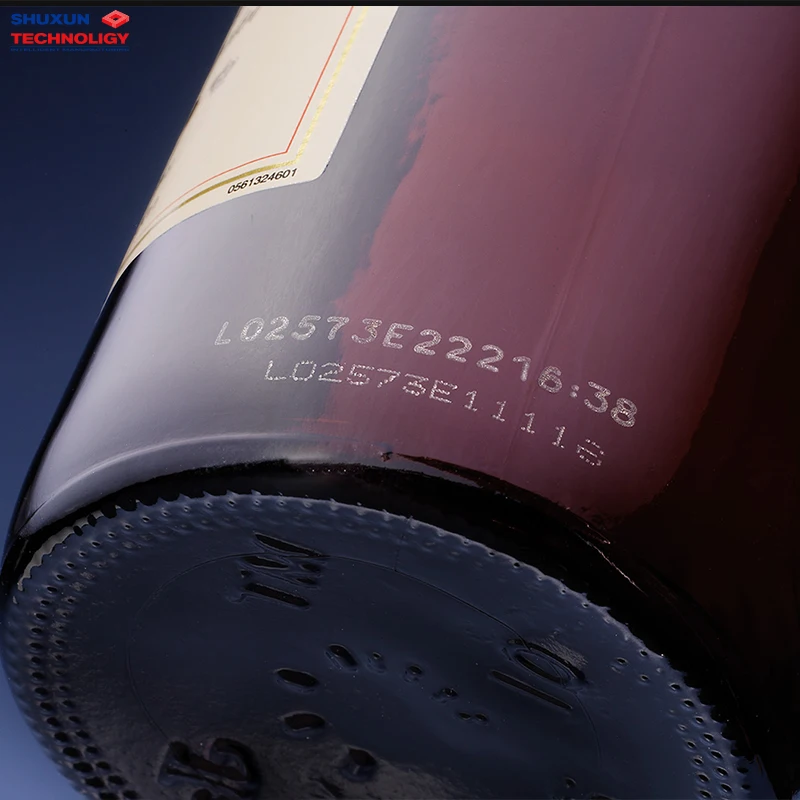

* High-resolution marking head delivers high-quality and permanent codes to support product traceability and anti-counterfeiting

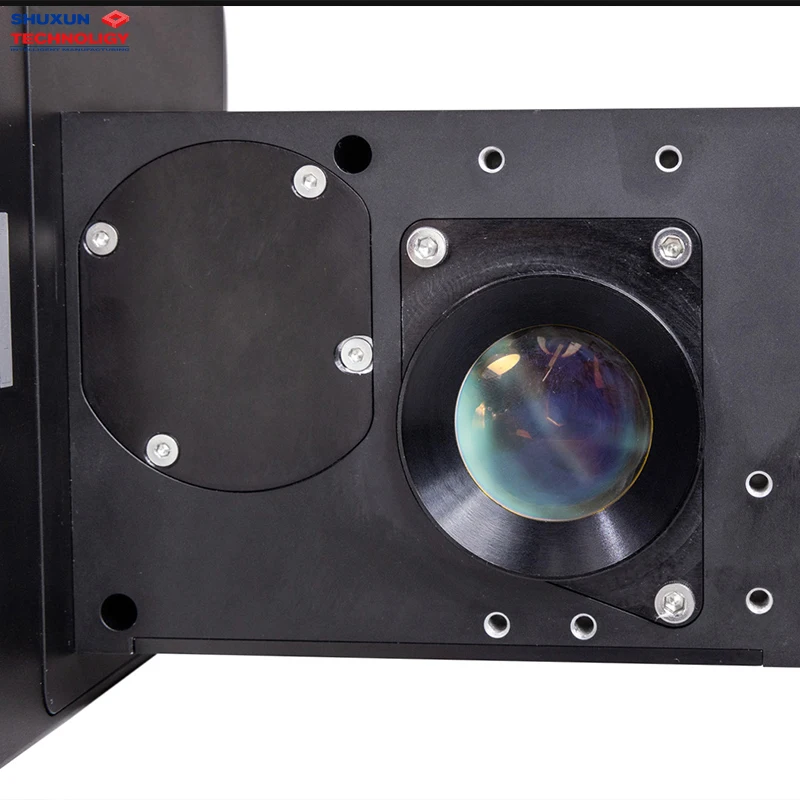

* Variety of lenses deliver one of the largest marking areas while options like beam turning unit options simplify integration

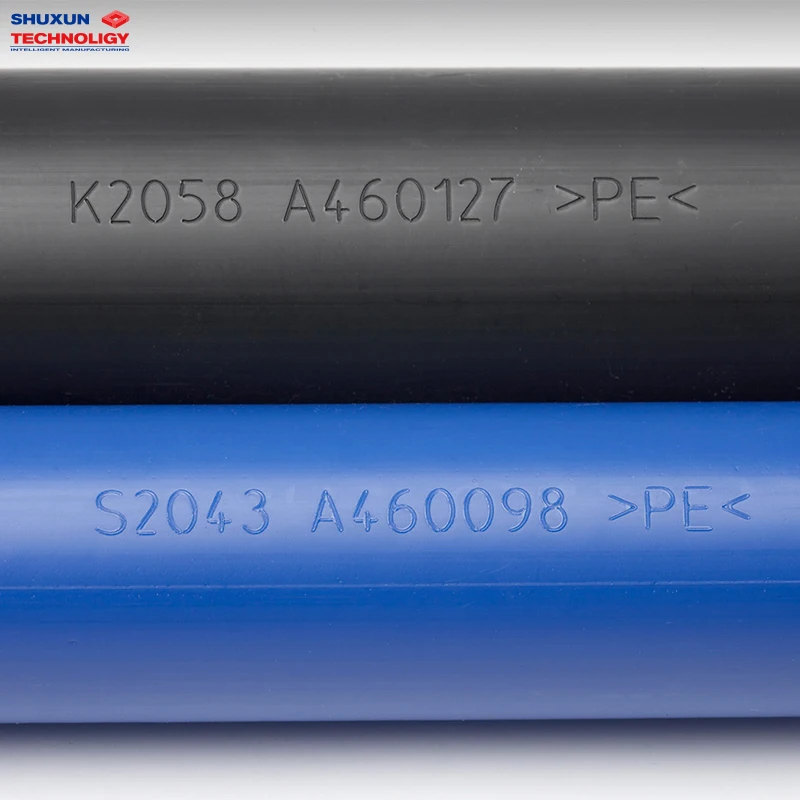

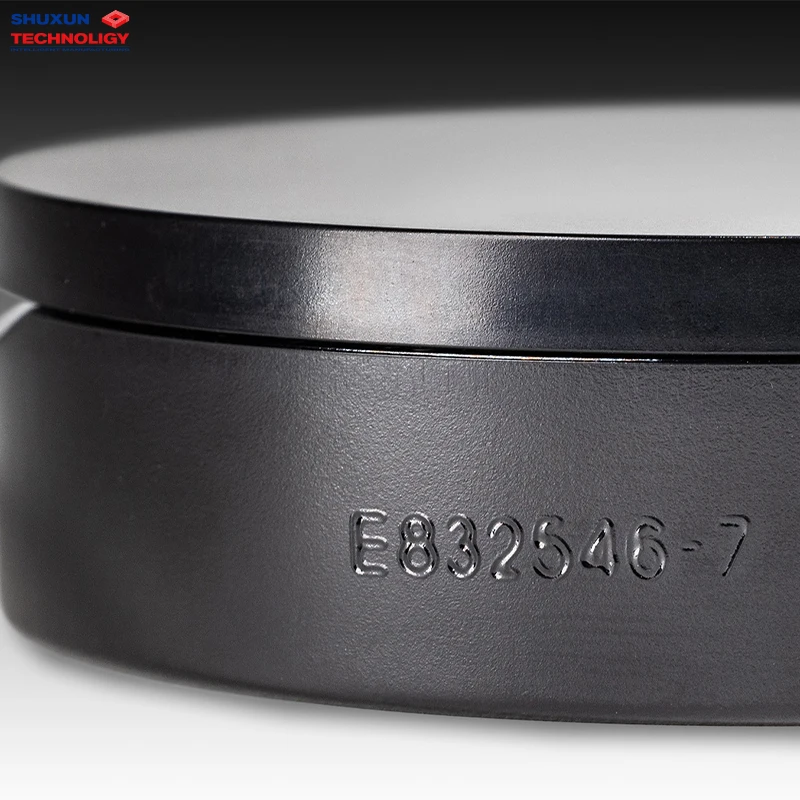

* Multiple marking heads and wavelengths provide the flexibility to code a wide range of materials such as plastics, wood, glass,
ceramics, and coated metals
* Up to 45,000 hours of laser source life expectancy offers extended operational life, reliable performance, and reduced cost of
ownership
* Air-cooled laser source helps reduce maintenance intervals and additional costs
* Wi-Fi and cellular* connectivity capabilities offer advanced remote services to improve printer availability and OEE
*Subject to availability in your country
* High-speed marking capability prints up to 2,000 characters per second of text, bar codes, graphics, and other information
* High-resolution marking head delivers high-quality and permanent codes to support product traceability and anti-counterfeiting
* Variety of lenses deliver one of the largest marking areas while options like beam turning unit options simplify integration
* Multiple marking heads and wavelengths provide the flexibility to code a wide range of materials such as plastics, wood, glass,
ceramics, and coated metals
* Up to 45,000 hours of laser source life expectancy offers extended operational life, reliable performance, and reduced cost of
ownership
* Air-cooled laser source helps reduce maintenance intervals and additional costs
* Wi-Fi and cellular* connectivity capabilities offer advanced remote services to improve printer availability and OEE
*Subject to availability in your country
The 3350 Smart Focus benefits:
* Multi-level surface marking: Mark different-sized products in the same marking field with 2.5D technology, helping to save time and more easily manage complex marking
* Auto-adjustable focal distance: Automatically adjust the focal distance after initial job setup without moving the laser system up and down, reducing errors and user intervention
* Uniform flat field correction: Maintain exceptional print quality with a uniform spot-size marking across the entire field,
with no degradation at the edge
* Pilot beam focus finder: Validate if your laser is focused and positioned correctly, so you can speed up your setup time with
the right working distance and right alignment
* Flexible range and size mode: Effortlessly alternate between greater focal distance range or an expanded marking field size,
allowing for the completion of a diverse array of jobs
* Auto-adjustable focal distance: Automatically adjust the focal distance after initial job setup without moving the laser system up and down, reducing errors and user intervention
* Uniform flat field correction: Maintain exceptional print quality with a uniform spot-size marking across the entire field,
with no degradation at the edge
* Pilot beam focus finder: Validate if your laser is focused and positioned correctly, so you can speed up your setup time with
the right working distance and right alignment
* Flexible range and size mode: Effortlessly alternate between greater focal distance range or an expanded marking field size,
allowing for the completion of a diverse array of jobs
Company Profile
Office in Shanghai

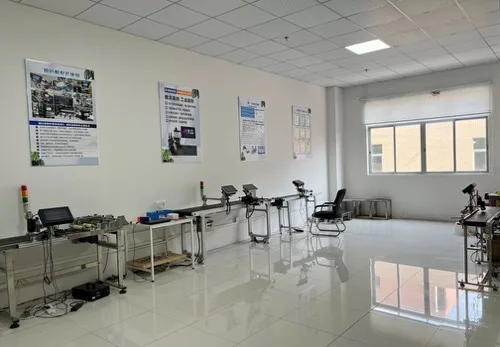

Showroom in Shanghai
