1000L Electric mixer Pneumatic deceleration mixer Ink glue Paint chemistry laboratory food
- Category: >>>
- Supplier: Shenzhen Tyda Coating Equipment Co. Ltd.
Share on (1601095900941):
Product Overview
Description
Products Show
Specification

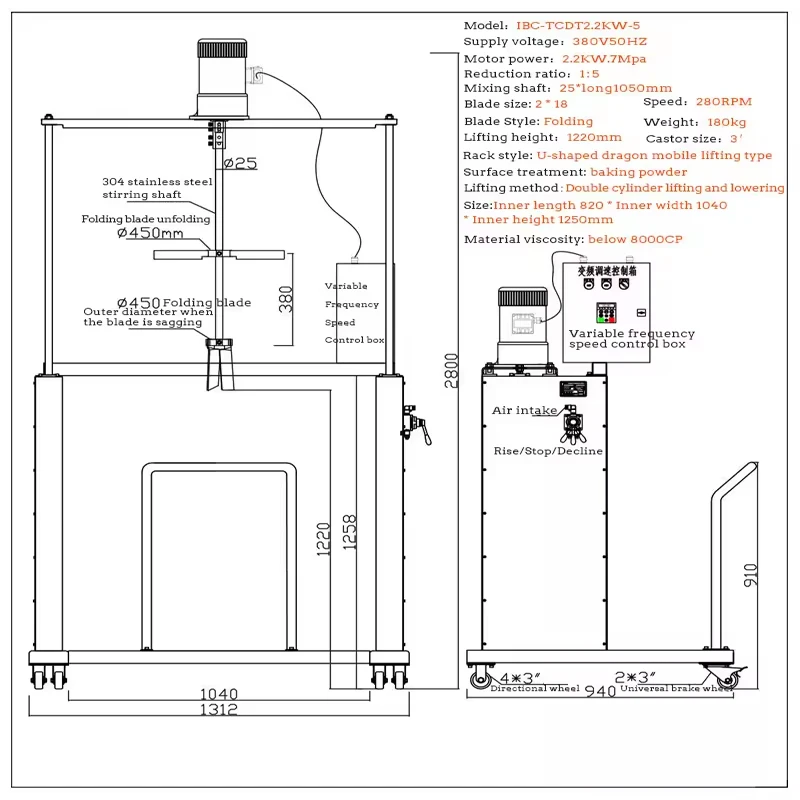

Model: IBC-TCDT2.2KW Power supply voltage: 380V 50HZ Material type: liquid - liquid Operation method: continuous operation
Applicable logistics: glue, chemicals, polymers, lotion, engine oil, solvents, resins, etc Mixing capacity: IBC ton bucket
(1000L): length 1200 * width 1000 * height 1160mm Stirred liquid viscosity: below 5000CPMotor power: 2.2KW (4-stage motor) Reduction ratio: 1:5 Speed range: 0-280 rpm (variable frequency speed regulation) Mixing shaft
size: Φ 25 * length 950mm Paddle style: Telescopic (the outer diameter of the paddle is small when folded, making it easy to fit
into an IBC bucket with a diameter of only 160mm at the barrel mouth; it quickly unfolds during mixing) Blade size: 18 ″ * 2
pieces (Δ 450mm) (outer diameter of the blade when folded in: 90mm; outer diameter of the blade when unfolded: 400mm) Rack
material: thickened channel steel (stainless steel material optional) Appearance treatment: baking paint
Rack style: trolley mobile lifting type, equipped with 3 "directional wheels and 2 universal brake wheels Lifting method: dual
cylinder automatic lifting, dual guide rail auxiliary lifting device (can be freely positioned) Lifting height: 1230mm from the
ground to the bottom of the blade Rack size: 980 length * 1320 width * 1700mm height Product weight: approximately 180 kilograms
Packaging method: After the entire machine passes the test, it is packaged in modules and wooden frames
Applicable logistics: glue, chemicals, polymers, lotion, engine oil, solvents, resins, etc Mixing capacity: IBC ton bucket
(1000L): length 1200 * width 1000 * height 1160mm Stirred liquid viscosity: below 5000CPMotor power: 2.2KW (4-stage motor) Reduction ratio: 1:5 Speed range: 0-280 rpm (variable frequency speed regulation) Mixing shaft
size: Φ 25 * length 950mm Paddle style: Telescopic (the outer diameter of the paddle is small when folded, making it easy to fit
into an IBC bucket with a diameter of only 160mm at the barrel mouth; it quickly unfolds during mixing) Blade size: 18 ″ * 2
pieces (Δ 450mm) (outer diameter of the blade when folded in: 90mm; outer diameter of the blade when unfolded: 400mm) Rack
material: thickened channel steel (stainless steel material optional) Appearance treatment: baking paint
Rack style: trolley mobile lifting type, equipped with 3 "directional wheels and 2 universal brake wheels Lifting method: dual
cylinder automatic lifting, dual guide rail auxiliary lifting device (can be freely positioned) Lifting height: 1230mm from the
ground to the bottom of the blade Rack size: 980 length * 1320 width * 1700mm height Product weight: approximately 180 kilograms
Packaging method: After the entire machine passes the test, it is packaged in modules and wooden frames
Function Characteristics
1. Equipped with high-quality motor and reducer, it has high torque and strong power.
2. Variable frequency speed control, with adjustable speed according to usage requirements.
3. The coupling, mixing shaft, and mixing blade are made of SUS304 # stainless steel material; Surface polishing treatment.
4. The coupling and blade are fixed with screws; Convenient disassembly and assembly;Easy to clean and maintain.

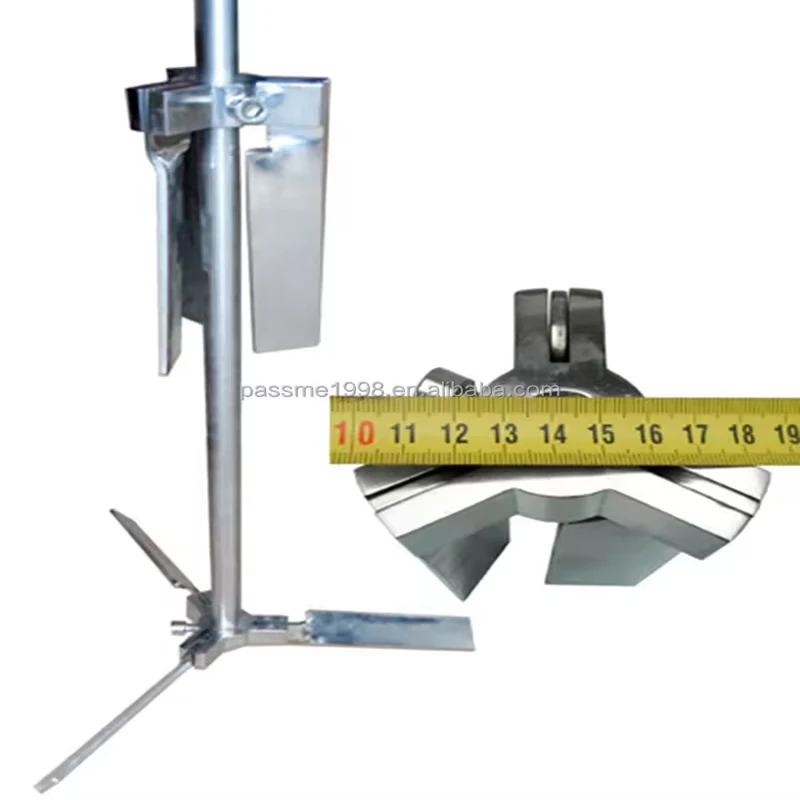

5. Equipped with 2 layers of retractable blades, specifically designed and customized for IBC ton
barrels. Suitable for barrels with a mouth diameter of less than 140MM.
barrels. Suitable for barrels with a mouth diameter of less than 140MM.
6. The rack is made of thickened carbon steel material, and the surface is treated with acid pickling, phosphating, and painting
7. Adopting dual pneumatic cylinders for lifting and lowering, with dual guide rails to assist in lifting and lowering, making the lifting and lowering more stable and secure.
8.Lifting height: 1250mm from the ground to the bottom of the blade
9. The conventional configuration for the liquid contact part is SUS304 # stainless steel material, which can be customized with 316L stainless steel.
