Customizable 3D Nitriding Welding Table Adjustable Anti Rust Steel and Cast Iron Platform New Condition
- Category: >>>
- Supplier: Hebei Weiyue Machinery Co. Ltd.Hebei Ltd.
Share on (1601095912572):
Product Overview
Description

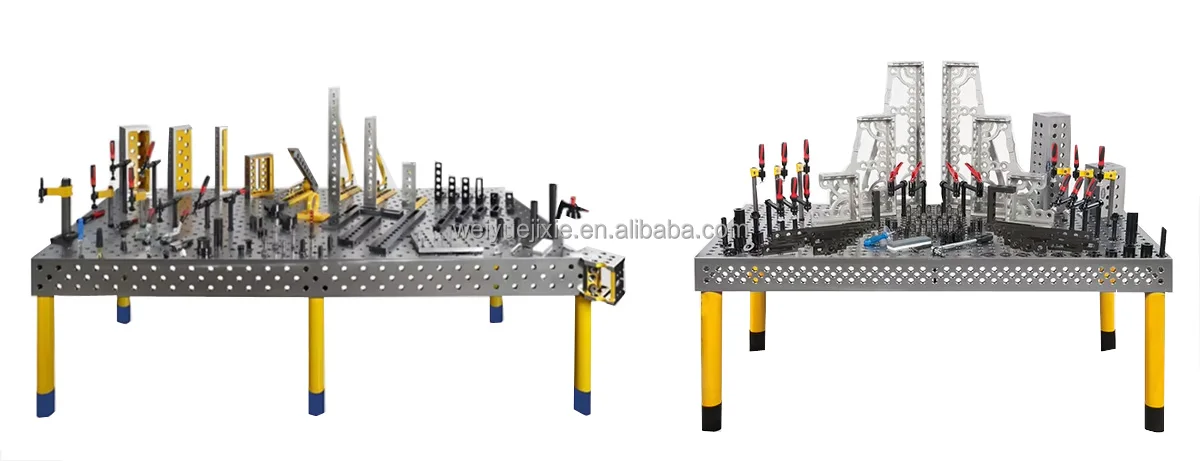

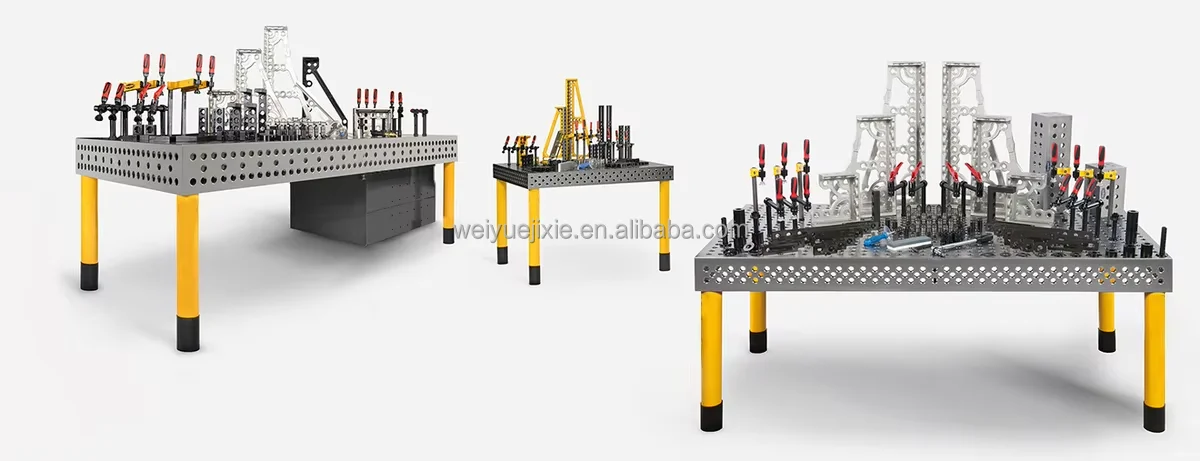

3D Welding Table
3D Welding Table is a universal welding clamping and fixturing system to meet fixing requirements of any different welding structures.
Divided by material：Steel Welding Table and Casting Welding Table
Divided by material：Steel Welding Table and Casting Welding Table

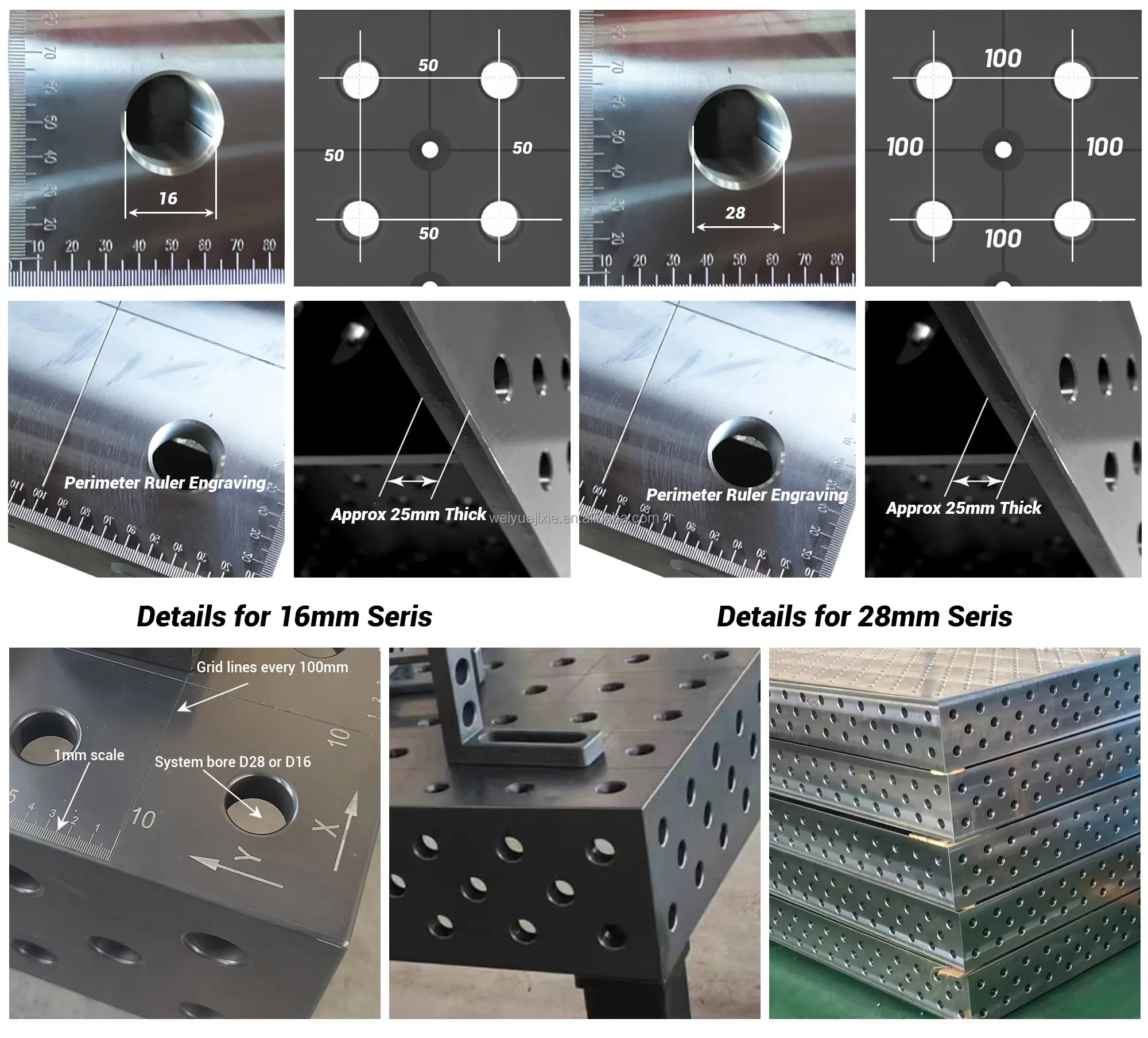

According to its hole diameter: D28 series and D16 series
Diagonal grid: D28 is 100*100mm; D16 is 50*50mm
Supporting: legs, steel frame and hydraulic lifting box,according to
Supporting: legs, steel frame and hydraulic lifting box,according to
requirements
3D welding table — D28 series
Aperture：φ28.065--φ28.149mm
Hole spacing：L1=100±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA3.2
Standard load bearing： 2T
Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications:1000*1000~2000*4000mm.
Hole spacing：L1=100±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA3.2
Standard load bearing： 2T
Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications:1000*1000~2000*4000mm.

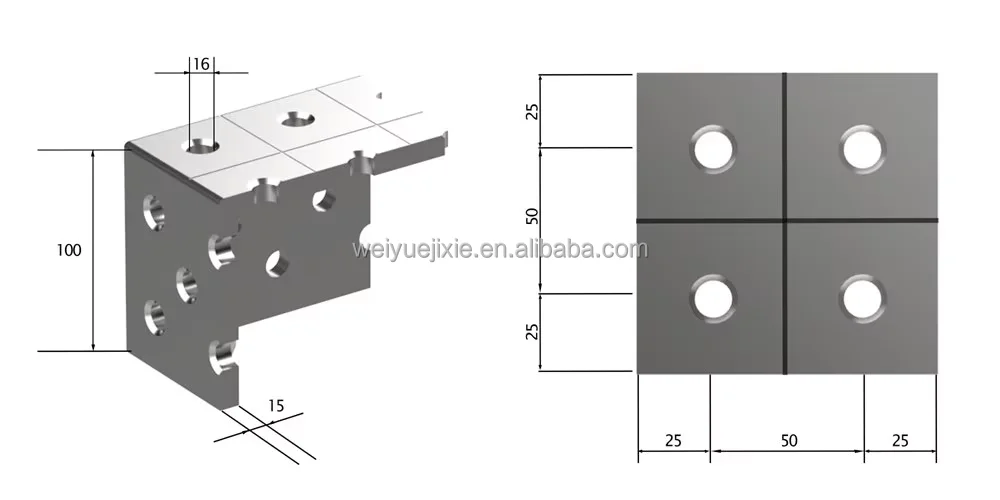

3D welding table — D16 series
Aperture：φ16.065--φ16.149mm
Hole spacing：L1=50±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA1.6
Standard load bearing：2T
Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications：1000*500~2400*1200mm
Hole spacing：L1=50±0.05mm
Flatness：0.1/1000mm
Verticality：0.1/200mm
Surface roughness：RA1.6
Standard load bearing：2T
Frame bearing：5T
Nitriding hardness：HV450~HV630
Specifications：1000*500~2400*1200mm

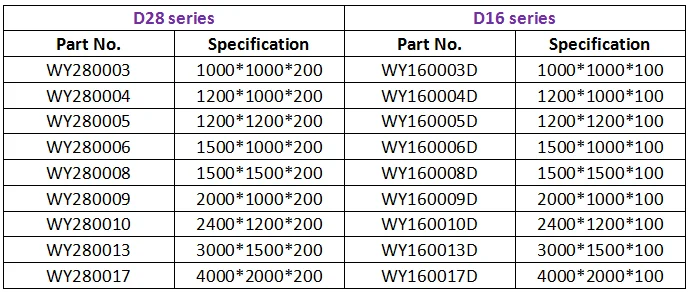

Common product specifications reterrnce (all sazes canbe customized) |

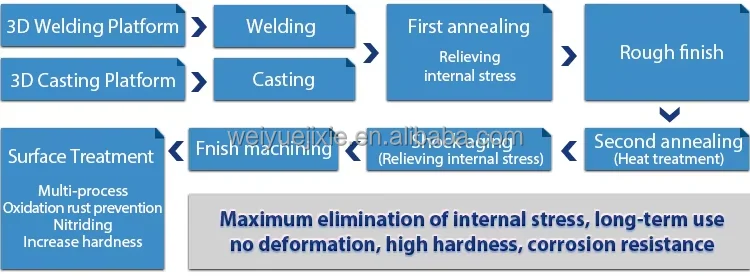

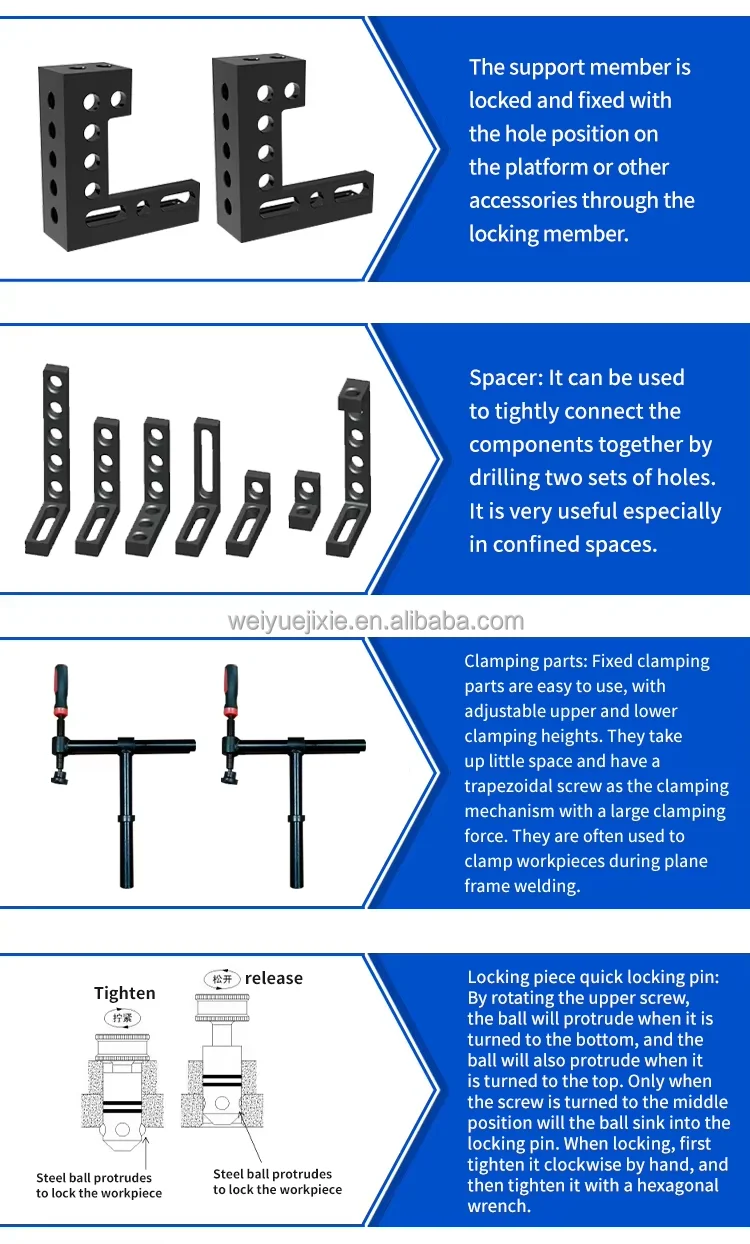

Welding Fixture Introduction
Maximum elimination of internal stress, long-term use no deformation, high hardness, corrosion resistance
Adequate processing equipment
and high precision standards
The maximum CNC machine tool
size is 5x23 meters
Regular maintenance,
stable performance

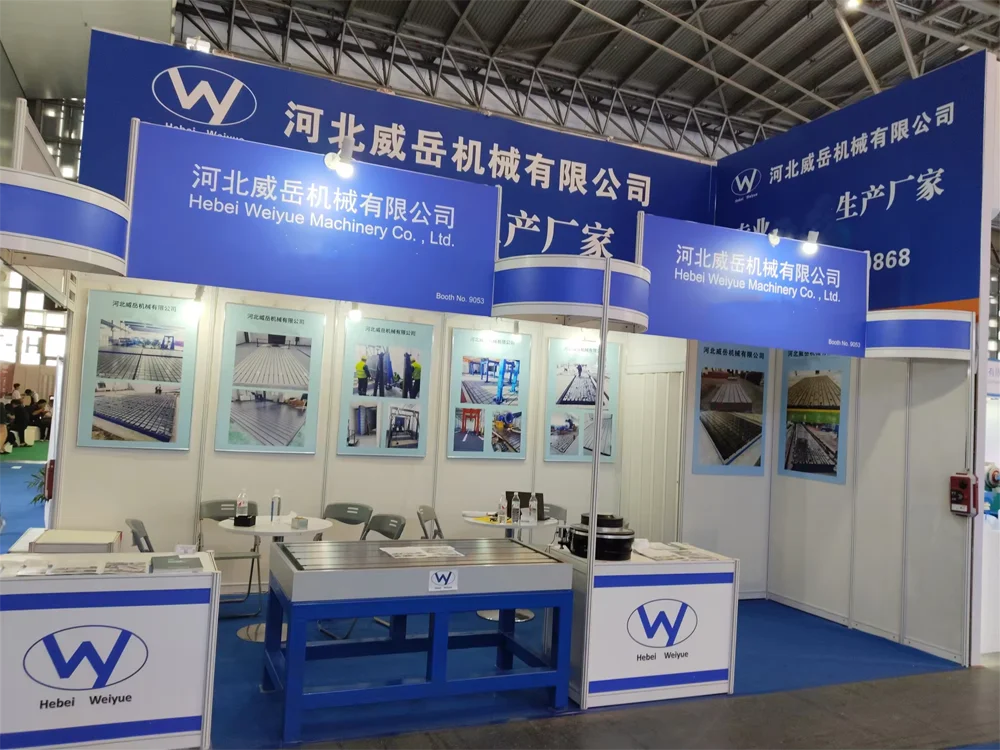

Company Profile

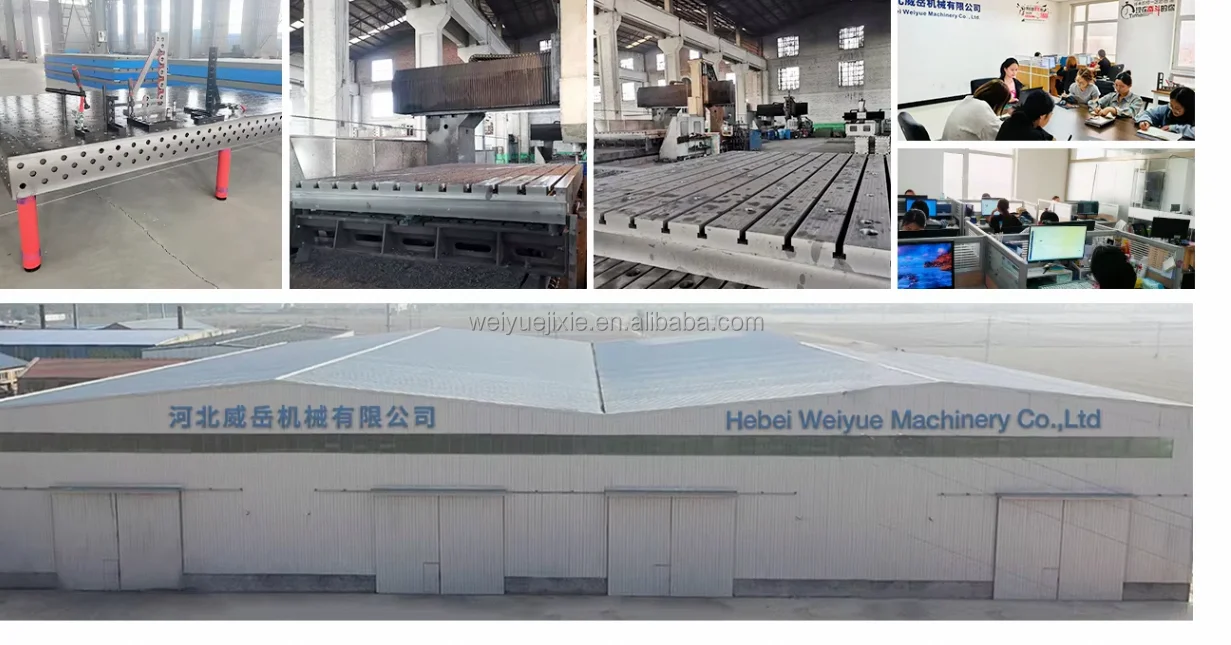

Hebei Weiyue Machinery Co., Ltd. is located in Cangzhou City, Hebei Province, China. It is a large-scale machinery manufacturer integrating casting, welding and processing.

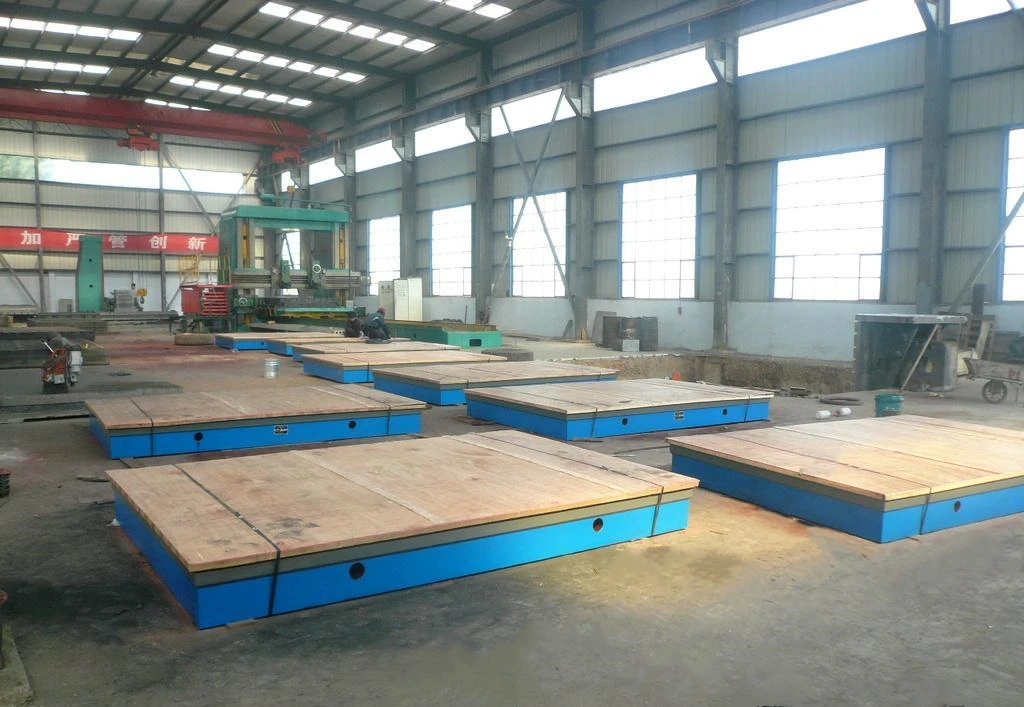

The main products include 3D welding platforms and accessories, cast iron platforms, T-slot platforms, machine tool beds, marble platforms and marble bed beds. For a single product, the maximum weight is 50 tons, the maximum processing size is 5x23 meters, and the highest processing accuracy is 000 level.
Our company has provided products and technical support to many world-renowned companies such as Tesla, Toyota, Jaguar Land Rover, ZF, GE, China North Group, China Nuclear Industry, China Aerospace etc., and the product quality and service have been unanimously recognized by customers.
● 30+ years professional production experience in this field
● more than 200 professors in 5 different departments
● Over 235,600+ products were delivered to customers during this period.
● cooperated more than 100+ large enterprise
● 24 hour-on-line service, quick reply rate is up to 95%
● Offer different certs like CE, CO, ISO, etc, according to client's requirements
● Quickly delivery within 1 week of the standard product in stock
● experienced sales team with more than 10 years export experience
● lower flatness tolerance of +-0.05mm
● more than 200 professors in 5 different departments
● Over 235,600+ products were delivered to customers during this period.
● cooperated more than 100+ large enterprise
● 24 hour-on-line service, quick reply rate is up to 95%
● Offer different certs like CE, CO, ISO, etc, according to client's requirements
● Quickly delivery within 1 week of the standard product in stock
● experienced sales team with more than 10 years export experience
● lower flatness tolerance of +-0.05mm
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
