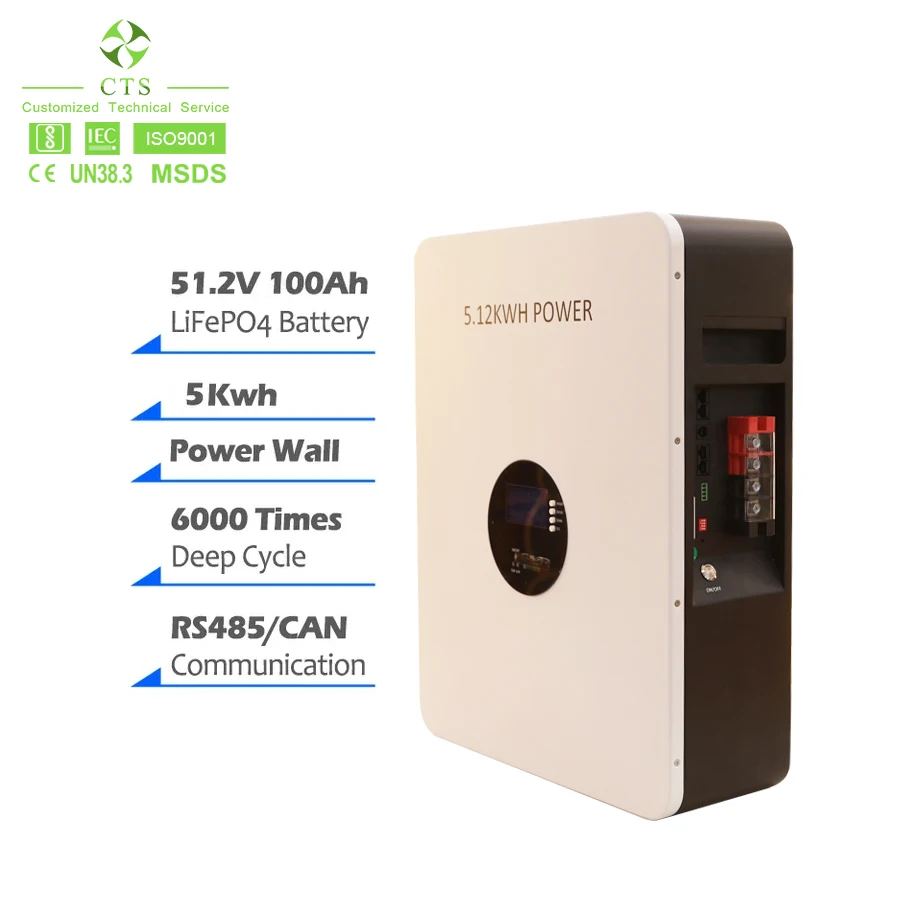

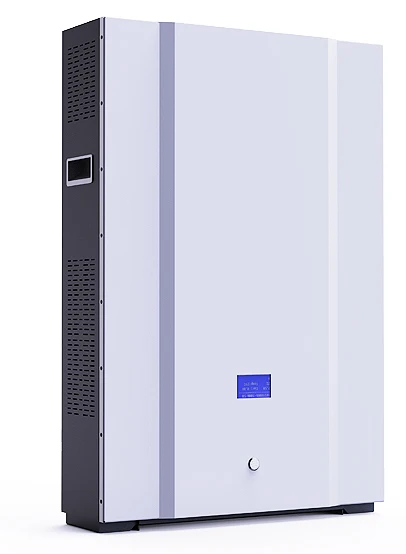

Model | LW25200 | LW51100AH | LW51100 | |||
Basic parameter | ||||||
Battery Type | LiFePo4 | LiFePo4 | LiFePo4 | |||
Rated voltage | 25.6V | 51.2V | 51.2V | |||
Rated capacity | 200AH | 100AH | 200AH | |||
Energy(25°C, 0.5C) | 5.12kwh | 5.12kwh | 10.24kwh | |||

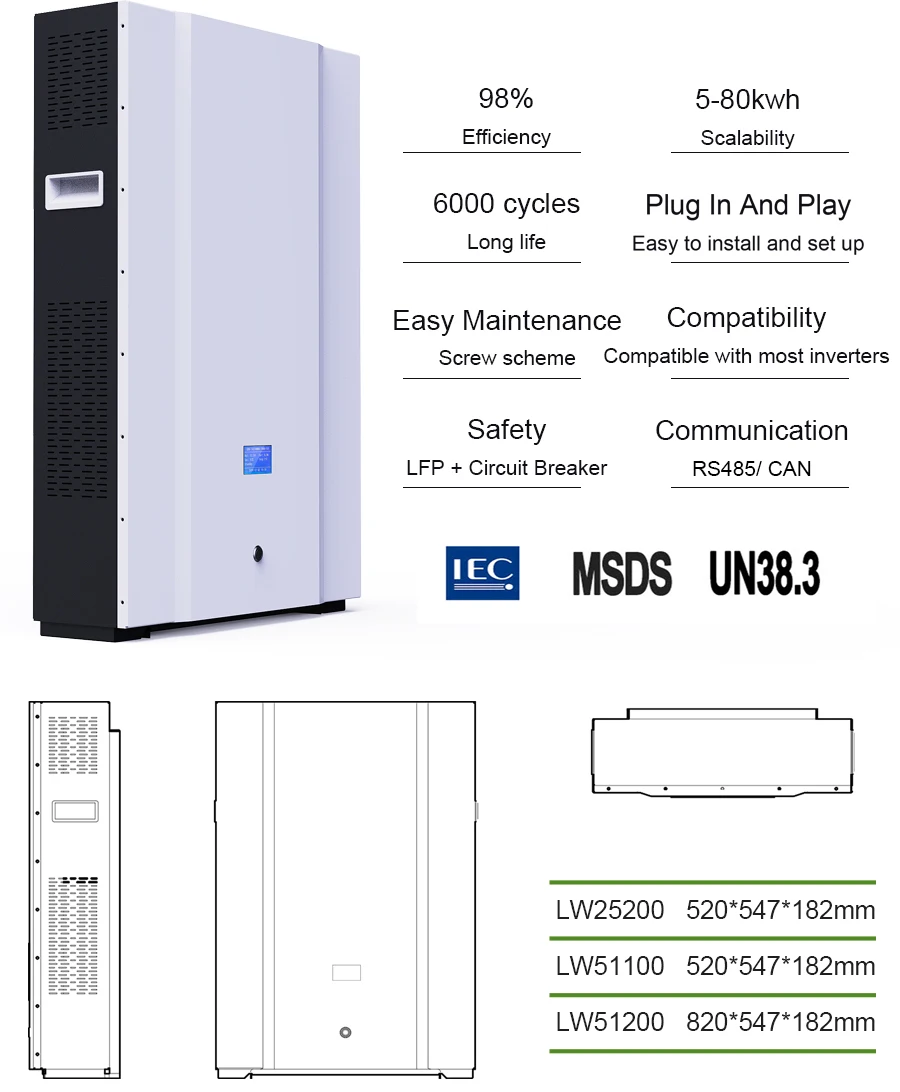

Size | 520*547*182mm | 520*547*182mm | 820*547*182mm | |||
weight | 55kg | 55kg | 105kg | |||
Electric parameter | ||||||
Voltage range | 22.4~28.8VDC | 44.8~57.6VDC | 44.8~57.6VDC | |||
Float charge voltage | 28V | 56V | 56V | |||
Max continue discharge current | 100A | 100A | 100A | |||
Pluse discharge current | 150A(1 Sec) | 150A(1 Sec) | 150A(1 Sec) | |||
Recommend discharge current | ≤100A | ≤50A | ≤100A | |||
Max continue charge current | 50A | 50A | 50A | |||
Recommend charge current | ≤60A | ≤30A | ≤60A | |||
cycle life(25°C, 0.5C,90%DOD) | >6000 Cycles | >6000 Cycles | >6000 Cycles | |||
Design life | >15years | >15years | >15years | |||

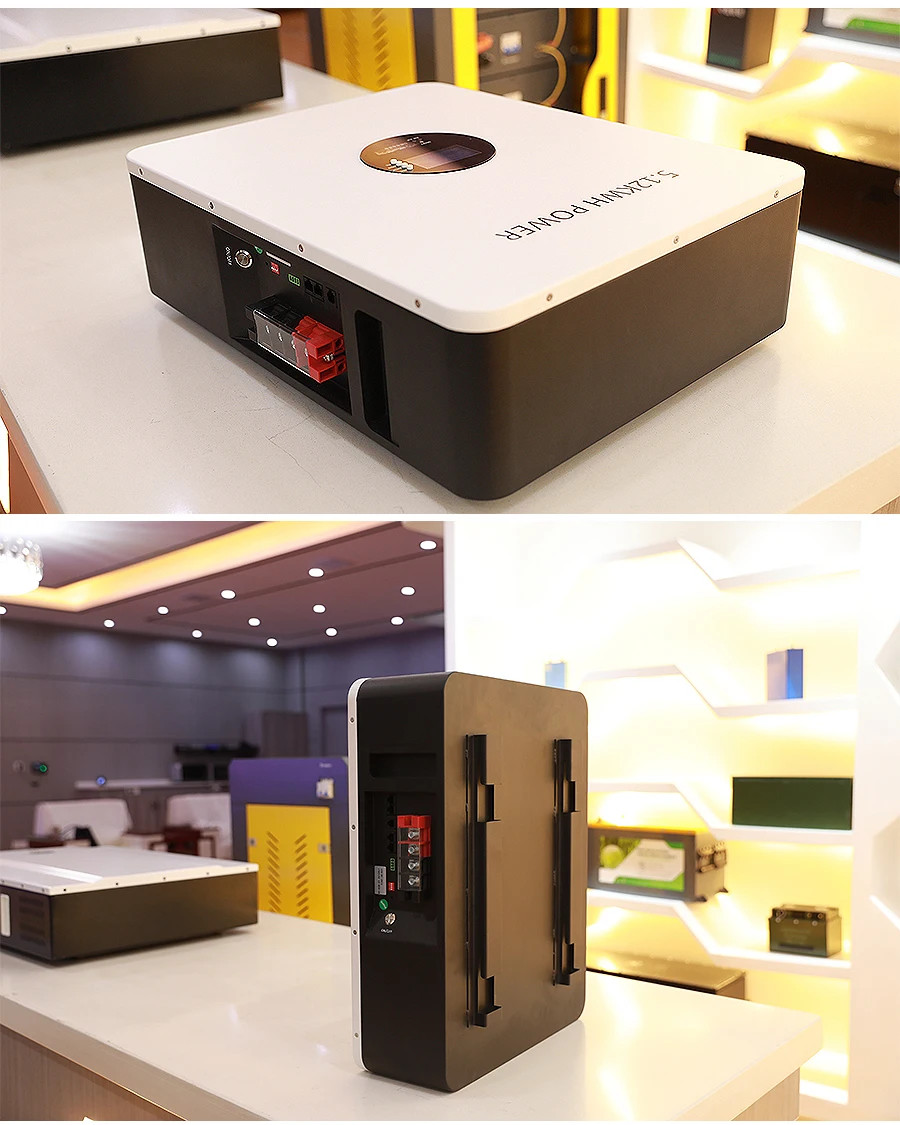

Terminal | M8 | |||||
IP level | IP20 | |||||

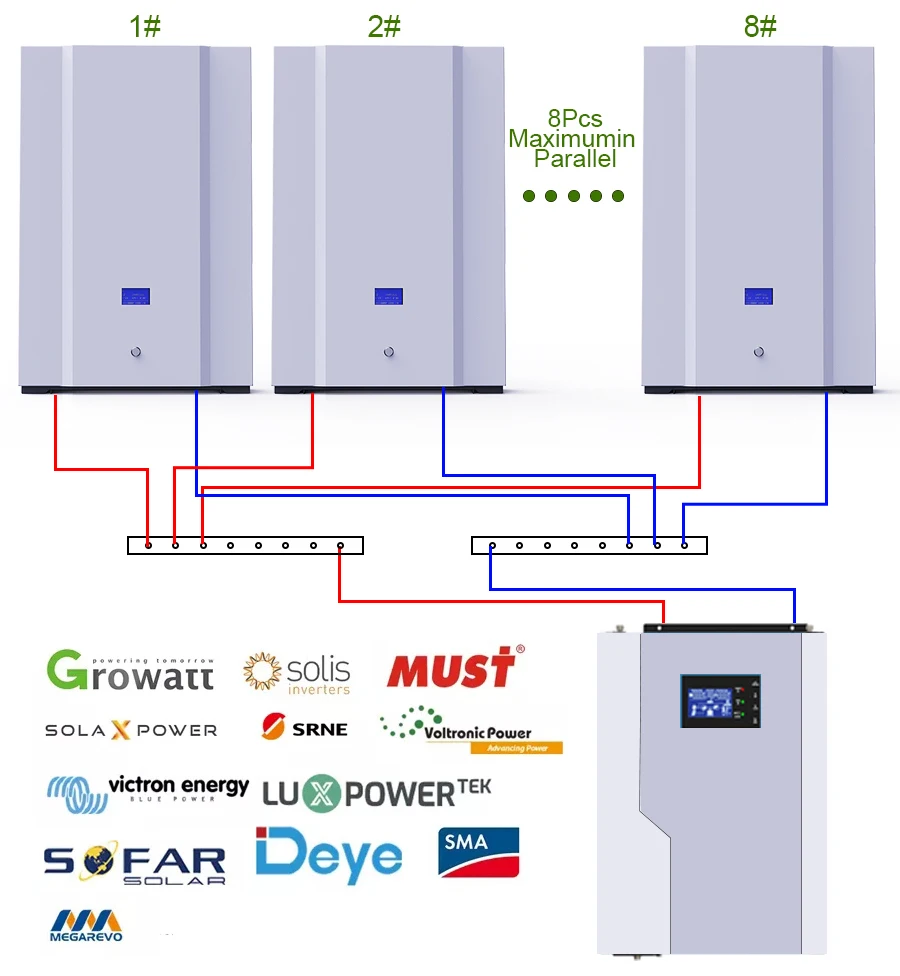

Max parallel number | 8pcs | |||||

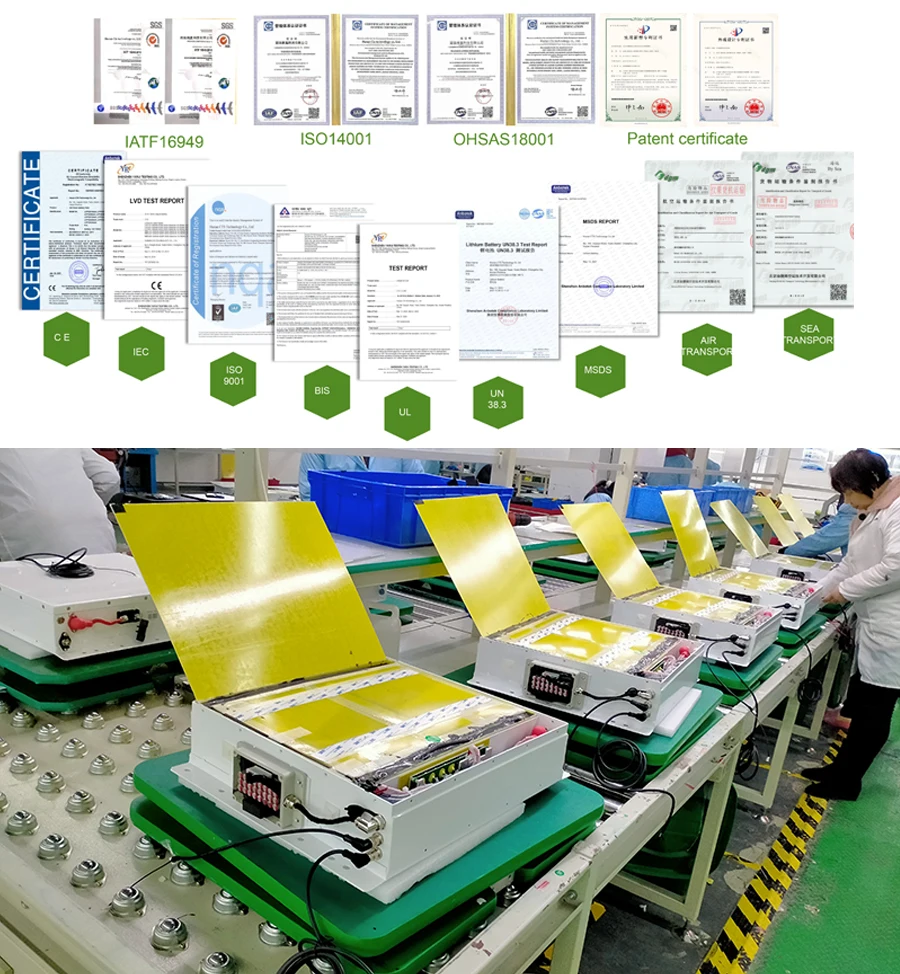

Safety standard | IEC62619, UN38.3, MSDS | |||||

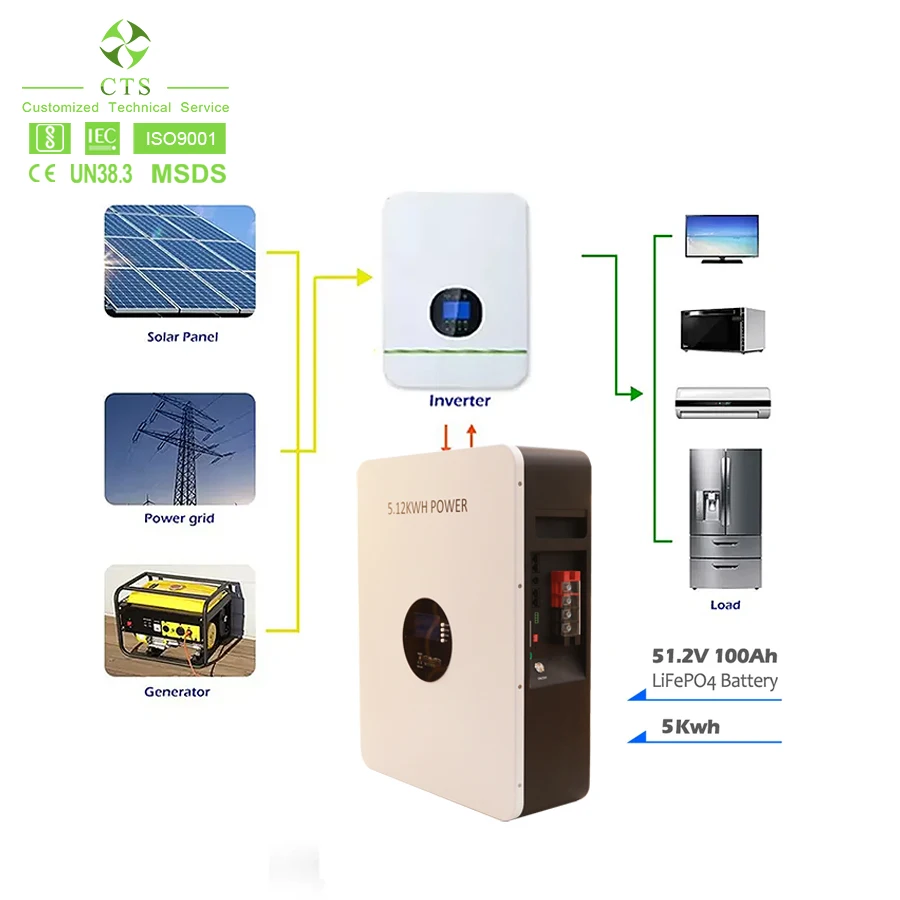

communication function | RS485/CAN(support inverter brand: Deye, Growatt, Luxpower,Solax, Victron, Goodwe, Sofar,SMA,Pylontec) | |||||
BMS protection | Over charge, over discharge, over temperature, over current,short circuit |
