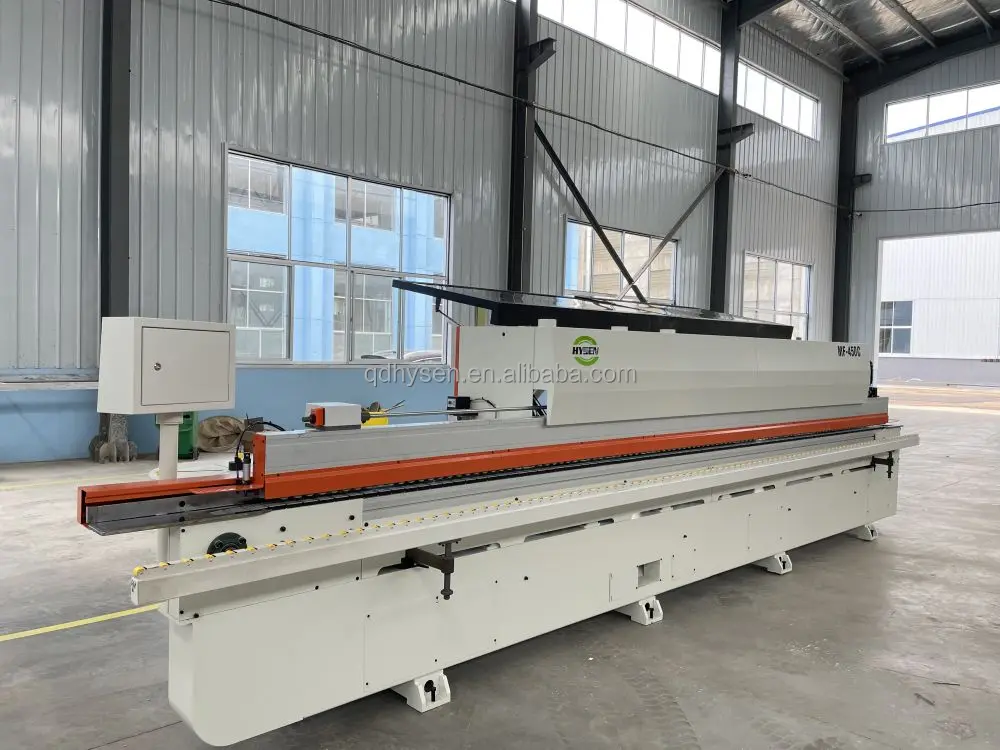

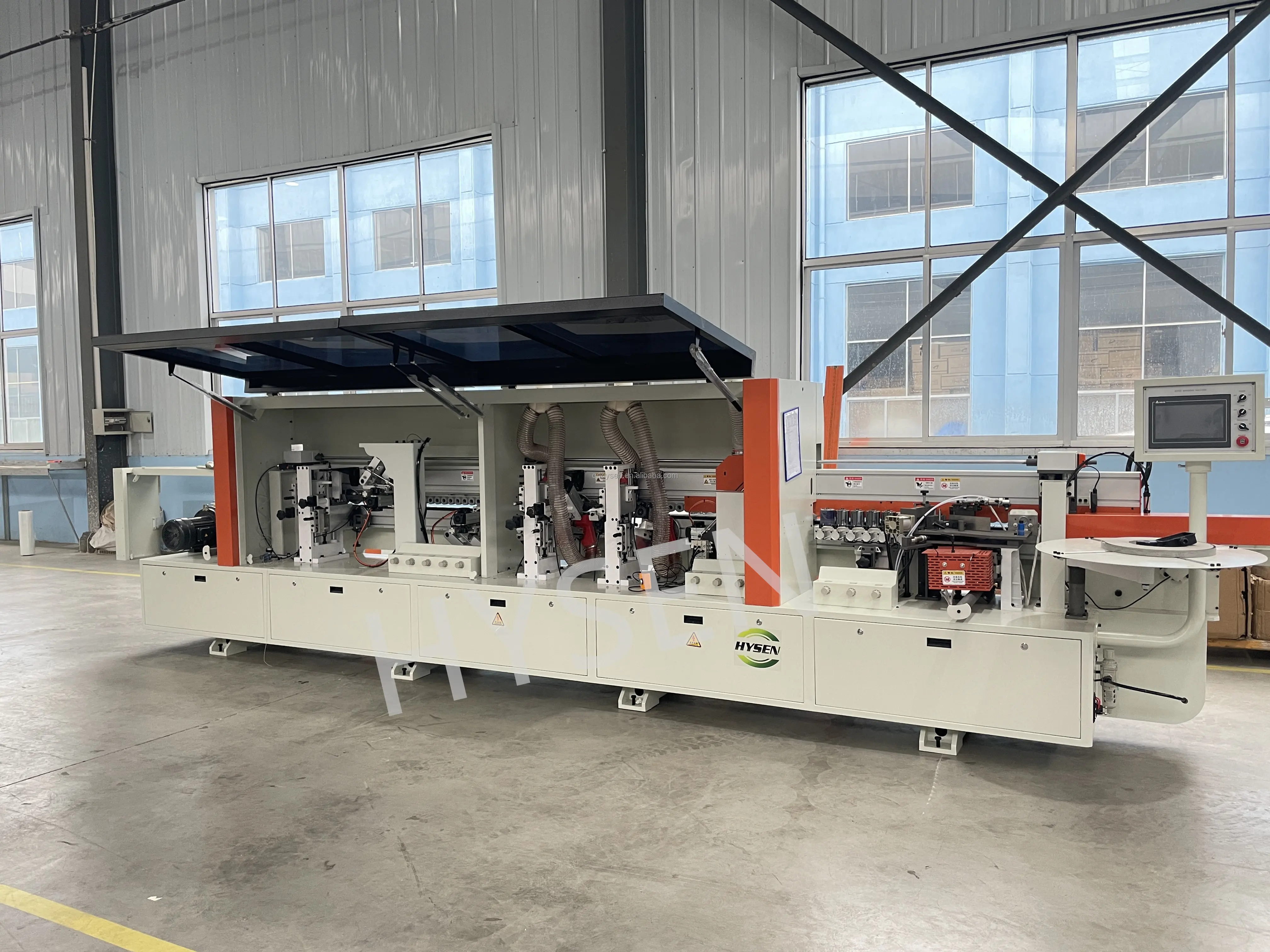

HYSEN woodworking pvc edge banding tape manufacturing machine funiture automatic edge banding machine
- Category: >>>
- Supplier: Qingdao Hysen Import And Export Co. Ltd.
Share on (1601095943136):
Product Overview
Description
Product Description
Woodworking full automatic mdf melamine veneer Wood Furniture Machine pre milling Corner Rounding/Straight Edge Banding Machine.
Automatic edge banding machine advantages：
● Adopt imported motor and high quality electrical component.
● High precision and work efficiency.
● Automatic and precise gluing procedure as well as integrated double finish.
● Glue evenly, conveying stability.
● All the working area and specifications can be customized according to your requests.
Automatic edge banding machine advantages：
● Adopt imported motor and high quality electrical component.
● High precision and work efficiency.
● Automatic and precise gluing procedure as well as integrated double finish.
● Glue evenly, conveying stability.
● All the working area and specifications can be customized according to your requests.
Specification
Type | MF450C |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 12-65 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Work piece width | >=50 mm |
Heating power | 1.8 KW |
Feeding motor power | 3.7 KW |
Glue spreading power | 0.75 KW |
End trimming power | 0.5 KW x 2 |
Rough trimming motor power | 0.75 KW x 2 |
Fine trimming power | 0.75 KW x 2 |
Corner rounding motor power | 0.5 KW x 2 |
Polishing motor power | 0.37 KW x 2 |
Feeding speed | 10-23 m/min |
Air pressure | 0.8 Mpa |
Overall dimension | 5600x900x1600 mm |
Packing size | 5700x980x1780 mm |
N.W. | 2300 KGS |
G.W. | 2450 KGS |
Feature

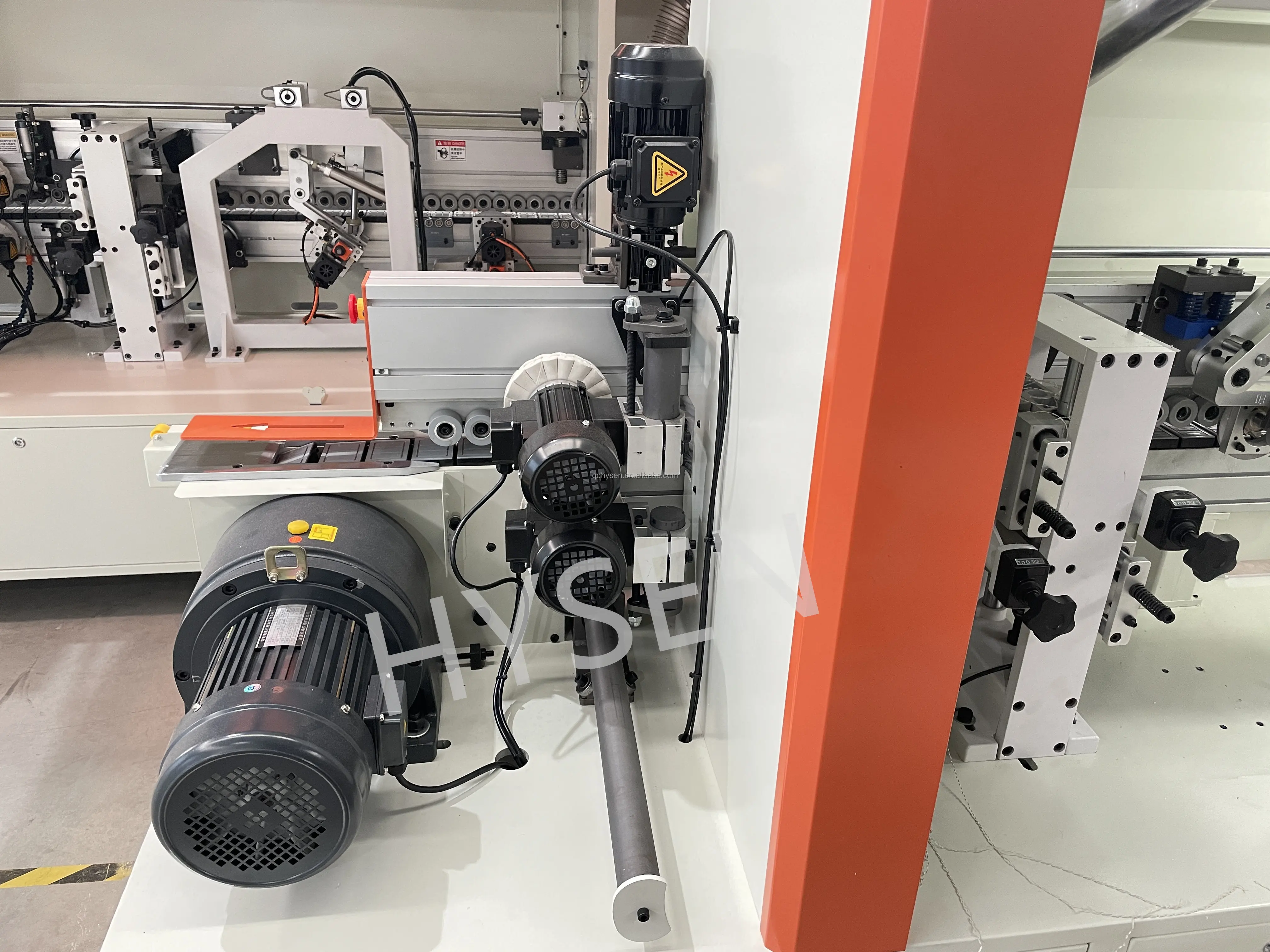

1.The pre-milling with double milling cutters are used to re-modify the ripple marks, burrs or non-perpendicular phenomena caused by the cutting board
sawing.
1.The pre-milling with double milling cutters are used to re-modify the ripple marks, burrs or non-perpendicular phenomena caused by the cutting board
sawing.

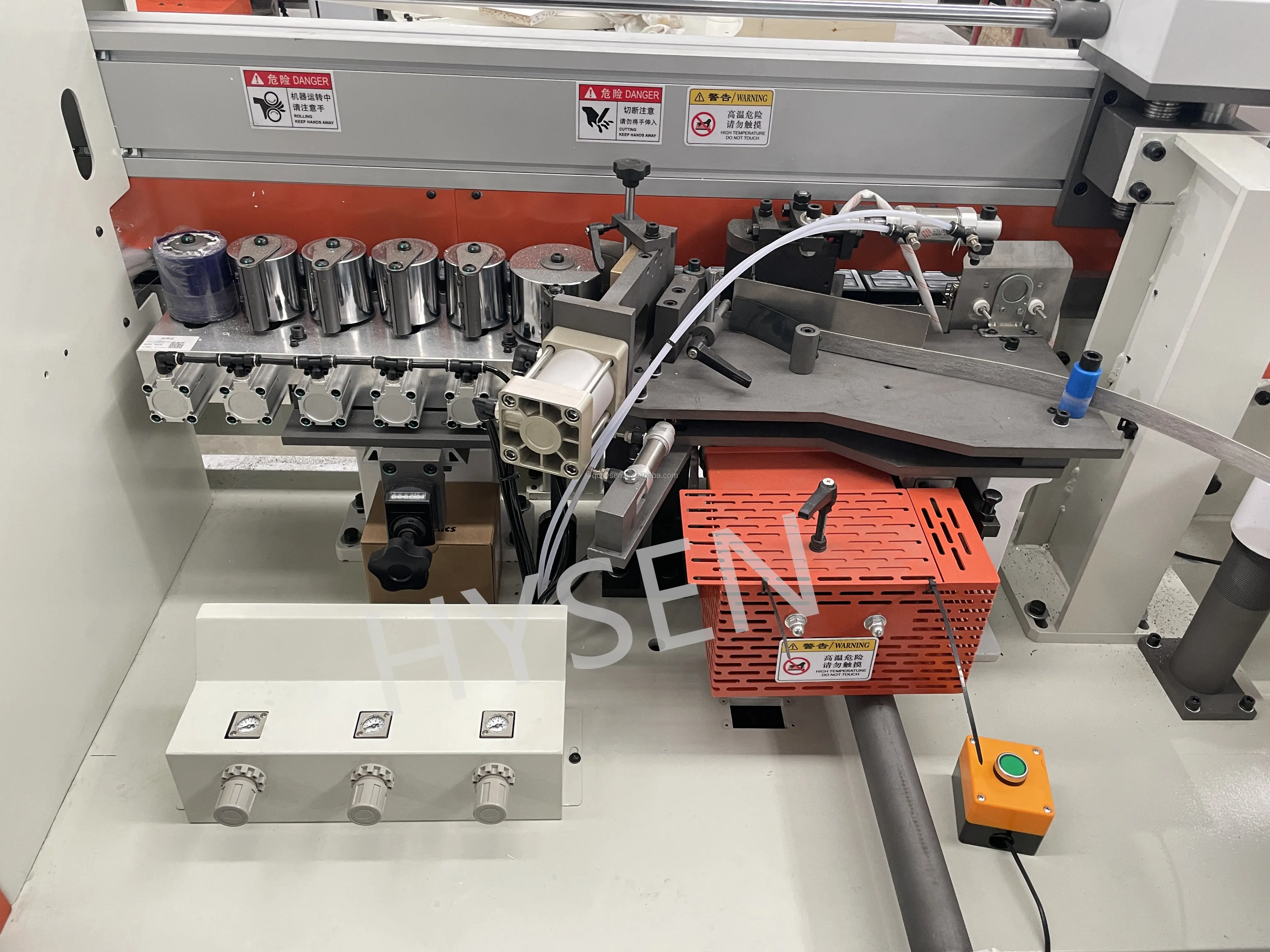

2.The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid
conglutination.

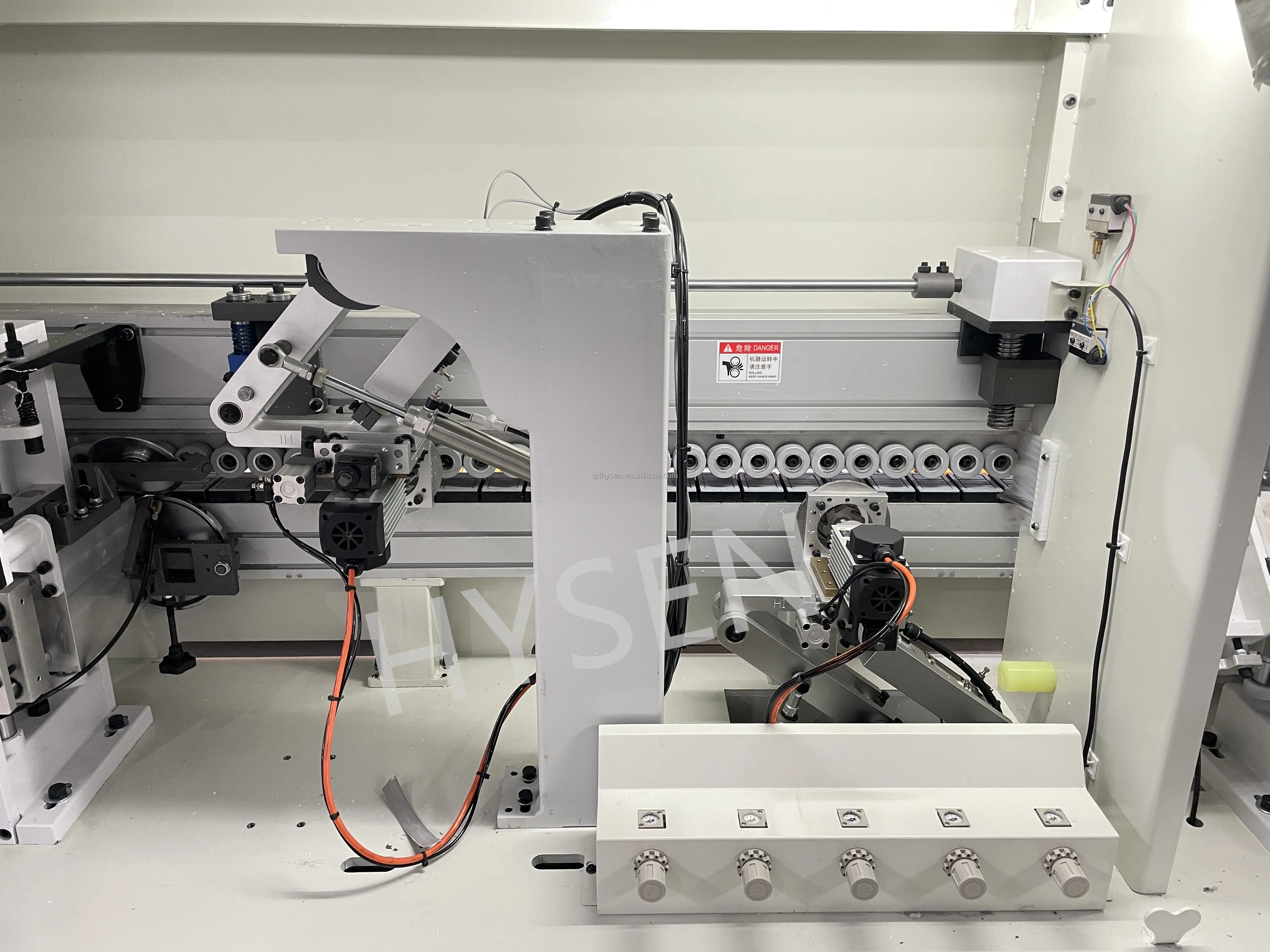

3.End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting
structure to ensure the cutting surface smoothly.

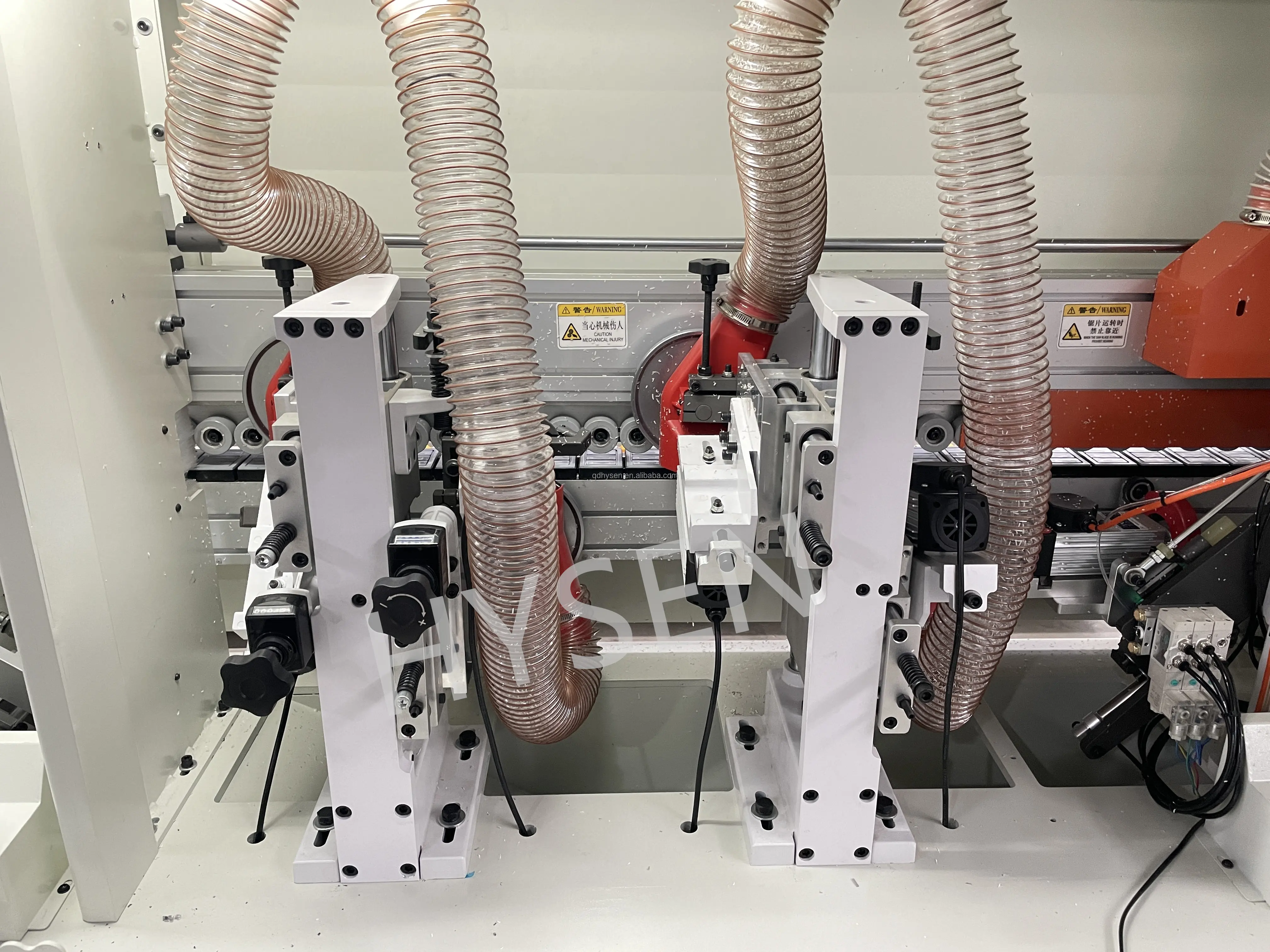

4.Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor
fast cutting structure to ensure the trimming plates smoothly.
conglutination.
3.End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting
structure to ensure the cutting surface smoothly.
4.Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor
fast cutting structure to ensure the trimming plates smoothly.

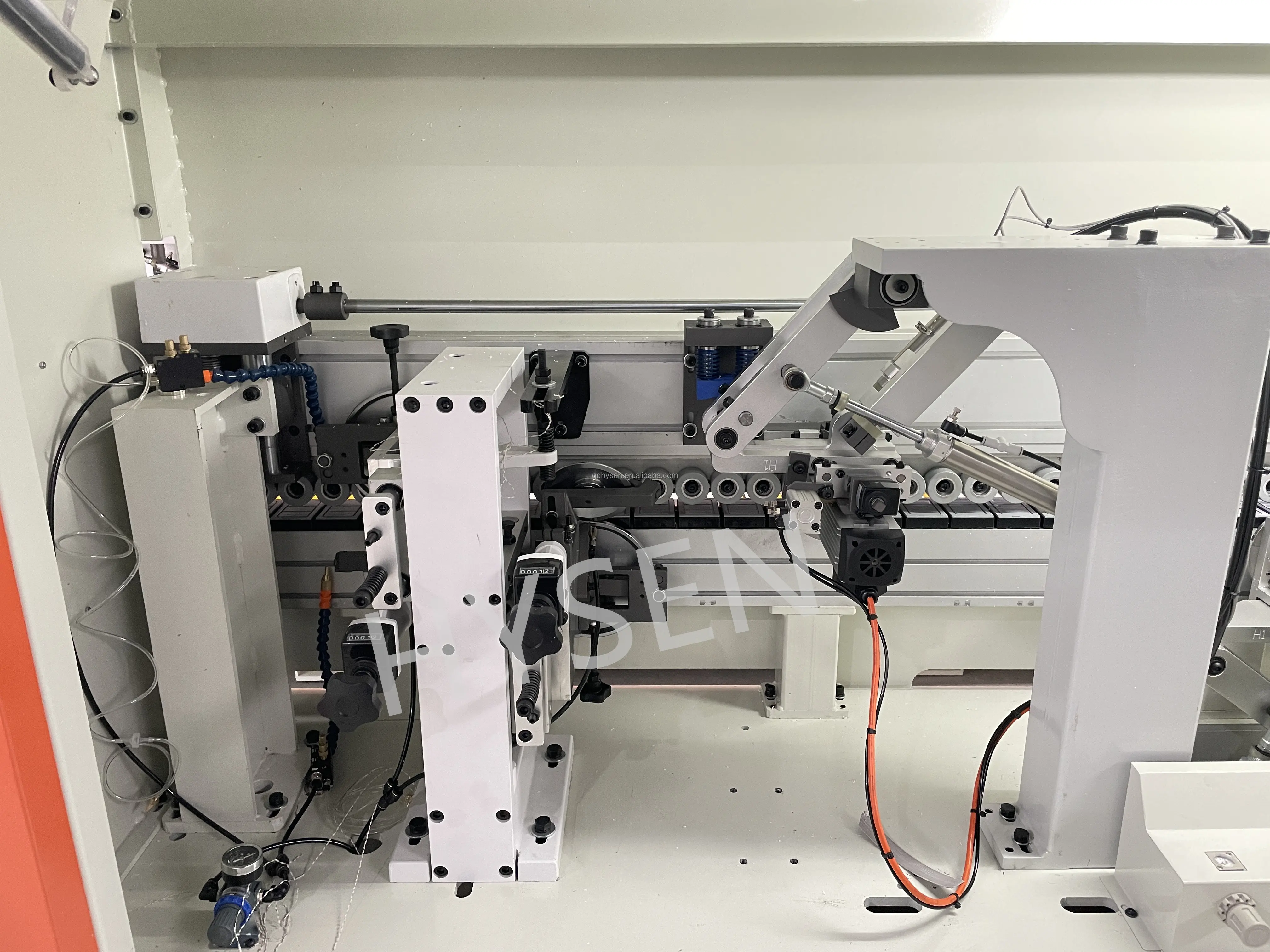

5. The corner rouding with the upper and lower rounding device can make the end face of the plate more smooth and beautiful.
6.Scraping unit for a perfect finishing of the applied edge.
7.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.
6.Scraping unit for a perfect finishing of the applied edge.
7.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.
Details Images

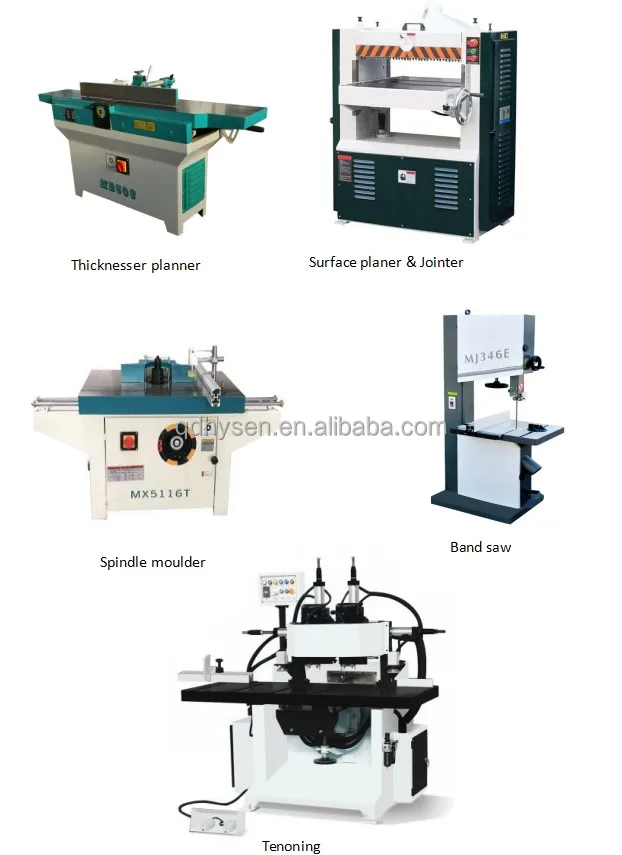

Recommend Products

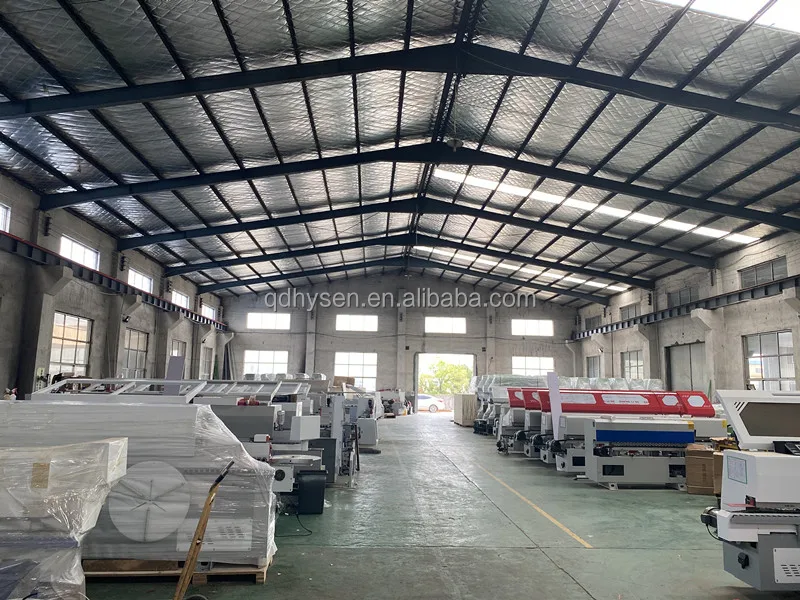

Company Profile
Qingdao Hysen is a leading company of specializing in manufacturing and exporting woodworking machine. We are able to offer professional woodworking machines to customers. Our products are mainly Edge Banding Machine, Precise panel saw, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. Our company takes the principle of quality first and customer foremost.Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machines. Complete sets of CNC processing equipments and experienced technicians to guarantee high quality. Complete sales system provides perfect pre-sale and after-sale services. Which is proved by all customers. Qingdao Hysen is looking forward to establishing long-term strategic cooperation relationship with you and offering you high quality products and perfect service system.
FAQ

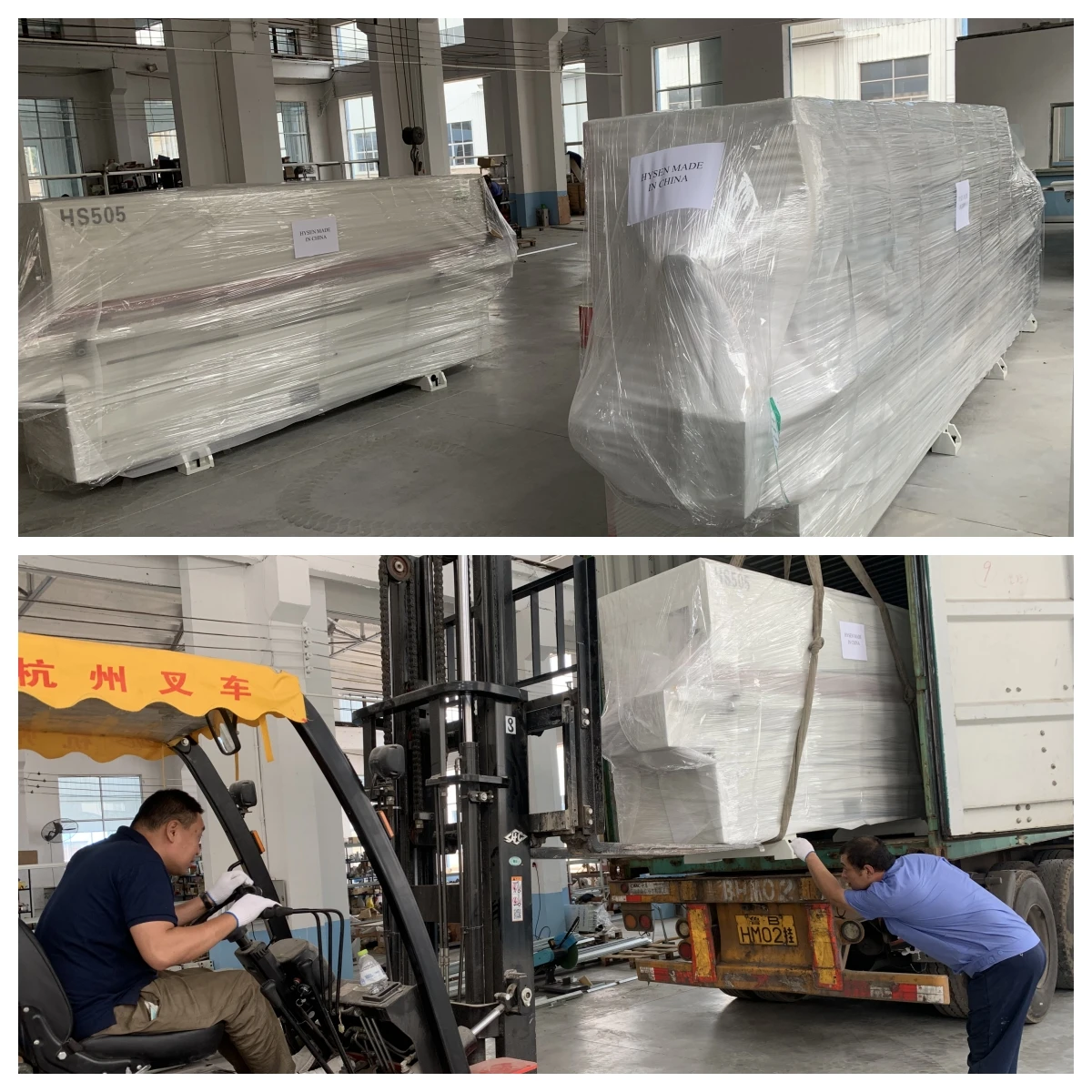

Packing & Delivery
