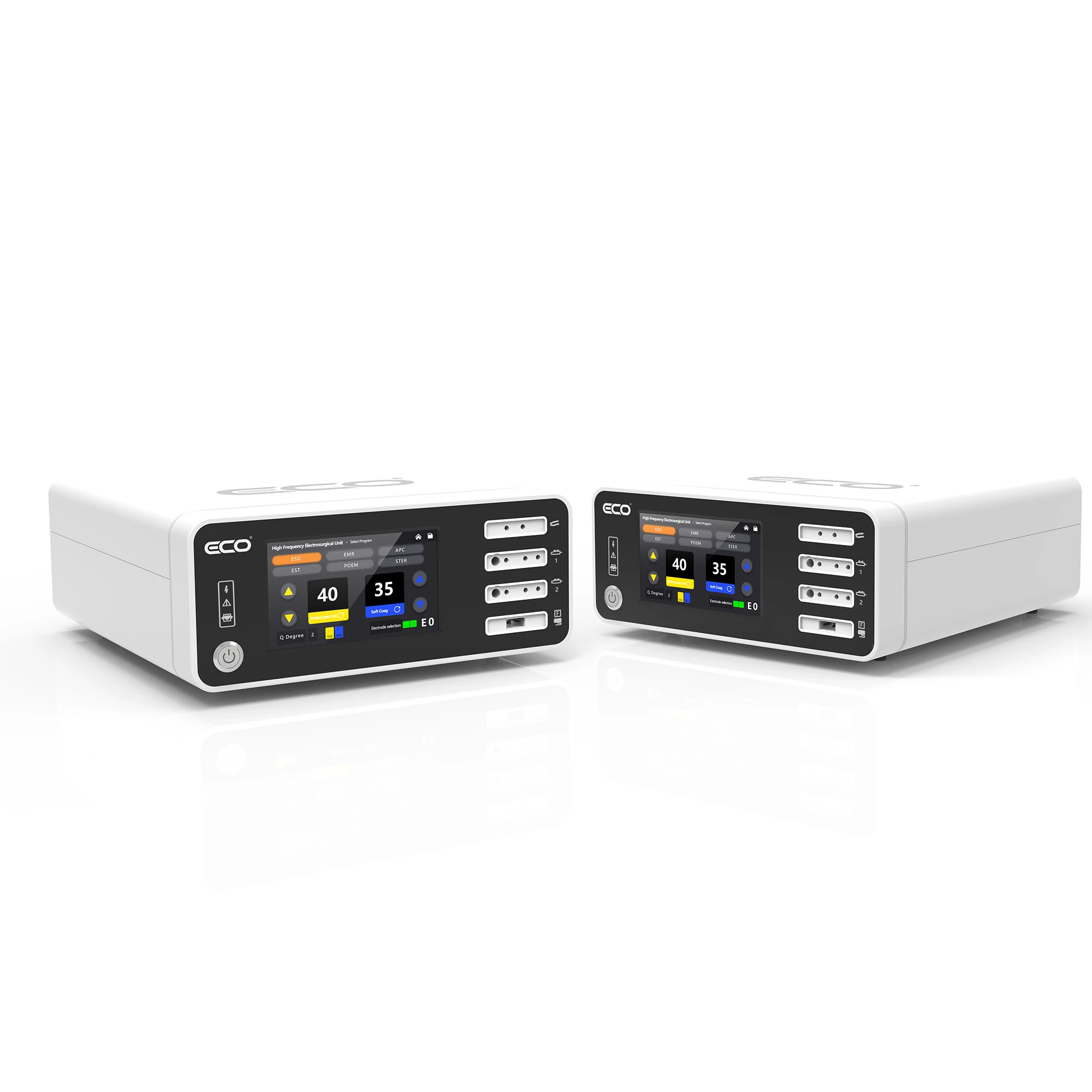

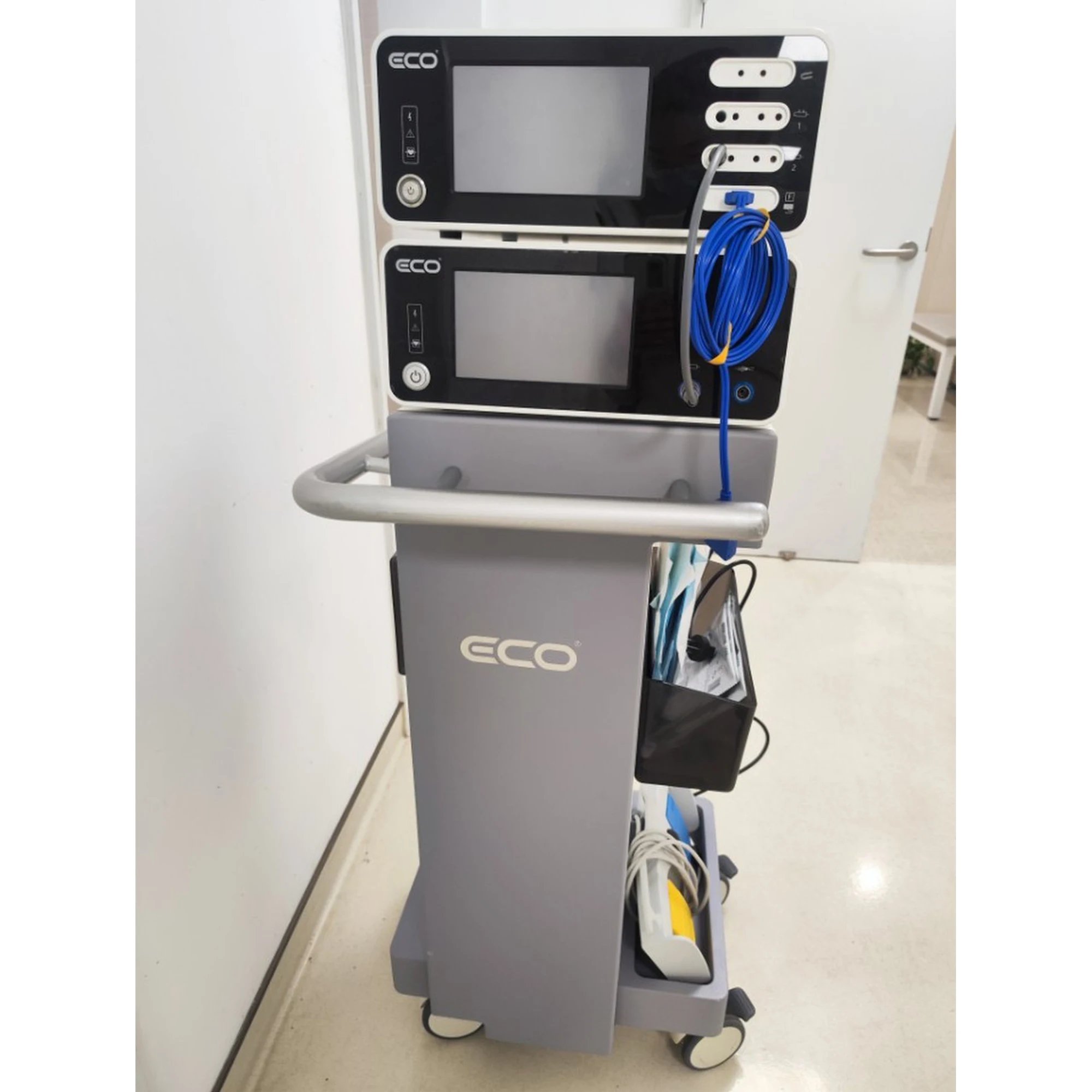

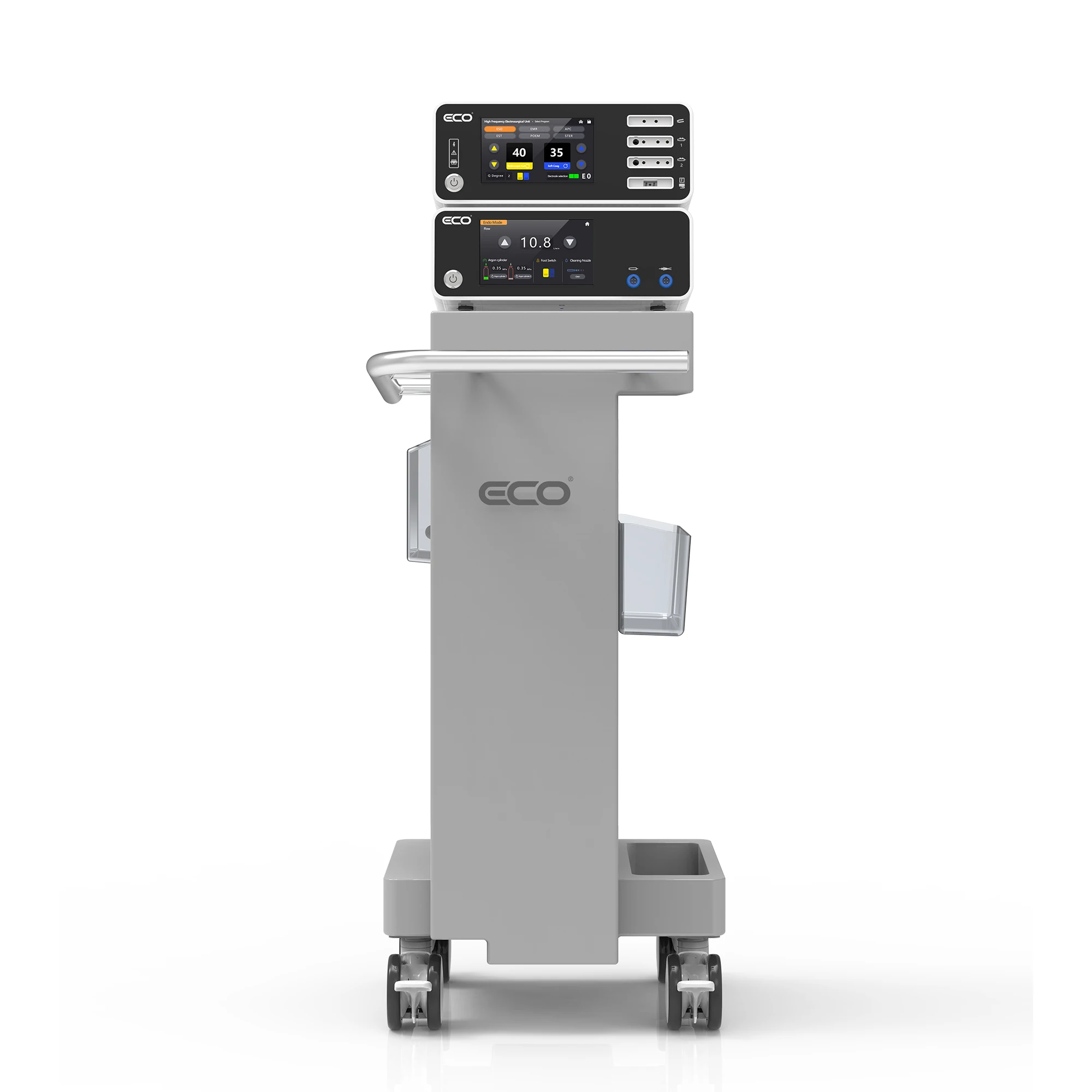

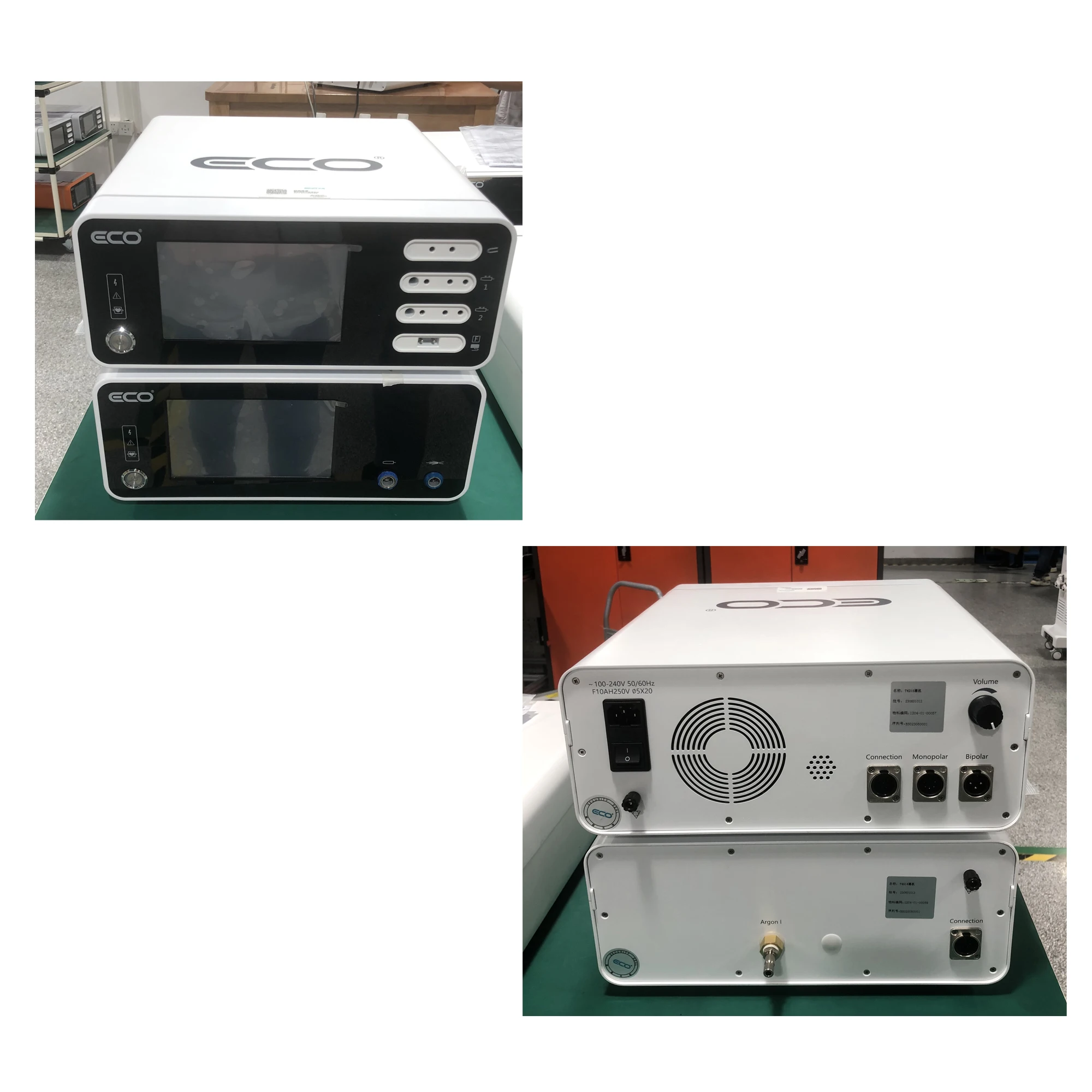

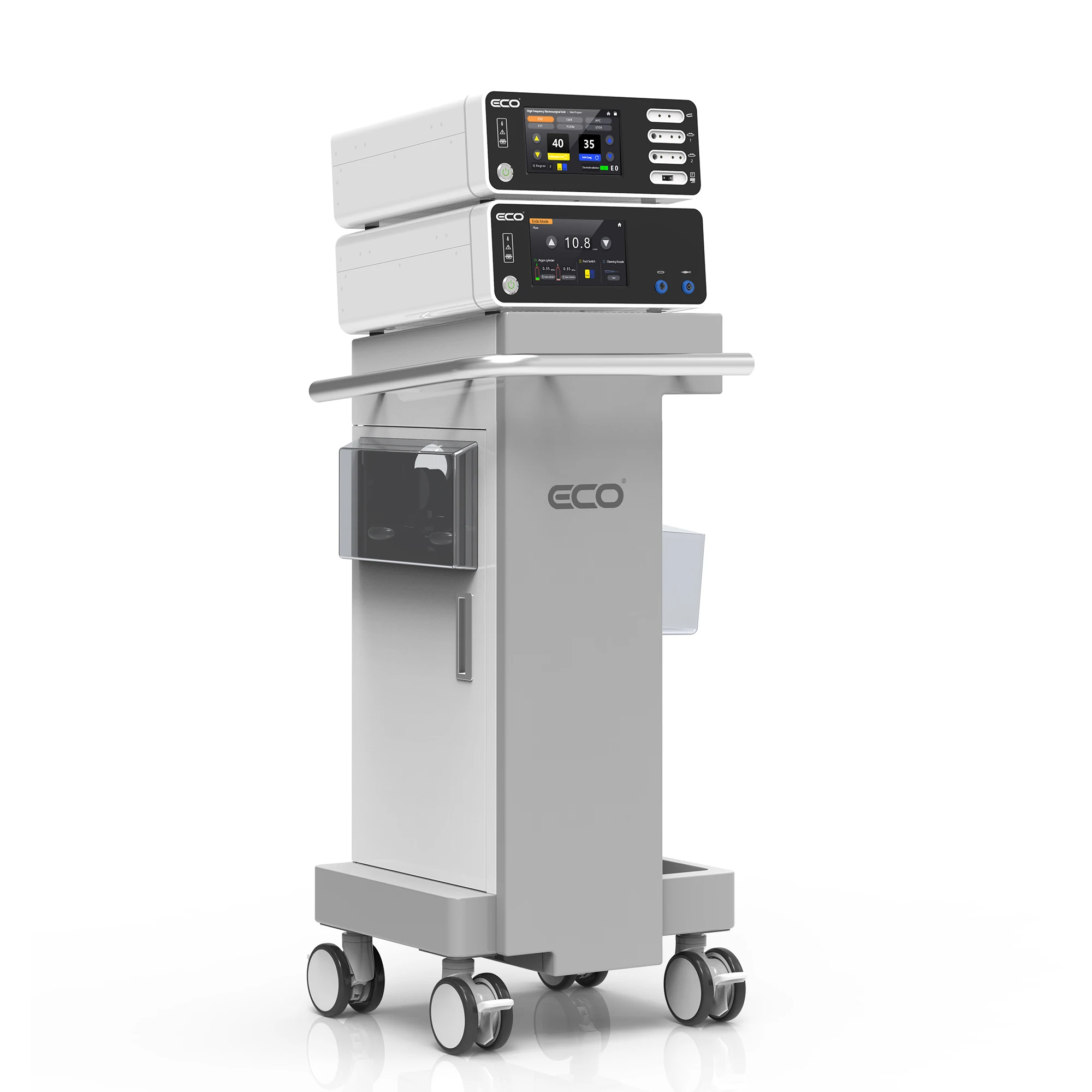

Argon plasma coagulation unit with electrosurgical generator argon beam coagulator
- Category: >>>
- Supplier: ECO Medical Technology (Nanjing) Co. Ltd
Share on (1601095967053):
Product Overview
Description

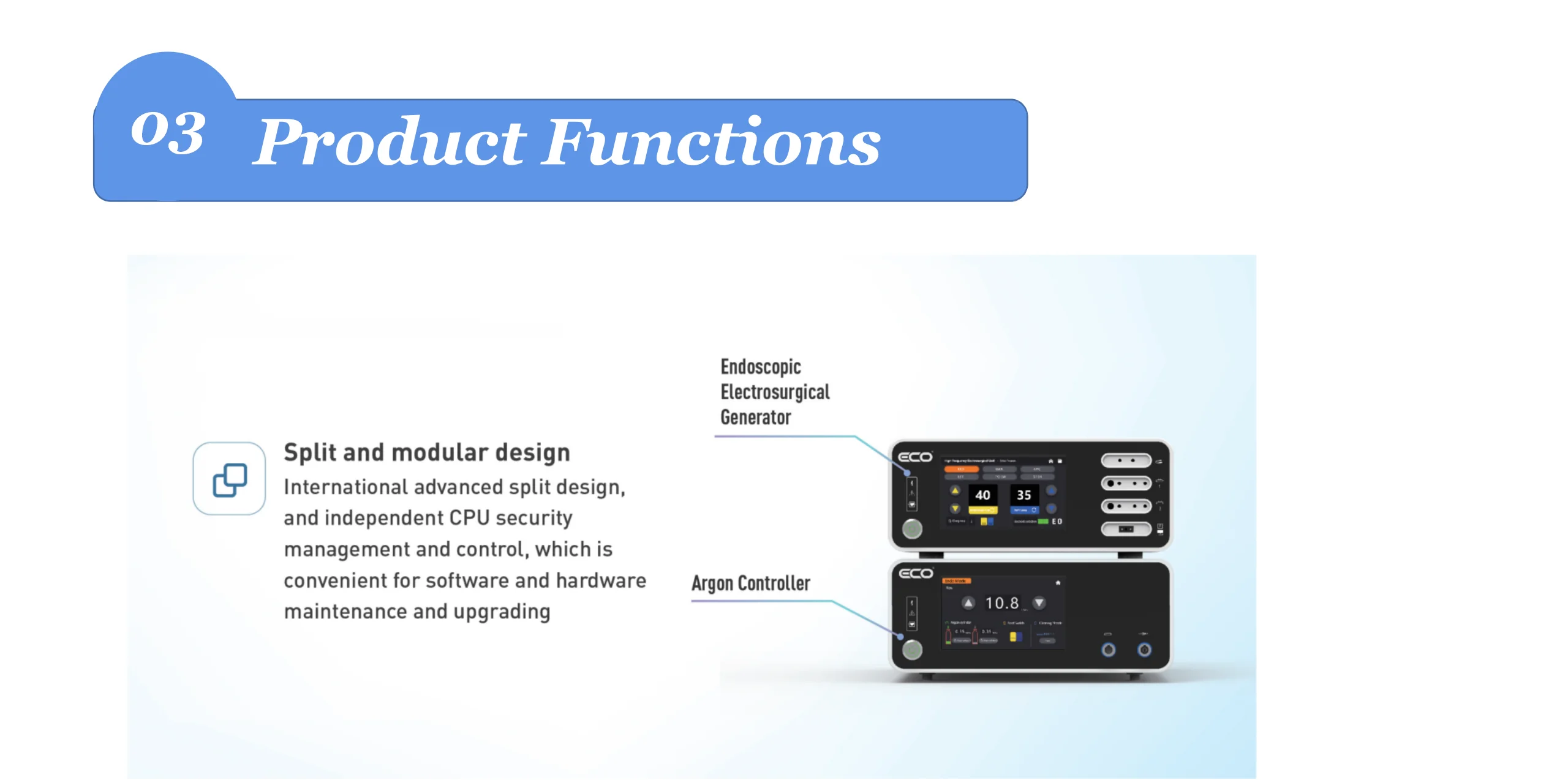

ECO Internal Electrosurgical system is also called Argon Electrotome, which is an argon module and endoscopic cutting mode added on traditional high-frequency electrotome.
Argon coagulation means that argon is ejected from the bottom of the electrode to form an argon ion flow column between the electrode and the bleeding wound. Conductive argon ion beam could be produced under high frequency and high voltage. The ionized argon ion beam makes the high-frequency current eject from electrode to the target tissue, which is transferred to the bleeding wound in the form of arc, resulting in high-frequency electrocoagulation and good hemostatic effect.

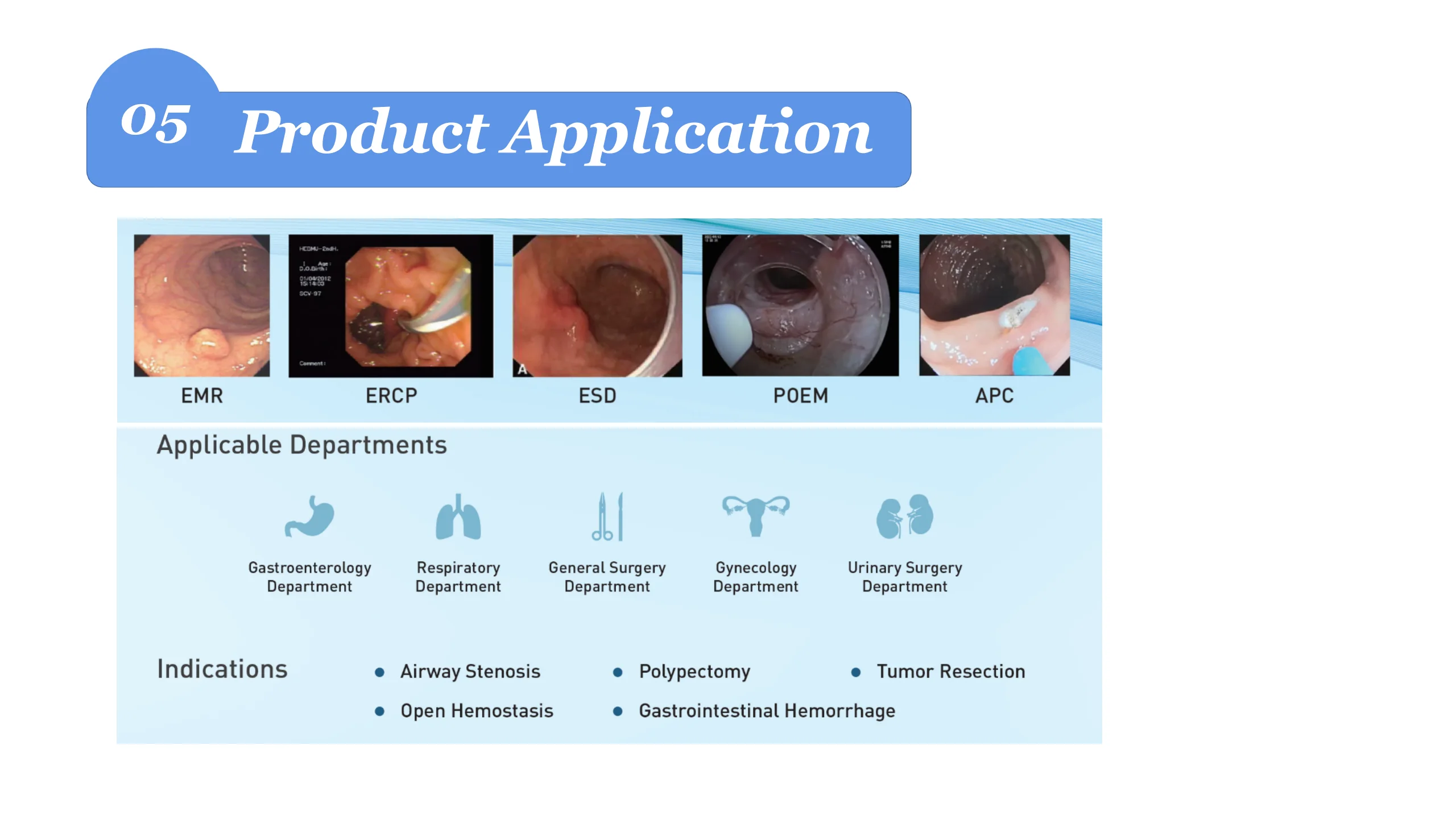

Endoscopic resection mode is the unique working mode of internal medicine electrotome, aiming at EMR, ESD, ERCP, POEM and other surgical methods under endoscopy, provide comprehensive solution of clinical operation.
Argon coagulation means that argon is ejected from the bottom of the electrode to form an argon ion flow column between the electrode and the bleeding wound. Conductive argon ion beam could be produced under high frequency and high voltage. The ionized argon ion beam makes the high-frequency current eject from electrode to the target tissue, which is transferred to the bleeding wound in the form of arc, resulting in high-frequency electrocoagulation and good hemostatic effect.
Endoscopic resection mode is the unique working mode of internal medicine electrotome, aiming at EMR, ESD, ERCP, POEM and other surgical methods under endoscopy, provide comprehensive solution of clinical operation.

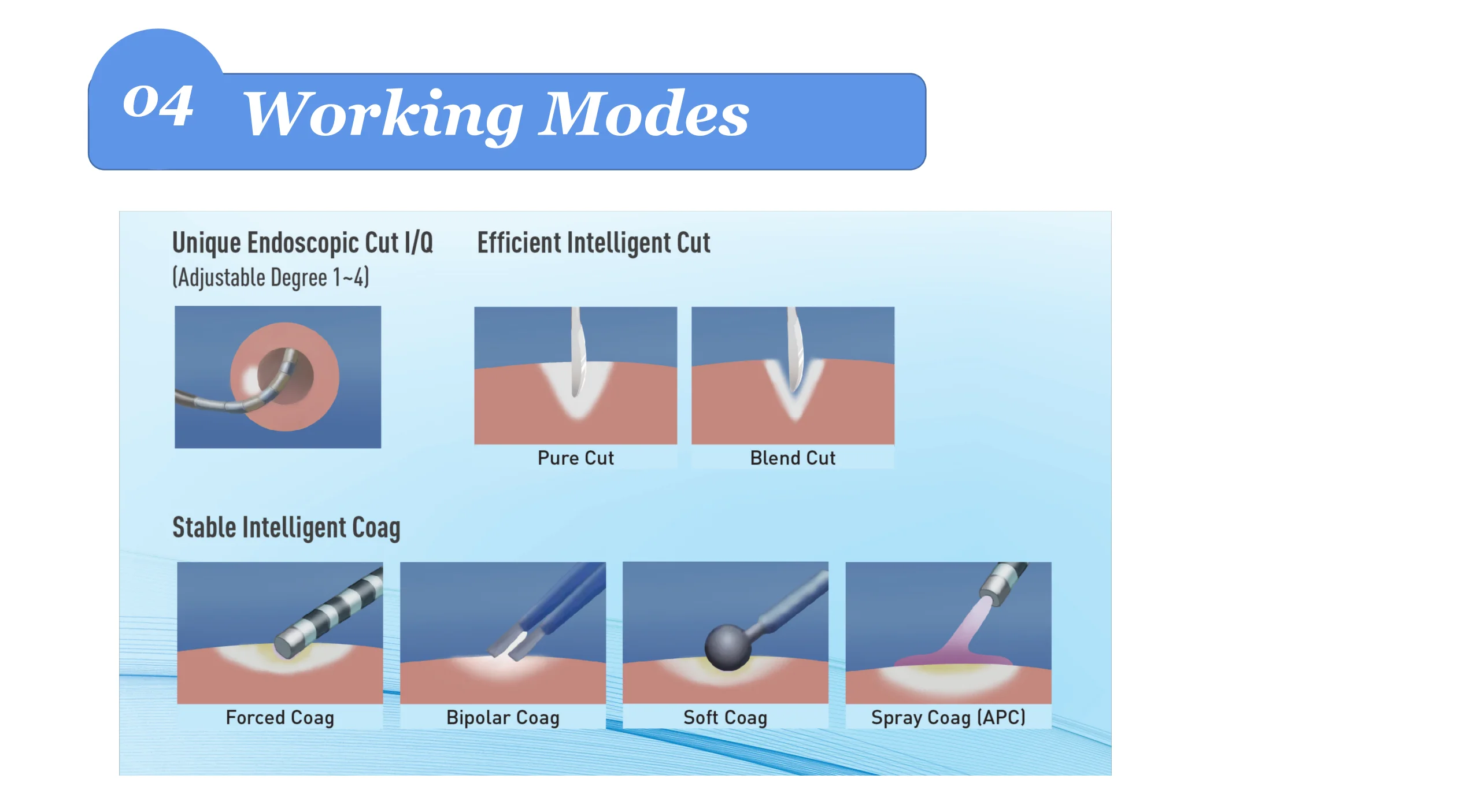

Working mode | Parameter | ||
Hyper cut | 350W | 400Ω | |
Pure cut | 300W | 400Ω | |
Mixed cut 1 | 250W | 400Ω | |
Mixed cut 2 | 200W | 400Ω | |
Mixed cut 3 | 120W | 400Ω | |
Soft coagulation | 150W | 400Ω | |
Forced coagulation | 120W | 400Ω | |
Jet coagulation | 100W | 400Ω | |
Advantages:

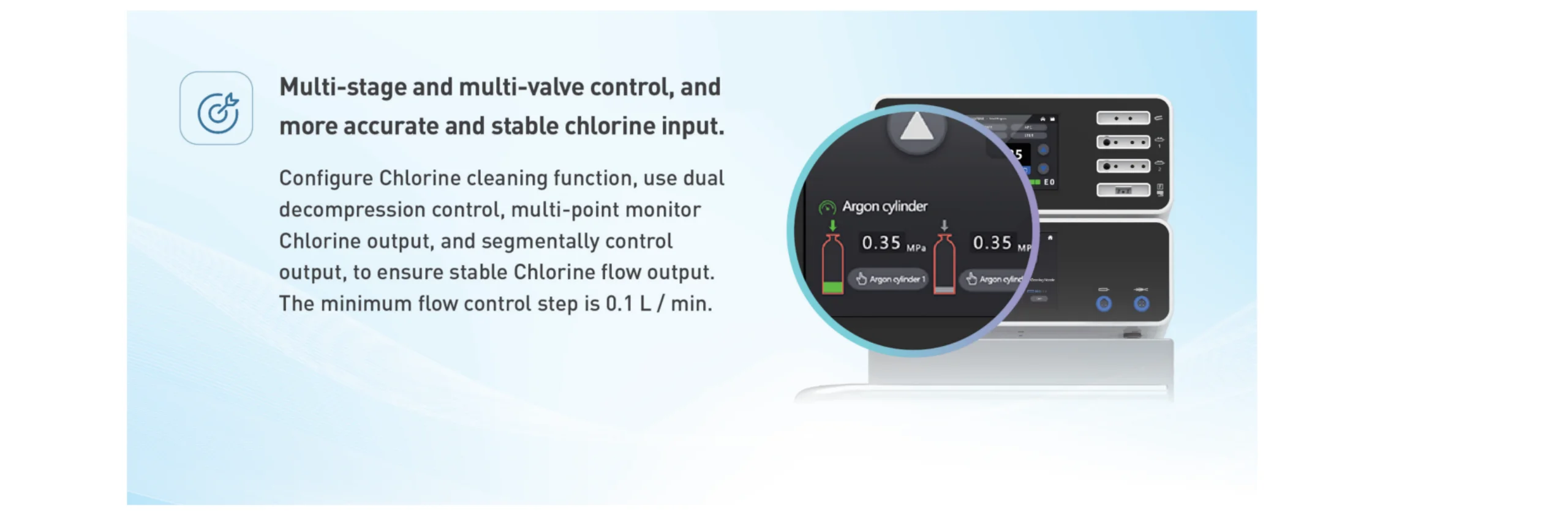

1) Accurate flow control 0.1L/min
2) Double channel and double bottle output to ensure continuous argon supply
3) Exclusive APC mode include three types of air injection to satisfied the clinical needs
4) Q/I double mode for endoscopic resection can be used for more endoscopic operation
5) Power compensation system
Features of APC
1) Without direct contact with the tumor or wound, the adhesion or blockage of the tube caused by contact treatment, and the rebleeding for removing the tube from scar area after treatment could be avoided.
2) It can stop bleeding effectively in a short time
3) Continuous coagulation, high-frequency current carries argon ion beam automatically flows to the wound which has not yet coagulated or not completely coagulated (from high impedance to low impedance)
4) The limit depth of tissue damage within 3 mm, which is not easy to cause perforation of thin-walled organs
5) No carbonizationization during operation was better for wound healing; No vaporization reduced the risk of gastrointestinal perforation; Less smoke could maintain a better view of operation field.
1) Accurate flow control 0.1L/min
2) Double channel and double bottle output to ensure continuous argon supply
3) Exclusive APC mode include three types of air injection to satisfied the clinical needs
4) Q/I double mode for endoscopic resection can be used for more endoscopic operation
5) Power compensation system
Features of APC
1) Without direct contact with the tumor or wound, the adhesion or blockage of the tube caused by contact treatment, and the rebleeding for removing the tube from scar area after treatment could be avoided.
2) It can stop bleeding effectively in a short time
3) Continuous coagulation, high-frequency current carries argon ion beam automatically flows to the wound which has not yet coagulated or not completely coagulated (from high impedance to low impedance)
4) The limit depth of tissue damage within 3 mm, which is not easy to cause perforation of thin-walled organs
5) No carbonizationization during operation was better for wound healing; No vaporization reduced the risk of gastrointestinal perforation; Less smoke could maintain a better view of operation field.

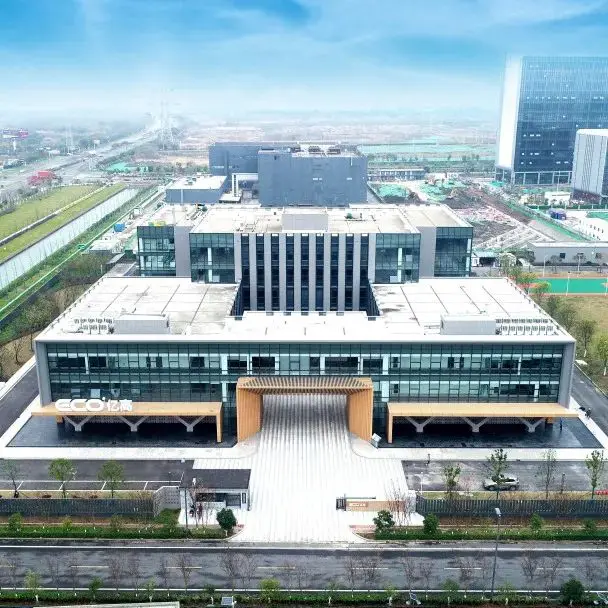

ECO Medical
Established in 2000, ECO is a leading manufacturer of medical instruments in China, which covers Microwave, High Frequency and Laser systems. With vision of “To Be No.1 in China and First-Class in the world”, and mission to help employees realize their self-worth and contribute to human health, ECO is trying every effort to deliver advanced technology and provide product solutions to healthcare industry at home and abroad.
1.Q: Are you a factory or trading company?
A:We are a large-scale factory with over 700 employees integrating R&D, production and sales departments.
2.Q: Where is your factory located?
A:Our company and factory is located in Nanjing. Near Shanghai.
3.Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
4.Q: Do you offer samples?
