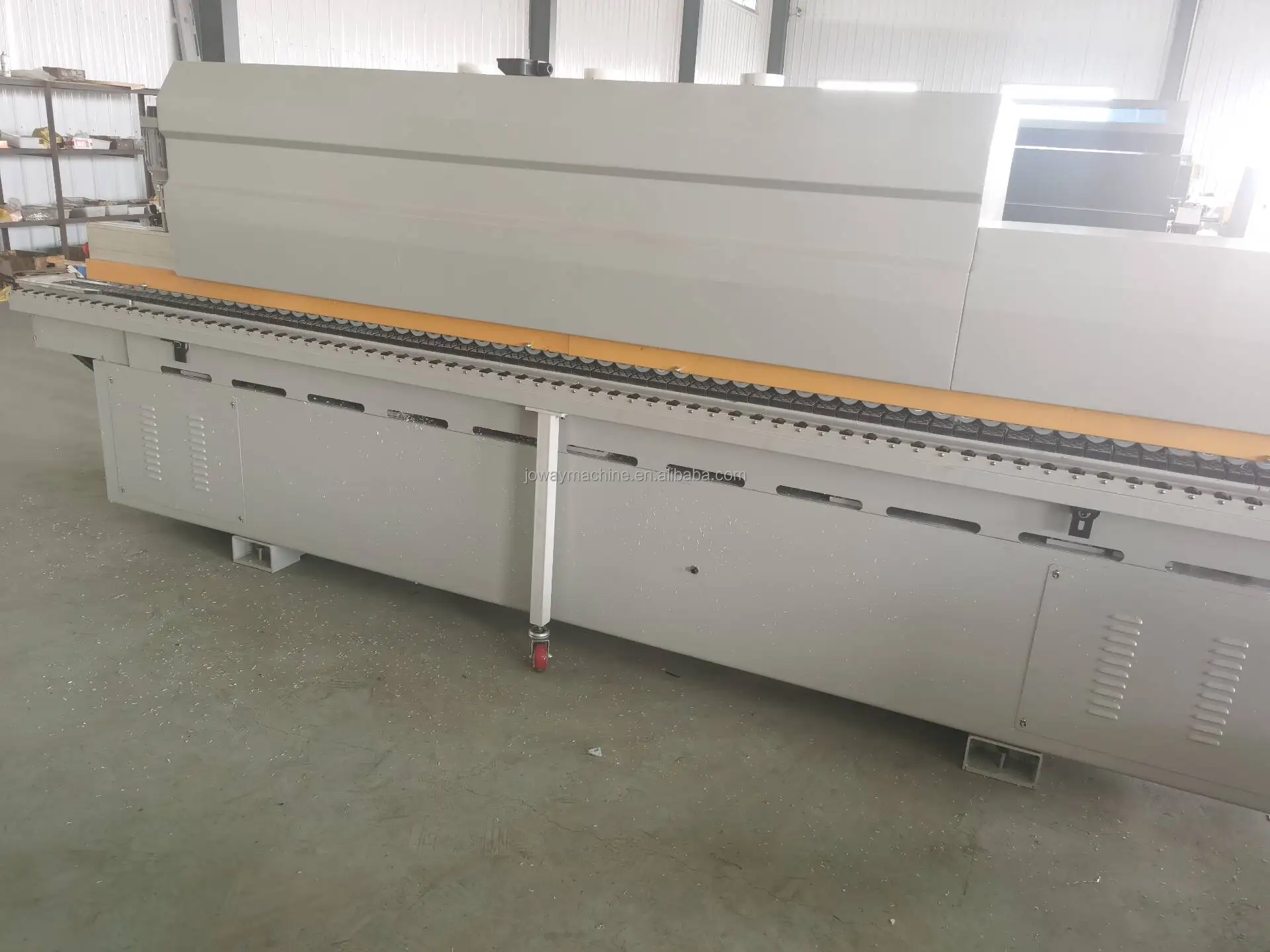

Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf
Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf

Woodworking edge banding machine door side wood edgebander machine with corner rounding functions woodworking for furniture mdf

Share on (1601096001561):


Price:$4,900.00 - $5,800.00

Quantity:


Product Overview

Description



Product Description

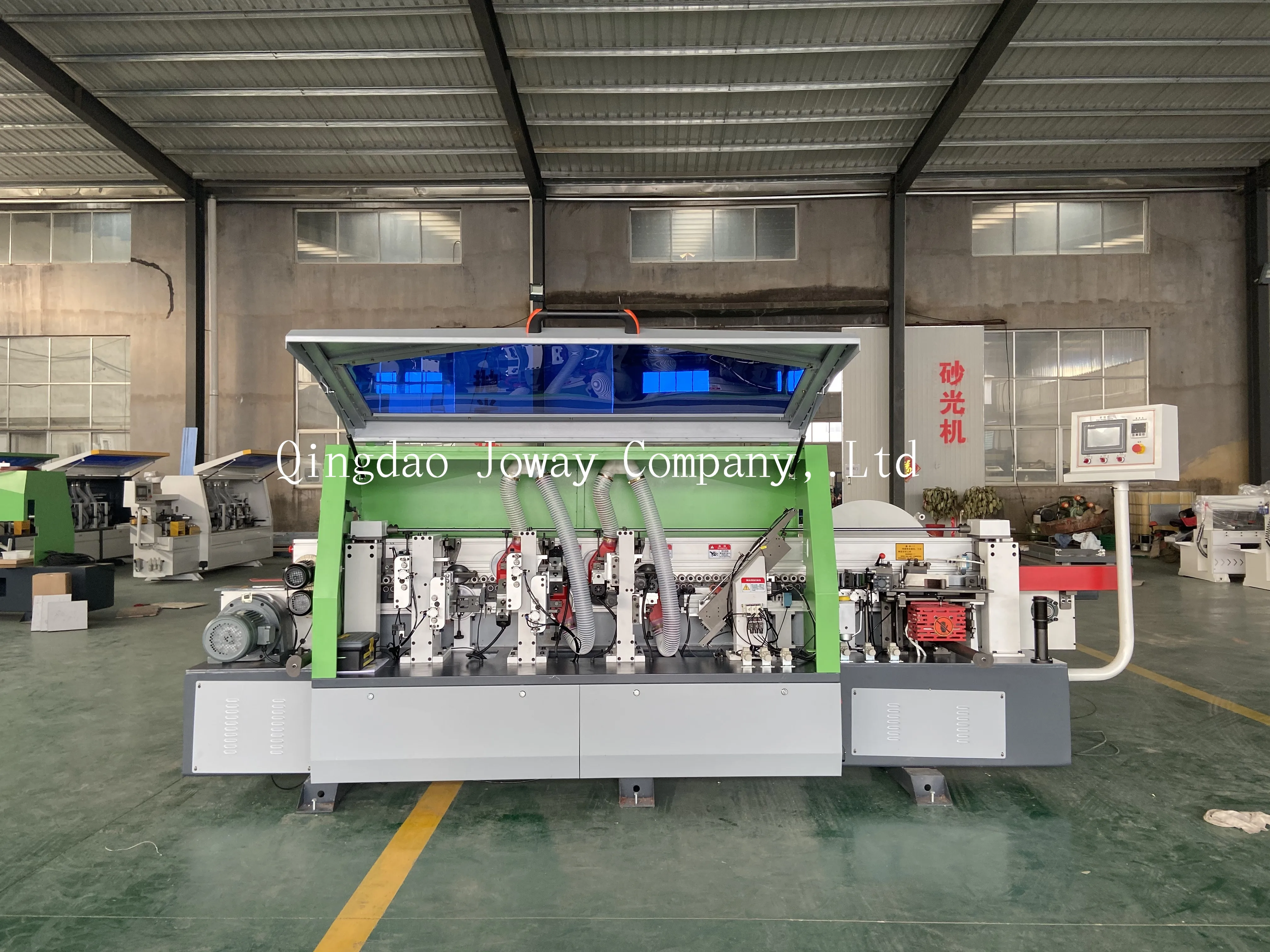

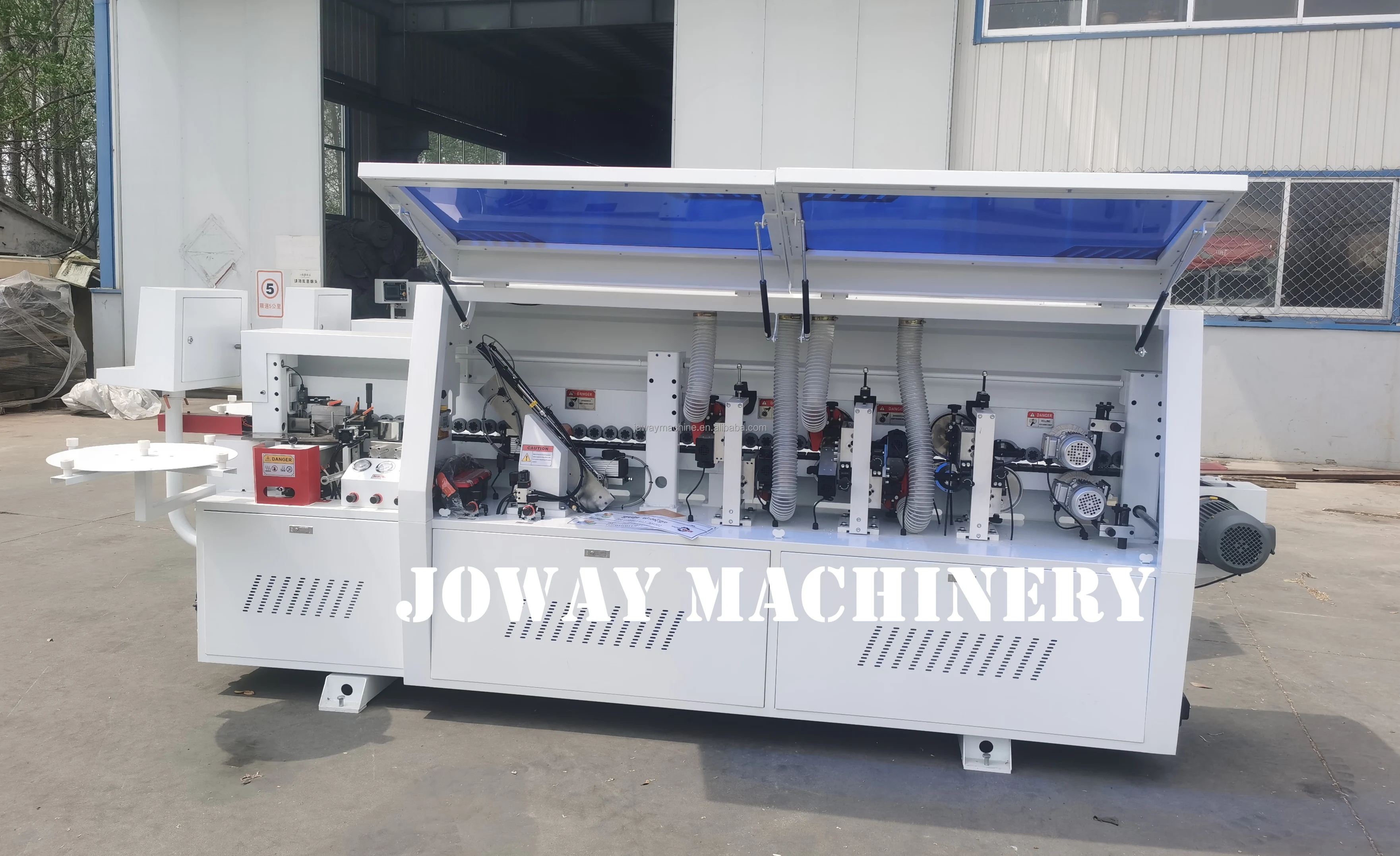

Automatic edge banding machine
1. Applicable products: solid wood panels, fibreboard. particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester,melamine and wood, and so on.
2.Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
3.Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high- quality electrical components.






Suitable for processing all kinds of MDF, particleboard, wood-based panels, ASB panels, PVC panels, plexiglass panels, etc.




Specification


Product name
Automatic edge banding machine
Model
JX-03
JX-04
JX-05
JX-04A
JX-05A
JX-06A
JX-07A
JX-07B
JX-08AB
Total power
3.5KW
4KW
5KW
6KW
7KW
8.5KW
15.5KW
11.5KW
19.5KW
Banding Tape Thickness
0.4-3mm

Banding Tape Width
12-65mm

Workpiece Thickness
10-60mm

Workpiece Length
>=100mm

Workpiece Width
>=50mm

Feeding Speed
10-23m/min

Air Pressure
0.8Mpa

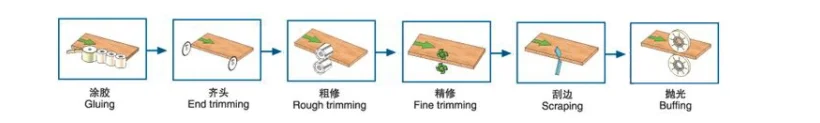

JX-03
gluing ,pressing,fine trimming and buffing
JX-04
gluing ,pressing,fine trimming,scraping and buffing
JX-05
gluing ,pressing,rough trimming,fine trimming,scraping and buffing
JX-04A
gluing ,pressing,end cutting,fine trimming and buffing
JX-05A
gluing ,pressing,end cutting,fine trimming,scraping and buffing
JX-06A
gluing ,pressing,end cutting,rough trimming,fine trimming,scraping and buffing
JX-07A
gluing ,pressing,end cutting,rough trimming,fine trimming, corner rounding,scraping and buffing
JX-07B
pre-milling,gluing ,pressing,end cutting,rough trimming,fine trimming,scraping and buffing
JX-08AB
pre-milling,gluing ,pressing,end cutting,rough trimming,fine trimming, corner rounding,scraping and buffing


Details Images


Structure function introduction

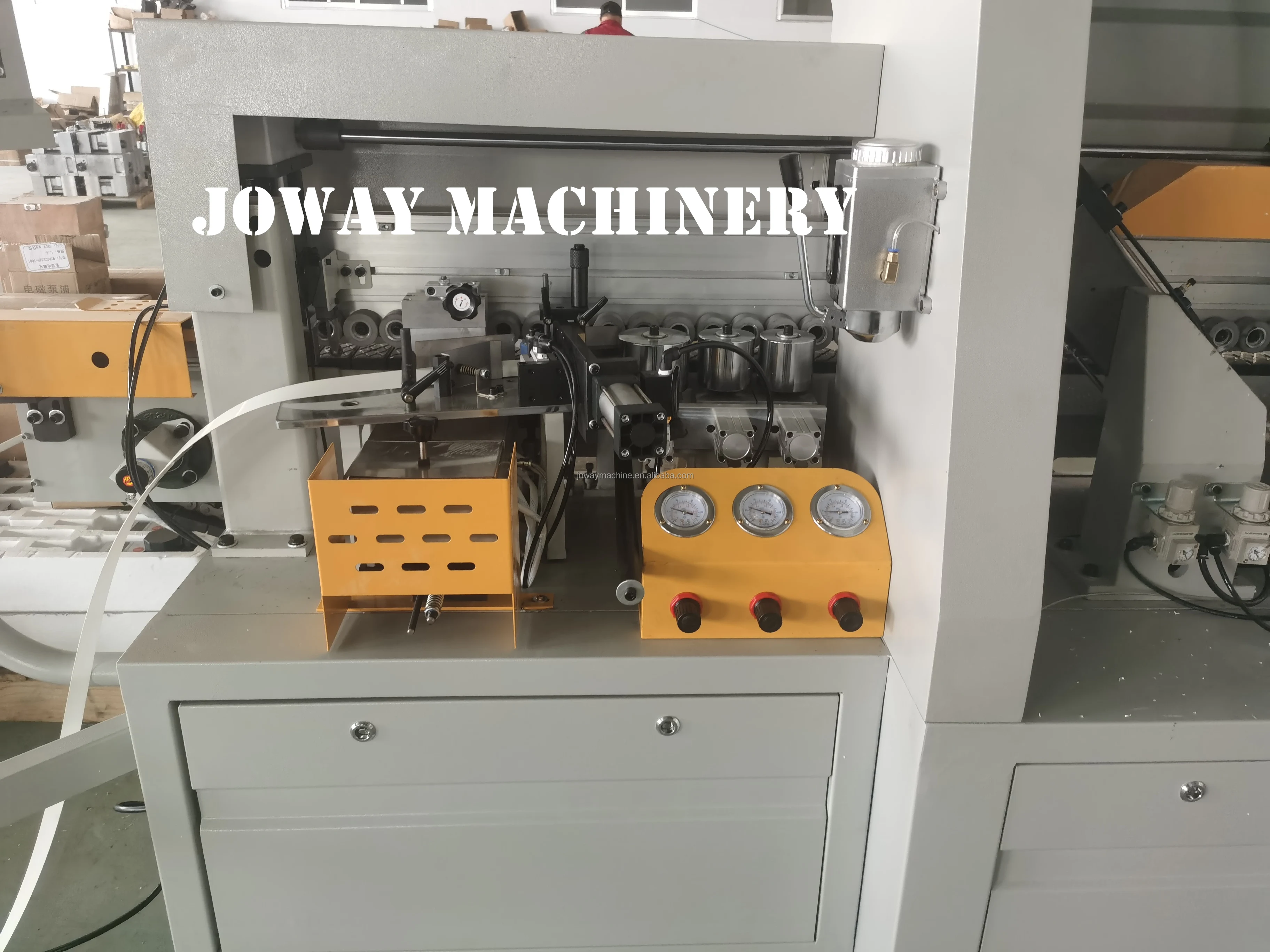

1. Gluing and pressing device
Gluing and pressing device is sealed by special structure side plate and edge sealing material coating evenly,ensure the adhesive force is stronger .
2. Front and rear flush device
The device moves through a precise linear guide,adopt automatic tracking by modeling and high frequency motor cutting and other structures to ensure the cutting surface smooth.


3. Coarse and fine repair device
The coarse and fine finishing device is used to repair and process plate seals .Excess edge sealing material in upper and lower parts of side band shall be taken Fast cutting with mould tracing and high frequency motor Cut the structure, to ensure the edge of the plate up and down Part flat and smooth.
4. Edge scraping device
Edge scraper is used to eliminate non straight lines due to trimming A ripple mark caused by moving cutting Trace makes the upper and lower parts of sapwood more smooth and tidy.


5. polishing device
polishing device is cleaaned and processed with cotton polishing wheelgood plate ,through polishing to make edge sealing end more smooth.
6.The premilling device
The premilling device USES double milling cutter to cut the plate The resulting ripple marks are Modified again,better edge sealing effect has been achieved.


7.Tracking copying device
Tracking copying device to ensure the completion of work piece processing Aesthetic touch and visual effects, can achieve a variety of Conformal effect.

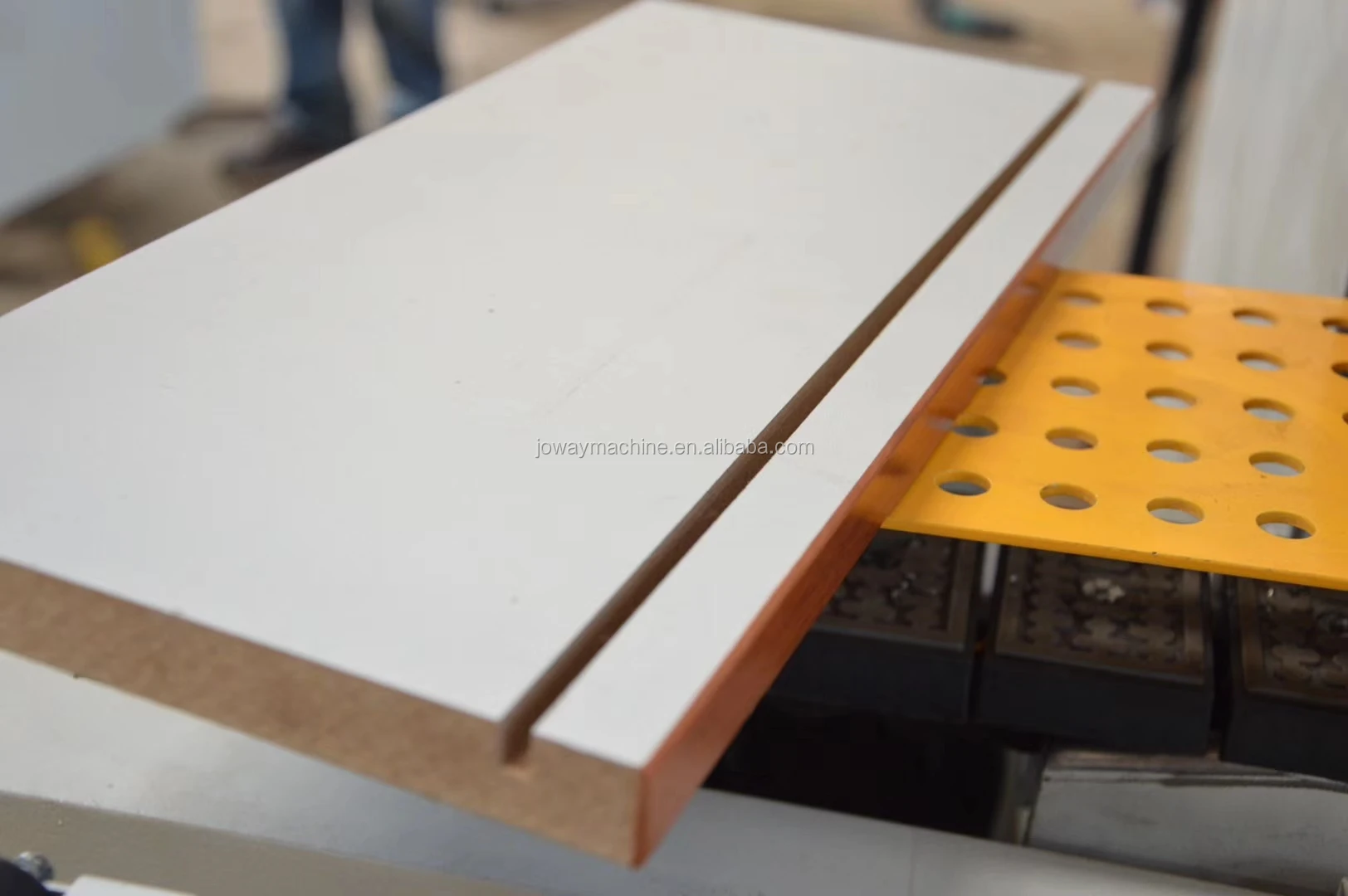

8.Slotting device
slotting device for side plate ,direct slotting ,reduceless cutting plate saw process ,more convenient and fast .


Accessories

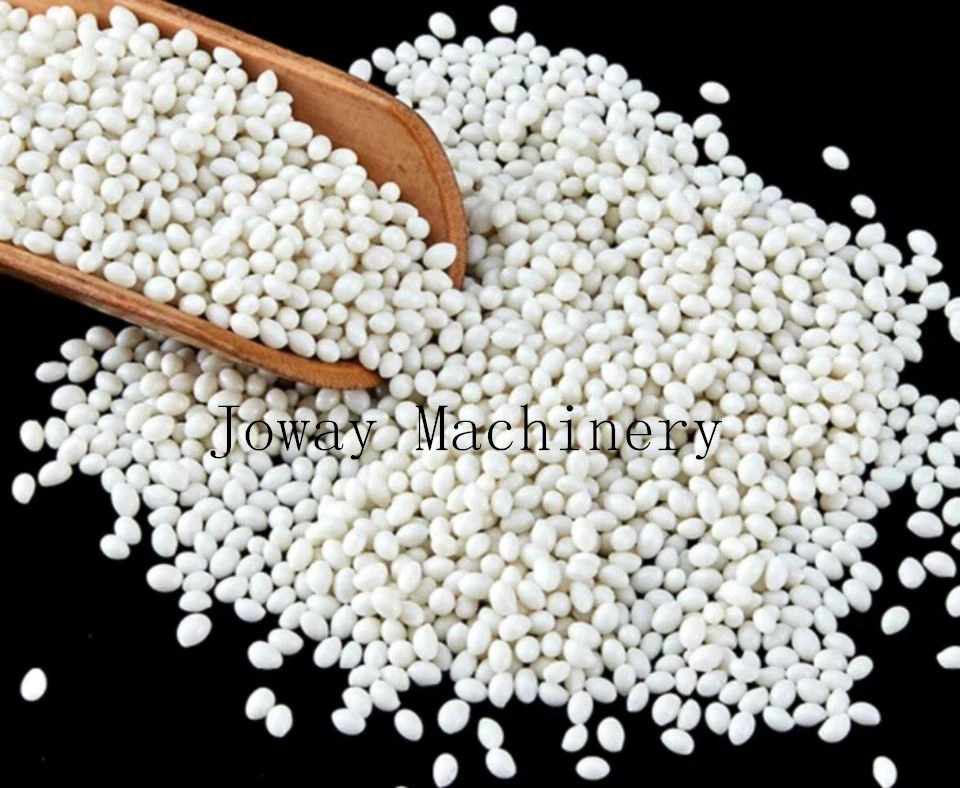

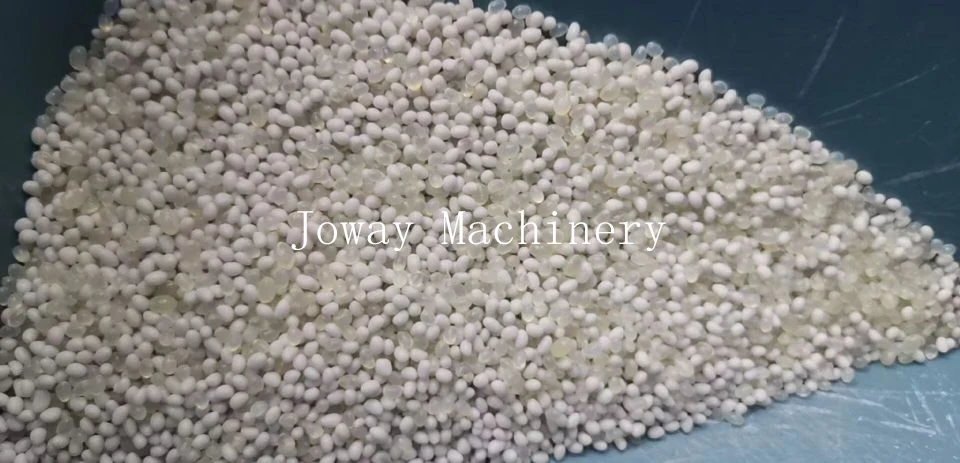

Mixed rubber particles and pure white rubber particles have strong adhesion and can be customized according to needs.

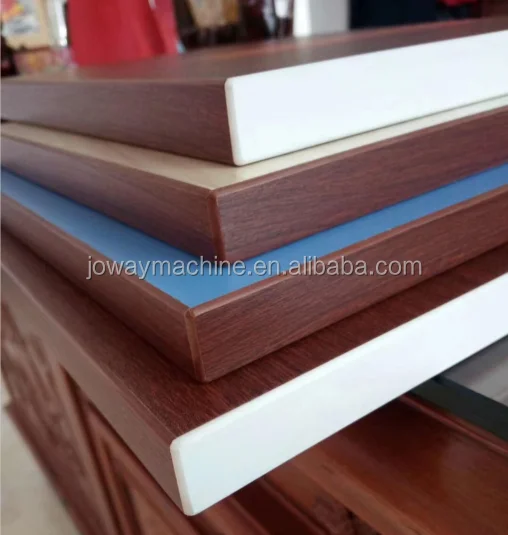

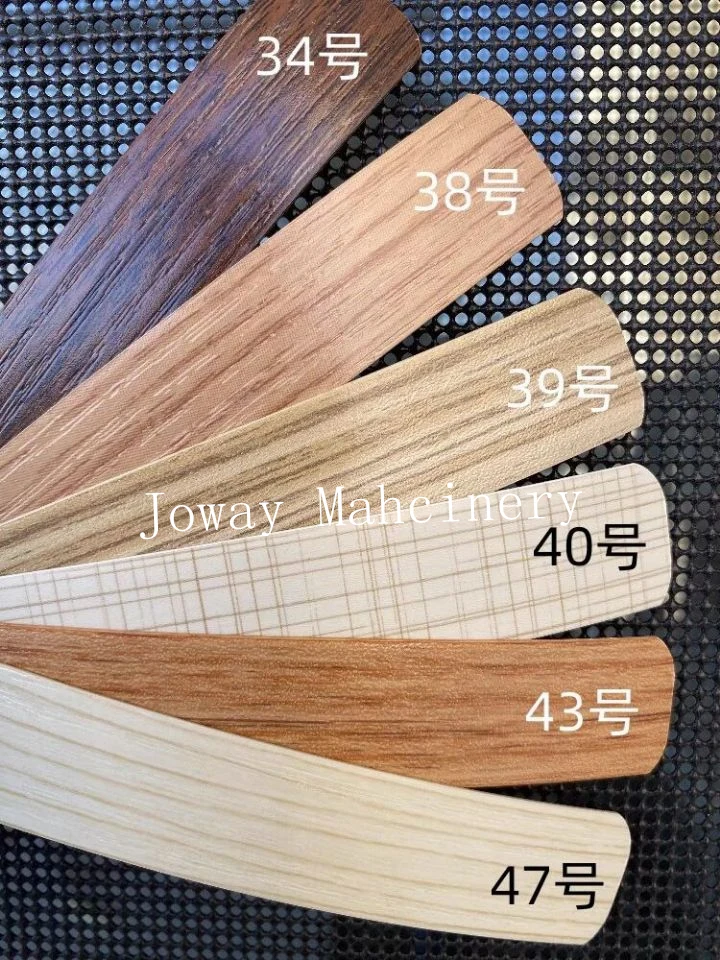

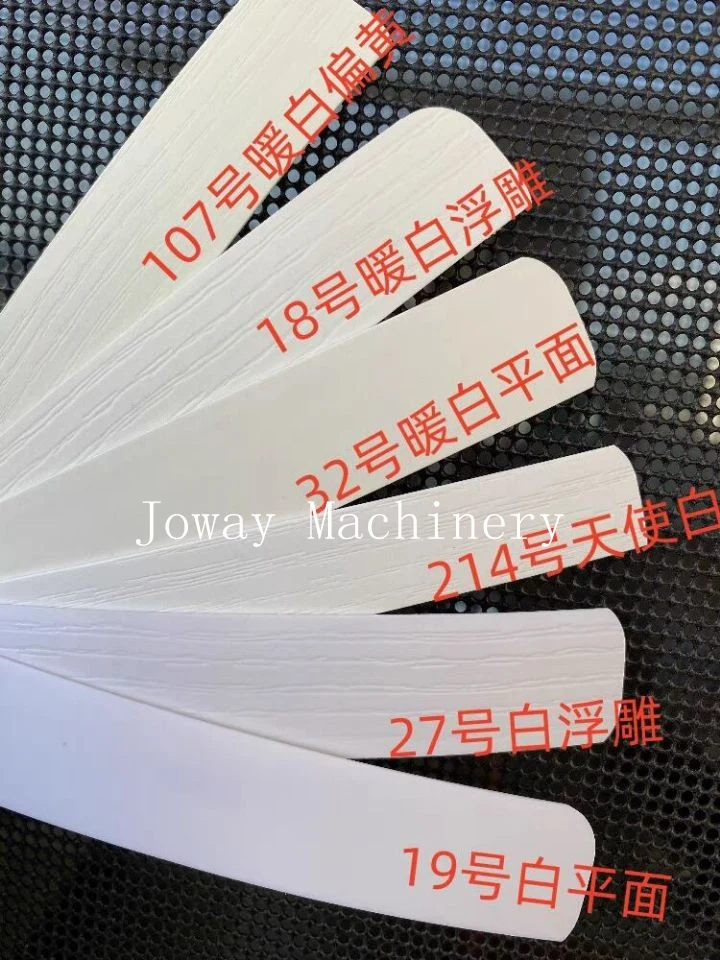

.Different styles and colors of edge banding support customization. （Color. Width. Thickness. Length.）

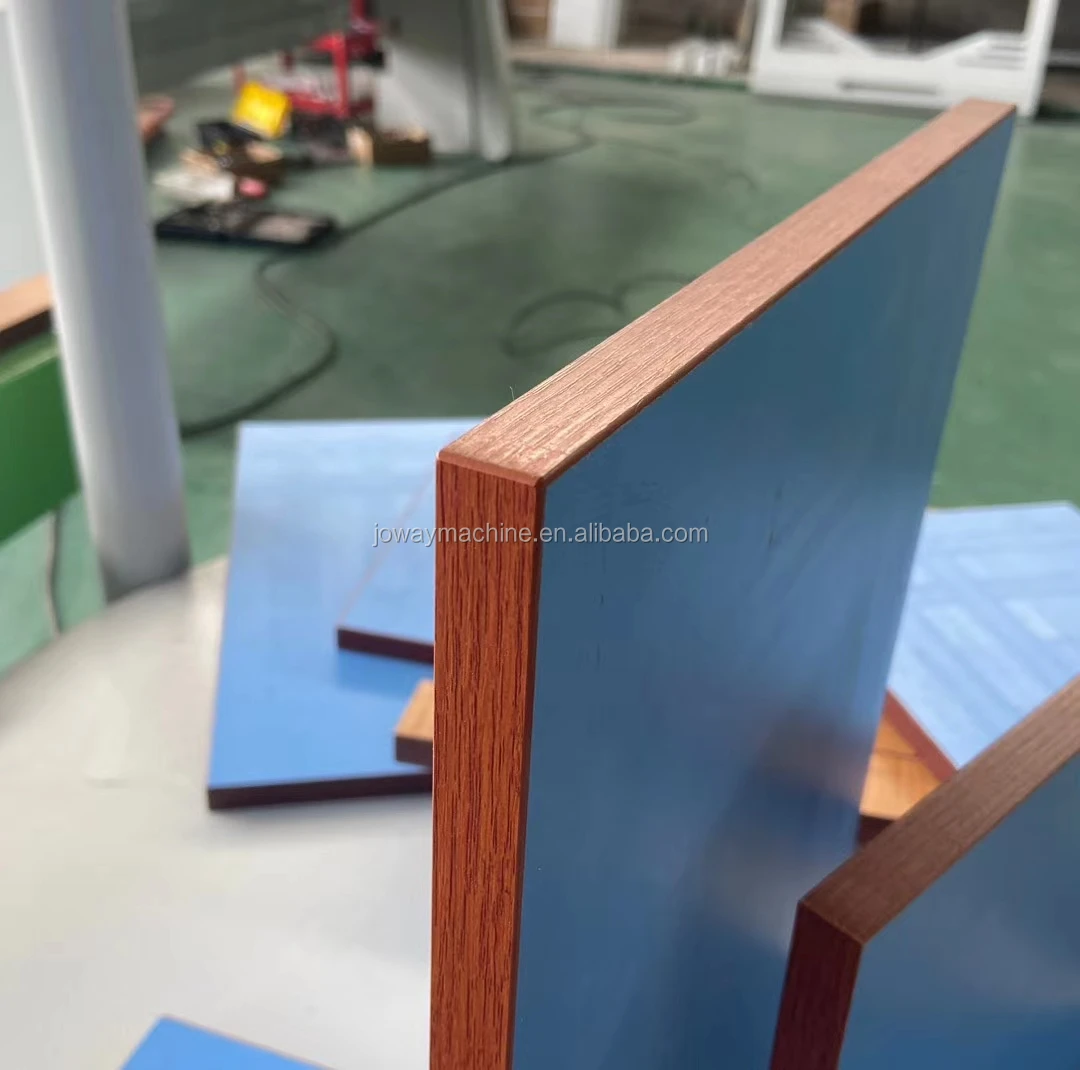

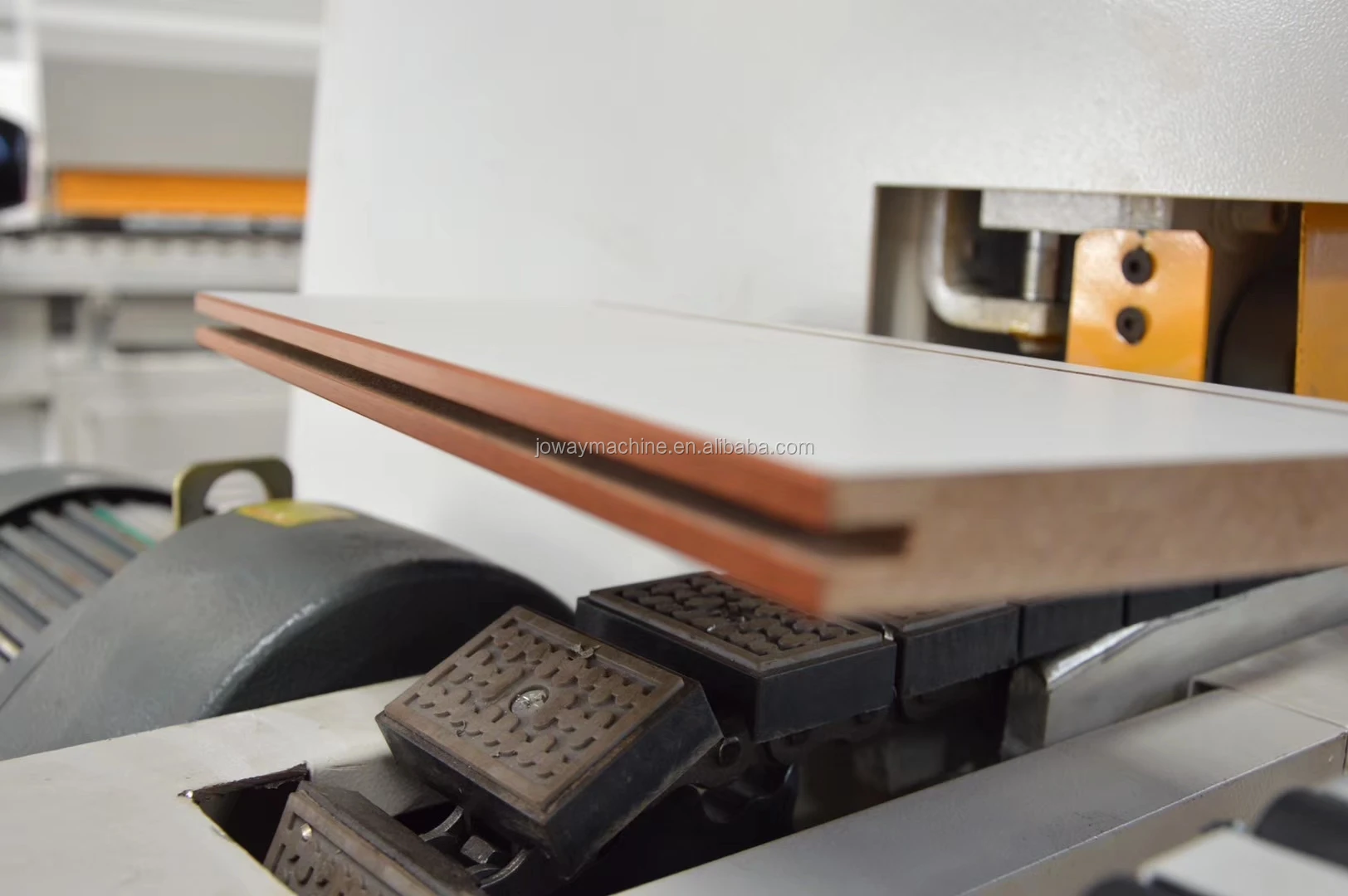

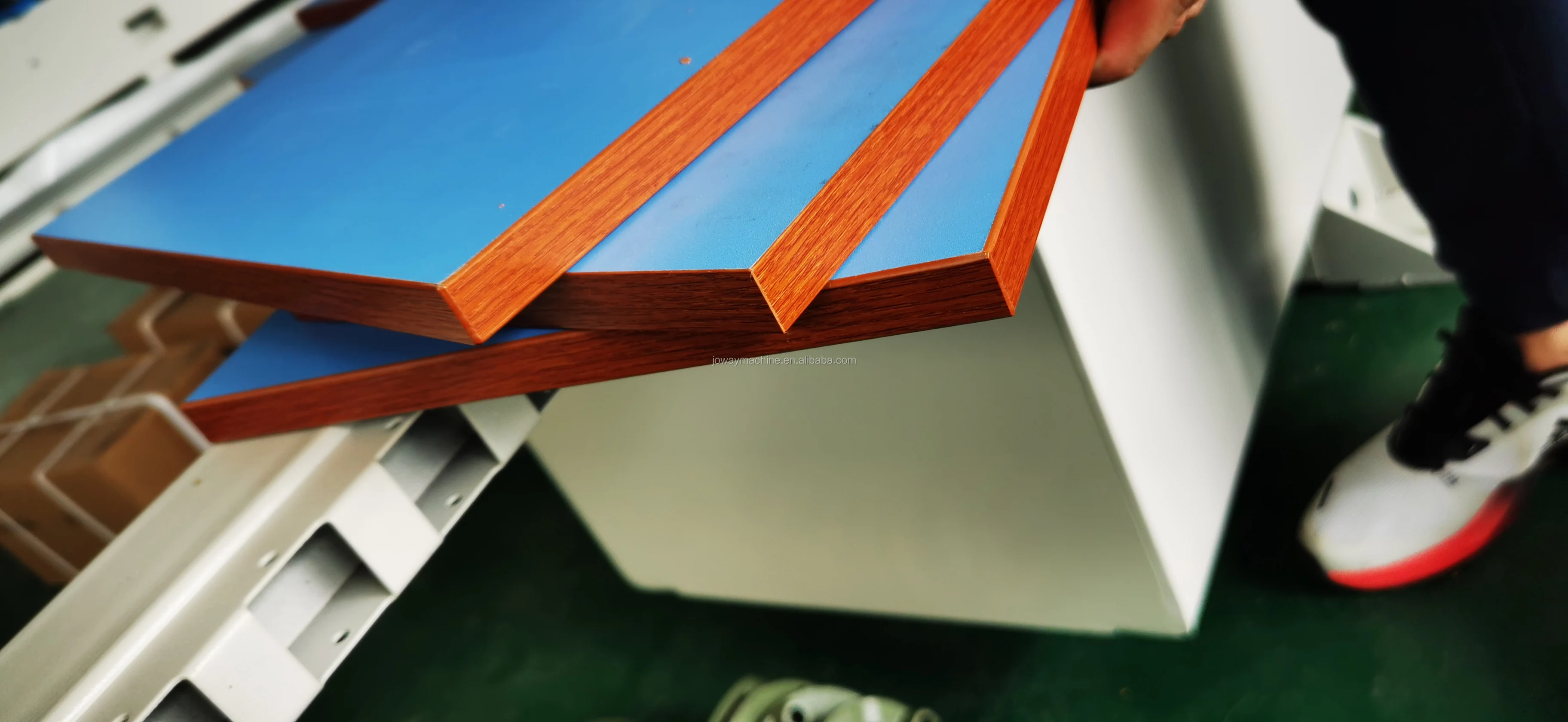

Effect Contrast

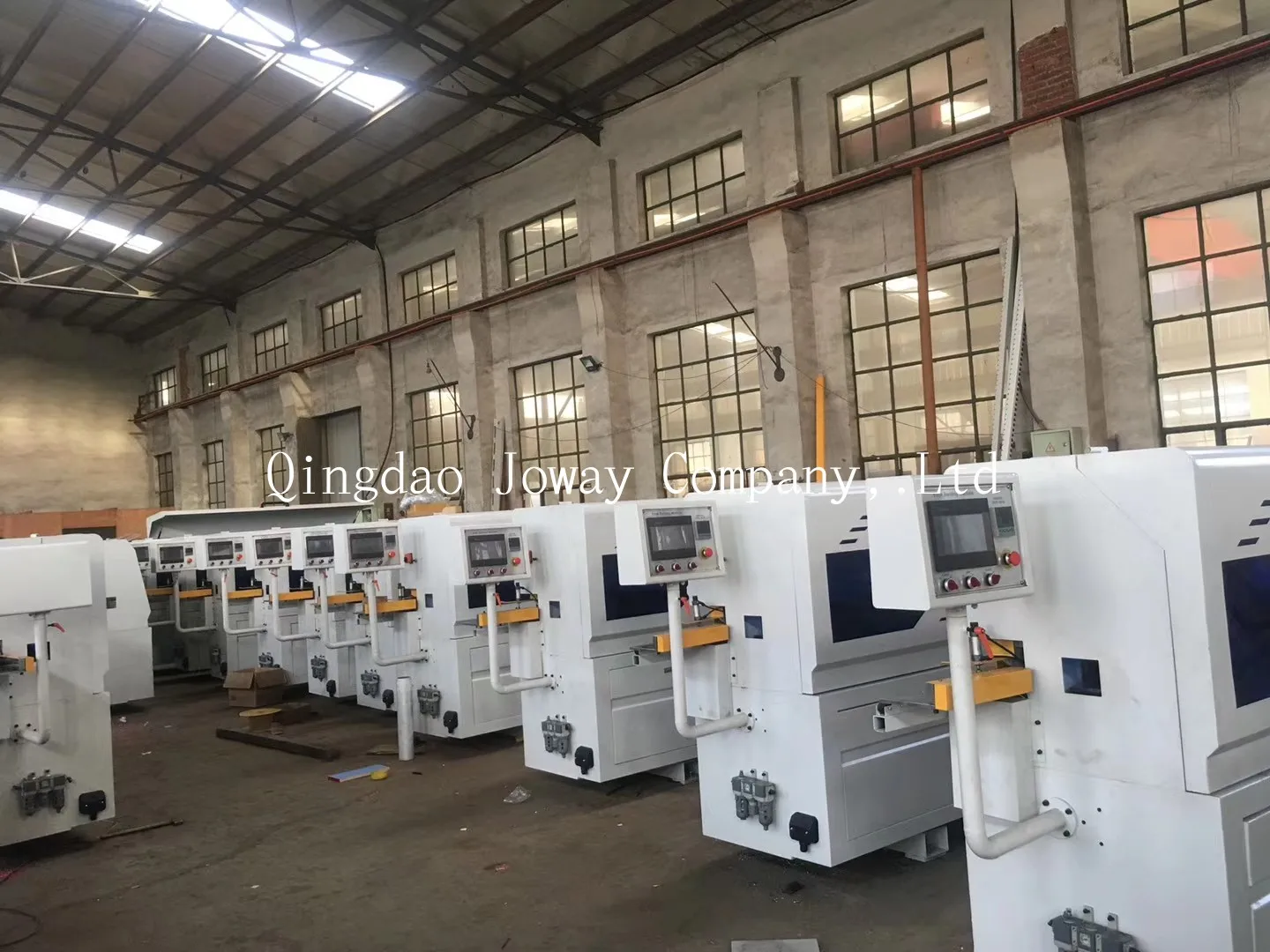

Our Advantages




Large edge banding machine factory, specializing in mass production.

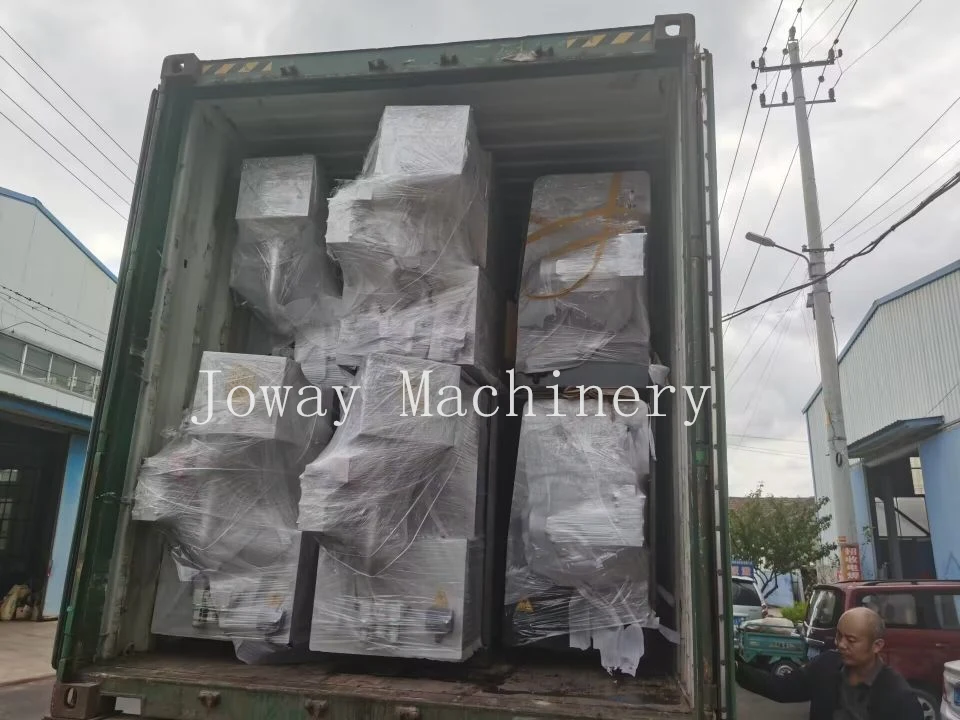

Packing & Delivery

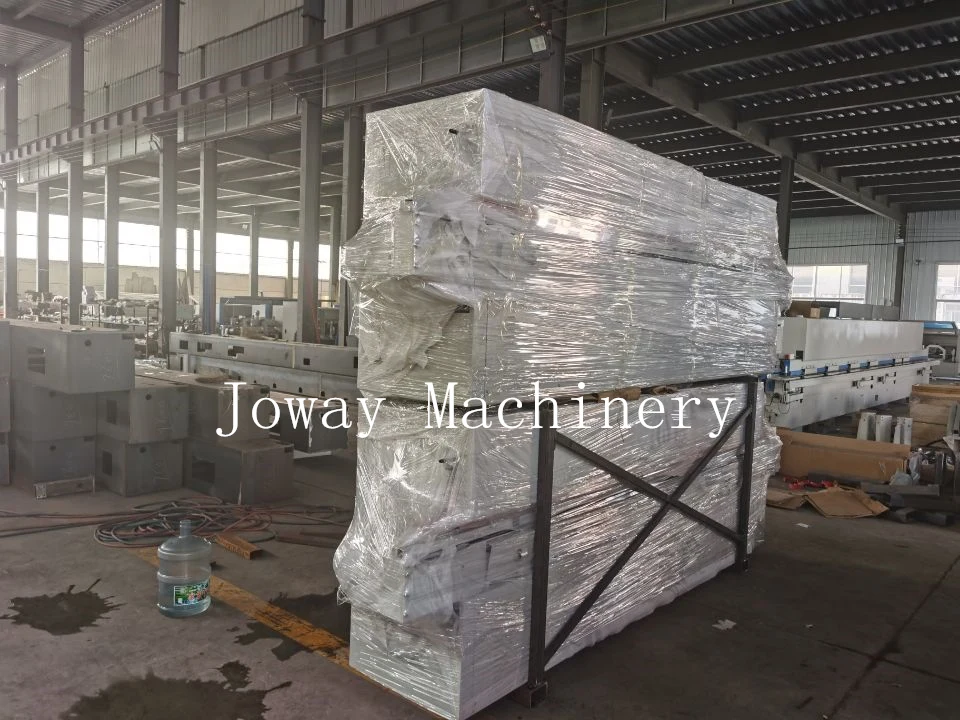

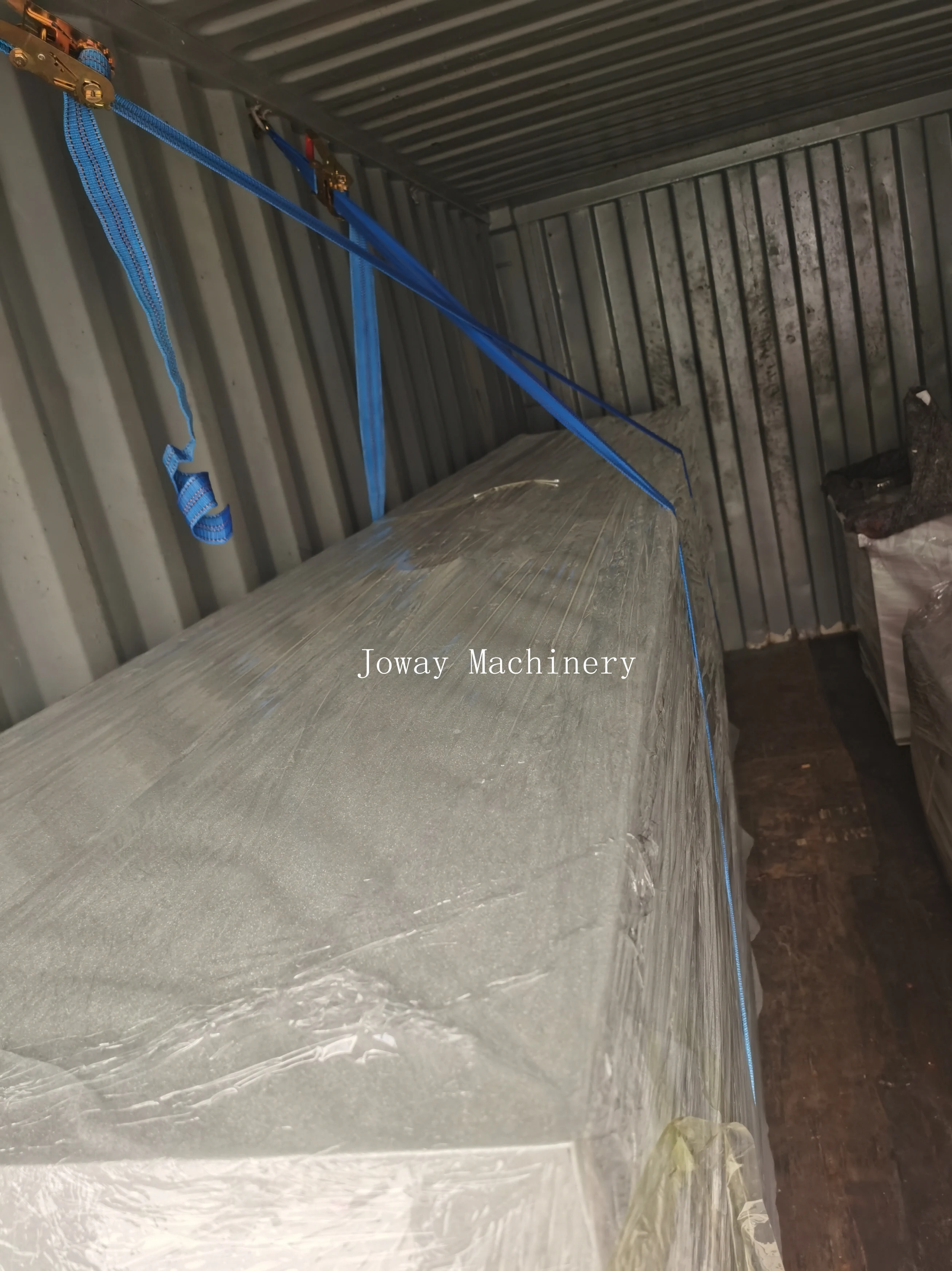

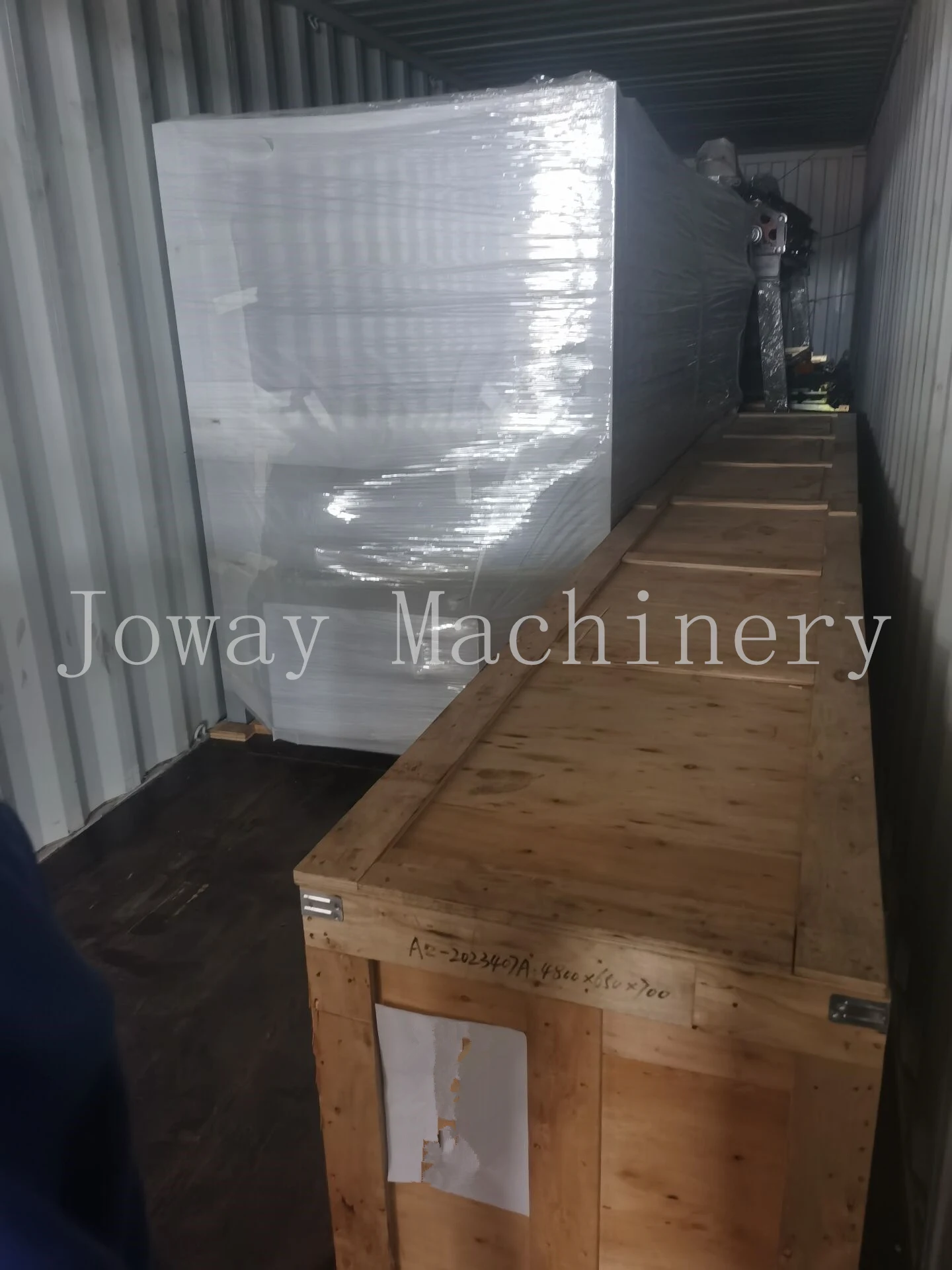

Wrap film and wooden box packaging machines to ensure the safety and stability of the machine during transportation.
