Vertical sand pump submersible slurry pump price list
- Category: >>>
- Supplier: Shijiazhuang Kunzhen Wear Resistant Slurry Pump Co. Ltd.
Share on (1601096027079):
Product Overview
Description
Product Overview

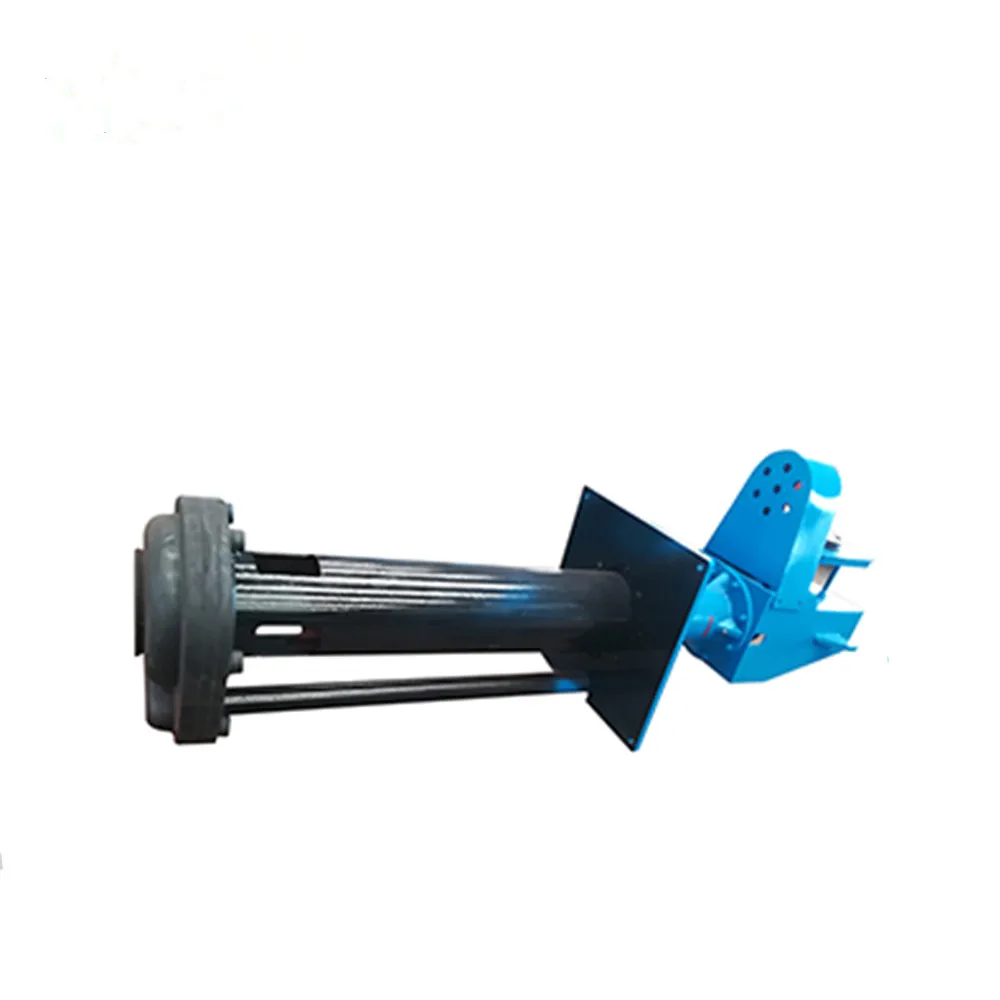

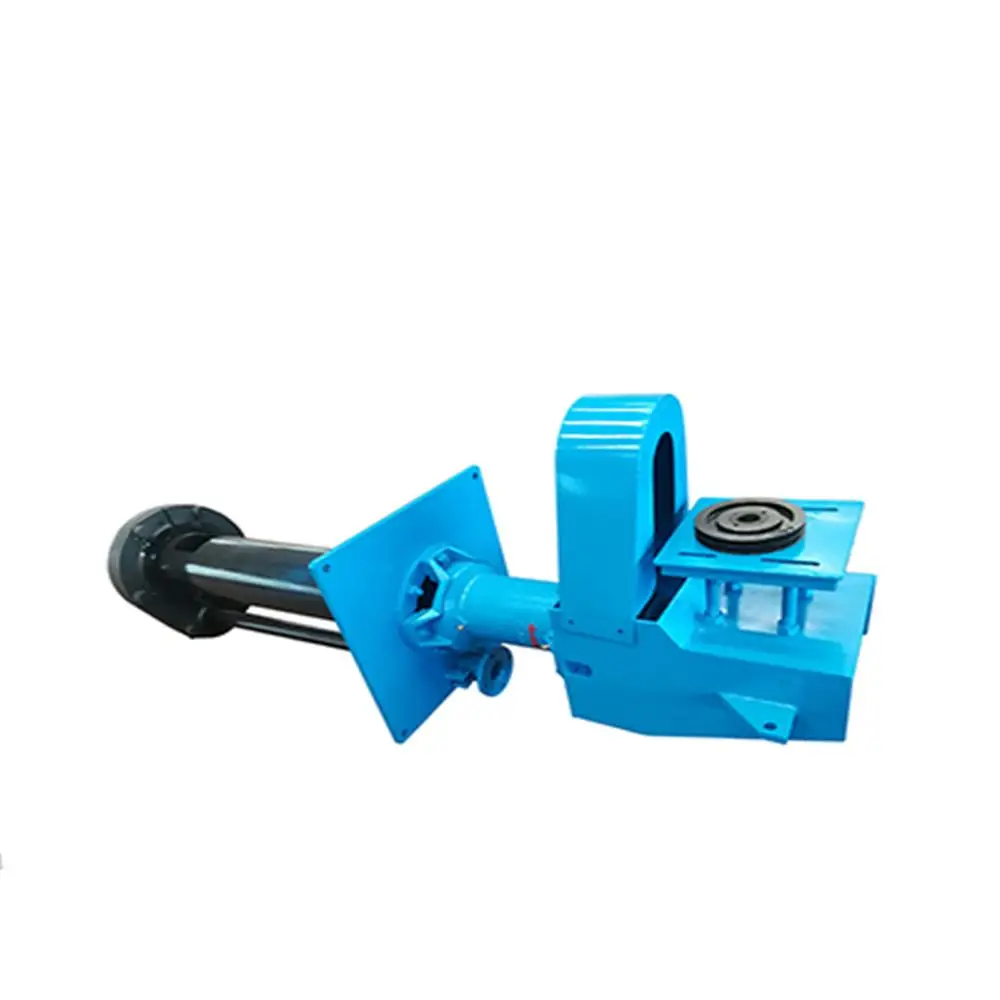

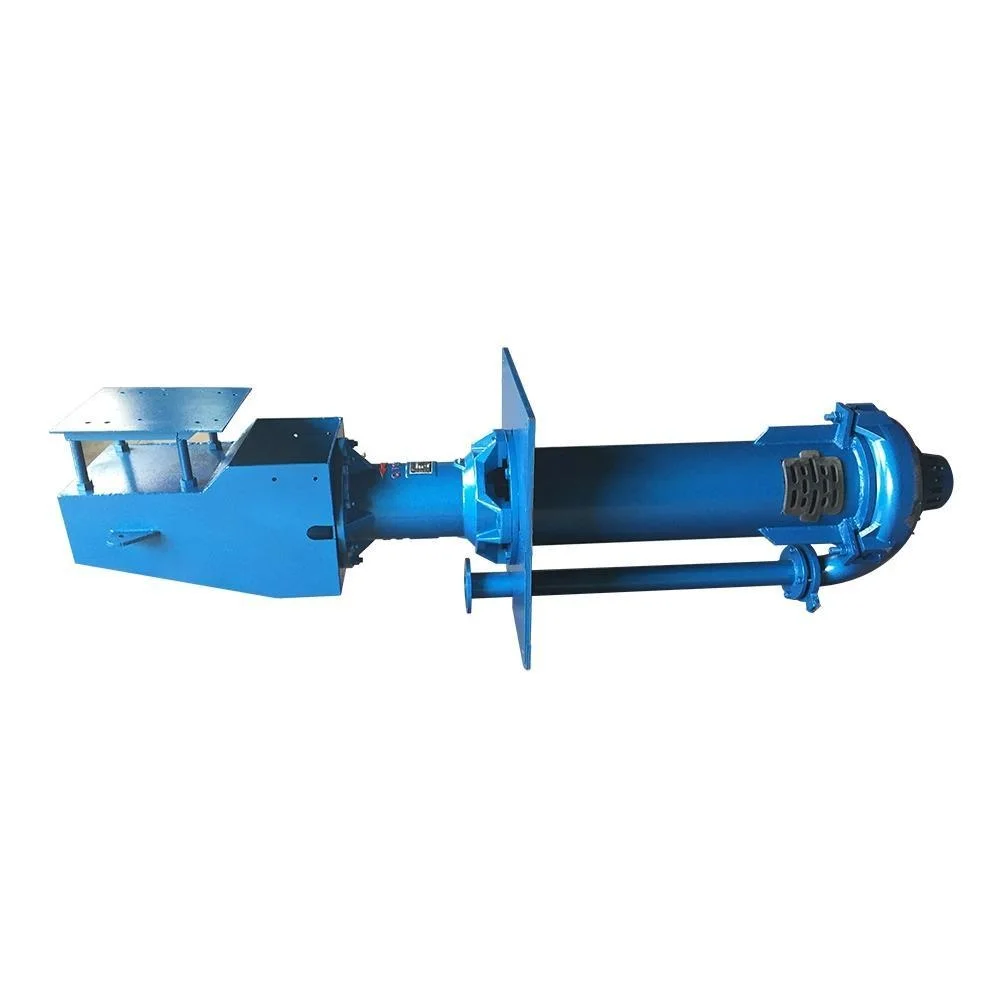

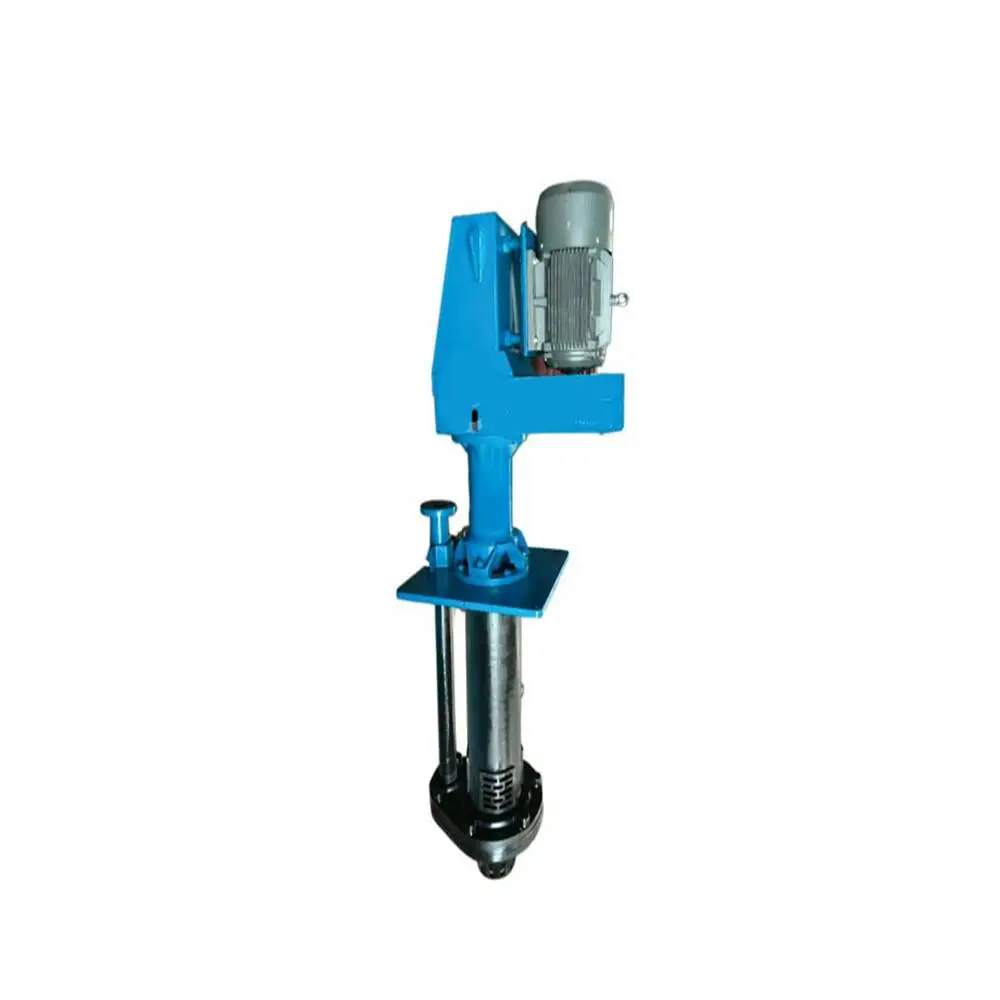

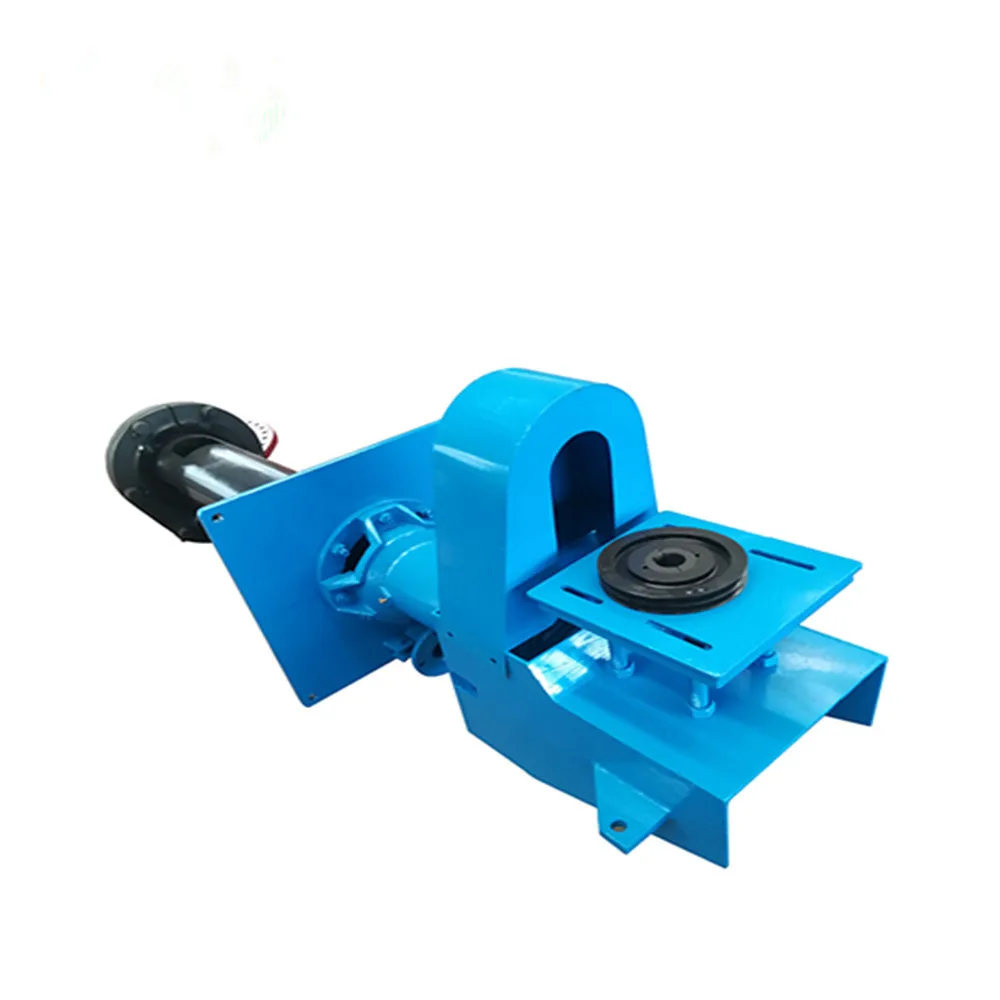

Vertical submersible mud slurry pump with 1200mm submersible depth
1. SP (R) type submersible slurry pumps are vertical centrifugal slurry pump with semi-open impeller and cantilevered shaft, submerged in the pool or pit to transport abrasive, coarse particle, high concentration slurry.
2. Don't need any shaft seal and shaft seal water, they can also work normally in the inhaled volume insufficient conditions
3. Application: Iron ore dressing plant, Potash fertilizer plant, Copper/Glod /Molybdenum concentration plant, Alumina industry, Coal washing, Sand excavation, etc.
2. Don't need any shaft seal and shaft seal water, they can also work normally in the inhaled volume insufficient conditions
3. Application: Iron ore dressing plant, Potash fertilizer plant, Copper/Glod /Molybdenum concentration plant, Alumina industry, Coal washing, Sand excavation, etc.
Pump Type | Semi-submersible Slurry Pump |
Wet Parts Material | Ultra Chrome/Rubber/Ceramic, etc. |
Impeller Type | Open Impeller |
Submersible Depth | 0.9/1.2/1.5/1.8m |
FEATURES AT A GLANCE
Outlet: 40-300 mmCapacity: 46-1200 m3/h
Head: 4-40 m
Material: Cr27 Ultra chrome alloy /Rubber
Structure: Cantilever Shaft
Power : Electric Motor
Drive Type: DC, BD
Head: 4-40 m
Material: Cr27 Ultra chrome alloy /Rubber
Structure: Cantilever Shaft
Power : Electric Motor
Drive Type: DC, BD
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Submersible Mining Slurry Pump
Vertical Long Shaft Acid Sludge Pump
Tailings Sump Slurry Pumping Machine
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1.Can you supply pump qualified with ANSI and ASME standard?
A.Yes, our pump compliant with ISO / ASME/ANSI standard.
Q2.How do you control the quality of the products?
A.Our production is strictly according to ISO 9001 standard and factory was established in 1980, have over 30 years experience in slurry pumps and parts.
Q3.How to find the pumps that suitable for us ?
A.Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We supply OEM and ODM services as well .
Q4.How can I pay for my items? What is the payment term ?
A. 30%T/T advanced , 70%T/T before shipment
Q5.How long is warranty?
A.1 year for main construction warranty.
Q6.How long is production leading time?
A.Normally 2-4 weeks. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q7.What is the shipping terms you can provide ?
A.Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.
Q8.Is after-sales service available ?
A. Sure. No matter customers buy our products or not , we will supply professional technical support .
A.Yes, our pump compliant with ISO / ASME/ANSI standard.
Q2.How do you control the quality of the products?
A.Our production is strictly according to ISO 9001 standard and factory was established in 1980, have over 30 years experience in slurry pumps and parts.
Q3.How to find the pumps that suitable for us ?
A.Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We supply OEM and ODM services as well .
Q4.How can I pay for my items? What is the payment term ?
A. 30%T/T advanced , 70%T/T before shipment
Q5.How long is warranty?
A.1 year for main construction warranty.
Q6.How long is production leading time?
A.Normally 2-4 weeks. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q7.What is the shipping terms you can provide ?
A.Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.
Q8.Is after-sales service available ?
A. Sure. No matter customers buy our products or not , we will supply professional technical support .
